400*400 OVM6946 USB Endoscope Camera 1.8mm 2.0mm CMOS USB Medical Endoscope Camera Module For ENT Gastroscope Laparoscopic
- Category: >>>
- Supplier: Shenzhen Brilliant Cmos Technology Co. Ltd.
Share on (1601029495140):
Product Overview
Description
Product Description
Product Name | 2.0mm 400P Endoscope Camera Module |
Sensor | 1/18“CMOS Sensor |
Resolution | 400*400P@30FPS |
FOV（Diagonal） | 120° |
Depth of field | 5mm to Infinity, 10-100mm, 3-50mm can be optional |
LED | 4PCS |

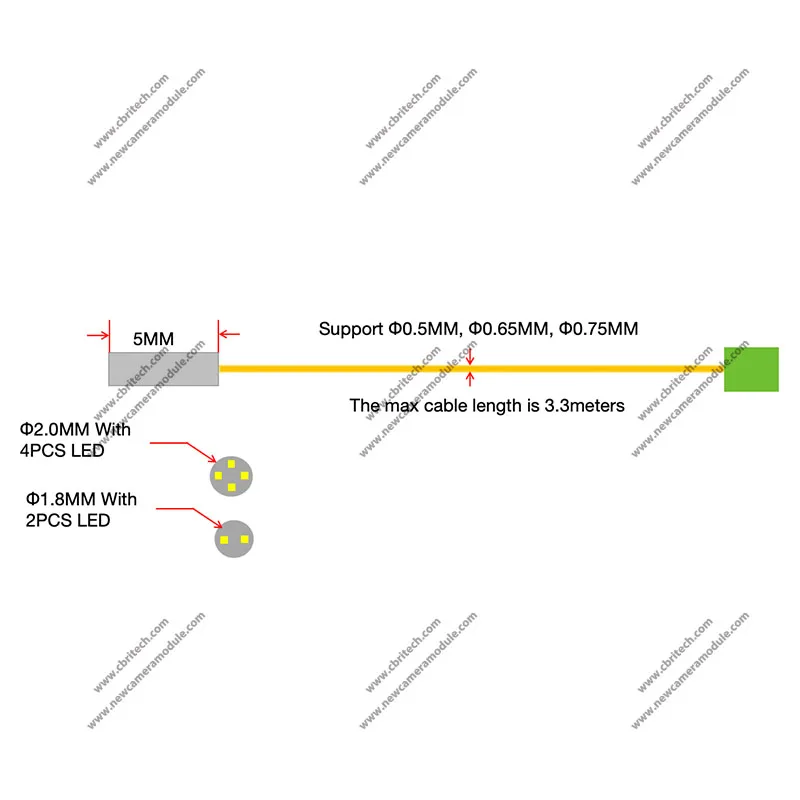

Cable Length | 500-3000MM |
Waterproof Level | IP67 |

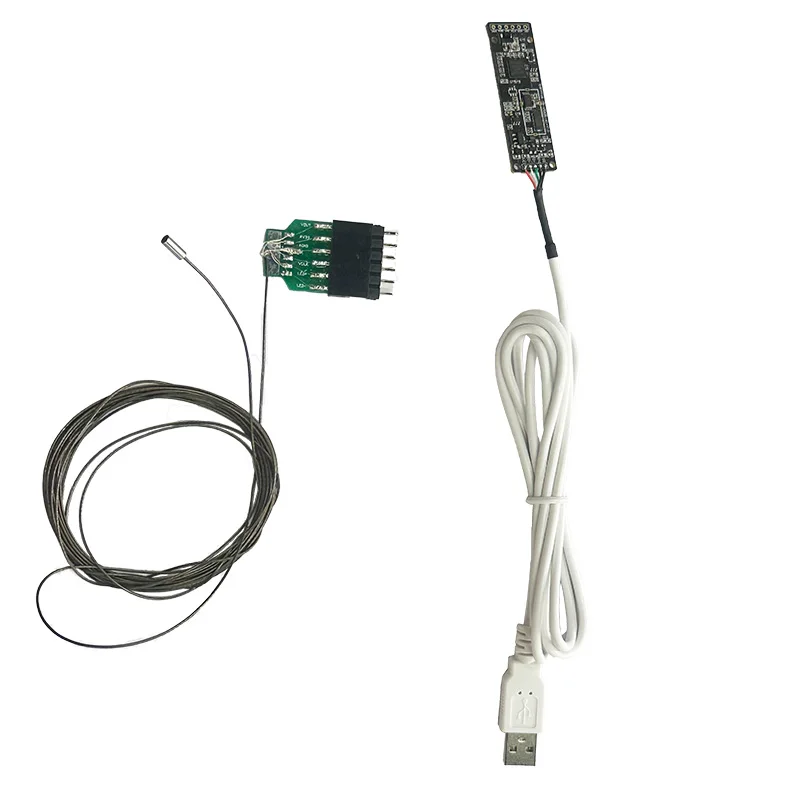

Separately from the PCBA | Camera Module + PCB |
Supporting image processing board | USB |
Product performance description
Out diameter 2.0mm 400P endocspe camera module is used for CMOS OV6946 1/18″ sensor. Separately from the PCBA : PCB decoder + Camera moudule. Depth of Field can be 5mm to Infinity, 10-100mm ( Customized 5-50mm, 30mm-80mm ).
More details for miniature camera module for disposable medical endoscopes
Application for Industrial endoscopic, for Medical endoscope. Like: Endoscopy of digestive tract; Hysteroscopy; Anorectal endoscopy; Urinary endoscopy; Disposable endoscopy,Urology and Gynaecology and so on.
Details Images

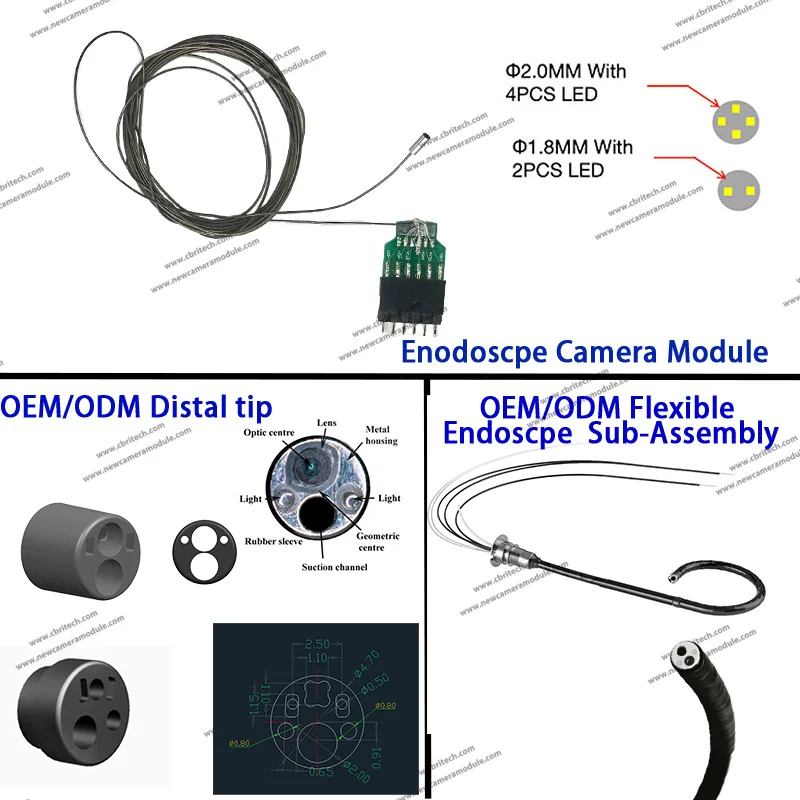

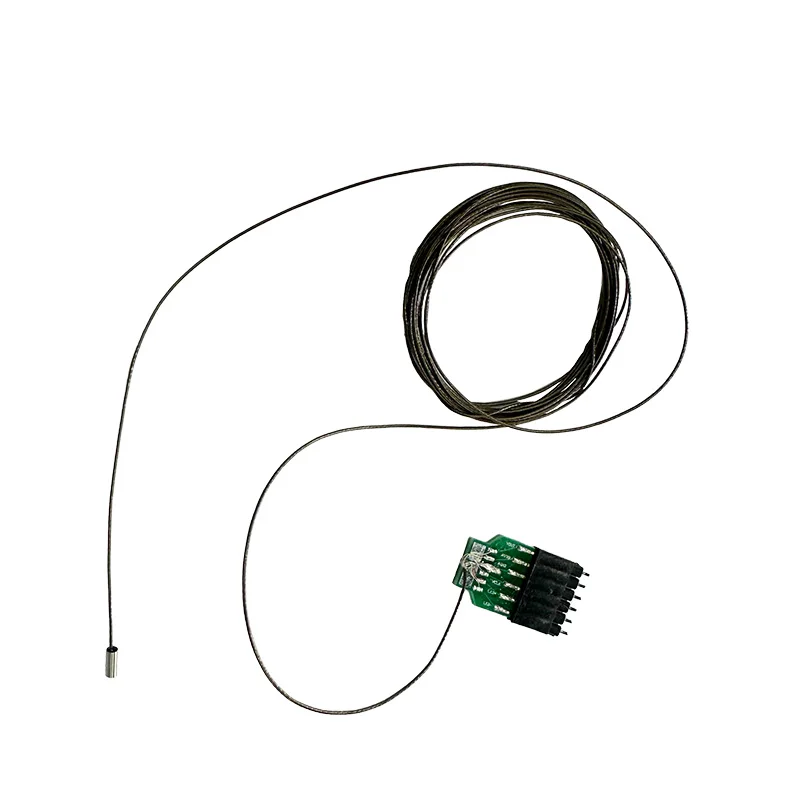

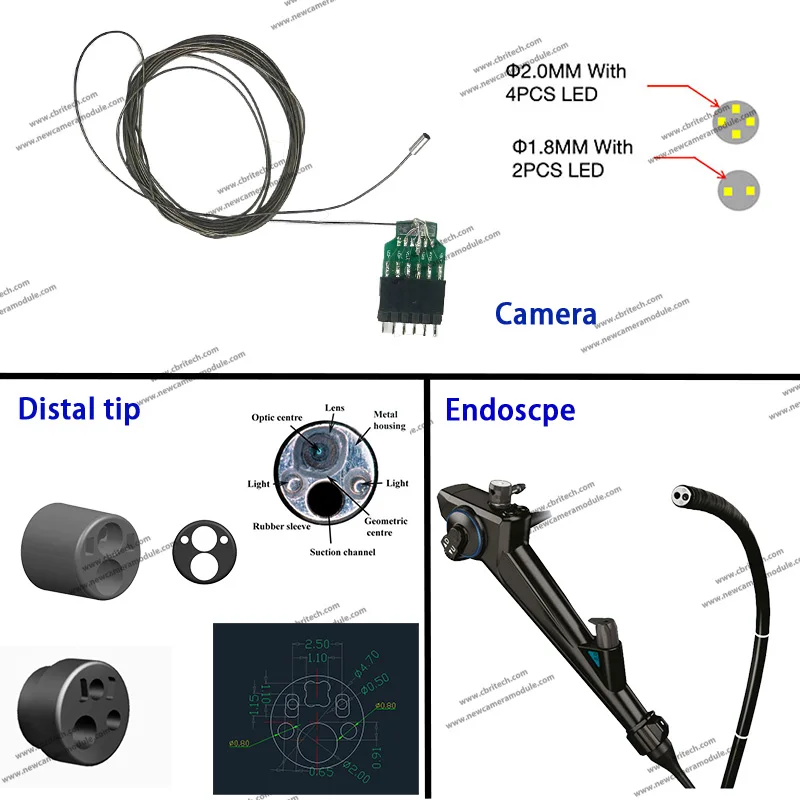

Diameter 2.0mm endoscope camera module is used for OV6946 CMOS image sensor , the reslution is 400*400, frame rate is 30FPS.

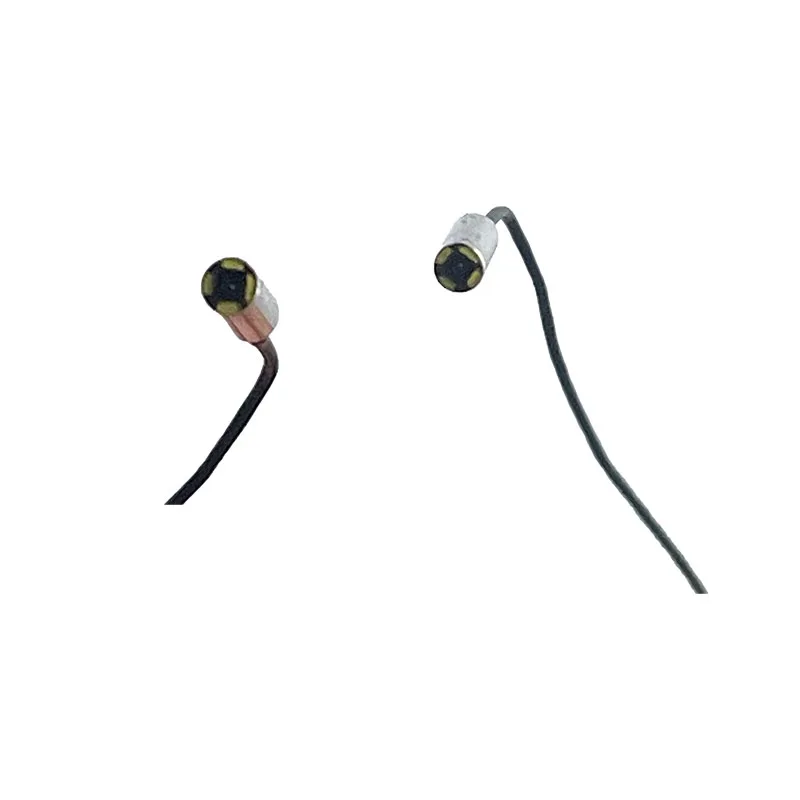

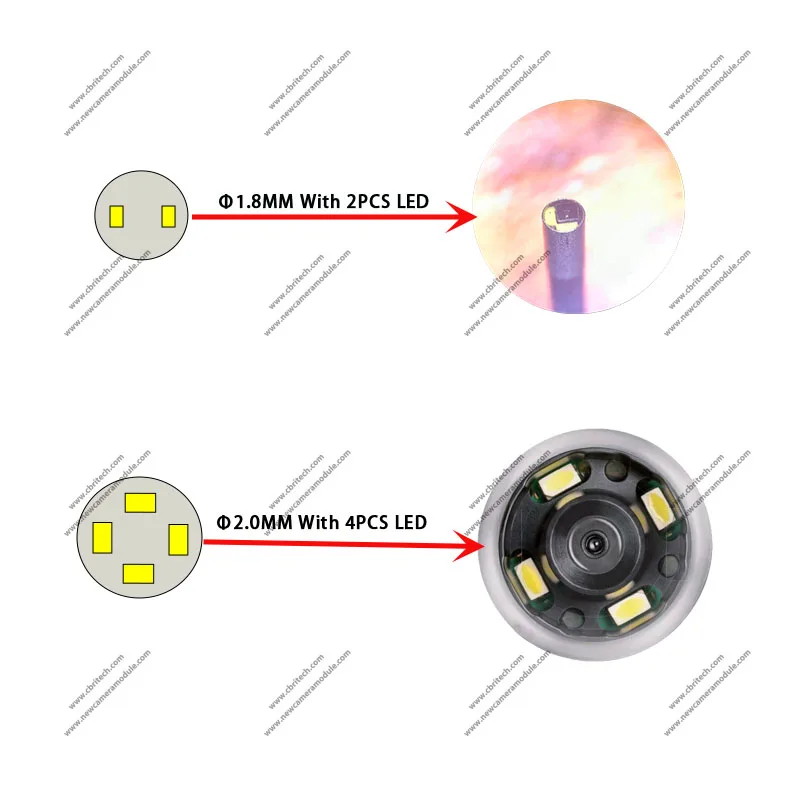

FOV is 120 degree. It can be with 4PCS led.

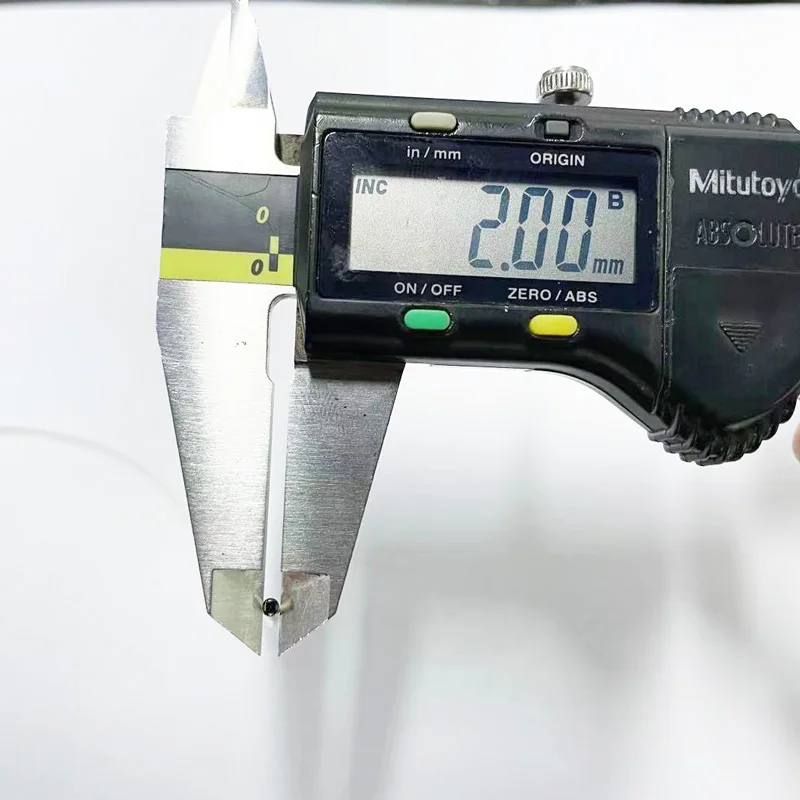

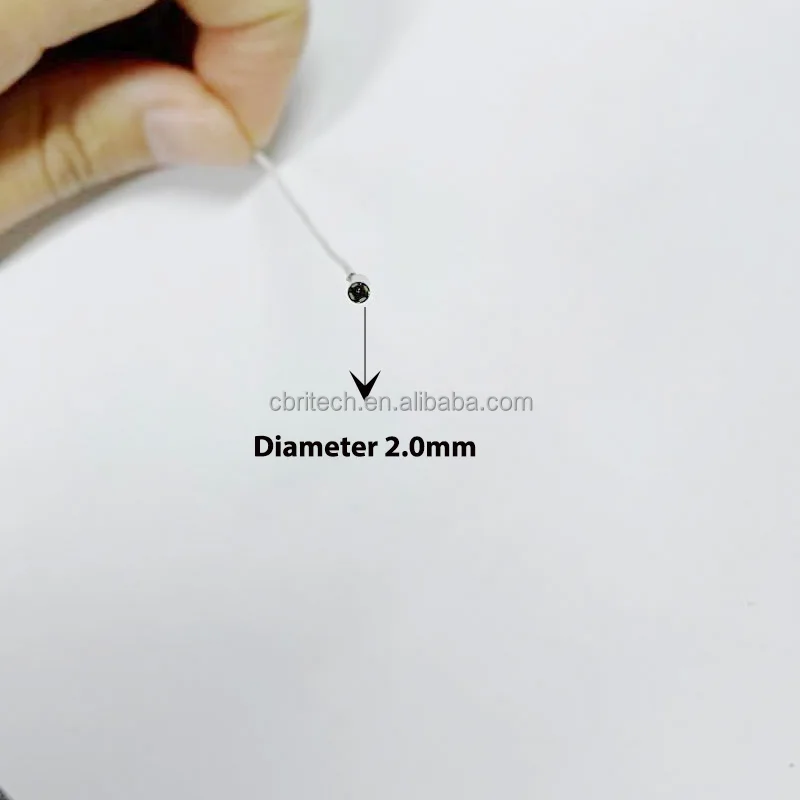

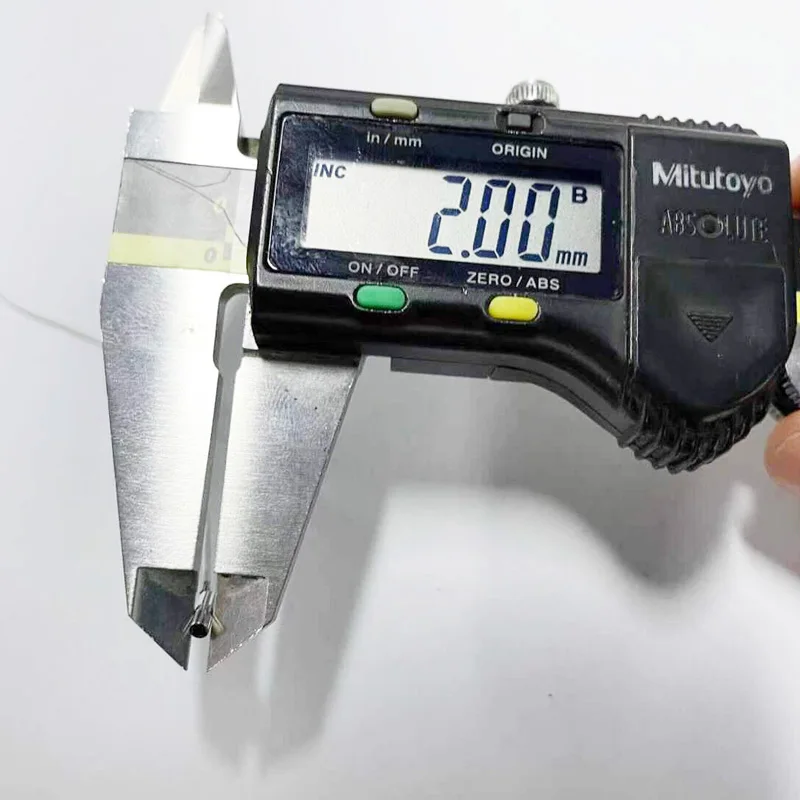

The out diameter is 2.0mm with Stainless Steel Sleeve. The waterproof level is IP67.

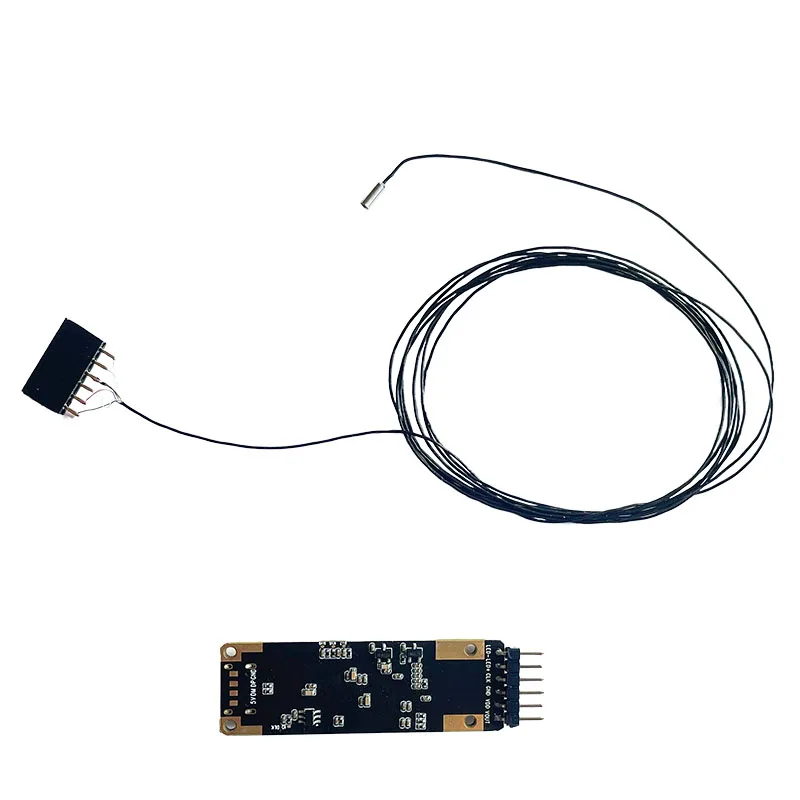

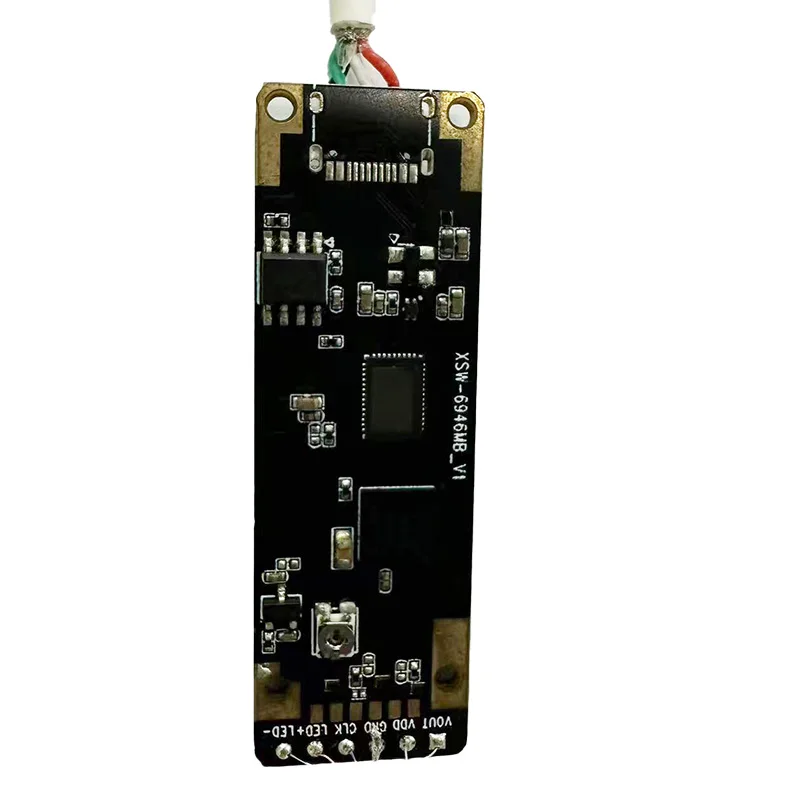

USB Image Processing Board for
2.0mm Endoscope camera module can be support AV, USB output.

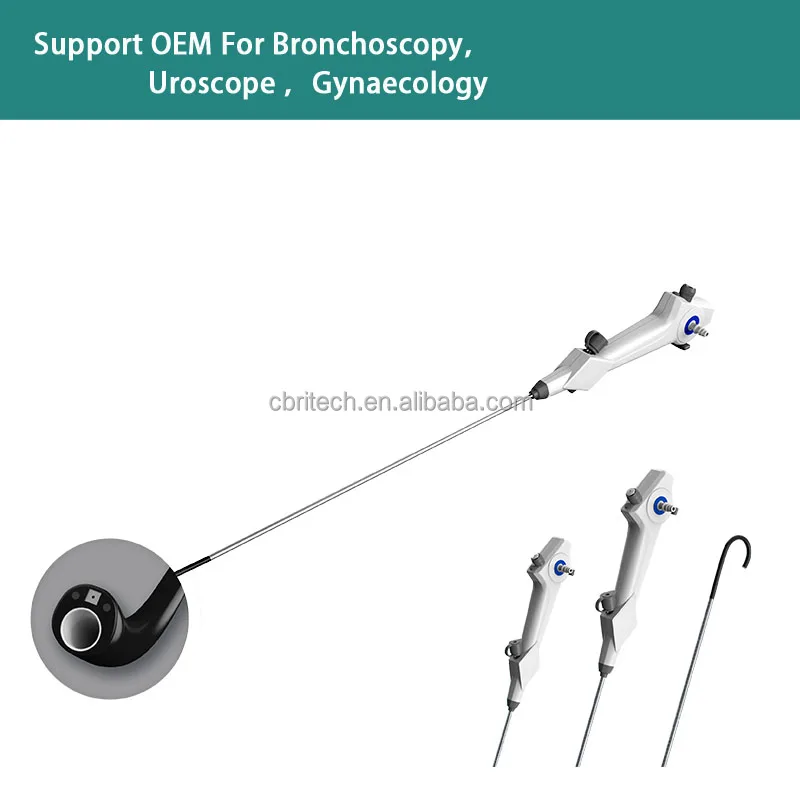

Medical Endoscopic Camera
ovm6946 mm endoscope camera module mainly application for Medical endoscope. Like: Endoscopy of digestive tract; Hysteroscopy; Anorectal endoscopy; Urinary endoscopy; Disposable
endoscopy and so on.
endoscopy and so on.
Industrial Endoscopic Camera
720P 3.9mm endoscope camera module also can be apply for Industrial Endoscope Camera,Military Endoscope Camera, Criminal Investigation Endoscope Camera, Survey Endoscope Camera, Tube Endoscope Camera, Inspection Endoscope Camera and so on.
Related products

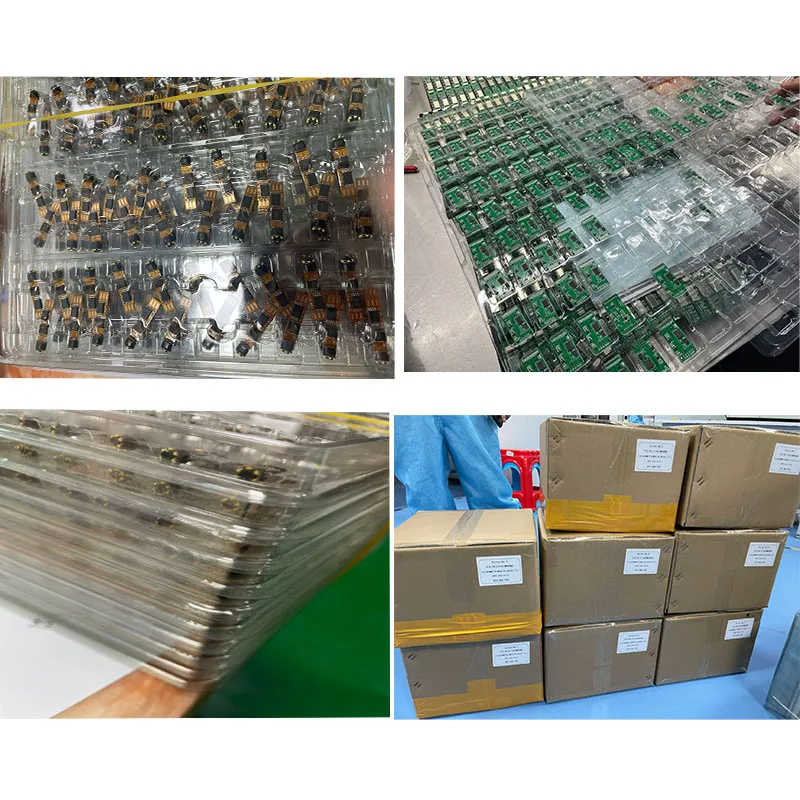

Packing&Shipping
100pcs per carton
Company Introduction
Shenzhen Brilliant CMOS Technology Co., Ltd. is specialized in manufacturing camera module, mainly providing USB interface cameramodule, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.
Our Services & Strength
R&D Department: 5 people, we can support SDK for USB Camera module
Lable: Different styles lable for your choice
FAQ
1. How to buy our product?
You can buy the products from our company directly. Normally the procedure is, sign the contract, make
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.
2. What's the warranty?
The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.
3. Can we visit your camera module manufacturer?
Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.
4. How to customize camera modules as our requirement?
For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
