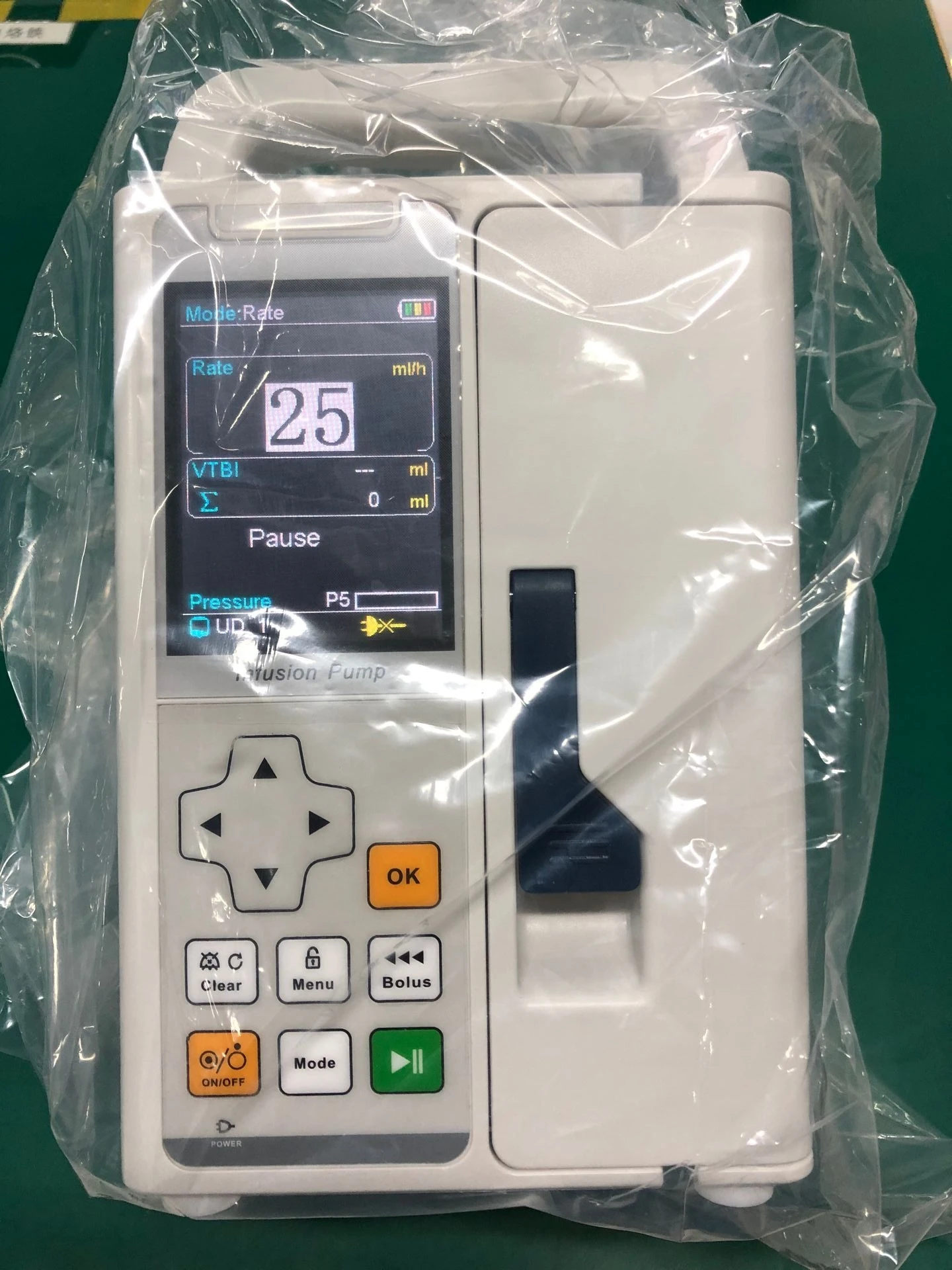

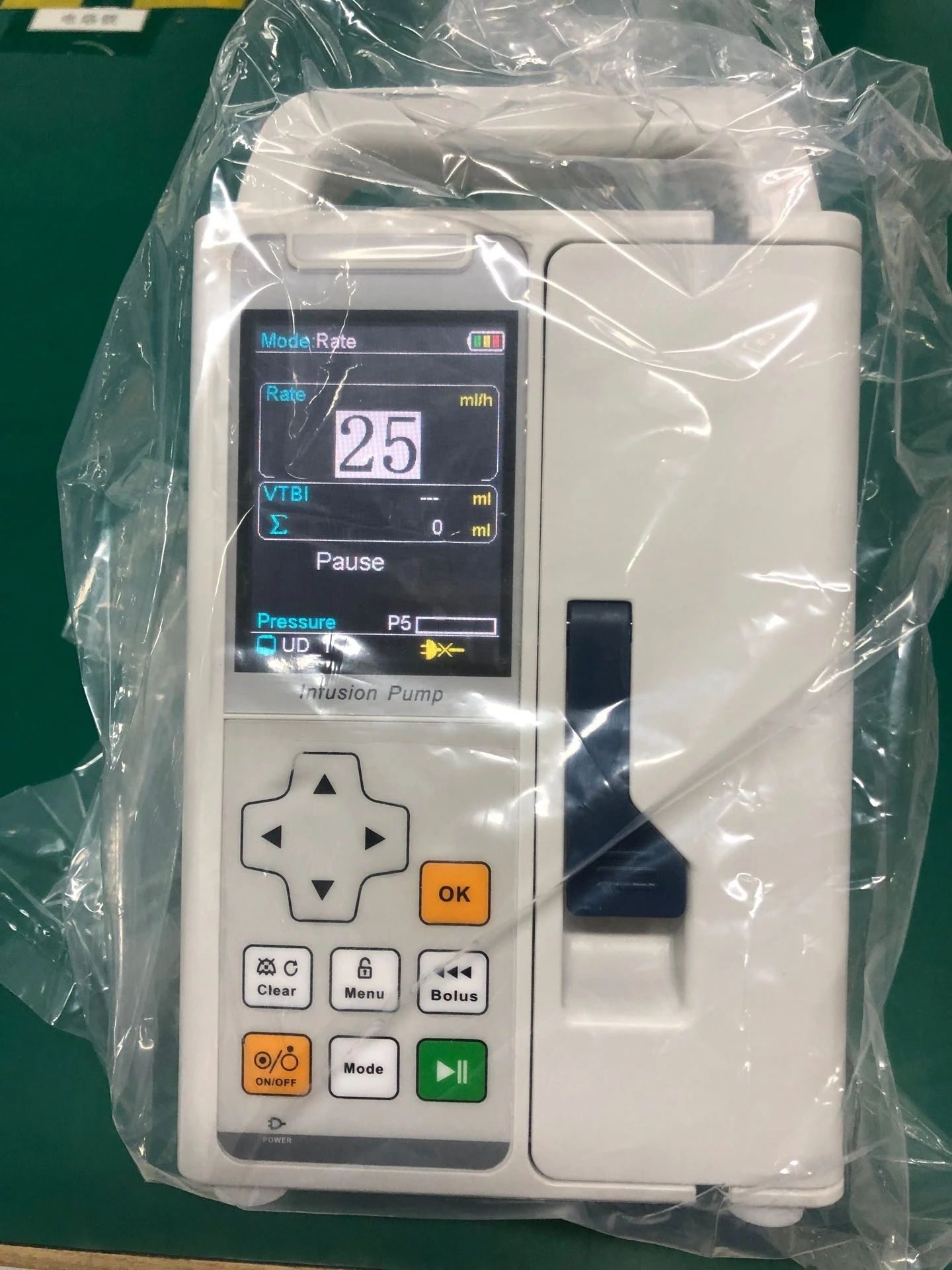

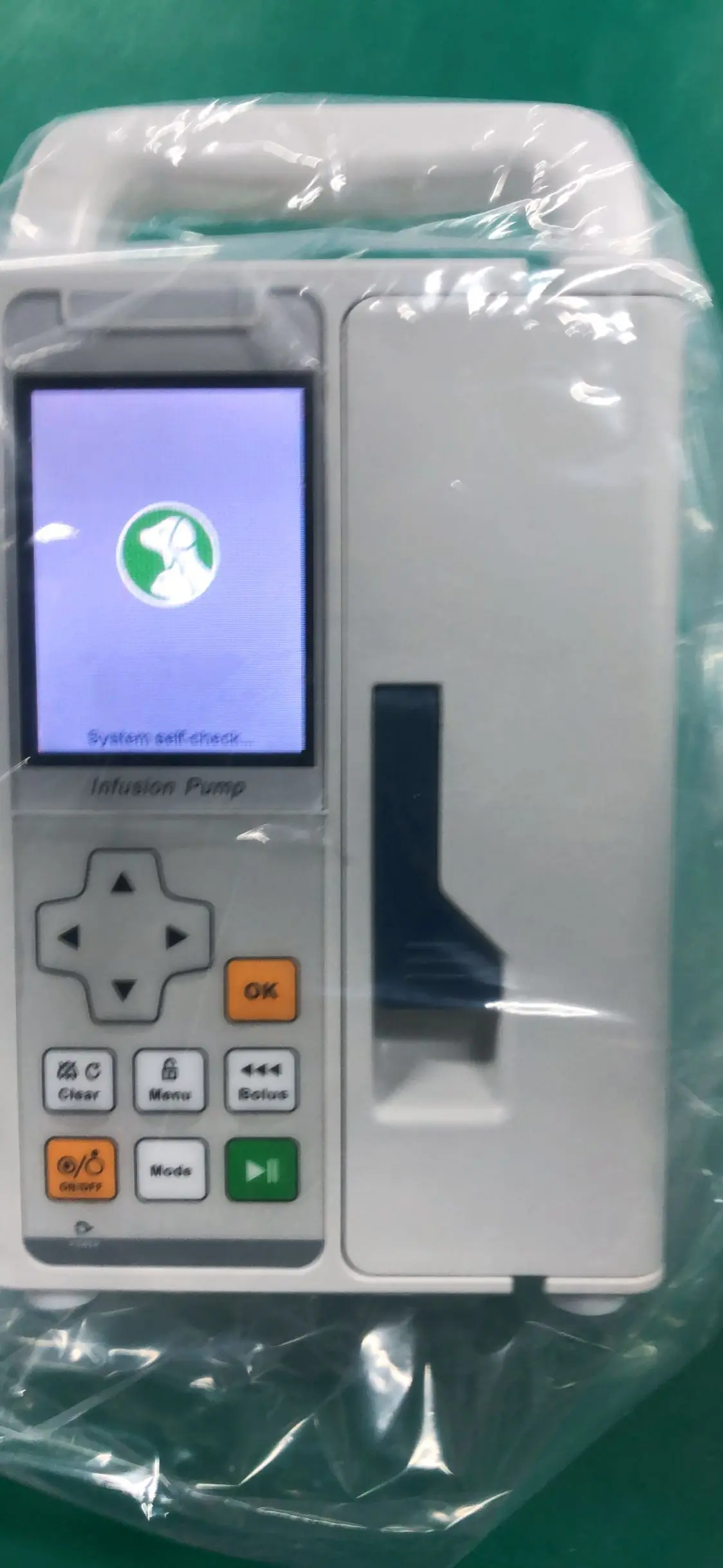

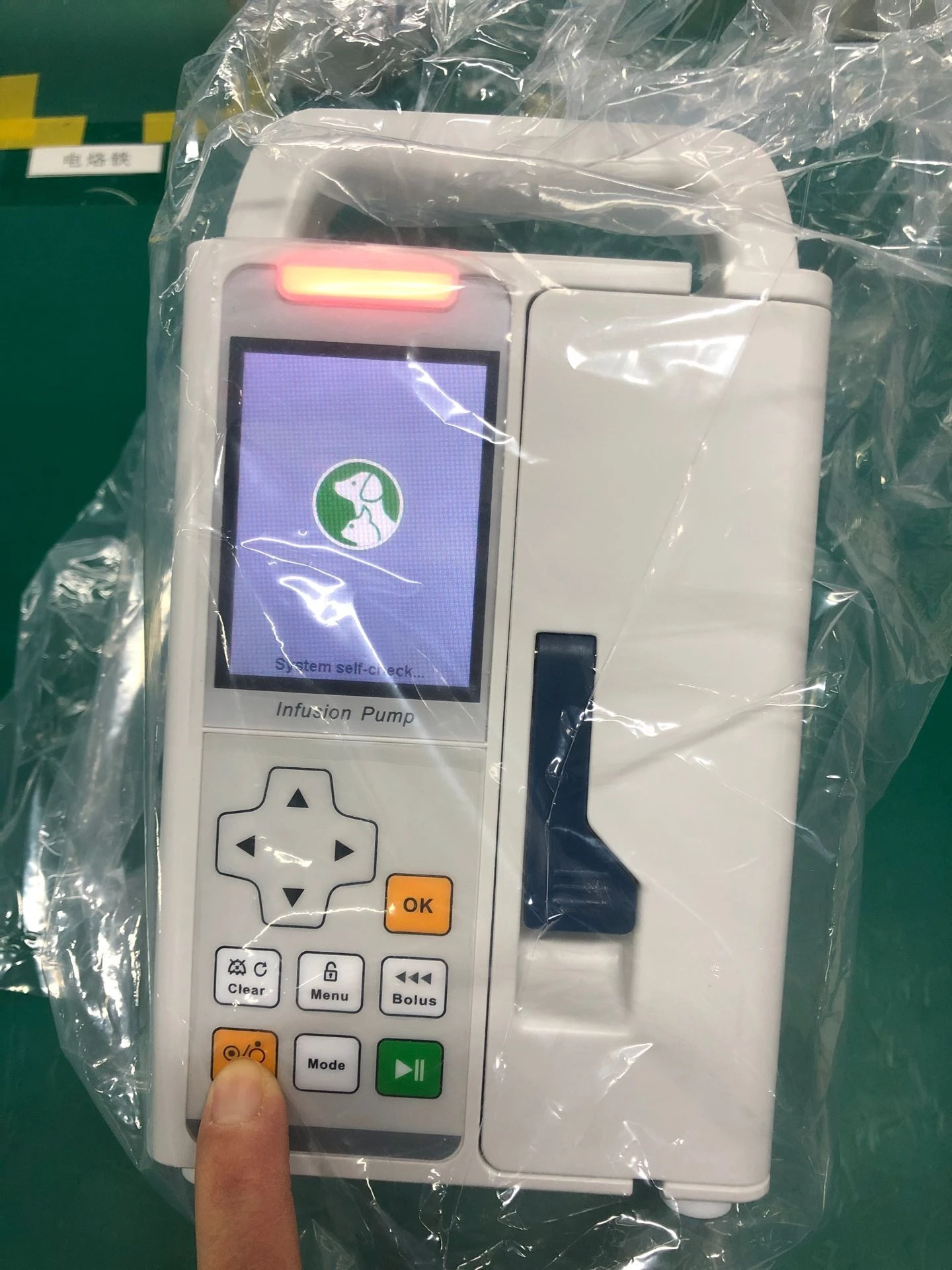

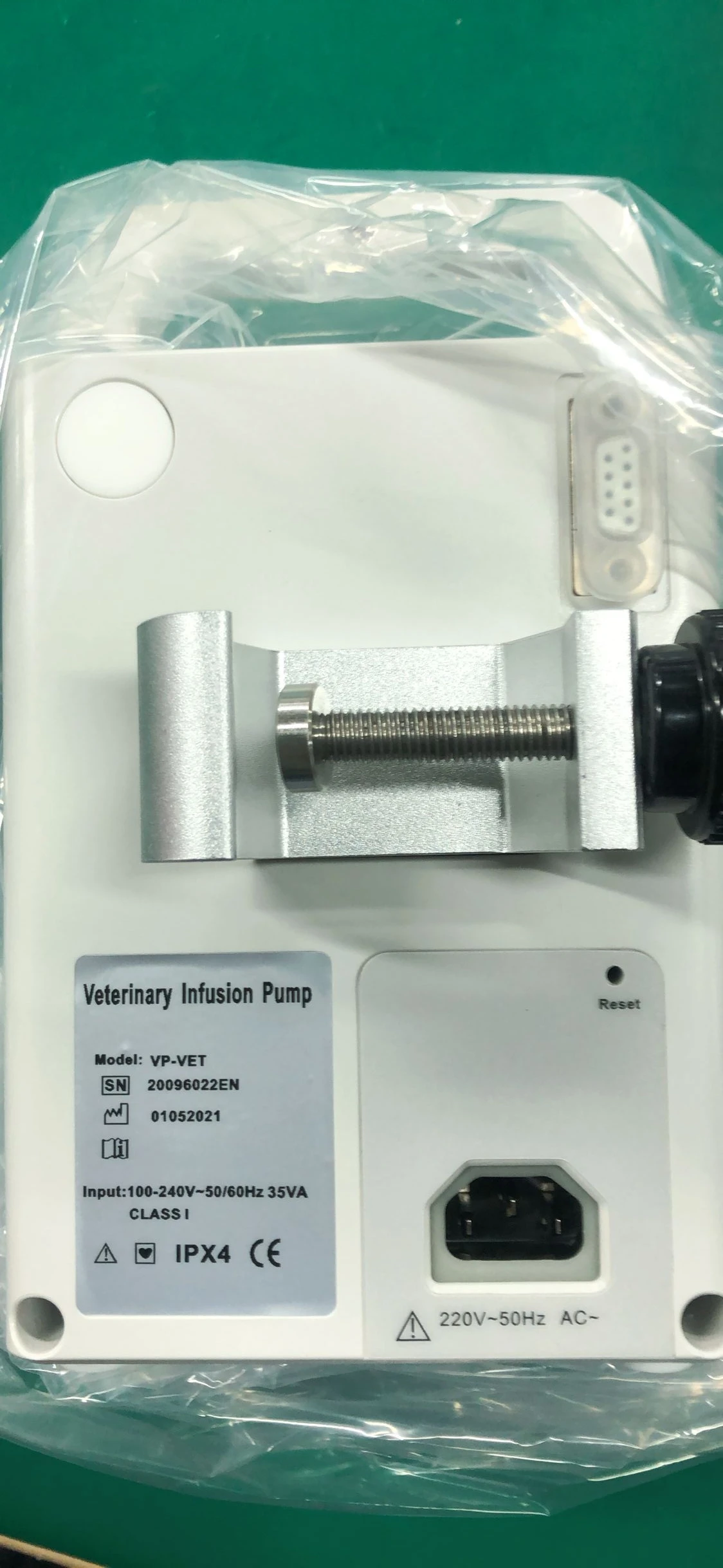

pet veterinary infusion pump medical animal clinic use vet infusion pump veterinary

Fit IV tubes

Can be used with any brand IV set after exactly calibration

Pump Type

Peristaltic finger pump

Accuracy

±3%

Delivery rate range

0.1ml/h～1200ml/h (0.1ml/h～99.9ml/h, 0.1ml/h step; >99.9ml/h, 1ml/h step)

Delivery time range

00h01min～99h59min (1 min step)

Volume limit range:

0.0-9999ml (1 ml step)

Total Volume Range

0.0-9999ml (1 ml step)

Purge Rate

600.0ml/h

KVO Rate

0.1~5.0ml/h. Programmable and adjustable

Occlusion pressure

Three level setting LOW, MEDIUM or HIGH

Alarms

Near empty, Syringe empty, Volume complete (when limit volume is set), Occlusion, Syringe loose, Operation error, Low battery,
device failures.
Three levels of alarm volume LOW, MEDIUM or HIGH

Dose Mode

Volume：0.1-999.9ml(0.1ml step)
DRUG MASS：0.1-999.9mg 0.1mg step)
DOSE：0.001-9999ug/kg/min(0.001ug/kg/min step)
WEIGHT：0.1-300kg(0.1kg the least step)
Dose unit: ng/kg/min,ug/kg/min,mg/kg/min,g/kg/min,ug/kg/h,mg/kg/h,
g/kg/h,ug/min,mg/min,g/min,ug/h,mg/h,g/h,U/min,U/h,IU/h,U/kg/h,ml/h

Bolus function

Bolus rate:1.0~1200ml/h,Bolus volume:1.0~100ml
Programmable and adjustable, Automatic/Manual bolus available

Drug library Mode

10 categories of drugs, amounts to 1030 kinds of drug names, 17kinds of dose units, such as ug/kg/min, mg/kg/min,etc.
Makes drug dispensing more convenient and safer. (Available for VP3 only)

Sequential mode

Available for VP3 only

Interface

RS-232

Brightness

1~10 levels can be selected

History records

5000 events stored can be checked and downloaded

Power source

AC power supply: AC 100 to 240V( +/-10%)，50/60Hz;
DC Power supply: 12~15V, power>15W;
Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh. 12 hours of continuous operation

Accessories:

AC power line, Operational manual

Protection Class

Class I, Type CF,IPX4

Dimension /N.W

120mm*100mm*215mm , 1.8kg

Packing size/G.W

300mm*260mm*160mm, 2.5KG
