C003 4G Car GPS Tracker With Camera Fuel Monitoring
C003 4G Car GPS Tracker With Camera Fuel Monitoring
C003 4G Car GPS Tracker With Camera Fuel Monitoring
C003 4G Car GPS Tracker With Camera Fuel Monitoring
C003 4G Car GPS Tracker With Camera Fuel Monitoring
C003 4G Car GPS Tracker With Camera Fuel Monitoring
C003 4G Car GPS Tracker With Camera Fuel Monitoring

C003 4G Car GPS Tracker With Camera Fuel Monitoring

Share on (1601029594049):


Price:

Quantity:


Product Overview

Description



9V-95V Wide Voltage 4G GPS Tracker With Fuel Sensor Camera


Product Description




Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS, APP and Internet. It adopts the most advanced technology of GPS and AGPS dual positioning.
Band: LTE-FDD: B1/B3/B5/B8
           LTE-TDD: B34/B38/B39/B40/B41

Goods in stock,bid and pay directly,we will ship the goods in one day!



Specification


Specification
GPS/BD Location features
Shape
External Interface
Brand/Chip Model：AT6558D
Cold Start：Average 32S
Hot Start：Average 1S
Sensitivity (tracking)：-162DBM
Location Antenna: internal

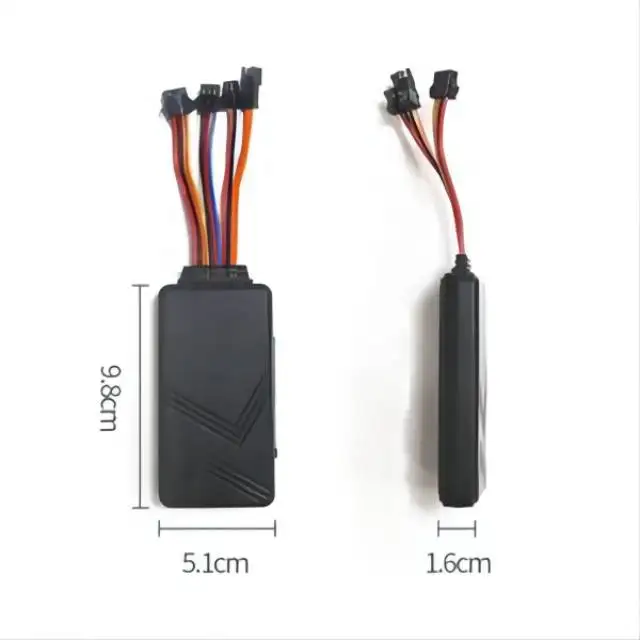

Dimension：99mm *54mm * 16.5mm
Housing Material: ABS plastic
Unit Weight: 75g
Oil break power: can be connected to the road
SOS: You can connect all the way SOS keys
ACC detection input: ACC detection port all the way
RS232/485 (optional): Detecting serial port all the way
Microphone: It can be connected to the microphone all the way
module
Network
Band
areas
EC200T-CN
4G(CAT 4)+3G+2G
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
WCDMA:B1/B5/B8
GSM/: B3/B8
China (Mainland, Hong Kong, Macao), India, Vietnam
EC200T-EU
4G(CAT 4)+3G+2G
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
WCDMA:B1/B8
GSM/: B3/B8
Southeast Asia, West Asia, Europe, Africa
EC200T-AU
4G(CAT 4)+3G+2G
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/ B66
LTE-TDD: B40
WCDMA:B1/B2/B4/B5/B8
GSM/: B2/B3/B5/B8
South America, Oceania, Asia, Europe, Africa
EC200N
4G(CAT 1)
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
China (Mainland, Hong Kong,
Macao), India, Vietnam
EC25-EC
4G(CAT 4)+3G+2G
LTE-FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8
GSM/: B3/B8
EMEA/Korea/ Thailand/India
EC25-AU
4G(CAT4 )+3G+2G
LTE-FDD: B1/B2①/B3/B4/B5/B7/B8/B28
LTE-TDD: B40
WCDMA: B1/B2/B5/B8
GSM/: B2/B3/B5/B8
Latin America/ Australia/New
Zealand
EC25-AFA
4G(CAT4 )+3G
LTE-FDD: B2/B4/B12
WCDMA: B2/B4/B5
North America
EC25-J
4G(CAT4 )+3G+2G
LTE-FDD: B1/B3/B8/B18/B19/B26
LTE-TDD: B41
WCDMA:B1/B6/B8/B19
South America, Oceania, Asia, Europe, Africa
Product Features
1.4G full Netcom vehicle smart terminal.
2. Support GPS/Beidou/AGPS/LBS precise positioning.
3. Standard function: Support remote fracturing, SOS alarm, TTL interface, ACC detection; Optional function: camera, oil, IBUTTON, temperature sensor, WIFI positioning, fatigue driving, (AD) weight, RFID and other functions.
4. Wide voltage design 9V-95V.

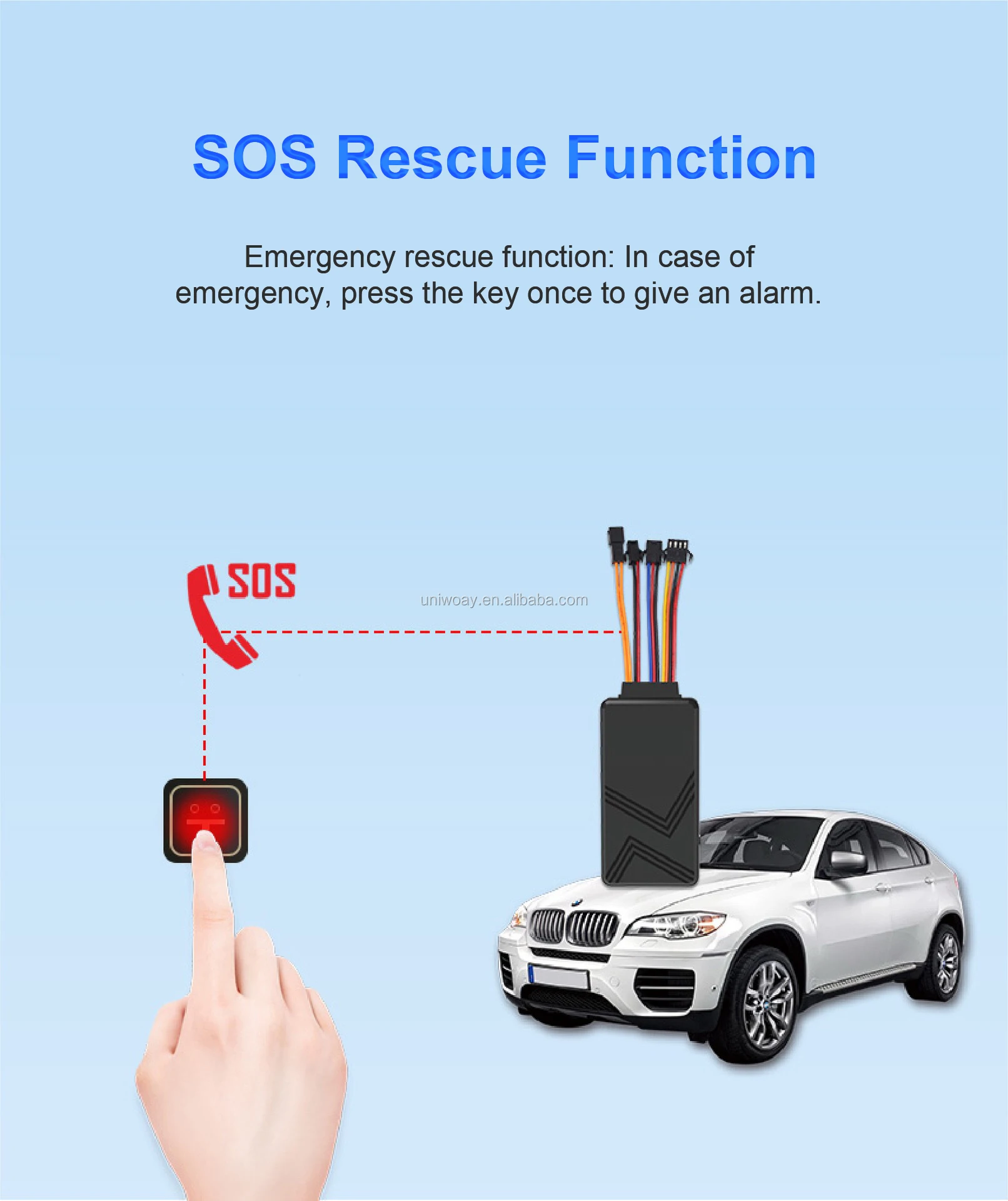

SOS Rescue Function
Emergency rescue function: In case of emergency,press the key once to give an alarm.


Historical Track Replaying
The track of position is clear to see so it is easy to find anything.

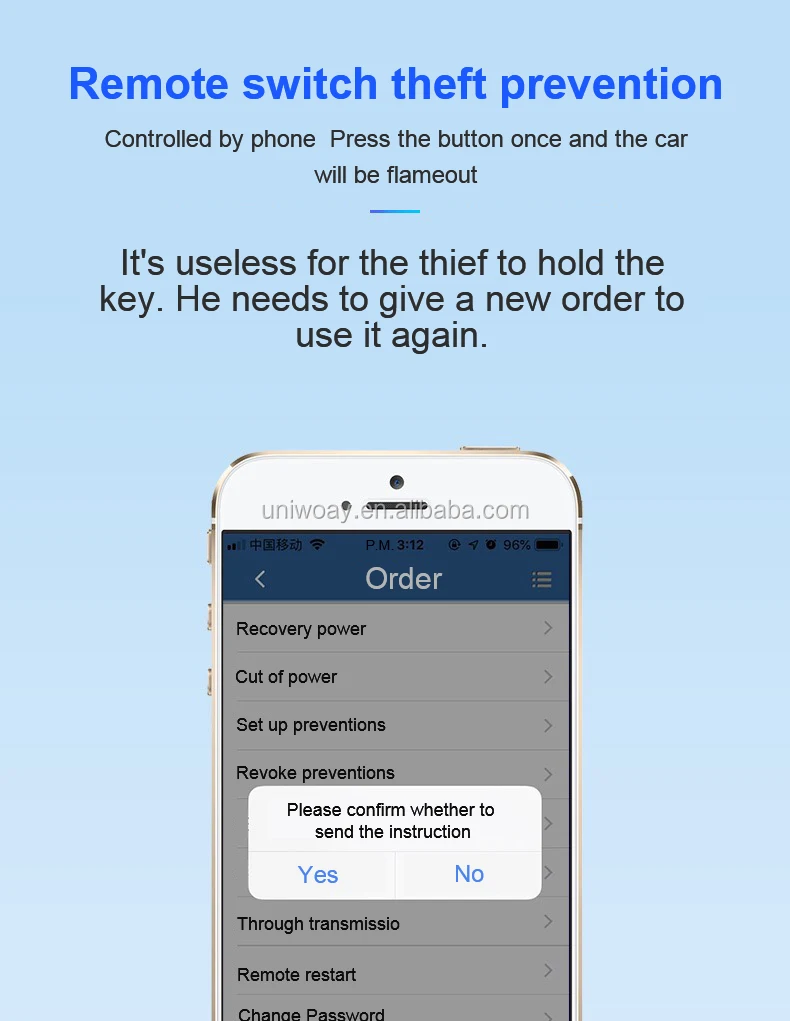

Remote switch theft prevention
It can controlled by phone and press the button once and the car will be flameout.


Always develop only for you
More functions:Base station location,Additional recording in blind area,Anti shielding,GPS position, Remove alarm,3D street view...


Application Scenarios
This product can be applied to many scenarios:Fleet Management,Express Vehicle Management,Vehicle Anti-Theft,Official Management...


Software




 Software Display


Software Display
AKSH
Tracking System
//en.aika168.com
Acc
888
Password
123456
Software function
Real Time Tracking、History playback、Fleet Management...
Charge
lifetime free


Real Time Tracking
When you log in to the platform, you can view the specific location and distance of the device


History Playback
You can view the historical track within six months on the platform


Fleet Management
The platform can also log in to multiple devices for fleet management


App Download
We will provide you with lifetime free apps and platforms for you to use


Packing & Delivery




Accessories detail
User manual × 1PC
Power cord × 1PC
Optional: SOS button/Relay/Micphone
Giftbox details
Dimension: 14*9*3(cm)
G.W. Weight: 214g




Customer Feedback




Company Profile








FAQ


Q1: What's your MOQ?
A1: Our Minimum order quantity is 1pcs and we accept sample order.

Q2: How long warranty?
A2: 12 monthes warranty.

Q3: What's your payment terms for bulk order?
A3: 30% deposit, 70% balance before shipment.

Q4: Can you put my brand name (logo) on these products?
A4: Yes, OEM serivce is the most important part of our trade purpose.

Q5: If you provide API?
A5: We charge it if we open API but we provide GPS protocol for free and support
your integration.

Q6: What payment method do you accept?
A6: T/T, L/C, Money Gram, Paypal, Escrow, etc.

Q7: What is the lead time of your products?(How long do you need to prepare my goods?)
A7: 1-3 days for sample orders. 7-15 days for mass production orders(based on different quantities).

Q8: How will you deliver my goods to me?
A8: We always ship by air and sea. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.

Q9: How long do I need to wait before my goods arrive?
A9:5-7 days for air transportation, 2-5 days for international express. 20-40 days for sea transportation.

Q10:What is your product quality?
A10: Our raw materials are purchased from qualified suppliers, and we have a strong quality control team to guarantee our quality
according to AQL standrad.
