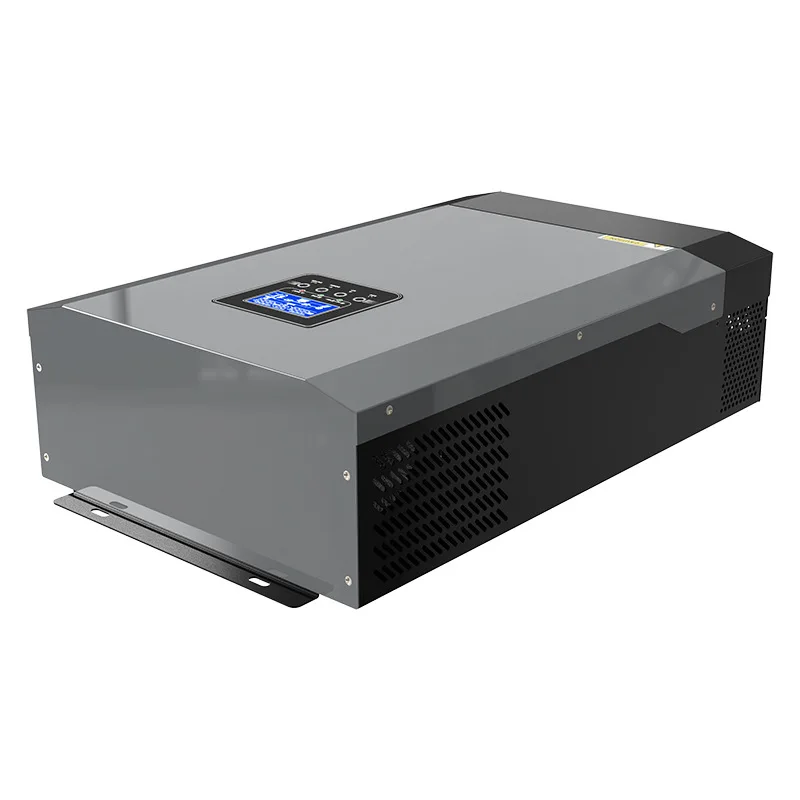

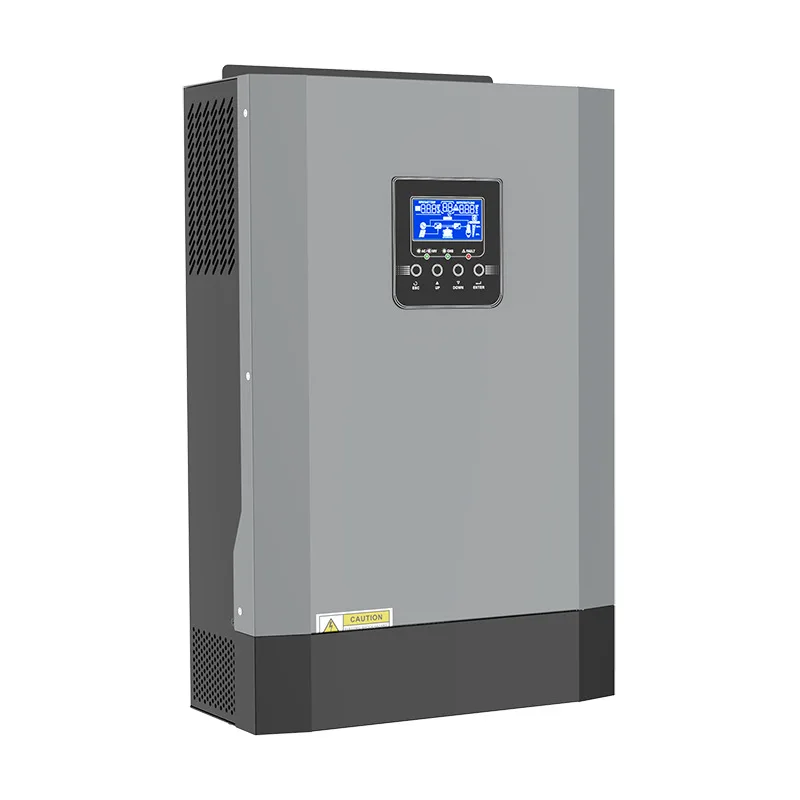

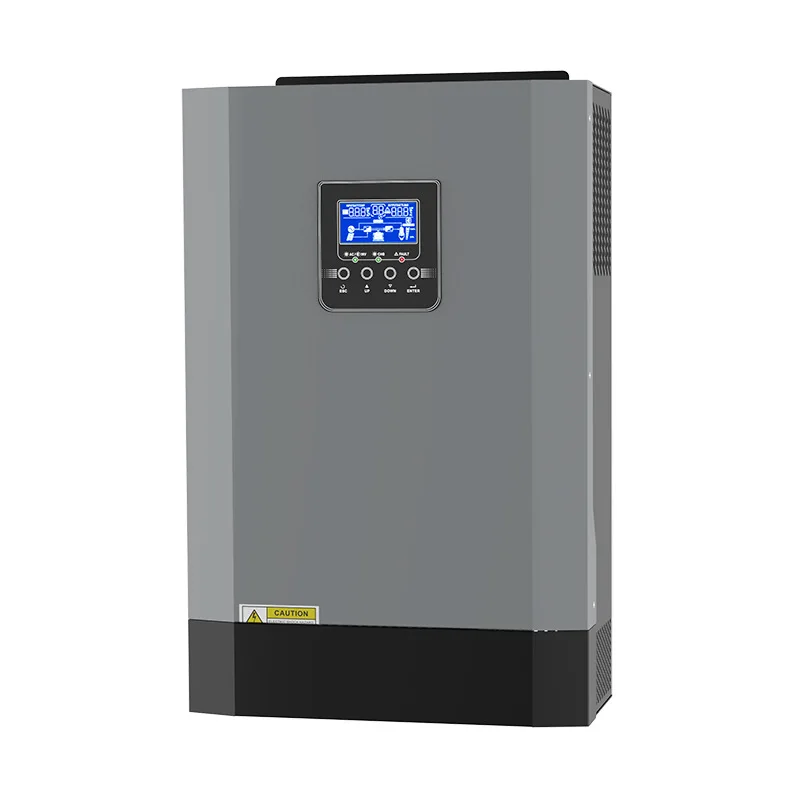

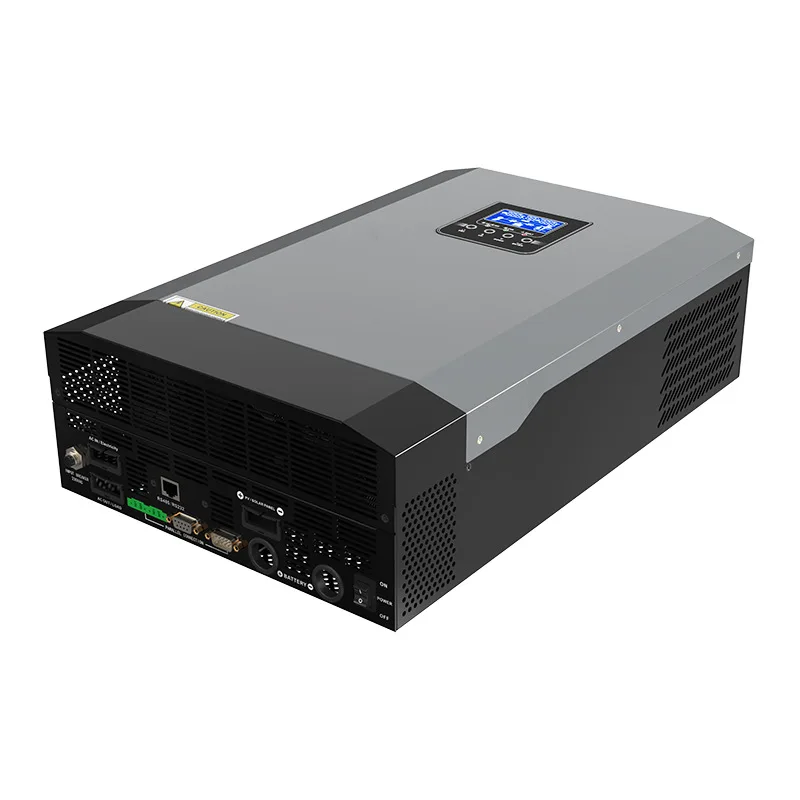

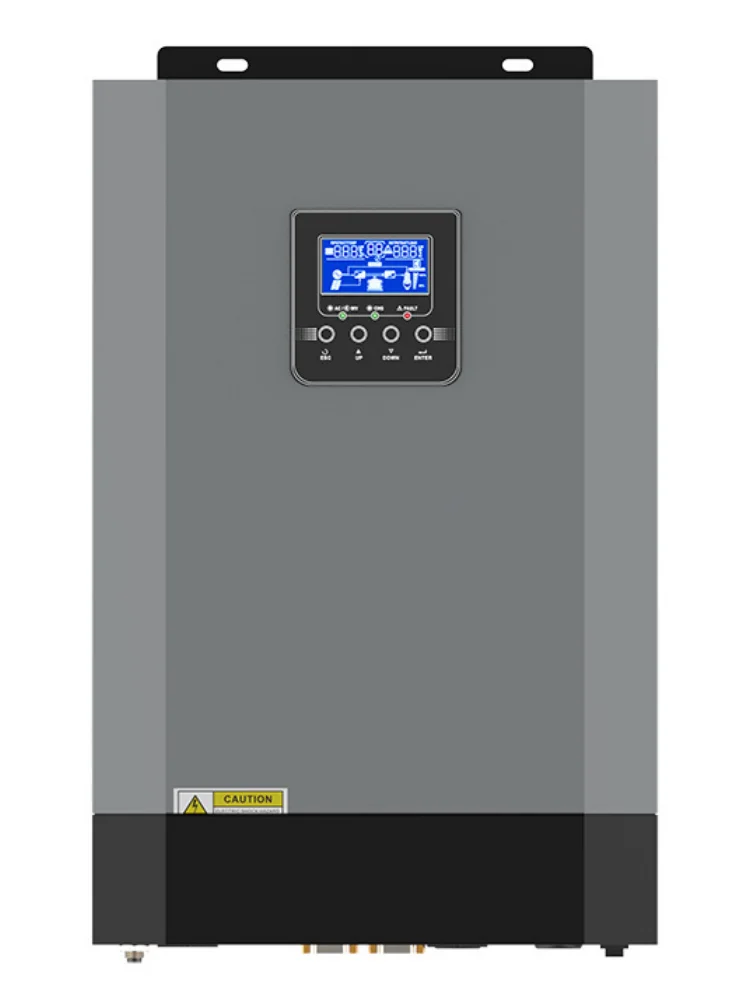

OEM Pure Sine Wave Hybrid Inverter Mppt 3kw 3kva 24V 48V to 230v Power Inverter hybrid 3kw
- Category: >>>
- Supplier: Guangzhou Myami Electronic Technology Co. Ltd.
Share on (1601029615975):
Product Overview
Description
Product Details
MODEL MPS3500H/MPS 3500HE MPS 5500H/MPS 5500HP | ||||||
Rated Power | 3500VA/3500W | 5500VA/5500W | ||||
INPUT | ||||||
Voltage | 230VAC | |||||
Selectable Voltage Range | 170-280VAC(for personal computers) 90-280VAC(for home appliances) | |||||
Frequency Range | 50Hz/60Hz(Auto sensing) | |||||
OUTPUT | ||||||
AC Voltage Requlation (Batt.Mode) | 230VAC±5% | |||||
Surge power | 7000VA | 11000VA | ||||
Efficiency(Peak)PV to INV | 97% | |||||
Efficiency(Peak)BAT to INV | 94% | |||||
Transfer Time | 10ms (for personal computers) 20ms (for home appliances) | |||||
Wave form | Pure Sine Wave | |||||
BATTERY&ACCHARGER | ||||||
Battery Voltaqe | 24VDC | 48VDC | ||||
Floating Charge Voltage | 27VDC | 54VDC | ||||
Overcharge Protection | 33VDC | 63VDC | ||||
Maximum charge current | 80A | 80A | ||||
SOLAR CHARGER | ||||||
MAX.PV ArTay Powe | 5000W | 6000W | ||||
MPPT Range Operating Voltage | 120-450VDC | |||||
Maximum PV Array Open Circuit Voltage | 500VDC | |||||
Maximum Charging Current | 110A | |||||
Maximum Efficiency | 98% | |||||
PHYSICL | ||||||
Dimension.D*W*H(mm) | 472*297*129 | |||||
Net Weight (kgs | 13kg | 14kg | ||||
Communication Interface | RS485/RS232(Standard) LCD remote/WIFI(Optional) | |||||
OPERATING ENVIRONMENT | ||||||
Humidity | 5%to 95%Relative Humidity(Non-condensing) | |||||
Operating Temperature | 0℃to 55℃ | |||||
Storage Temperature | -15℃ to 60℃ | |||||
MPPT 110A 3500W 24V 48V to 230Vac Off Grid Wide PV Range Solar Hybrid Inverter
1. High, low voltage, overload, over temperature, output short circuit protection
2. Binding post input, universal socket output
3. Additional terminal wire
3. Additional terminal wire
4. with fan
Feature:
Pure sine wave output
Output power factor 1.0
Programmable supply priority for PV , battery or Grid
User-adjustable charge current and voltage
Wide PV input range (120Vdc -500Vdc),110A MPPT SCC
Use with lithium batteries
Working without batteries in sunny day
WiFi Monitoring Function (optional)
Anti-dusk kit for harsh environment(optional)
LCD remote control with 10 meters wire(optional)
PV and electricity complementary
Output power factor 1.0
Programmable supply priority for PV , battery or Grid
User-adjustable charge current and voltage
Wide PV input range (120Vdc -500Vdc),110A MPPT SCC
Use with lithium batteries
Working without batteries in sunny day
WiFi Monitoring Function (optional)
Anti-dusk kit for harsh environment(optional)
LCD remote control with 10 meters wire(optional)
PV and electricity complementary
