Building construction Luffing jib Tower Crane D5531 18
Building construction Luffing-jib Tower Crane D5531-18
Building construction Luffing-jib Tower Crane D5531-18
Building construction Luffing-jib Tower Crane D5531-18
Building construction Luffing-jib Tower Crane D5531-18
Building construction Luffing-jib Tower Crane D5531-18
Building construction Luffing-jib Tower Crane D5531-18

Building construction Luffing jib Tower Crane D5531 18

Share on (1601029793772):


Price:$50,000.00 - $60,000.00

Quantity:


Product Overview

Description



Product Description


The luffing jib crane adopts a large variety of advanced technologies with sophisticated mechanisms including the hydraulic self-propelling mechanism and frequency converting slewing mechanism. With advanced PLC (Programmable Logic Controller) and frequency converter, this construction crane can realize continuously variable frequency speed control and get immediately inspected and diagnosed when a fault happens.
Due to the hoist height limiter, slewing range limiter, multifunctional limiter and other reliable safety devices, this luffing jib crane can easily manage the load moment, hoisting capacity and trolley traveling range. Also, the electric safety devices like anemoscopes and obstacle lights and mechanical safety device also prevent the breaking of trolley axles and wire ropes, adding to the degree of safety.




Specification


Feature
Tower Crane
Applicable Industries
Construction works
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Hot Product 2023
Warranty of core components
1 Year
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition
New
Application
construction of high-rise

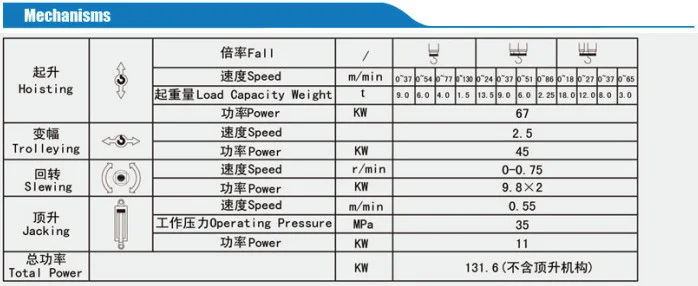

Product name

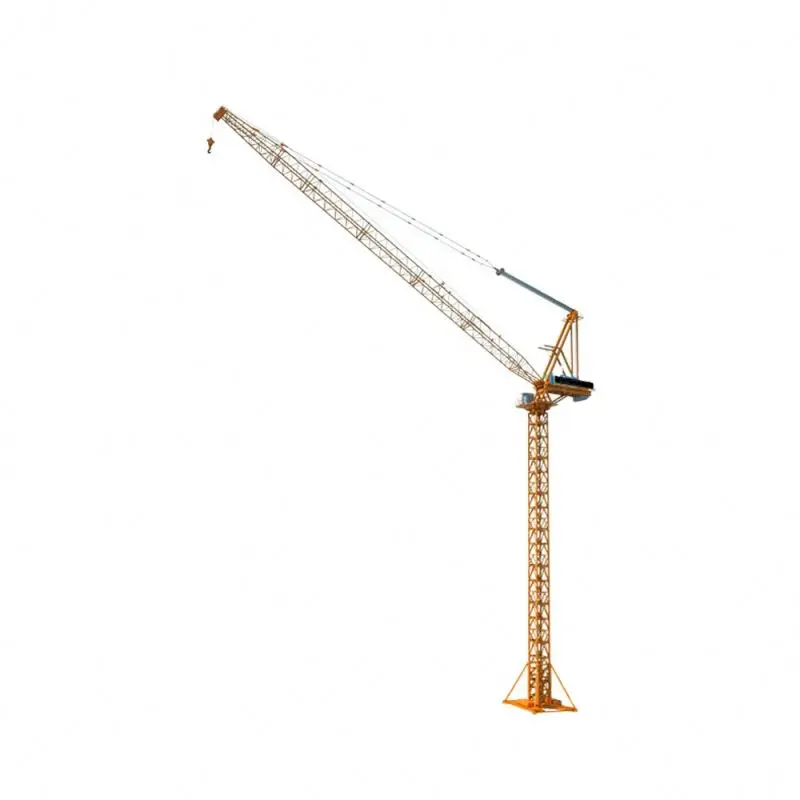

Luffing-jib Tower Crane D5531-18
Hoist power
67KW
Trolley speed
2.5
Trolley power
45KW
Slewing speed
0-0.75r/min
Slewing power
9.8x2kw
Jacking speed
0.55m/min
Jacking power
11KW
Total power
131.6KW

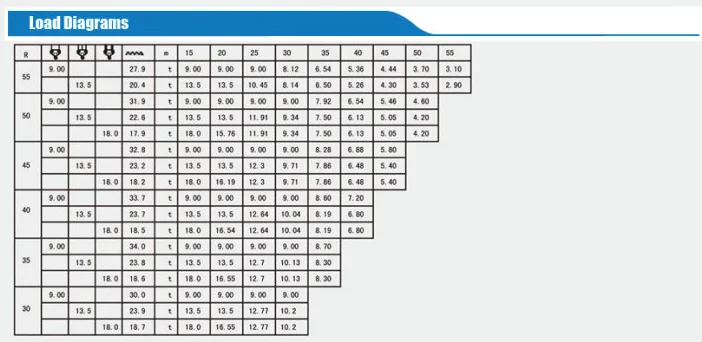

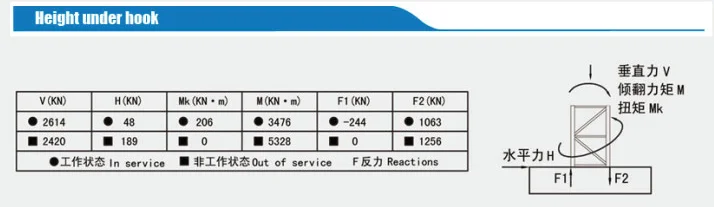

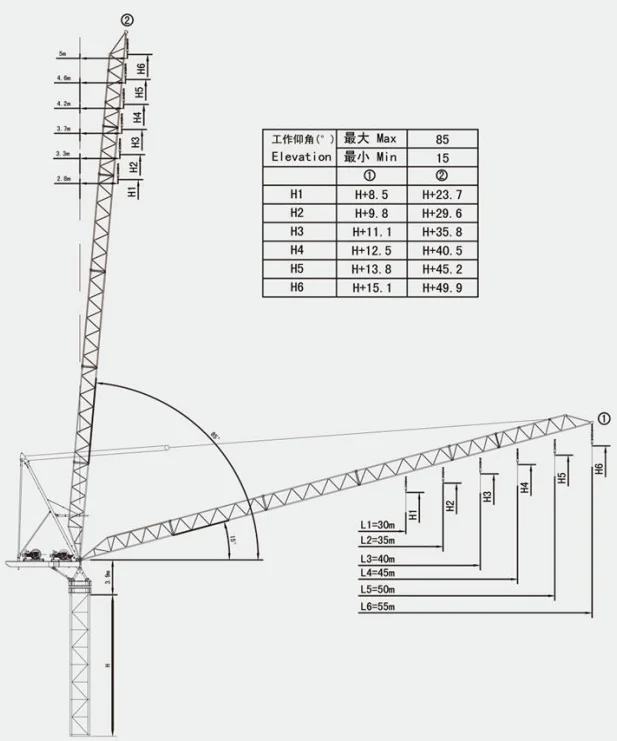

Product Paramenters










Company Profile




Certifications

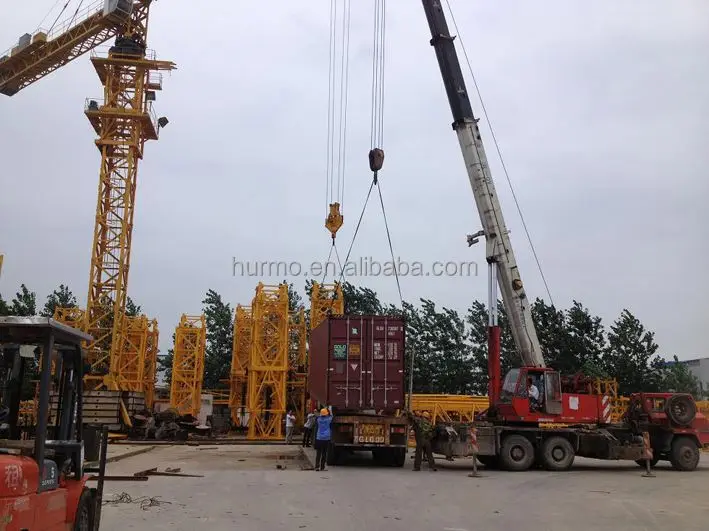

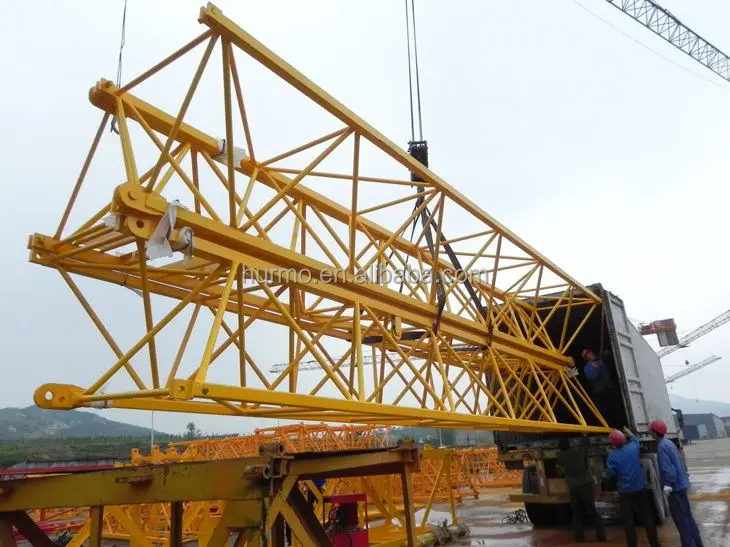

Packing & Delivery




FAQ


IHURMO, an engineering machinery supplier in China, provides not only quality construction equipment but also first-class
services.

Pre-sales Services
1.We offer customers free catalogs of our products and other relevant files.
2. We also provide free shuttle as well as board and lodging (four-star hotel) for customers who come to visit our company.

After-sales Services
1.The construction equipment we offer enjoys one-year guarantee period..
2. We supply free quick-wear parts.
3. Double hot lines for 24-hour after-sales services.
4. Online after-sales service is available as well.
5. The technical documents will be attached with the equipment while leaving the factory.
6. If needed, we will send one technician to the site to provide guidance on installation and debugging as well as the training of
operators.
7.We can provide on-site service in some countries and areas where we have overseas office or agents.

In addition, OEM service is available.

Please contact us if you want to know more about us.
