factory direct sale linear vibrating screen machine for salt sugar tea spice herb thyme lavender oregano sesame
- Category: >>>
- Supplier: Xinxiang Dazhen Sift Machine Co. Ltd.Xinxiang Ltd.
Share on (1601029799399):
Product Overview
Description
Product Description
PRODUCT DETAILS

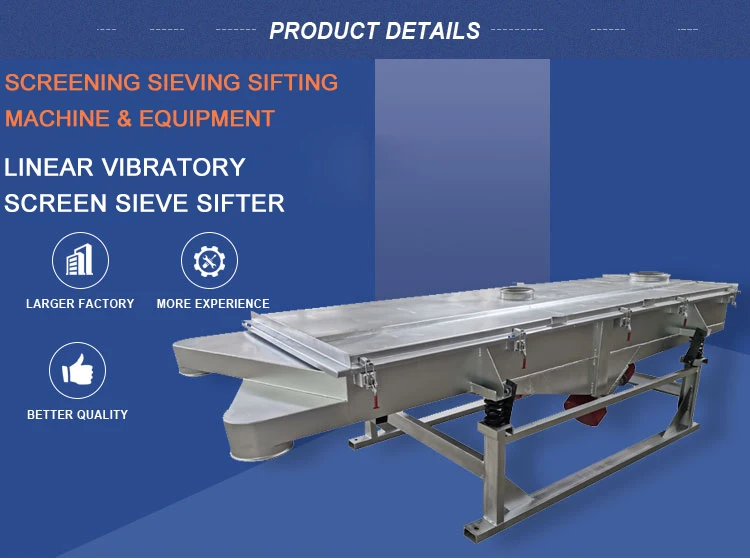

factory direct sale linear vibrating screen machine
for salt sugar tea spice herb thyme lavender oregano sesame

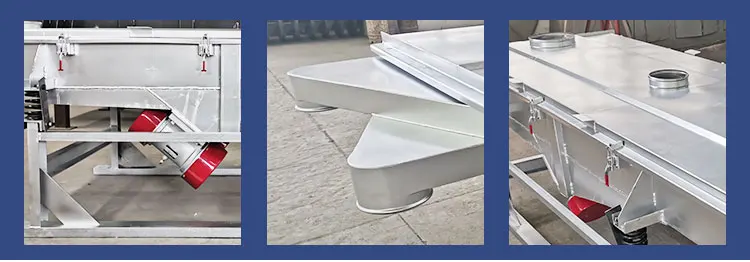

SZF series linear vibrating screen is driven by two counterrotating out-of-balance motors which create a linear motion , the material is thrown up and ahead at the same time in a straight line.
Features:
1. Carbon steel or stainless steel construction
2. Wooden, carbon steel, stainless steel screen frame
3. Ball tray for anti-blinding
4. Multi deck models available 1-6 decks
5. Upper deck open or covered
6. Explosion-proof motors are available
TECHNICAL PARAMETERS
Screen width | 500mm | 1000mm | 1200mm | 1500mm | 2000mm |
Screen length | 2-6m | ||||
Deck / Layer | 1-6 | ||||
Screen mesh | As agreed | ||||
Motor | Driven by two counterrotating out-of-balance vibration motors Explosion-proof motors are available | ||||
Construction material | Trough--carbon steel or stainless steel Screen frame--wooden, carbon steel,stainless steel | ||||
Application
SZF series linear vibrating screens have been widely used for screening & grading of powder or granule material in plastic, abrasive, chemical, pharmaceutical, building materials, food, carbon, fertilizer and other industries.
Our Advantages
Main Products
Company Information
FAQ
FAQ
Q:What informations needed to get an accurate quotation?
A. Material's characteristics? (including name, particle size range, bulk density, water or solid content if slurry material, etc)
B. Capacity?
C. How many layers do you need?
D. The mesh size for each layer?
E. local 3 phase voltage and frequency, ? V&HZ
F. Sea port or city name for shipment?
Q:What's the delivery time?
A: 5-7 working days for conventional products.
Q:How long is the warranty time?
A: 18 months from the shipping date.
