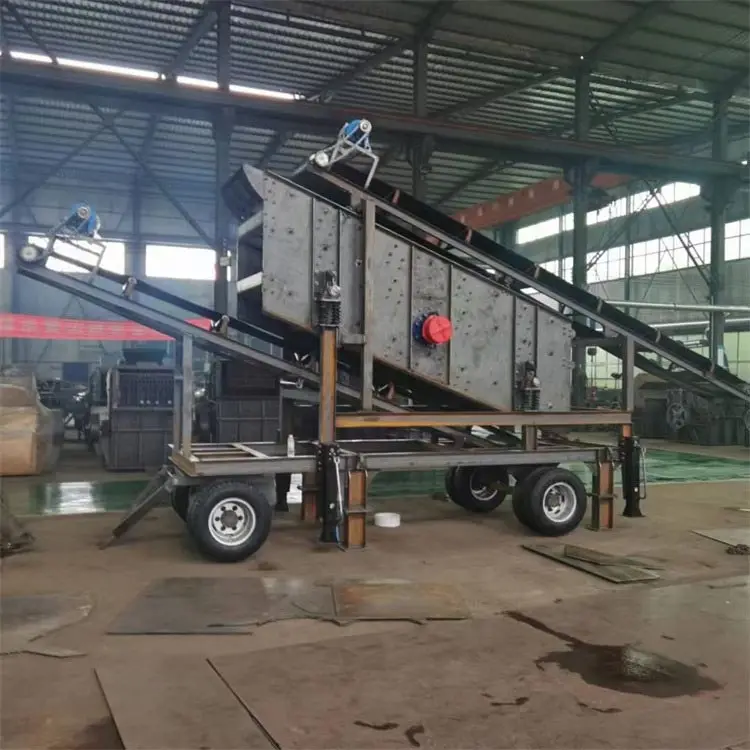

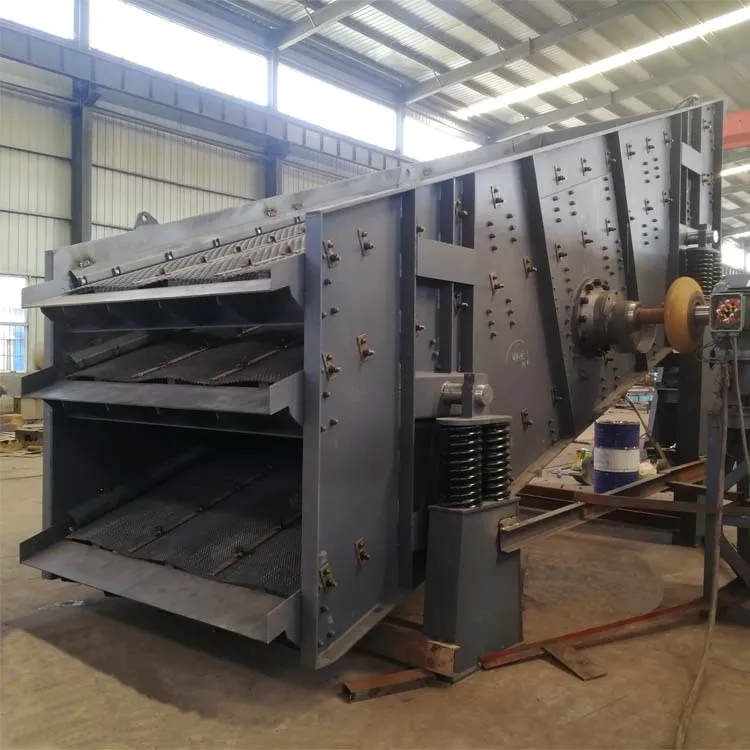

High screening rate mobile mining sand vibrating screen separator machine for stone crusher
High screening rate mobile mining sand vibrating screen separator machine for stone crusher
High screening rate mobile mining sand vibrating screen separator machine for stone crusher
High screening rate mobile mining sand vibrating screen separator machine for stone crusher
High screening rate mobile mining sand vibrating screen separator machine for stone crusher
High screening rate mobile mining sand vibrating screen separator machine for stone crusher
High screening rate mobile mining sand vibrating screen separator machine for stone crusher

High screening rate mobile mining sand vibrating screen separator machine for stone crusher

Share on (1601029812901):


Price:$8,300.00 - $8,600.00

Quantity:


Product Overview

Description





Product Description


Vibrating sieves are used to separate materials into various sizes for further processing or for end use. The material is separated by passing through a vibrating “screen or meshes” which has a number of different sizes according to the customer’s requirements. The end products can then be used in the building and construction industries. It features an advanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.

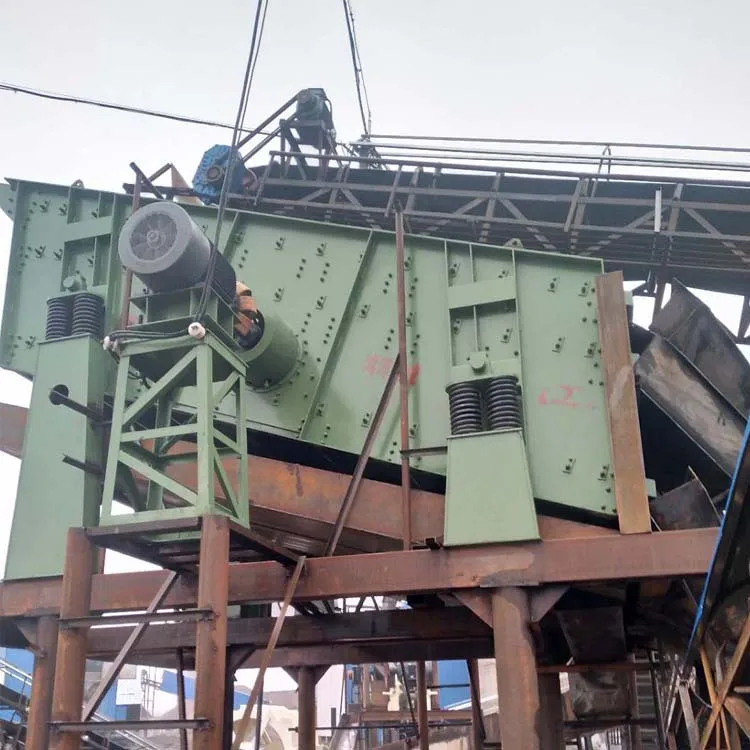

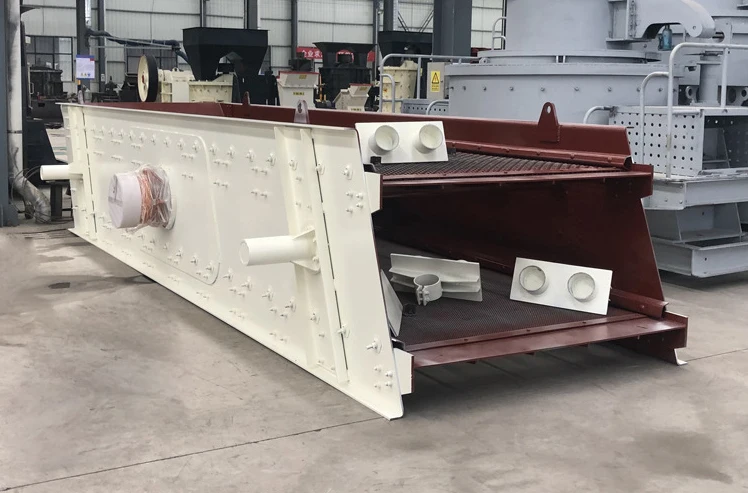

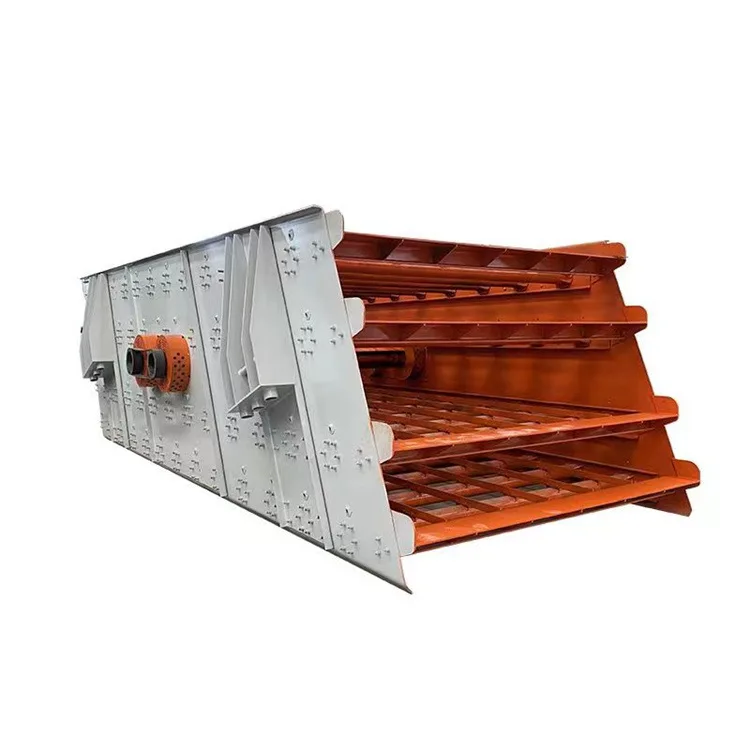

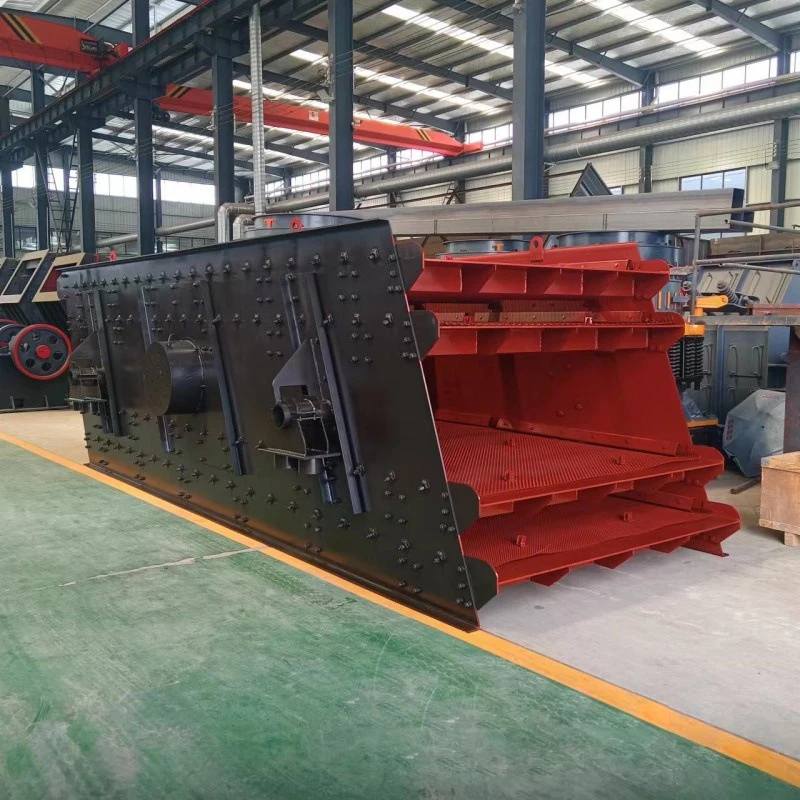

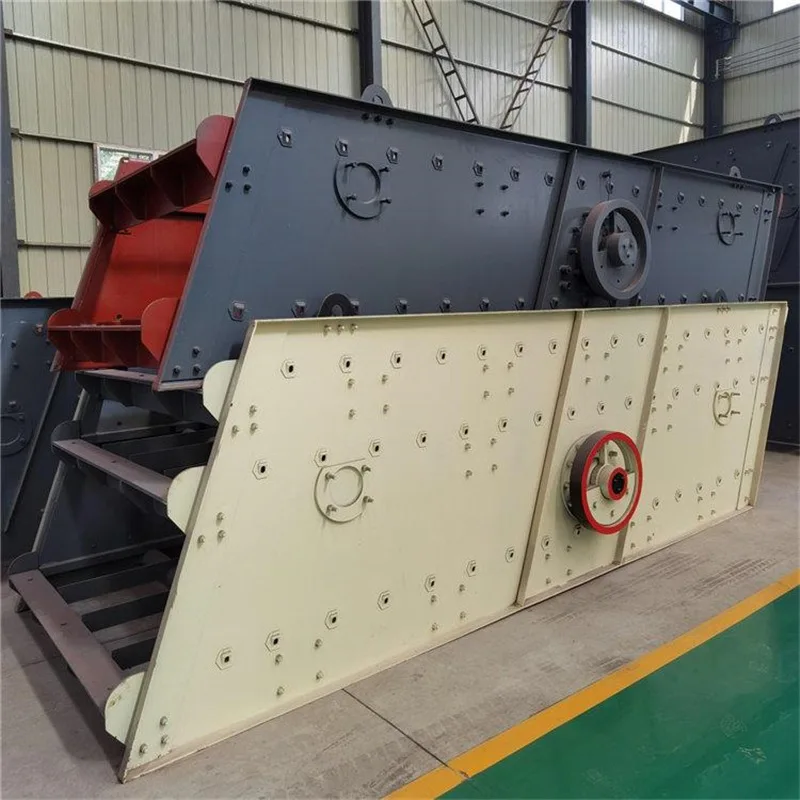

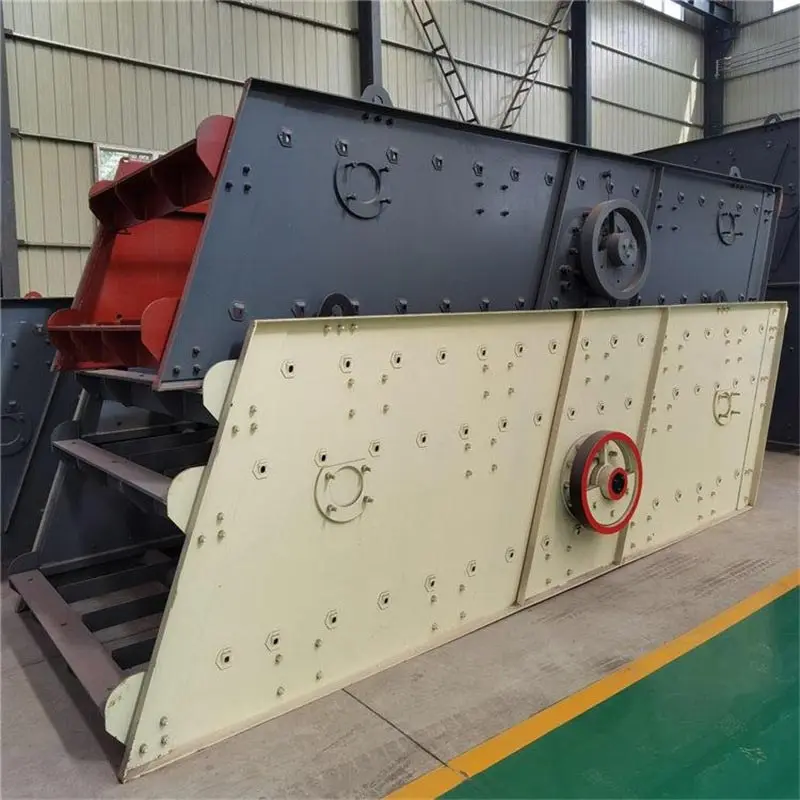

The vibrating screen with circular motion is specially designed for quarry to separate crushed stone material into different sizes and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries.






Working Principle

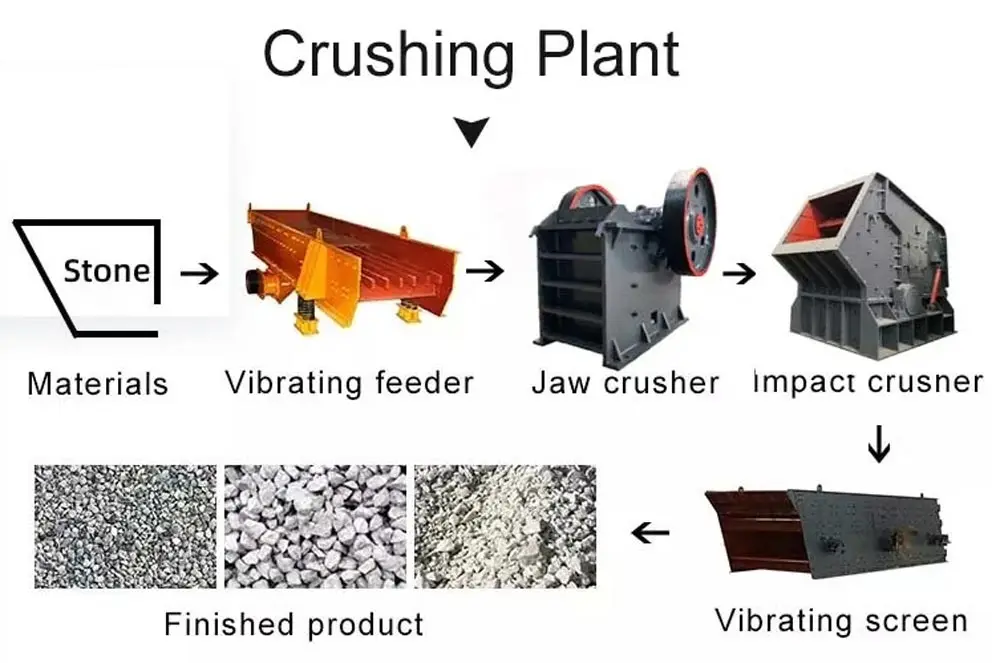

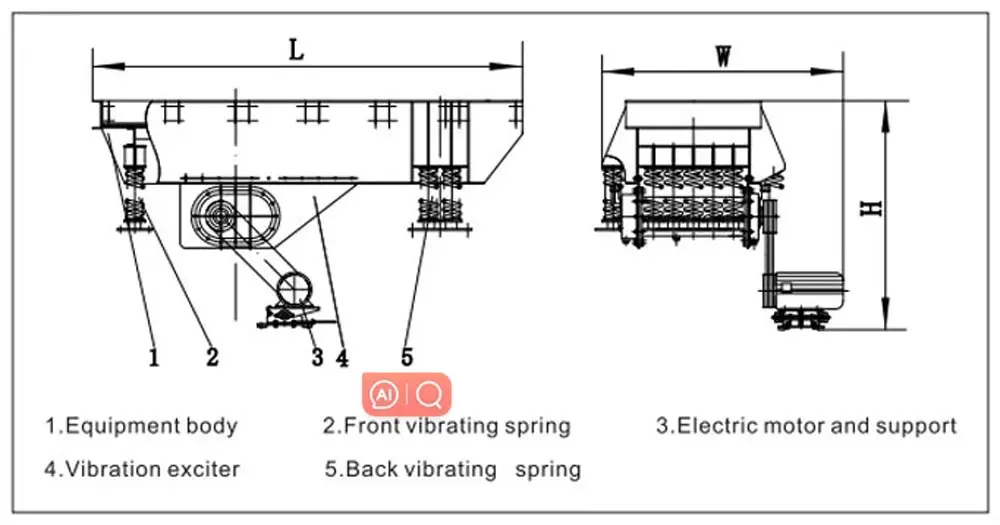

Mining ore screen grizzly quarry vibrating feeder price dual eccentric shaft exciter generates excitation force. A gear pair-connects the two eccentric shafts, enables the shafts rotate to opposite direction with same speed. Through motor driving, the excitation force generated constantly, the material slides and bounces ahead to crusher on the feeder groove. When material go through the feeder’s grid bars, the smaller material will fall down through the gap between grid bars and be sent to next crushing process. It enables the feeder to pre-screen material and fully ensures the crushing plant’s high crushing efficiency and capability.




Main Technical Parameters


Model
Number of floors
Screen size(mm)
Double amplitude(mm)
Frequency of oscillation(r/min)
Maximum feed size(mm)
Productive capacity(t/h)
power(kw)
YA1845
2/3
3-150
7-8
800
≤200
55-450
22/30
YA1854
1/2/3/4
3-150
7-8
800
≤200
60-480
22/30/30/37
YA1860
1/2/3
3-150
7-8
800
≤200
80-500
22/30/37
YA2160
1/2/3/4
3-150
7-8
800
≤200
100-750
22/37/45/37
YA2460
1/2/3/4
3-150
7-8
800
≤200
120-880
22/37/45/45
YA2475
1/2/3/4
3-150
7-9
800
≤200
150-950
37/45/55/2×37
YA2773
1/2/3/4
3-150
7-9
800
≤200
150-1000
37/45/55/2×37
YA3060
1/2/3
3-150
7-9
800
≤200
150-900
37/45/55
YA3073
1/2/3
3-150
7-9
800
≤200
150-1100
45/55/2×30
YA3280
2/3
3-150
7-9
800
≤200
150-1200
2×(30/37)
YA3675
1/2/3
3-150
7-9
800
≤200
200-1200
2×(22/37/45)


Main Features


1, Stable performance and high screening efficiency
The circular vibrating screen follows the structural design of the classic screening equipment, and its performance is fully guaranteed.
2, A variety of screens to choose from
To meet the requirements of various classification operations after coarse crushing and medium crushing in the crushing process, we have configured a variety of screens for the circular vibrating screen. So that we can meet different production needs through simple screen replacement operations.




Company Profile


Henan Haolu machinery equipment company is established in 2002 located in Henan province ,China. We can provide a complete set of equipment including crushing, screening, minerals separation, etc. The products have been exported to market of Southeast Asia, Middle East, Africa and the Americas. Agents have also been developed in Egypt, Pakistan, Vietnam and other countries. We supply with decent quality product, as well as best solutions, professional technical support and excellent after-sales service. Since its establishment,adhering to the scientific management method of modern enterprises, seiko manufacturing, continuous innovation,rapid development and growth of local star enterprises.
The company is a large joint-stock company of industry and trade, with sales all over the world. The enterprise has first-class processing equipment, perfect testing means,high-quality scientific and technological personnel,quality service. The enterprise has been awarded provincial excellent enterprise for many times. Products are sold at home and abroad.
The company can provide one-stop services of factory planning, design, construction, equipment installation, operation,after-sales etc. The products of our company are exported to dozens of countries and regions of Africa, South Asia, Southeast Asia, South America etc.








FAQ


Q1: Hi, are you mining machinery manufacturer?
A: Yes, our company warmly welcome clients to visit our plant at any time. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc.


Q2: Which country have your products been exported?
A: We have been exported business for many years and we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc.


Q3: How long is the warranty of your equipment? Does your company supply the spare parts?
A: The usual warranty period is one year. And of course, we will supply the spare parts for you at lowest cost.


Q4: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need.
We had already build many mining projects in China & Overseas. We can set a complete processing line just as you require.
