Mini Handheld Portable All In One Machine Optical Power Meter With 5km/10km Laser Source Visual Fault Locator

Product Overview

Description





Description

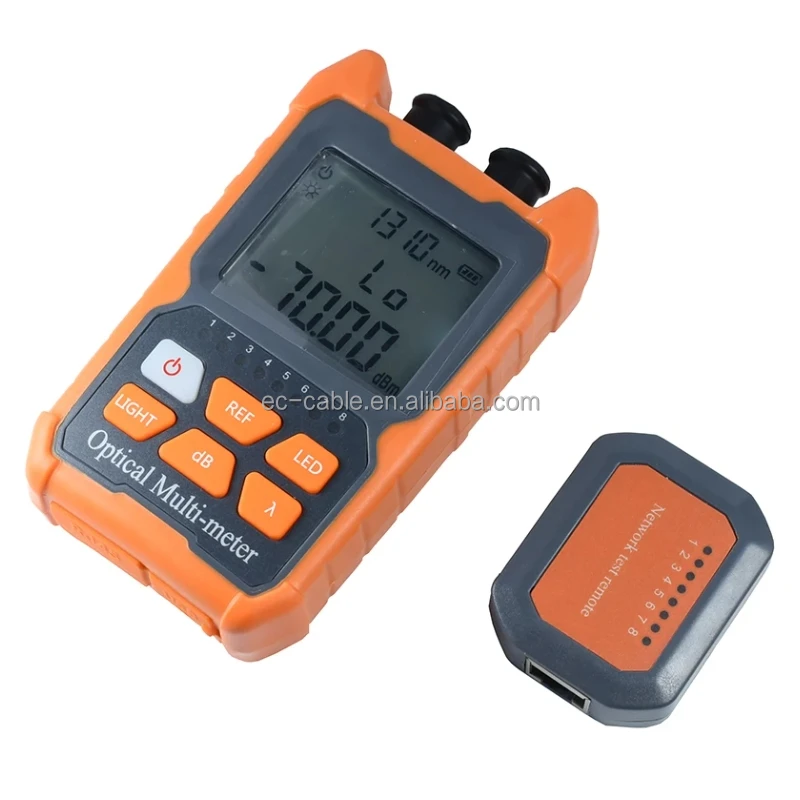

2 IN 1 Fiber Optic Power meter with 5km Laser source Visual Fault locator.This kind calibration type optical power meter is for
handheld installation, operation and maintenance of optical fiber network special design of a precise, durable, convenient
portable test instrument. With clever appearance, can choose to switch back light display, automatic shutdown function, super wide
optical power test range, accurate testing accuracy and new users auto-calibration function and general interface design



Features
Practical and Compact Designit – it is portable and easy to bring with large screen and LED backlight;
It is the Combination of the optical power meter and Visual Fault locaotr.
Light power one machine function: can measure 850/980/1300/1310/1490/1550/1625nm
and other 7 wavelength of the optical absolute power,test range: -70dBm~+10dBm;
10mW visual fault locator can measure the distance is about 10 kilometers





Applications

Fiber CATV Test Engineering,
Optical fiber CCTV Test communication engineering,
Integrated wiring system,
Optical device production and research,
Optical communication teaching and testing,
Other fiber optic engineering, etc.





Technical Specification

Item	Specification

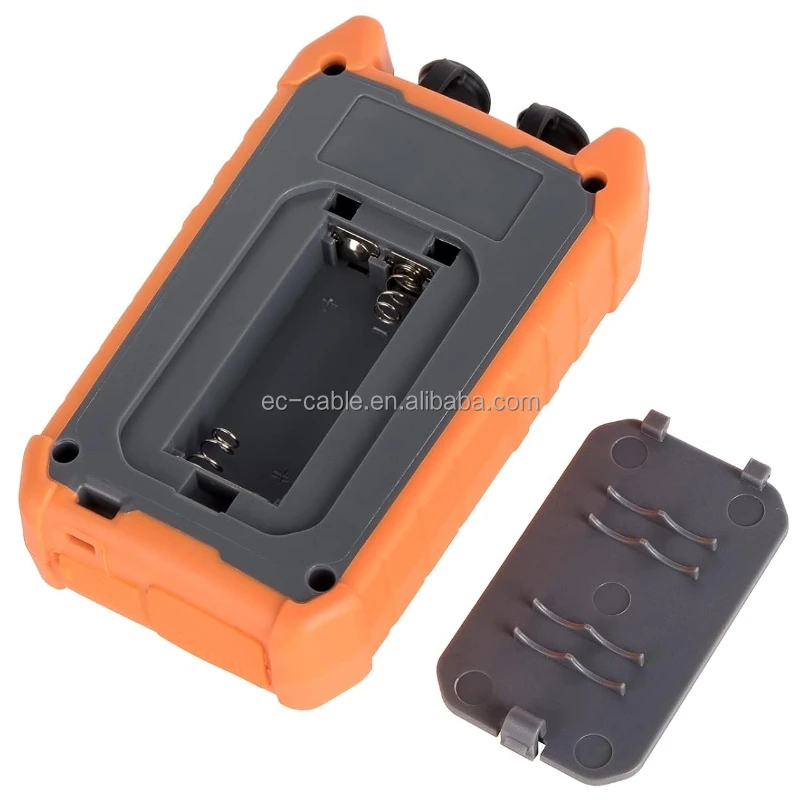

Power Supply	TWO AAA Batteries700mAh Rechargeable Lithium Battery (Options)
Automatic Shutdown Time	10min
Continuous Working Time	≥120h(OPM Function)
OperatingTemperature	-10°C~+50°C
Storage Temperature	-40°C~+70°C
Relative Humidity	0~95% Non condensing
Size	112mmx66mmx30mm
Weight	140g/150g
