4W 6w 8w 10w 11W uv bulb power supply 230V Electronic ballast electronic metal halide ballast for 254nm uvc germicidal lamp
- Category: >>>
- Supplier: Lightbest Co. Ltd.
Share on (1601029921307):
Product Overview
Description
Product Description

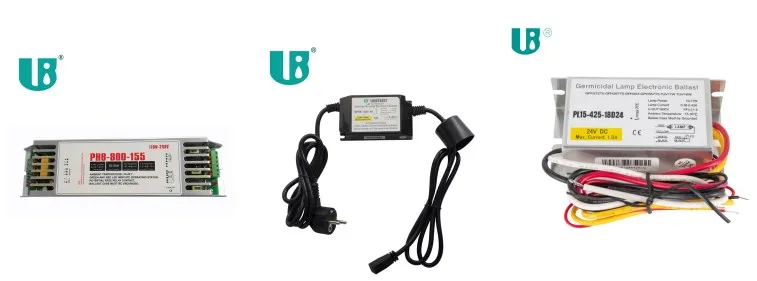

110V-240V AC UVC lamp electronic ballast
Integrated UVC lamp electronic ballast
12V-24V DC UVC lamp electronic ballast
The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy.
Lightbest can provide multiform electronic ballasts and inverters compatible with lamps.

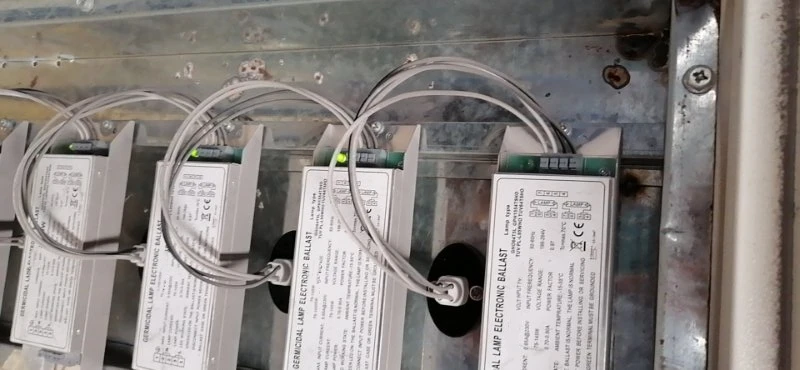

Installation case:
1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up.
2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced.
3.In addition, the voltage of the ballast must match the power supply voltage.
2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced.
3.In addition, the voltage of the ballast must match the power supply voltage.

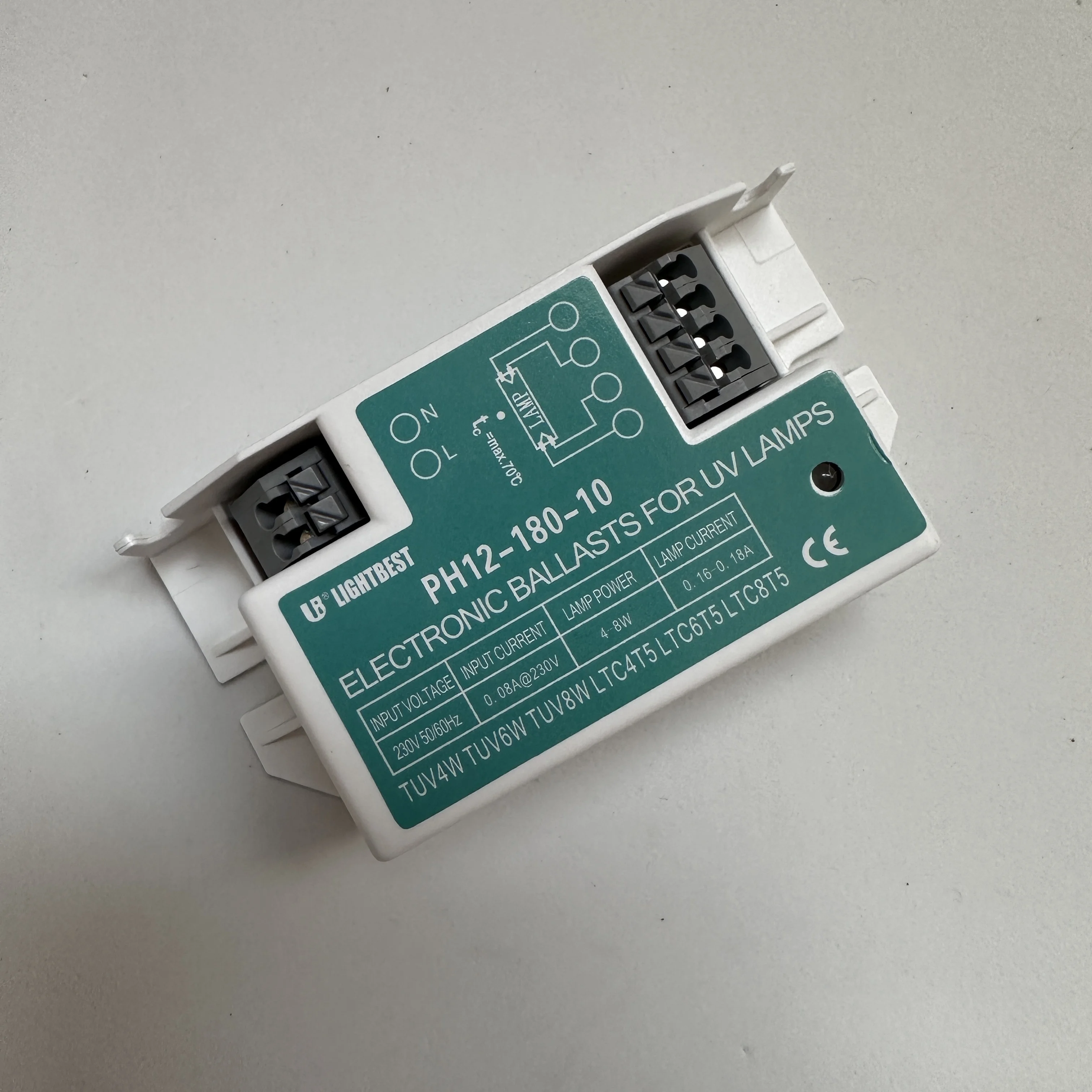

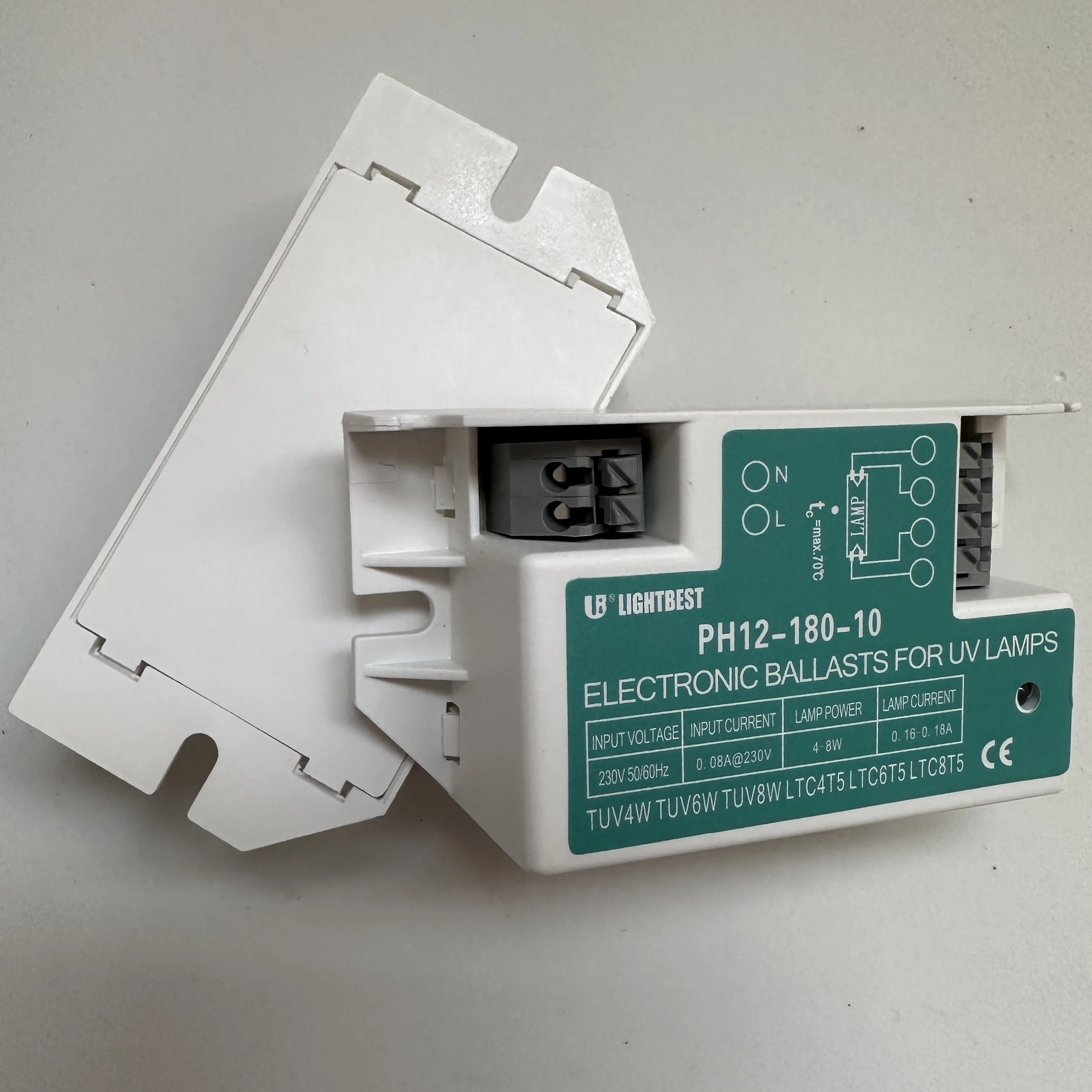

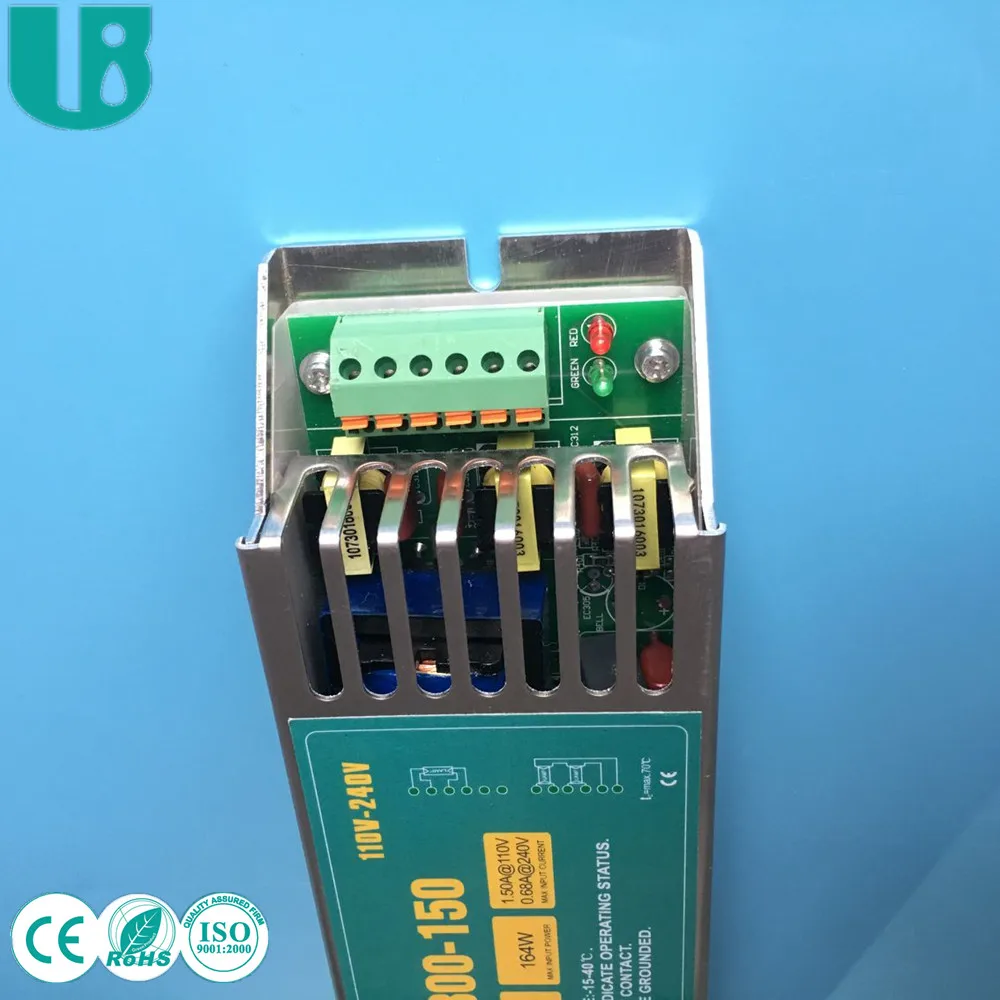

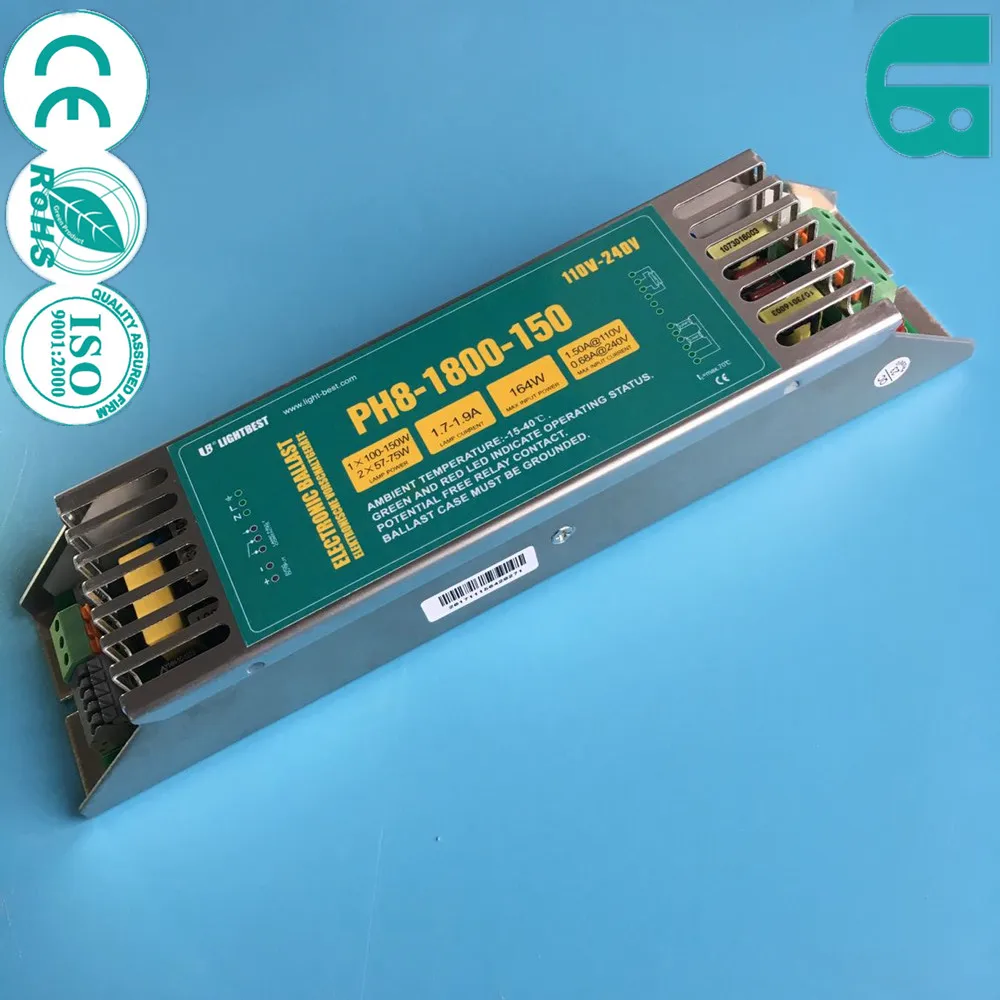

Detailed Images

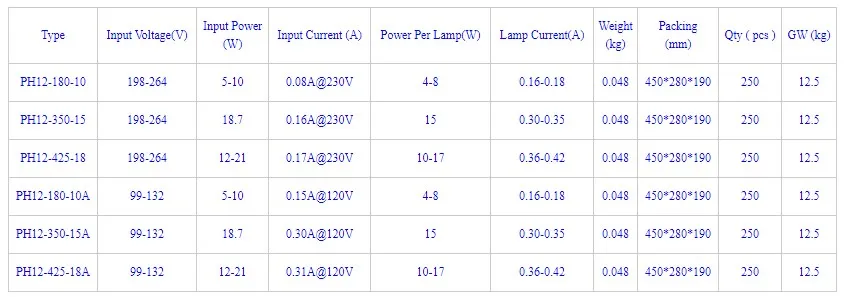

Product Paramenters

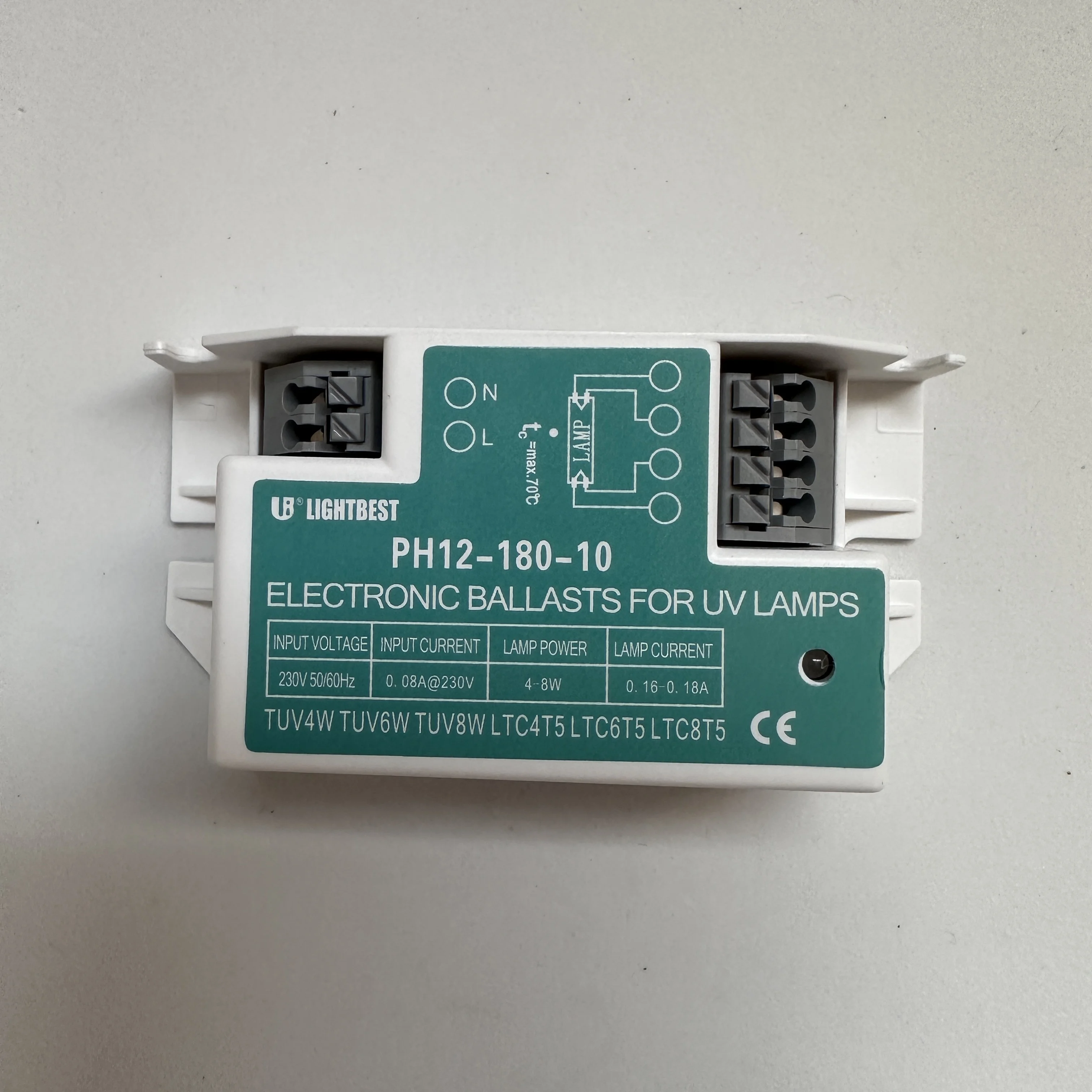

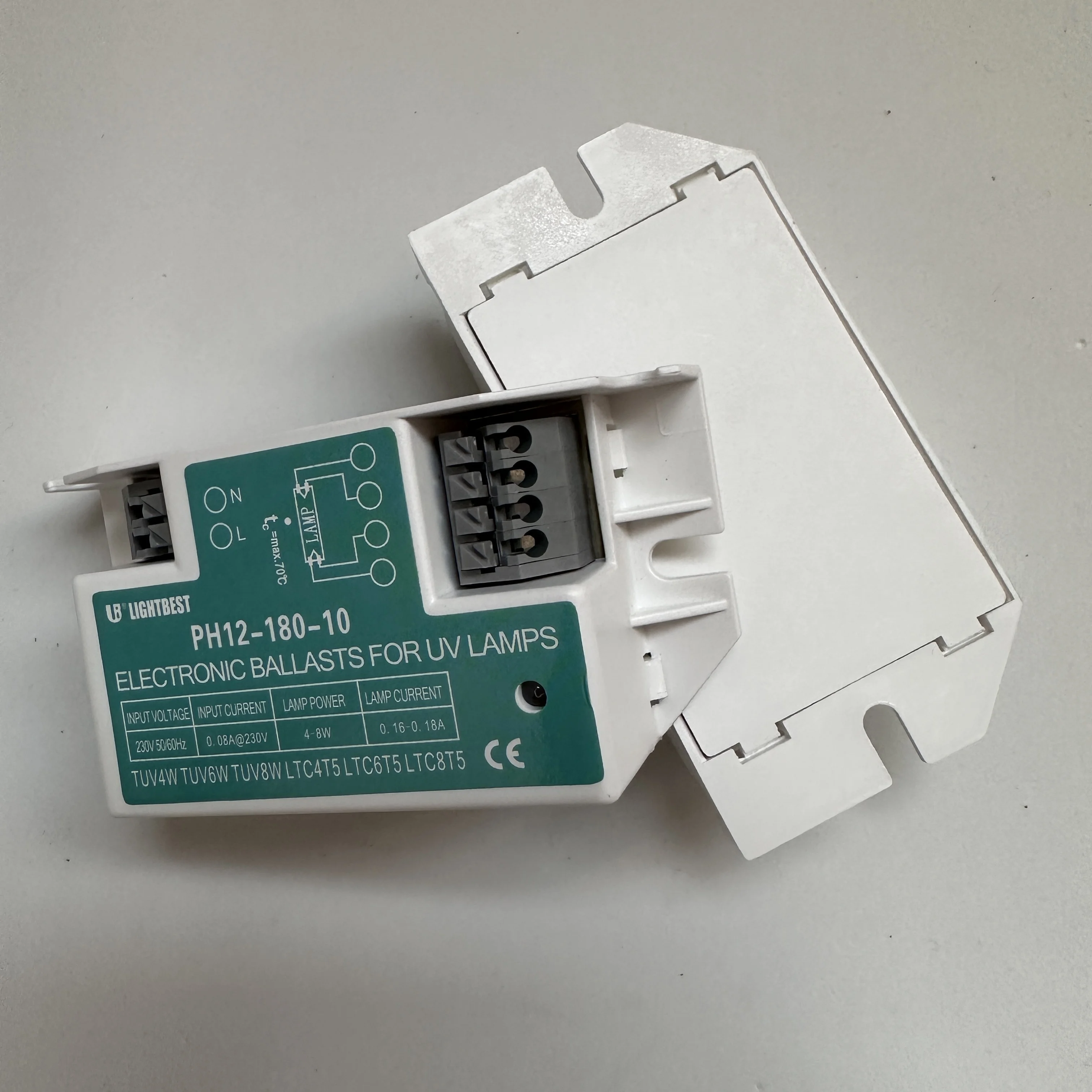

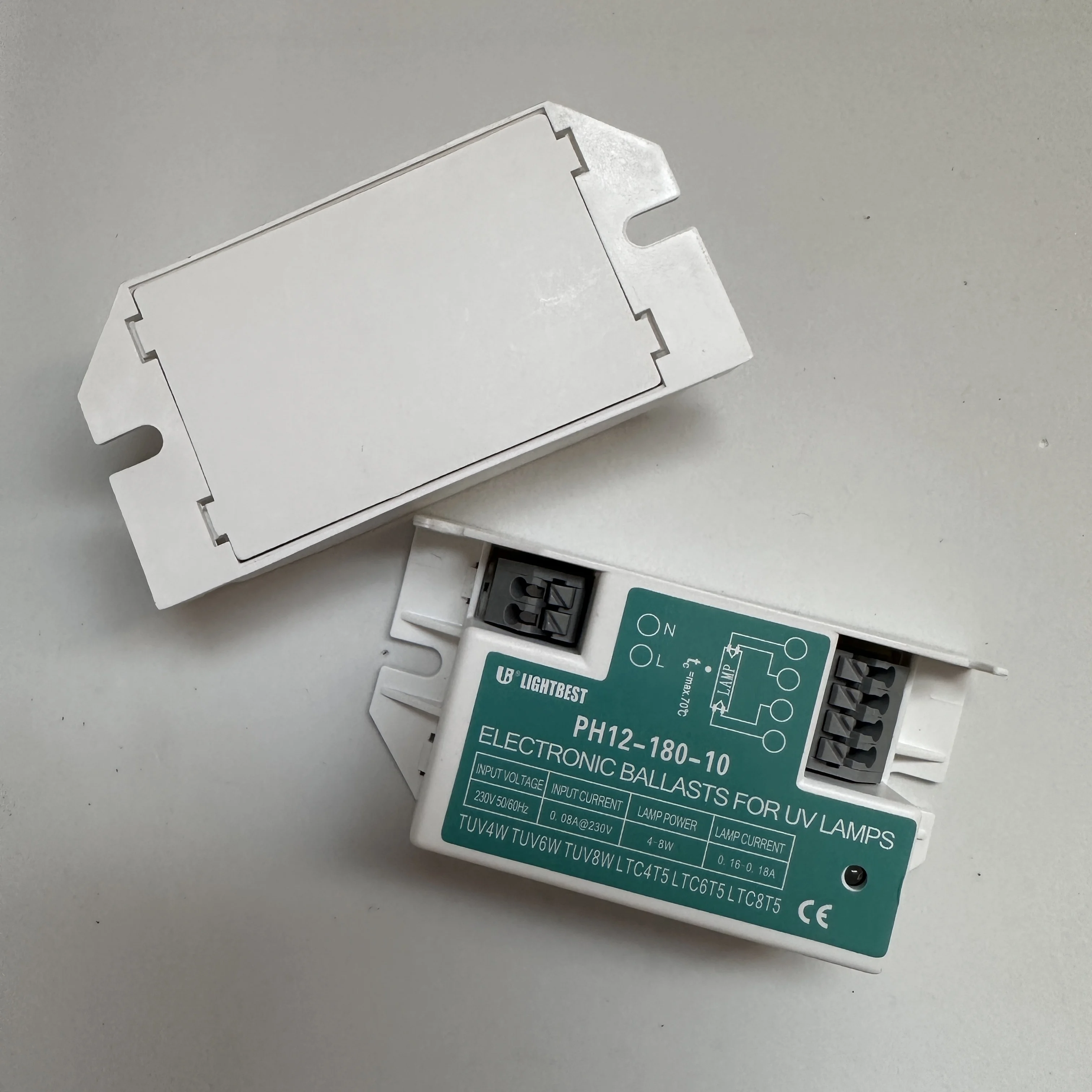

l PH12-180-10
PH12-180-10A
Lamp Types:TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5
l PH12-350-15
PH12-350-15A
Lamp Types:GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W
l PH12-425-18
PH12-425-18A
Lamp Types:TUV15WT8
l Technical specifications
Mains Frequency:50/60Hz
Power Factor: >0. 55
Efficiency: >80%
Operating Frequency: 40-60KHz
Starting:Pre-heat
Dimensions:80*40*22mm
l Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
l Installation Requirement
Wire gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
l Mountion Restriction
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four output.
l Features
Starting:Preheat
l Applications
All areas of applications include UV lamps:
=>Air purification
=>Aquarium
=>Domestic drinking water
PH12-180-10A
Lamp Types:TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5
l PH12-350-15
PH12-350-15A
Lamp Types:GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W
l PH12-425-18
PH12-425-18A
Lamp Types:TUV15WT8
l Technical specifications
Mains Frequency:50/60Hz
Power Factor: >0. 55
Efficiency: >80%
Operating Frequency: 40-60KHz
Starting:Pre-heat
Dimensions:80*40*22mm
l Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
l Installation Requirement
Wire gauge:0.5-1.0mm2
Max.cable length between ballasts and lamp:5m
l Mountion Restriction
Disconnect Input Power Before Installing or Servicing.
Don’t short any two wires of the four output.
l Features
Starting:Preheat
l Applications
All areas of applications include UV lamps:
=>Air purification
=>Aquarium
=>Domestic drinking water

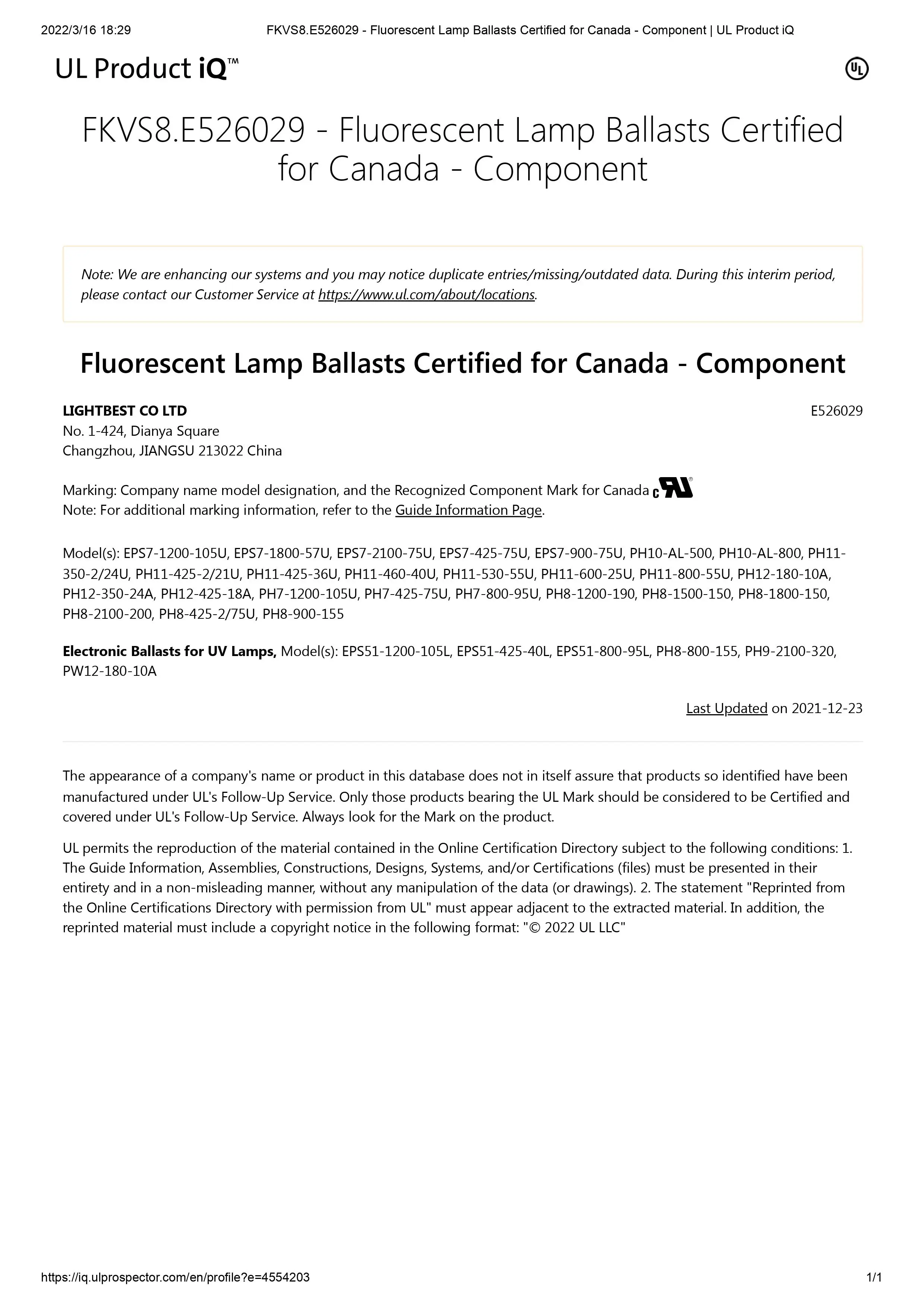

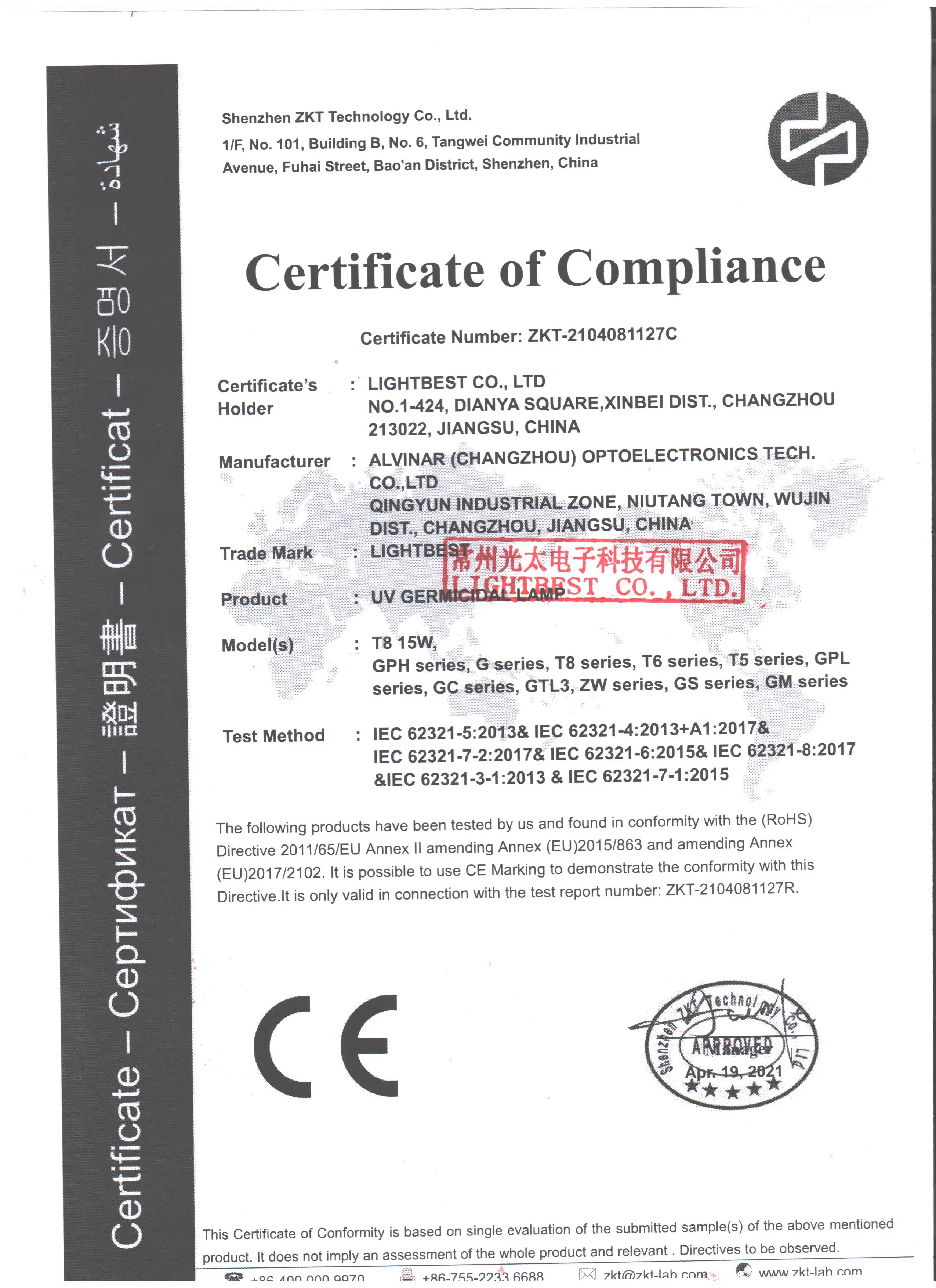

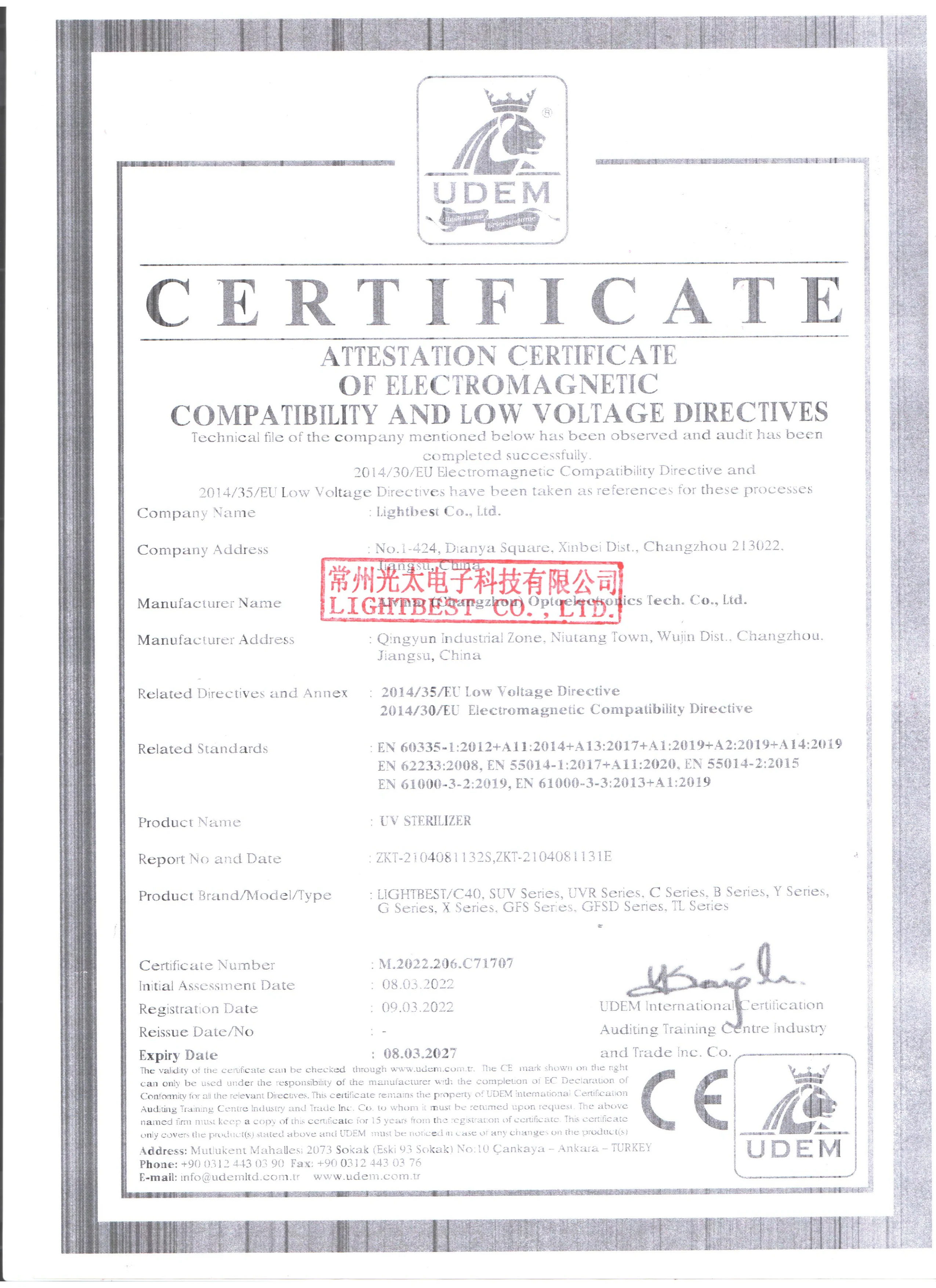

Certificate
Our factory has established a strict product quality control system and has gained the SGS and ISO9001-2015 certificate and introduced 5S quality management system from Japan. Our products have successfully passed CE, UKCA, RoHS and FCC certifictions and UL test report etc.. Our products are best-sellers in domestic and international markets, and exported to many countries, such as United States, Canada, Germany, France, UK, Spain, Sweden, Switzerland, Norway, Austria, Italy, Holland, Finland, Romania, Russia, Australia, Dubai, Indonesia, Thailand, Vietnam, Malaysia, Singapore, Japan, South Korea, Brazil, Chile and so on.
Related Products

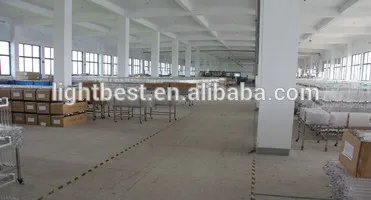

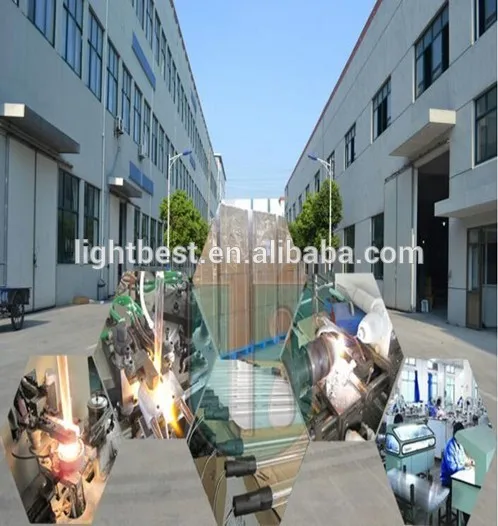

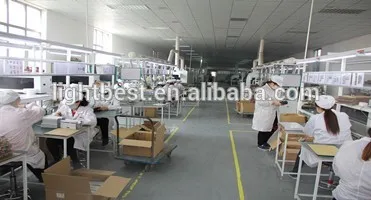

Company Introduction
Lightbest focus on the manufacturing, R&D and sales of uvc germicidal lamp and related products. Lightbest products are widely used in water purification treatment, UV photolysis, waste gas treatment, sewage treatment, disinfection equipment, smart health appliances etc. and supply customers with one-stop service and solution. We specialize in UV germicidal lamps, UV water sterilizers, electronic ballasts, quartz glass tube, submersible uv lamps and lamp socket etc. and adhere on the principle to fight, uphold, share and win-win together. We have been a stable supplier of high-quality products, perfect service, professional operation and competitive price both in China and the globe.
Our company is committed to the breakthrough and innovation of technology, constantly consummates manufacturing technique, executes in strict rotation of production process control and finished product control system to meet specific needs of all of our customers. We will prompt management level, enhance production efficiency and provide more perfect products and more professional service. We will try our best to offer you more perfect application experiences and go together to make contribution to improve our living environment.
Packing&Shipping
Packaging Details: Standard export packing:Plywood carton, 100 pieces in a carton
Delivery Detail: 7 to 20 days
Delivery Detail: 7 to 20 days
FAQ
Lightbest provided: OEM service
Buyer Logo /Label
Custom Design Service
Guarantee:
A: Manufacture is to ISO9001:2000 standard.
B: Product is guaranteed for 12 months after lamp purchase.
C: According to the International Standard:
AQL tolerance is within 2% of the total quantity per order.
D: If AQL tolerance exceeds 2%, Lightbest will refund the buyer at 1:1 rate; OR an amount equal to the UQL value will be deducted
from the next order.
E: 2% of products are added by Lightbest (at no extra charge) to the ordered quantity for back-up purposes.
Buyer Logo /Label
Custom Design Service
Guarantee:
A: Manufacture is to ISO9001:2000 standard.
B: Product is guaranteed for 12 months after lamp purchase.
C: According to the International Standard:
AQL tolerance is within 2% of the total quantity per order.
D: If AQL tolerance exceeds 2%, Lightbest will refund the buyer at 1:1 rate; OR an amount equal to the UQL value will be deducted
from the next order.
E: 2% of products are added by Lightbest (at no extra charge) to the ordered quantity for back-up purposes.
Q: What's your advantage compared with other suppliers?
A: Our uv lamps are made with high-quality quartz, the same supplier for Philips and Lightsources.
There are CE ,UL and Rohs certificates and competitive prices.
Q: What's my consideration when I choose one model of uv lamps?
A: -The water treatment volume and speed;
and lamp watts and length.
Q: Can I be a distributor of Lightbest?
A: Of course you can.
Q: What are the benefits of being a Lightbest distributor?
A: - Special discount.
- Marketing protection.
- Priority of launching new design.
- Point to point technical supports and after sales services.
Q: How can I become a distributor of Lightbest?
A: Contact us immediately for further details by sending us an inquiry.
A: Our uv lamps are made with high-quality quartz, the same supplier for Philips and Lightsources.
There are CE ,UL and Rohs certificates and competitive prices.
Q: What's my consideration when I choose one model of uv lamps?
A: -The water treatment volume and speed;
and lamp watts and length.
Q: Can I be a distributor of Lightbest?
A: Of course you can.
Q: What are the benefits of being a Lightbest distributor?
A: - Special discount.
- Marketing protection.
- Priority of launching new design.
- Point to point technical supports and after sales services.
Q: How can I become a distributor of Lightbest?
A: Contact us immediately for further details by sending us an inquiry.
