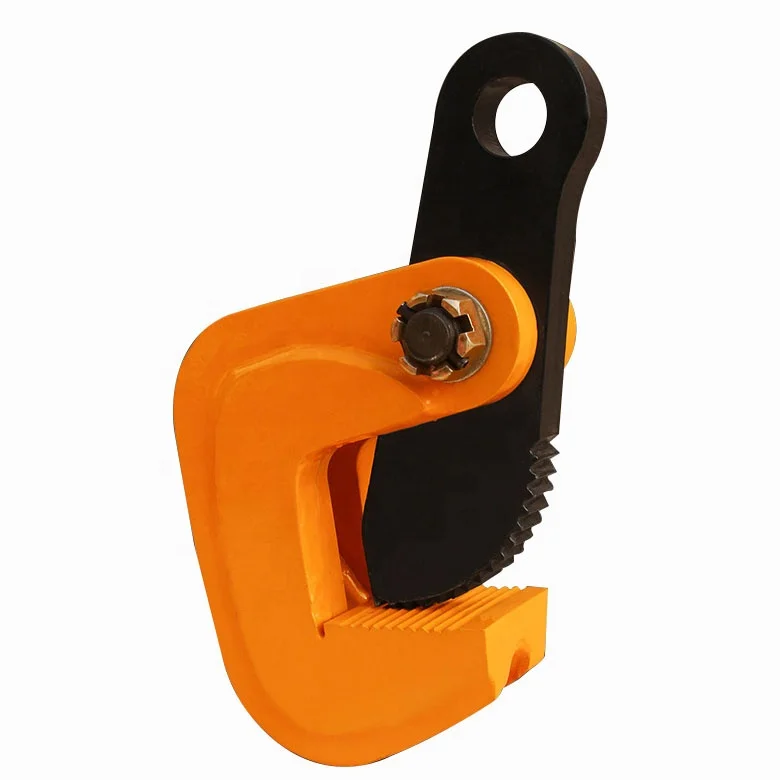

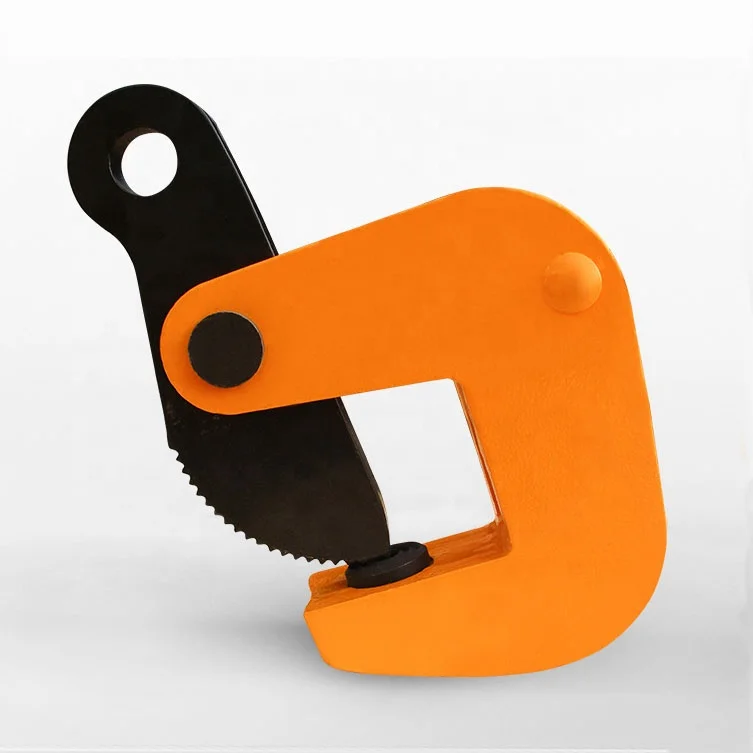

Bridge Crane LA 1t 10t Horizontal Steel Plate Lifting Clamp with Safety Lock
- Category: >>>
- Supplier: Wuxi Komay Electric Equipment Co. Ltd.
Share on (1601029949547):
Product Overview
Description
Product Description

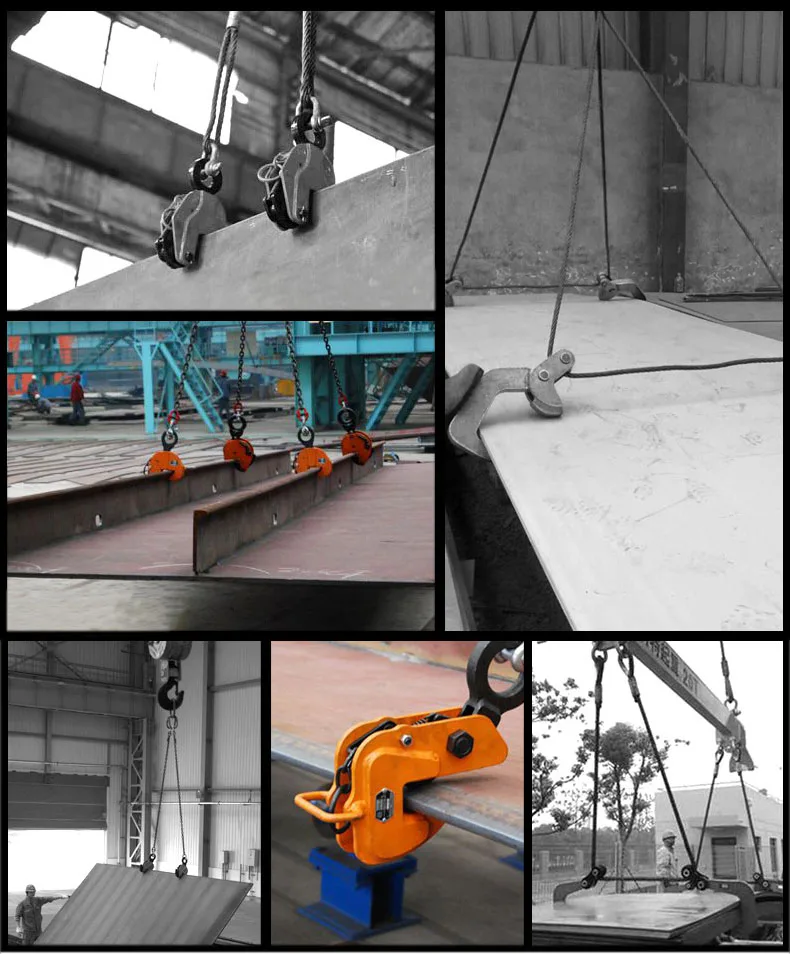

Suitable for lifting and transport of steel plates,construction and profiled bar in horizontal position. Manufactured from high quality carbon steel.

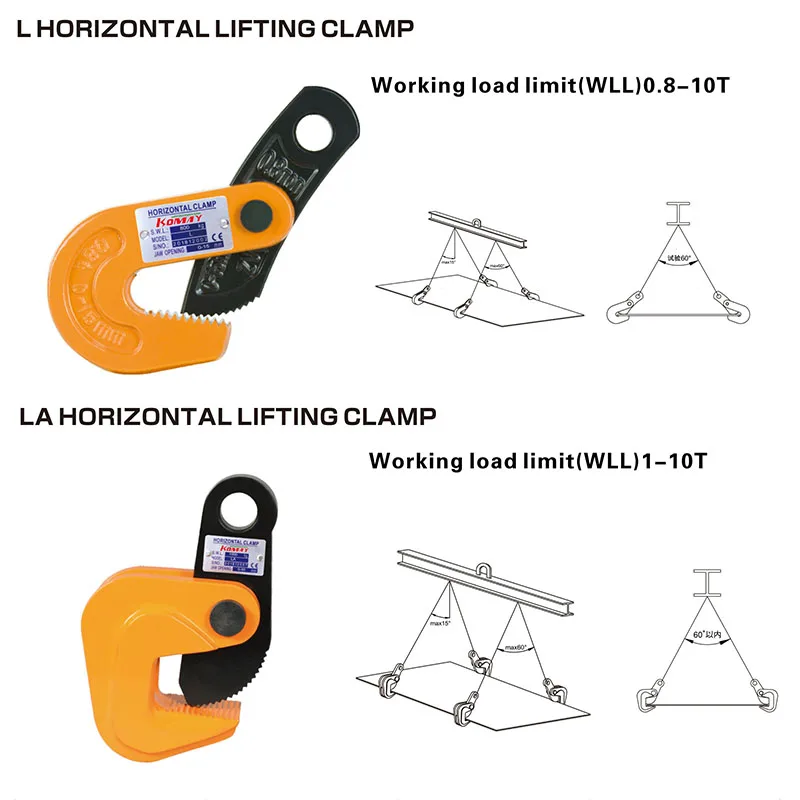

The working load limit is the maximum load that the clamp are authorized to support when used in pairswith a lift angle of 60°. In lifting operations the clamps can be used in pairs or multiples.
Model | Capacity(KG) | Jaw Opening(mm) | Weight(KG) |
LA1 | 1000 | 0-30 | 3.7 |
LA2 | 2000 | 0-50 | 5.2 |
LA3.2 | 3200 | 0-60 | 7.7 |
LA5 | 5000 | 10-80 | 12.5 |
LA6 | 6000 | 10-100 | 15 |
LA10 | 10000 | 20-120 | 26.6 |
Company Profile
WUXI KOMAY ELECTRIC EQUIPMENT CO., LTD.is a professional high and new tech enterprises in mobile electrification system field. Our major products are Single Pole Insulated Conductor Rails,Enclosed Conductor Rails,Copperhead Conductor Rails, Safety Power Rails, Multipolar Busbar,Busway Systems,Cable Trolleys,Cable Chains,ED Thruster,Electro-Hydraulic Drum Brake and more....The essential features of products are Compact arrangement ,corrosion resistance,and simple assembly .The products is suitable especially for overhead and elongated tracks for cranes,monorails,port machines,stacking systems,as well as many other applications for supplying power to moving power loads.Our Products are certified by CE and export to Europe,America,Middle East,Africa, Southeast Asia etc. other country and area.Competitive price and High quality - All mobile electrification systems for you ,We are sincerely looking forward to cooperatering with you!
