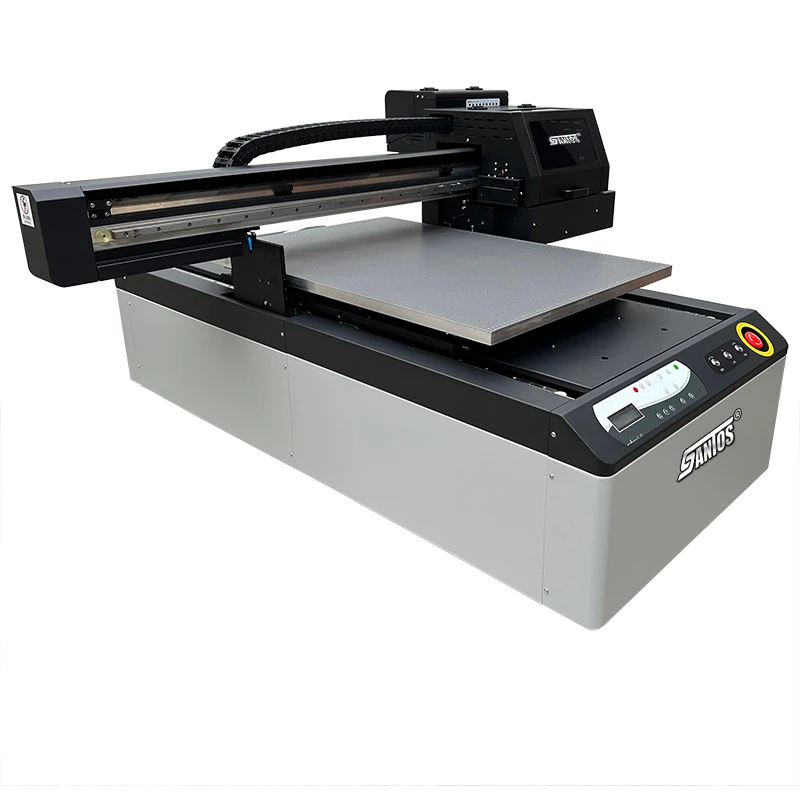

inkjet printers uv6090 flatbed printer digital a1 uv Flatbed printing machine With 3pcs Xp600 Printhead
- Category: >>>
- Supplier: Wuhan Kinglocor Technology Co. Ltd.
Share on (1601029949838):
Product Overview
Description
Related Products
Product Description
Product feature:
***12cm high drop printing
***12cm high drop printing
***ink shortage alarm system
***imported guide rail
***junk ink bottle
***vacuum adsorption platform
***ruler positioning, platform thickness 25mm
***Chinese and English bilingual button panel
Product size:
1562mm*1530mm*666mm
1562mm*1530mm*666mm
Packing size:
1660mm*1660mm*890mm
Product details & configurations：
Product | UV 6090 flatbed printer | ||||
Model number | ST-6090 | ||||
Printer head | XP600 / TX800/I3200 | ||||
Head number | 2-4pcs | ||||
Ink | UV ink, UV textile ink | ||||
Printer size | 600*900mm | ||||
Print material | Glossy acrylic, glass, stainless steel, phone case, ceramic tile, KT board, wooden board, aluminum plastic board | ||||
Print Interface | Gigabit Ethernet port | ||||
RIP ooftware | Maintop6.1、Photoprint、Ultraprint | ||||
Power | 500W+5% | ||||
Operating environment | Temperature:15oC-30oC，Humidity:40%RH-60%RH | ||||
Dimension of printer | 1562*1530*666mm (L*W*H) | ||||
Dimension of packing | 1660*1660*890mm (L*W*H) | ||||
Net weight | 165KG | ||||
Gross weight | 255KG | ||||
Speed and Accurancy (three and four head with gloss oil) | double XP600 head 6pass 9m2/h 8pass 7m2/h 12pass 4m2/h | double TX800 head 6pass 8m2/h 8pass 6m2/h 12pass 3m2/h | double I3200 head 6pass 20m2/h 8pass 14m2/h 12pass 9m2/h | ||
three XP600 head 6pass 9m2/h 8pass 7m2/h 12pass 4m2/h | three TX800 head 6pass 8m2/h 8pass 6m2/h 12pass 3m2/h | three I3200 head 6pass 20m2/h 8pass 14m2/h 12pass 9m2/h | |||
four XP600 head 6pass 20m2/h 8pass 15m2/h 12pass 12m2/h | four TX800 head 6pass 18m2/h 8pass 14m2/h 12pass 11m2/h | four I3200 head 6pass 40m2/h 8pass 26m2/h 12pass 18m2/h | |||
-PRODUCT DETAILS-
1.Honson Board: High end honson board ensure stable performance
2.Carriage Detector: Auto carriage and printer head detecting device, avoid collision
3.Powder supply: Powder supply and dreiver are independently controlled to ensure that the machine runs more stably and smoothly
4.Aluminum Alloy Carriage: Integrated aluminum alloy thickened carraige, automatic height measurement, one-click lifting, convient and pratical
5.Imported Guide Rails: Imported mute guide rails, high precision, low noise and long life
6.Transmission: Full screw drive makes printing more accurate

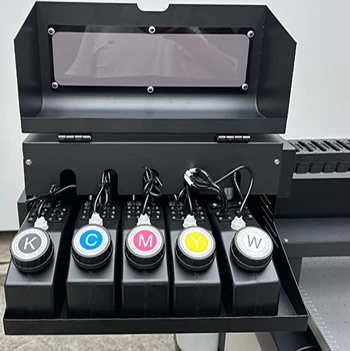

7.Intelligent white ink supply system: White ink stirring system avoid ink sediment or print head nozzle block, effectively protecting printer and save ink.

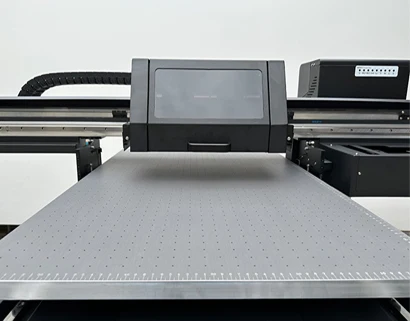

8. Vacuum adsorption platform: High-precision full-scale durable 25mm thickened honeycomb aluminum plate vacum adsorption lifting platform
9.Bilingual panel and emergency stop button: Chinese and English operation panel, emergency stop button, easy to operate
10.Color management software: Using management soft ware such as Maintop, Photoprint etc. Supports multiple image formats such as jpg/png/eps/ai/tif, It has excellent color precessing solution, precise color matching, and restores the true colors.
1.Honson Board: High end honson board ensure stable performance
2.Carriage Detector: Auto carriage and printer head detecting device, avoid collision
3.Powder supply: Powder supply and dreiver are independently controlled to ensure that the machine runs more stably and smoothly
4.Aluminum Alloy Carriage: Integrated aluminum alloy thickened carraige, automatic height measurement, one-click lifting, convient and pratical
5.Imported Guide Rails: Imported mute guide rails, high precision, low noise and long life
6.Transmission: Full screw drive makes printing more accurate
7.Intelligent white ink supply system: White ink stirring system avoid ink sediment or print head nozzle block, effectively protecting printer and save ink.
8. Vacuum adsorption platform: High-precision full-scale durable 25mm thickened honeycomb aluminum plate vacum adsorption lifting platform
9.Bilingual panel and emergency stop button: Chinese and English operation panel, emergency stop button, easy to operate
10.Color management software: Using management soft ware such as Maintop, Photoprint etc. Supports multiple image formats such as jpg/png/eps/ai/tif, It has excellent color precessing solution, precise color matching, and restores the true colors.
IF YOU WANT IT, CLICK HERE → CONTACT US
know more>>Product Application
We have 15 years of experience, quality assurance
We have professional technician test
Factory supply, fast delivery, with wooden box package

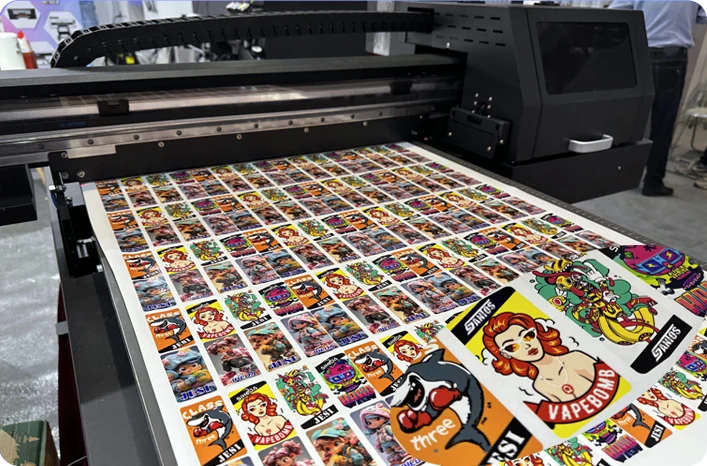

Printing effective:
1.High resolution-imported printing head with high definition
2.Unlimited material-Glass boardacrylic plastic, metal
3.Unlimited color
Company Introduction
About Kinglocor
As a professional large format Printing Machine Manufacturer, Kinglocor focuses on providing customers printing solution that is mature, efficient, and stable.Our main products included the large format printer, DTF printer, UV printer, DTG printer, laminator, cutter plotter and printing consumables.
Kinglocor has 12 years of industry experience in printing machine, our products saled to over 40+ countries, we values feedback from every customer, and are constantly committed to expanding product functions and improving product performance. We have our own R&D team and after-sales team to support any technical problems, devoted to assisting our customers with their growth in sales.
FAQ
1. Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.
2. If I have sometechnical problem, how can you help us to solve it ?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
3. Once there is something need to replace, what can I do ?
We supply all the spare parts for the printer. If any part needed, pls let our sales know.
4. Can we send our technician to your factory for training ?
Yes, you are warmly welcome to visit us for free training.
5. We want to become exclusive distributor of your machines ?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship. Thank you.
