Dragonstage 12 6 Speaker 12 Inch Neodymium 6,000 People Line Array Audio Sound System with 18 Inch Sub
- Category: >>>
- Supplier: Foshan Dragon Stage Equipment Co. Limited
Share on (1601029969897):
Product Overview
Description
| No. | Name | Data | QTY | Unit |

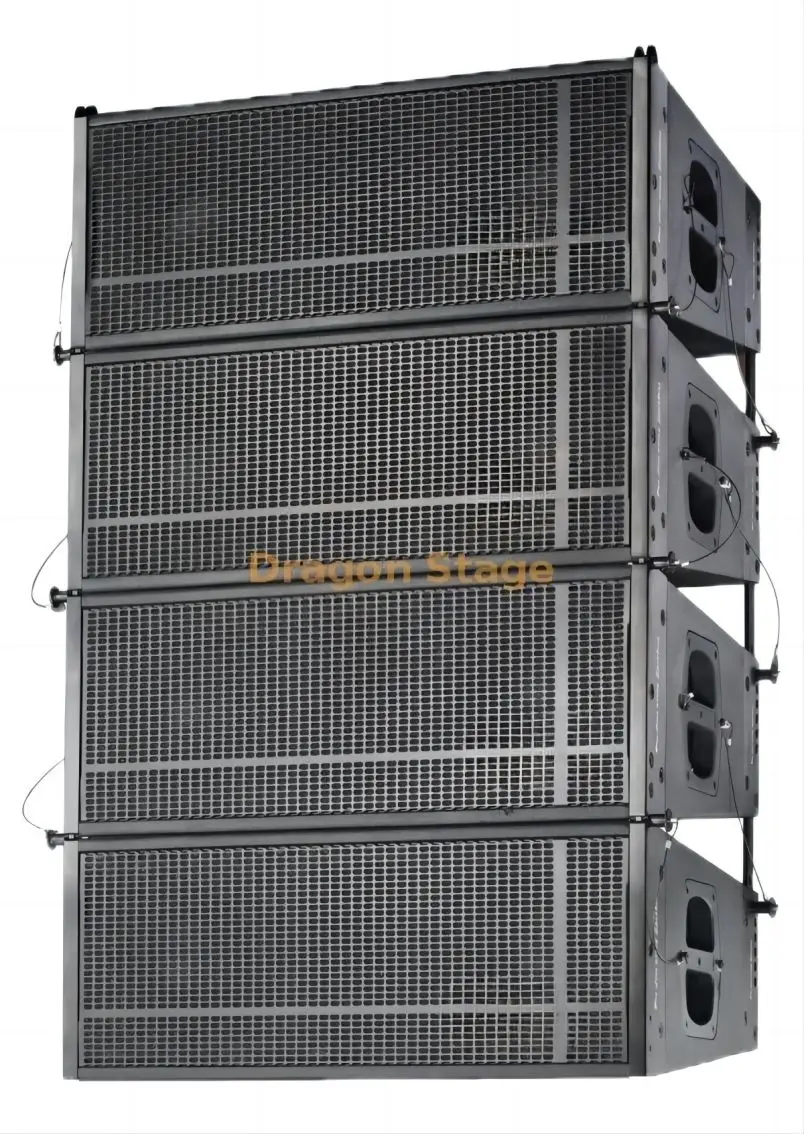

| 1 | Double 12 full frequency passive
| Type: 2-channel full frequency linear array speaker Appearance: Black Composition: 12 "* 2+3" * 1+Horn Impedance: 4 Ω Average power: 800W Program power: 3200W Frequency response: 50Hz -20KHz (± 3dB) Sensitivity (1W/1M): 112dB Maximum sound pressure level: 139dB Diffusion angle: 100 º -7 º Product size: 960 * 360 * 410 Net weight: 38KG“ | 12 | p |

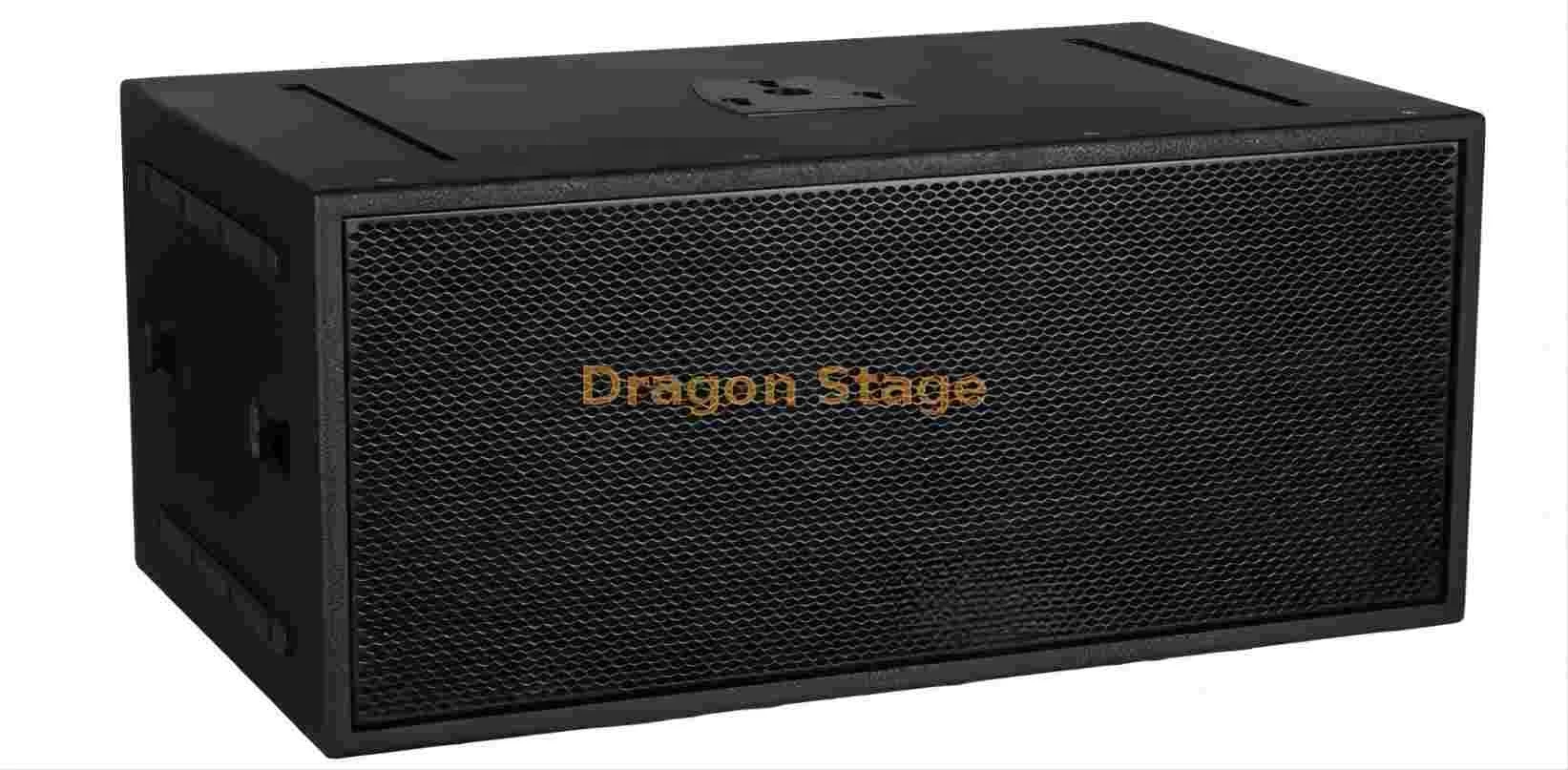

| 2 | Double 18 inch bass passive
| Type: Double 18 inch passive subwoofer Appearance: Black Composition: 18 "* 2 125 cores Impedance: 8 Ω Average power: 1600W Program power: 6400W Frequency response: 35Hz-300Hz (± 3dB) Sensitivity (1W/1M): 113dB Maximum sound pressure level: 136dB Product size: 560*1065*780mm Net weight: 84KG“ | 6 | p |
| 3 | Linear array hanger | Linear array hanger | 2 | p |

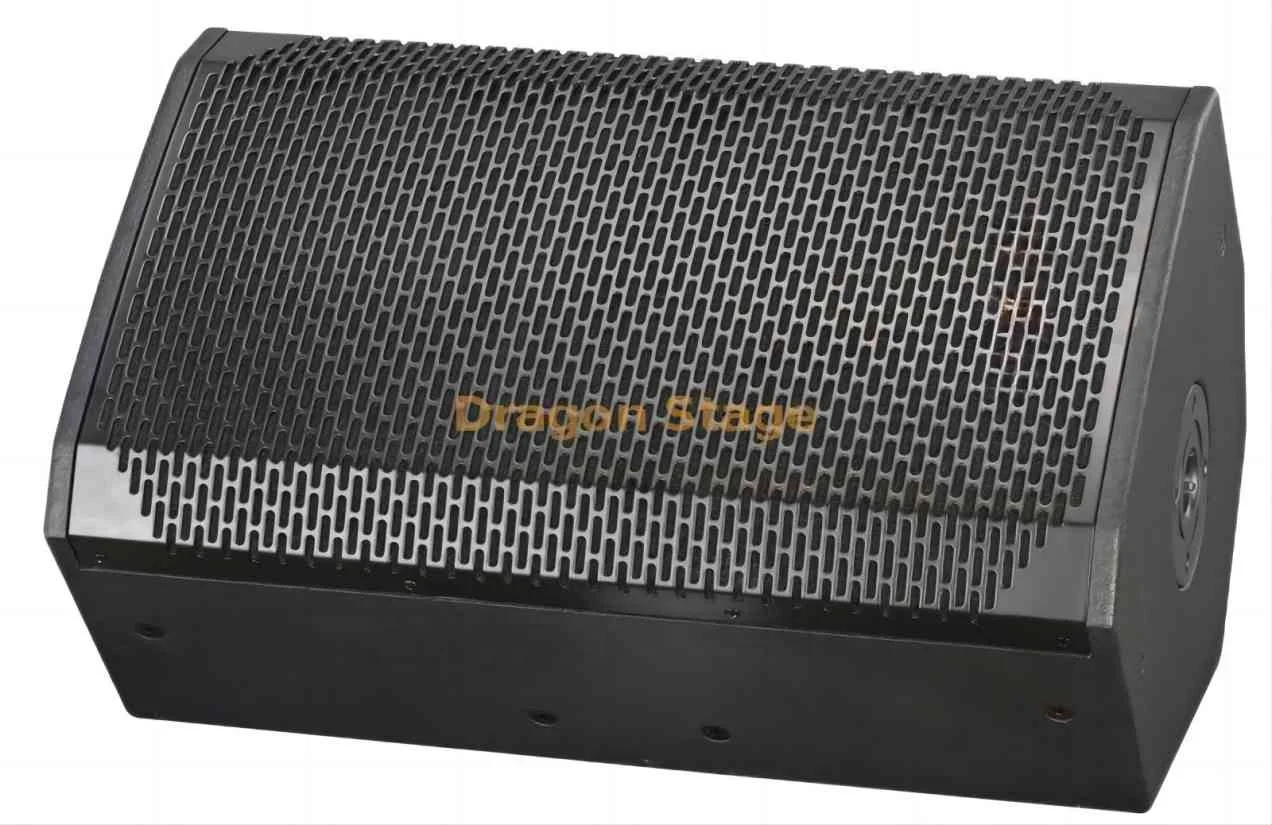

| 4 | Single 15 professional listening speaker
| Type: 2-way rotatable waveguide horn, multi angle projection full frequency speaker Composition: 15 "+2"+Horn Impedance: 8 Ω Average power: 500W Program power: 1000W Frequency response: 35Hz-20KHz Sensitivity (1W/1M): 101dB Maximum sound pressure level: 129dB Diffusion angle: 90 º -60 º Product size: 430 * 450 * 675 Net weight: 24.2kg | 4 | p |

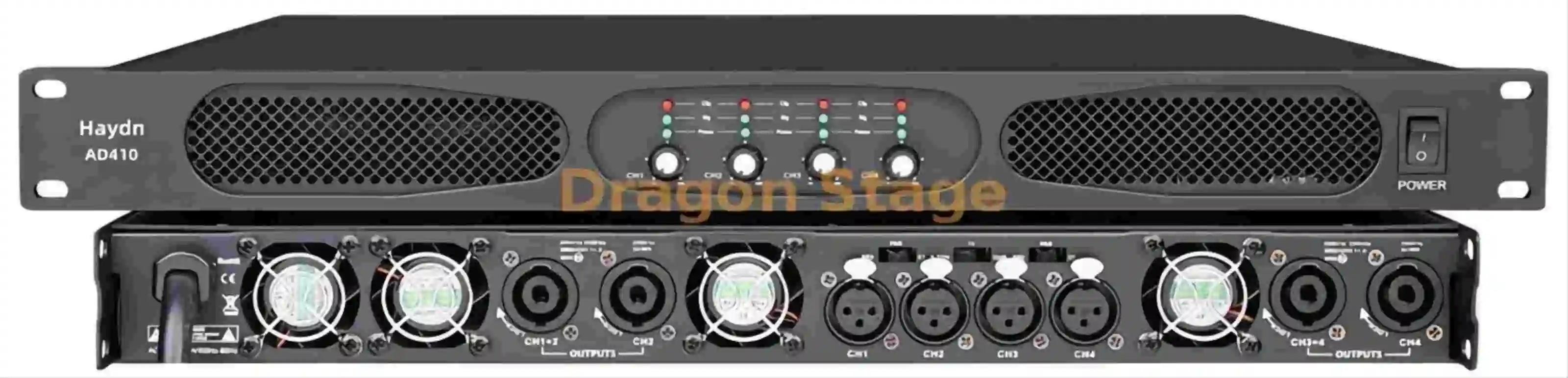

| 5 | digital amplifier
| Stereo dual channel mode: 8 Ω 4 * 1000W 4 Ω 4 * 1650W, Bridge mono mode: 8 Ω 3300W THD<0.1% (10% of full power), IMD<0.05% (60Hz/7KHz), 10% of full power, Signal to noise ratio:>106dB, Conversion speed:>60V/us, Damping coefficient: > 600; 1 (8 Ω 100Hz), Frequency response: 20Hz+20KHz, Input sensitivity: 0.775V, 1V, 32dB, Input impedance: 10K Ω/20K Ω (unbalanced/balanced) Size: 483W × 430D × 44H (mm) Net weight: 9kg | 1 | p |
| 6 | digital amplifier
| Stereo dual channel mode: 8 Ω 4 * 1000W 4 Ω 4 * 1650W, Bridge mono mode: 8 Ω 3300W THD<0.1% (10% of full power), IMD<0.05% (60Hz/7KHz), 10% of full power, Signal to noise ratio:>106dB, Conversion speed:>60V/us, Damping coefficient: > 600; 1 (8 Ω 100Hz), Frequency response: 20Hz+20KHz, Input sensitivity: 0.775V, 1V, 32dB, Input impedance: 10K Ω/20K Ω (unbalanced/balanced) Size: 483W × 430D × 44H (mm) Net weight: 9kg | 3 | p |

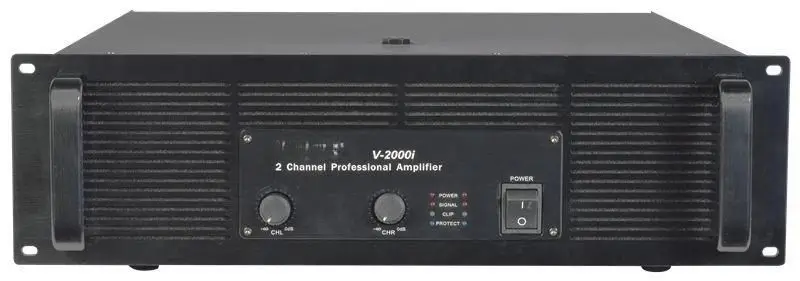

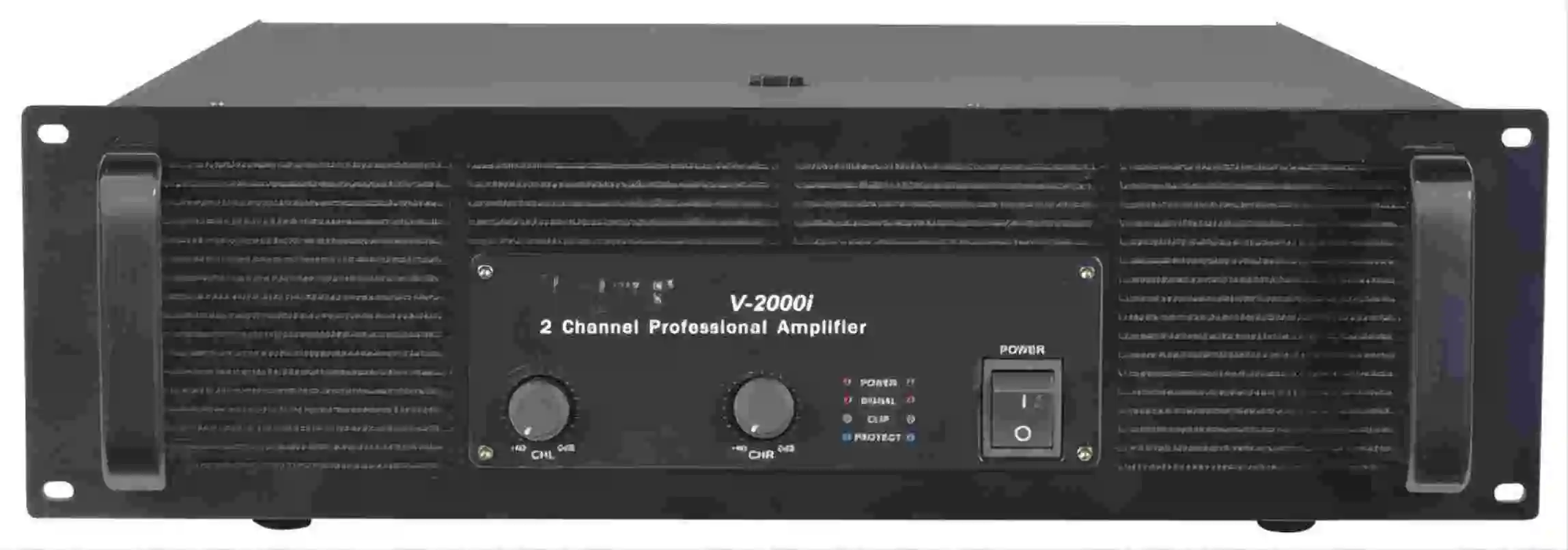

| 7 | Transformer amplifier (3U)
| 8 ohms stereo power: 2x1800W 4 ohms stereo power: 2x2300W Frequency response: 20Hz-20KHz ± 0.5% Conversion rate: 30V/ μ S Total harmonic distortion (20Hz-20KHz):<0.05% Damping coefficient:>280 Signal to noise ratio ≥ 102dB Input sensitivity 1Vrms Input impedance 20k Ω balanced/10K Ω unbalanced Input interface 2 x XLR Output interface 2 x NL4 Circuit form: CLASSH+BT Voltage~110V/~220V, 50Hz/60Hz Product dimensions (W x H x D) 480mm x 132mm x 548mm Packaging size (1 unit/pack) 605mm x 190mm x 560mm Product net weight 33kg Product gross weight (1 unit/pack) 35.5kg“ | 3 | p |

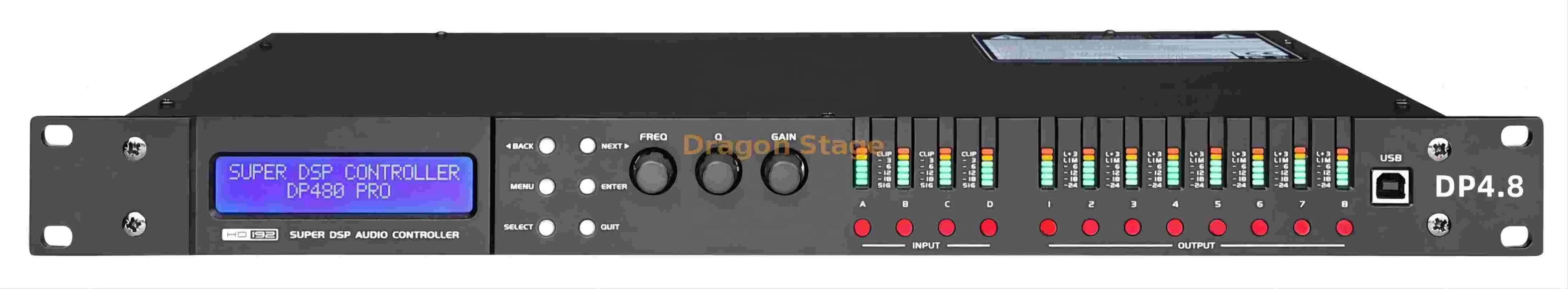

| 8 | 4 in 8 out processors
| Input 3 channels, maximum gain+20dBu Output 6 channels, maximum gain+20dBu Output impedance 600 ohms Dynamic range>108dBu, frequency response 22Hz-22KHz Frequency response<± 0.25dBu, 15Hz-20KHz Intermodulation distortion<0.01%, 20Hz-20KHz @+10dBu balance input Sampling rate 96KHZ Signal to noise ratio>100dBu, 20Hz-20KHz Analog to Digital Converter 24 bit input and output Low pass/high pass filter 12.18.24 or 48dB/octave Parameter equalizer Band width from 0.05 to 3 octaves, frequency from 20Hz to 20KHz, gain ± 20dB step 0.1dB Delay 0-2000ms Delay step distance of 21us Main menu key parameter menu exit enter input A.B mute, edit and output channHL control LCD screen 2 × 20 LED screen Input LED 0.. -6. -12. -18. -24. and limit Output LED 0.. -6. -12. -18. -24. and limit Product size HWD (mm) 45 × 483 × 240 Power supply 50/60Hz, 90V-240V AC power<20W Net weight/gross weight (kg) 2.8/3.5“ | 1 | p |
| 9 | 8-way sequencer | "Standard 19 inch chassis, 1U exterior design, 220V 45A LED high-precision voltage display meter, 8 independent power switches, universal socket output, maximum output of 16A per channel, total input current of 32A.", Front 1 backup direct power supply output, output current of 7A, built-in intermittent delay of 1.5S, Input power supply: AC220V 50Hz, Unlimited extreme connection, Size: 483 × 260 × 44mm“ | 2 | p |
| 10 | True diversity performance microphone
| Receiver technical parameters Working frequency: 500-980MHz Infrared frequency matching, frequency co frequency technology The display screen shows the battery level of the transmitter S/N signal-to-noise ratio:>105dB T.H.D distortion:<0.5% Frequency response: 40Hz-18KHz Noise lock and mute control+audio navigation lock and mute True diversity long-distance line design, outdoor use distance up to 300 meters Technical parameters of the transmitter Channel: 200 channels Band width: 50MHz Channel interval: 250KHz Frequency stability: ± 0.005% Using batteries: 2 AA batteries/5 batteries Can set transmission power: High power 15mV=300 meters (battery can last for 2 hours) Power 10mV=150-200 meters (battery can last for 4-5 hours) | 1 | set |

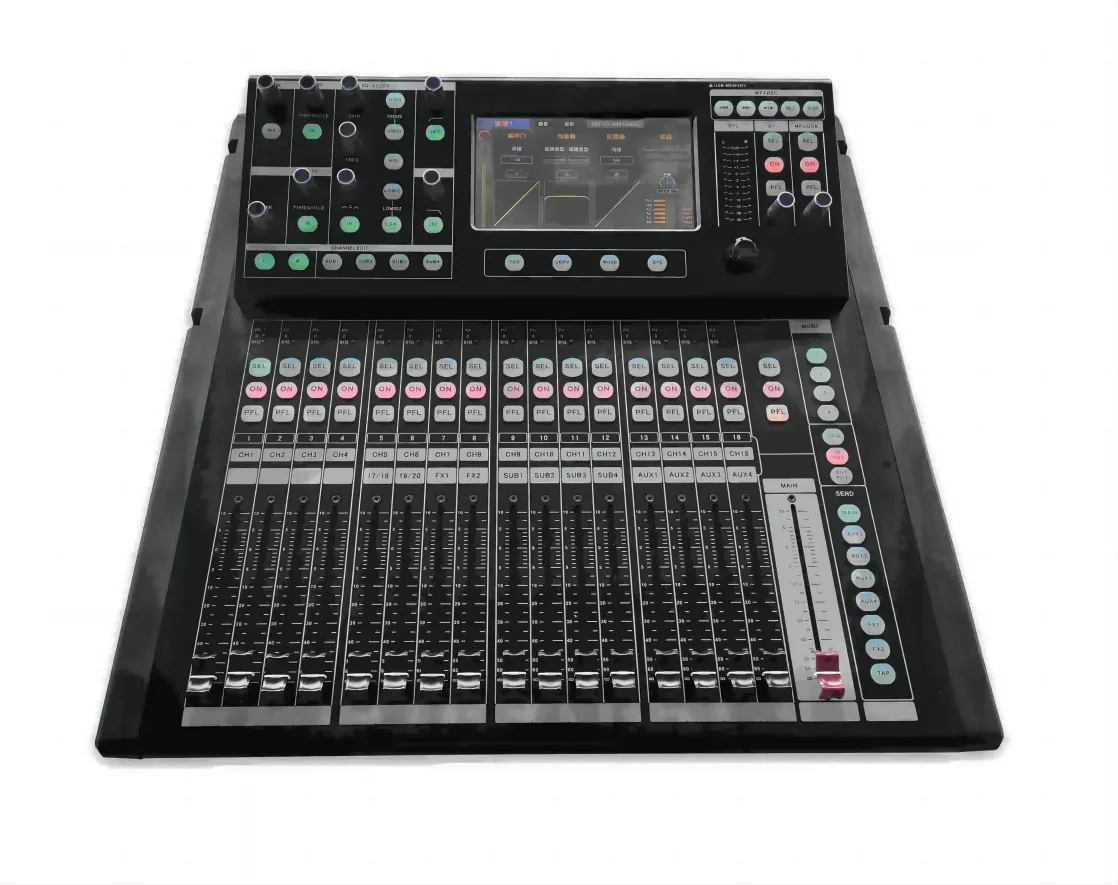

| 11 | digital mixer
| 16 MIC inputs, 1 set of stereo inputs Digital input: fiber optic/sound card, MP3 • Input channel audiovisual adjustment • MIC input gain adjustment (digital gain) •+48V phantom power supply (MIC channels can be independently turned on and off) • Built in pressure limiter, high and low pass, 5-stage parameter balancing, delay, and channel audio and image balance adjustment Fast copy function of channel parameters • Input output EQ ON/OFF • Multi function knob Each channel is equipped with a multifunctional menu, mute and monitoring functions Each channel is equipped with a 100MM electric push rod, signal and peak light (17 ALPS electric push rods) 10 signal outputs (main outputs L, R, 4 AUX outputs, 4 grouping outputs) AUX output (before/after the pusher) • Output processing: High low pass filtering, 15 segment parameter equalization, Compressor, delay, phase • Digital recording function Double row 3-color 12 segment level indicator lights • Built in sound card (MP3, PC plays music directly) • 4 quick scene call modes, 20 scene storage • Storage and retrieval of user parameters (can be managed on the PC side) • Built in two dual DSP effectors FX foot switch interface • Fiber optic input/output Multi operating system control software (IOS system, Android system, Windows system) • Support wired network port adjustment (or external router wireless adjustment) 7-inch 800 * 480 capacitive touch display screen“ | 1 | set |
| 12 | Power amplifier cabinet | 16U fireproof and shockproof without door | 2 | p |
| 13 | flightcase | Full frequency 1 in 2, low frequency 1 in 1 | 6 | p |
| 14 | flightcase | Bass 1 in 1 | 6 | p |
| 15 | flightcase | Full frequency 15 inch speaker, 1 in 2 | 2 | p |
| 16 | wire | Signal passing through the machine line 90CM to the mixing console | 2 | p |
| 17 | wire | Signal passing line 60CM Y-shaped | 14 | p |
