Flexible Panel Water Tank SS304 SS316 Food Grade Low Pricesolar Water Heater Stainless Steel Hot Water Tank Tank
- Category: >>>
- Supplier: Dezhou Success Tanks Co. Ltd.
Share on (1601029970312):
Product Overview
Description
Product Description

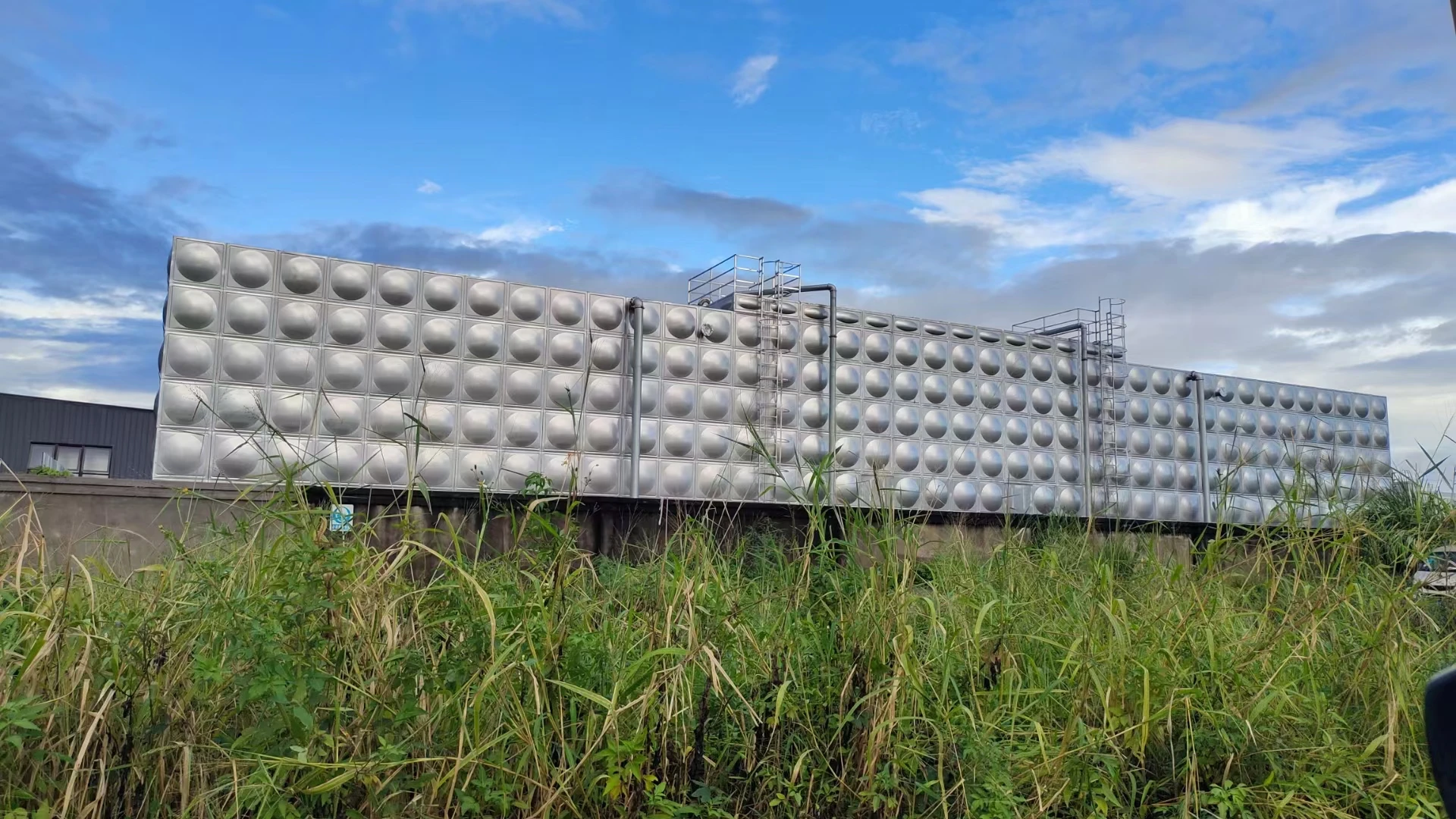

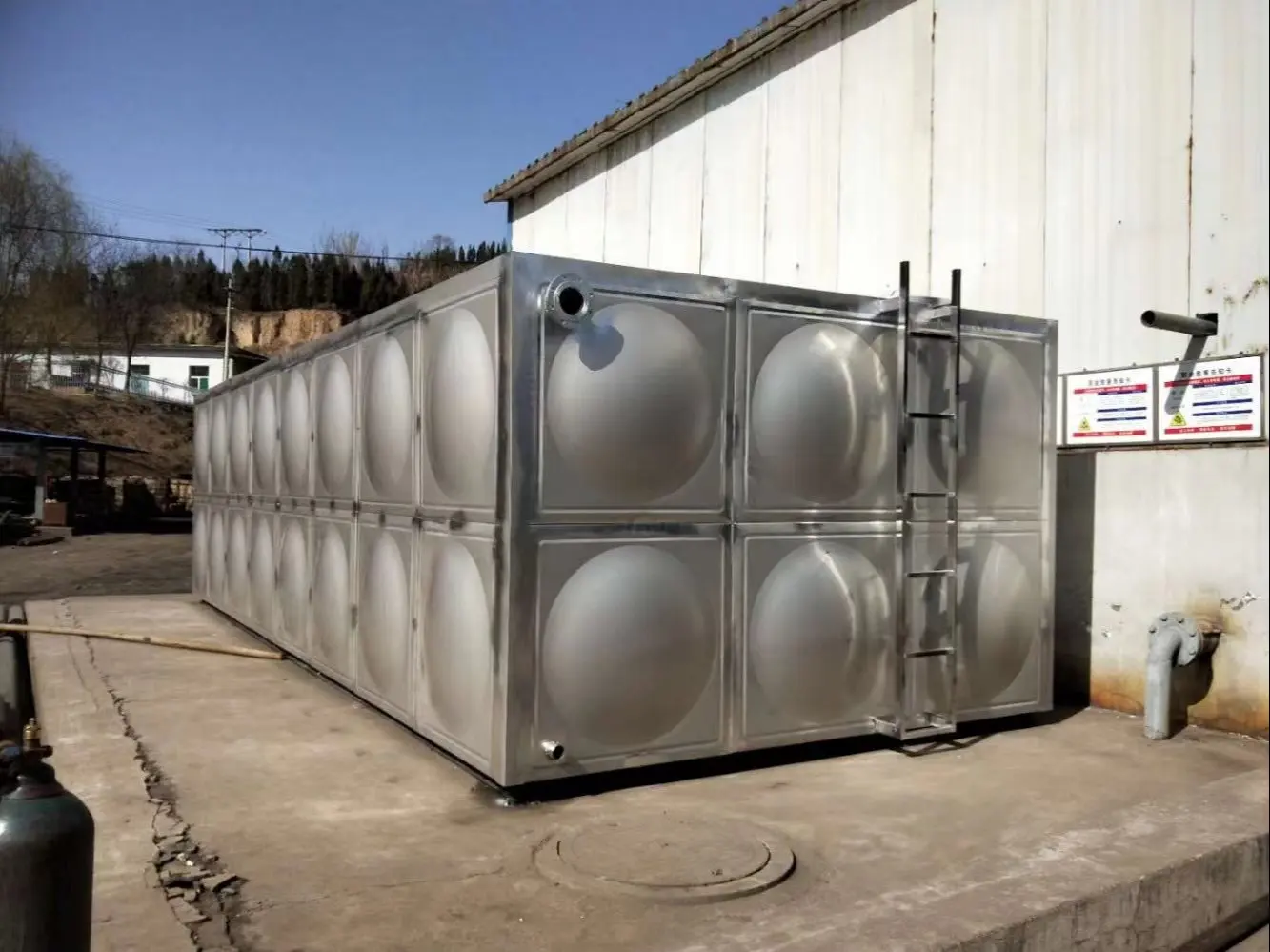

Modular type stainless steel metal water tank
Dezhou Success Tanks 304 201 316 stainless steel water tank adopts the imported food-level SUS stainless steel plate, interdicts the sunlight thoroughly and maintains the water quality and no algae growing.
Our factory uses unique stainless steel plate and the high difficulty ramming formation craft to achieve the high strength requirements with the smallest material consumption.The weight is only one third of the ordinary panel.
Our 304 stainless steel water tank can be used for chemical storage, such as alcohol.
Our factory uses unique stainless steel plate and the high difficulty ramming formation craft to achieve the high strength requirements with the smallest material consumption.The weight is only one third of the ordinary panel.
Our 304 stainless steel water tank can be used for chemical storage, such as alcohol.
Reinforcement Method :
All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water. The Top panel is supported by top panel support, which shall be made of stainless steel grade 304 or 316 material according to requirement.
Materials :
The sectional panel tank shall consist of 4' x 4' or 1 meter x 1 meter panel manufactured from 1.5mm to 5.0mm thickness according to requirement.
Application:
The construction water storing, the regulating tank, heating system's inflation water tank, the condensate tank as well as the building construction, the geological prospecting, the industry, the defense project and so on temporarily store water tank.

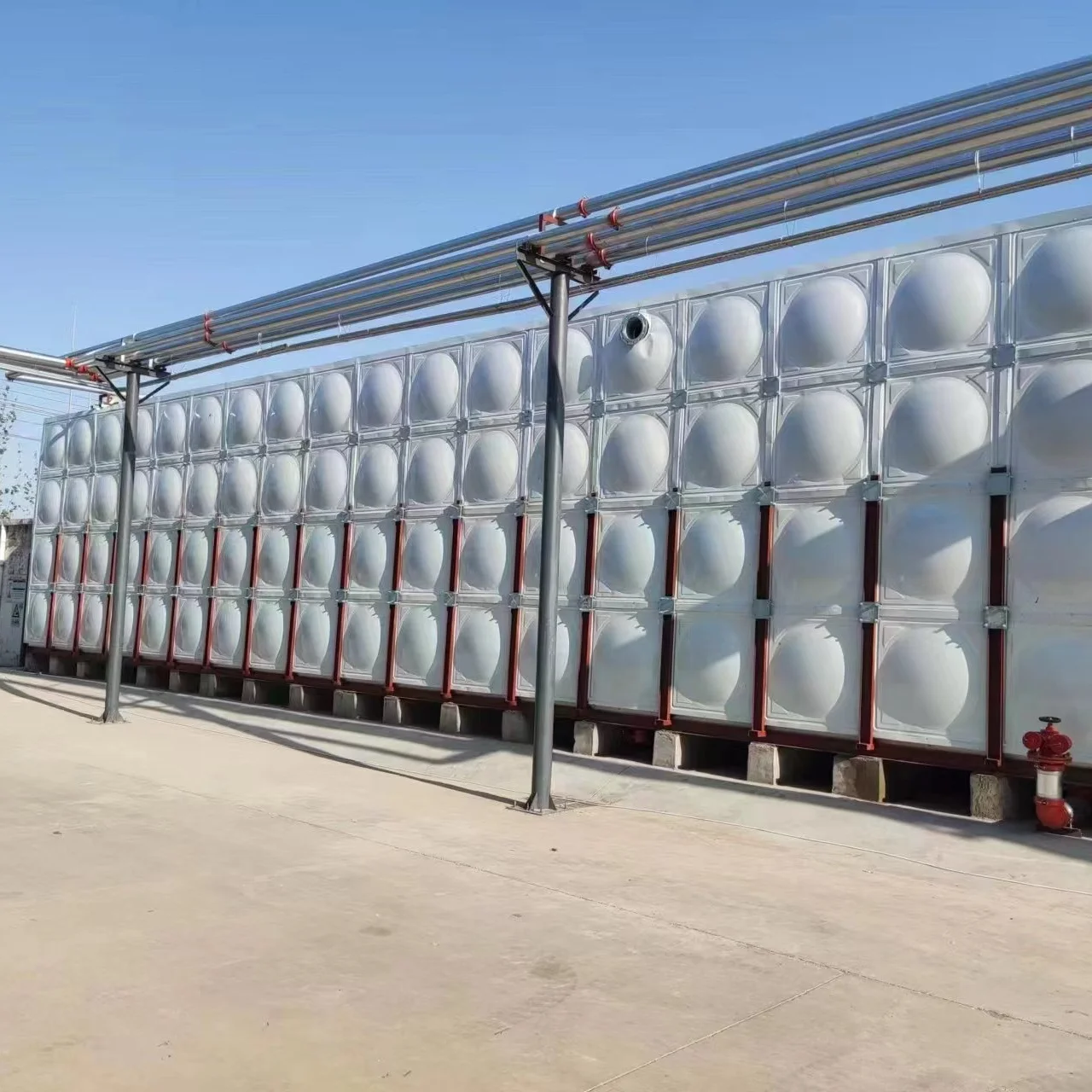

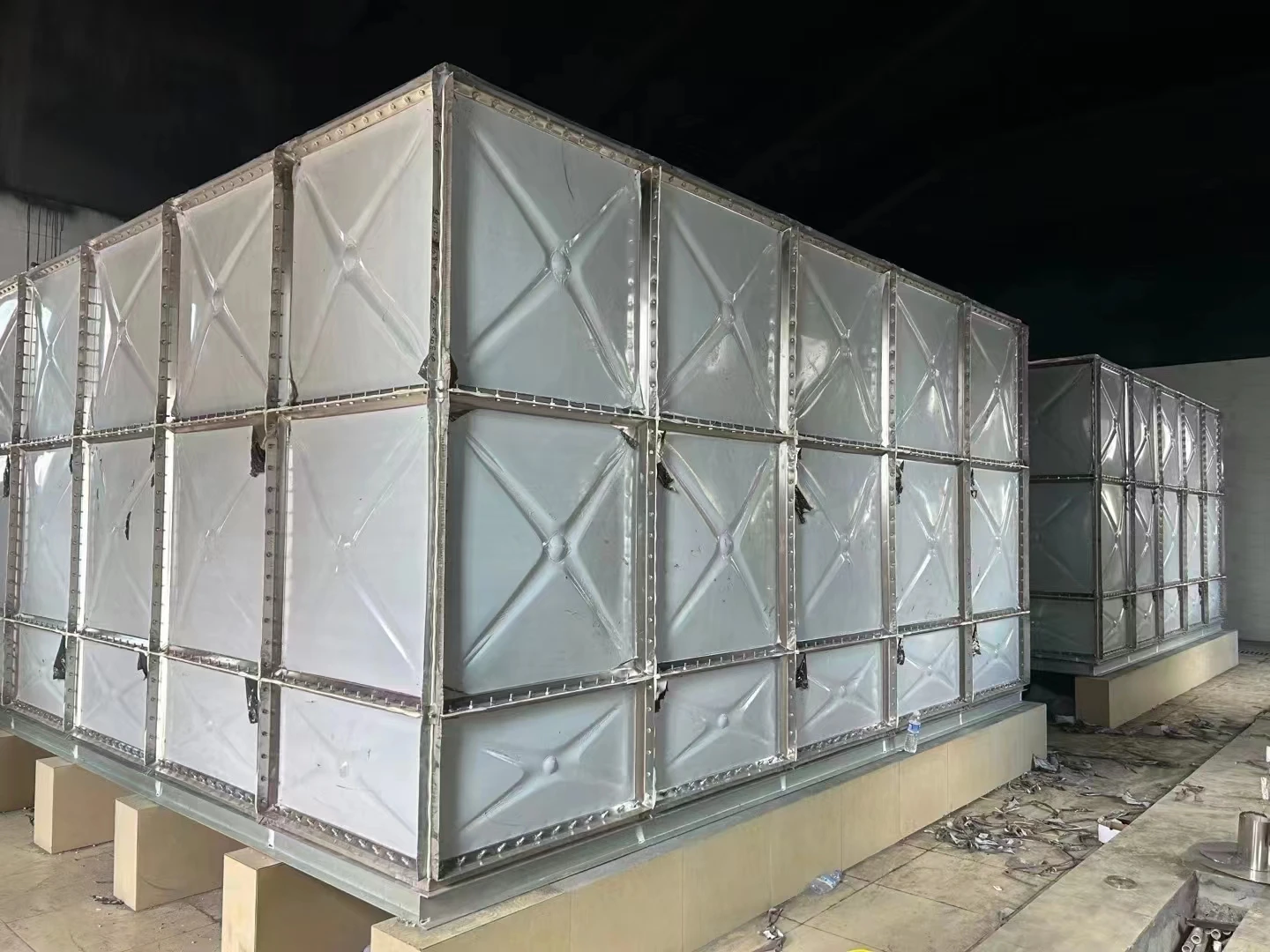

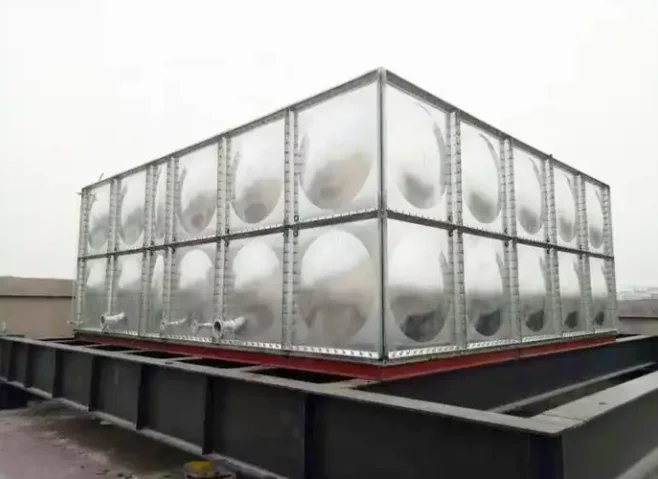

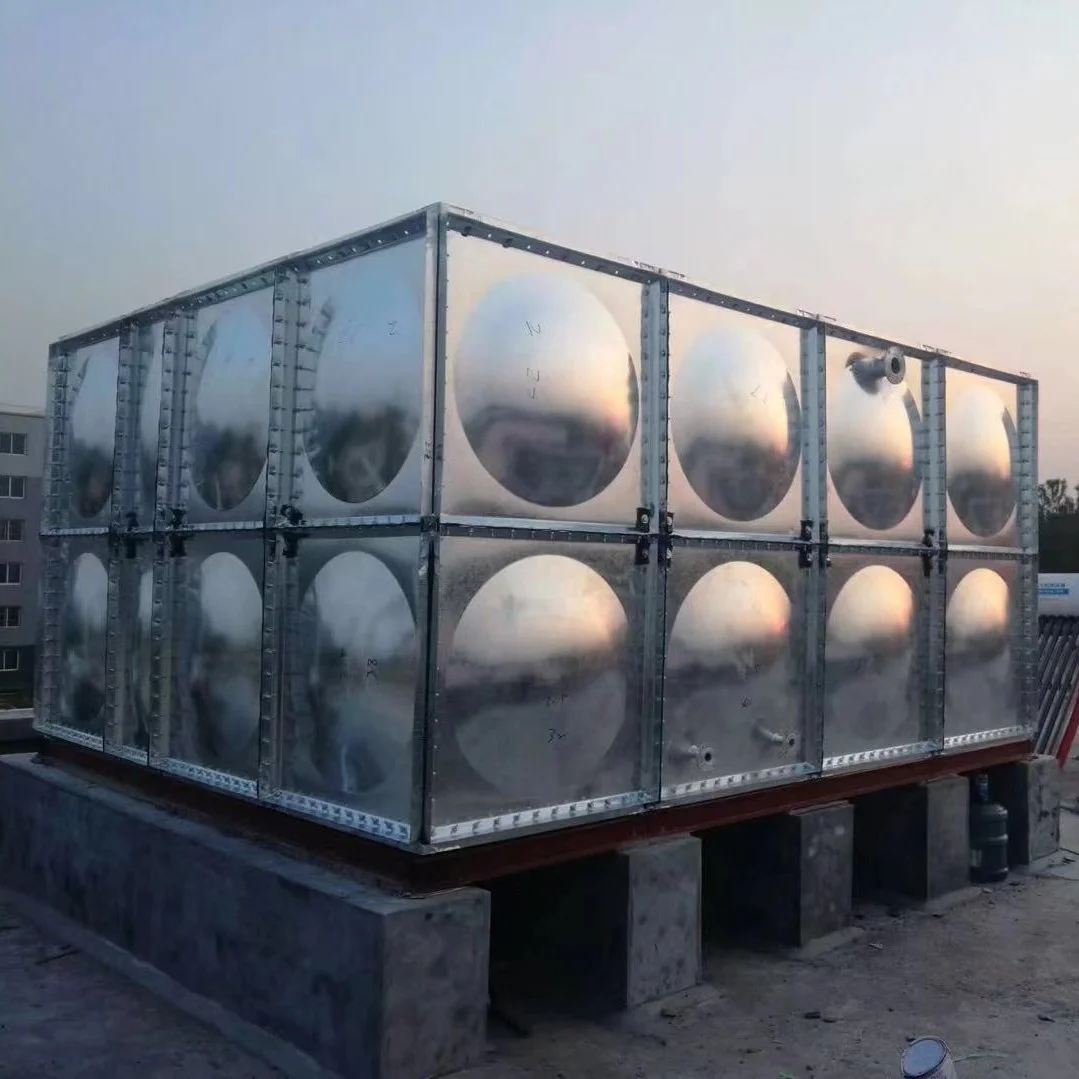

Details Images
Tank Structure
Stainless steel water tank includes four parts: | ||
(1) Panels | Bottom panel, wall panel, roof panel and manhole | |
(2) Internal parts | Internal ladder, tiepiece rod, support, flanges and rubber | |
(3) External parts | External ladder, angle iron, tiepiece board, bolts and nuts | |
(4) U-steel base | surface treatment can be painted or hot dipped galvanized or stainless steel | |

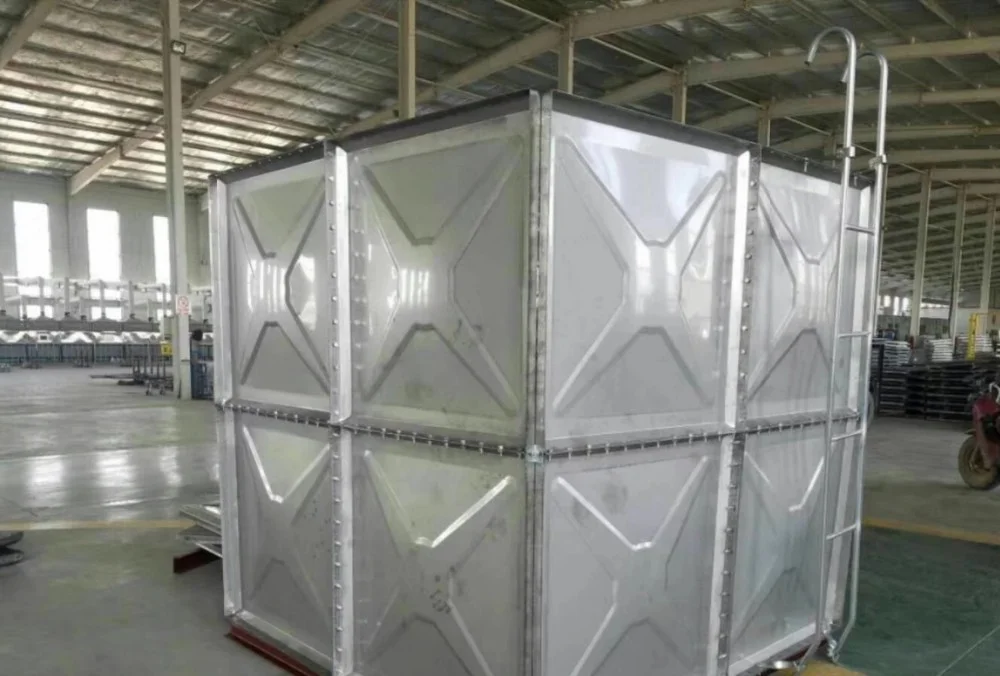

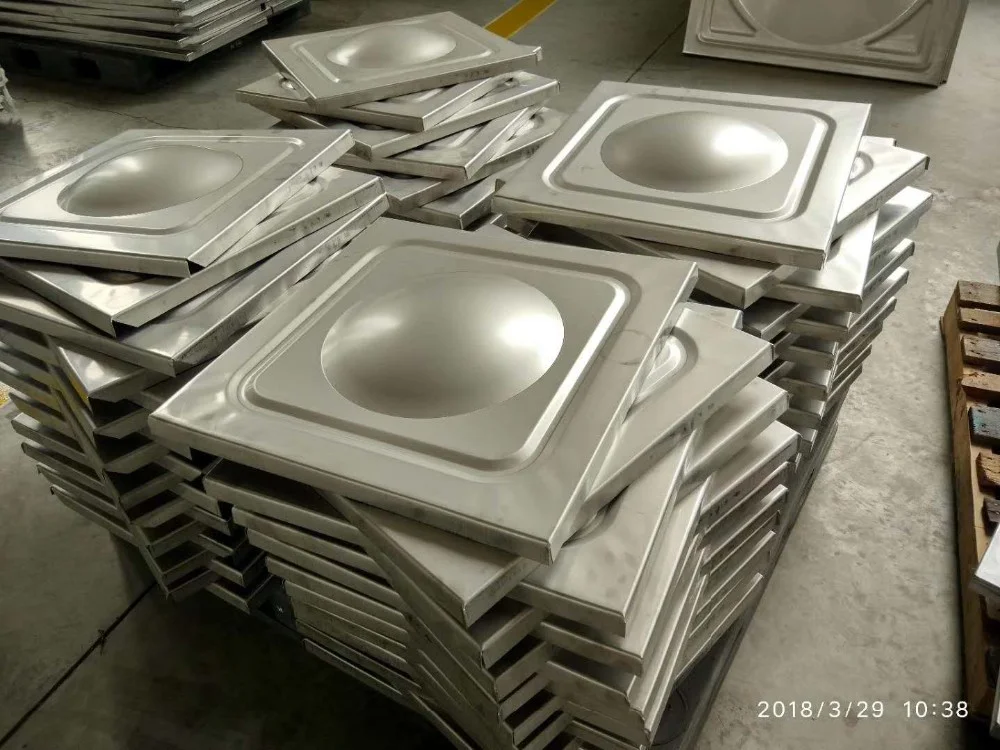

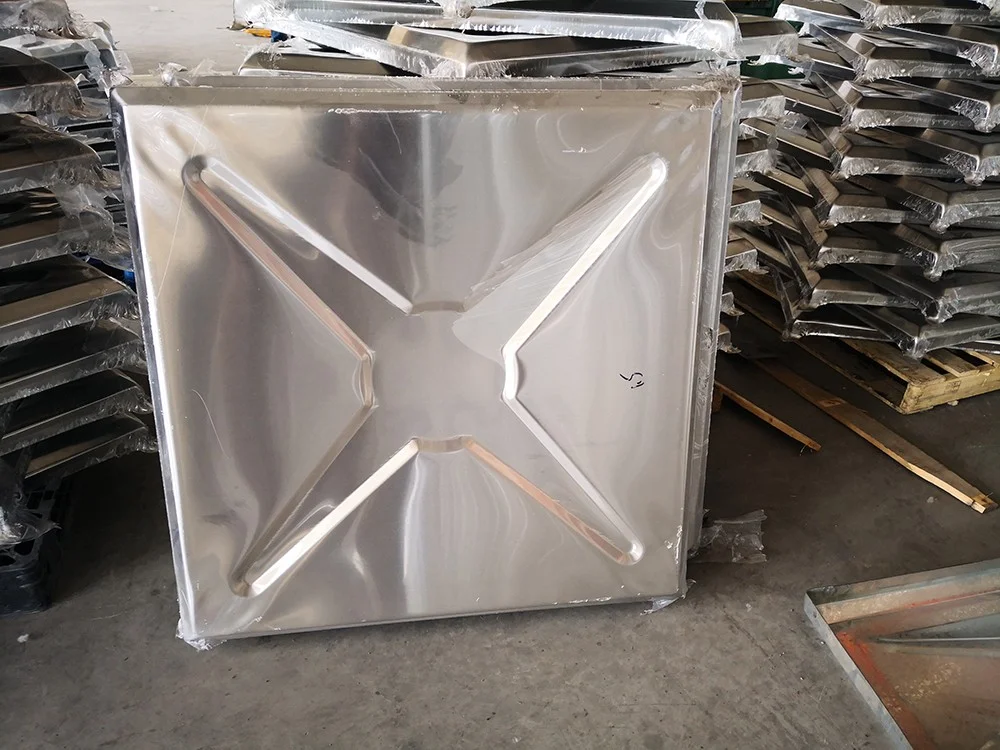

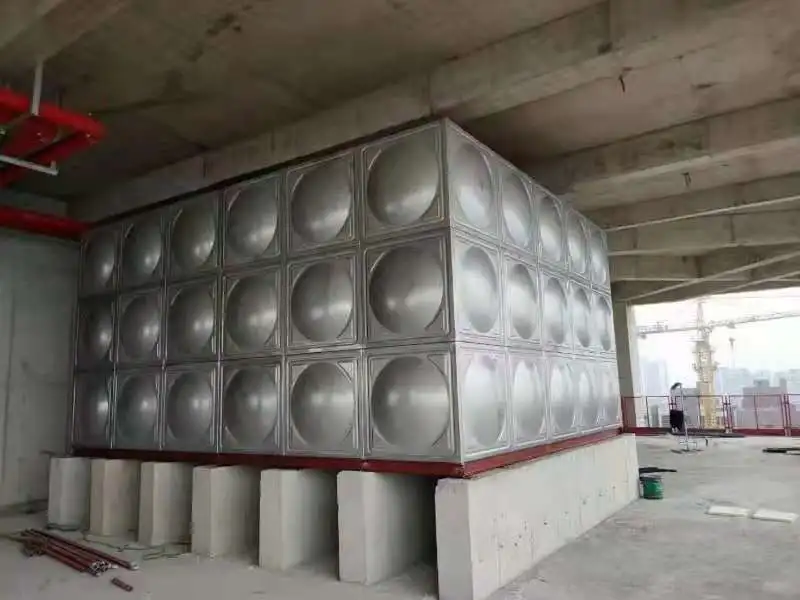

Welded type stainless steel water tank and panels
Specification
Panel Size | 2x1m | 2x1m | 1x1m | 1x0.5m | 1x0.5m |
Panel Thickness | 1.5-5mm | 1.5-5mm | 1.5-5mm | 1.5-5mm | 1.5-5mm |
Accessories
2). Sealing material Non-toxic P.V.C foam tape shall be used in between the joints.
3). Covers The tank cover shall be constructed from 1.2mm to 3.0mm of thickness stainless steel 304 material according to the requirement.
4). Ladders and Level Indicator: Internal & external ladder shall be made of stainless steel grade 304 material.

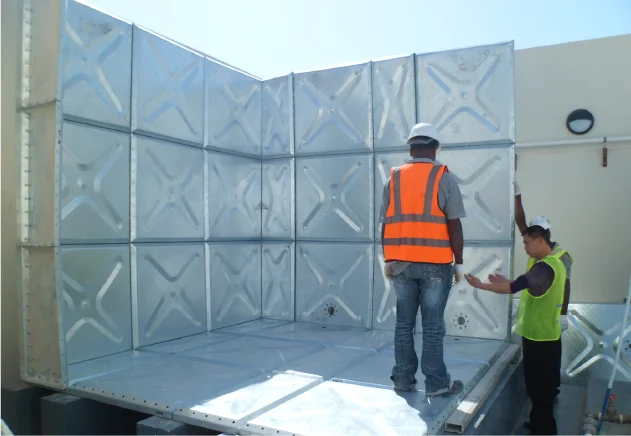

Installation
With the right equipment and personnel, you can quickly get through assembling your tank. For a successful GRP Tank Installation,you need at least five workers, one of whom should be qualified.
Here is a brief installation guide:
➽After getting a permit to install on a particular site, ensure you have all the required equipment.
➽They should be free of damage to prevent a substandard finish.
➽Check that the area of installation is level.
➽Assemble the beams horizontally on the foundation or steel tower to form the skid base.
➽Install the bottom panel carefully on the skid base.
➽Install the side panels. Once the side panels are in place, you can put up the panel partitions.
➽The panels should be joined using bolts and nuts, as per the manufacturer's recommendations.
➽Install the tie rods and stainless steel partitions to support the roof.
➽Assemble the top cover/roof.
➽Install internal and external stainless steel ladders.
➽Tie all stainless steel nuts and bolts with a washer.
After completing the installation and getting approval from a consultant, carry out a water leak test. Connect a temporary water supply pipe and let the water stay in for at least 24 hours. Make sure you have enough air vents. If there are any leakages after the test period, rectify and seek approval.
➽After getting a permit to install on a particular site, ensure you have all the required equipment.
➽They should be free of damage to prevent a substandard finish.
➽Check that the area of installation is level.
➽Assemble the beams horizontally on the foundation or steel tower to form the skid base.
➽Install the bottom panel carefully on the skid base.
➽Install the side panels. Once the side panels are in place, you can put up the panel partitions.
➽The panels should be joined using bolts and nuts, as per the manufacturer's recommendations.
➽Install the tie rods and stainless steel partitions to support the roof.
➽Assemble the top cover/roof.
➽Install internal and external stainless steel ladders.
➽Tie all stainless steel nuts and bolts with a washer.
After completing the installation and getting approval from a consultant, carry out a water leak test. Connect a temporary water supply pipe and let the water stay in for at least 24 hours. Make sure you have enough air vents. If there are any leakages after the test period, rectify and seek approval.
For installation, we can provide installation guide: installation video or installation assistance on site by our engineers.If parts are damaged within the quality insurance period because of quality fault, we will change the damaged parts free ofcharge.
Packing & Delivery
☞Packing:
Solid Seaworthy plywood Box Package with Steel Frame.(Save space as much as possible for container loading.)
☞Delivery:
☀Freight on Board Delivery (FOB):
If you choose to get your tank through Freight On Board Delivery, the shipping charges will vary depending on the contract. The terms of FOB delivery indicate whether we or you, the buyer, is responsible for the shipping cost and up to what point the cargo is in the hands of either party. If we take up delivery charges, then the buyer takes responsibility for the GRP Tank upon arrival at the cargo destination and pays for transportation cost after that.
☀Cost Insurance and Freight Delivery (CIF):
With Cost Insurance and Freight Delivery, we are solely in charge of your GRP tank delivery, until the time it arrives at your desired destination. This means that we will cover the transportation cost from the company to the port, ensure safe loading and take care of customs clearance and insurance. However, this mode of delivery might be a bit costly because you may have to pay nextra for all the resources used to cover your customs clearance and insurance. It is, however, convenient if you are pressed fortime.
☀Freight on Board Delivery (FOB):
If you choose to get your tank through Freight On Board Delivery, the shipping charges will vary depending on the contract. The terms of FOB delivery indicate whether we or you, the buyer, is responsible for the shipping cost and up to what point the cargo is in the hands of either party. If we take up delivery charges, then the buyer takes responsibility for the GRP Tank upon arrival at the cargo destination and pays for transportation cost after that.
☀Cost Insurance and Freight Delivery (CIF):
With Cost Insurance and Freight Delivery, we are solely in charge of your GRP tank delivery, until the time it arrives at your desired destination. This means that we will cover the transportation cost from the company to the port, ensure safe loading and take care of customs clearance and insurance. However, this mode of delivery might be a bit costly because you may have to pay nextra for all the resources used to cover your customs clearance and insurance. It is, however, convenient if you are pressed fortime.
For standard water tank less than 200m3, it would be 3-5 days;
For non-standard water tank and customized water tank according to client's specific requirements, it would be 7 to 15 days.
For non-standard water tank and customized water tank according to client's specific requirements, it would be 7 to 15 days.
Certifications

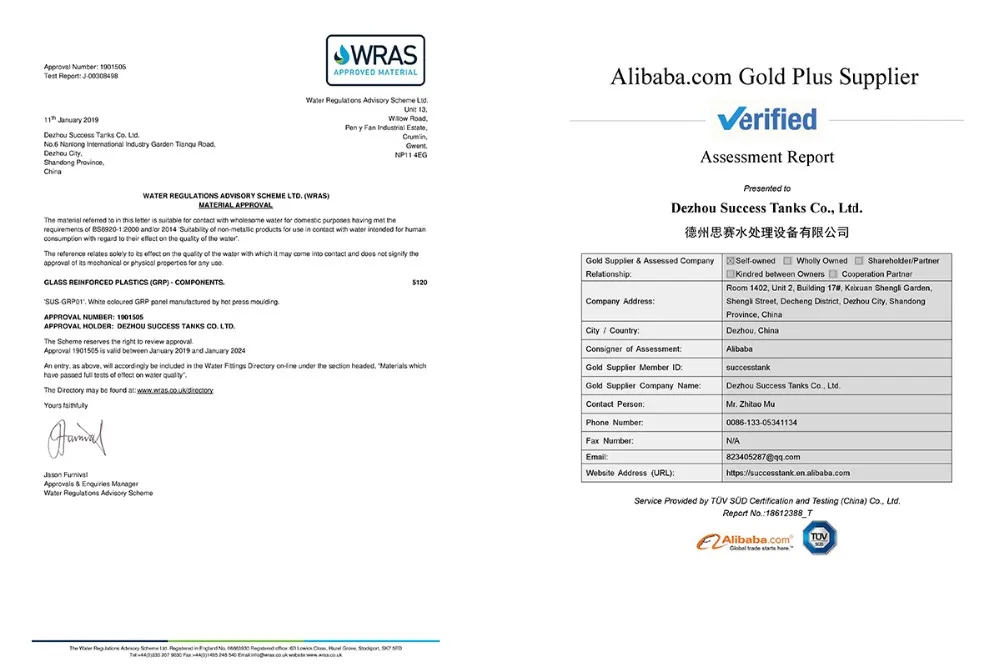

WRAS & TUV REPORT

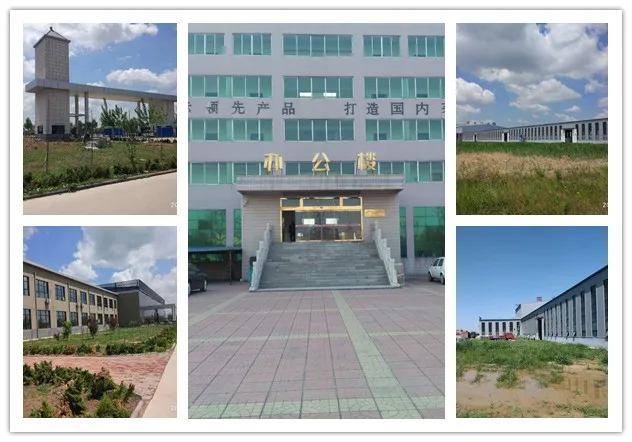

Company Profile
Dezhou Success Tanks Co., Ltd
Dezhou Success Tanks Co., Ltd is a reliable water tank manufacturer with 19 years experience. We are located in Dezhou City with convenient transportation access. Our main products include: grp/smc/frp water tank, steel water tank and stainless steel water tank, and all which have passed WRAS and ISO approval.
Success Tanks is one of the worldly reliable stainless steel water tank Manufacturers; highly experienced in manufacturing top quality stainless steel water storage tanks. We are focused in stainless steel water tanks used for storage purposes and we also provide high level services for other different usages and industries. We have top stainless steel water tank in stock to provide to our clients within a short lead time.
Our Advantages
➽1. Never Rusted
Imported food-grade SUS304/SUS316 stainless steel, unique anti-rusting performance.
➽2. Never Leaked
Unique structure and all-welding operation, excellent strength.
➽3.Free Combination
Pattern and capacity can be customized according to actual usage environment, no demanding requirement, especially suitable for upgrading project.
➽4. Reasonable Structure
Unique board design and press processing, reasonable inside supporter and high-strength stainless steel material makes the water tanks have an excellent strength and streamlined outlook.
➽5. Light & Cost-efficient
Adopting 1-3.0 mm stainless steel panel, significantly reduce the weight of the water tanks.
Imported food-grade SUS304/SUS316 stainless steel, unique anti-rusting performance.
➽2. Never Leaked
Unique structure and all-welding operation, excellent strength.
➽3.Free Combination
Pattern and capacity can be customized according to actual usage environment, no demanding requirement, especially suitable for upgrading project.
➽4. Reasonable Structure
Unique board design and press processing, reasonable inside supporter and high-strength stainless steel material makes the water tanks have an excellent strength and streamlined outlook.
➽5. Light & Cost-efficient
Adopting 1-3.0 mm stainless steel panel, significantly reduce the weight of the water tanks.

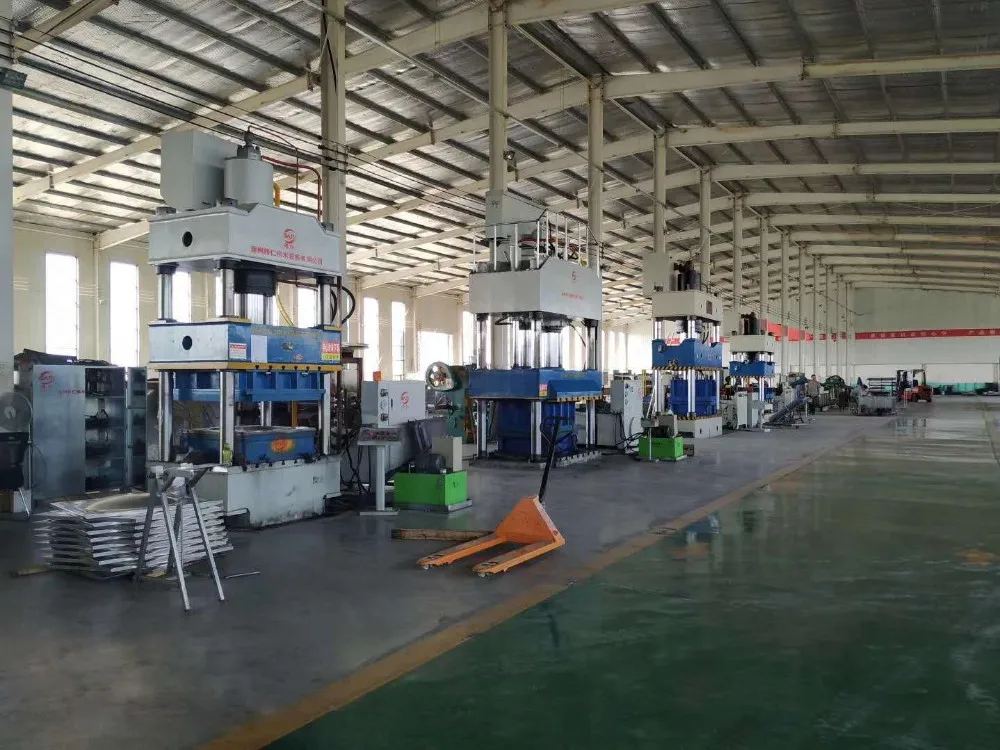

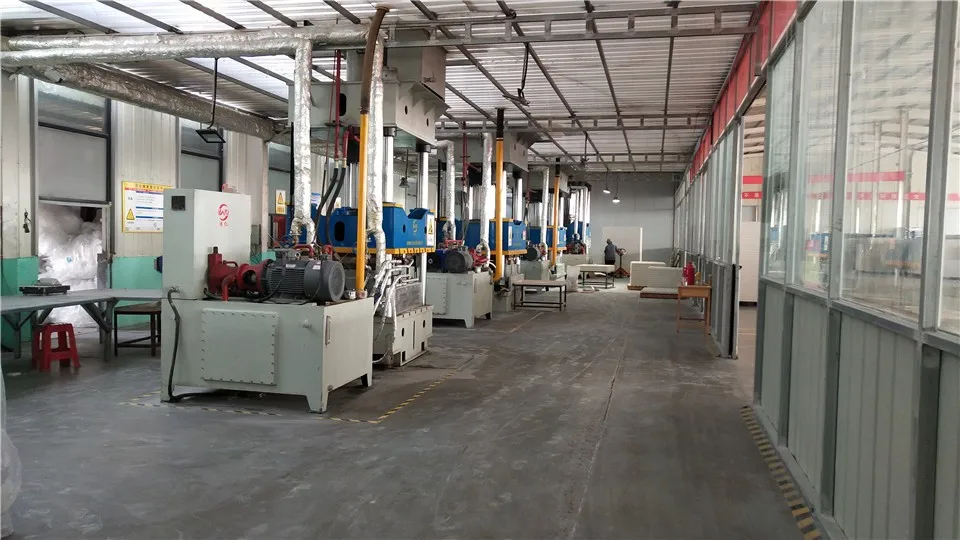

Our Equipment

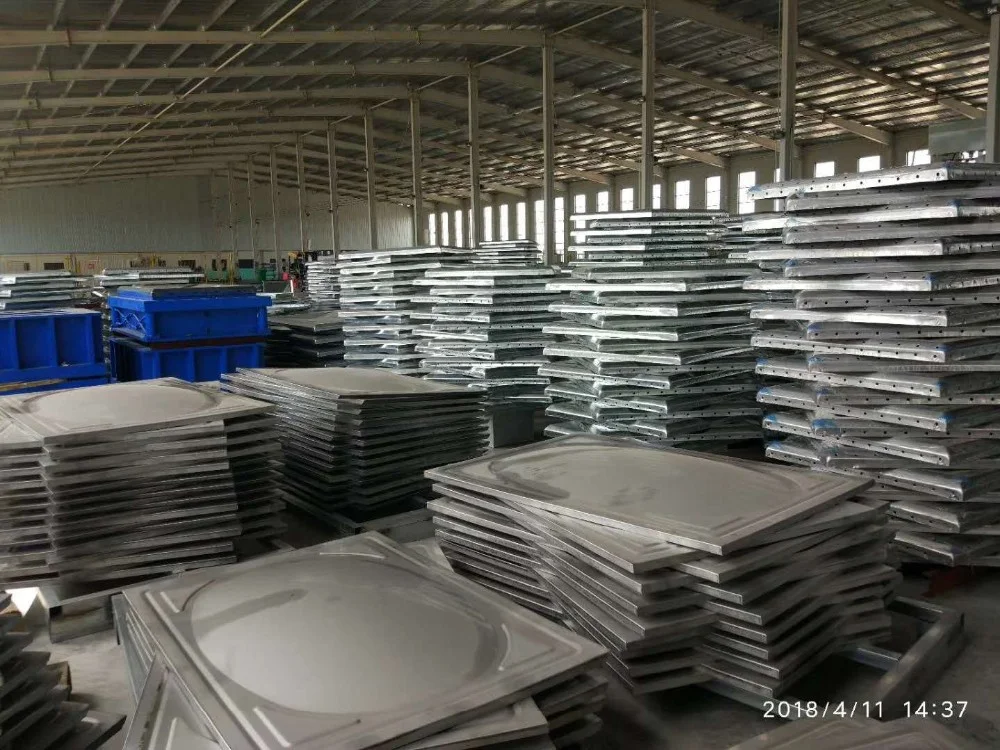

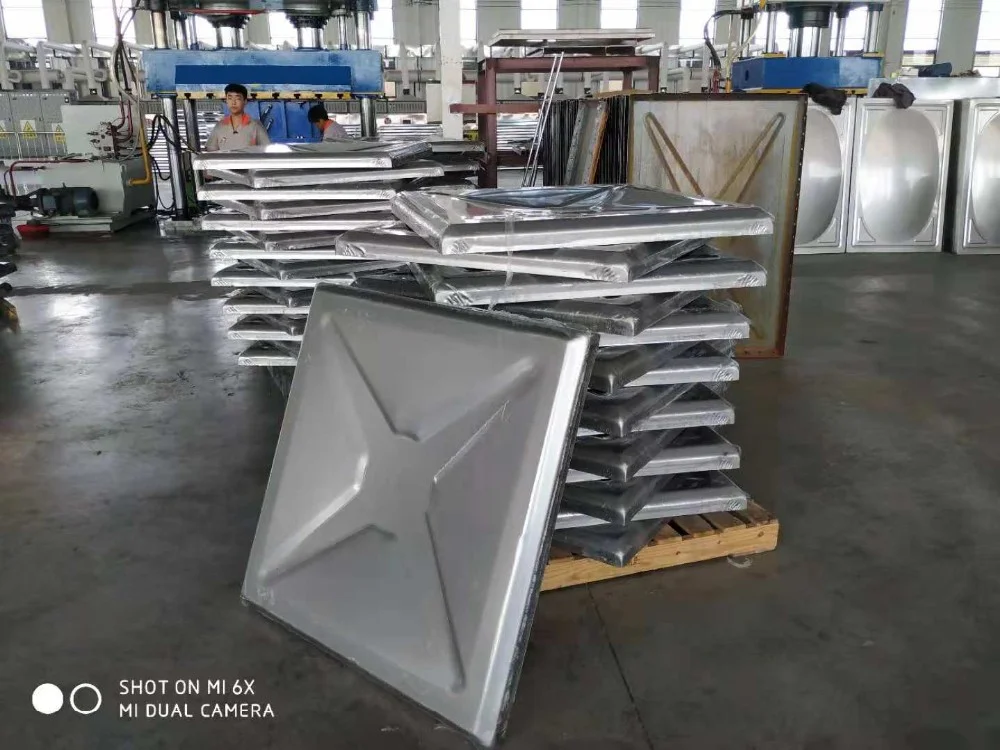

Our Workshop
Customer Visit
Success panel tanks also have been installed in 34 different countries around the world, such as Australia, Tanzania, Sri Lanka,Phillippines, Indonesia, Sudan, China, Germany, France, USA, South Africa, Hong Kong, Japan, Malaysia, Singapore, Brunei, Spain,U.A.E, Saudi Arabia, Kuwait and so on. We eager to push on every time for ultimate customers satisfaction in all over the world and are responding to the needs of the marketplace, offering high value-added products.
FAQ
1. who are we?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(30.00%),Africa(20.00%),Western Europe(10.00%),Eastern Asia(10.00%),Mid East(10.00%),South Asia(10.00%),Oceania(5.00%),Northern Europe(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grp Water Tank,Hot Dipped Galvanized Water Tank,Stainless Steel Water Tank,Smc water tank,BDF water tank
4. why should you buy from us not from other suppliers?
we are 19 years old water tank factory, mainly in making smc water tank, grp water tank. Our product has passed the UK standard WRAS certification.our product has been exporting to be more than 32 countries ,we have 20 years Research and develop experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2018,sell to Southeast Asia(30.00%),Africa(20.00%),Western Europe(10.00%),Eastern Asia(10.00%),Mid East(10.00%),South Asia(10.00%),Oceania(5.00%),Northern Europe(5.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Grp Water Tank,Hot Dipped Galvanized Water Tank,Stainless Steel Water Tank,Smc water tank,BDF water tank
4. why should you buy from us not from other suppliers?
we are 19 years old water tank factory, mainly in making smc water tank, grp water tank. Our product has passed the UK standard WRAS certification.our product has been exporting to be more than 32 countries ,we have 20 years Research and develop experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
