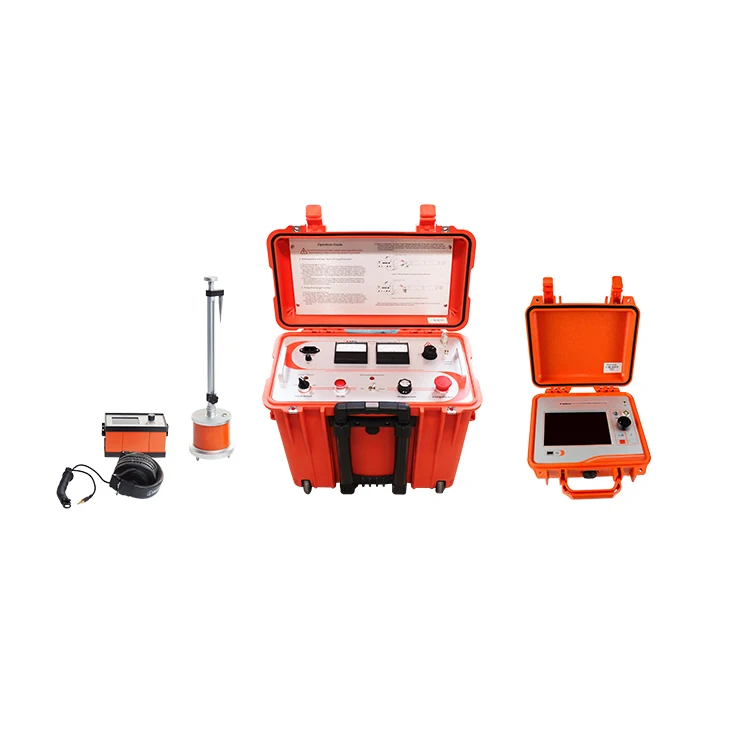

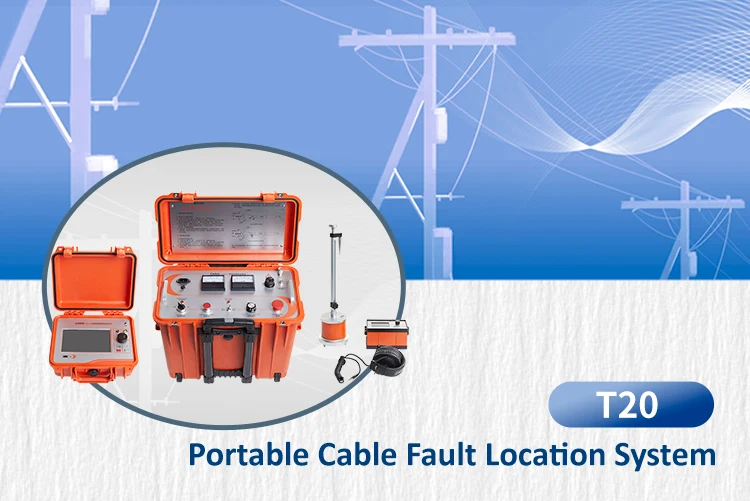

Tanbos T20 Portable Underground 35kv Electric Cable Fault Locator
- Category: >>>
- Supplier: Xianheng International Science& Technology Co. Ltd.
Share on (1601029980404):

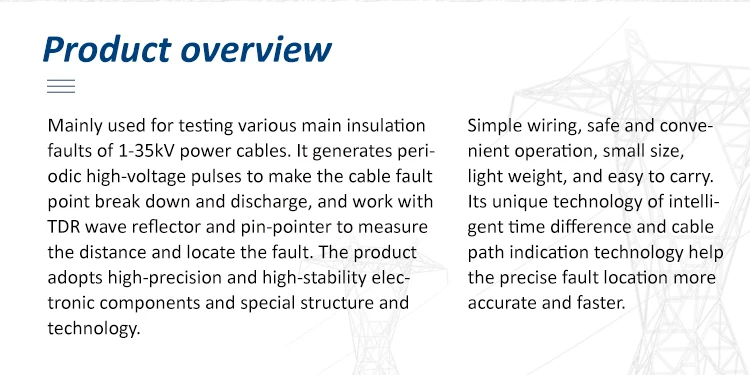

Product Overview
Description

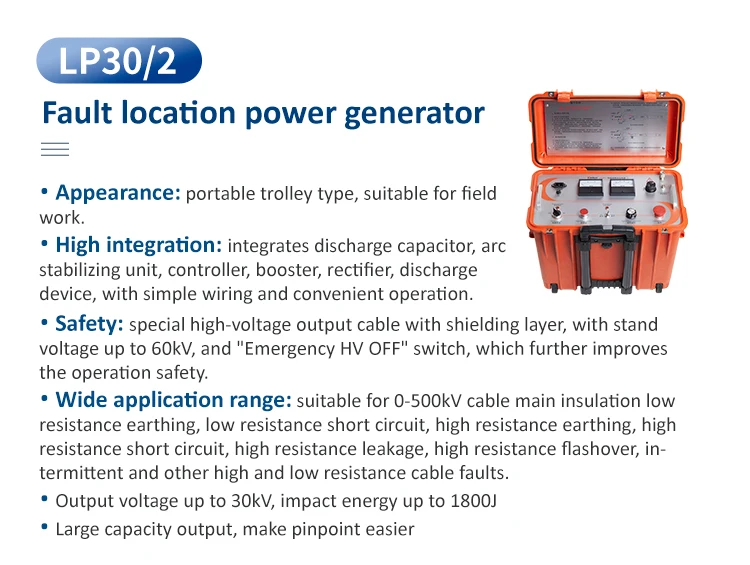

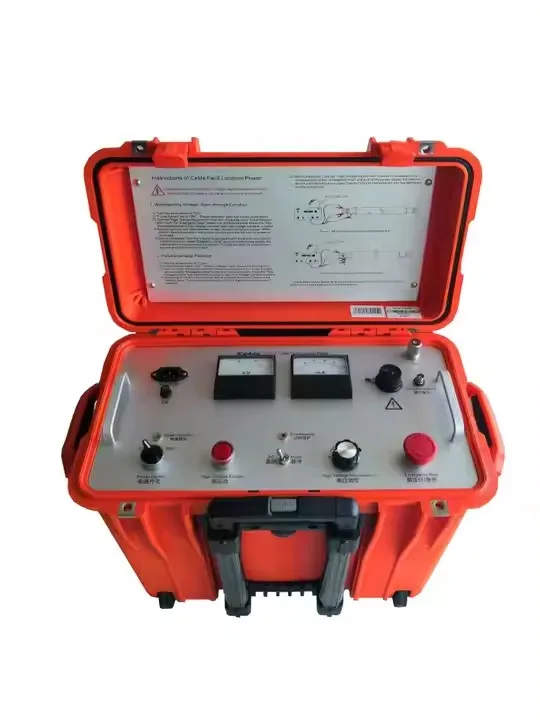

DC voltage output | 0-30 kV continuously adjustable | ||||||
Max charging current | 30mA | ||||||
Max discharge energy | 900J | ||||||
HV mode | Fixed 5s | ||||||
Impulse period | 4s, not adjustable (to guarantee charging time) | ||||||
Polarity of output voltage | Negative polarity | ||||||
Power supply | AC 220~240V | ||||||
LED Lighting | Providing illumination for dark environments | ||||||
Max output Power | 300W | ||||||
Capacity | 1kVA | ||||||
Safety | Temperature detection, automatic protection loop,double grounding system | ||||||
Arc delay voltage output | 1600V | ||||||
Arc delay time | 50ms | ||||||
Allowable impact voltage | 0-35kV | ||||||
Allowable impact energy | 2000J | ||||||
Outer sheath DC test | 0-10kV | ||||||
Size | 500×300×400(mm) | ||||||
Weight | 32kg | ||||||
Operation temperature | -25℃~ 50℃ | ||||||

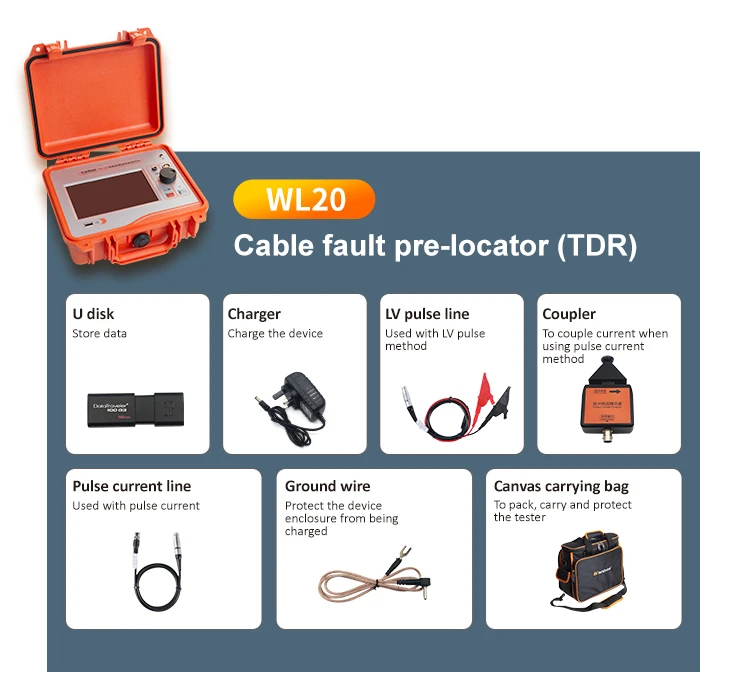

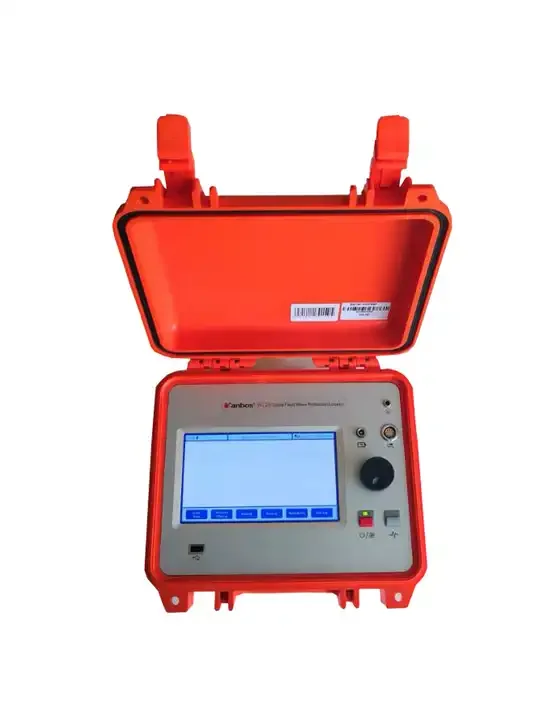

Impulse voltage | 30V |
Test range | 20m-100km @ v/2=80m/μs |
Wave speed regulation | 150-300m/us |
Impulse width | 70ns ~ 15us, automatic regulation |
Impulse amplitude | 10V … 60 V |
Resolution | 0.4m |
Time domain accuracy | < 50 ppm |
Sampling frequency | 200MHz |
Output impedance | 50Ω |

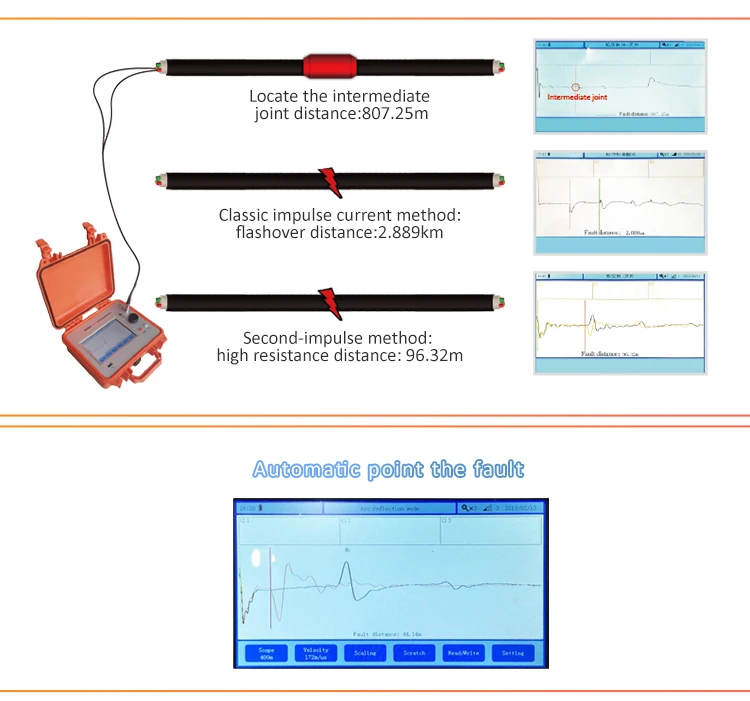

Working mode | Low voltage pulse method, pulse current method |
Waveform transient comparison | Up to 4 waveforms can be compared |
Screen display | 7” color 480x800, backlight touch screen |
Screen brightness | 800cd/m2, anti-glare capacitive touch screen |
Storage | > 10000 test data |
Interface | USB2.0 |
Power consumption | 3.5W |
Power supply | Lithium battery, 7.4V, 5200mAh |
Continuous working time | ≥5h |
Protection level | IP53 |
Weight | 3.0kg |
Size (L x W x H) | 270×250×125mm |

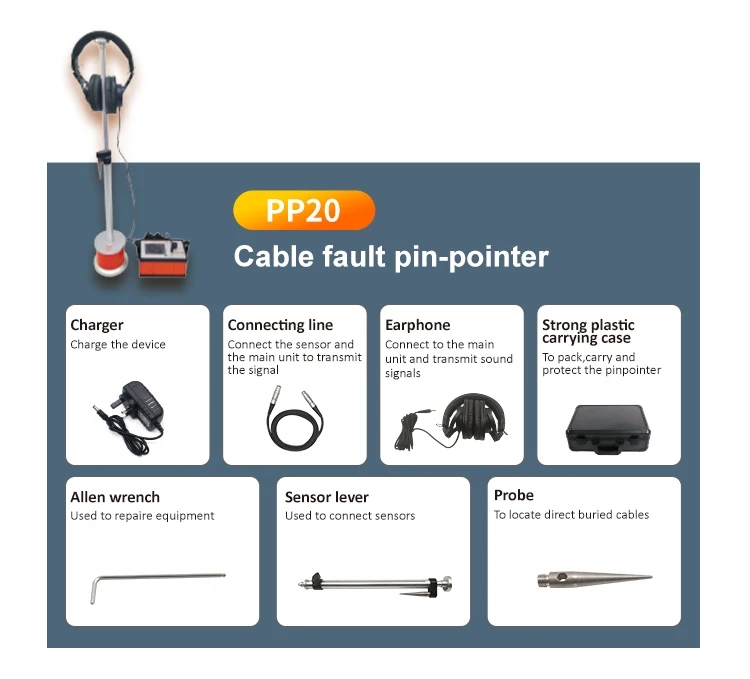

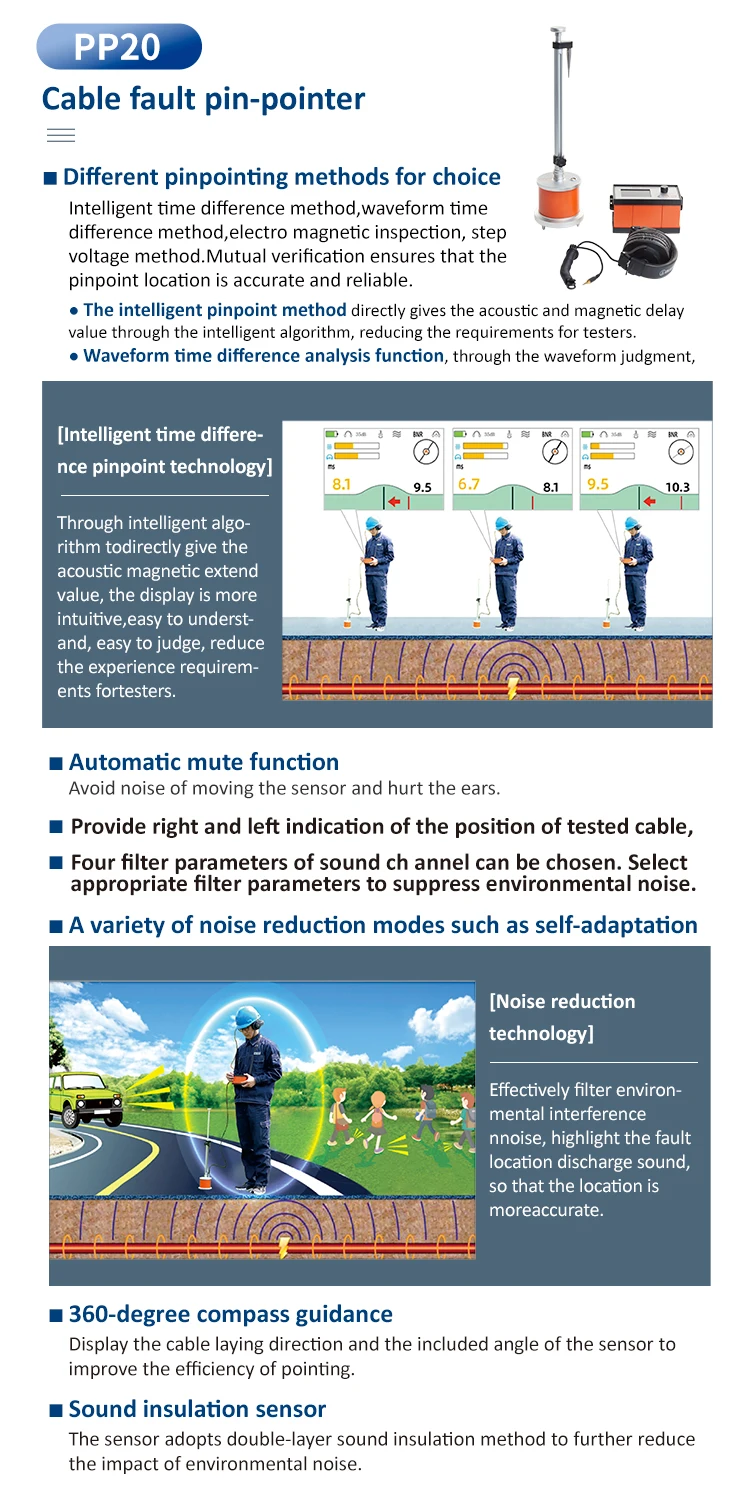

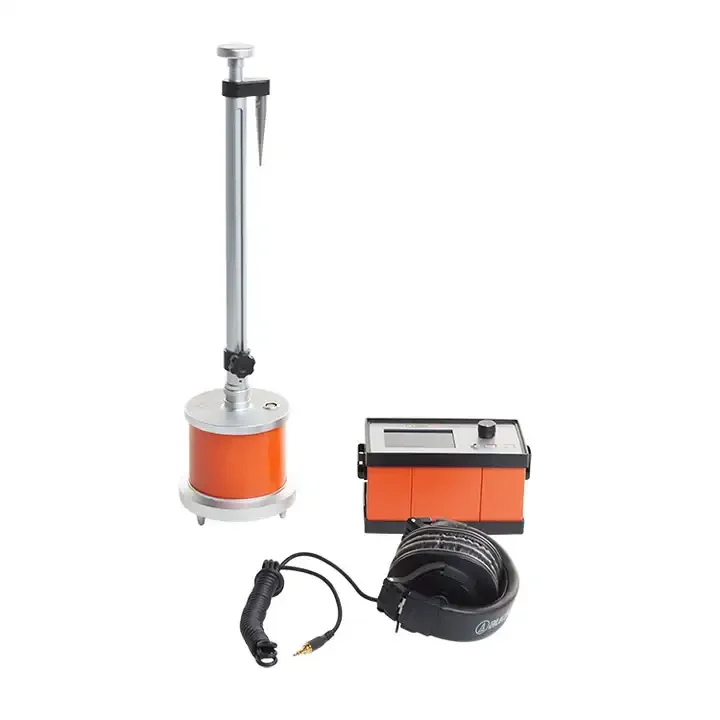

Display | 3.5 ", TFT color display |
Resolution | 480 x 320 |
Backlight | LED |
Dynamic range | Magnetic channel > 99dB; Sound channel > 99dB |
Acoustic amplifification | 99dB, free adjustment |
Acoustic magnetic time difffference display | 1ms—60ms，synchronous display of historical records |
Auditory protection | Touch mute sound, sound intensity limit |
Positioning accuracy | 0.1m |
Space sensing function | Compass guidance, direction indication, cable position identifification |
Filtering range | Full pass: 100Hz—1500Hz, Low-pass: 100Hz—400Hz, Band-pass: 400Hz—800Hz, High-pass: 800Hz—1500Hz |
Noise processing | Intelligent background noise reduction technology |
Pinpoint mode | Intelligent time difffference method, acoustic method, electromagnetic patrol method |
Interface language | English |
Interface | Acoustic and magnetic pinpoint and audio pinpoint interface; 3.5mm jack |
Power Supply | DC 7.4V/5200mAh lithium battery |
Continuous working time | ≥8h |
IP | Handset IP43, Radar IP64 |
Packing weight | 5.5kg (including plastic case) |
Packing size (L x W x H) | 420×320×150mm |
