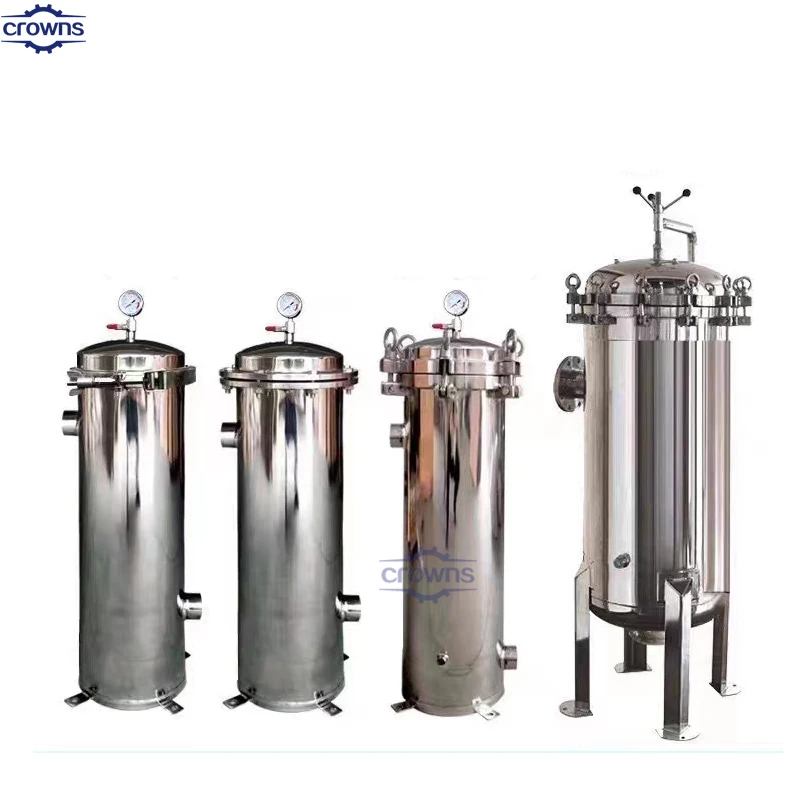

Stainless Steel 304/316L Bag Filter Housing for Industrial Water Treatment
- Category: >>>
- Supplier: Qingdao Crowns Machinery Co. Ltd.
Share on (1601029995428):
Product Overview
Description
1. Design pressure:0.75—1.0Mpa
2. Design temperature:20℃~80℃
3. Seal type: O-rings and plain washers
4. Sealing material: NBR, silica gel, fluorine rubber label
5. Connector Type: thread, flange
6. Filter element: flat filter, 222 socket filter, 226 socket filter
7. Surface treatment: mirror polishing, electrolytic polishing
8. Filter fineness: 0.5μm--100μm
9. Shell material: 304 stainless steel
2. Design temperature:20℃~80℃
3. Seal type: O-rings and plain washers
4. Sealing material: NBR, silica gel, fluorine rubber label
5. Connector Type: thread, flange
6. Filter element: flat filter, 222 socket filter, 226 socket filter
7. Surface treatment: mirror polishing, electrolytic polishing
8. Filter fineness: 0.5μm--100μm
9. Shell material: 304 stainless steel
Technical parameters | Design pressure: 0.96MPa 30min |
Maximum working pressure：0.60MPa | |
Surface smoothness：Ra≤0.2 | |
Design flow rate：Ra≤0.2 | |
Inlet&outlet type thread or flange | |
Type：single bag & multi bag filter housing | |
Designed for bag filtration system | Different kinds of bag support baskets to fit for |
wide range of filter bags | |
Complete stainless steel structure | Made of 100% SUS304, SUS316L, PP |
Easy to clean | Surface is mechanical polished or sand blasting passivation. |
dished end to aid clean down |
Features:
1. Easy to clean and reusable2. Large number of openings and uniform structure, low filtration resistance
3. longer service life than screen filter and ceramic filter
4. Special technology with high strength and high temperature rolling
5. High temperature resistance and corrosion resistance; Good permeability; Uniform filtration
CROWNS MACHINERY
With advanced production equipment, strong R&Dability, and testing equipment all at high state of readiness, Crownwig can satisfy
a variety ofprofessionally customized requirements. After years of unremitting efforts, the company has won high praise from its customers regardingits strict quality management and high-quality after-sales service, the well-known large customersaccounting for up to 95%.
a variety ofprofessionally customized requirements. After years of unremitting efforts, the company has won high praise from its customers regardingits strict quality management and high-quality after-sales service, the well-known large customersaccounting for up to 95%.
Crownwig assists customers to win a lot of government bidding proiectstogether .
Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow
up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully
before shipment.
Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology
also water electrical,machine layout in factory, etc.
Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the
machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine
and support training to workers also.
Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery
time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow
up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully
before shipment.
Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology
also water electrical,machine layout in factory, etc.
Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the
machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine
and support training to workers also.
Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery
time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
