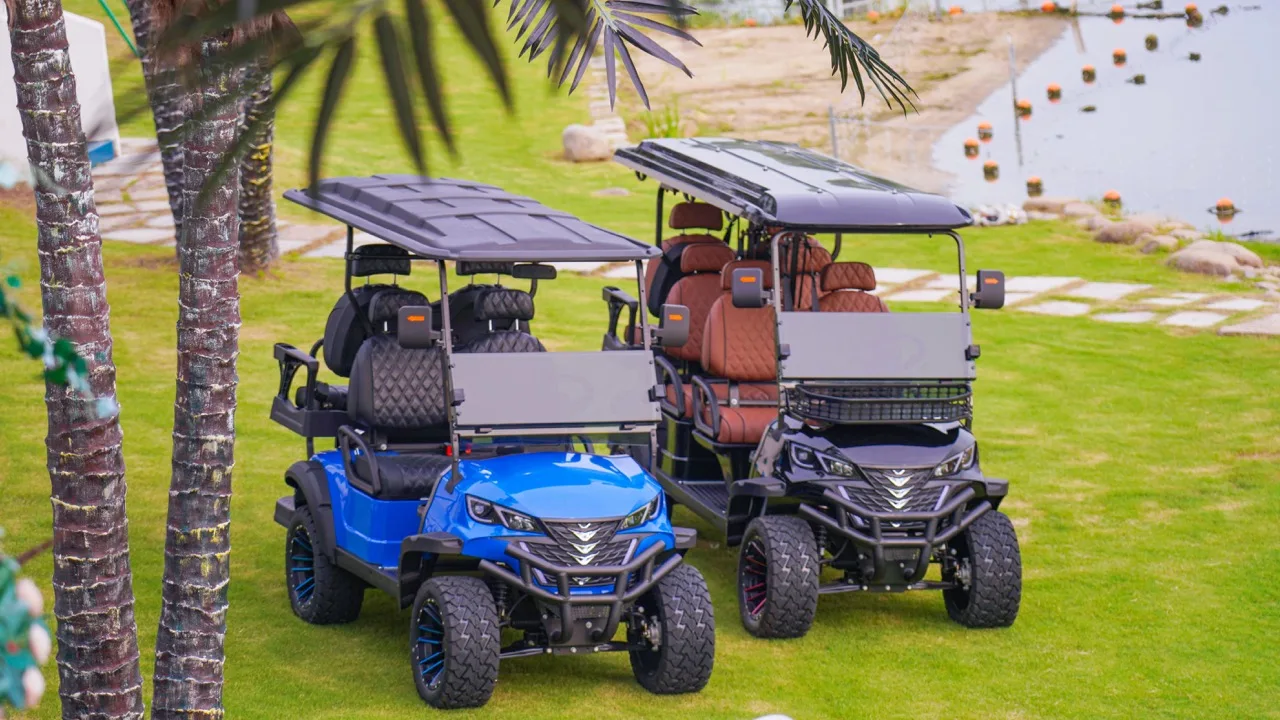

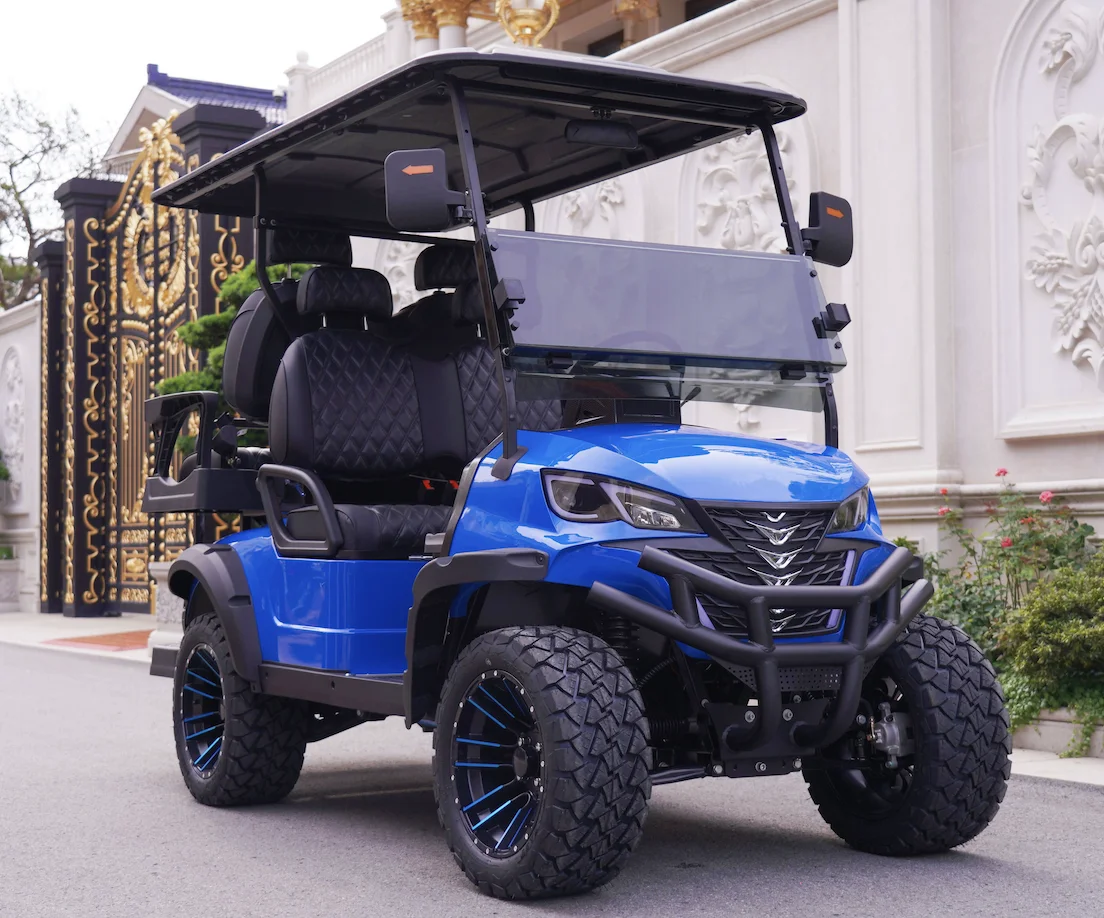

New 4 Seat Lifted Offroad Electric Golf Cart Buggy for Hunting and Golfing on Sale

Share on (1601030003320):


Price:$5,600.00 - $6,200.00

Quantity:


Product Overview

Description



YAXI: Expertly Crafting Premium Golf Carts




Experience the ultimate of golf cart innovation with our latest research and development.
Based on a powerful 72V LFP Battery for maximum power output, with the lightweight Aluminum Chassis Framework, YAXl golf carts are a professional EV car manufacture with over 40 years of industry expertise which can create your amazing Golf Car driving experience.

As the professional golf cart manufacturer you can trust, we don't just meet expectations - we exceed them. Embrace the luxury of high-end customization, we can create your dream golf car with our craft to satisfy your exacting standards.

Choose YAXI for a ride that's as unique as your game experience!




Advantages of YAXI Production

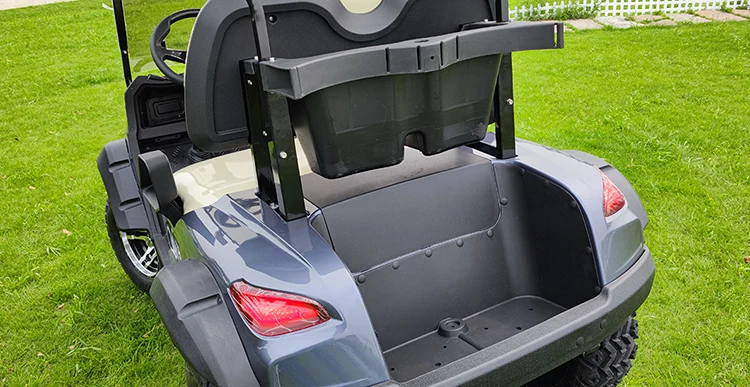

Details Images






Product Description




Personalized private customization




We are a manufacturer specializing in personalized customization and modification, and we are the first manufacturer in the world to mass-produce 72V lithium battery golf carts. Our product prices range from 2,800 US dollars to 6,500 US dollars, and we can realize complete vehicle customization.


Specification


Frame
Welded steel framework with anti-rust treatment of acid washing + phosphating+electro-coating
Body
PP plastic front body + PP plastic rear body, with painting
Roof
Injected plastic, gel coated
Front windshield
Foldable organic plastic windshield
Laminated glass windshield
Laminated glass windshield with wiper
Roof Supports
Plastic
Sweater Basket
Plastic

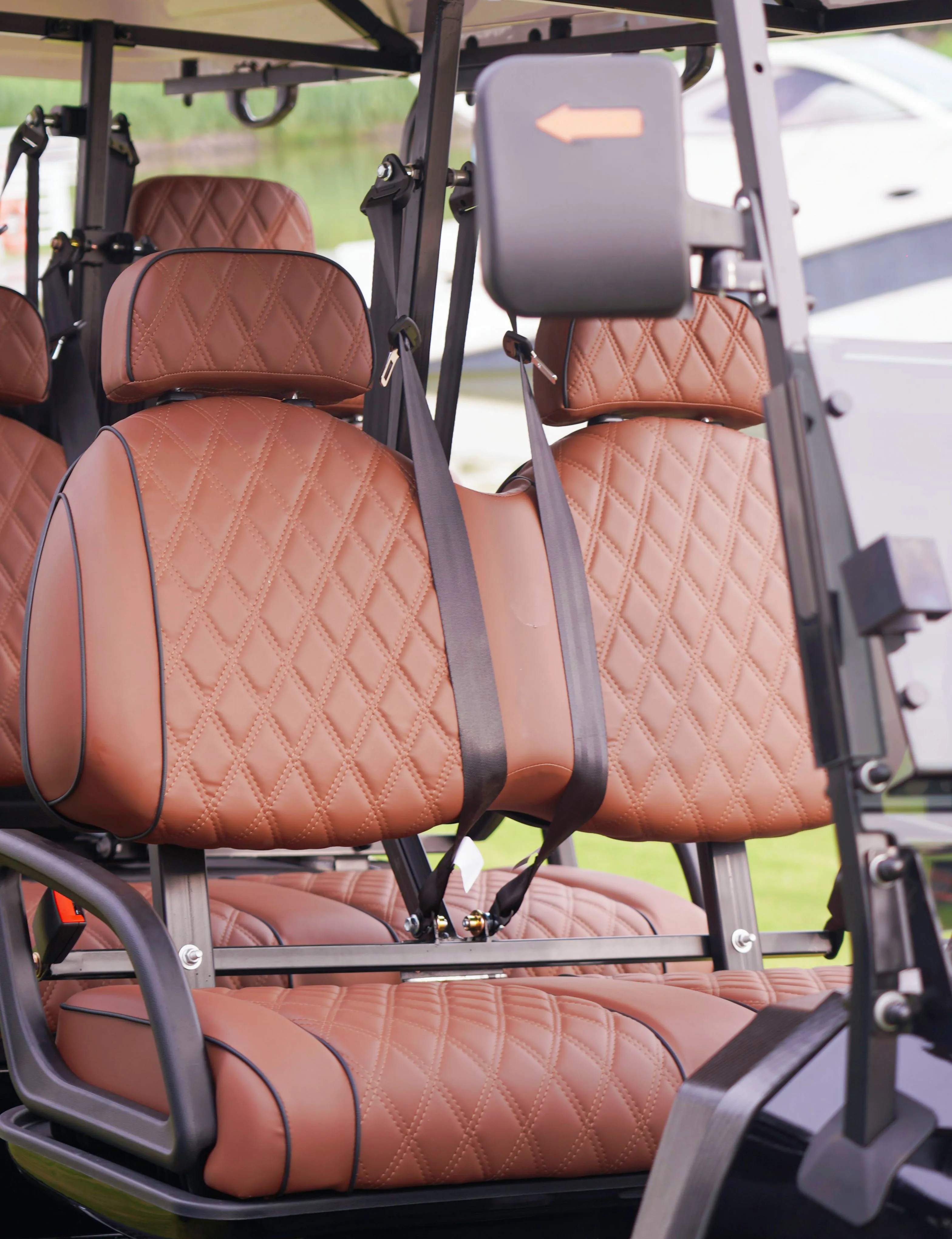

Backrest and cushion
Reborn sponge + artificial leather + plastic armrest
Backrest Cover
Plastic, in black color
Wood finish
Floor
Galvanized Steel Sheet + anti-slip ruber mat
Dashboard
Plastic, injected, in black
Wood finish
Carbon fiber

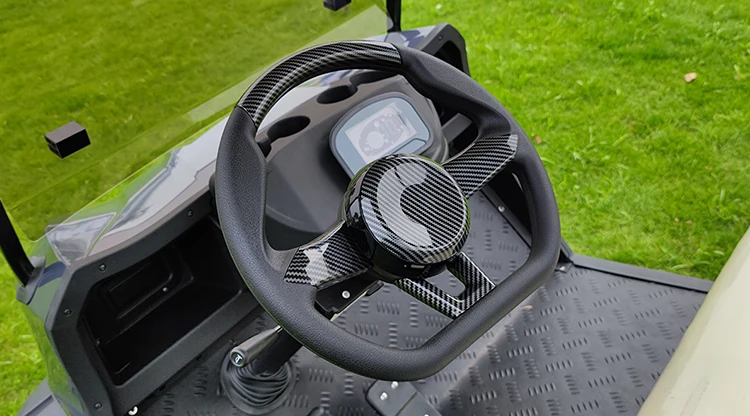

Steering Wheel
Black artificial leather covered, with score card
Wood finish
Carbon fiber
Side trim
Aluminum
Side rear view mirror
2pcs, foldable
Central rear view mirror
standard
Glove box door & lock
Plastic, black or wood finish
Seatbelt
2-point retractable seatbelt
Enclosure
Transparent PVC + Canvas, with two sides zipper
Lighting System &Horn
2 headlights, 2 front turning signals, 2 LED taillight (each combined 1 brake light with 1 turning signal), electric horn
DC/DC converter
20A, 72V/12V
Reverse Buzzer
electric, 12V
Charger
Intelligent, input 110V-240V~50Hz-60Hz, output 72V/18A
Cooler
12V/6L

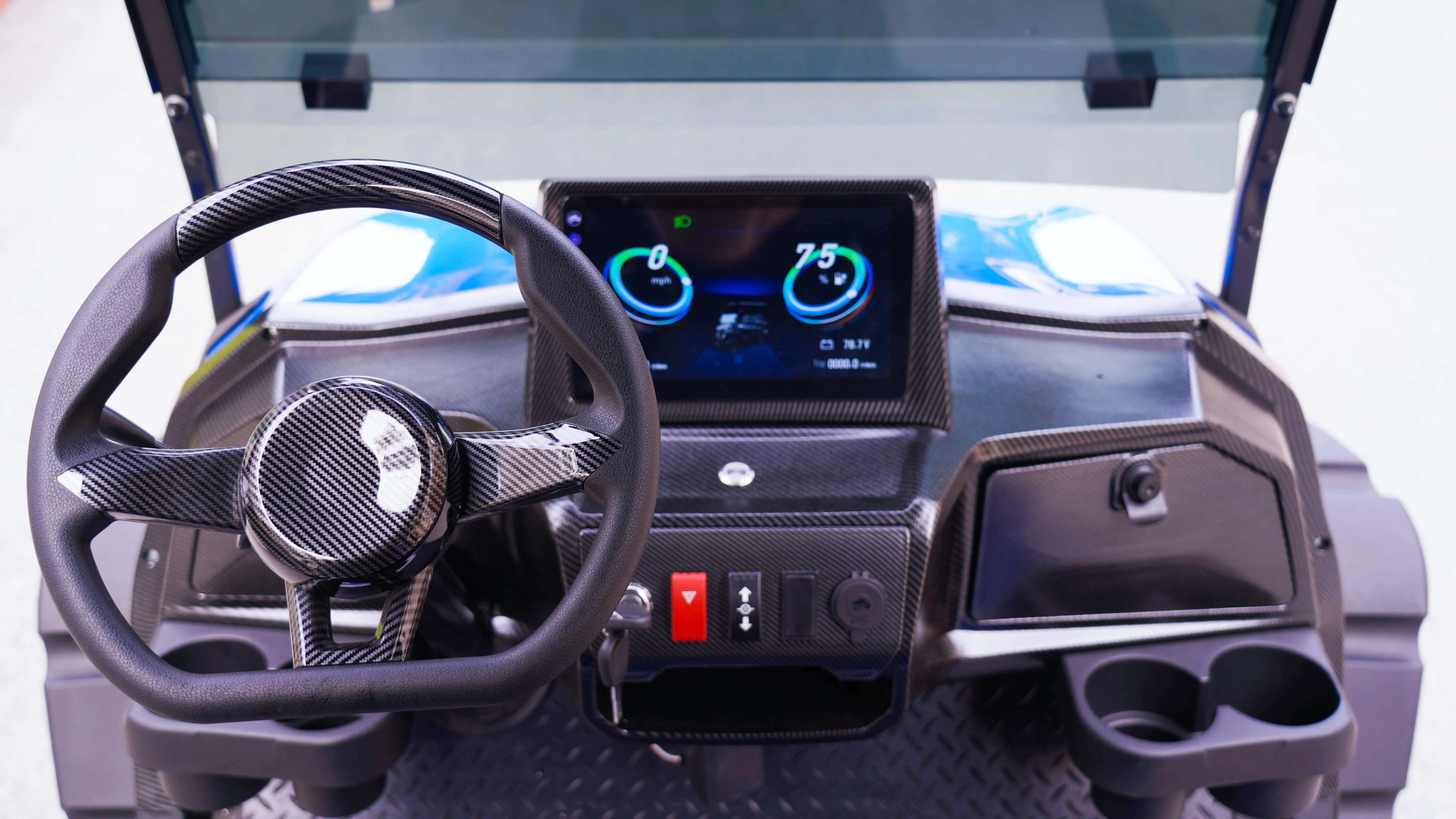

Digital Meter
speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator
Emergency power-off button
To cut the main power
12V accessory plug
optional
USB interface
optional
Steering system
Single-stage rack and pinion steering system, with automatic rocker compensating function
Brake System
Front Disc rear drum hydraulic brake
4 wheel hydraulic drum brake + foot parking brake
Accelerator
Stepless speed change, resistor type
Suspension system
Front independent suspension and rear plate spring + cylinder hydraulic shock absorber
Driving mode
Rear axle two stage deceleration, motor direct driving, rear wheel drive

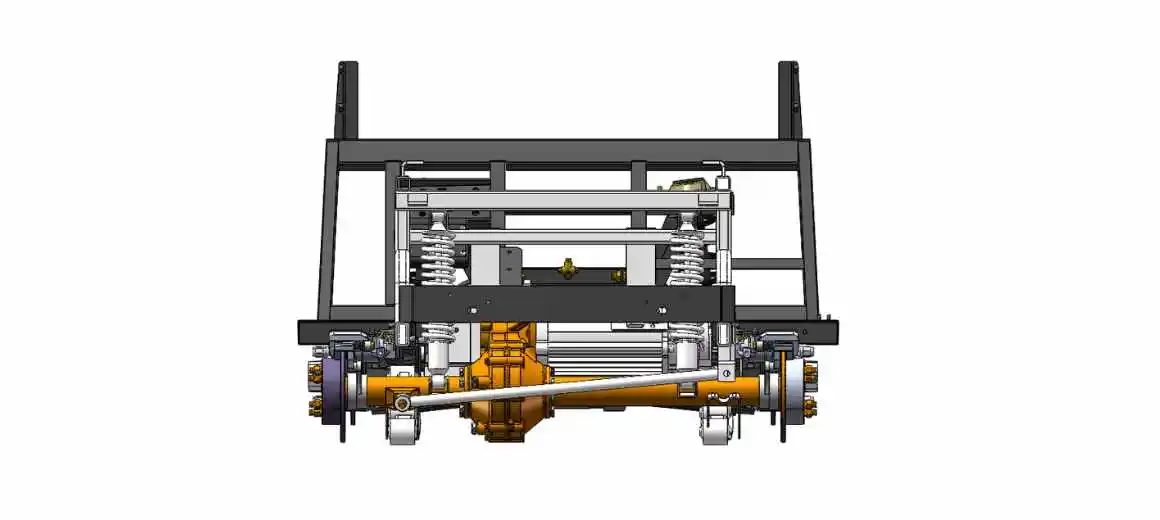

Rear axle
Integrated, Gear ratio12.49:1
Wheel & Tyre
14x7 Alumimum wheel & 225/45-14 4PR


Yaxi Golf Cart Configuration
Yaxi Golf Cart Configuration
Standard configuration
front windshield with foldable glass
side rear view mirror with turn signals
inside back-up mirror
plastic front bumper
black-injected plastic roof
carbon fiber steering wheel
single-color diamond-shaped sponge seat
14-inch aluminum wheel with tires
wheel eyebrows
seat armrest

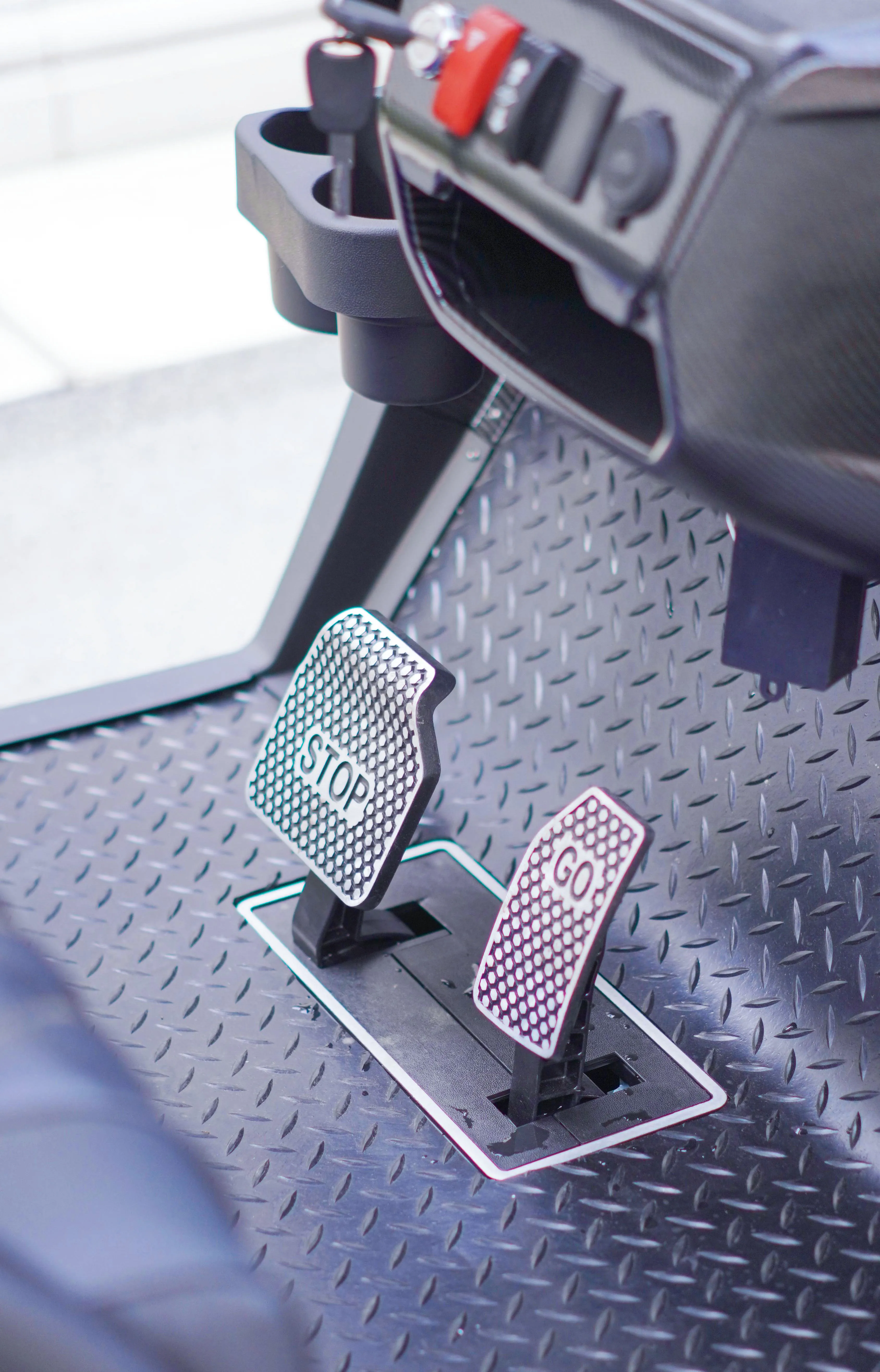

integrated pedal
electromagnetic brake
media play(with speaker and back-up camera) supports Carplay via USB connection
Optional configuration
plastic sealing
solar panel
led light bar
carbon steel front bumper
front basket
top basket
carbon fiber instrument panel
carbon fiber backrest cover
two-point seat belt
three-point seat belt
ice bucket
DOT glass
carbon fiber glove box door & lock
12v accessory plug
USB interface
license plate lamp

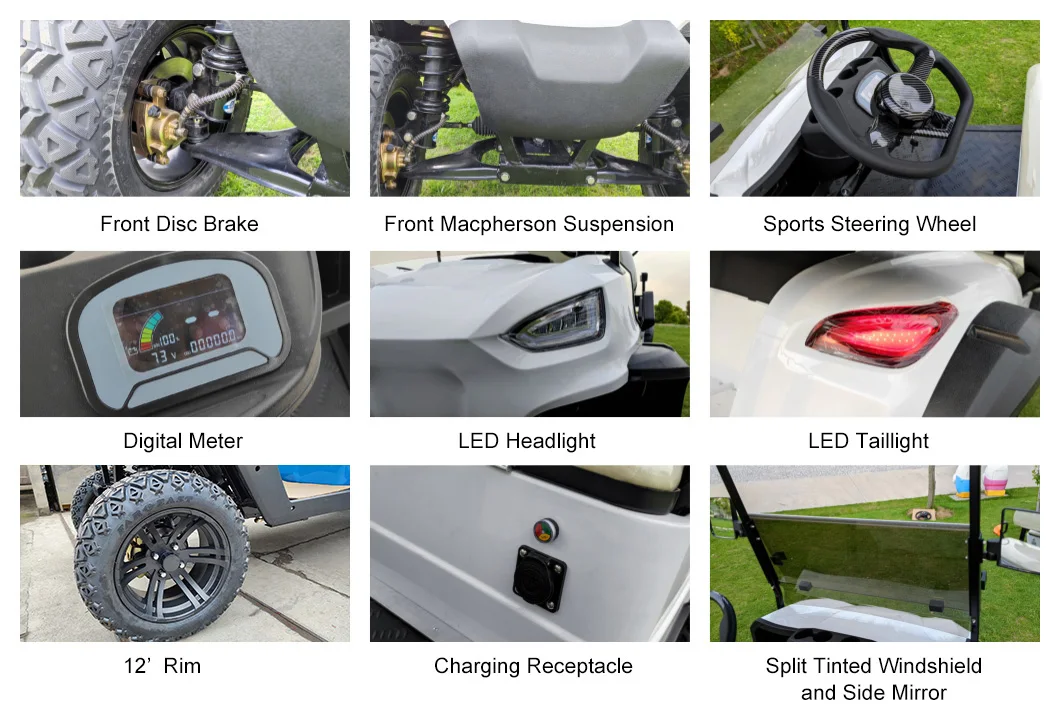

Details Images

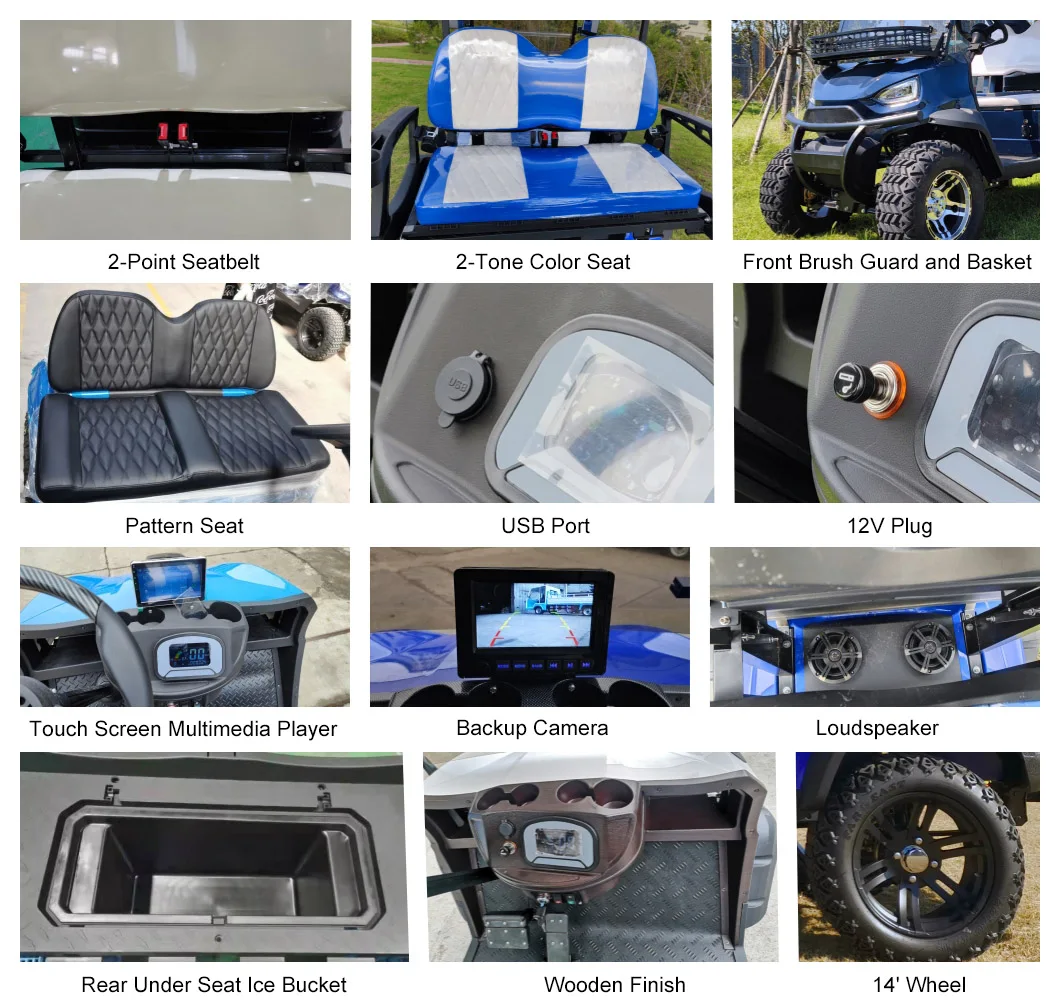

Optional Accessories For Choose
As a factory with nearly 40 years of experience in car manufacturing, Yaxi has rich supply chain resources, can meet most of customers' customization needs, and has rich OEM experience.

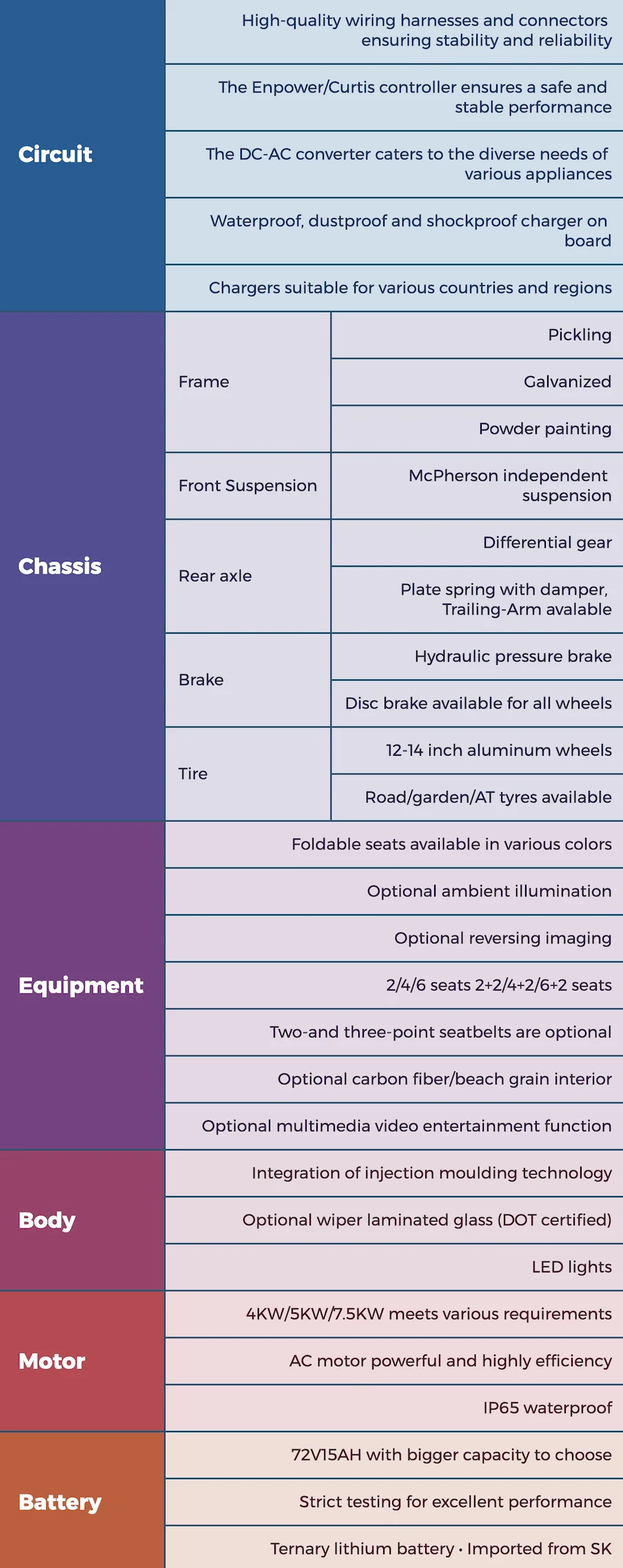

Our Advantages


72V High Power Lithium Battery Golf Cart & Hunting Buggy
Lithium Battery Powered Electric Lifted Golf Cart, 72V AC system, 4KW/5KW/7KW AC motor, 100Ah Lithium Battery, front MacPherson Independent suspension, front disc brake, LED lights, digital meter, 12/14" aluminum rim with off road tire, sports steering wheel.


72V AC CURTIS Controller
Compared with traditional 48V controllers, Yaxi uses CURTIS brand Controller (72V 400A AC Controller), with regenerative brake and walk-away function. High and Stable Quality, Powerful, Global 2 Years Warranty. The maximum operating frequency of the encoder is 10kHz, The maximum output frequency of the controller is 450Hz, Insulation 500VAC(min.) Operating temperature -40°C~50°C
Storage ambient temperature -40°C~95°C, Protection class IP65.

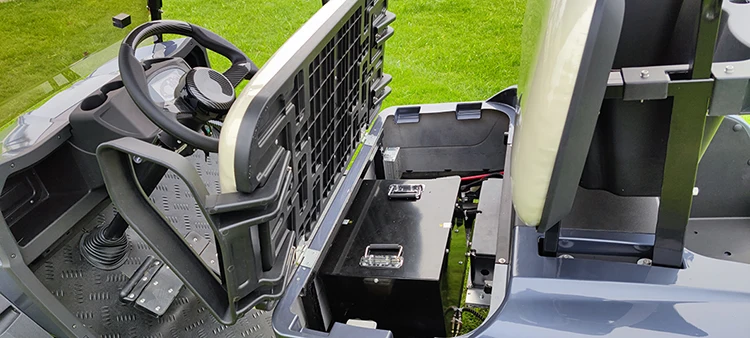

3 Years Warranty 72V Lithium Battery
LG/SK pouch cells made lithium-ion battery pack. 72V/100Ah capacity (OEM available), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to an App on the mobile phone for easy operation. 4000 times life cycles based on 99% DOD. 3 years warranty to be provided! Lower life cost, you are deserved to have!
72V 4KW, 5KW or 7.5KW AC Motor
Very Powerful and Maintenance Free AC motor. Motor power varies from 4KW, 5KW and 7.5KW. With 7.5KW motor, the climbing ability
can be 35%.The standard motor of Yaxi is an AC asynchronous motor, which has the advantage of no high-temperature demagnetization of permanent magnets, and can extend the working time of peak power, rated power and peak power. It has the ability to start high torque and high speed torque adjustment.

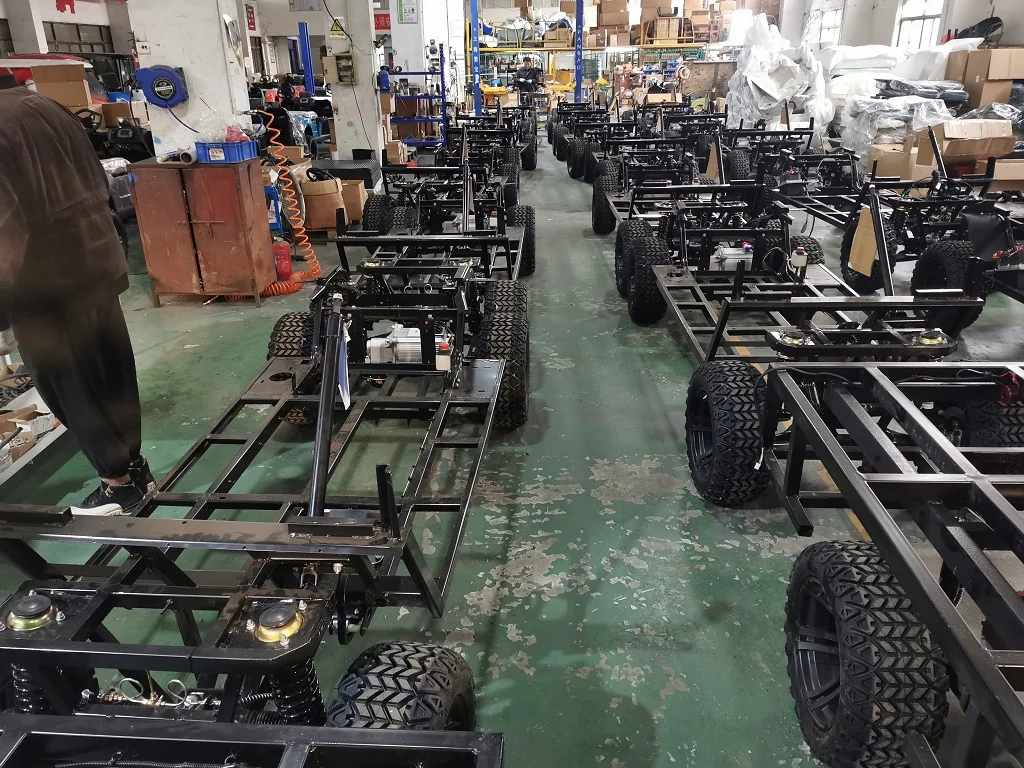

Anti-rust Cart Body Structure
The Metal Structure Of The YAXI Body Has Undergone Three Processes Of Pickling, Galvanizing And Plastic Spraying To Ensure That The Vehicle Body Has Excellent Anti-Rust Ability.

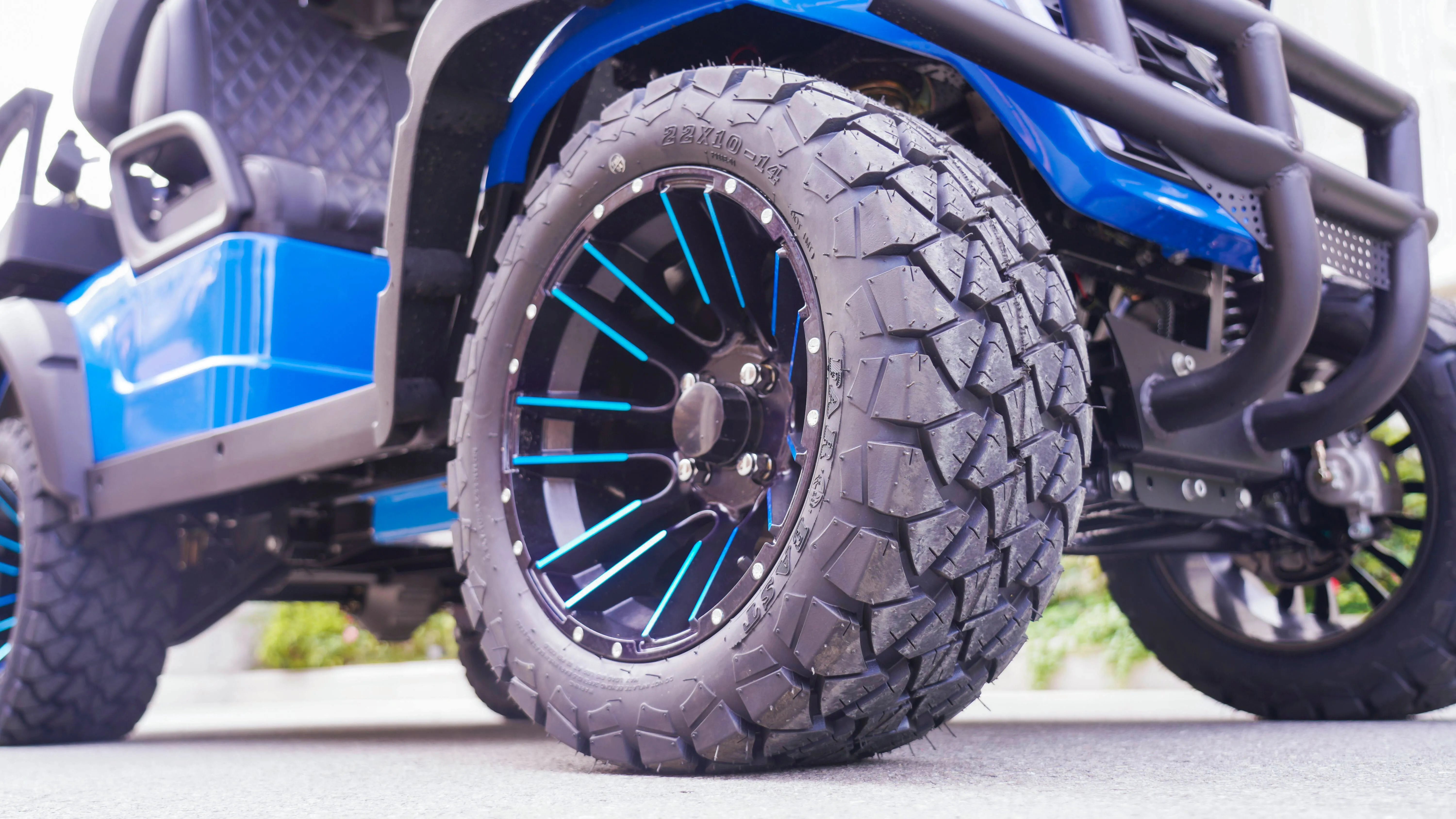

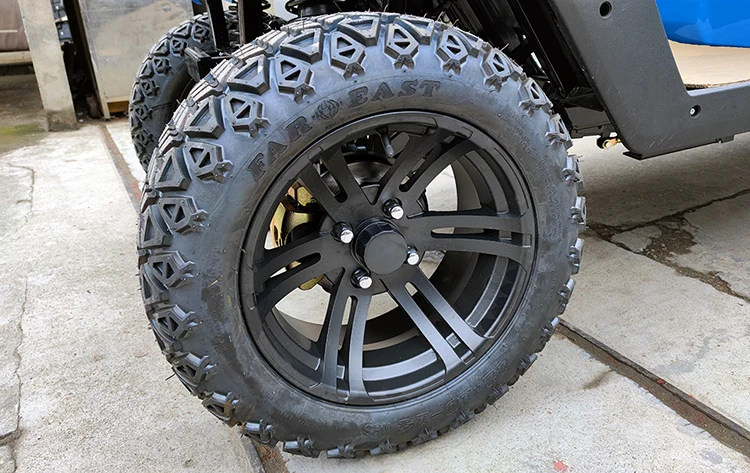

12/14" Optional Wheels
Yaxi provides customers with standard versions of 12-inch and 14-inch optional wheels, and also supports custom wheels.

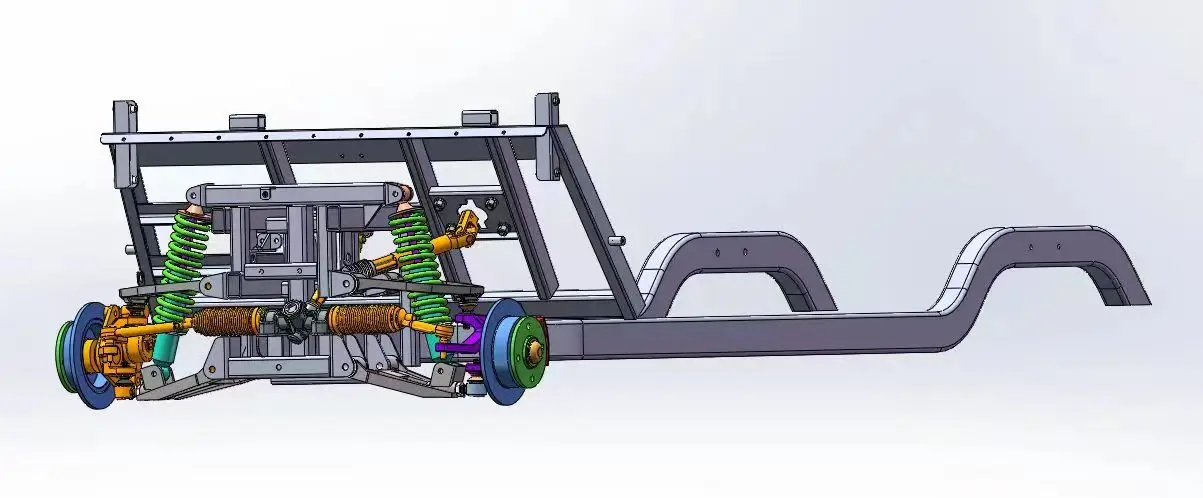

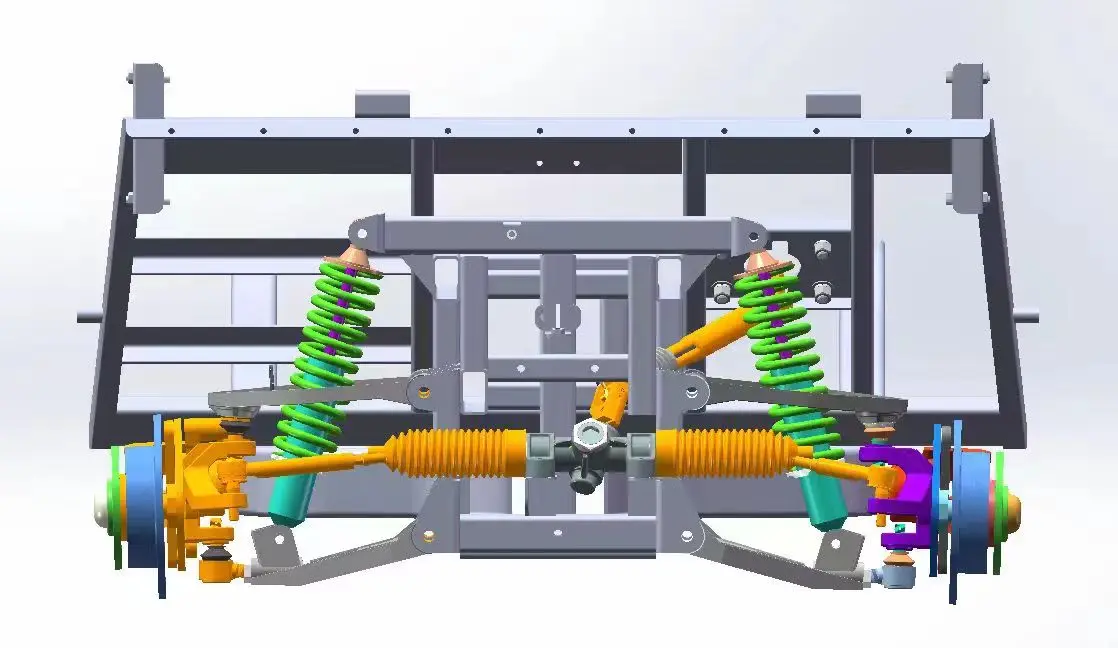

Independent Suspension
Automobile-level independent suspension, with front MacPherson Independent suspension, front disc brake, which brings better passability and driving feeling to the body.

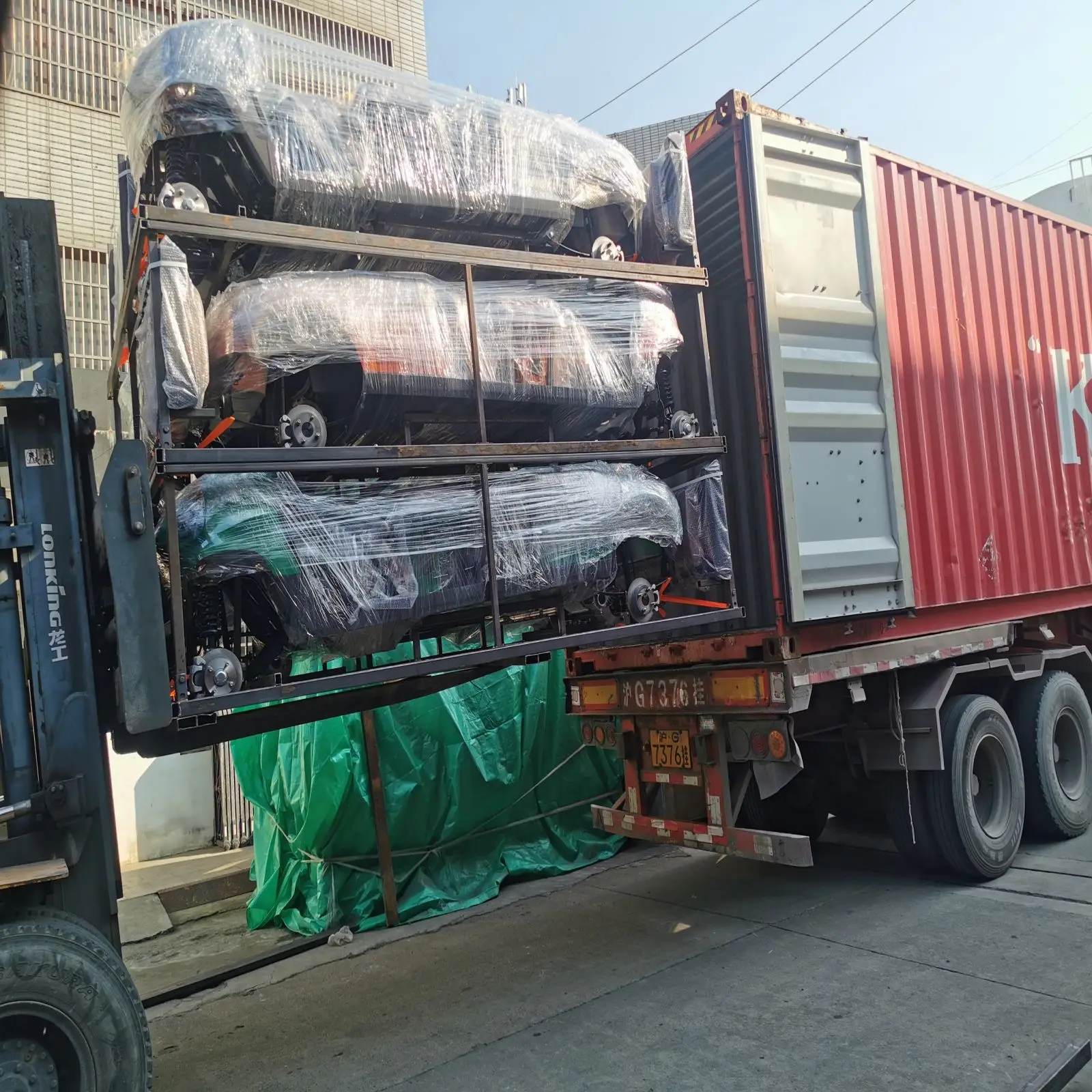

Packing & Delivery




Packaging
Container Size
Disassembled (with top and front basket)
Disassembled(without top and front basket)
20'ft Container
6
6
40'GP Container
12
14
40'HQ Container
18
20

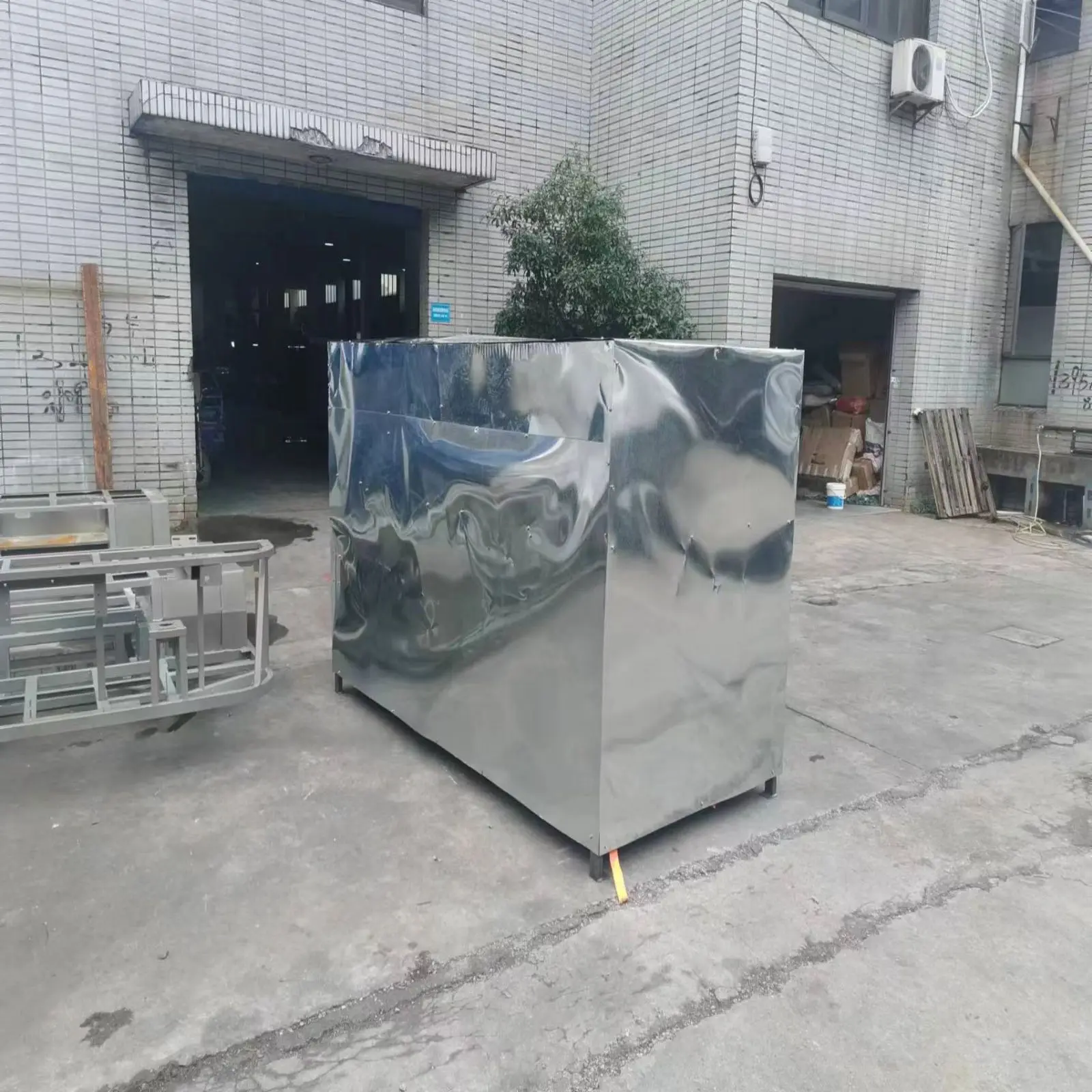

Packing Method
it's packed in steel crate as  image shows above

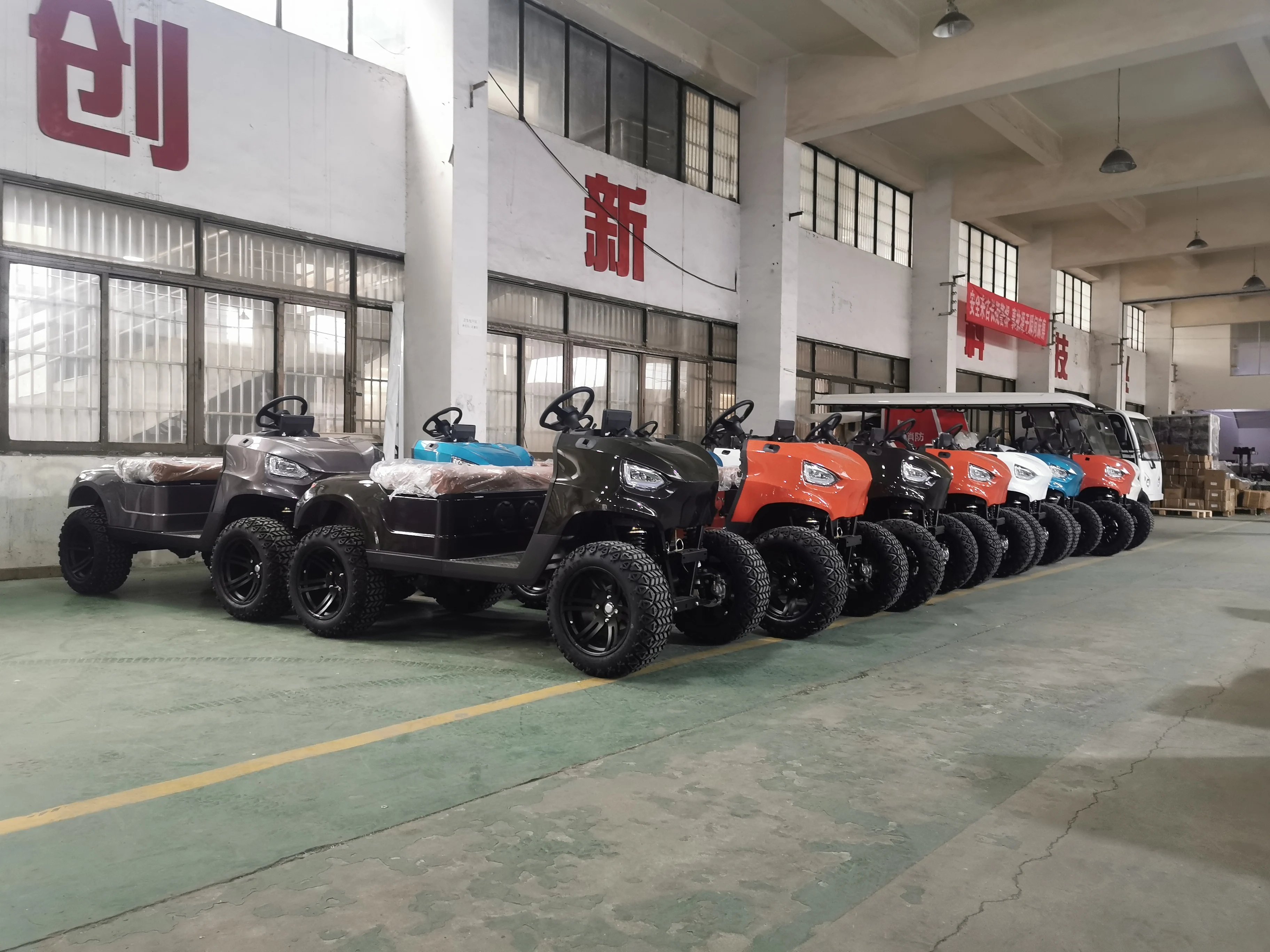

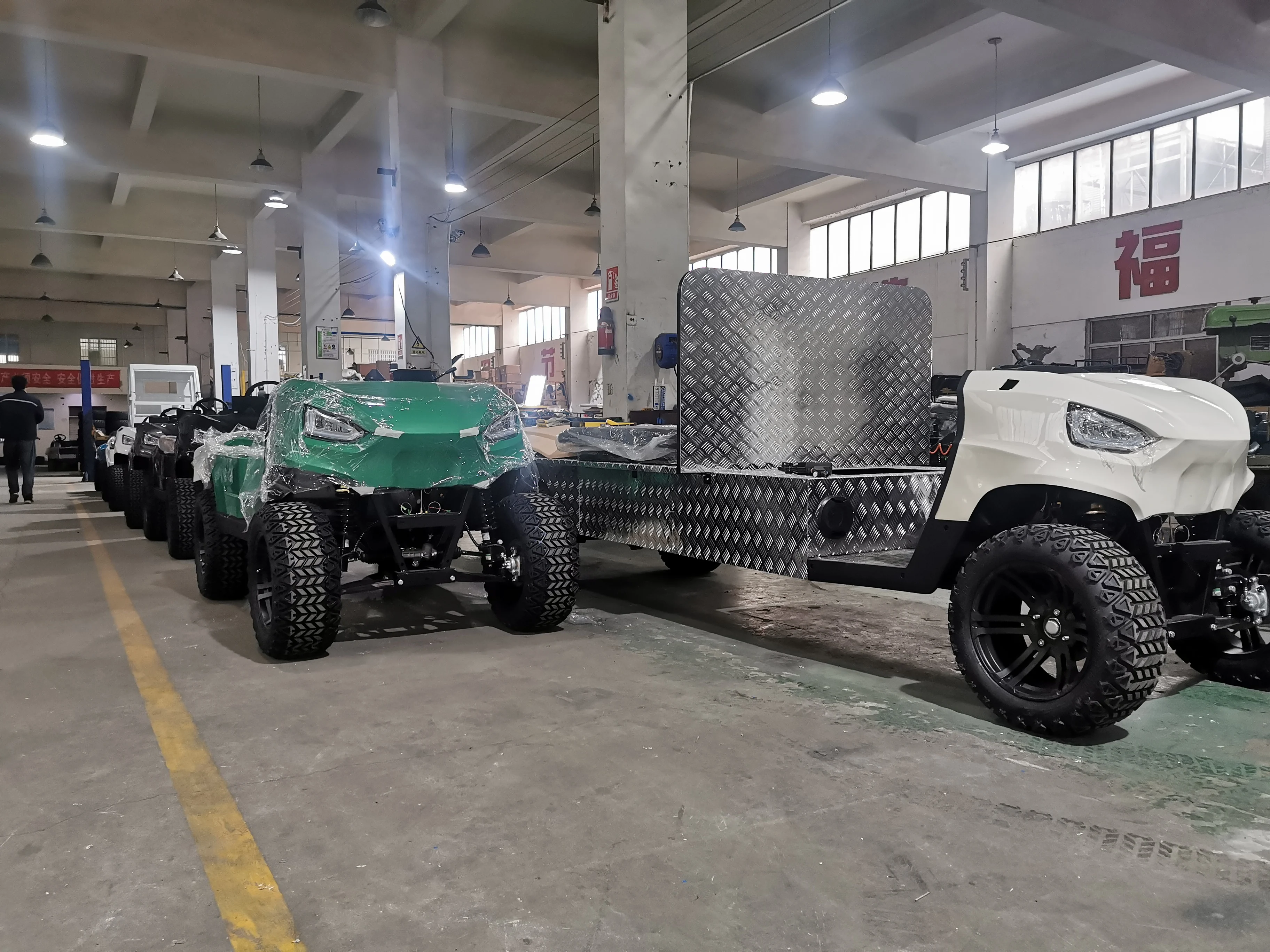

Company Profile






Wuxi Yaxi: A Professional Golf Cart Manufacturer with Nearly 40 Years of Production Experience.
Wuxi Yaxi brand, founded in 1984, is an earlier private motorcycle enterprise. Based on the tenet of “credibility first, serving the public”, the company’s business has gradually developed and grown, and it has become a well-known enterprise by the end of the 1980s. In 2001, the company transformed and upgraded to develop electric vehicles. At the same time, we established “Wuxi Yaxi Electric Vehicle Co., Ltd.”. We uphold the tradition, rely on profound technical accumulation, and believe in the business philosophy of “independent research and development, leading technology, first-class service, and integrity-based”. We have launched a series of electric special vehicles and obtained more than 30 patents. The products are exported to more than 30 countries on five continents around the world, and have won unanimous praise.


Why Choose Us


One Year Warranty
Yaxi provide 13 months warranty to the electric vehicles from the shipping date. We will cover the labor cost for any warranty issue.
18x7x360 Technical Support
Yaxi provide technical support by phone or email, in 360 days a year, 7 days a week and 18 hours a day.
Life-time Spare Parts Supplies
In the lifetime of the vehicles or at maximum within 5 years we stop the production of any model, and we still supply the spare parts for after-service.


Flexible Payment Terms
Yaxi offer different payment terms to different customers according to customer's special request, in order to support your business.
Experiences Technicians
Every experienced engineer is the most valuable asset of our company. This is the reason why our factory has been able to maintain the most advanced technology in the industry.
Fair Prices
As an experienced factory, we always choose accessories with better quality. We will give you a more favorable price after keeping reasonable labor costs and enterprise profit.


FAQ


Q1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the
customization is not related to the chassis modification.

Q2. What is your warranty term?
Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.

Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.

Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.

Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.

Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable (yearly 300-500 units), we will accept.

Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.

Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container
loading. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
