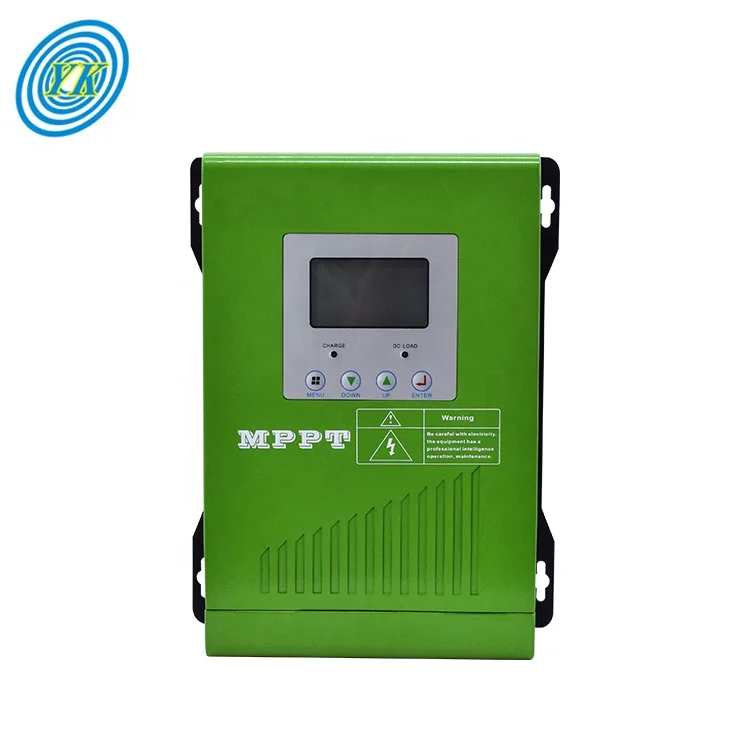

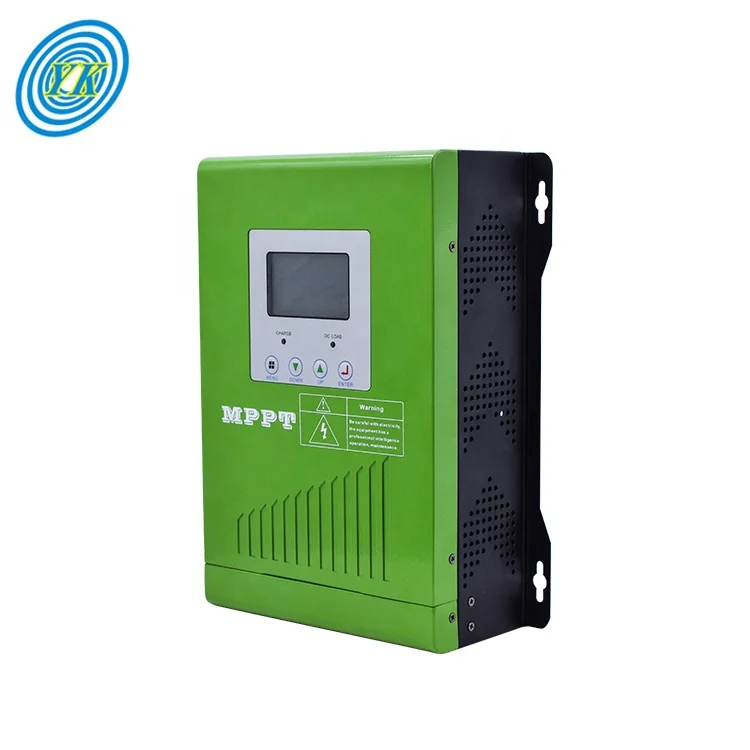

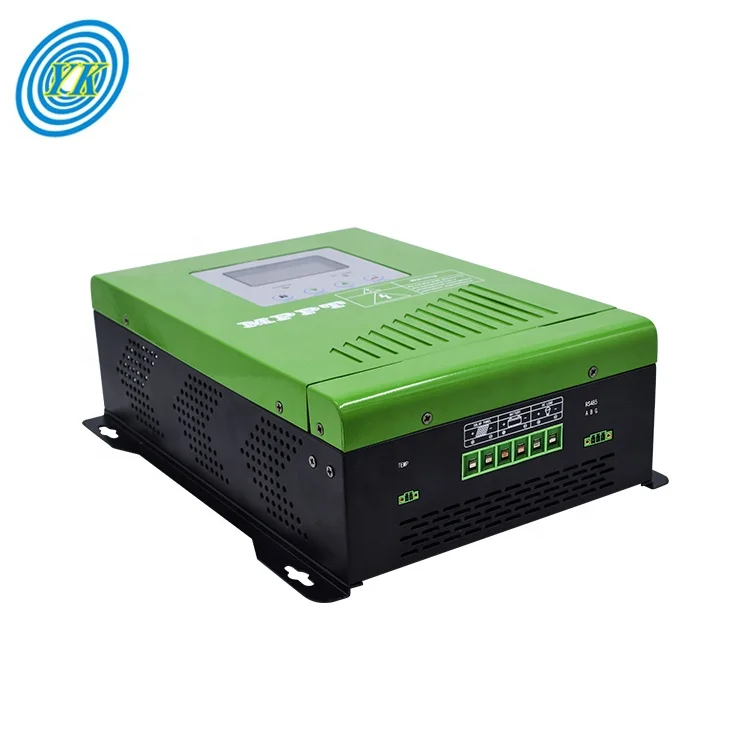

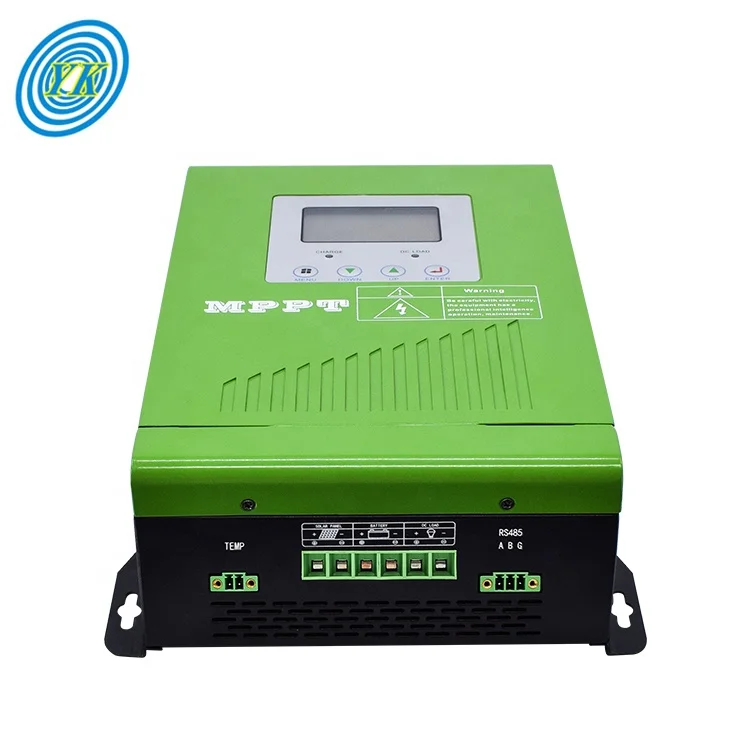

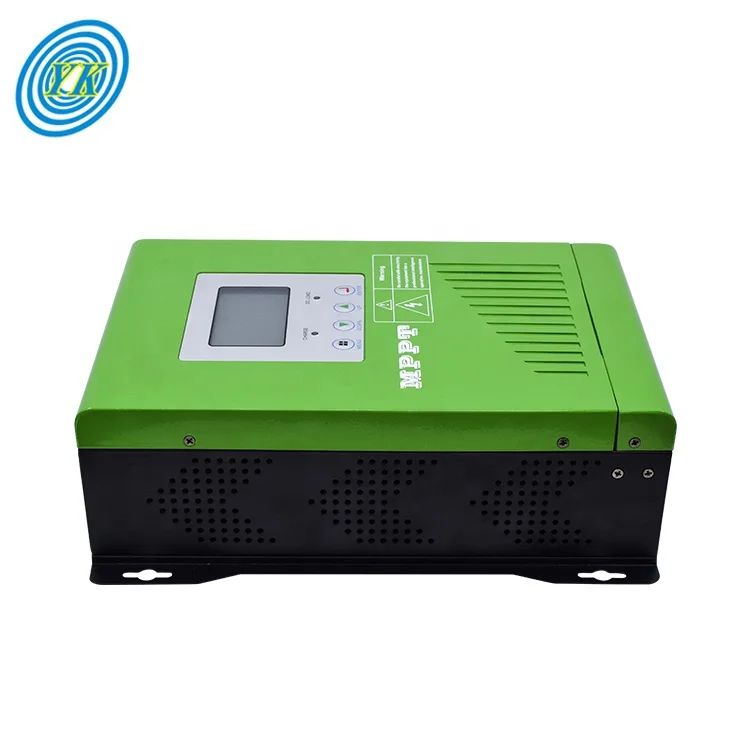

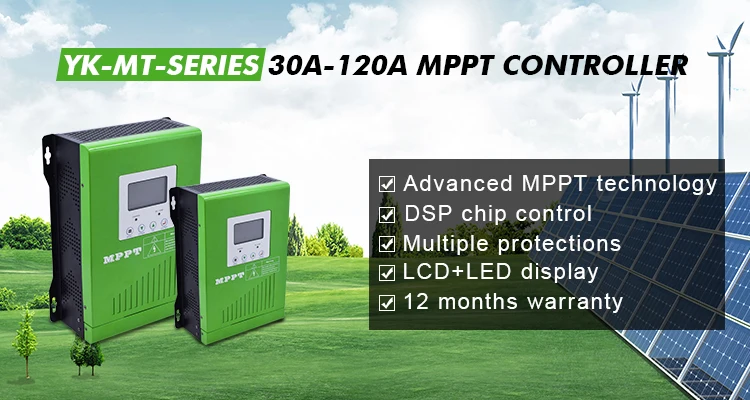

mppt solar regulator 12v 24v 48v 30a solar charger controller mppt
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1601030029863):
Product Overview
Description
Product Description
Features:
2.Three-stage charging technology
3.Setting float charging voltage available
4.DSP chip control, high precision, high efficiency
5.Intelligent maximum power point tracking technology
6.Photovoltaic/battery anti-anti protection/short circuit protection/overcurrent protection
1.PV wide voltage range input
2.Three-stage charging technology
3.Setting float charging voltage available
4.DSP chip control, high precision, high efficiency
5.Intelligent maximum power point tracking technology
6.Photovoltaic/battery anti-anti protection/short circuit protection/overcurrent protection
Product Parameters
Model YK-series | MT30 | MT40 | MT50 | MT60 | MT100 | MT120 | |||||
Rated current | 30A | 40A | 50A | 60A | 100A | 120A | |||||
Max current | 31A | 41A | 52A | 62A | 101A | 121A | |||||
System voltage | 12V/24V/48V (Automatic Recognition) | ||||||||||
Charging mode | MPPT Intelligent maximum power point tracking technology | ||||||||||
Charging type | Three stages: constant current charge, equal charging, Floating charge | ||||||||||
Starting time | ≤ 10s | ||||||||||
Dynamic response recovery time | ≤500us | ||||||||||
No load consumption | ≤2W | ||||||||||
Protect functions | Input and output polarity reverse protection/Low voltage protection/High voltage protection/Short circuit protection/Over temperature protection | ||||||||||
System identification voltage range | 12V:9-15V; 24V:18-30V; 48V:36-60V | ||||||||||
MPPT operation voltage | 12V:20-100V; 24V:38-150V; 48V:65-150V | ||||||||||
Environment temperature | -20℃~+40℃ | ||||||||||
Storage temperature | -40℃~+70℃ | ||||||||||
Acoustic noise | ≤50dB | ||||||||||
