Products Description
5T Wheel Loader ZL50GN
ZL50GN wheel loader is the latest cross-generation product developed on the basis of the globalized technologic resources.
Focusing on customer value and emphasizing customer experiences, this loader is the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.
Model Characteristics:
1. Exclusive high torque and high efficiency drive chain features reasonable matching.
2. Characteristic super-heavy-load structure parts are free of redundant weight.
3. With extended wheelbase, the working capacity and stability are leading the industry.
4. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.
5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
ZL50GN wheel loader is the latest cross-generation product developed on the basis of the globalized technologic resources.
Focusing on customer value and emphasizing customer experiences, this loader is the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.
Model Characteristics:
1. Exclusive high torque and high efficiency drive chain features reasonable matching.
2. Characteristic super-heavy-load structure parts are free of redundant weight.
3. With extended wheelbase, the working capacity and stability are leading the industry.
4. The centering design of main hinge joints reduces the turning radius and lowers the tire wear and energy consumption.
5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
Product Paramenters
Description | Unit | Parameter value | ||
Rated operating load | kg | 5000 | ||
Bucket capacity | m³ | 2.5~4.5 | ||
Machine weight | kg | 17500±300 | ||
Dump clearance at maximum lift | mm | 3100~3780 | ||
Reach at maximum lift | mm | 1100~1220 | ||
Wheel base | mm | 3300 | ||
Tread | mm | 2250 | ||
Max.breakout force | kN | 175±5 | ||
Max.horse power | kN | 160±5 | ||
Hydraulic cycle time-raise | s | ≤6 | ||
Total hydraulic cycle time | s | ≤10.5 | ||
Min. turning radius over tyres | mm | 5925±50 | ||
Articulation angle | ° | 38 | ||
Gradeability | ° | 30 | ||
Tyre size | 23.5-25-16PR | |||
Overall machine dimension L×W×H | mm | 8225*3016*3515 | ||
Model | WD10G220E21 | |||
Rated Power | kW | 162 | ||
Travel Speed | Ⅰ-gear(F/R) | km/h | 13/17 | |
Ⅱ-gear(F) | km/h | 41 | ||

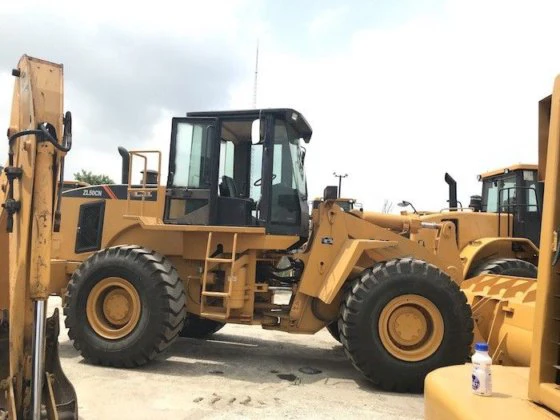

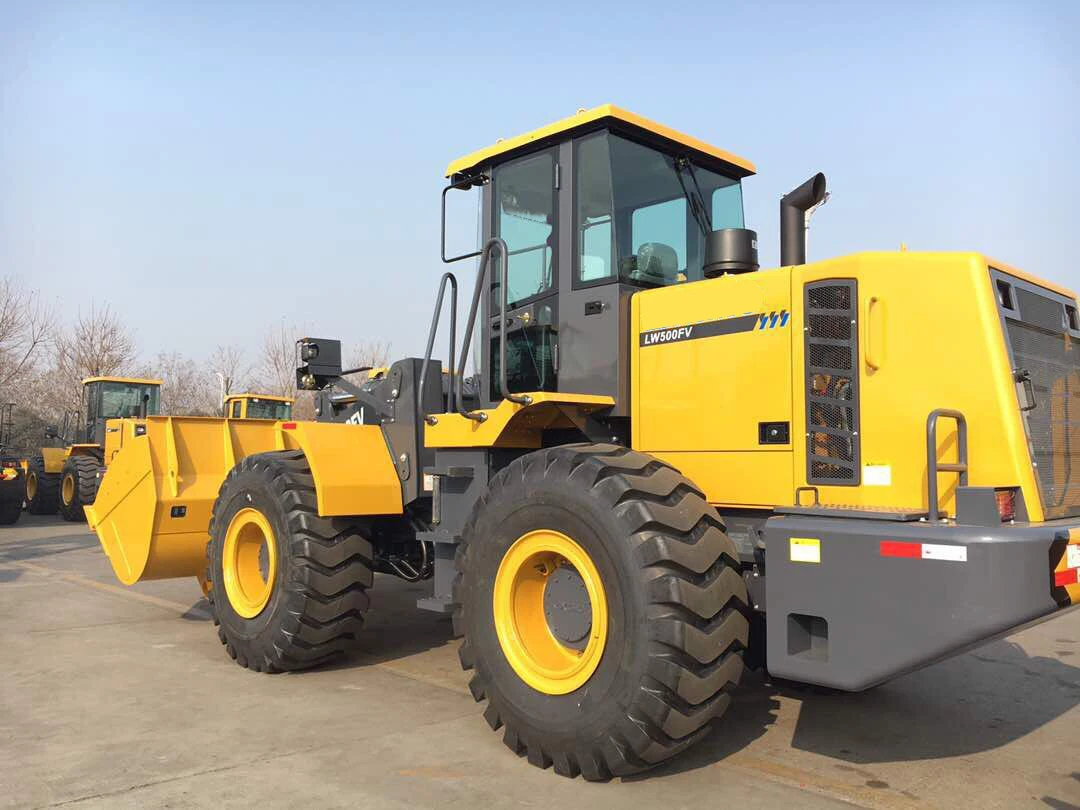

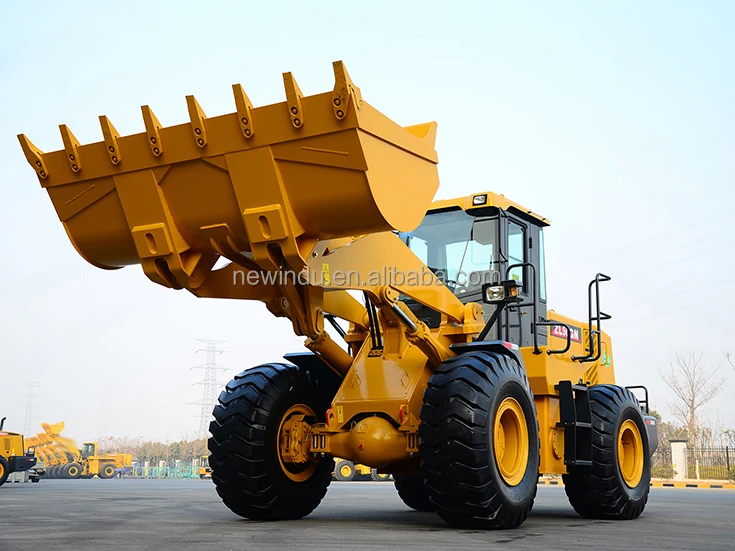

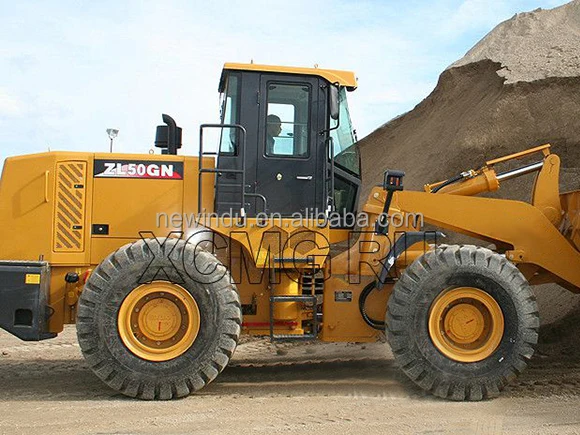

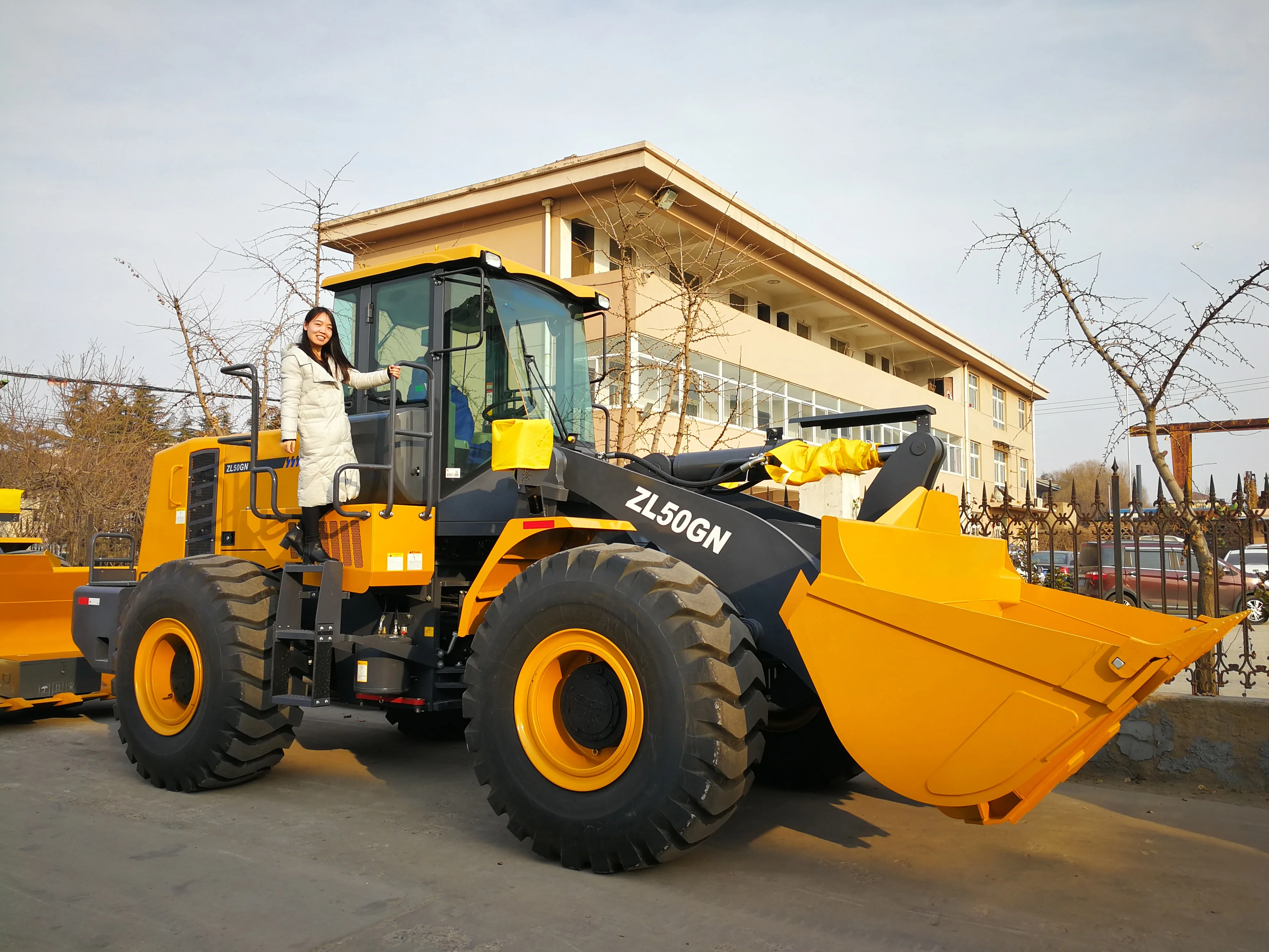

Product Image
