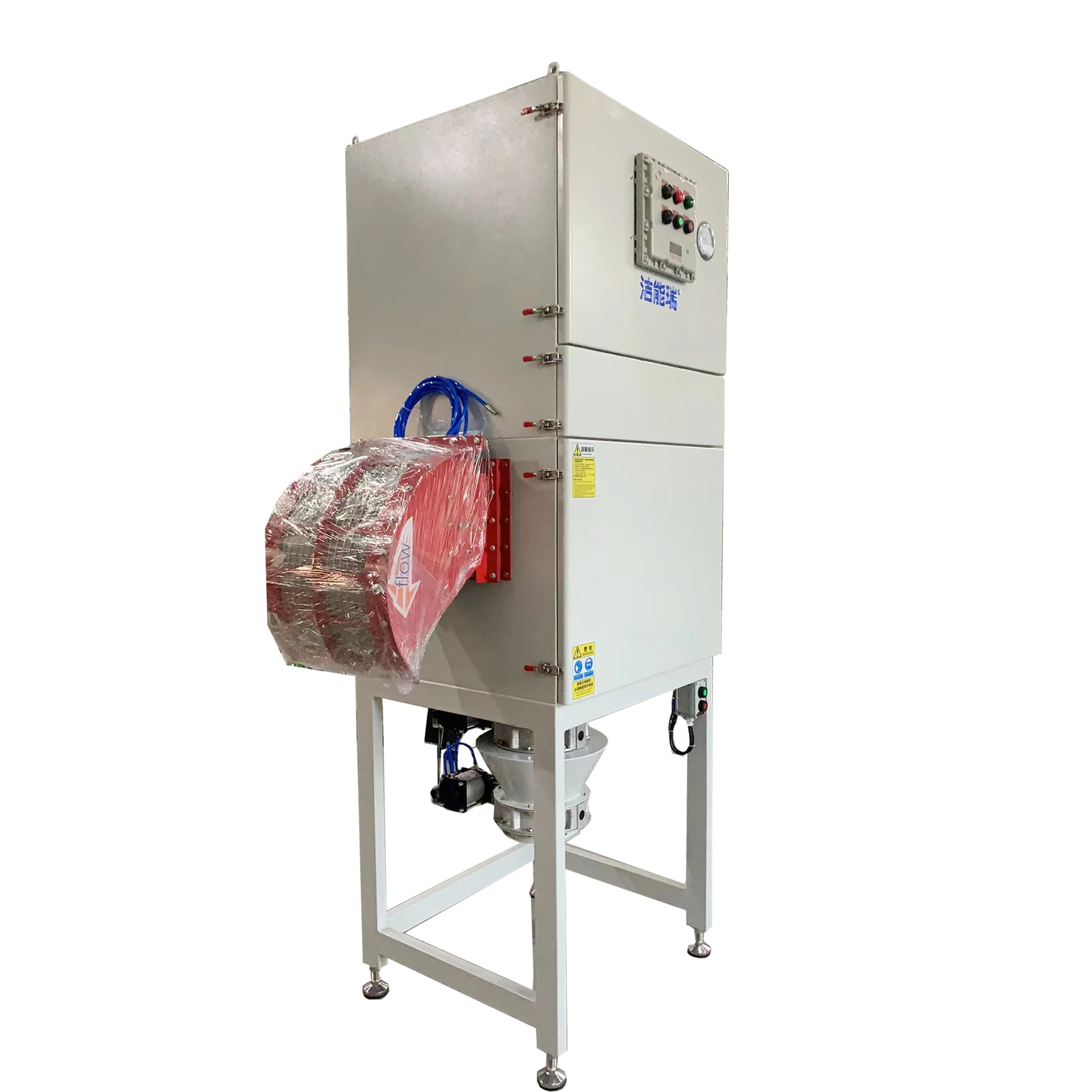

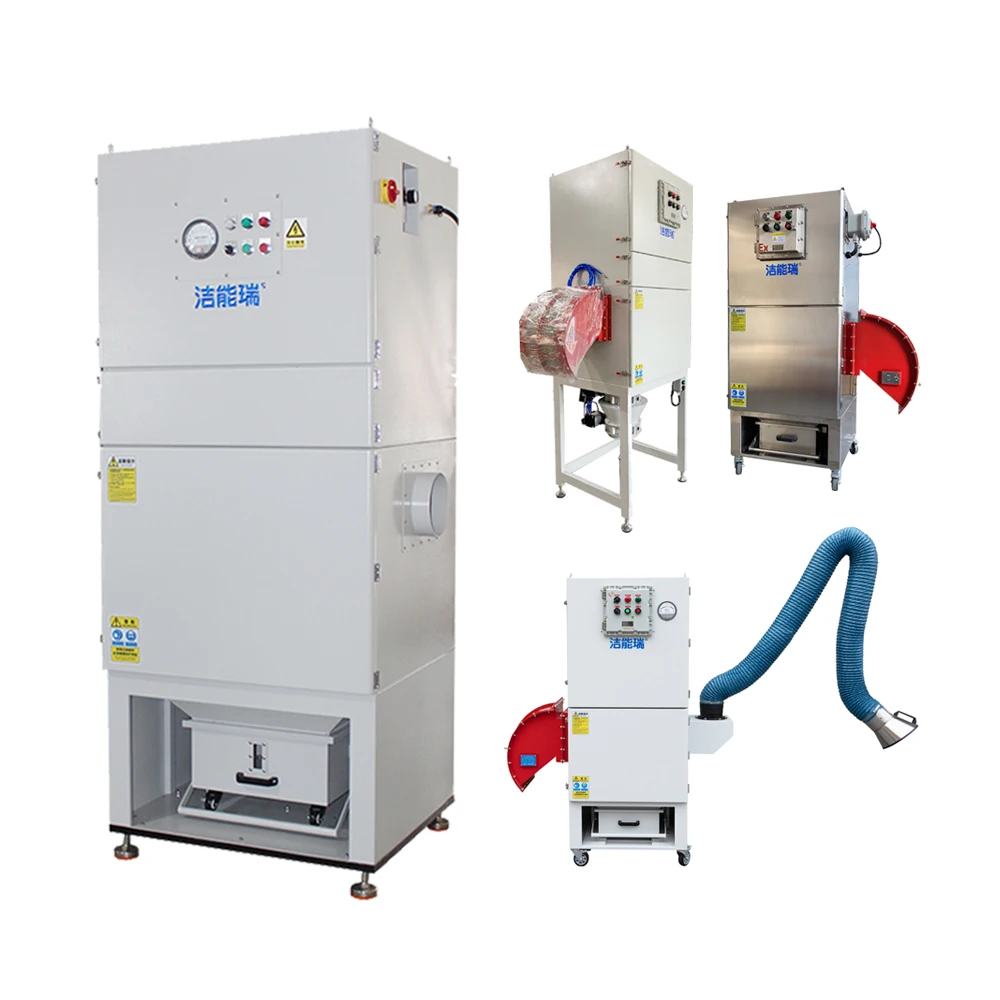

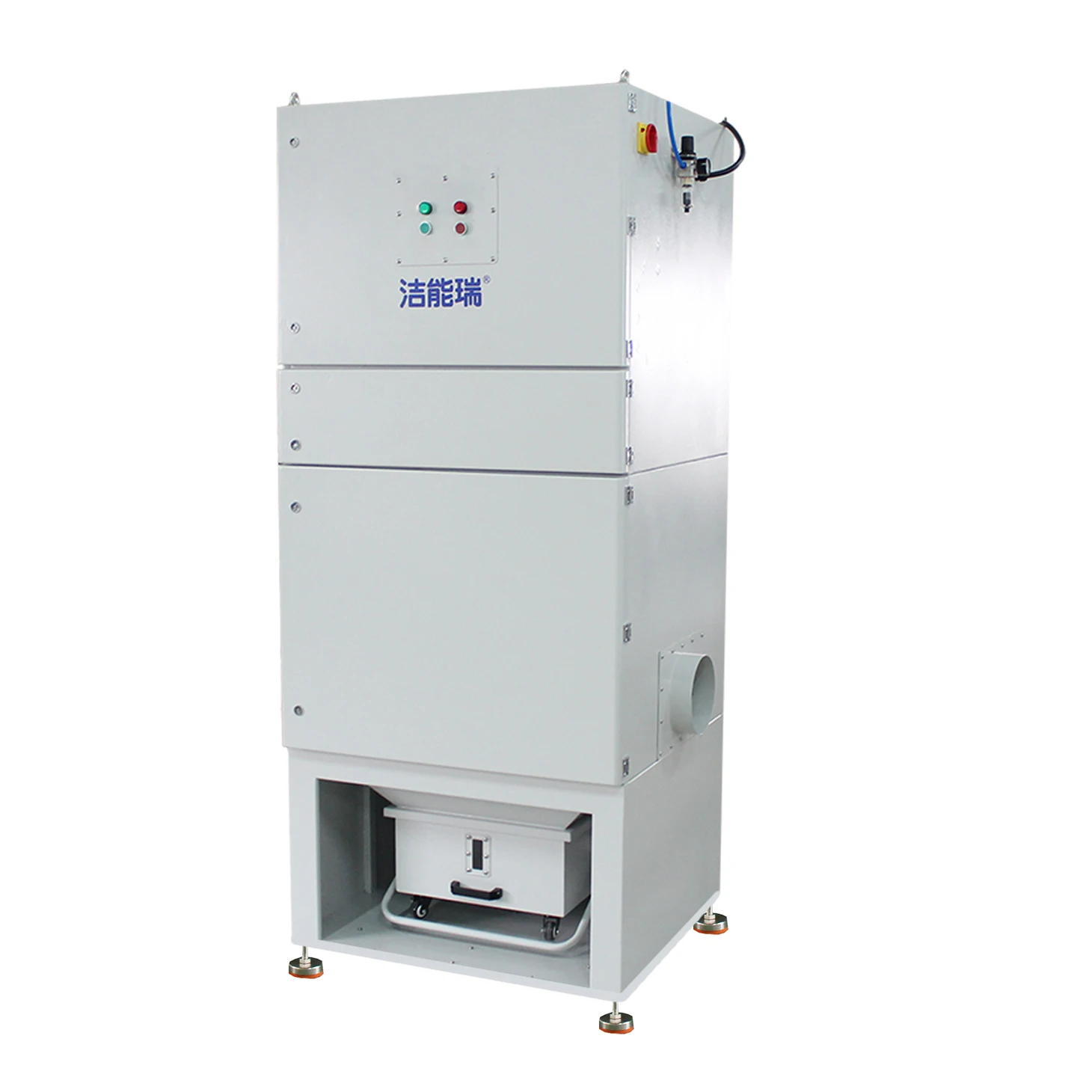

2024 New Vertical Pulse Anti blow Cabinet industrial cyclone dust collector for CNC laser vacuum cleaner
- Category: >>>
- Supplier: Kunshan Yiyue Cleaning Equipment Co. Ltd.
Share on (1601030104086):
Product Overview
Description
CONTACT US
Lindawang | Sales Manager
Mobile：+86 15850307597 (Linda)
What's App / Wechat: +86 15850307597
Email: Lindawang@yiyueqingjie.com
Mobile：+86 15850307597 (Linda)
What's App / Wechat: +86 15850307597
Email: Lindawang@yiyueqingjie.com
Product Paramenters

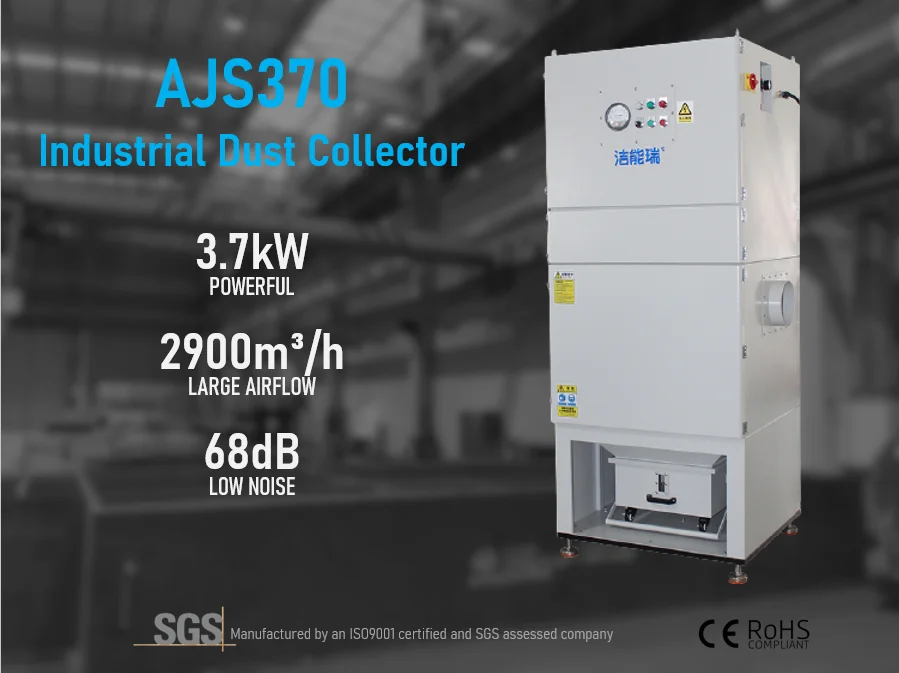

Description | Unit | AJS220 | AJS370 | AJS550 | ||
Current type | Ph - V - Hz | 1/3 - 220/380 - 50/60 | 3 - 380 - 50/60 | |||
Power | kW / HP | 2.2 / 3 | 3.7 / 5 | 5.5 / 7.4 | ||
Airflow | m³/h | 1800 | 2900 | 3200 | ||
Vacuum | kPa | 1.3-2.4 | 3.8 | 4.2 | ||
Sound pressure level | dB(A) | 68 | 68 | 68 | ||
Container capacity | l | 30 | 50 | |||
Filter area | m2 | 16 | 40 | |||
Filter efficiency | μm | 0.3 | ||||
Filter type | 2 HEPA filters | 4 HEPA filters | ||||
Filter cleaning system | Automatic Pulse Jet | |||||
Explosion-proof configuration | No (configurable in required) | |||||
Switch control mode | Local + Remote | |||||
Inlet diameter | mm | 100/150 | 150/200 | |||
Cable length | m | 8 | ||||
Dimensions (L × W × H) | mm | 750*700*1750 | 900*850*2250 | |||
AJS series explosion-proof model
AJS series custom discharge model
AJS series with movable suction arm
AJS220E is a movable explosion-proof industrial dust collector in the AJS series, which can be equipped with a universal suction arm. It can flexibly handle various dust in the workshop, such as cleaning dust during feeding, loading, stirring, and powder screening in the food processing workshop. It can also be used for collecting welding dust in magnesium aluminum products;
Products Description
Volume, suction power and durability
This is it! When professional industrial dust collector is needed.

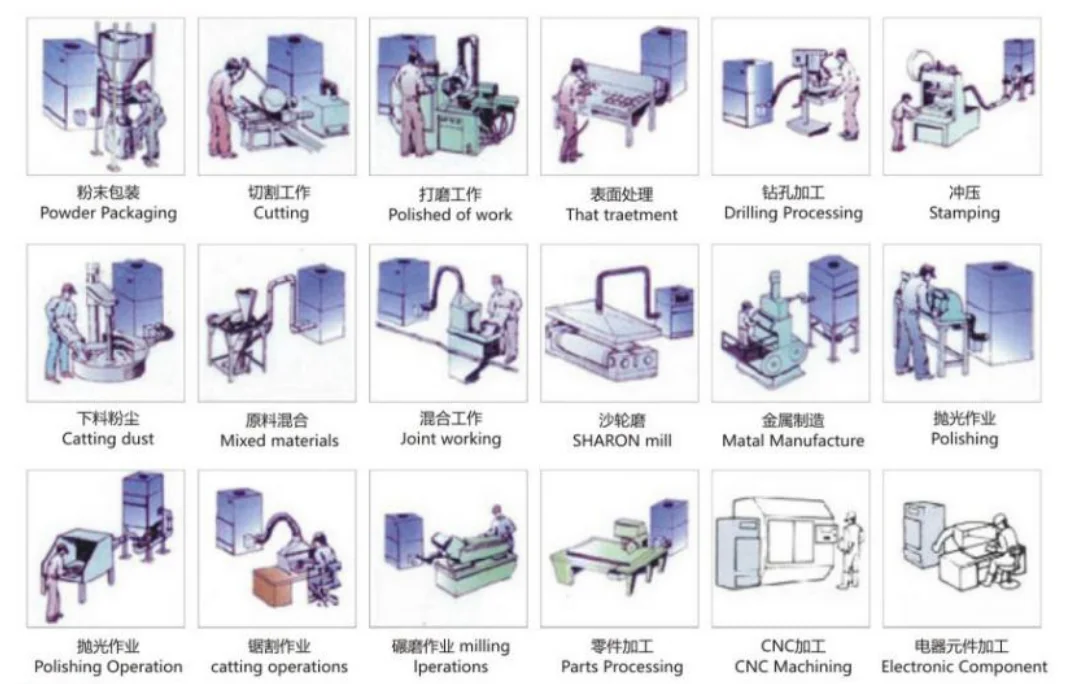

The unit can be used for collection and treatment of airborne dust from single or several sources generated from sand blasting, powder spraying, carving, casting, grinding and polishing, mixing, crushing, powder conveying, powder feeding, powder bagging, welding, laser cutting, drilling etc.
- Modular designed with small equipment footprint, opening up valuable manufacturing floor space.

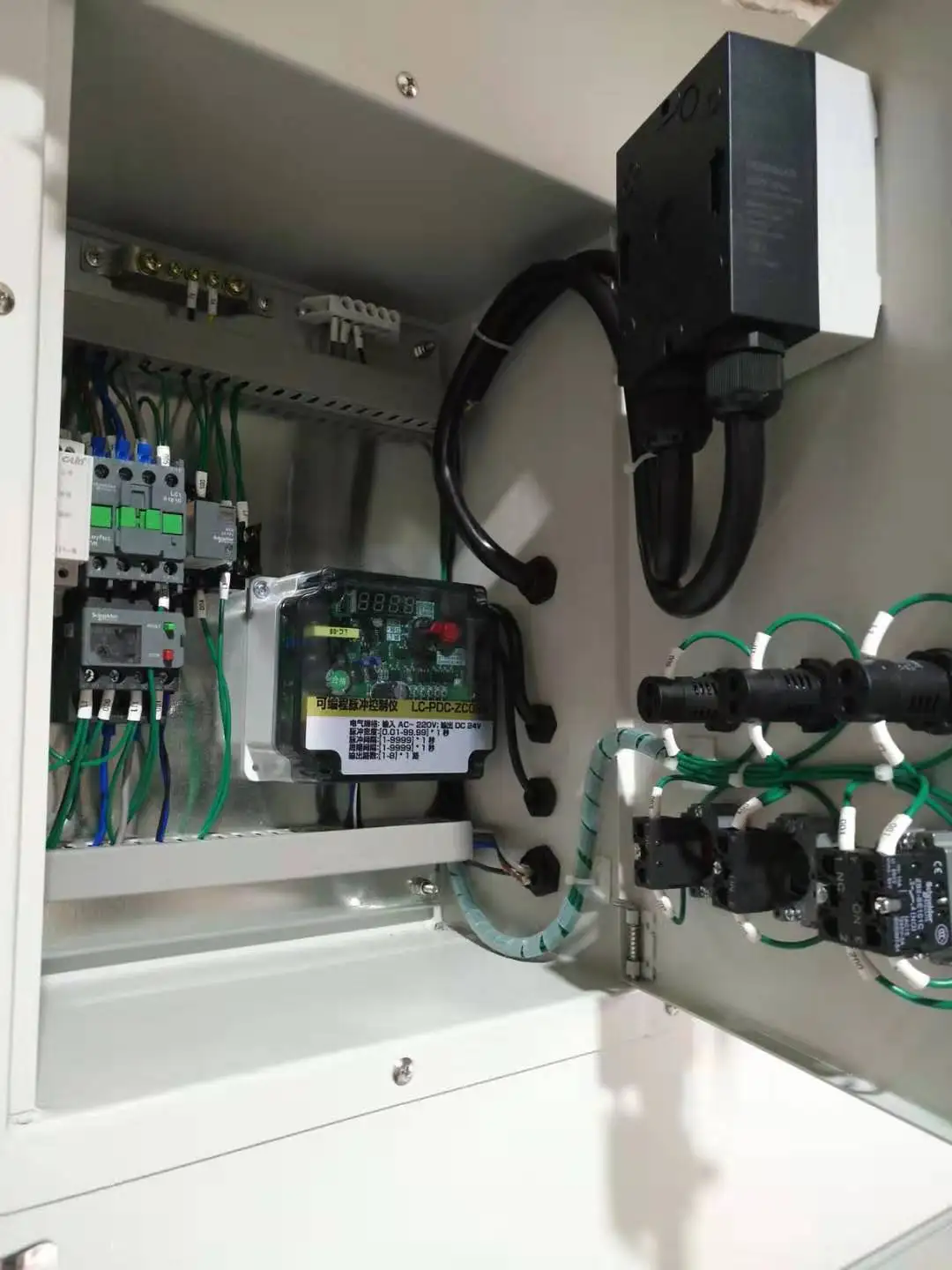

- Schneider electric components improve overall safety and stability, with function of phase sequence, overheating and overload protection.

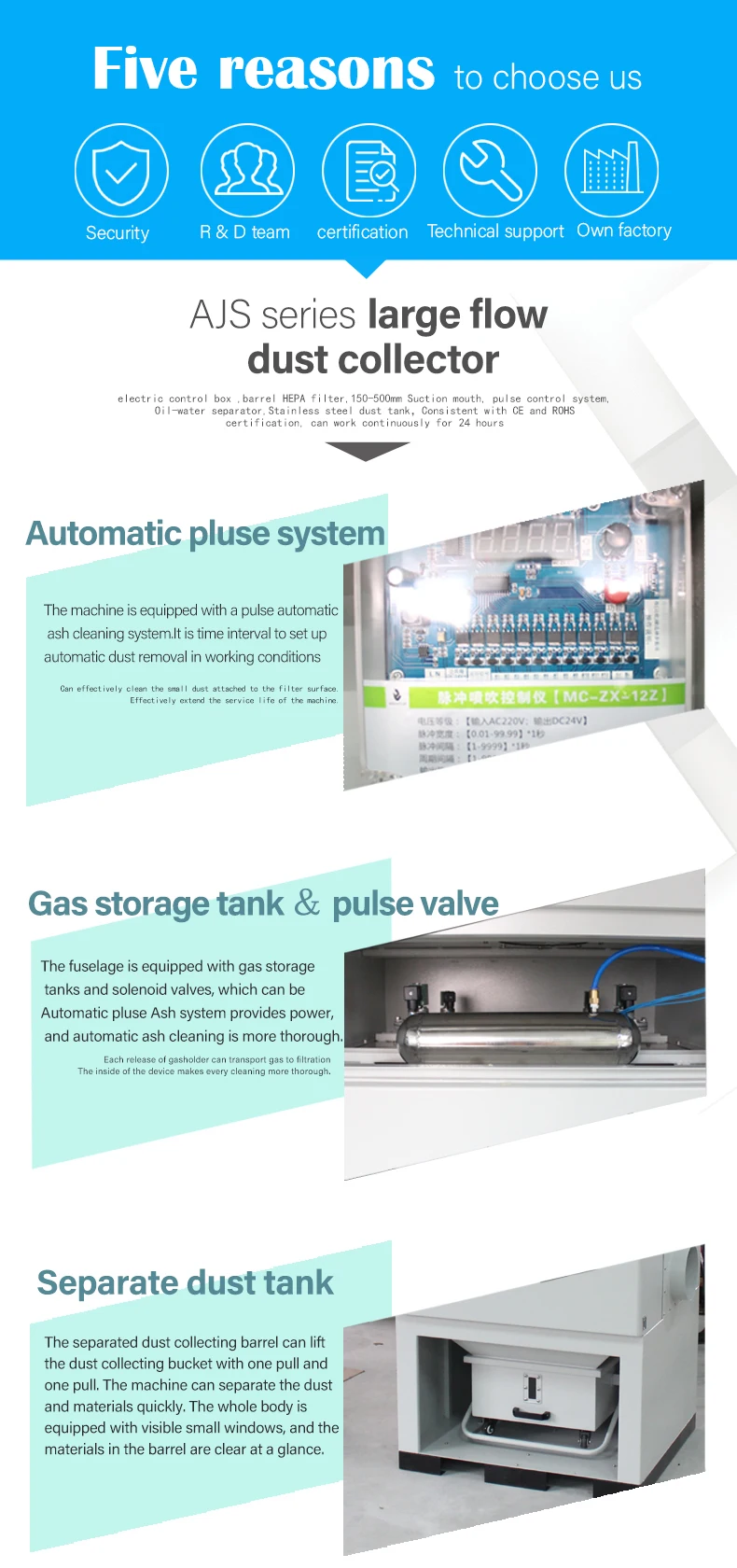

- Automatic filter cleaning system with adjustable pulse time interval.
- Configured with two operation modes: Local & Remote. The remote linkage function can be applied to start and stop the equipment with other machine.
- Equipped with a centrifugal fan that can work continuously 24 hours per day with large air volume, low noise level and stable performance.
- Modular designed with small equipment footprint, opening up valuable manufacturing floor space.
- Schneider electric components improve overall safety and stability, with function of phase sequence, overheating and overload protection.

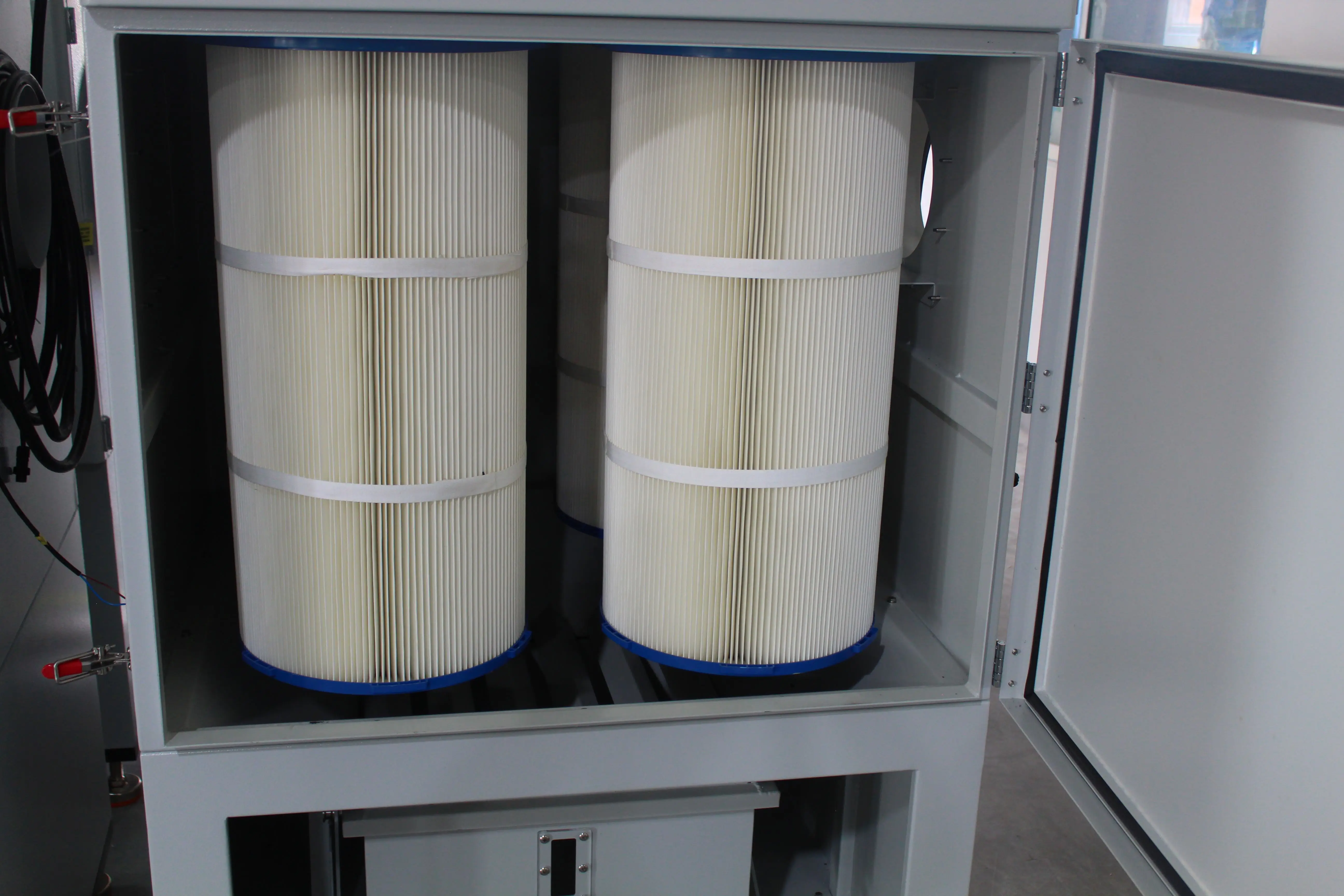

- PTFE-membrane HEPA cartridge filters treat fine dust at 0.3 microns efficiently.
- Automatic filter cleaning system with adjustable pulse time interval.
- Configured with two operation modes: Local & Remote. The remote linkage function can be applied to start and stop the equipment with other machine.

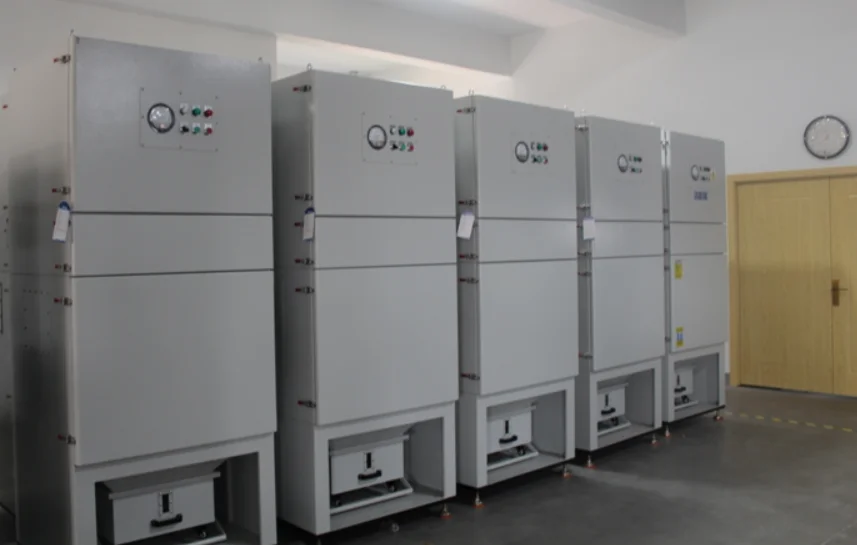

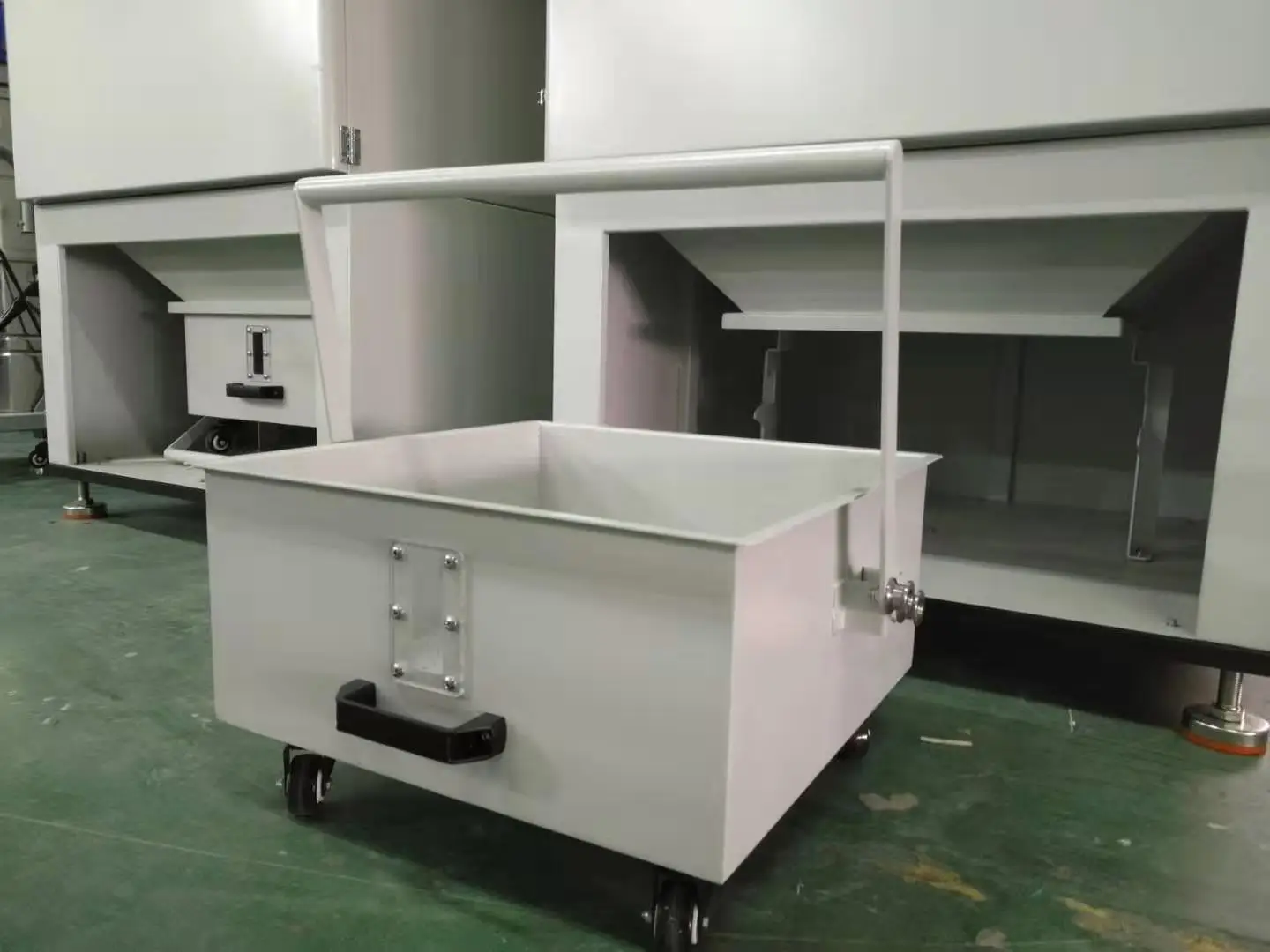

Details Images

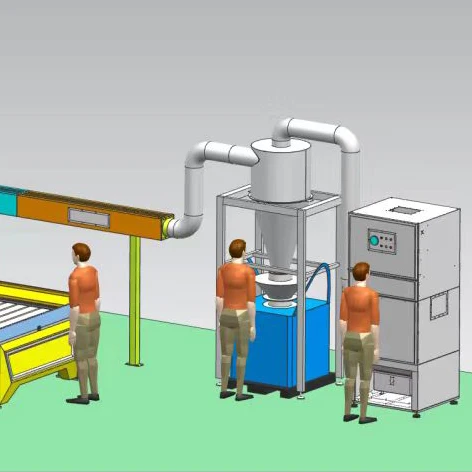

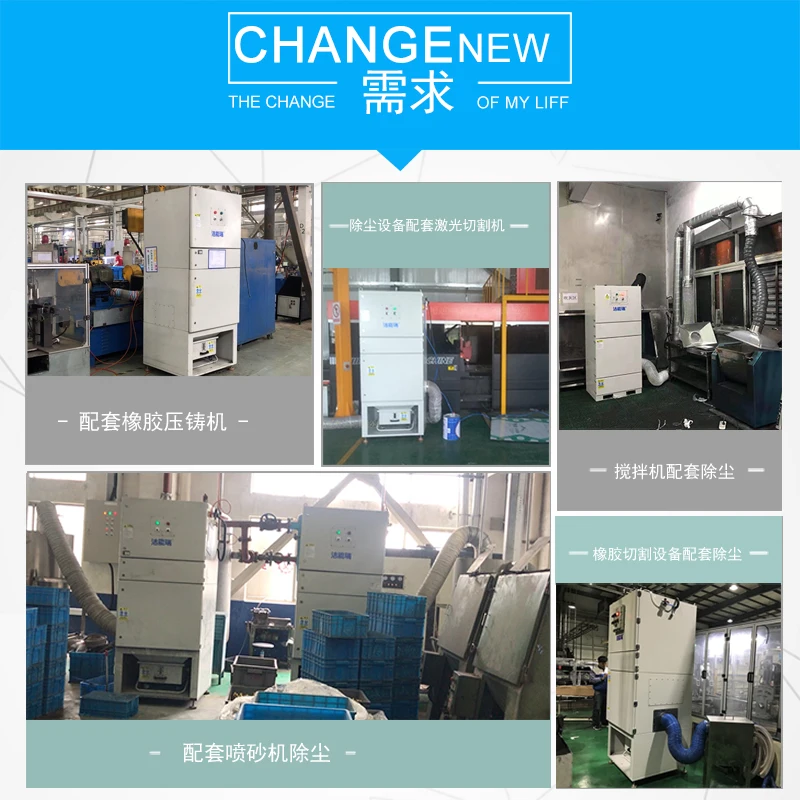

Using case

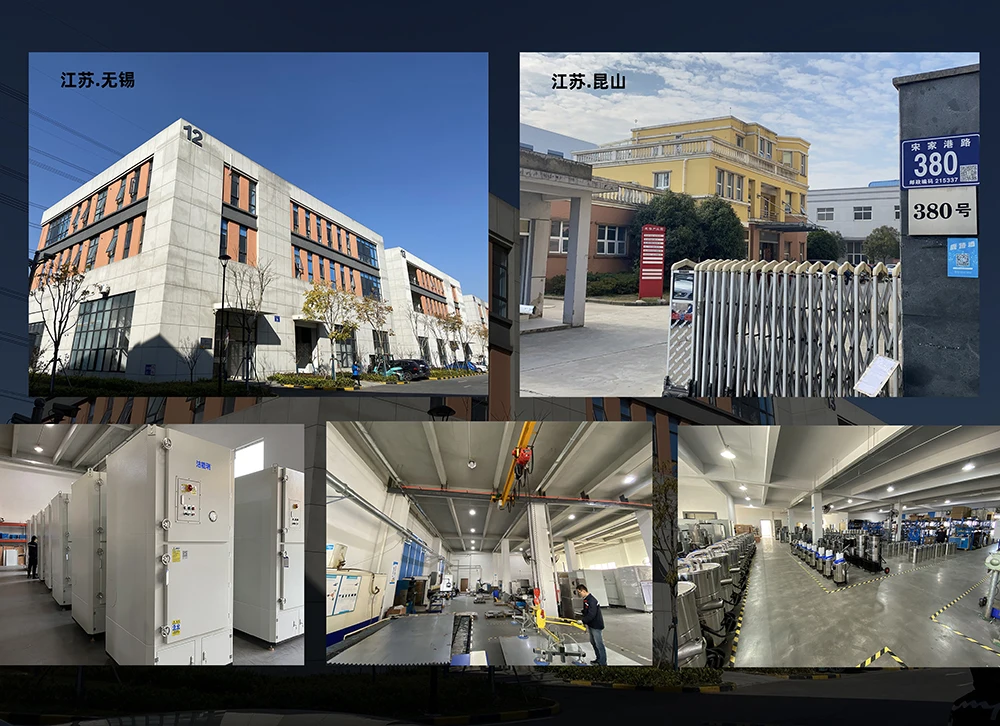

Company Profile
VR
Kunshan YiYue Cleaning Equipment Co., Ltd.
Since 2009, Kunshan YiYue Cleaning Equipment Co., Ltd. has been offering environmental products and solutions using vacuum technology, from design, fabrication to maintenance. YiYue aims to reduce environmental impact from industrial production and creating safe and clean working surroundings for people whilst boosting productivity for customers.
YiYue main products consist of single-phase and three-phase industrial vacuum cleaners, pneumatic vacuum cleaners, industrial dust collectors and air purification equipment. Customization is also accepted. All our product models have passed CE and RoHS testing. Some are specially tested for safe operation in hazardous locations with ATEX or CNEX certification. With our experience in vacuum technology and expertise in engineering solutions for various industrial applications, more and more customers choose to cooperate with us from both the domestic and overseas markets. Our products are widely used in welding & thermal cutting, woodworking, composite machining, metalworking, material handling & recycling, process industry & energy etc.

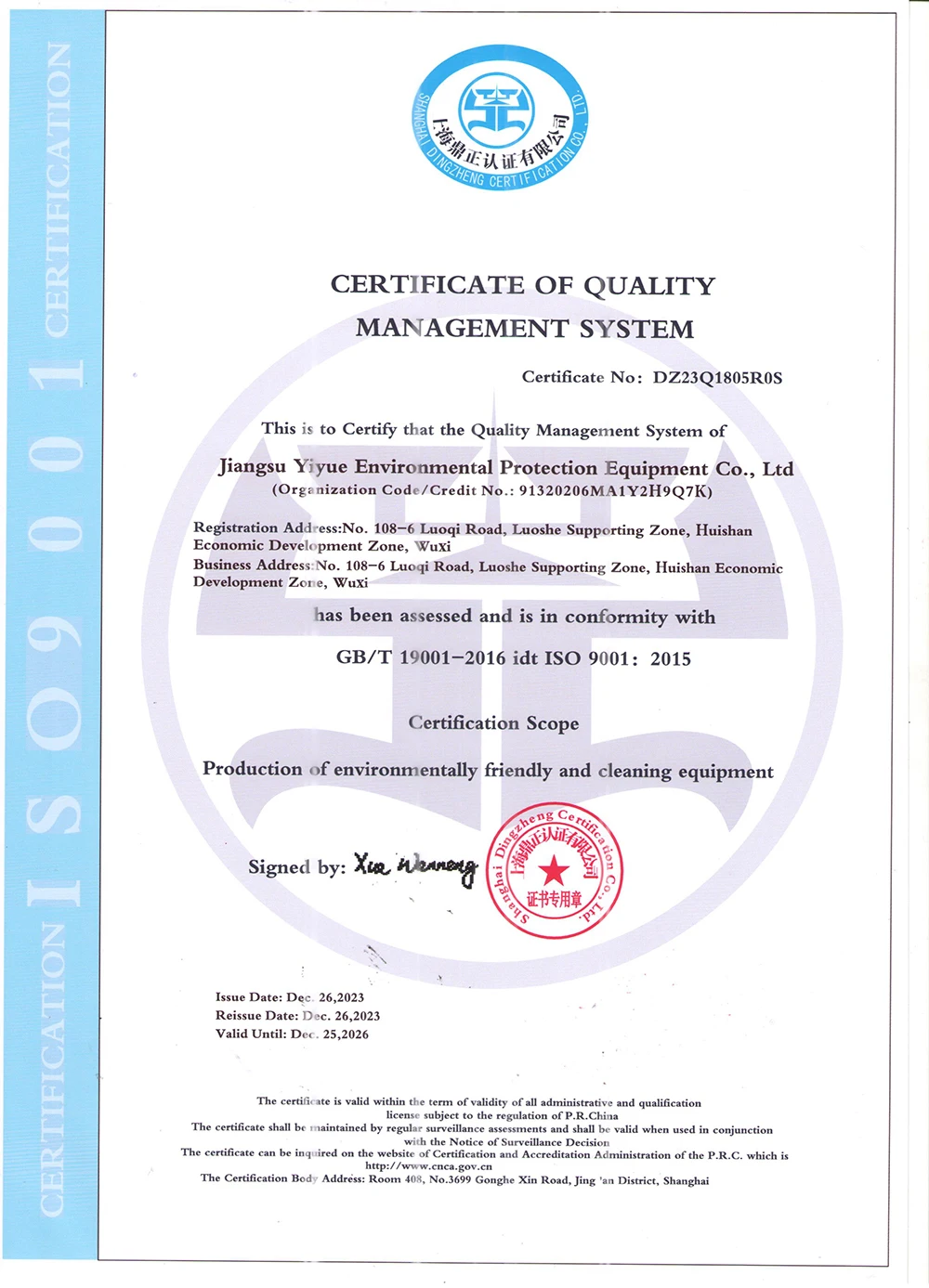

YiYue is an ISO9001 and SGS verified company, an assurance to always focus on meeting our customer expectations and delivering customer satisfaction.
We are customer-oriented and passionate about our business in developing and producing industrial vacuum cleaners and dust collectors to help our customers meet their goals. We would like to share our business development with customers from all over the world. We are ready! How about you?
YiYue is an ISO9001 and SGS verified company, an assurance to always focus on meeting our customer expectations and delivering customer satisfaction.
We are customer-oriented and passionate about our business in developing and producing industrial vacuum cleaners and dust collectors to help our customers meet their goals. We would like to share our business development with customers from all over the world. We are ready! How about you?
Product packaging
Linda Wang | Global Sales Manager
Mobile | WhatsApp | WeChat | Skype: +86 158 5030 7597Email: Lindawang@yiyueqingjie.com
Kunshan YiYue Cleaning Equipment Co., Ltd.
Address: 380 Songjiagang Road, Kunshan, Jiangsu, China
www.YYVAC.com
Address: 380 Songjiagang Road, Kunshan, Jiangsu, China
www.YYVAC.com
vacuum.mystrikingly.com
FAQ
Q1: Are you a factory or trading company?
A1: We are a professional manufacturer of industrial vacuum cleaner and dust collector in China for over 10 years. You may review our website for more information at www.yiyueqingjie.com or webpage vacuum.mystrikingly.com.
Q2: What certificates do you have for your products?
A2: We have CE(EMC, LVD), RoHs and ATEX certificates.
Q3: Do you accept order through OEM/ODM business?
A3: Yes, it includes the customer logo & customer package printing design, but need annual buying quantity 500pcs and each order MOQ 100pcs.
Q4: What's your Minimum Order Quantity?
A4: Normally 5pcs for the vacuum cleaners. Smaller quantity even one piece is also available.
Q5: What's your lead-time and payment term?
A5: Normally, our lead-time is 7-30 days. The actual lead time depends on your order quantity and request.
Payment can be made by PayPal or T/T or through Alibaba trade assurance.
Q6:How about the shipping?
A6: We provide international Express door-to-door, Airline and sea freight.
Q7: What's your warranty for this product?
A7: Normally one year for the whole machine except the consumables or man-made damage. After the warranty, we still provide our customers with free online technical service.
A1: We are a professional manufacturer of industrial vacuum cleaner and dust collector in China for over 10 years. You may review our website for more information at www.yiyueqingjie.com or webpage vacuum.mystrikingly.com.
Q2: What certificates do you have for your products?
A2: We have CE(EMC, LVD), RoHs and ATEX certificates.
Q3: Do you accept order through OEM/ODM business?
A3: Yes, it includes the customer logo & customer package printing design, but need annual buying quantity 500pcs and each order MOQ 100pcs.
Q4: What's your Minimum Order Quantity?
A4: Normally 5pcs for the vacuum cleaners. Smaller quantity even one piece is also available.
Q5: What's your lead-time and payment term?
A5: Normally, our lead-time is 7-30 days. The actual lead time depends on your order quantity and request.
Payment can be made by PayPal or T/T or through Alibaba trade assurance.
Q6:How about the shipping?
A6: We provide international Express door-to-door, Airline and sea freight.
Q7: What's your warranty for this product?
A7: Normally one year for the whole machine except the consumables or man-made damage. After the warranty, we still provide our customers with free online technical service.
