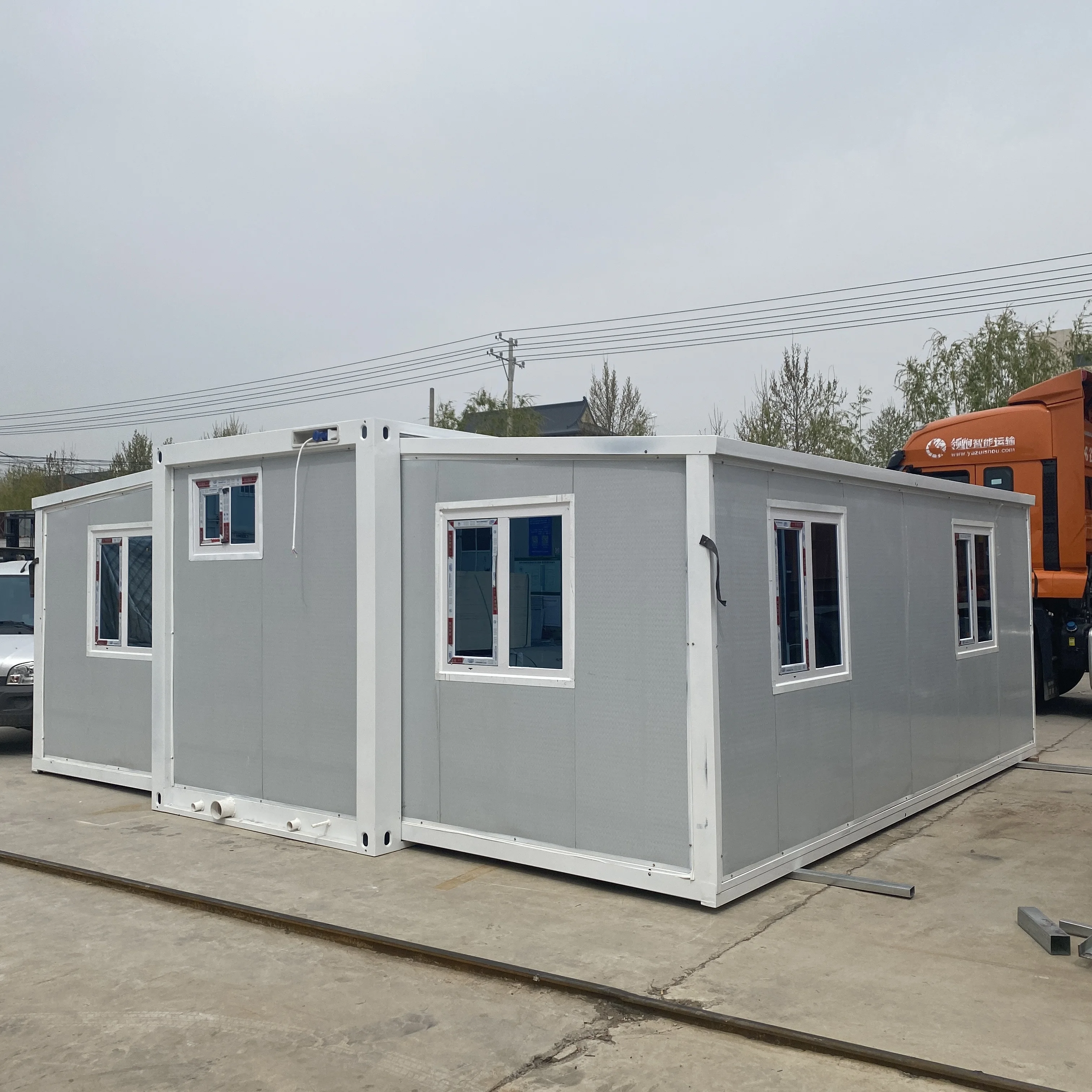

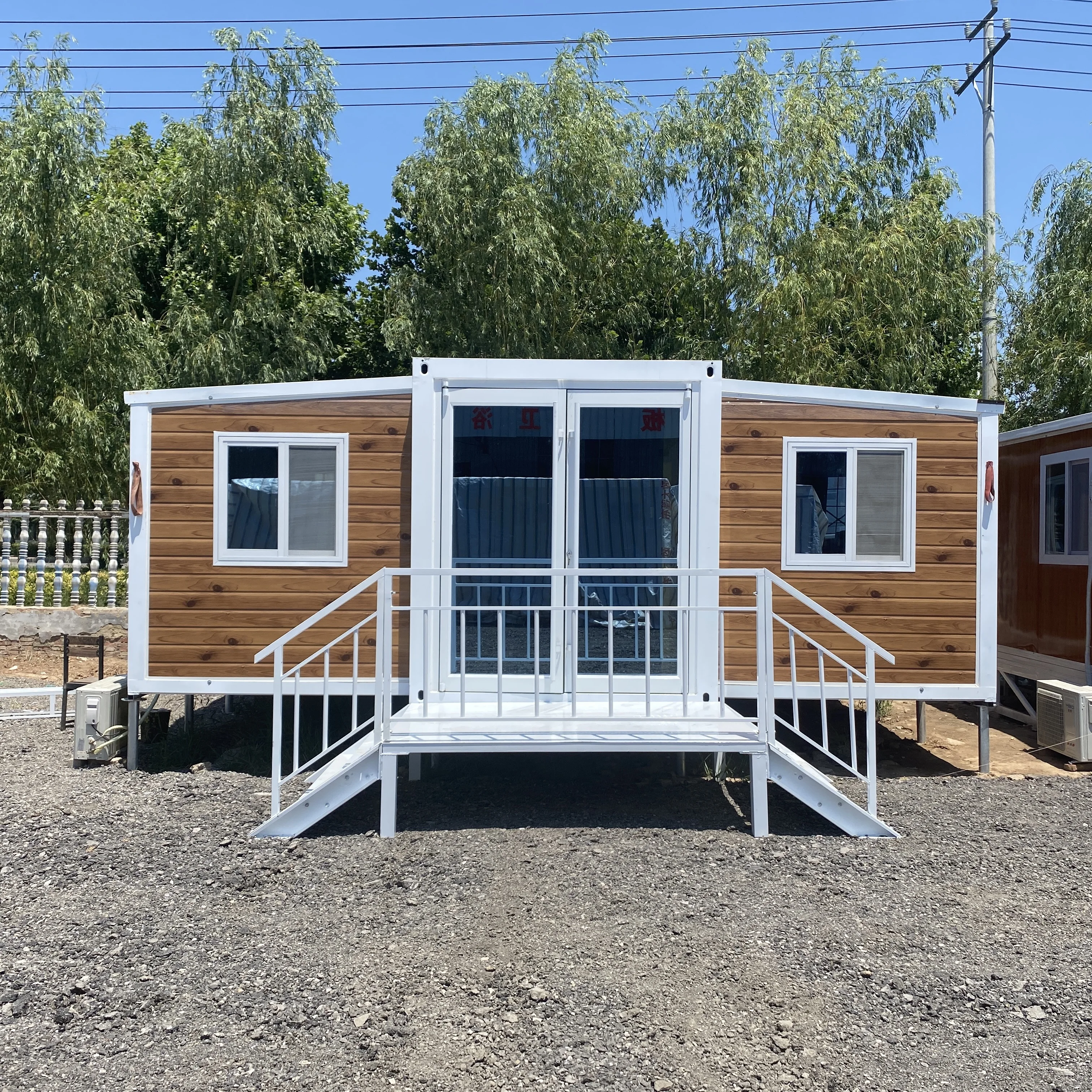

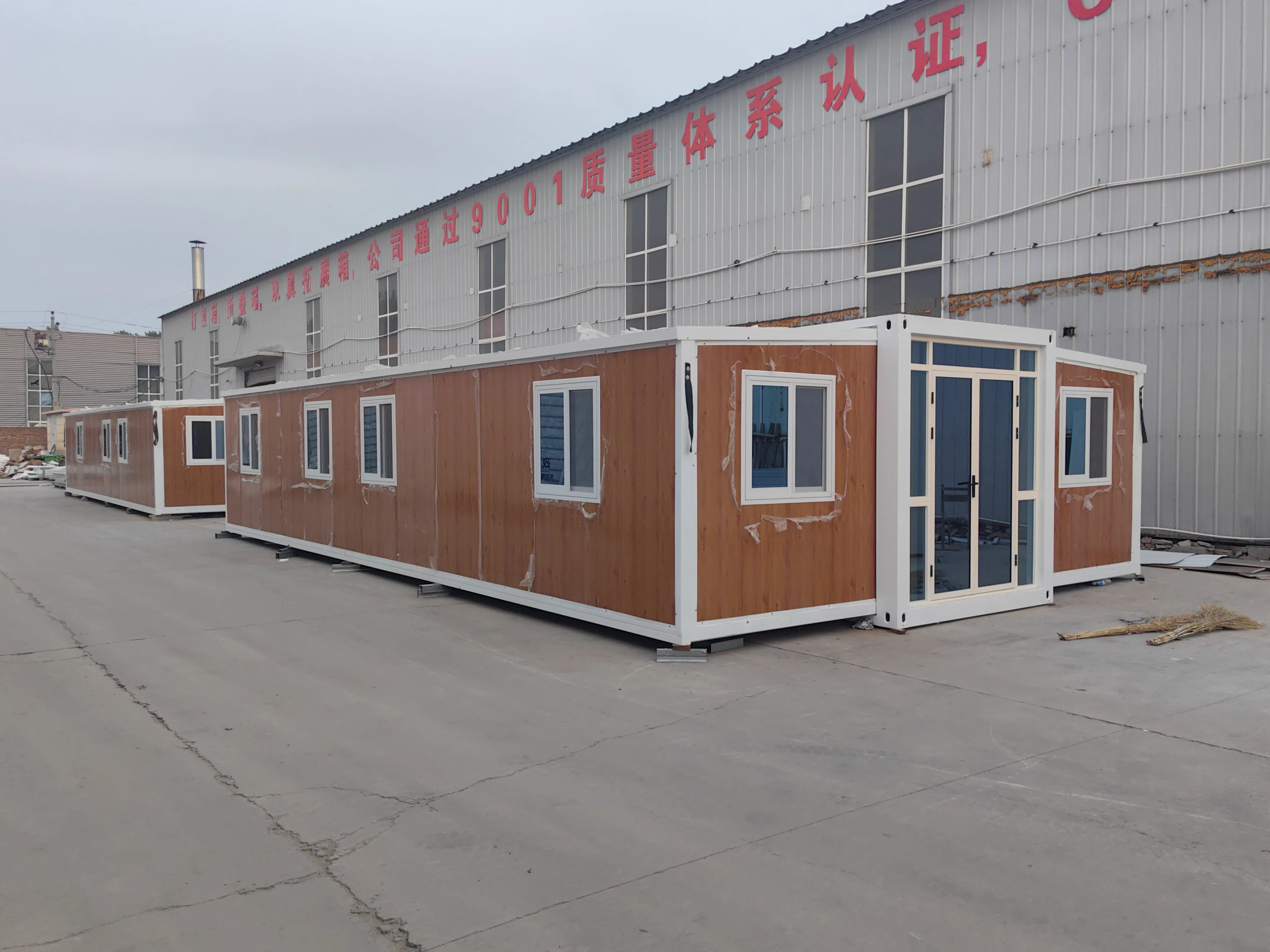

expandable flat pack prefab modular home 30ft container expandable house with solar energy
- Category: >>>
- Supplier: CDPH (hainan) Company Limited
Share on (1601030141650):
Product Overview
Description
PRODCUT DESCRIPTION
Technical Parameter of Expandable Container （Export standard configurations） | ||||
Basic features | External dimension (mm) | 6320*5900*2480 | ||
Internal dimension(mm) | 6160*5560*2240 | |||
Folding state(mm) | 2200*5900*2480 | |||
Total mass（kg） | ||||
Frame structure | Middle roof beam | T2.5mmQ235B | ||
Middle base beam | T2.5mmQ235B | |||
Side beam | t1.5mmQ235B | |||
Middle pillar | T2.5mmQ235B | |||
Side wall frame | t1.5mmQ235B | |||
Sub-frame | t1.5mmQ235B | |||
Hanging head | t4mmQ235B | |||
Folding hinge | 13mm Galvanized hinge | |||
Protective coating for integral frame | Electrostatic spraying/Straight white plastic powder | |||
Top and bottom of middle cabinet | 80*100 | |||
Top and bottom of side cabinet | 40*60*1.5 thick square tube | |||
Top of container | External roof board | t0.5mm Galvanized plate | ||
Internal ceiling board | t831 internal ceiling board | |||
Wall panel | Heat preservation of middle top | T50mm glass filament cotton（Side top 50 foam plate) | ||
Side wall, front wall panel& back wall panel | t50mm-Color steel plate with glass filament cotton or t50mm-Foam plate | |||
Internal partition | t50mm Foam board | |||
Internal washroom | About 1700*1500mm (can be adjusted) | |||
Floor | Middle floor | Fireproof glass magnesium floor 15mm | ||
Floor on both sides | Bamboo flooring | |||
Electrical system | Electrical wiring, install in strict accordance with the moisture-proof specifications, all electrical products shall comply with CE certification. Connect the circuit according to the circuit engineering specification, indoor：2 LED lights, 2 Ceiling lamp, 3 five- hole single socket, 1 single switch, 3 ten -hole socket，1 Air conditioner socket，1 20A -Leakage protector. Voltage 220V, 50HZ | |||
Common Security Door | 2 sets of Common security door | |||
Window | 4 sets of Sliding plastic steel single glass window （920*1120mm） | |||
Quality guarantee | 1 year | |||
Company Profile
1. 25+ years experience in mobile housing industry

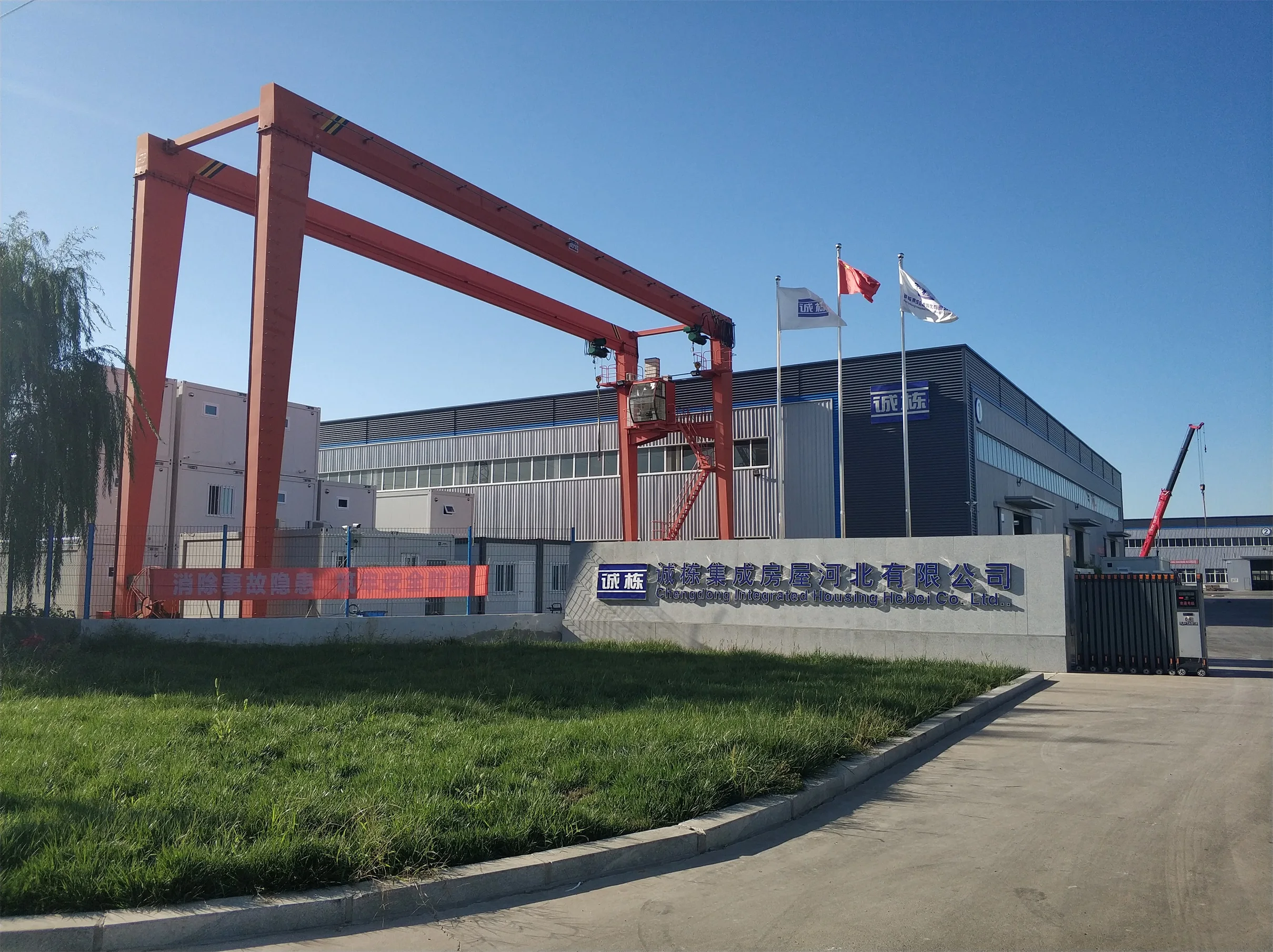

2. Self-owned factory for modular houses
3. Specialized technical & engineering team
4. ISO9001, ISO14001, OHSMS18001, TUV, BV, SGS, CE
5. Professional QC, R&D and After-Sell Service.
2. Self-owned factory for modular houses
3. Specialized technical & engineering team
4. ISO9001, ISO14001, OHSMS18001, TUV, BV, SGS, CE
5. Professional QC, R&D and After-Sell Service.
To cooperate with CDPH, what you will get--
1. 20+ years experience in mobile housing industry
2. Self-owned factory for modular houses
3. Specialized technical & engineering team
4. integrated supply chain for granite, marble, stone material, ceramic tiles, electric cables and other materials
5. ISO9001, ISO14001, OHSMS18001, TUV, BV, SGS, CE
6. Professional QC, R&D and After-Sell Service
1. 20+ years experience in mobile housing industry
2. Self-owned factory for modular houses
3. Specialized technical & engineering team
4. integrated supply chain for granite, marble, stone material, ceramic tiles, electric cables and other materials
5. ISO9001, ISO14001, OHSMS18001, TUV, BV, SGS, CE
6. Professional QC, R&D and After-Sell Service
CERTIFICATIONS
SCOPE OF APPLICATION
Live studio
Office
Mobil Hospital
Industrial Park
Large Campsite
Shop House
Bar House
School Building
