Product Overview
Description

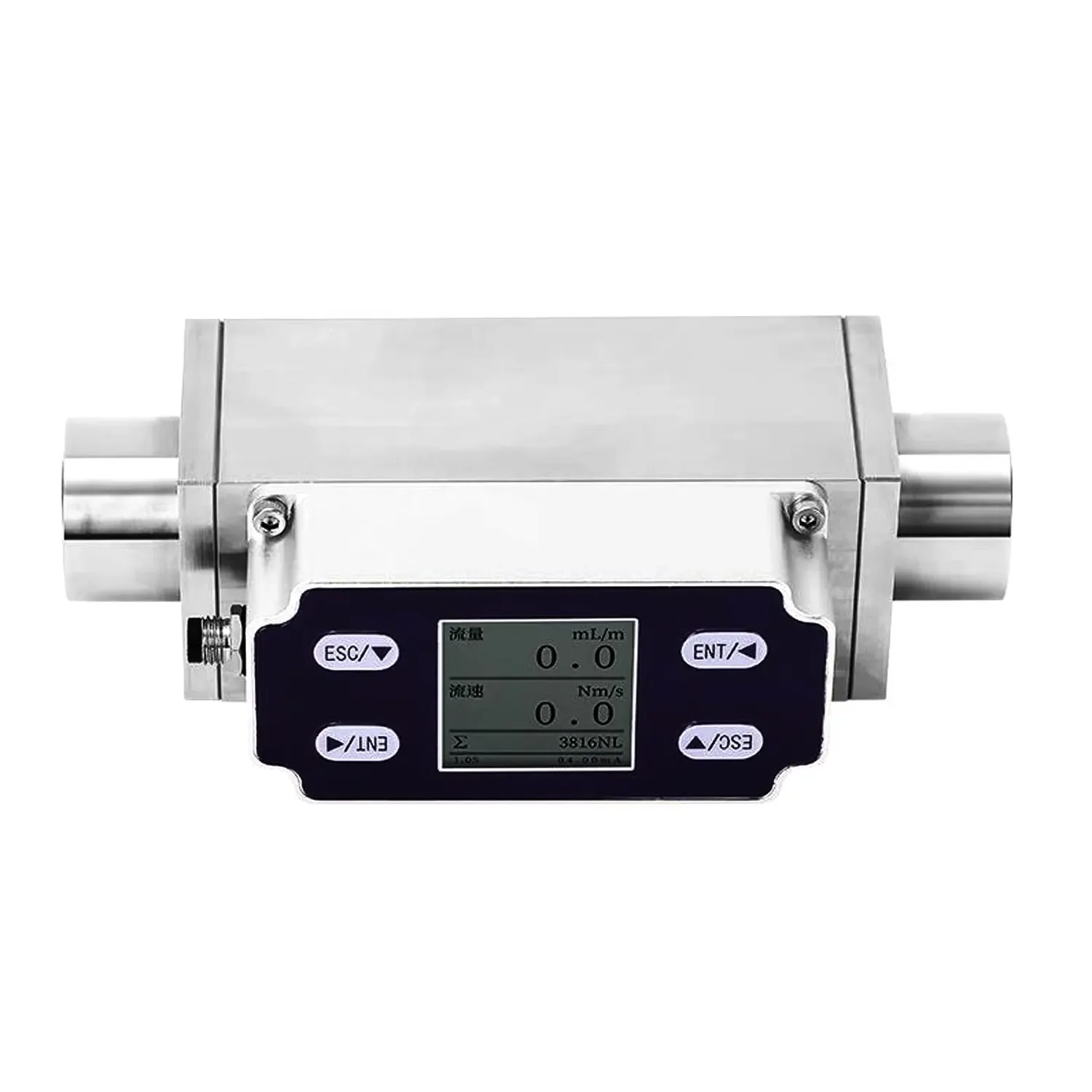

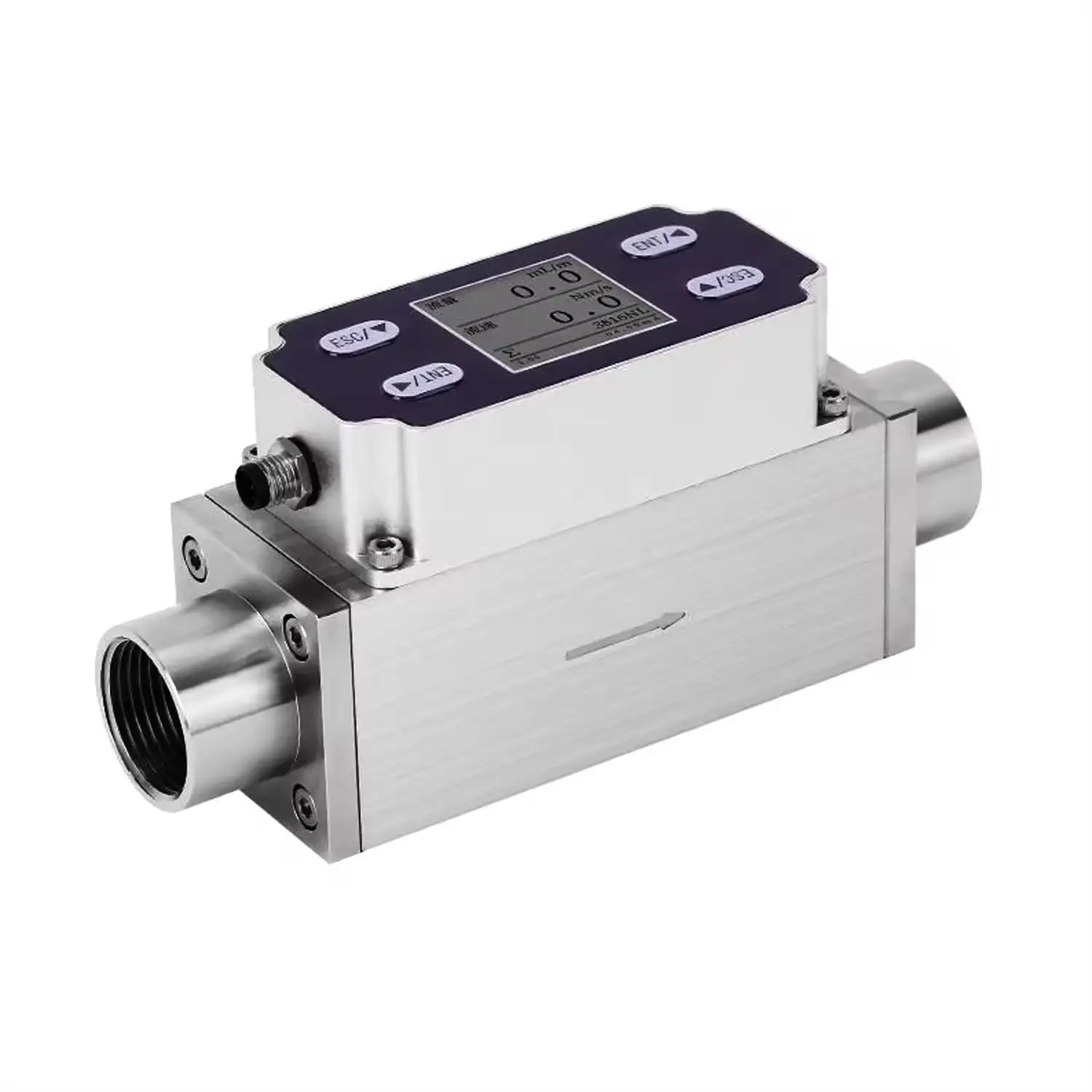

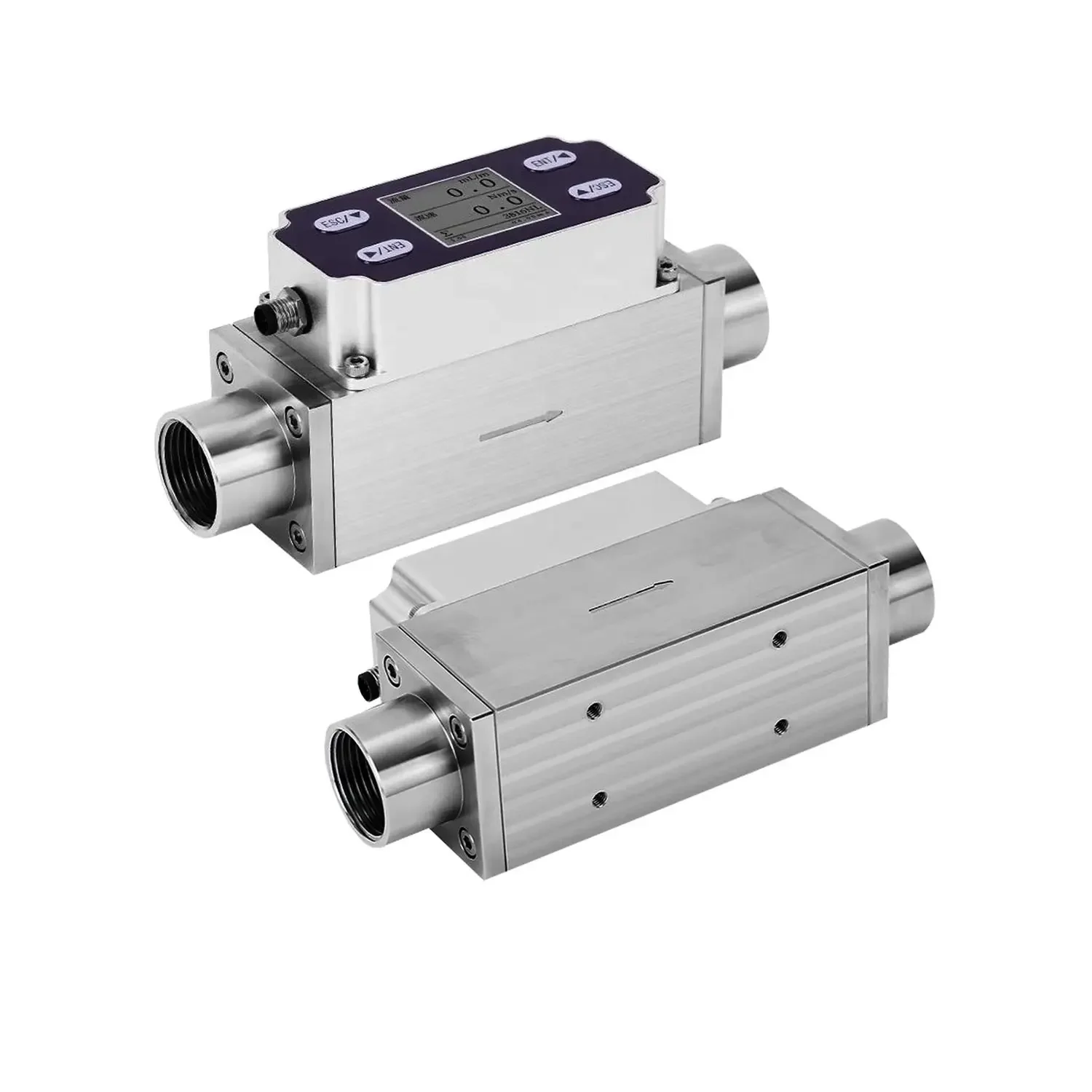

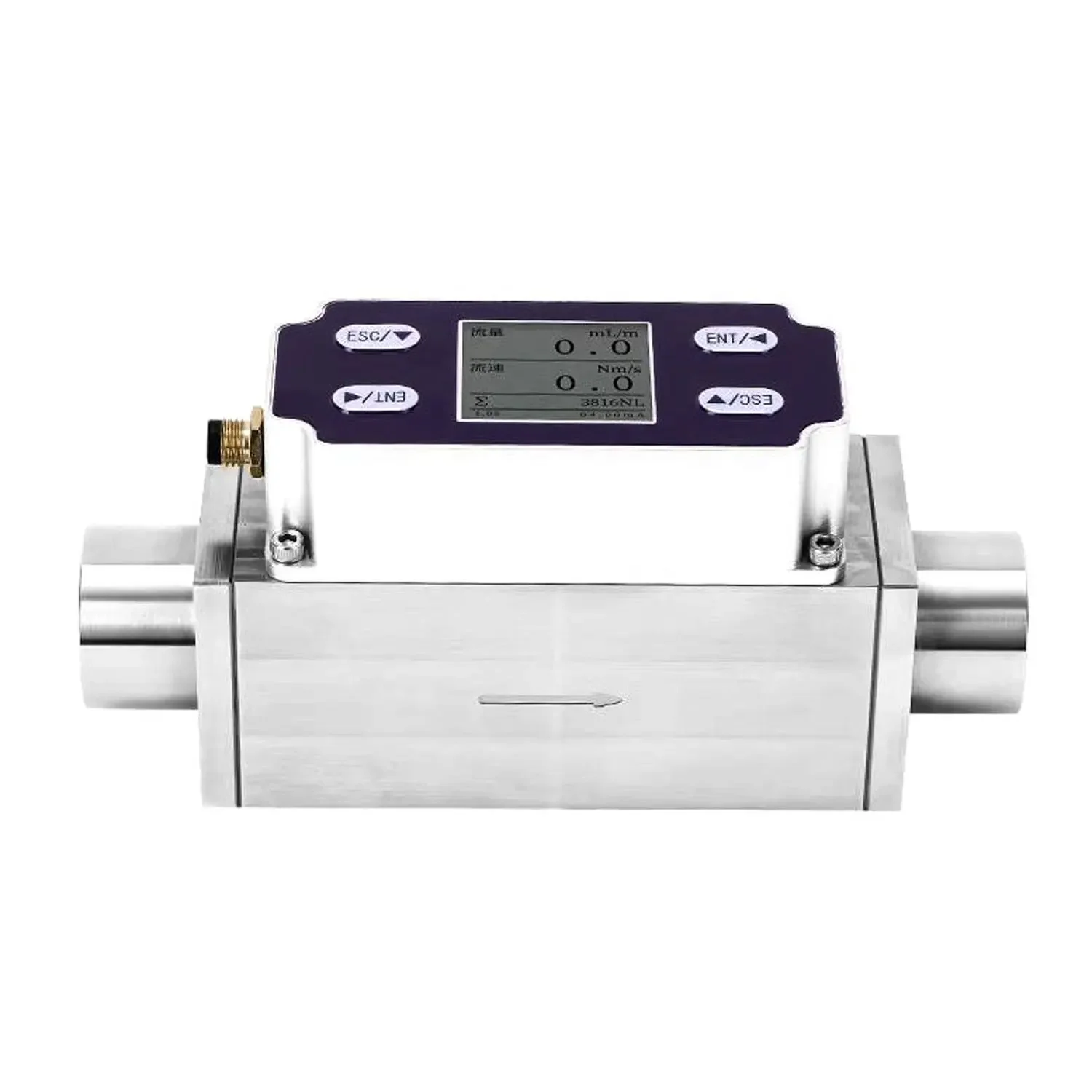

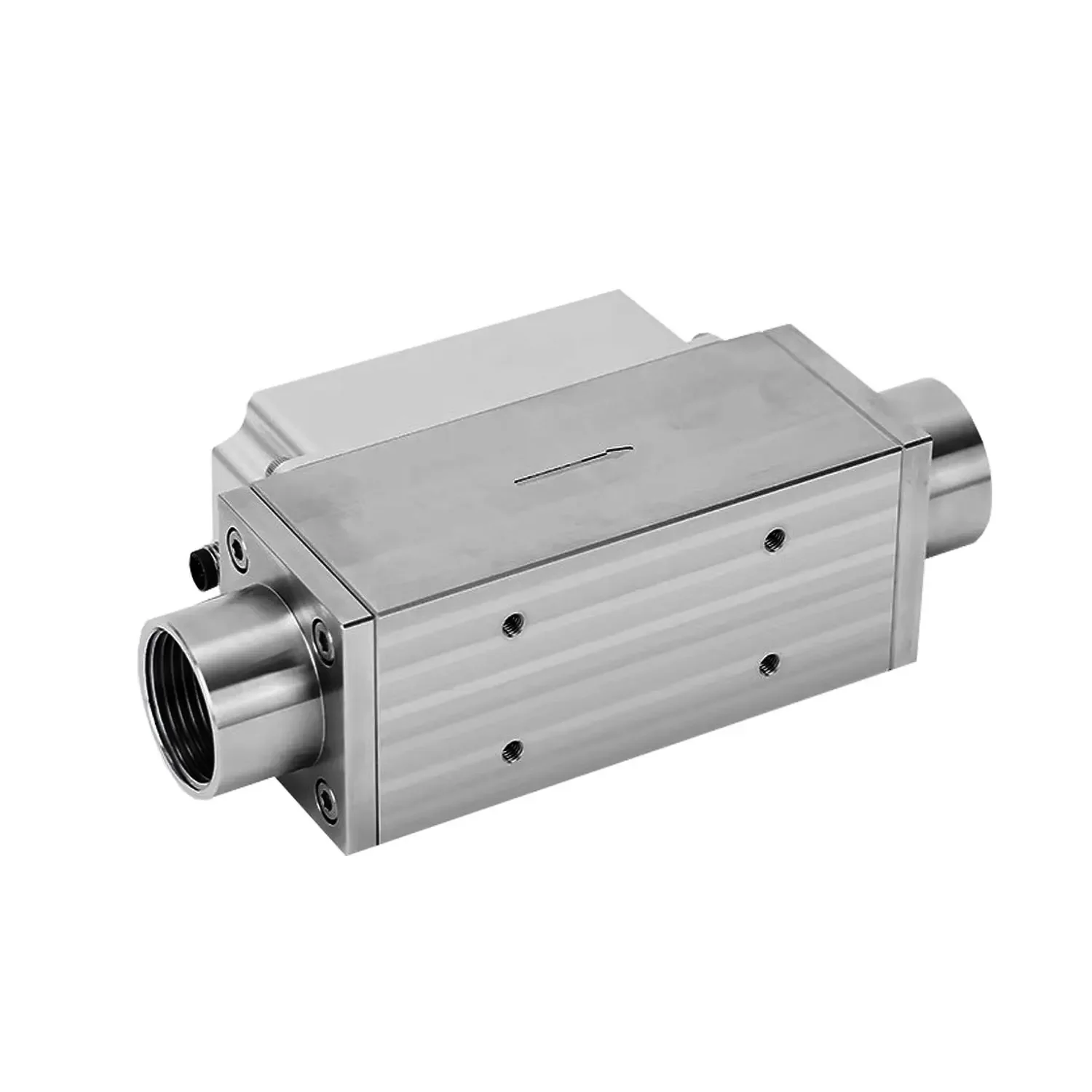

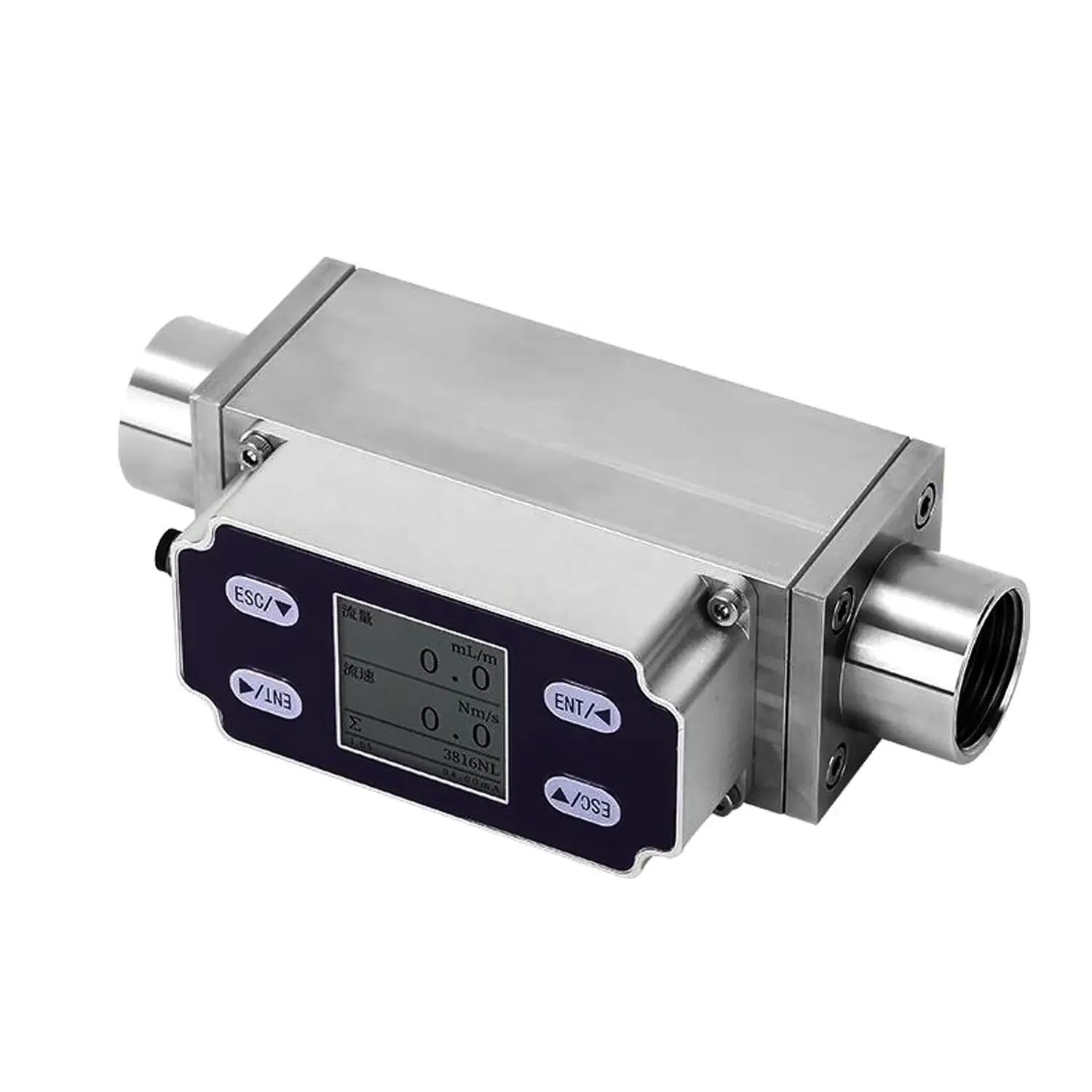

Top Quality Small Size Micro Thermal Gas Mass Flow Meter Sensor Used For Oxygen Generator
HG-TMFM-2000 Thermal Gas Mass Flow Meter are thermal dispersion type, it utilizing the constant temperature difference methods of measuring gamass flow rate. It contains two reference grade platinum RTD sensors clad in protective SS 316 sheath.
Its’ features include direct mass flow measurement for gases, wide range-ability, low pressure drop, excellent low end sensitivity, and no moving parts.
Its’ features include direct mass flow measurement for gases, wide range-ability, low pressure drop, excellent low end sensitivity, and no moving parts.
Features
01. | Direct Mass Flow Measurement Of Gas With Actual Gas Calibration. |
02. | Wide Measuring Range 0.5 Mm3/S - 100 Nm/S For Gas. |
03. | No Need Temperature And Pressure Compensation With Accurate Measurement. |
04. | OLED Display With Rate, Total, Mass Flow, Velocity etc Display. |
05. | Low Pressure Drop, With Excellent Low End Sensitivity. |
06. | Tracking Of Overall Gas Consumption Over A Turndown Ratio Of At Least 100:1. |
07. | No Moving Parts With Good Vibration Resistance And Long Service Life To Provide User Easy Installation And Free From Maintenance. |
Product Description
Technical Parameters
Flow Range & Size
Selection Table
Please Provide The Following Information: | ||
01. Gas Composition:: | The Gases Will Be Measured And Mixture. | |
02. Flow Range: | The Maximum And Minimum Flow Rates. | |
03. Line Size: | The Pipe Size And Connection Type (Flange, Threaded, etc) | |
04. Process Pressure And Temperature: | We Will Calibrate The Flowmeter As Close To Your Operating Conditions As Possible. | |
05. Configuration: | Specify You Need Inline Type (Flanged / Threaded) Or Insertion Type.. | |
06. Power Supply: | Specify Requirements Such As DC 24V Or AC 220V. | |
Specific Model Selection | ||
Item | Thermal Gas Mass Flow Meter | |
Model | HG-TMFM | |
Meter Caliber (mm) | 10,15,20,25,32,40,50,80,100,150,200,300,400,500,600,700,800... | |
Housing Material | 304- SS 304 | |
316- SS 316 | ||
Output | 4-4-20mA | |
R4-RS 485 | ||
RS-RS232 | ||
P-Pulse Output | ||
H-Hart Communication | ||
Display | N-No Display | |
D-LCD Display | ||
Power Supply | A-AC85-265V | |
D-DC18-30V | ||
Configuration | I-Integral Type | |
R-Remote Type | ||
Process Connection | T-Threaded Connection (Pipe Size DN10-DN80) | |
F-Flange Connection (Pipe Size DN10-DN400) | ||
SI-Standard Insetion (Pipe Size DN100-DN500) | ||
HI-Hot-tapped Insertion (Pipe Size DN100-DN4000) | ||
Ne-No Explosion | ||
Ex-Explosion Proof | ||
Eg: HG-TMFM-25-304-4-D-D-I-F-Ne | ||
