Flame retardant ASJ Facing Other Heat Insulation Materials
- Category: >>>
- Supplier: Tianjin Ecoin Tech Co. ltd.
Share on (1601030224115):
Product Overview
Description
Product Description

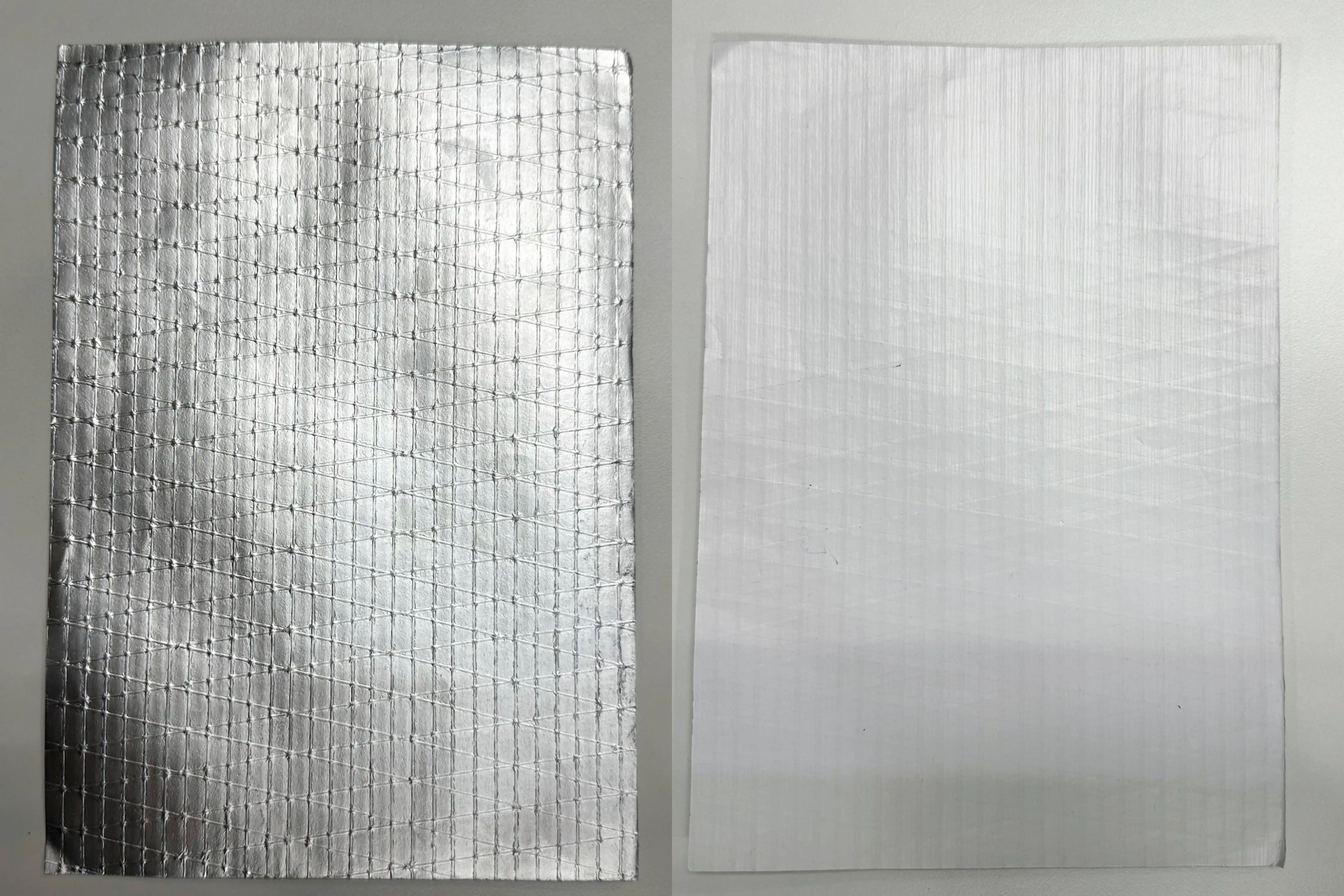

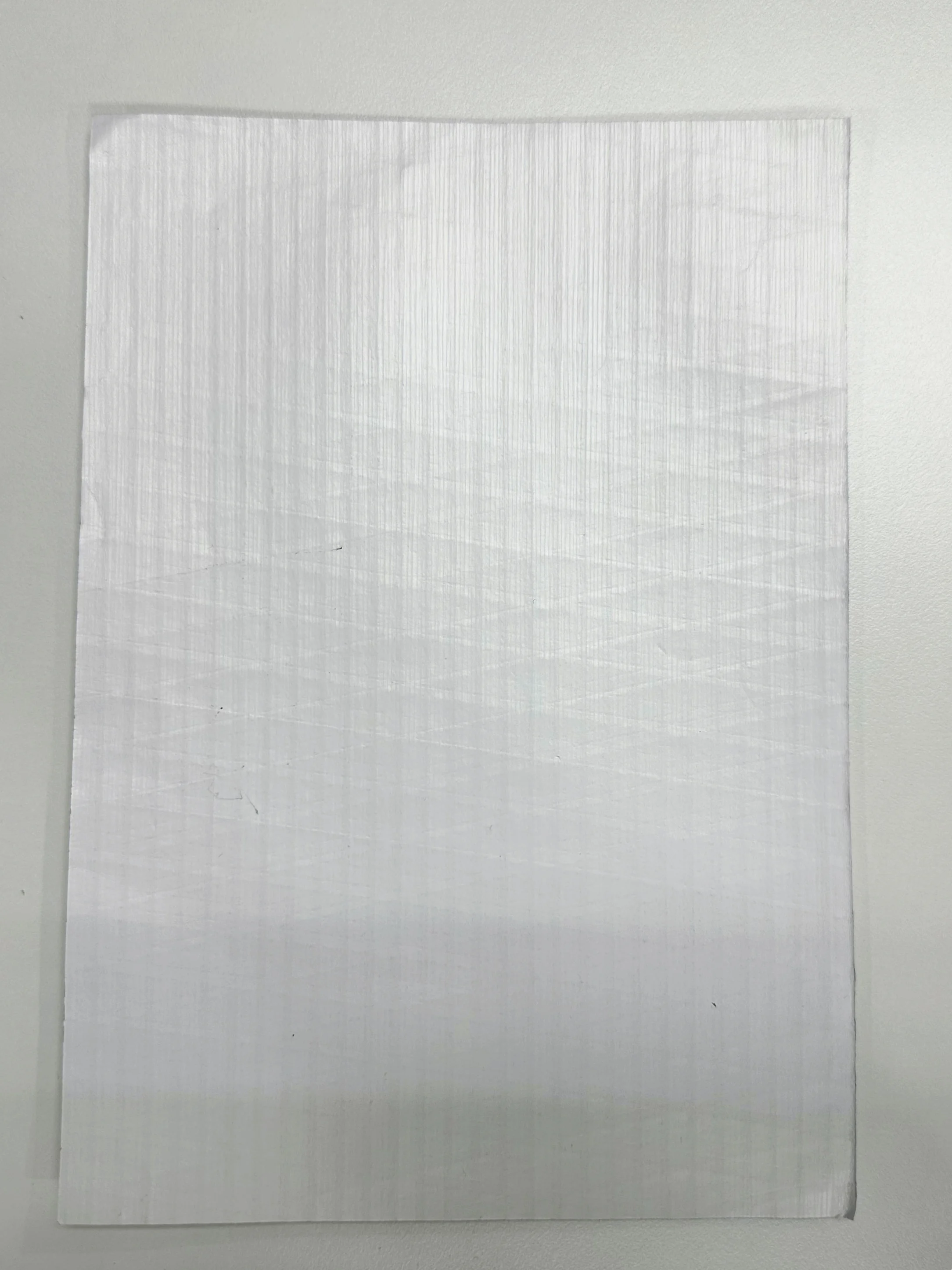

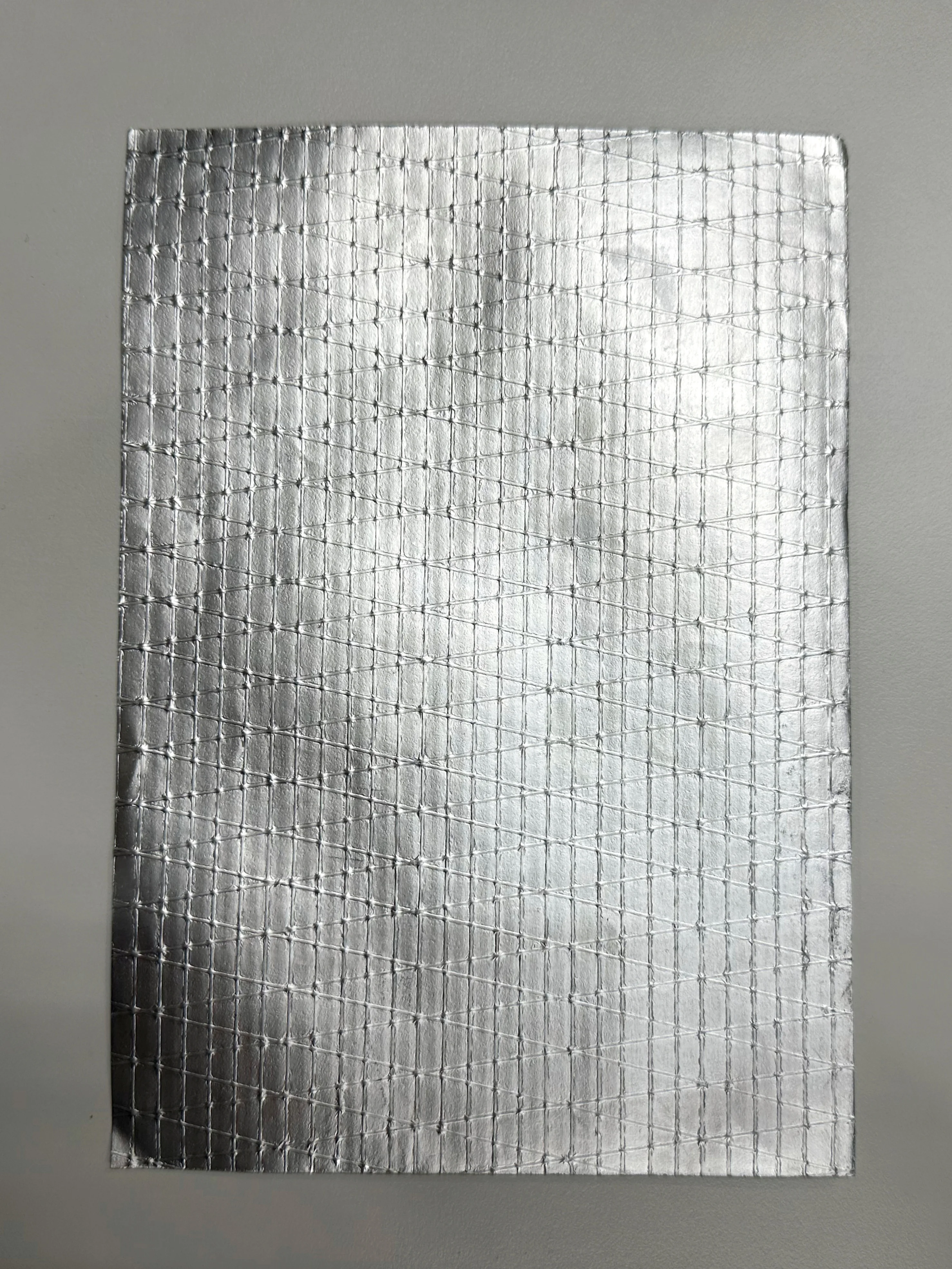

ASJ Facing introduction
（Aluminum Foil/Scrim/Kraft）
（Aluminum Foil/Scrim/Kraft）
ASJ Facing refers to a type of facing material commonly used in insulation systems. The acronym "ASJ" stands for Aluminum/Scrim/Kraft, representing its key components. This facing material combines layers of aluminum foil, a reinforcing scrim (often made of glass fiber), and a layer of Kraft paper.
Composition:
Aluminum Foil: Provides excellent thermal insulation properties, serving as a reflective layer.
Scrim (Glass Fiber): Reinforces the facing material, enhancing strength and durability.
Kraft Paper: Adds structural support and contributes to the overall robustness of the facing.
Aluminum Foil: Provides excellent thermal insulation properties, serving as a reflective layer.
Scrim (Glass Fiber): Reinforces the facing material, enhancing strength and durability.
Kraft Paper: Adds structural support and contributes to the overall robustness of the facing.

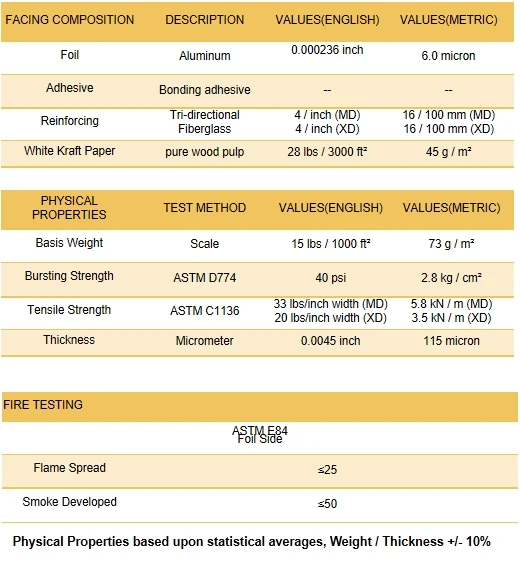

Specification
item | value |
Warranty | More than 5 years |
After-sale Service | Online technical support |
Project Solution Capability | 3D model design |
Application | pipe |
Design Style | Traditional |
Brand Name | Ecoin |
Model Number | ASJ FACING |
Type | Insulation material |
Material | Aluminum/Scrim/Kraft |
Basis Weight | 73 g / m²(15 lbs / 1000 ft²) |
Bursting Strength | ASTM D774(2.8 kg / cm²;40 psi) |
Tensile Strength | ASTM C11365.8 kN / m (MD) 3.5 kN / m (XD) |
Thickness | 0.0045 inch;115 micron |
FIRE TESTING | Flame Spread≤25;Smoke Develop≤50ed |
White Kraft Paper | 28 lbs / 3000 ft²;45 g / m² |
Reinforcing | 16 / 100 mm (MD) 16 / 100 mm (XD) |
Adhesive | -- |
Aluminum Foil | 0.000236 inch;6.0 micron |
Properties
Features
ASJ Facing serves multiple functions within insulation systems:
1.Thermal Insulation: The aluminum foil layer effectively reflects and reduces heat transfer, contributing to thermal insulation.
2.Strength and Durability: The inclusion of scrim and Kraft paper enhances the facing's strength, making it resilient during installation and usage.
3.Moisture Resistance: The aluminum foil provides moisture resistance, protecting the underlying insulation material from humidity and water ingress.
4.Flame Retardancy: ASJ Facing is often designed to be flame-retardant, enhancing the safety of the insulation system.
1.Thermal Insulation: The aluminum foil layer effectively reflects and reduces heat transfer, contributing to thermal insulation.
2.Strength and Durability: The inclusion of scrim and Kraft paper enhances the facing's strength, making it resilient during installation and usage.
3.Moisture Resistance: The aluminum foil provides moisture resistance, protecting the underlying insulation material from humidity and water ingress.
4.Flame Retardancy: ASJ Facing is often designed to be flame-retardant, enhancing the safety of the insulation system.
Application
ASJ Facing finds widespread application in various sectors, including:
1.Building Construction: Used in insulation systems for walls, roofs, and floors to regulate temperature.

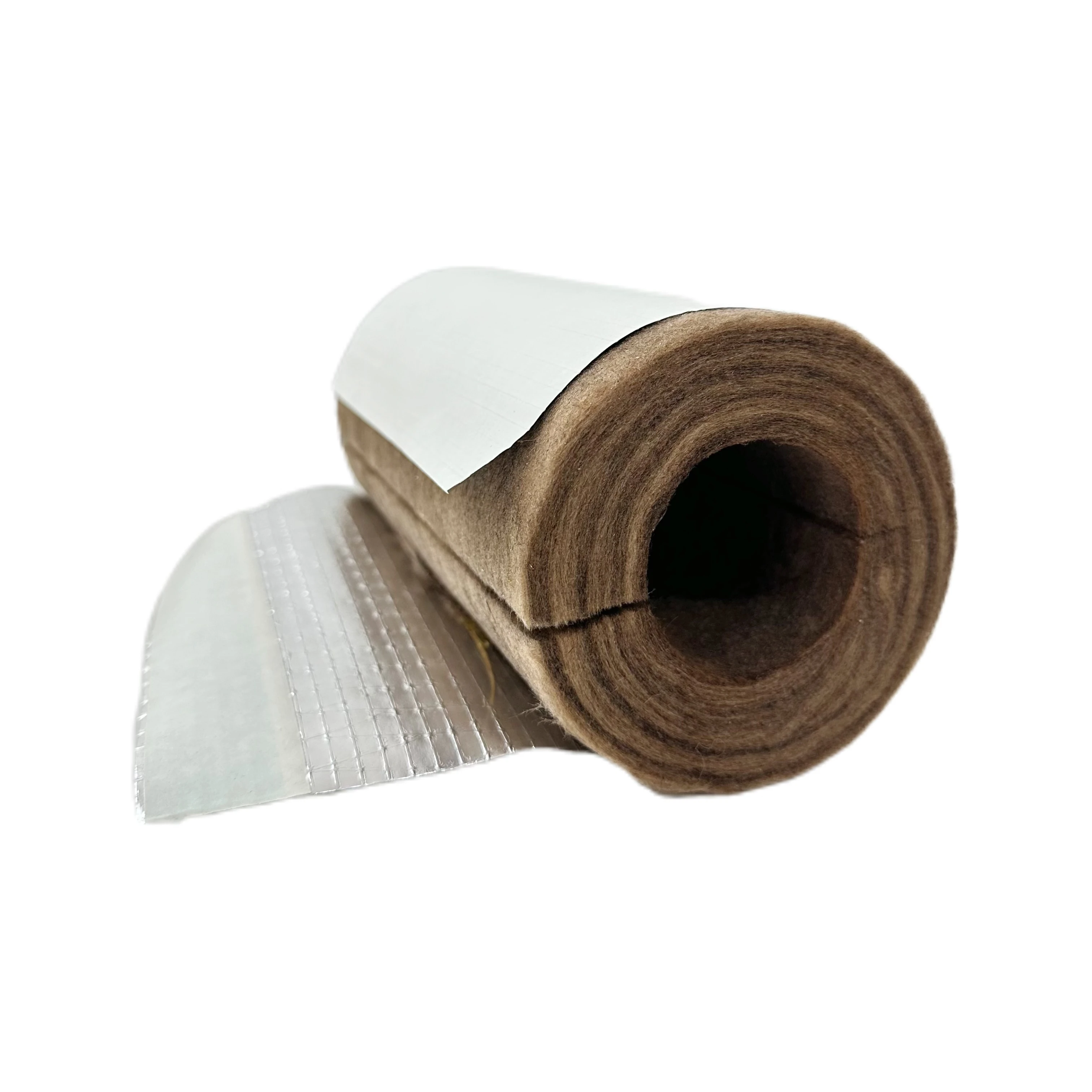

2.Piping Insulation: Applied to insulate pipes in industrial and commercial settings, providing thermal and moisture control.
3.HVAC Systems: Employed in air ducts and HVAC (Heating, Ventilation, and Air Conditioning) systems for thermal management.
4.Industrial Insulation: Utilized in diverse industrial applications where effective insulation is crucial.
1.Building Construction: Used in insulation systems for walls, roofs, and floors to regulate temperature.
2.Piping Insulation: Applied to insulate pipes in industrial and commercial settings, providing thermal and moisture control.
3.HVAC Systems: Employed in air ducts and HVAC (Heating, Ventilation, and Air Conditioning) systems for thermal management.
4.Industrial Insulation: Utilized in diverse industrial applications where effective insulation is crucial.
FAQ
1. who are we?
We are based in Tianjin, China, start from 2017,sell to South America(30.00%),Southeast Asia(30.00%),Domestic Market(20.00%),North America(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiberglass wool insulation,Mineral Rock wool Insulation,Aluminum jacketing system,Agricultural rockwool,stone wool
4. why should you buy from us not from other suppliers?
Tianjin EcoIn Tech Co.,Ltd is a company specialized in new tech insulation material manufacturing and export. Our aim is to provide Grade A non combustible Eco-Insulation, friendly to environment and human body, and affordable for clients.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Tianjin, China, start from 2017,sell to South America(30.00%),Southeast Asia(30.00%),Domestic Market(20.00%),North America(20.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiberglass wool insulation,Mineral Rock wool Insulation,Aluminum jacketing system,Agricultural rockwool,stone wool
4. why should you buy from us not from other suppliers?
Tianjin EcoIn Tech Co.,Ltd is a company specialized in new tech insulation material manufacturing and export. Our aim is to provide Grade A non combustible Eco-Insulation, friendly to environment and human body, and affordable for clients.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
