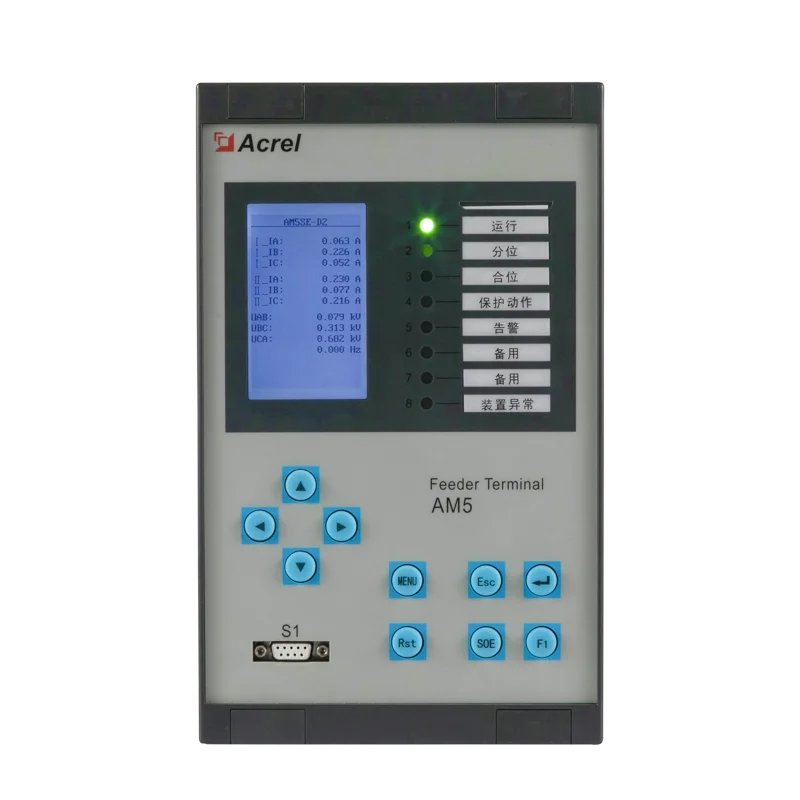

Acrel Motor protection measurement and control device AM5SE M blocking rotor thermal overload starting time out

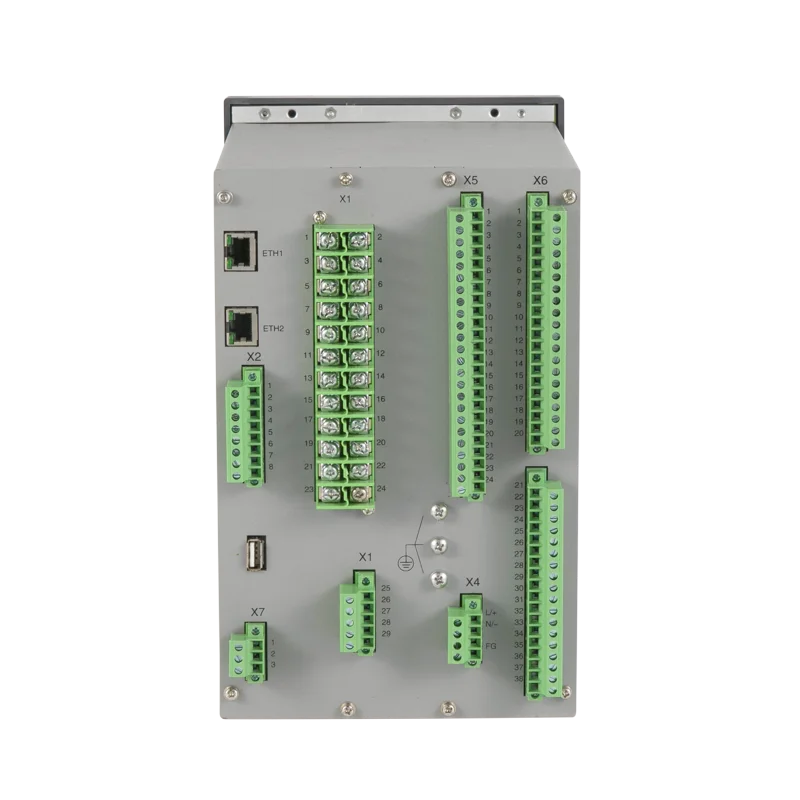

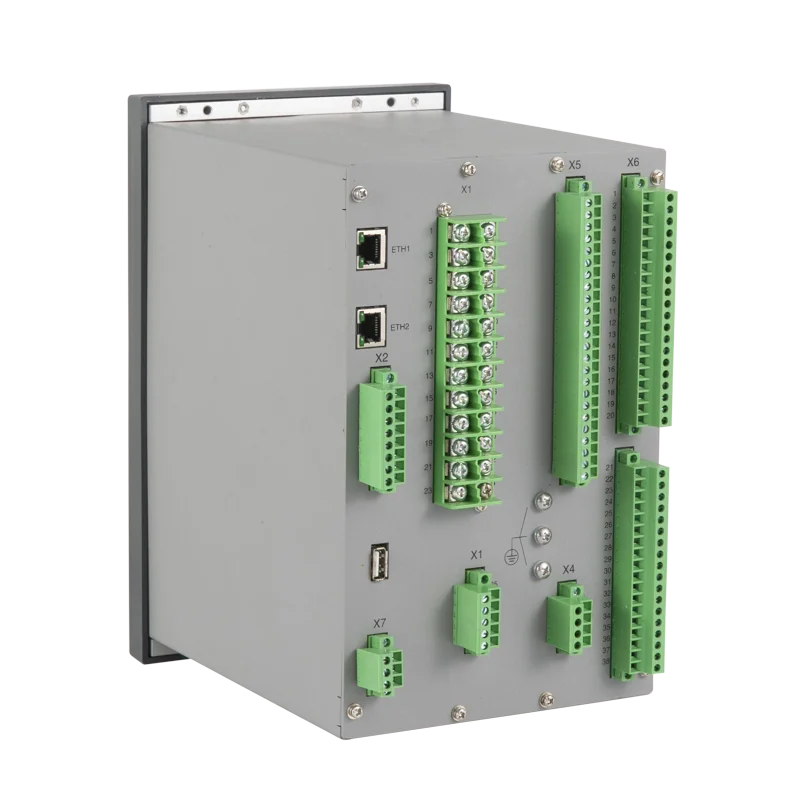

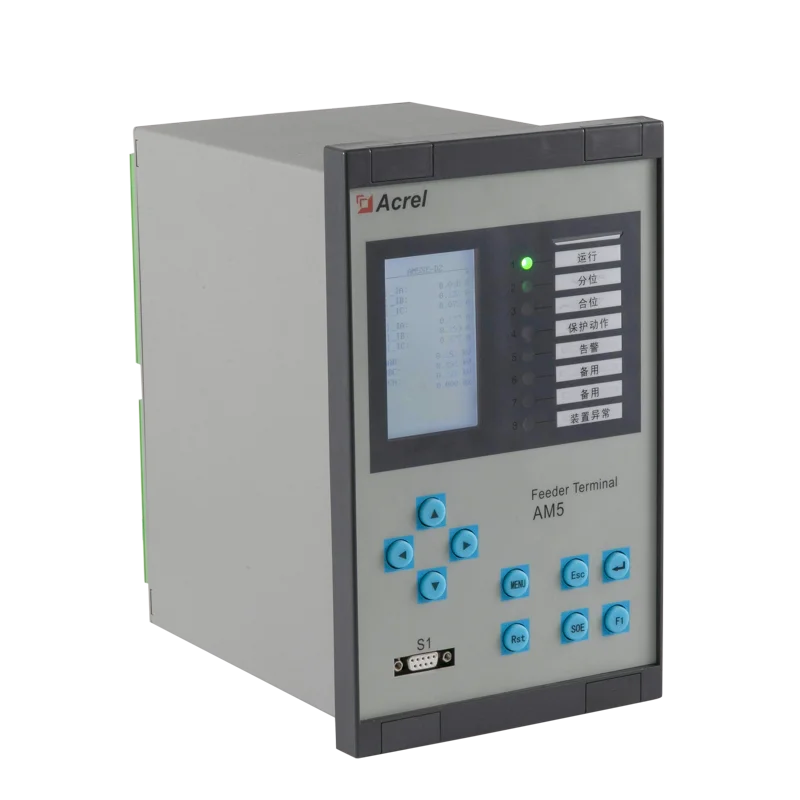

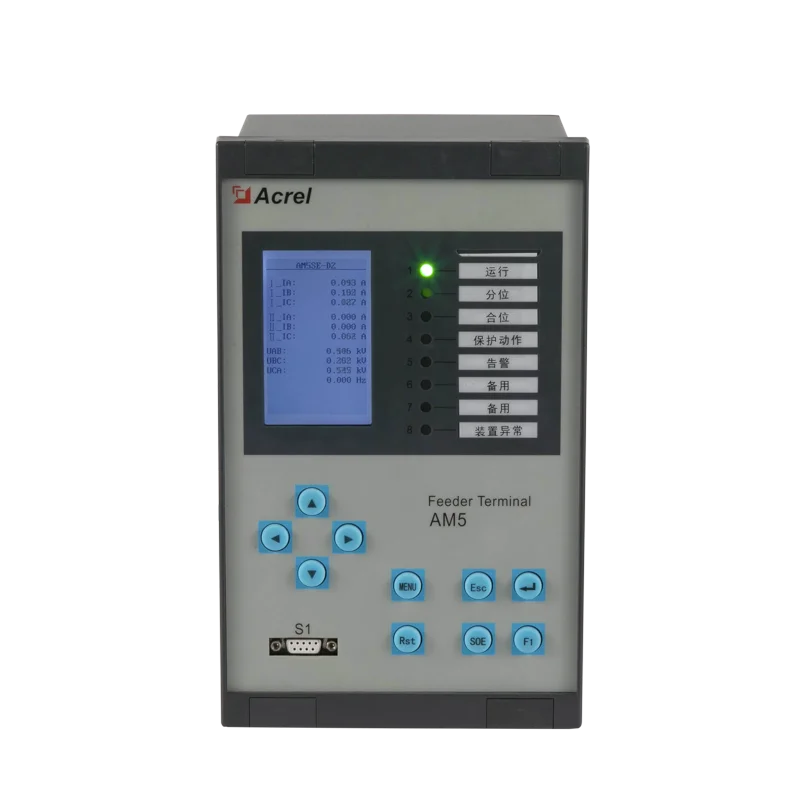

Acrel Motor protection measurement and control device AM5SE-M blocking rotor thermal overload starting time-out
Acrel Motor protection measurement and control device AM5SE-M blocking rotor thermal overload starting time-out
Acrel Motor protection measurement and control device AM5SE-M blocking rotor thermal overload starting time-out
Acrel Motor protection measurement and control device AM5SE-M blocking rotor thermal overload starting time-out
Acrel Motor protection measurement and control device AM5SE-M blocking rotor thermal overload starting time-out
Acrel Motor protection measurement and control device AM5SE-M blocking rotor thermal overload starting time-out

Acrel Motor protection measurement and control device AM5SE M blocking rotor thermal overload starting time out

Share on (1601030339003):


Price:

Quantity:


Product Overview

Description



Product Introduction

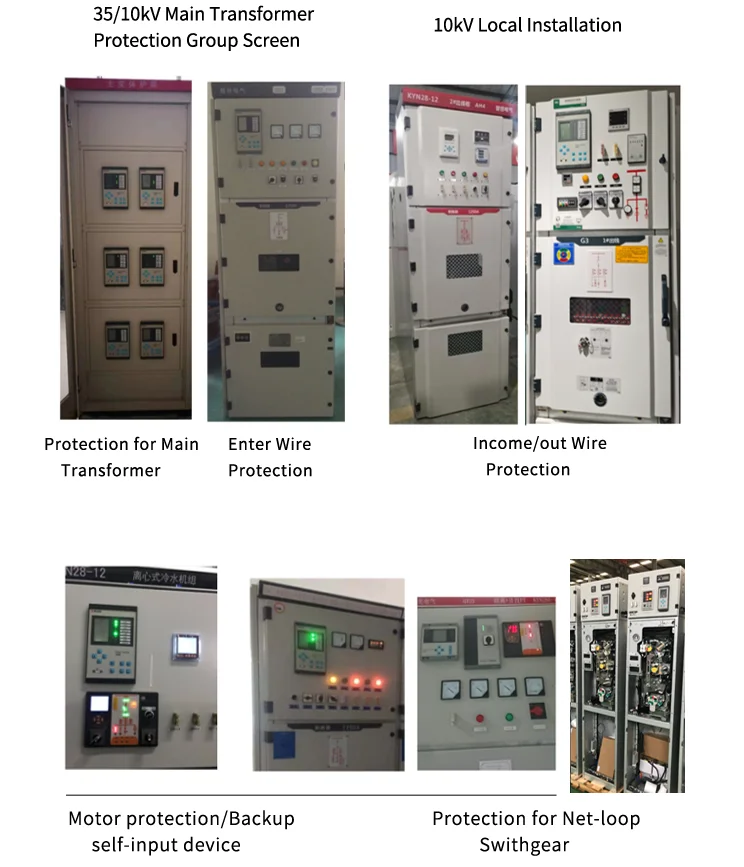

AM5 series microcomputer protection device are applicable to the user substation which the input voltage is 35kv or above. AM5 can be used to protect and control the user substation, and is be widely used to Power Industry, Water conservancy industry, Traffic Industry, Oil industry, Chemical industry,Coal Industry, Metallurgical Industry and so on.


Power supply
Rated input
AC/DC220V, or AC/DC110V
Range
Rated Voltage×(1±20%)
Consumption
≤15VA ( DC )
Rated Voltage
Rated input
AC 100V/100/√3V
Range
1～120V
Accuracy
±0.5%
Consumption
≤0.5VA (single phase)
Rated Current
Rated input
AC 5A /1A
Range
0.04In～15In
Accuracy
±0.5%
Consumption
≤0.5VA (single phase)
Frequence
Rated frequency
50Hz or 60Hz
Range
45～55Hz or 60Hz
Accuracy
±0.1Hz
DI
Rated Voltage
AC/DC220V, or AC/DC110V
Range
Rared Voltage×(1±20%)
Consumption
≤1W（DC220V）(single channel)

DO
Mechanical life
≥10000
Switching capacity
≥1000W,L/R = 40ms
On current
continuous ≥5A,short time (200ms) ≥30A
Interrupting capacity
≥30W,L/R = 40ms
Environment
Temperature
-10℃～＋55℃
Humidity
5％～95％ (No condensation and freeze inside)
Altitude
≤2500m
