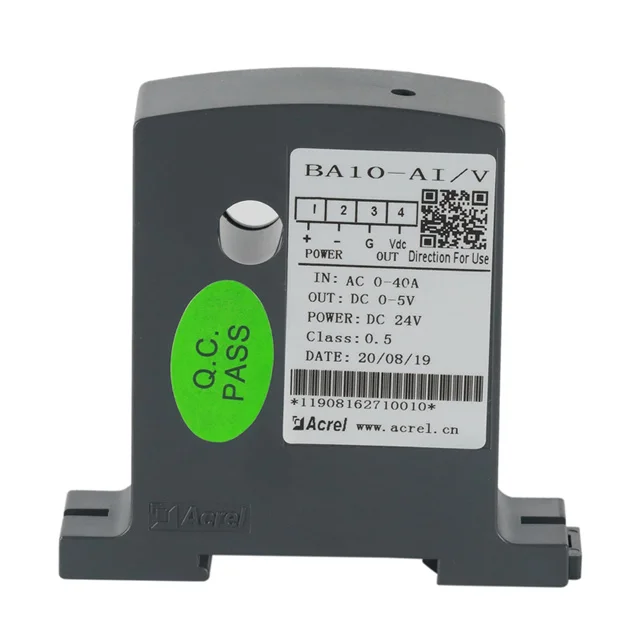

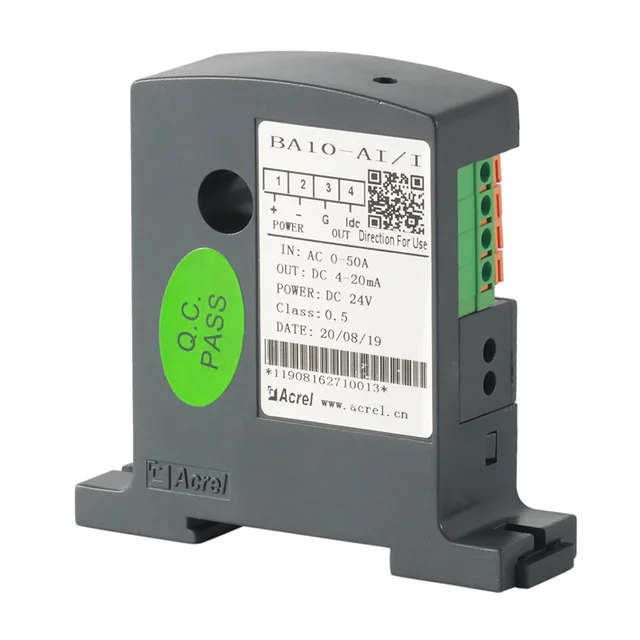

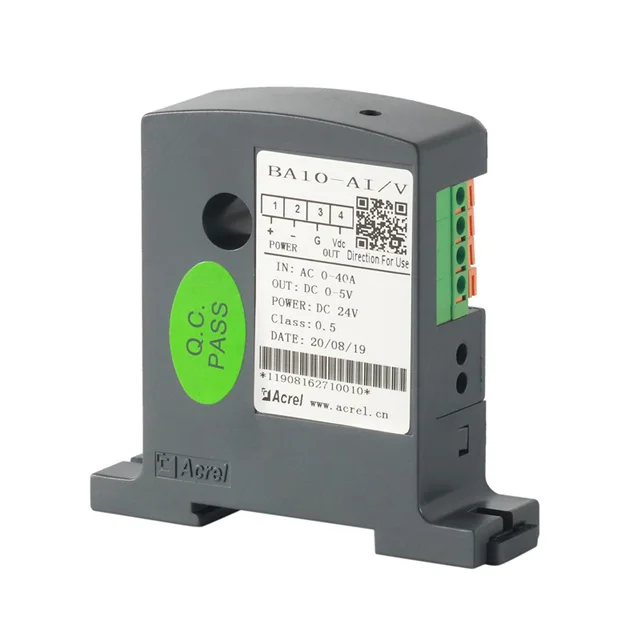

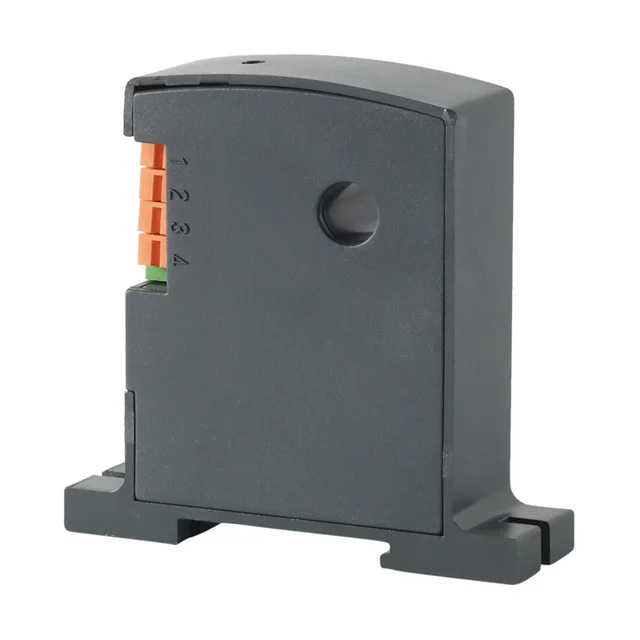

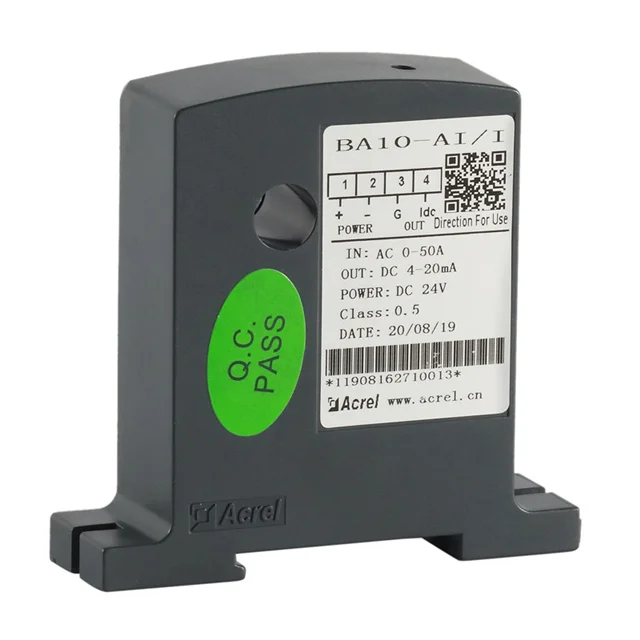

Acrel BA10 AI/V Current Transducer Electrical Transmitter Input AC0 50A output 1 5V or 0 5V Class 0.5
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1601030341814):
Product Overview
Description
● Input: AC 0-(8-50)A
● Analog Output: DC 0-5V/1-5V/0-20mA/4-20mA
● Overload: 1.2 times of rated value
● Power supply: DC12V/DC24V
General
BA series Current Transducer are mainly used in industrial automation, it can measure AC current up to 600A directly.

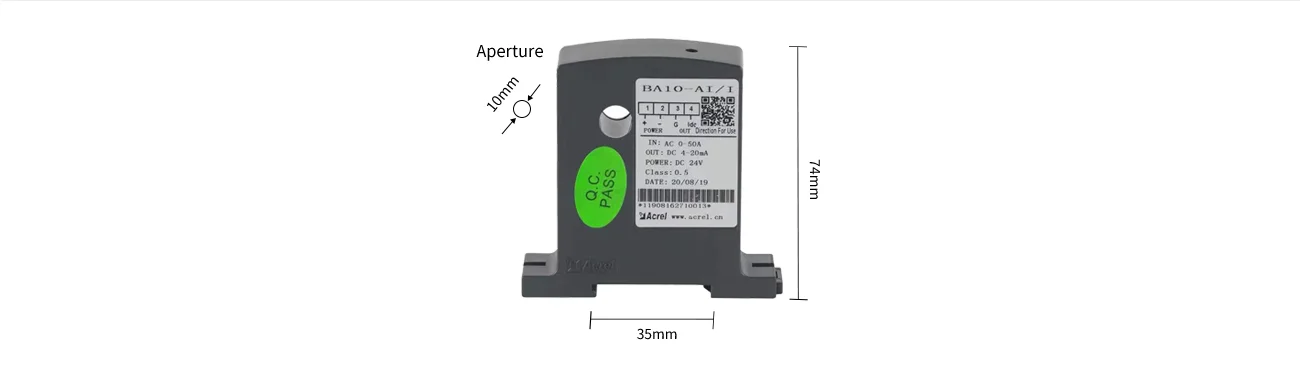

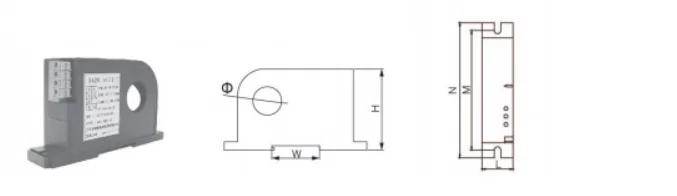

Dimension

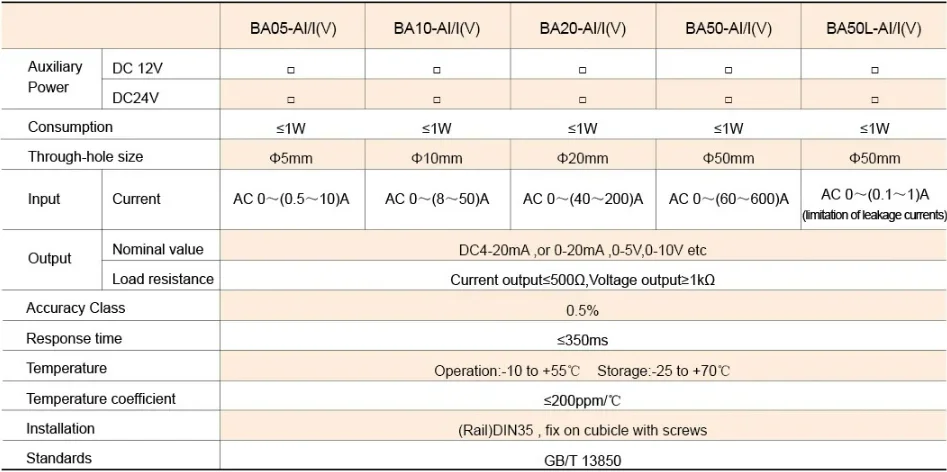

Parameter

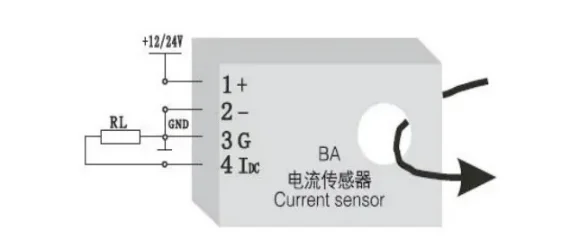

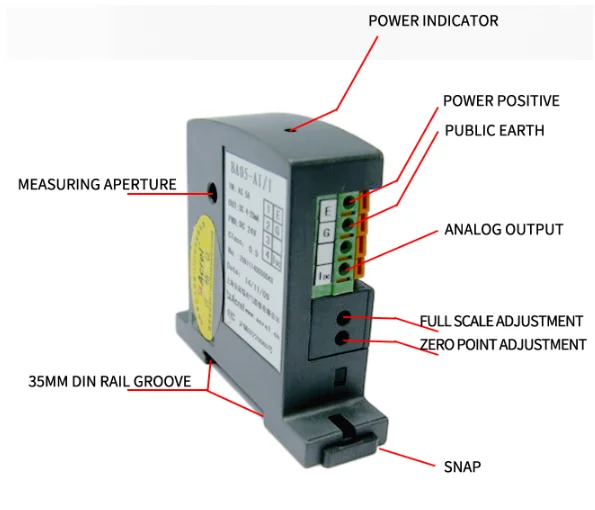

Wiring
* 1 —— + Positive power supply (not reversed)
* 2 —— - Power EARTH
* 3 —— G（Current output negative, which can be shared with the power supply）
* 4 —— IDC(Current output positive)，VDC(Voltage output positive)
* 2 —— - Power EARTH
* 3 —— G（Current output negative, which can be shared with the power supply）
* 4 —— IDC(Current output positive)，VDC(Voltage output positive)
Installation
Screw fixed installation
On the bottom panel of the cabinet, choose a suitable place to open two threaded holes corresponding to the position of the fixed hole of the installed sensor; After placing the sensor, install the positioning screw
Din Rail installation
Choose a suitable place to install the standard DIN35mm rail, and install the BA sensor on the rail
Application
Cement Building Petrochemical Industry Iron and Steel Metallurgy Rail Traffic
Package
MINIMUM PACKAGE | Package dimensions(1 PC) 16*12.5*7.5cm | Package Weight(1 PC) 0.2Kg | |||||
WHOLE BOX PACKAGE | Package dimensions(30 PCS) 45.5*26*19.5cm | Package Weight(30 PCS) 7kG | |||||
PRODUCT HS CODE | 9030339000 | ||||||
