4in1 1500W MAX Air Cooling Mini Portable Handheld Laser Welding Machine for Stainless Steel Carbon Steel Aluminum
- Category: >>>
- Supplier: Jinan Xintian Technology Co. Ltd.
Share on (1601030385985):
Product Overview
Description

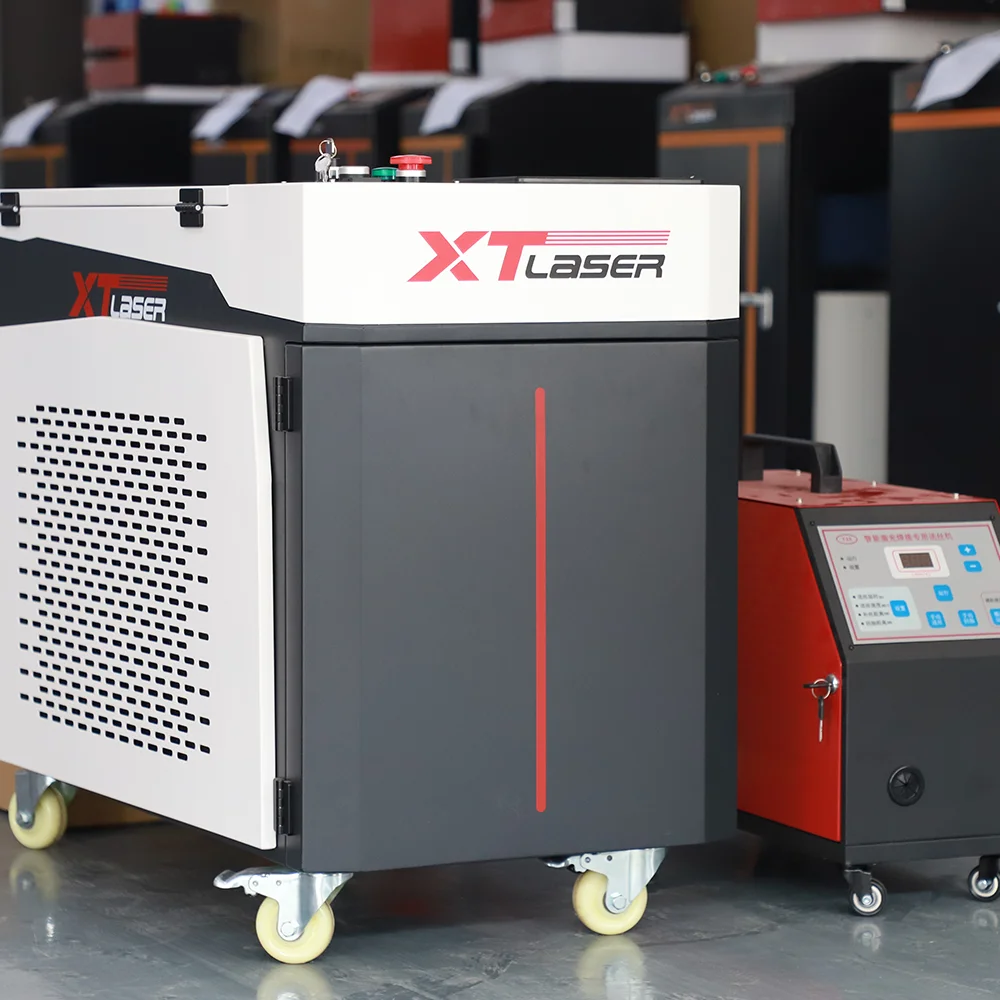

Machine photo
Technical data
Welding ability thickness(Weld from one side)-handheld laser welding machine | ||||||||
Max welding dept | thickness | |||||||
No. | Material | 1kw | 1.5kw | 2kw | ||||
1 | Stainless Steel | ≤2mm | ≤3mm | ≤5mm | ||||
2 | Mild steel/Iron | ≤3mm | ≤4mm | ≤6mm | ||||
3 | Aluminum/brass | ≤2mm | ≤3mm | ≤4mm | ||||
Technical Parameter - Handheld Laser Welding Machine | ||||
√ Handheld model √ Raycus/Max laser source √Cable length:8m √ Laser head:0.9KG | ||||
Model | XTW-1000/1500/2000 | |||
I.Laser source | ||||
1 | Brand | Raycus/Max/IPG | ||
2 | Output power | 1kw/1.5kw/2kw | ||
3 | Center wavelength | 1080nm±5 | ||
4 | Fiber Cable length | 8m,50μm | ||
5 | Laser pulse Frequency | 20KH | ||
II.Water Cooling | ||||
1 | Water chiller | 1.5P/2P/2.5P ,built-in chiller | ||
III.Laser head | ||||
1 | Brand | Shenzhen Hanwei (standard model) | ||
2 | Spot size(mm) | 1.5/2.5mm , ”O”mode | ||
3 | Protective Lens | D20*2 | ||
4 | Auto Wire-feeder | Optional | ||
IV. Gas | Nitrogen/Argon | |||
V.Total Power Consumption | 7.5kw/8.5kw/10kw | |||
VI.Voltage | 1kw and 1.5kw:220V±20%,single phase,50/60Hz 2kw: 380V±20%,3 phase,50/60Hz | |||
VII.Dimension (CM) | ||||
Machine dimension(L*W*H) | 124*63*116 cm | |||
Machine Net Weight | 210kg/18kg(auto-wire feeder) | |||
Package size | 135*76*131cm/75*35*64cm | |||
Gross weight | 250kg/24kg | |||
Working Videos
handheld lazer welder for metal | https://youtu.be/2Yy3vZt8y2Q |
handheld lazer welder for metal stainless steel | https://youtu.be/2Auwmeq0q8I |
handheld lazer welder for metal Brass | https://youtu.be/2kc1ijc4rJI |
handheld lazer welder for metal stainless steel | https://youtu.be/fXO8B_MmjXQ |

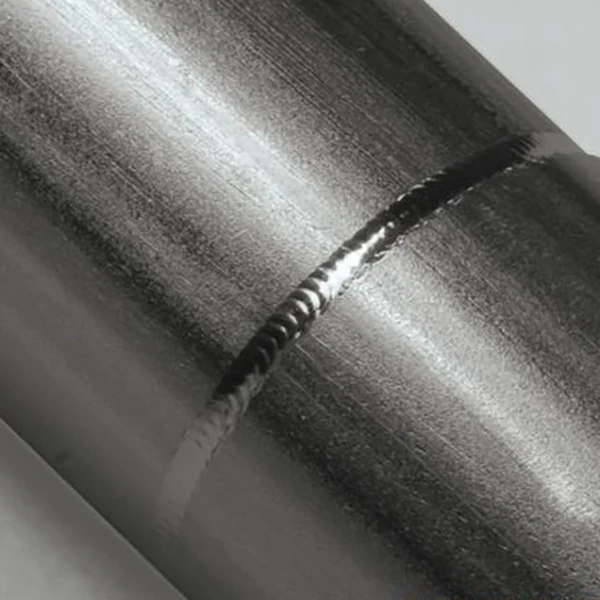

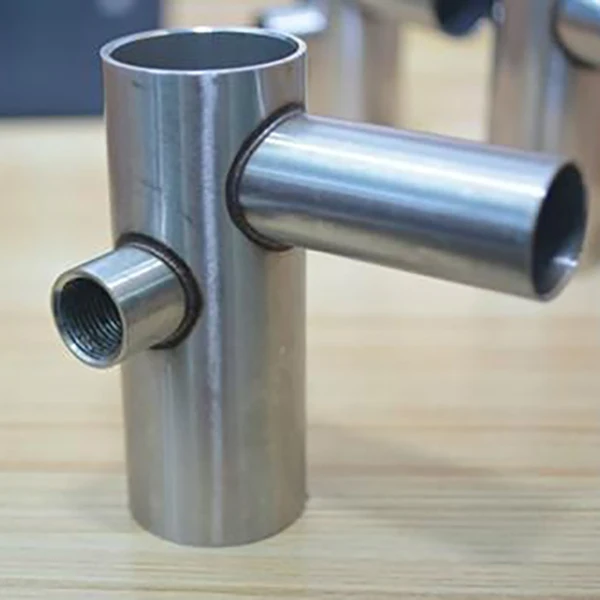

Sample

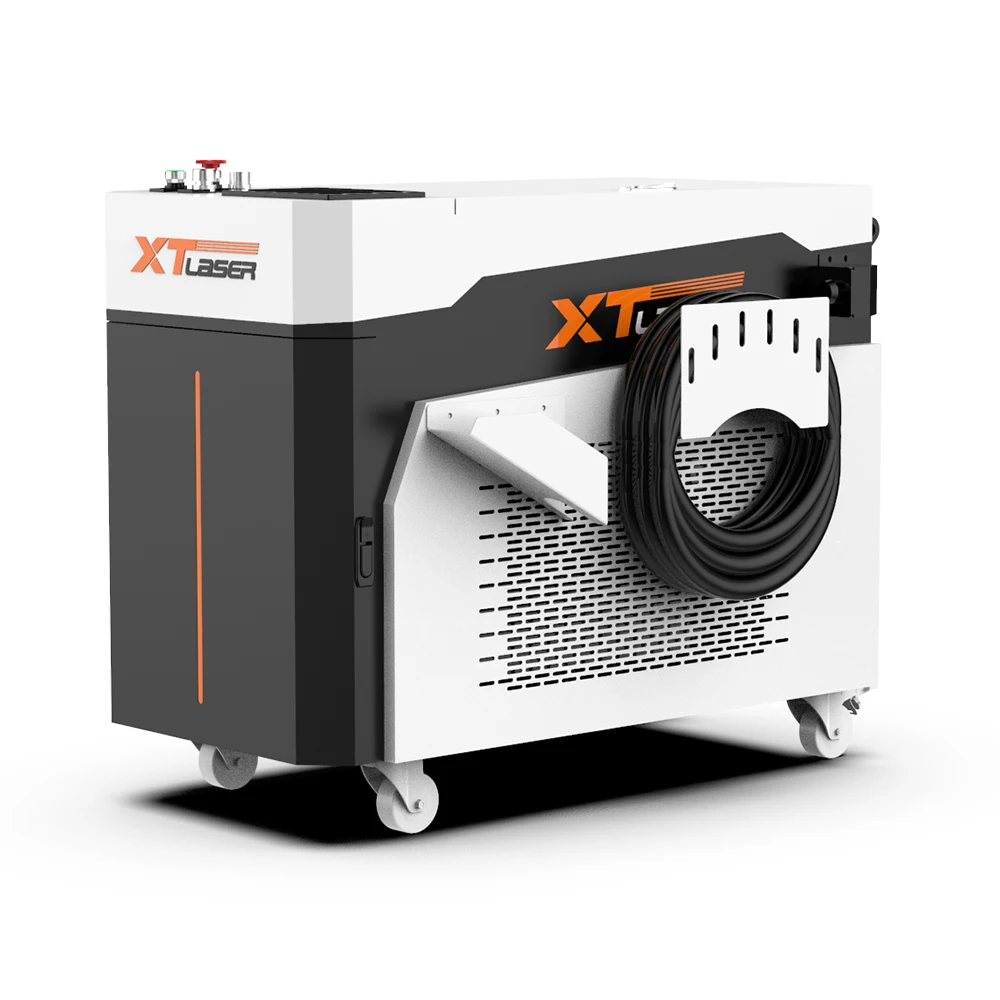

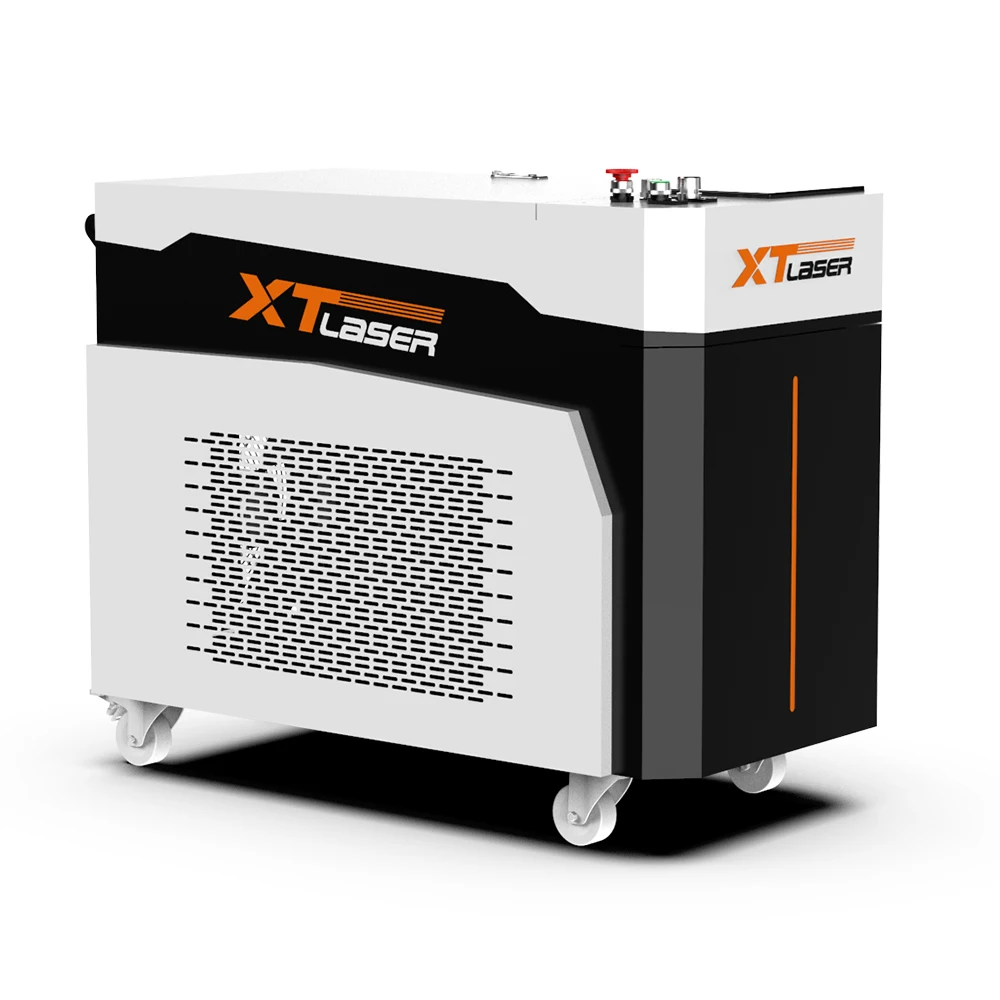

Detailed imagine
Packing & delivery
Machine layout size-lazer welder
Package Size
Dimensio
Ply-wood case; 135*76*131cm/75*35*64cm,250kgs/24kgs

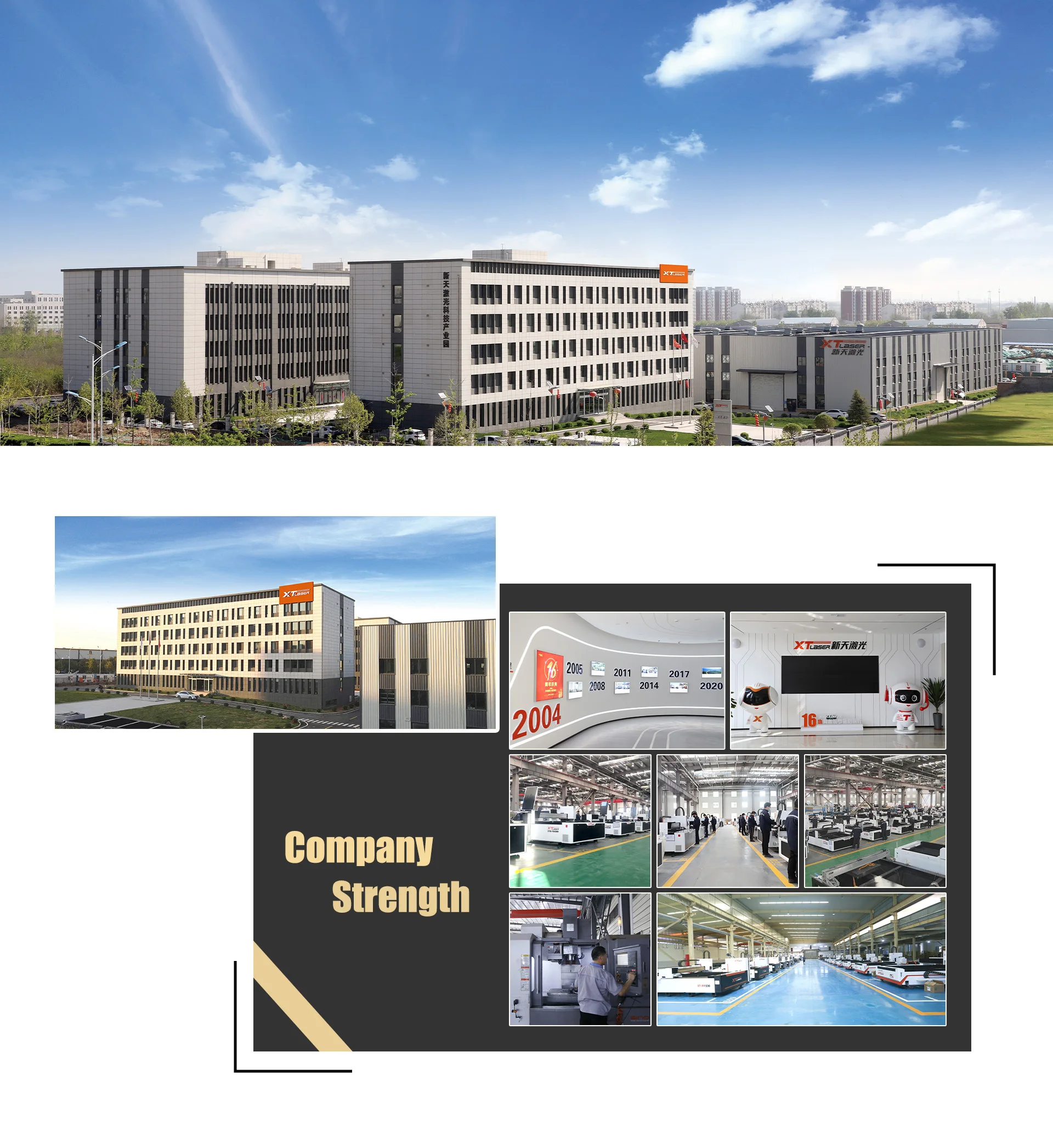

Our Company
Certifications&Exbition Hall
