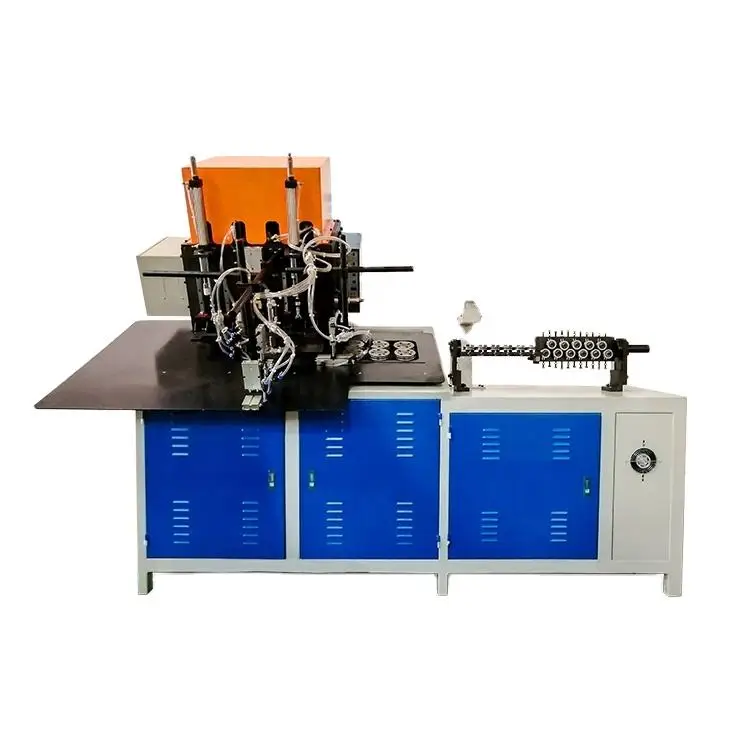

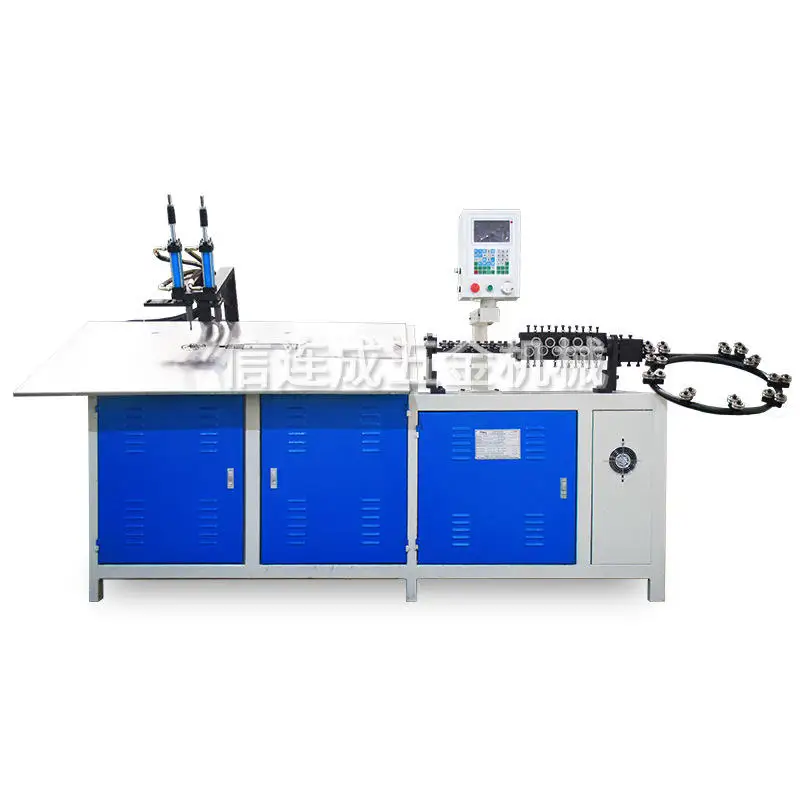

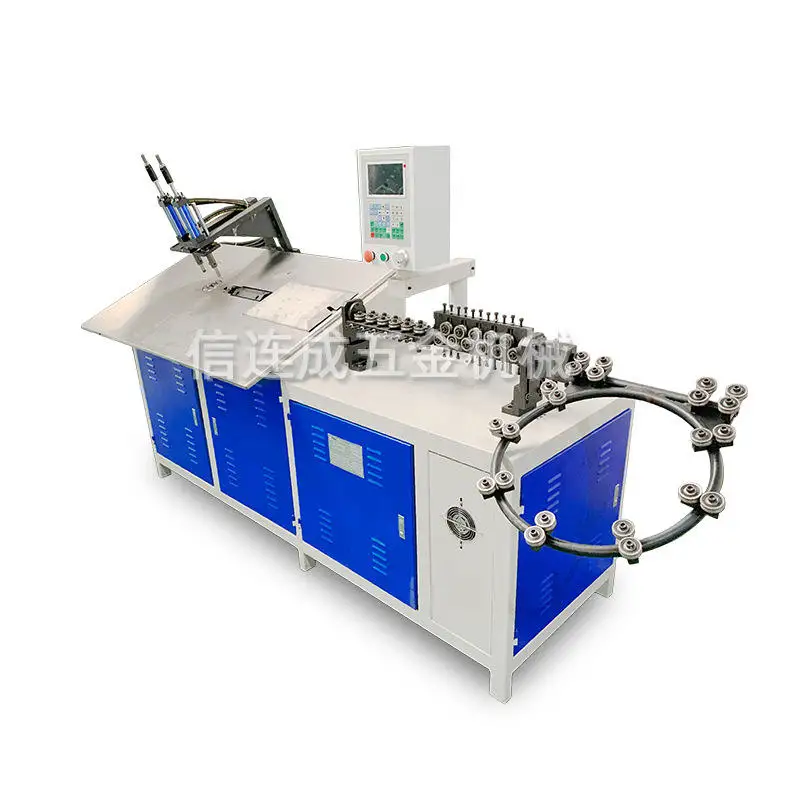

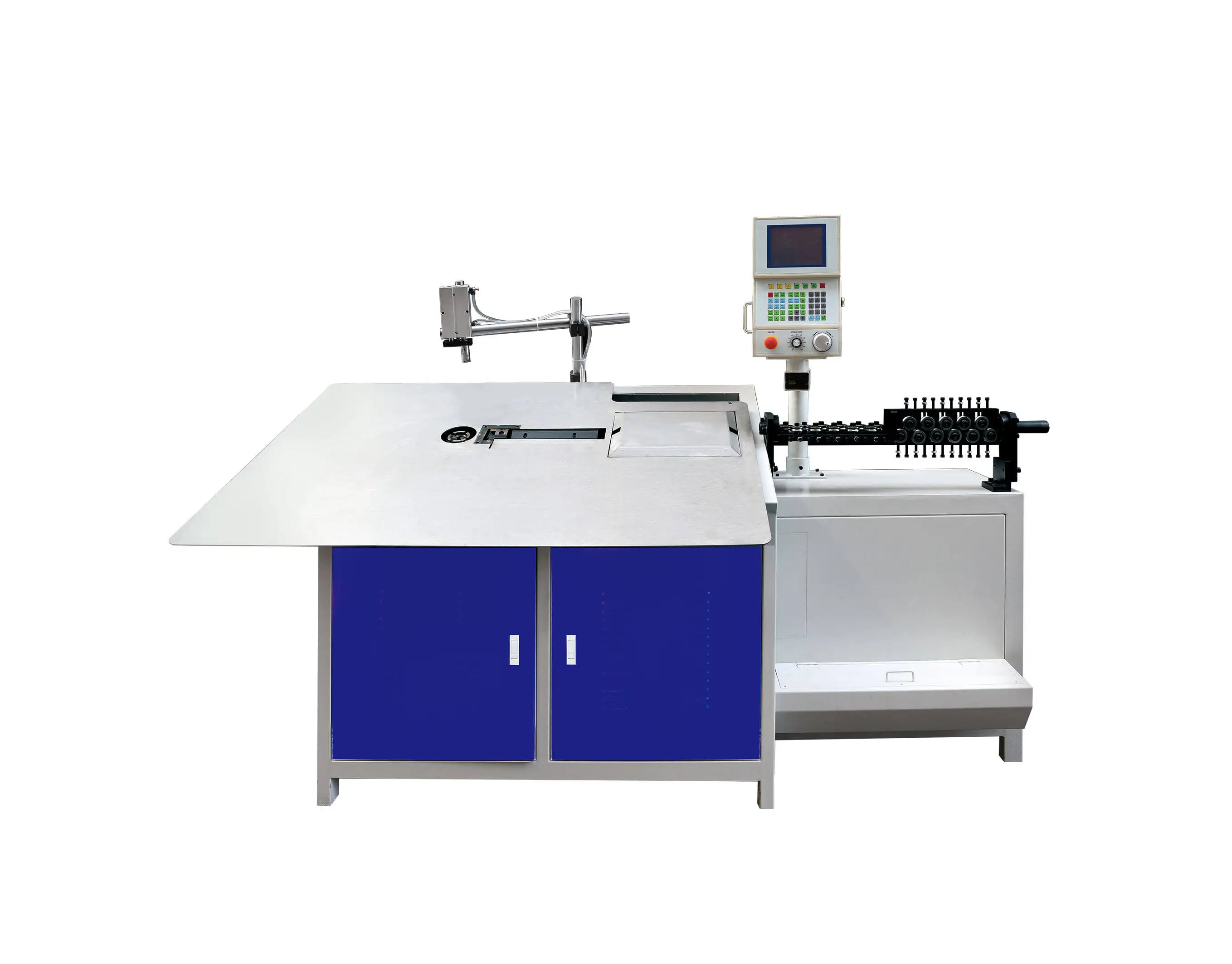

CAD Input CNC Auto Square Basket Mesh Hanger Forming Bender Steel Wire Rod Flattening Punching Chamfer 2D Bending Machine
- Category: >>>
- Supplier: Shijiazhuang Yinuo Machinery Co. Ltd.
Share on (1601030389679):
Product Overview
Description
Product Description
2. The shear cylinder hydraulic station is equipped with a forced air-cooled radiator to double the service life of the hydraulic system components;

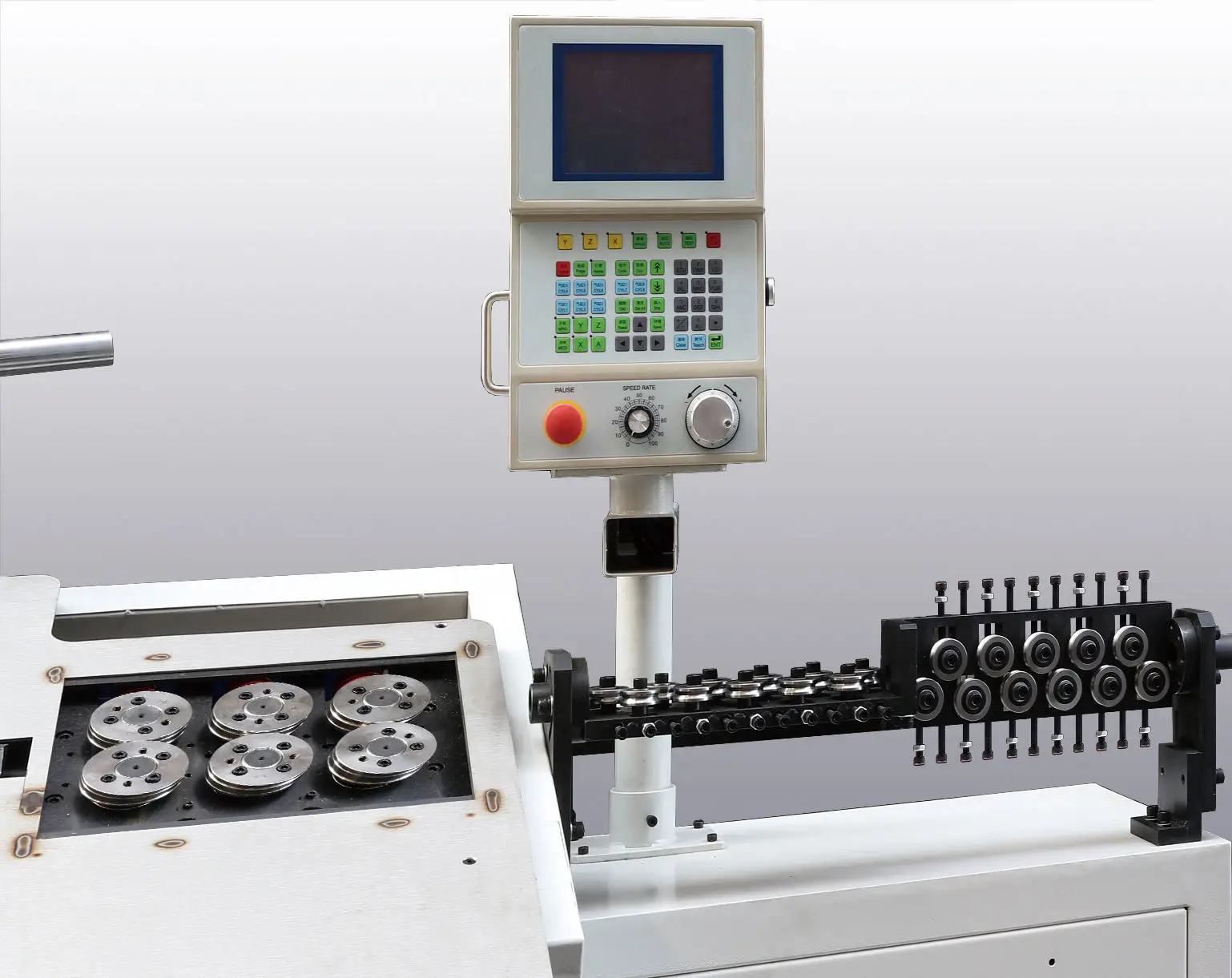

3. The control system is connected with the text display by PLC, which is convenient for operation and ensures the stability of the control system, and the design quantity and preset function control the whole machine operation. The precision stepping electric feeding reel rotates, and the stepping motor controller is replaced by PLC and text display. The stepping motor slow-rising curve and the stepping motor maximum speed can be arbitrarily modified according to the need to eliminate the impact of the mechanical transmission. It is ensured that the actual transmission wire length is consistent with the theoretical calculation length;
4. When the servo forming bending machine is designed and budgeted, it has divided the length of each MM into 10 segments to further ensure the length precision setting; the adjustable hydraulic cylinder can ensure the uniformity of the circle cutout, the cutting time and the retreat. The knife time can be directly modified on the text display; 5. The servo forming bending machine is designed with manual slow feeding and slow material returning, which is easy to operate and reduces material loss.
Specification
Specification of GW40 rebar bending machine
2D bending machine | |||||||||||||
Model | 2-6MM | 3-8MM | 6-10MM | 8-12MM | |||||||||
Number of wire feed wheels | 3 axis | 4 axis | 5 axis | 6 axis | |||||||||
Servo motor power | 4.6KW | 5.2KW | 10.0KW | 14 KW | |||||||||
Wire feed speed | 50m/min | 45m/min | 40m/min | 35m/min | |||||||||
Cylinder cutter | Φ6 | Φ8 | Φ10 | Φ12 | |||||||||
Bending accuracy | 8 groups | 8 groups | 10 groups | 10 groups | |||||||||
Bending speed | ±0.5mm | ±0.5mm | ±0.5mm | ±0.5mm | |||||||||
Wire feeding accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm | |||||||||
Adapt to wire | Round, flat, square | Round, flat, square | Round, flat, square | Round, flat, square | |||||||||
Maximum bending speed | 2000 rpm / angle ±180° | 2000 rpm / angle ±180° | 2000 rpm / angle ±180° | 2000 rpm / angle ±180° | |||||||||
Input power | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | 380V/50HZ/3PH | |||||||||
Hydraulic oil model | 46#/68# | 46#/68# | 46#/68# | 46#/68# | |||||||||
Machine weight | 950KW | 1100KW | 2400KW | 2800KW | |||||||||
Appearance size | 2100MM*900MM*1530MM | 2200MM*1050MM*1600MM | 2960MM*1400MM*1560MM | 3100MM*1500MM*1650MM | |||||||||

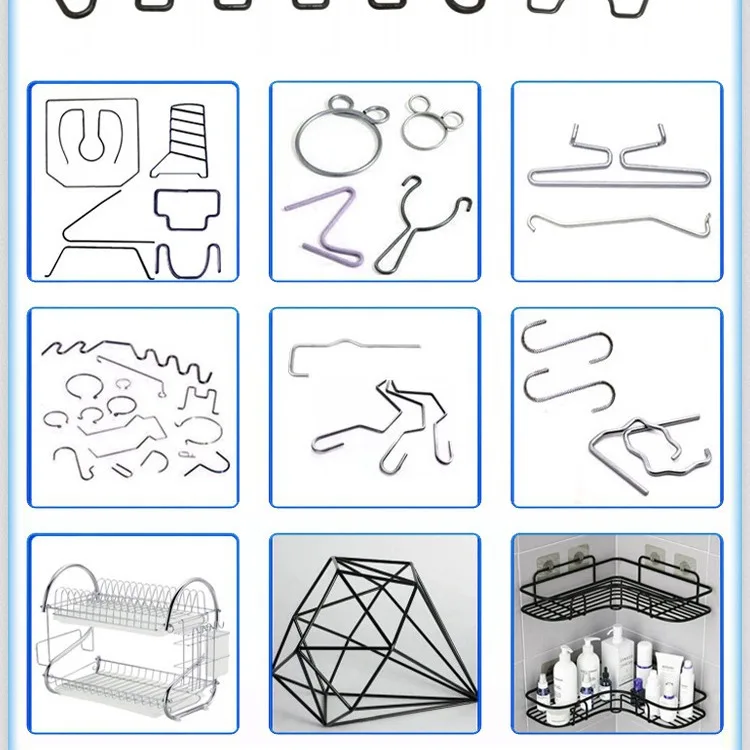

PRODUCT APPLICATION
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Company Profile
FAQ
1.What is your product range?
We are a professional manufacturer on drawing machine、 straightening machine、 thread rolling machine 、Cold drawing machine and Diameter reducing machine ect .
2.Can you give me a preferential price? .
A:We welcome every customer who likes our project to give preferential prices. Please contact us immediately to obtain a quotation for the project selected for your project.
3.How about your quality control?
We believe the quality is controlled through the whole process of order. Begin with detailed drawing and quality standard agreed by both party. Always a pre-production sample before mass production, Always final Inspection before shipment;
4.Do you have after-sale service?
Yes. After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
5.Why choose us
We are a machine manufacturer with rich export experience. As a high-quality supplier, we have good customer relationships. We have a good reputation and provide you with high-quality, stable prices and high-quality services
Could you share your business card with us or leave your email address, so that we can share new prices conveniently. Thank You.
We are a professional manufacturer on drawing machine、 straightening machine、 thread rolling machine 、Cold drawing machine and Diameter reducing machine ect .
2.Can you give me a preferential price? .
A:We welcome every customer who likes our project to give preferential prices. Please contact us immediately to obtain a quotation for the project selected for your project.
3.How about your quality control?
We believe the quality is controlled through the whole process of order. Begin with detailed drawing and quality standard agreed by both party. Always a pre-production sample before mass production, Always final Inspection before shipment;
4.Do you have after-sale service?
Yes. After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
5.Why choose us
We are a machine manufacturer with rich export experience. As a high-quality supplier, we have good customer relationships. We have a good reputation and provide you with high-quality, stable prices and high-quality services
Could you share your business card with us or leave your email address, so that we can share new prices conveniently. Thank You.
