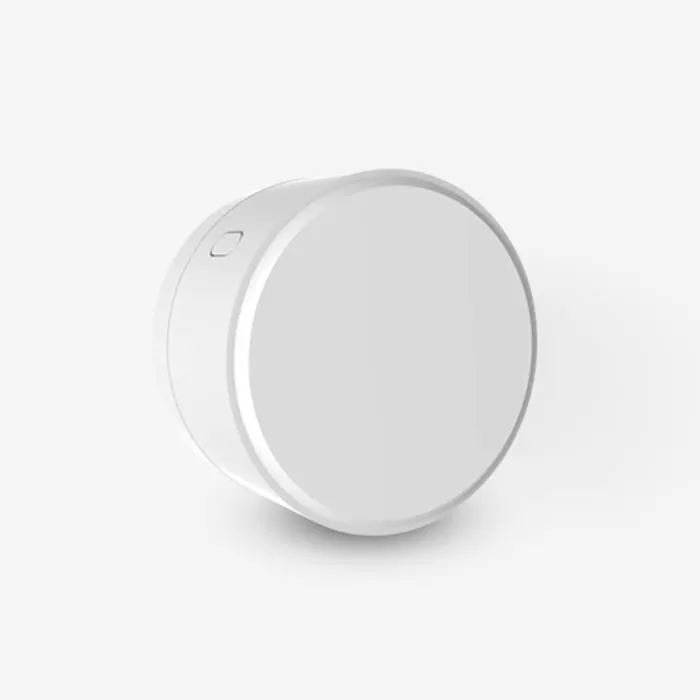

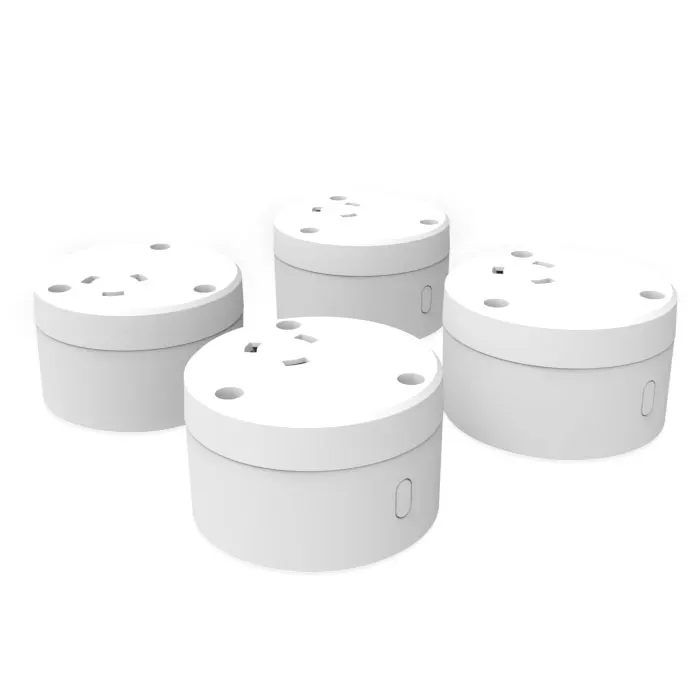

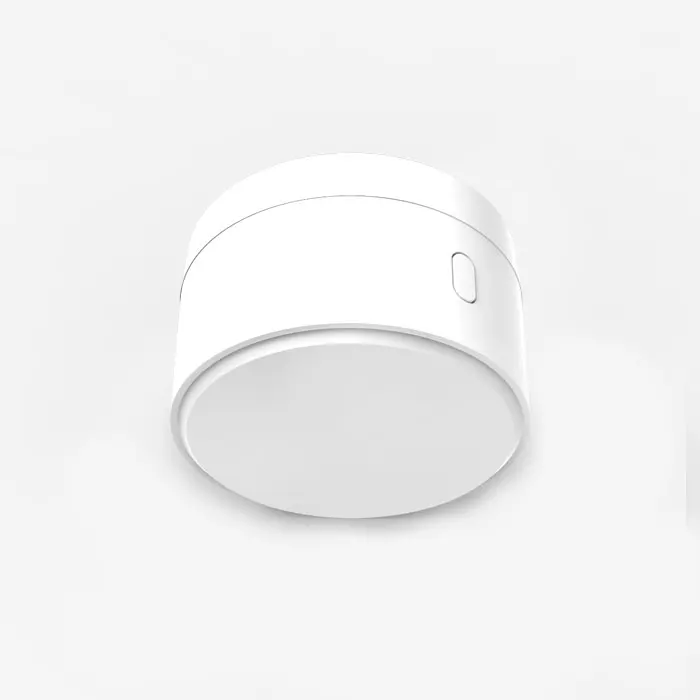

Ferry Smart IOT Radar Body Sensor ISE201T 2 Graffiti Edition Tuya Motion Detect Sensor Linkage Technology
- Category: >>>
- Supplier: Shenzhen Ferry Smart Co. Ltd.
Share on (1601030451998):
Product Overview
Description
Specification
Input | Operating Voltage | 12-24V DC |
Operating Current | 45mA MAX@12V | |
Output | Operating Mode | Dry contact (normally open/closed) + Wi-Fi communication access to Graffiti Smart |
Rated Load | Current not exceeding 1A | |
Induction parameters | Operating Frequency | 24 GHz, AloT millimeter wave |
Transmit power | 0.5mW Max | |
Hold time setting | 5S-30Min adjustable | |
Detection range | Adjustable in four steps from 1-5M | |
Sensitivity | 25-100% adjustable in four steps | |
Daylight setting | 5lux-150lux/Disable | |
Recommended Installation Height | 2.5-4M, 3M recommended | |

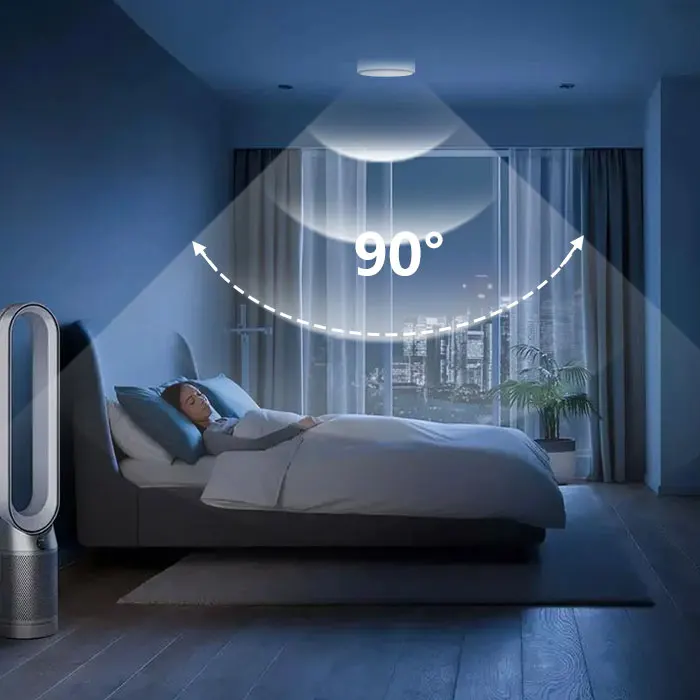

Detection Angle | 90° | |
Environment | Operating Temperature/Humidity | -15°C... +55C |
Storage Temperature/Humidity | -25°C... +70°C | |
Certification Standard | Safety (LVD) standards | CPC-CE/LVD(60730-1) |
Electromagnetic Compatibility (EMC) Standard | BKC-CE/EMCRED(EN301 489-1V2.2.3/-3V21.1; EN300440V2.21: EN50663 | |
Environmental Requirements | EU RoHS compliant | |
Compliance Certificates | CE RED | |
Other | Input/Output (Terminal/Lead) | 24 Gauge Leads 20mm, Red, Black, White, Green |
Protection level | IP22 | |
Product Category | Class III Electrical | |
Installation Requirements | Suction + adhesive independent mounting | |
Packaging Requirements | White box + flat card + outer box (K=A) | |
Net Weight | 150g |
Functionality
Signal Detection Description: Detect people in normal working life walking, torso movement, head up, turn around and other small movements, as well as breathing signals, and to realize sleep Detection of the presence of the human body in the sleeping state.
* Motion signal: large body movements for sensing triggers.
* Micro-motion signal: the sensor detects in real time and the indicator light is always on.
* Breathing signal: In the absence of micro-motion signal, the sensor continuously detects the breathing signal and the indicator light is always on.
* Motion signal: large body movements for sensing triggers.
* Micro-motion signal: the sensor detects in real time and the indicator light is always on.
* Breathing signal: In the absence of micro-motion signal, the sensor continuously detects the breathing signal and the indicator light is always on.
Product Features
1. Algorithm for live body detection, allowing for a movement, micro-motion and breath detection, realizing true presence Sensing
2. low impedance, high gain antenna design, can effectively resist 5G, WiFi, Blu and other wireless signal interference. Wire signal interference
3. Access to Graffiti smart, no need for Graffiti gateway to realize samrt linkage.

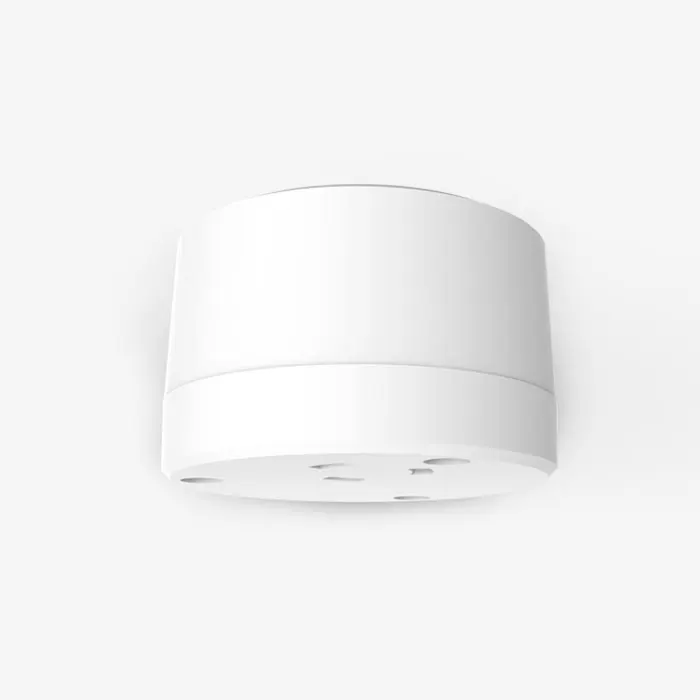

4. Ceiling mounting (magnet & adhesive)
5. Support embedded installation (need to purchase additional matching accessories)
2. low impedance, high gain antenna design, can effectively resist 5G, WiFi, Blu and other wireless signal interference. Wire signal interference
3. Access to Graffiti smart, no need for Graffiti gateway to realize samrt linkage.
4. Ceiling mounting (magnet & adhesive)
5. Support embedded installation (need to purchase additional matching accessories)
Please Contact Us For More Details!!!
Product Description

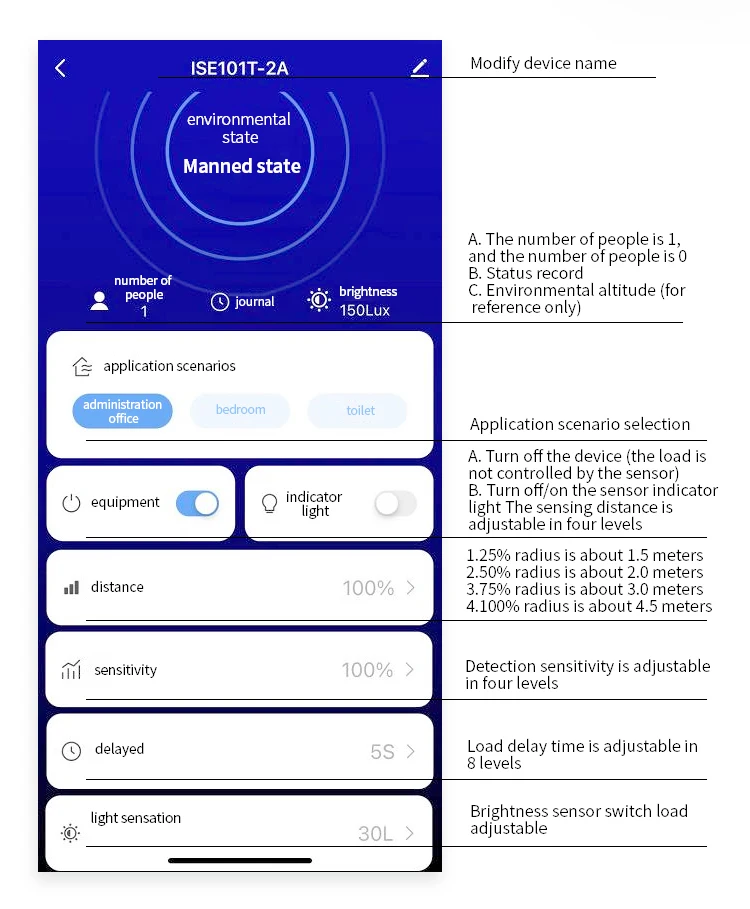

Access to TUYA Smart
1.Tuya APP download: search for "Tuya Smart" in the application market to download and install it.
2. First time use: power on the sensor, open the Doodle APP (need to open the phone Blu) to add devices, default and cell phone access The same WiFi router
3. Replace the WiFi router: Long press the signal indicator button, the indicator light flashes three times to enter the re-allocation state, at this time you can once again Add devices to configure network through Tuya APP
3. Replace the WiFi router: Long press the signal indicator button, the indicator light flashes three times to enter the re-allocation state, at this time you can once again Add devices to configure network through Tuya APP
Remarks:
1. The phone needs to open the Blu and authorization
2. You can manually change the Blu name of the device to make it easier to find it next time.
3. The distance between the cell phone and the device should not exceed 10 meters to ensure that the connection is normal.
4. After each successful setup, the sensor indicator light will flash three times.
5. After the sensor power restart, it returns to the last setting parameters.
1. The phone needs to open the Blu and authorization
2. You can manually change the Blu name of the device to make it easier to find it next time.
3. The distance between the cell phone and the device should not exceed 10 meters to ensure that the connection is normal.
4. After each successful setup, the sensor indicator light will flash three times.
5. After the sensor power restart, it returns to the last setting parameters.
