11 Inch 3/8 Tube I Type Quick Fitting Insert Water Filter Element Cartridge Replacement for Water Purifier System
- Category: >>>
- Supplier: Ningbo Leyang Electric Appliance Co. Ltd.
Share on (1601030455663):
Product Overview
Description
Products Description
Product Paramenters
Korean Quick Fitting Filter Cartridge (LY-QF-11I, 3/8″ Tube)
11 inch 3/8″ tube quick-insert water filter cartridge
* Filter cartridge:

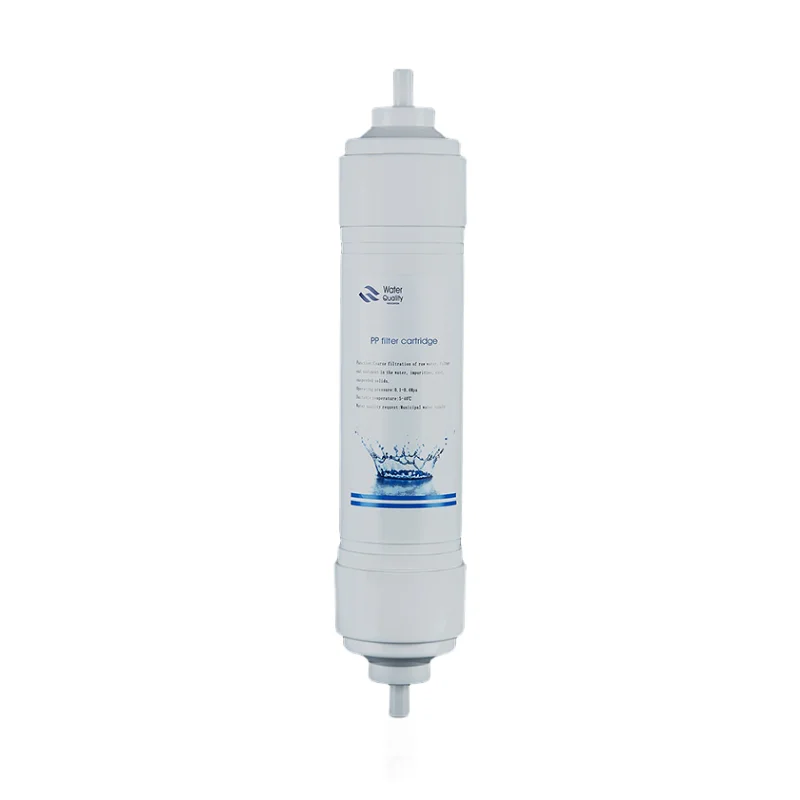

● Sediment Filter : PP, 3-6 month.
Remove impurities and pollutants such as rust, sand grains and earth.

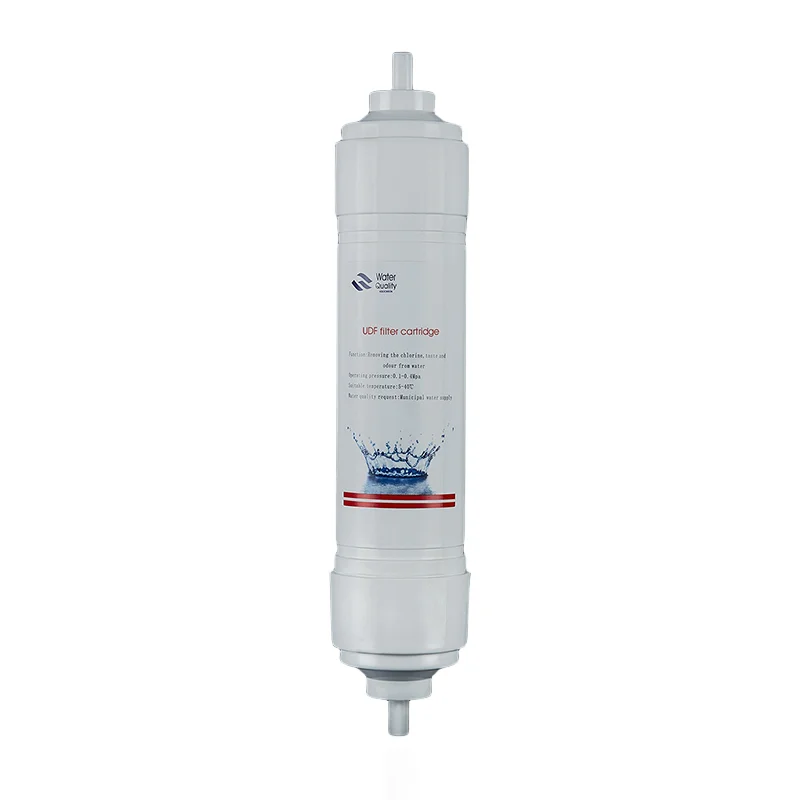

● Pre-Carbon Filter:UDF,6-9 month.
Absorb and remove residual chlorine, disinfecting byproduct, organic chemical substance,etc.

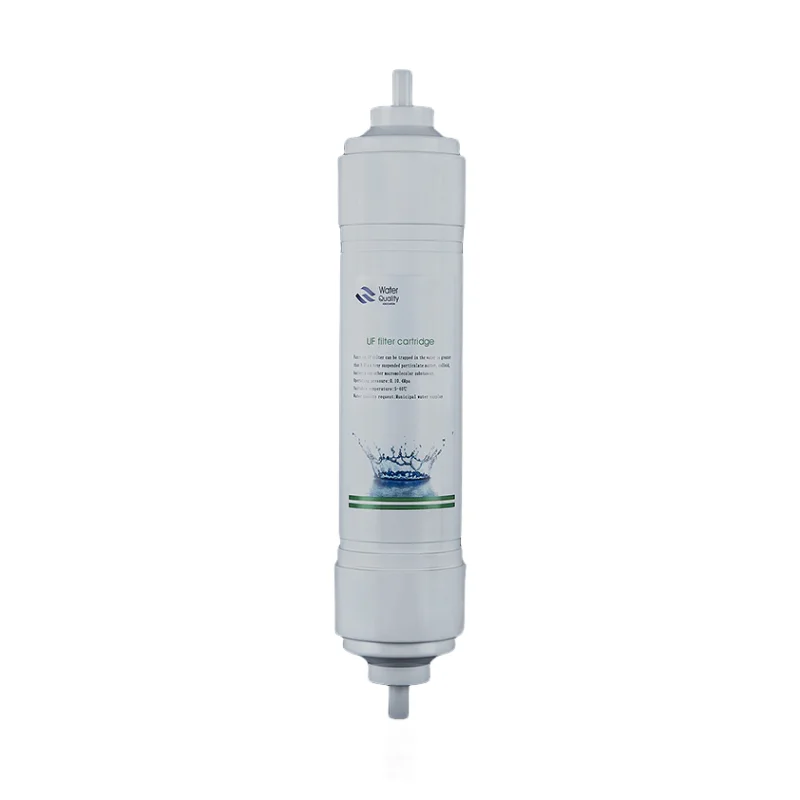

● Ultrafiltration Membrane Filter: UF, 12-18month.
Remove suspended substances, larger bacteria, escherchia coli, etc.
● Self-cleaning Ultrafiltration Membrane Filter: UF, 12-18month.
Clean the Ultrafiltration membreane. remove suspended substances, larger bacteria, escherchia coli, etc.
● Medical Filter: 9-12 month.
Absorb the heavy metal ions such as Pb, Hg, Cr, Cd, As and Organic matter, germs and other toxic and harmful substances.

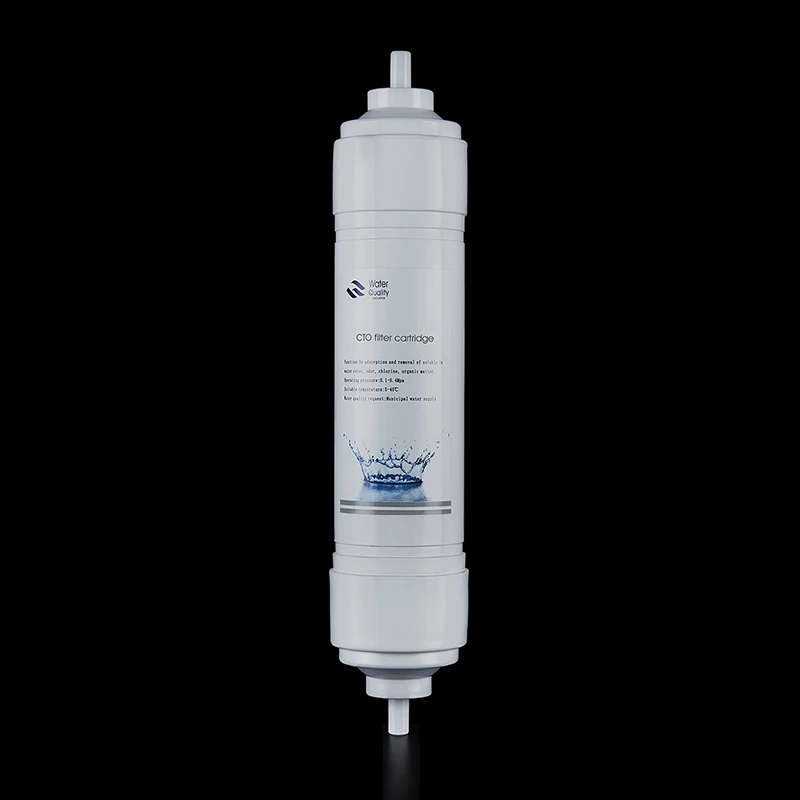

● Carbon filter: CTO 12-18 month.
Remove organic matter, particles, rust, chlorine ion, reduce odor,etc.

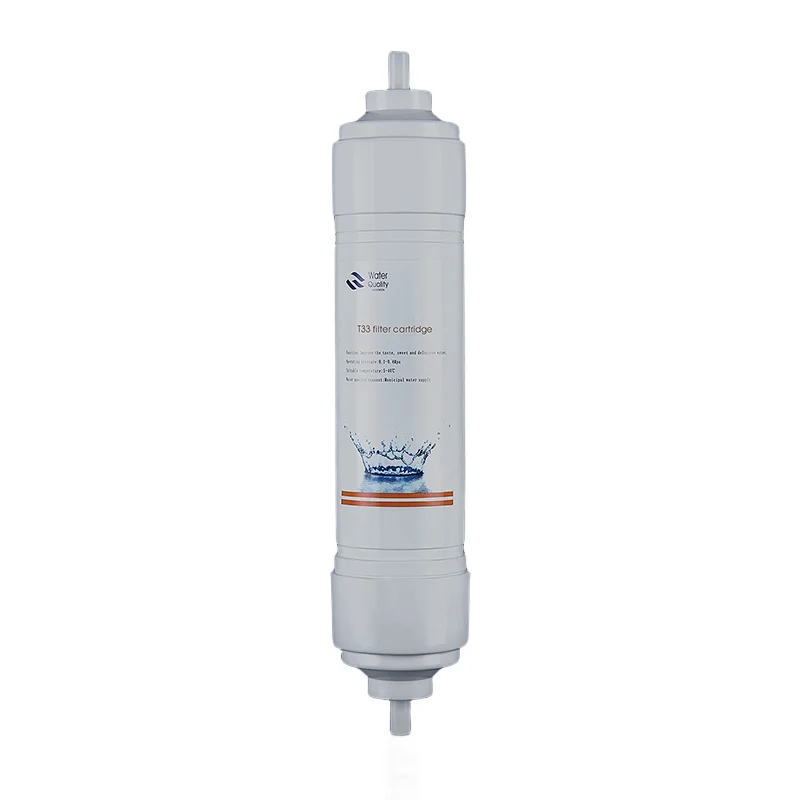

● Post carbon Filter (CTO/T33): 12-18 month.
Absorb and remove residual chlorine, disinfecting byproduct, organic chemical substance. Reduce odor.
● Reverse Osmosis Membrane Filter: RO(50G, 75G , 100G ) 18-24 month.
Remove heavy metal, Bacteria, Arsenic, Chlorine, Cadmium, Giardia, Viruses, Cyanide, other organic chemical substances or foreign
substances with molecular DIA smaller than 0.0001micron(0.1nm).
● Alkaline Filter: 9-12 month.
Reduce the water acid level, to remove excess free radicals in the human body.
● Composite Filter: 12-18 month.
Sediment + Carbon, Carbon+Membrane, Sediment+Membrane.
Remove impurities and pollutants such as rust, sand grains and earth.
● Pre-Carbon Filter:UDF,6-9 month.
Absorb and remove residual chlorine, disinfecting byproduct, organic chemical substance,etc.
● Ultrafiltration Membrane Filter: UF, 12-18month.
Remove suspended substances, larger bacteria, escherchia coli, etc.
● Self-cleaning Ultrafiltration Membrane Filter: UF, 12-18month.
Clean the Ultrafiltration membreane. remove suspended substances, larger bacteria, escherchia coli, etc.
● Medical Filter: 9-12 month.
Absorb the heavy metal ions such as Pb, Hg, Cr, Cd, As and Organic matter, germs and other toxic and harmful substances.
● Carbon filter: CTO 12-18 month.
Remove organic matter, particles, rust, chlorine ion, reduce odor,etc.
● Post carbon Filter (CTO/T33): 12-18 month.
Absorb and remove residual chlorine, disinfecting byproduct, organic chemical substance. Reduce odor.
● Reverse Osmosis Membrane Filter: RO(50G, 75G , 100G ) 18-24 month.
Remove heavy metal, Bacteria, Arsenic, Chlorine, Cadmium, Giardia, Viruses, Cyanide, other organic chemical substances or foreign
substances with molecular DIA smaller than 0.0001micron(0.1nm).
● Alkaline Filter: 9-12 month.
Reduce the water acid level, to remove excess free radicals in the human body.
● Composite Filter: 12-18 month.
Sediment + Carbon, Carbon+Membrane, Sediment+Membrane.
Working pressure: | 0.1-0.4 Mpa, If the water pressure is higher than 0.4 Mpa, then you need to install a pressure reduce value at the water inlet. | ||||||
Housing material | Food grade raw PP material | ||||||
Housing color | customizable color or transparent | ||||||
Cartridge Size | 60*281(317)mm | ||||||
Applicable water temperature | 5~38℃ | ||||||
Room temperature | 3~45℃ | ||||||
Hydraulic circulation test | NNo leakage after 100,000 times water hummer test at 0~0.8MPa | ||||||
Bursting pressure | ≥2.8MPa for 6’s (whole filter, including internal filter material) | ||||||
Sealability | No leakage at the housing and the welding part for 15min at 1.5MPa water pressure | ||||||
Hygienic safety requirement | In accordance with “Standard for Hygienic Safety Evaluation of Equipment and Protective Materials in Drinking Water” (2001) | ||||||
OEM | available, Including OEM sticker and OEM packaging. | ||||||
Packaging
* Packing: Exported Standard Carton Box or Customizable Packing
* Packing Size: 40pcs/Ctn , 52×34.5×33.5cm
* Loading Quantity: 20’GP: 19600PCS(490Ctns) 40HQ:42160PCS(1054Ctns)
* Packing Size: 40pcs/Ctn , 52×34.5×33.5cm
* Loading Quantity: 20’GP: 19600PCS(490Ctns) 40HQ:42160PCS(1054Ctns)
