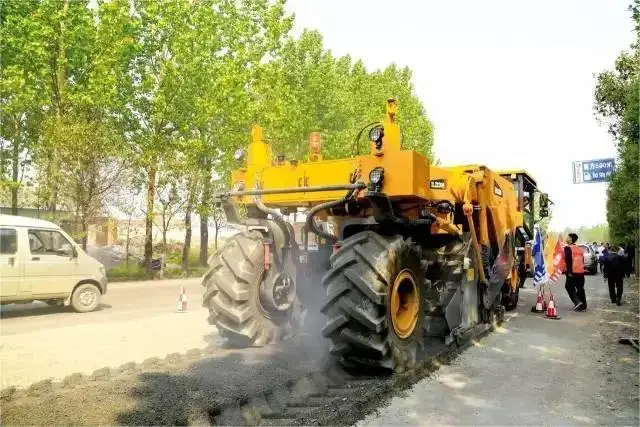

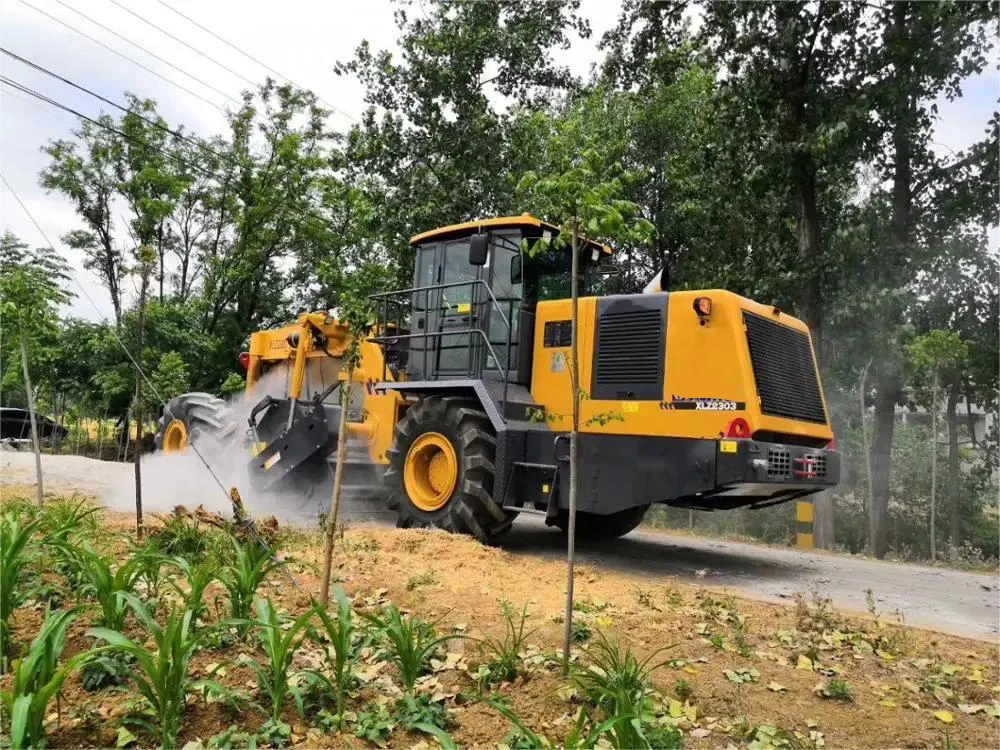

XLZ2303S Asphalt Road Construction Pavement Cold Recycler
- Category: >>>
- Supplier: Anhui Heavy And Light Industries International Co. Ltd.
Share on (1601030463281):
Product Overview
Description
Product Description
Specification

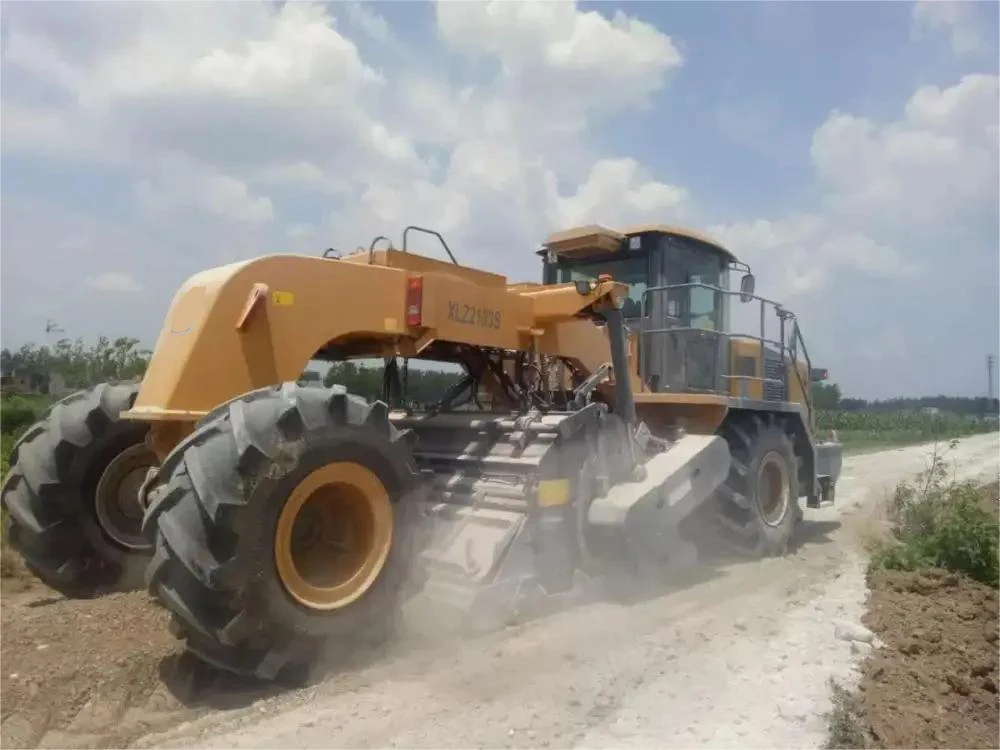

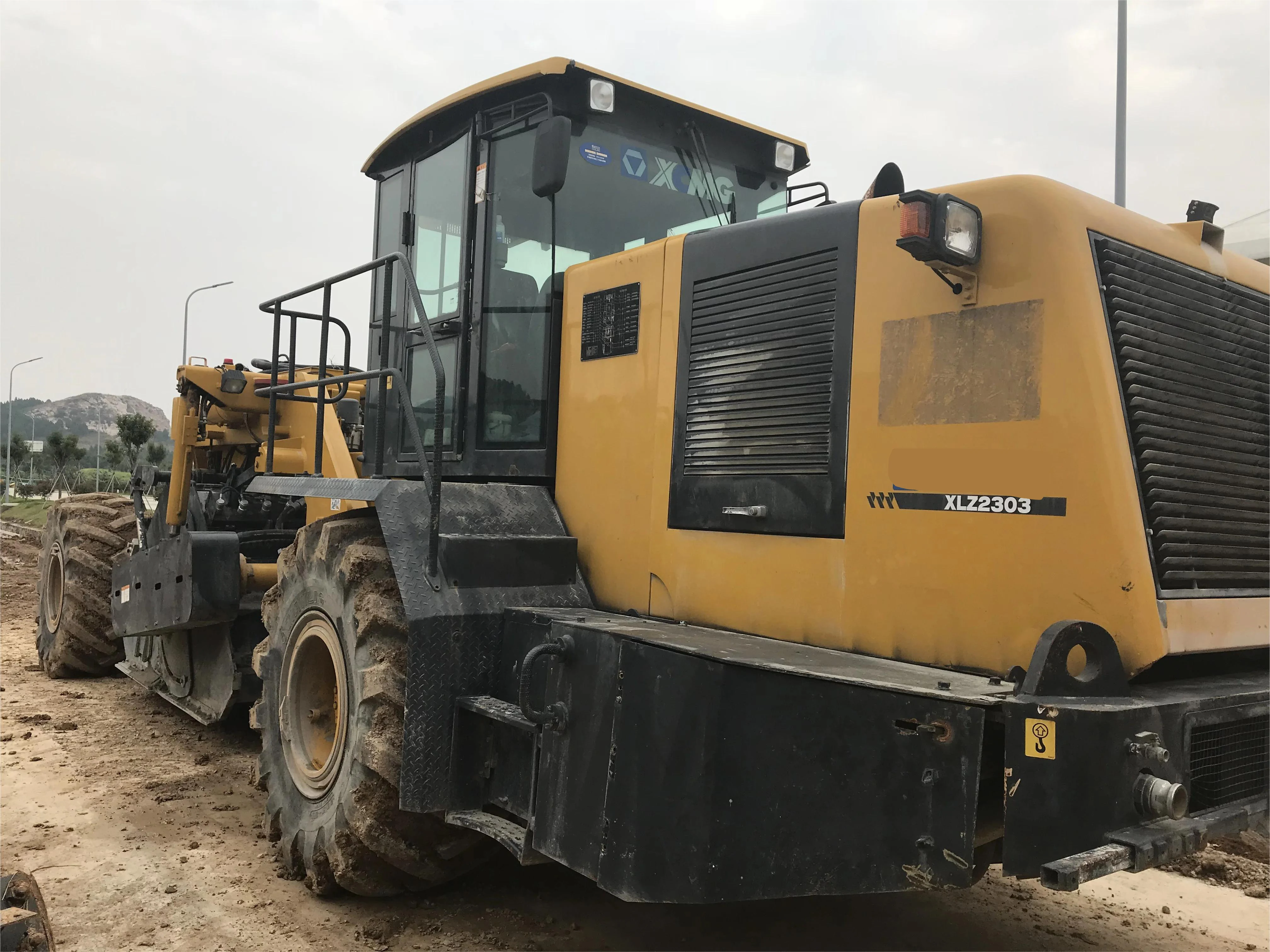

project | Unit | XLZ2103S | XLZ2303S | XLZ2303K | XLZ2303 |
Engine manufacturer | - | Weichai | Weichai | Weichai | Cummins |
rated power | kW | 353 | 390 | 515 | 447 |
Rated speed | rpm | 2100 | 2100 | 2100 | 2100 |
Maximum milling width | mm | 2100 | 2300 | 2300 | 2300 |
Maximum milling depth | mm | 400 | 400 | 430 | 400 |
Number of tools | - | 144 | 162 | 200 | 184 |
Milling wheel diameter with cutter | mm | 1380 | 1380 | 1480 | 1380 |
working weight | kg | 21300 | 26500 | 33500 | 29500 |
Mechanical length×width×height | mm | 9232×3262×3450 | 9232×3262×3450 | 9340×3218×3197 | 10193×3161×3450 |

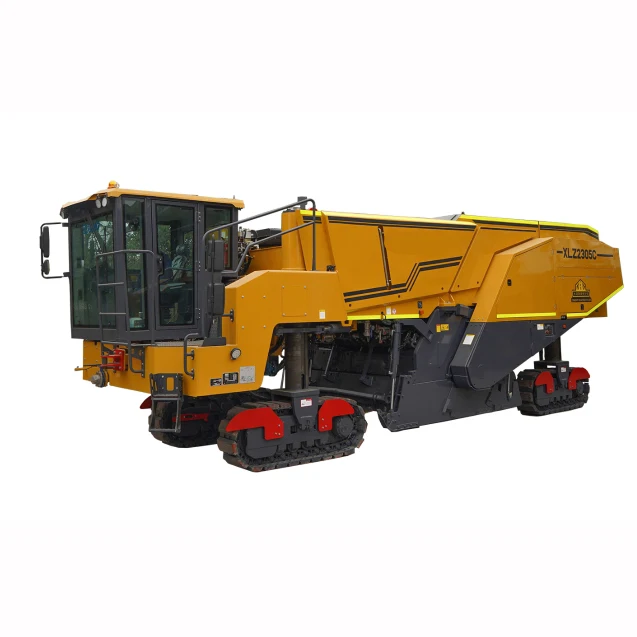

project | Unit | XLZ2305C | XLZ3805R | XLZ2305K |
Engine manufacturer | - | Caterpillar | Cummins | Perkins/Caterpillar |
rated power | kW | 571 | 708 | 571/570.5 |
Rated speed | rpm | 2100 | 2100 | 2100 |
Maximum milling width | mm | 2300 | 3800 | 2300 |
Maximum milling depth | mm | 330 | 350 | 430 |
Number of tools | - | 142 | 288 | 200 |
Milling wheel diameter with cutter | mm | 1320 | 1140 | 1480 |
working weight | kg | 44000 | 53000 | 33500 |
Mechanical length×width×height | mm | 9800×3000×3100 | 17540×4500×4100 | 9340×3218×3197 |
Recommend Products
Company Profile
FAQ
1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted | ||||||||
2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC, | ||||||||
3: What about the delivery time? A: 7-20 days after receiving the deposit. | ||||||||
4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. | ||||||||
5. What about the Minimum Order Quantity? A: The MOQ is 1 pcs | ||||||||
