TTA drone camera module long distance transmitter for FPV drone heavy lift racing drone
- Category: >>>
- Supplier: Beijing TT Aviation Technology Co. Ltd.
Share on (1601030468979):
Product Overview
Description

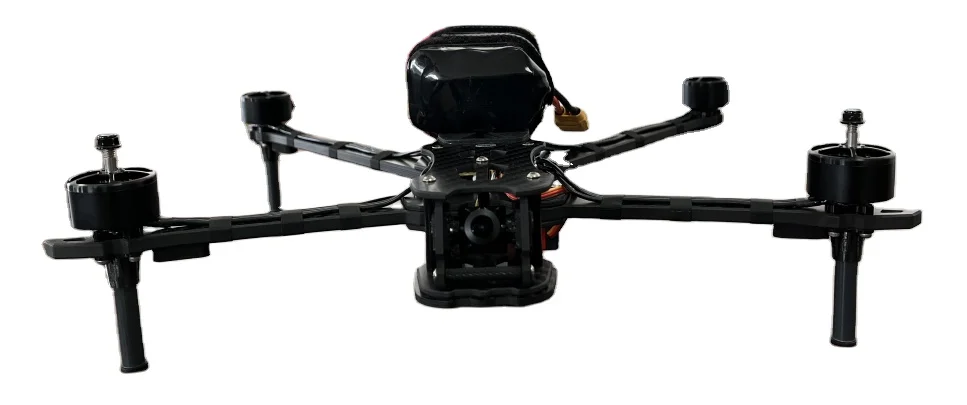

Racing drone-TTA MC-GP-GP7
TTA MC-GP-GP7 and MC-GP-GP7 PRO are two models for pilot training, competition, small parcel delivery, which has the advantage, smart, stable, easy operating.
Racing drone is divided into two types: integrated and split, with different materials having their own advantages and
disadvantages. Common frames include carbon fiber board with a metal shell.
disadvantages. Common frames include carbon fiber board with a metal shell.
The main advantages of an integrated system are easy installation, high degree of integration, and more suitable for track flight.
In addition, it can be divided into types such as positive X, long X, and irregular according to the layout of the rack arm.
According to the battery placement method, it can be divided into upper battery rack and lower battery machine.
According to the battery placement method, it can be divided into upper battery rack and lower battery machine.
Model | MC-GP-GP7 | Antenna | 5.8G | ||
Wheelbase | 295mm | Camera | H1 | ||
ESC | 50A ESC | Motor | 2807 1350KV | ||
Image Transmission | 1.6W | Propeller | 7040 | ||
Maximum Wind Resistance Rating | Level 7 | Receiver | Elrs915 | ||
Payload | 1.5kg | Work Temperature | -10°C-40°C | ||
Recommended Battery | 3300mAh-4400mAh 6S XT60 plug | Flying Time | 7minutes | ||
* Features:
* 1.High efficiency motor, takeoff load weight of about 1.5kg
* 2.The first visual flight experience, precision flight
* 3.Maximum flight altitude of 5000 meters
* 1.High efficiency motor, takeoff load weight of about 1.5kg
* 2.The first visual flight experience, precision flight
* 3.Maximum flight altitude of 5000 meters
Model | MC-GP-GP7 PRO | Antenna | 5.8G | ||
Wheelbase | 435mm | Camera | H1 | ||
ESC | 60A ESC | Motor | E3115 900KV | ||
Image Transmission | RAD 2.5W | Propeller | HQ 1045 | ||
Maximum Wind Resistance Rating | Level 8 | Receiver | Elrs915 | ||
Payload | 3kg | Work Temperature | -10°C-40°C | ||
Recommended Battery | 6S 6000mAh-10000mAh XT90 plug | Flying Time | 10minutes | ||
* Features:
* 1.Newly designed 10-inch large rack to increase flight stability
* 2.High efficiency motor, takeoff load weight of about 3kg, maximum load of 4KG
* 3.Super long battery compartment
* 4.The first visual flight experience, precision flight
* 5.Maximum flight height 1000m
* 1.Newly designed 10-inch large rack to increase flight stability
* 2.High efficiency motor, takeoff load weight of about 3kg, maximum load of 4KG
* 3.Super long battery compartment
* 4.The first visual flight experience, precision flight
* 5.Maximum flight height 1000m
Packing List
1 x MARK4 7-inch Analog FPV
4 x Gemfan 7037-3(pair）
2 x M20*250mm Battery straps
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x M5 Wrench
4 x Gemfan 7037-3(pair）
2 x M20*250mm Battery straps
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x M5 Wrench
Application
This model is smart, easy operating widely using in education, pilot training.
