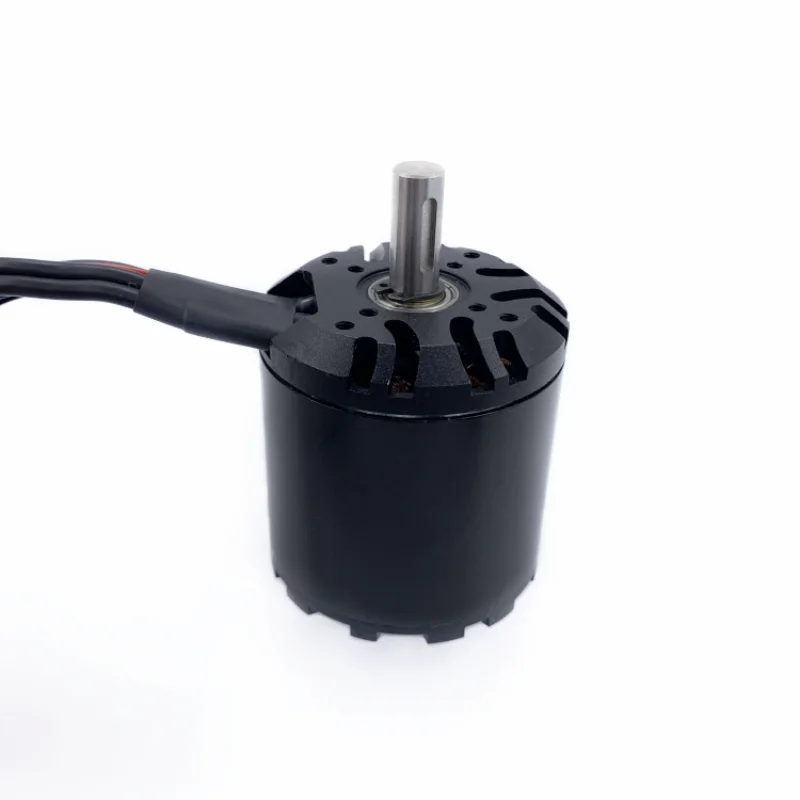

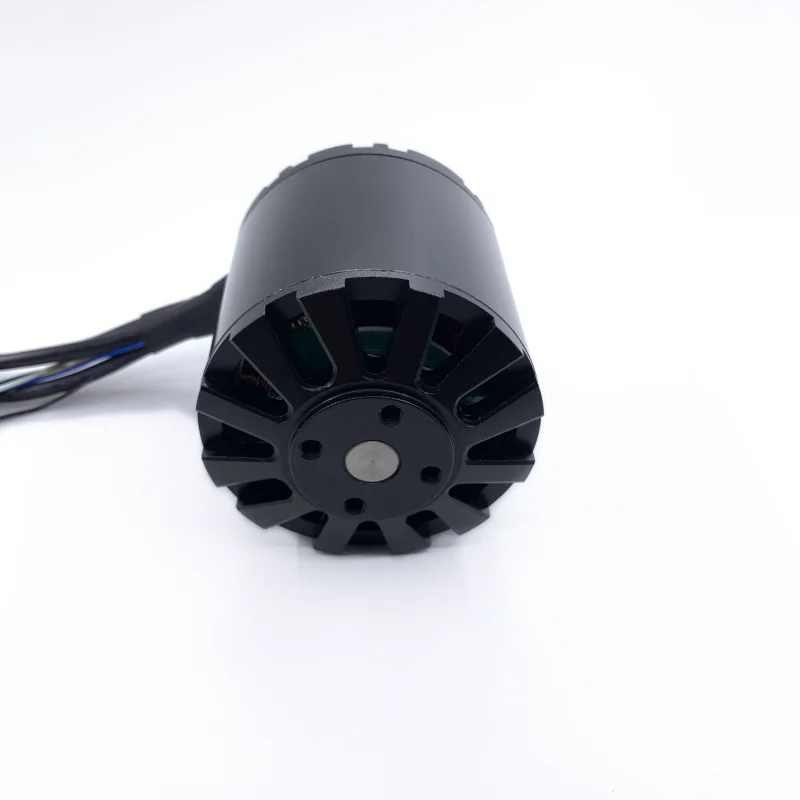

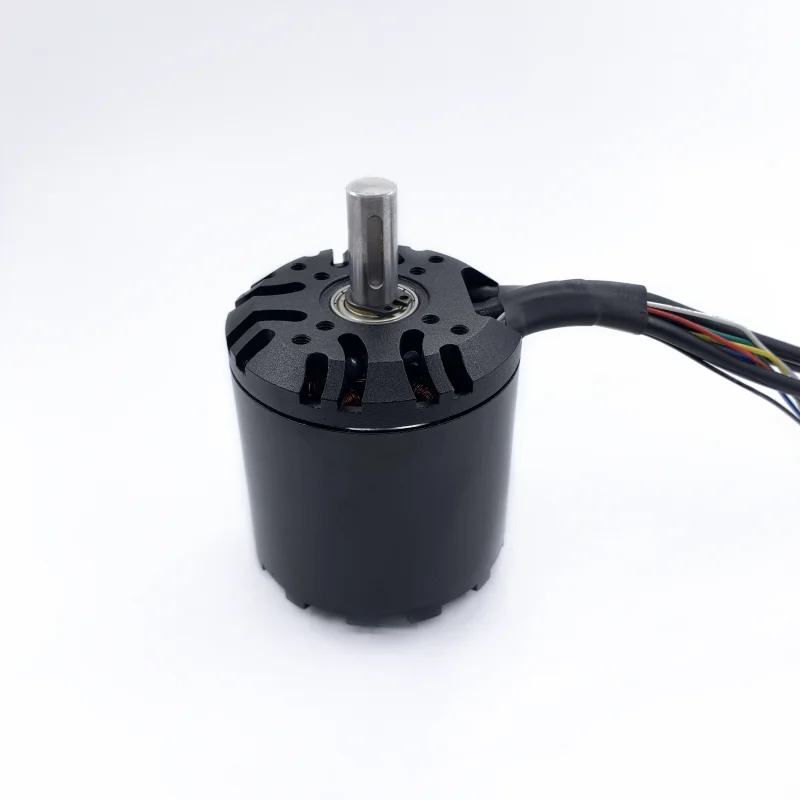

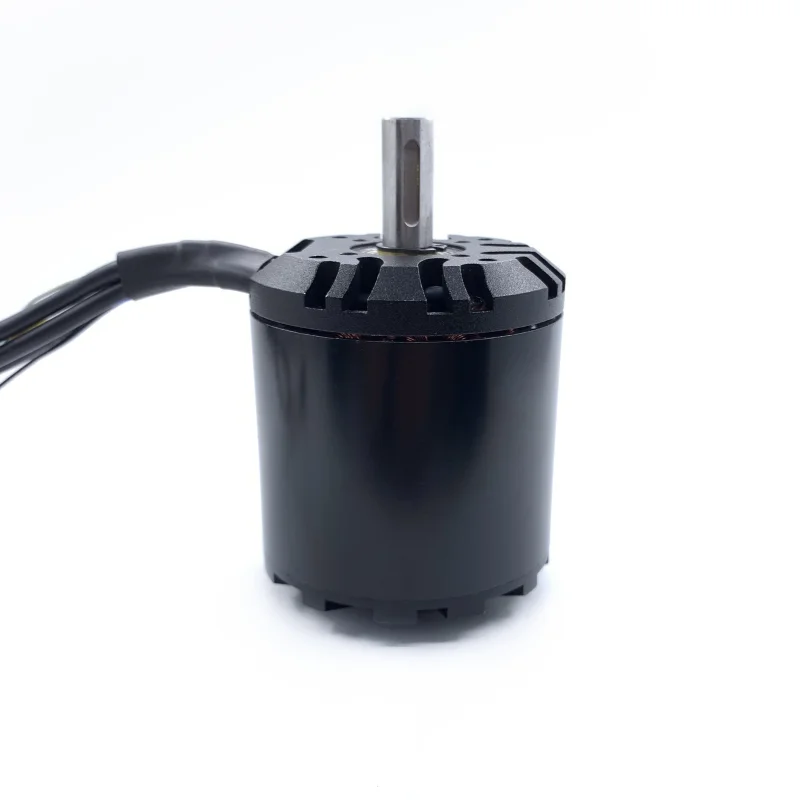

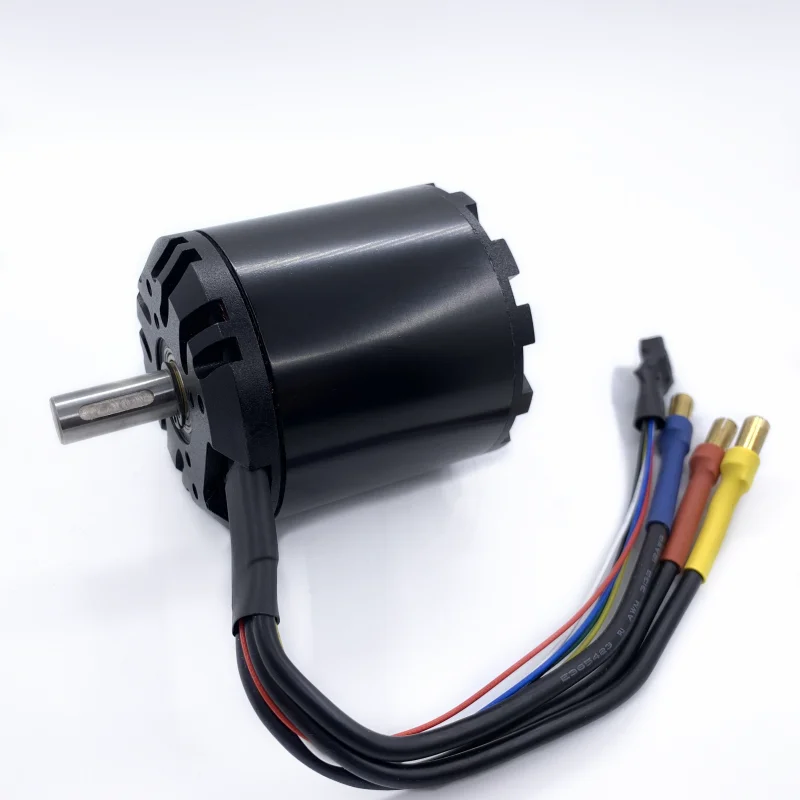

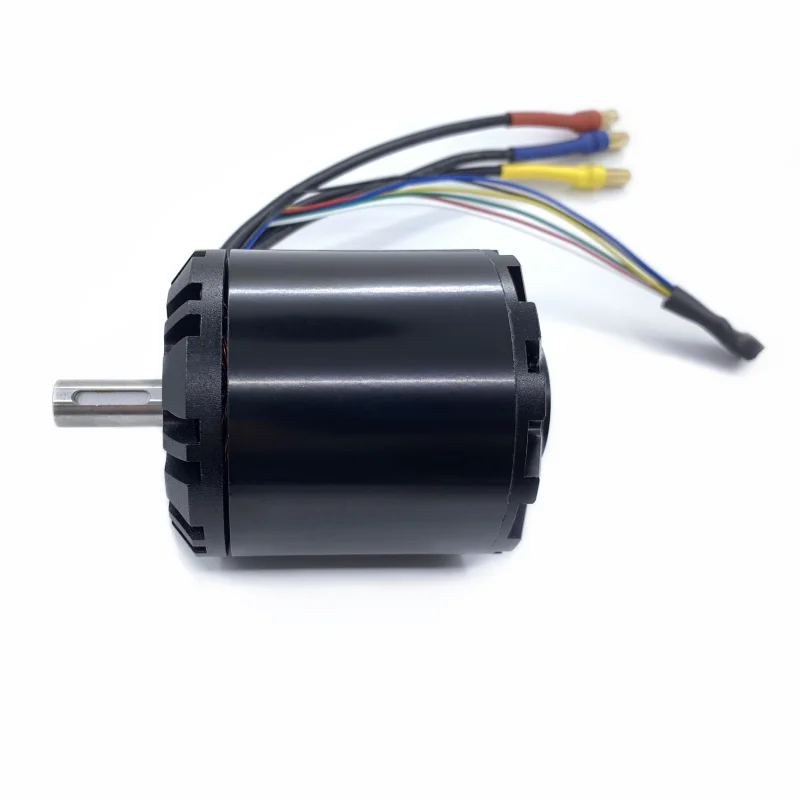

Powerful 6374 hall sensor bldc motor 130kv 170kv sensored brushless motor for electric skateboard and combat robot

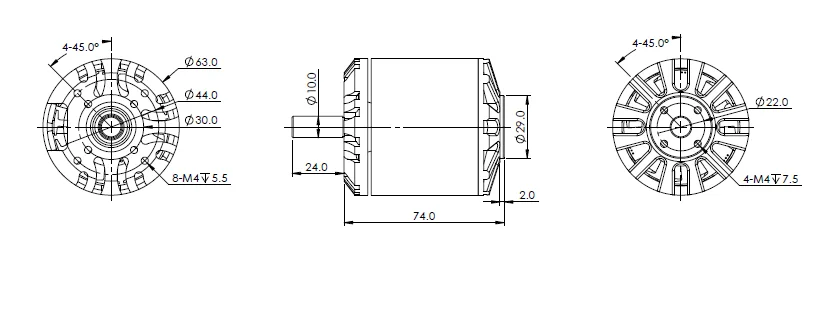

Dimension Drawing:

Product Specs:

• Model: 6374 sensored


• Max Power: 3000W


• Max Current: 83A


• Max Volt: 12S


• Motor Resistance: 0.033Ohm


• Weight: 850g


• Motor diameter: 63mm


• Motor length: 74mm


• Shaft: 10mm with 3x1.5x15mm keyway, 24mm length


• Stator slots: 12


• Magnets pole: 14

Product Feature:

• Internal PCB with 120 degree hall sensors


• Motor can be work both sensored and sensorless mode


• 14 / 12 AWG silicone wires


• 4.0mm / 5.5mm bullet connectors


• JST ZH1.5mm 6pin male connector, JST PH2.0mm hall cable

Package Include:

1x 6374 sensored motor

1x JST PH2.0mm 6 pin hall cable

Recommanded Controller:

120-150A ESC; 60A-100A VESC

We can provide different KV for customers, let us know if you don't find the KV you want.

 1. Each motor pack in white box.

 2. All motors pre solder with bullet male connectors

 3. Shipping method can be Express; Air freight and SEA

 4. Tracking number will be send to you after ship out of the products

Payment and Shipping

1.We accept T/T and paypal payment, you can choose your prefer and if you want other payment method please feel free to contact us.

2. Big quantity order please contact us for the shipping time. Normal sample can be delivered in 3 business days after the full payment confirmed. OEM product it depends on the situation.

3.DHL,UPS,EMS etc is optional. We can recommend you the express method depends on your country, or you can choose your prefer. If you have your own shipping angency is also workable.

4.About the shipping time,it is different that will depend on your country and the express selected.
