Mix various additives and Base Oil Blending Machine
- Category: >>>
- Supplier: Chongqing Yuneng Oil-Filter Manufacturing Co. Ltd.
Share on (1601030503273):
Product Overview
Description
Mix various additives and Base Oil Blending Machine
Product Description
I.Mix various additives and Base Oil Blending Machine
Introduction
Mix various additives and Base Oil Blending Machine is the last important step in lubricating oil making. This YNZSY-JB equipment can put base oil and kinds of additives into the blending tank with certain proportion and order by vacuum reverse-absorption. It mixes base oil with additives by blender while recycling by pumps. With help of Lube Oil Blending Plant, final lubricating oil is good at viscosity, low-temperature nature, pour point, anti-oxidation in higher temperature, stability and flash point.
II.Mix various additives and Base Oil Blending Machine
Technical Parameter
Name:With Additives Lube Oil Blending Machine | Qty (set): | ||||
Site: indoor use | Model: YNZSY-JB250 | ||||
Item | Techniques | Remarks | |||
Medium | Main component | Base oil, additives |
| ||
Ambient temp. | 0—45℃ | ||||
Performance parameter | Working temp. | 40℃—150℃ | |||
Capacity | 250L/Batch | ||||
Pressure loss | ≤0.05Mpa | ||||
Vacuum degree | -0.06MPa— -0.095MPa | ||||
Blending method | Mechanical blending + recycling by pumps | ||||
Structure | Combined | ||||
Material | Spare parts | Raw material from supplier | |||
Pipes | Q235A | ||||
other Material | Q235A | ||||
others | Base oil/additives input method | Feeding additives automatically + weigh or metering automatically | |||
Mean Time Between Failure | ≥3000H | ||||
III. Mix various additives and Base Oil Blending Machine
program
1 . main parts of the product
(1) Mixing tank
Loading capacity:250L ( for other loading capacity, please contact me for more information)
(2) Circulating pumping pump
(3) Heater
(4) Heat-transfer oil pump
(5) Weighing system
(6) Vacuum system
(7) Electronic control system
(8) Mechanical stirring type
2. Working environment
environment temperature: 0℃ to +45℃
Power source: At buyer’s option
Control mode: Automatic program control + manual control
3 Electronic control system
(1)Panel display: Loading capacity; Operating Temperature Status display; Operation mode; Operating state; Running time
(2)Fault Alarm or machine halt: Motor Overload; Fan Motor Overload; motor reverse(APRS Phase inversion controller); control power failure
(1)The equipment is a combination type,composed of mixing tank, frame and additives containing box.
(2)Equipped with a gas condensing unit
(3)When the liquid level in the mixing tank goes beyond security level, the machine will alarm in time.
(4)Equipped with a oil outlet pump

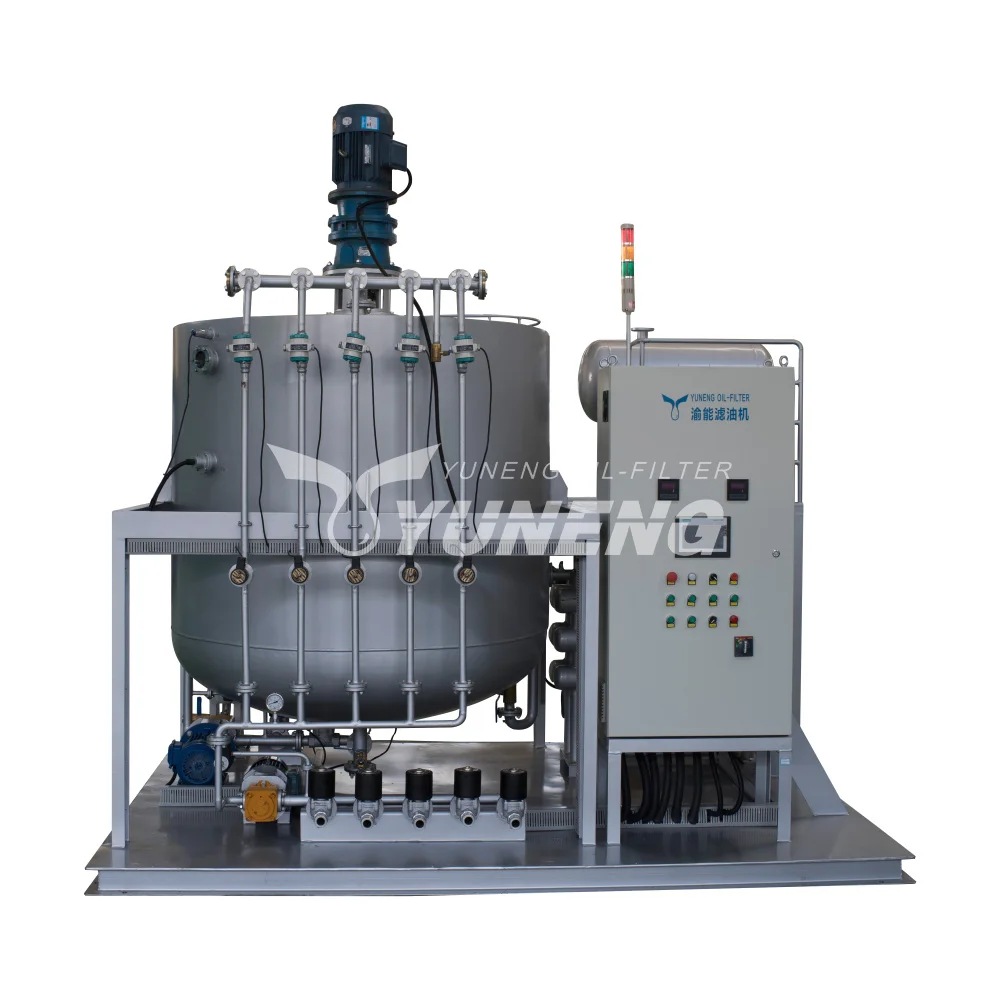

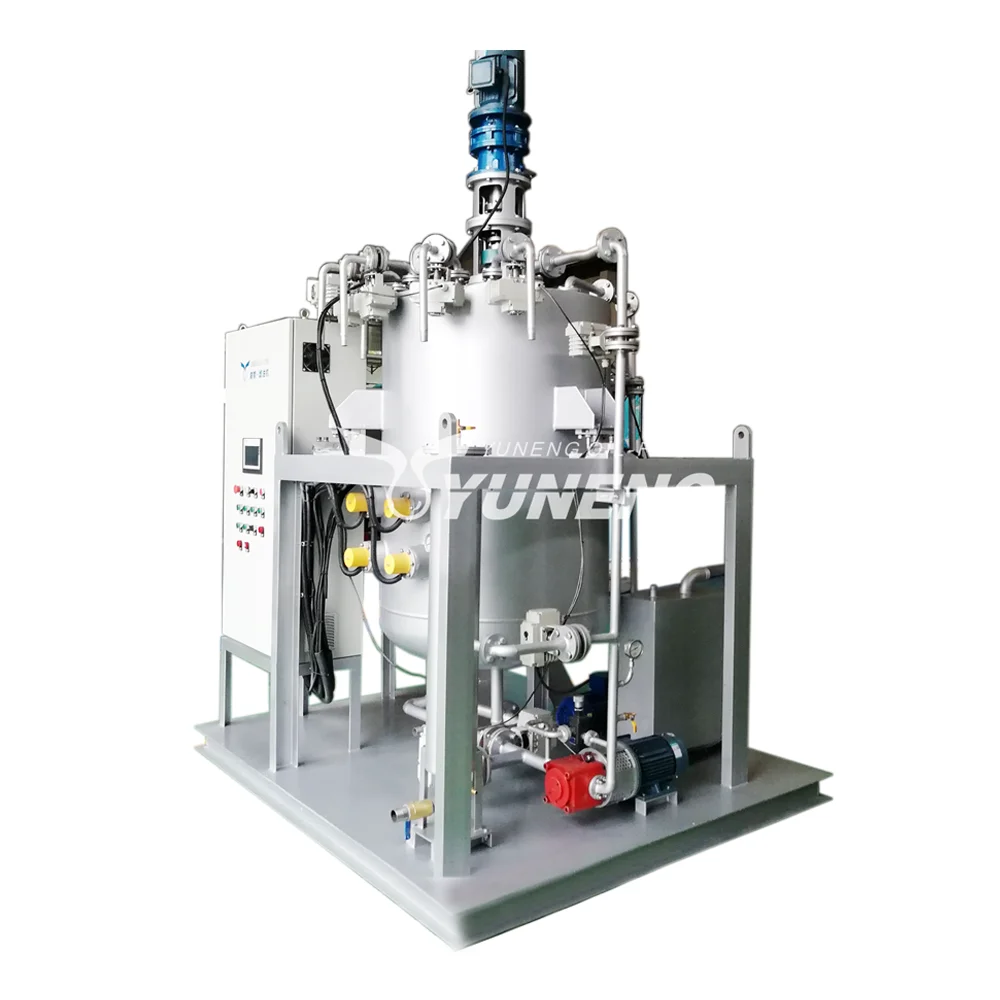

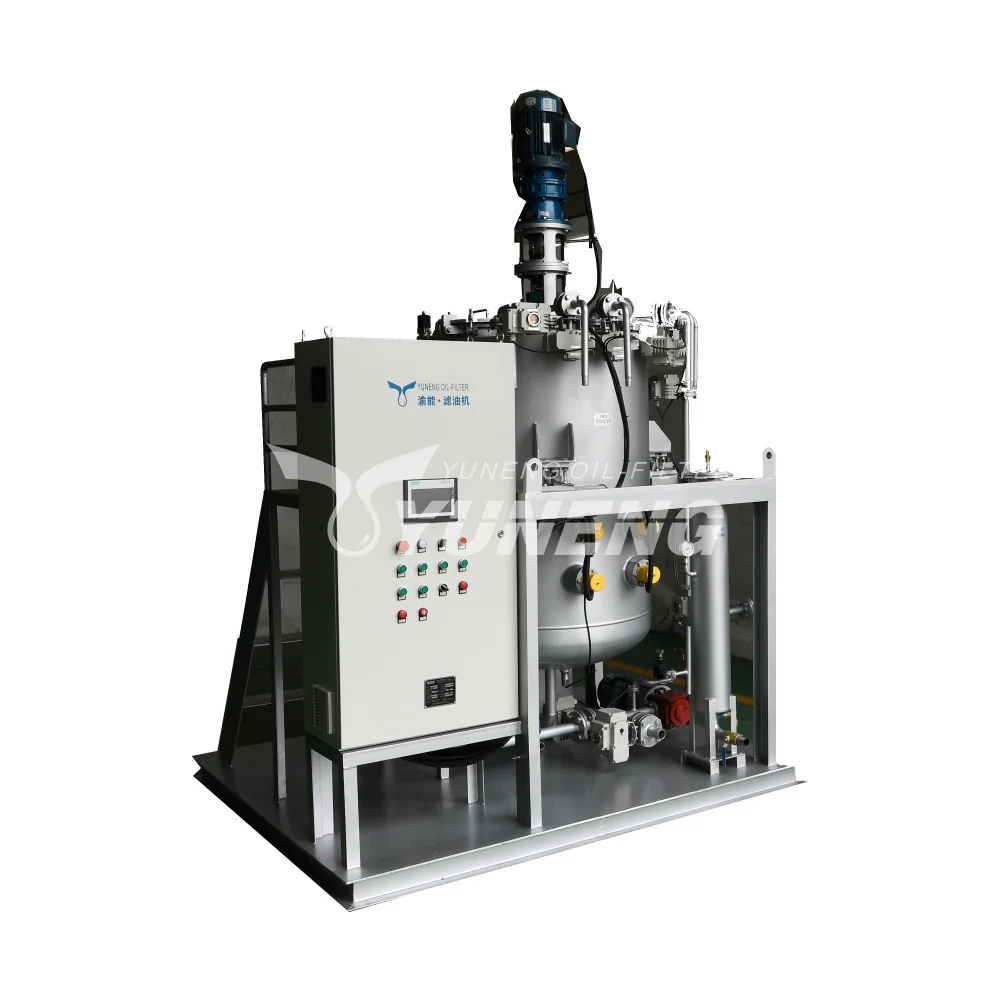

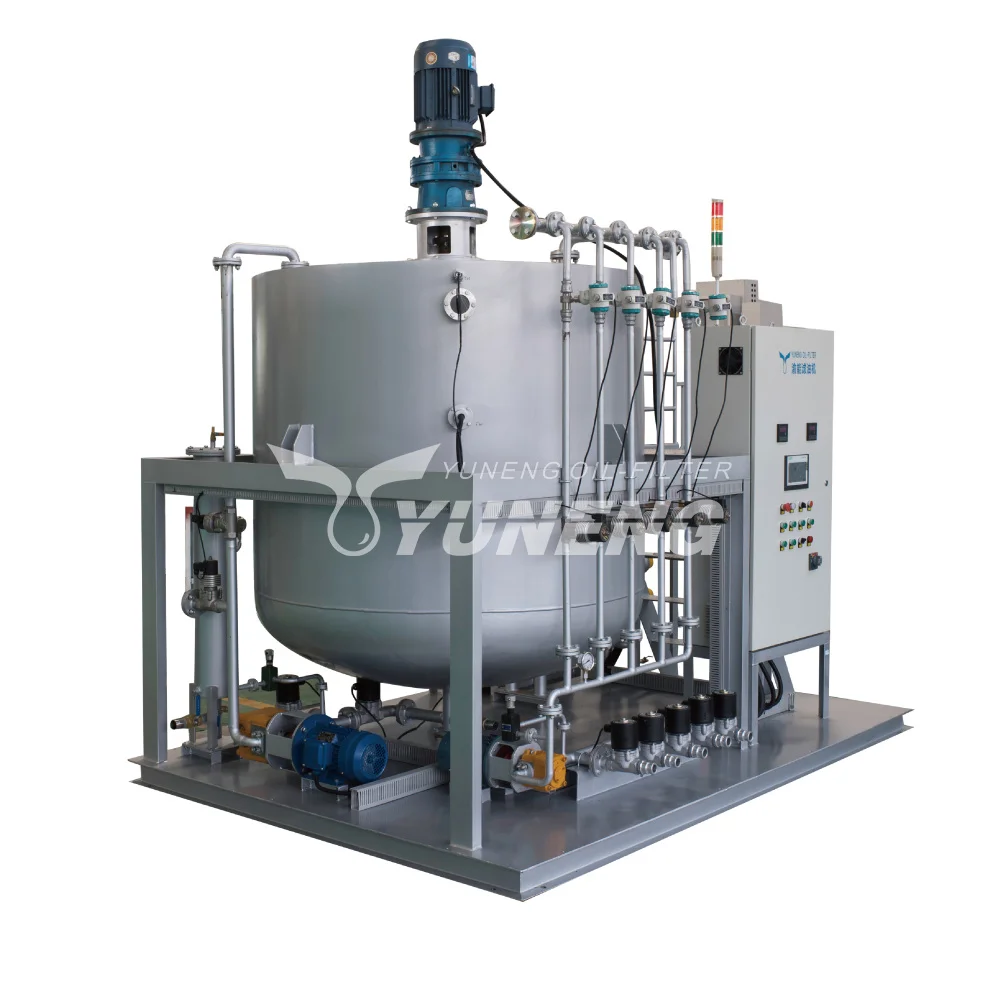

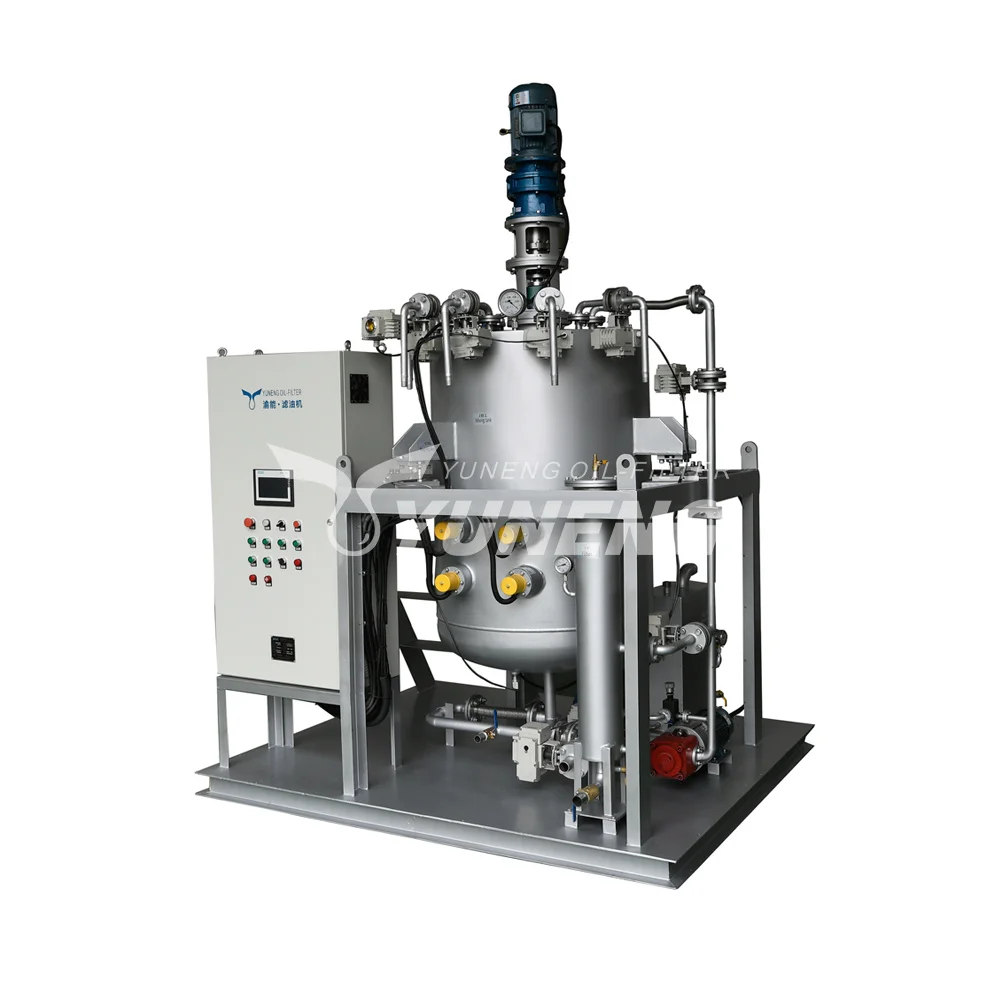

Mix various additives and Base Oil Blending Machine Photo for reference:
Packaging & Shipping
| Packaging | |
| Packaging Details | The normal package is wooden box. If export to foreign countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
YUNENG Introduction
Founded in 1997, our company Yuneng has been specialized in designing and manufacturing a series of oil purifier for nearly 20 years, such as transformer oil purifier, air pumping unit, dry air generator, turbine oil purifier, lubricating oil purifier, fire-resistance oil purifier, (EHC oil) , waste oil regeneration machine and etc. The proud history makes Yuneng top supplier in oil purification field in China.
We are also the supplier of the Big Transformer Company TBEA in India, hope we could also be your supplier in the near future.
If you are interested in our products, please get back to me for more details.Thank you.
Our Services
Our products warranty: One year guarantee for product quality. (People damaged parts should be charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
On site staff training for installation and operation of the machine is available.
FAQ
1. Installation service:
There are three ways for arranging installation.
1). The customers can install the machine by themselves. We'll do the debugging on site before shipment and attach the detailed operation manual with the machine,so normally the installation is done by the customers.
2) You can come to our factory before shipment. On the one side, you can inspect the machine before shipping; On the other side, you can receive a free training course at our factory.
3) If you need us to send our engineer to service oversea, please contact us for more details.
2. Certificates
CE,ISO,SGS
3. Contact information
We supply wide range of oil recycling machines. If you have any requirements about used oil recycling machine, please let me know any time.
Yuneng products list:
1. Insulation Oil filtration machine:
ZJA Ultra-high Transformer / Insulation Oil filtration machine (1000KV, ±800KV, 750KV, ±660KV project) (2 stage vacuum)
ZJA High-vacuum Transformer / Insulation Oil filtration machine (110KV-500KV project)) (2 stage vacuum)
ZJB Transformer / Insulation Oil filtration machine (≤110KV) (one stage vacuum)
TORS Transformer Oil Regeneration Machine
ZJ Vacuum Pumping machine (extract vacuum, dry transformer)
GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).
JZ OLTC (on-load tap changer) online Oil filtration machine
Quantitative oil injection machine (customized product)
2. Turbine Oil filtration machine:
JT coalescing dehydration oil filtration machine (dehydration by special filters)
DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)
ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)
3. Lubricating Oil filtration machine:
ZJC-R vacuum Oil filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)
ZJC-M Oil filtration machine for OCS. (oil with high viscosity 100-320cst at 40℃)
4. Other kinds of oil filtration machine:
KYJ fire-resistance oil filtration machine (EHC oil)
LY plate-frame pressure oil filtration machine (simple, paper filtration)
YL mobile oil filtration machine (simple, cheap)
5. Waste oil regeneration machine (by chemicals or by high temperature distillation)
YNZSY used oil filtration machine (by chemicals)
YNZSY-LTY used tire oil filtration machine (by chemicals)
Waste oil distillation machine
6. For Oil Production Engine Oil Blending Plant
7. Oil tester/ analyzer:
Dielectric oil breakdown strength tester
Water content tester
Inline Digital Flow Meter and Totalizer
Viscosity analyzer
Flash point analyzer (close cup)
Flash point analyzer (open cup)
Interfacial tension analyzer
Gas chromatograph
