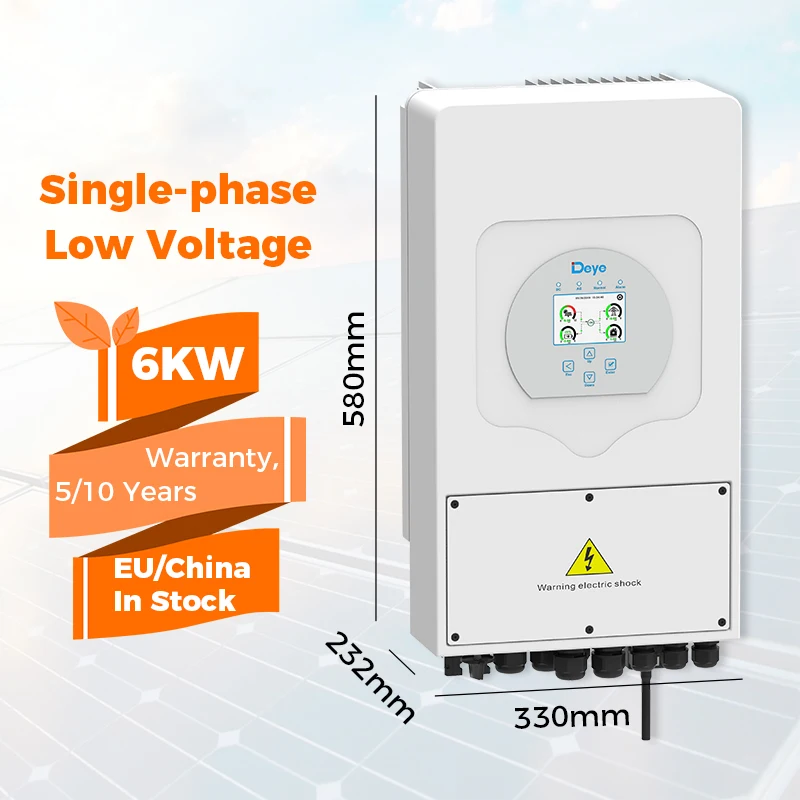

EU STOCK Warehouse 12kw 3 phase SUN 12K SG04LP3 EU Deye hybrid inverter 5KW 6KW 8KW 10KW home solar energy system Wechselrichter
- Category: >>>
- Supplier: Ningbo Dcloud Information Technology Co. Ltd.
Share on (1601030505151):
Product Overview
Description
Products Description

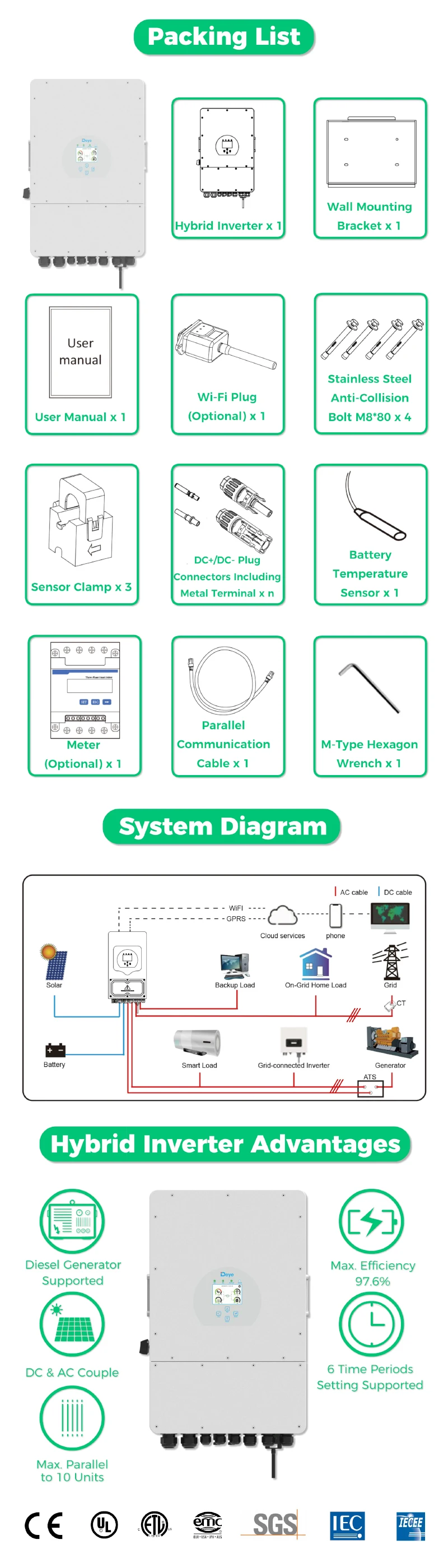

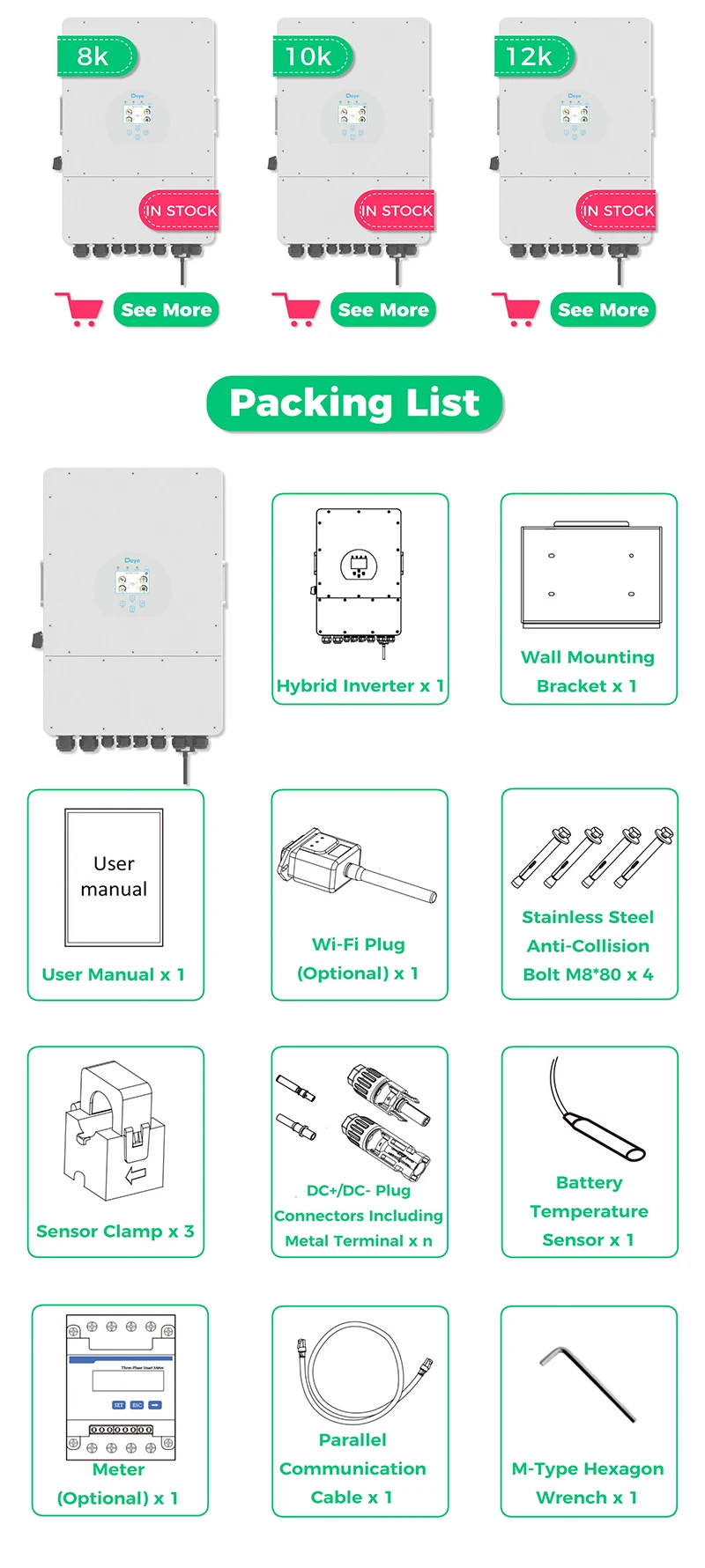

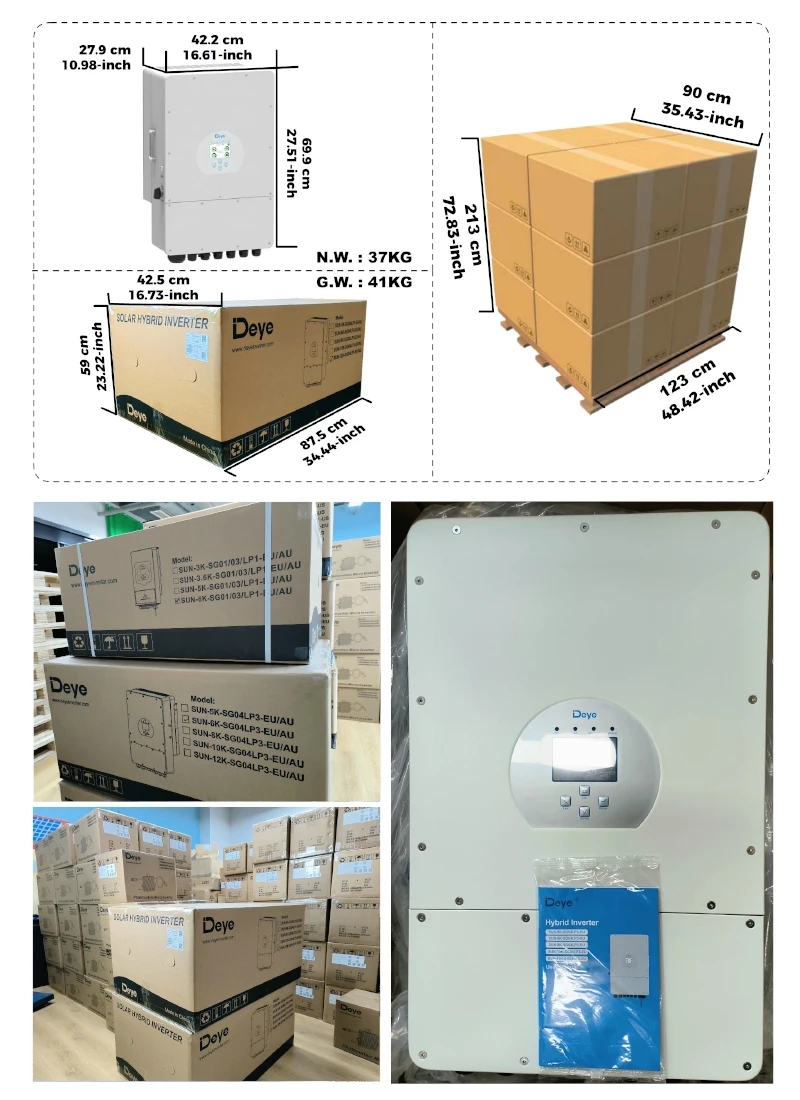

Product Packaging
Product Paramenters
Model | SUN-8K-SG04LP3-EU/AU | SUN-10K-SG04LP3-EU/AU | SUN-12K-SG04LP3-EU/AU | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Lithium-ion | |||||
Battery Voltage Range (V) | 40~60V | |||||
Max. Charging Current (A) | 190A | 210A | 240A | |||
Max. Discharging Current (A) | 190A | 210A | 240A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | YES | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 10400W | 13000W | 15600W | |||
PV Input Voltage (V) | 550V (150V~800V) | |||||
MPPT Range (V) | 200V-650V | |||||
Start-up Voltage (V) | 160V | |||||
PV Input Current (A) | 13A+13A | 26A+13A | 26A+13A | |||
No.of MPPT Trackers | 2 | |||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | 2+1 | |||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W | |||
Max. AC Output Power (W) | 8800W | 11000W | 13200W | |||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 12A | 15A | 18A | |||
Max. AC Current (A | 18A | 25A | 36.7A / 38.5A | |||
Max. Continuous AC Passthrough (A) | 18A | 23A | 27A | |||
Max. Continuous AC Passthrough (A) | 50A | |||||
Output Frequency and Voltage | 50/60Hz; 230/400Vac (Three phase) | |||||
Grid Type | Three Phase | |||||
Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |||||
Efficiency | ||||||
Max. Efficiency | 97.60% | |||||
Euro Efficiency | 97.00% | |||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
PV Input Lightning Protection | Integrated | |||||
Anti-islanding Protection | Integrated | |||||
PV String Input Reverse Polarity Protection | Integrated | |||||
Insulation Resistor Detection | Integrated | |||||
Residual Current Monitoring Unit | Integrated | |||||
Output Over Current Protection | Integrated | |||||
Output Shorted Protection | Integrated | |||||
Output Over Voltage Protection | Integrated | |||||
Surge protection | DC Type II / AC Type II | |||||
Certifications and Standards | ||||||
Grid Connection Standard | EC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | |||||
Safety EMC / Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | |||||
General Data | ||||||
Operating Temperature Range (℃) | -25~60℃, >45℃ Derating | |||||
Cooling | Smart cooling | |||||
Noise (dB) | <45dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 36.8 | |||||
Size (mm) | 422W×658H×281D | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 years | |||||
Company Profile
We have established long term strategic partnershipswith the following brands: Deye, Goodwe, Solis,Growatt, SRNE, SMA, Hoymiles,MUST, HUAWEl, etc
FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders,dates may vary depending on quantity.
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders,dates may vary depending on quantity.
