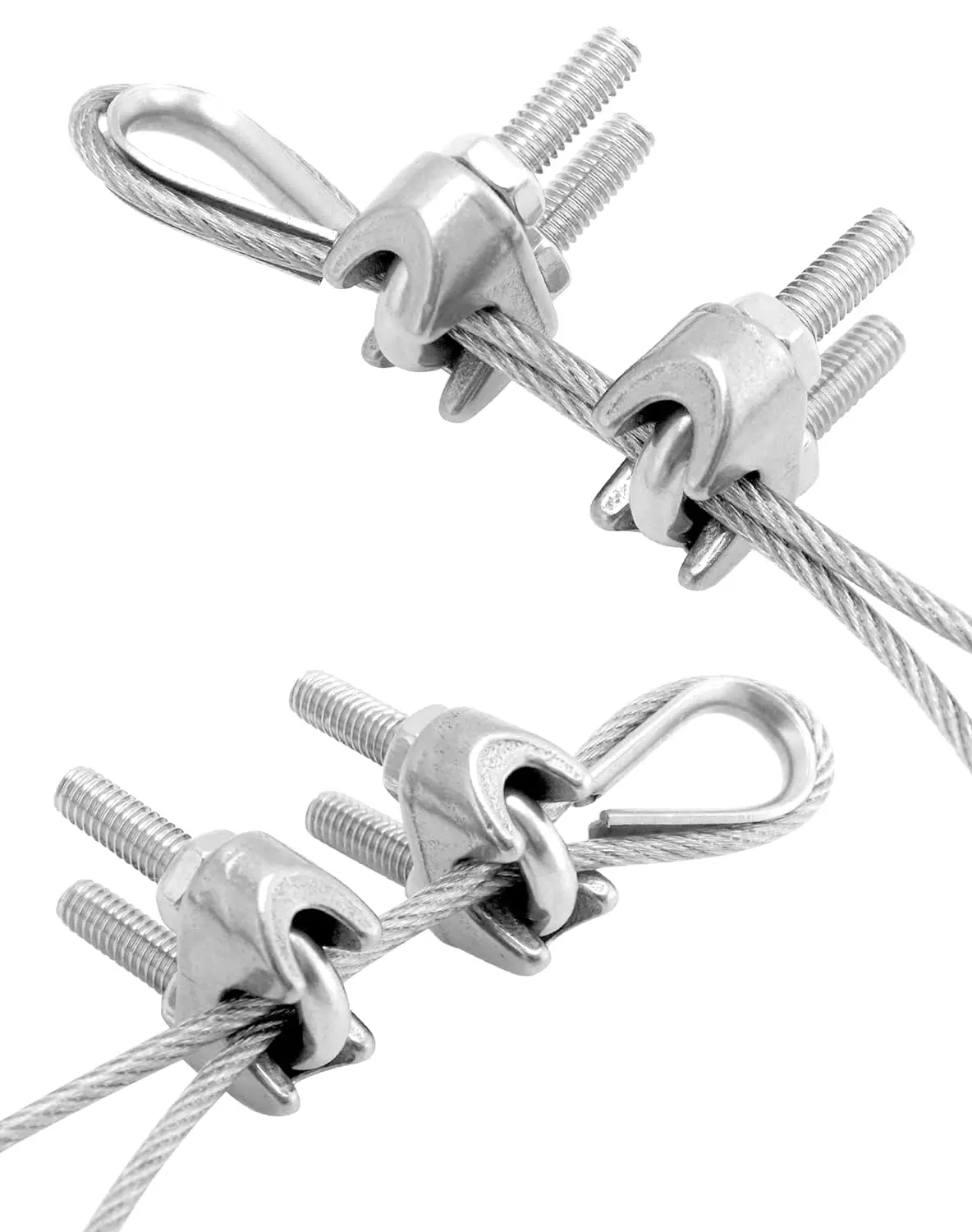

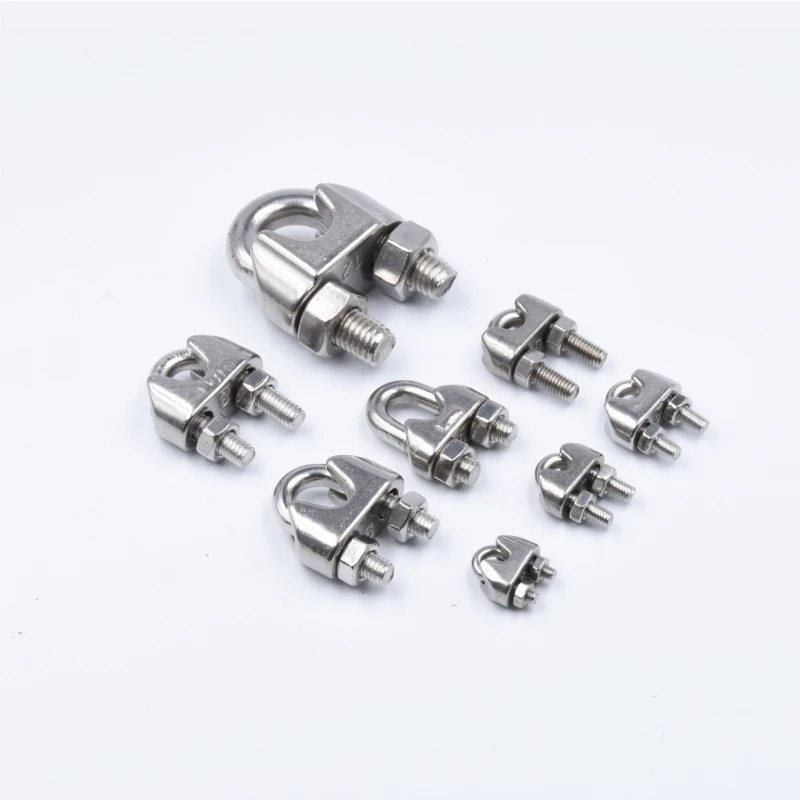

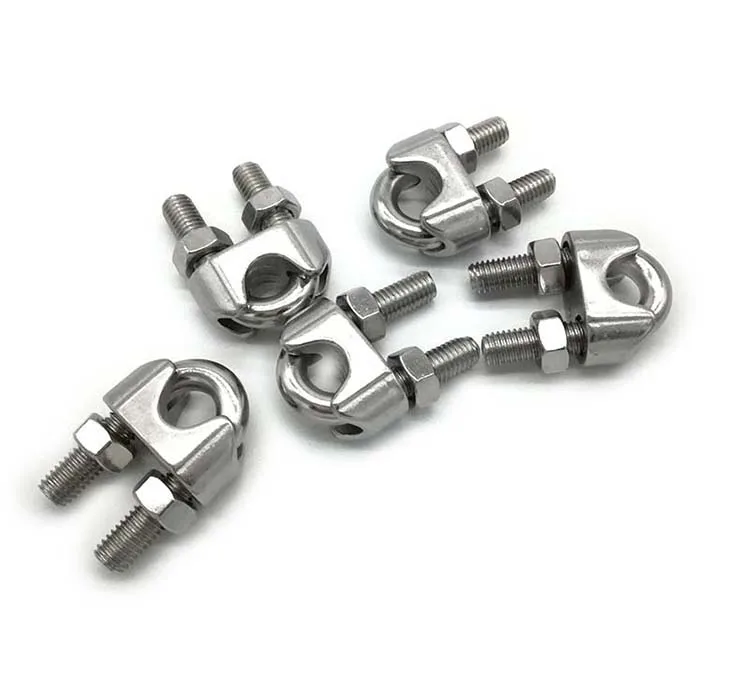

Factory Direct Sale 2mm 30mm Stainless Steel Grips Clamps Hardware Fitting Wire Rope Clips
- Category: >>>
- Supplier: Shanghai Yongrui Metal Products Co. Ltd.
Share on (1601030560328):
Product Overview
Description
Application: Lighting, Machinery, Medical, Security, Sporting goods, Toys, Windows, Lawns and Gardens
Coating& Color: PVC/PU/PA; Black/Red/Yellow etc
Production capacity: 1 million / week
Coating& Color: PVC/PU/PA; Black/Red/Yellow etc
Production capacity: 1 million / week
End parts of fittings: Large selection of end fittings, including eye bolts, links,springs, hooks, thimble, clips, stops, ball , ball shanks, sleeve, stamped eye, handles etc. Please contact us to get a cost efficient solution.
Notes: When designing cable components, many factors need to be considered, such as working load, wear, cycle life, flexibility, environment, cost, safety, etc. The larger the diameter, the greater the workload capacity and the worse the flexibility.
Notes: When designing cable components, many factors need to be considered, such as working load, wear, cycle life, flexibility, environment, cost, safety, etc. The larger the diameter, the greater the workload capacity and the worse the flexibility.
Specifications | A(mm) | B(mm) | D(mm) | H1(mm) | H2(mm) | H3(mm) |
M2 | 4.12 | 9.9 | 2.9 | 17.6 | 10.06 | 4.24 |
M3 | 5.68 | 9.5 | 3.98 | 20 | 9.86 | 4.98 |
M4 | 6.5 | 11.7 | 3.94 | 21.74 | 9.6 | 4.76 |
M5 | 7.1 | 14.1 | 5 | 26.84 | 10.34 | 4 |
M6 | 7 | 17 | 5.74 | 32.24 | 10.82 | 5.88 |
M8 | 10.4 | 18.6 | 5.62 | 33.86 | 15.2 | 5.94 |
M10 | 11.2 | 23.66 | 7.62 | 45.4 | 15.18 | 6.2 |
M12 | 14.72 | 30 | 10.7 | 50.74 | 20.8 | 8.24 |
M14 | 14.64 | 31.3 | 10.8 | 56.4 | 21.6 | 7.88 |
M16 | 17.8 | 34.5 | 11.56 | 64.2 | 24.88 | 8.38 |
M18 | 21.6 | 35 | 11.72 | 72.24 | 28 | 10.84 |
M20 | 21.1 | 34 | 11.72 | 72.1 | 29.62 | 11.6 |
M22 | 24.4 | 38.4 | 11.7 | 78 | 32.64 | 12.2 |
M24 | 28.9 | 47.4 | 11.42 | 96 | 33.1 | 12.8 |
M26 | 28.42 | 54 | 12.62 | 100.4 | 36 | 15.84 |
M30 | 33.12 | 50 | 15.4 | 110.3 | 39.82 | 16.1 |
