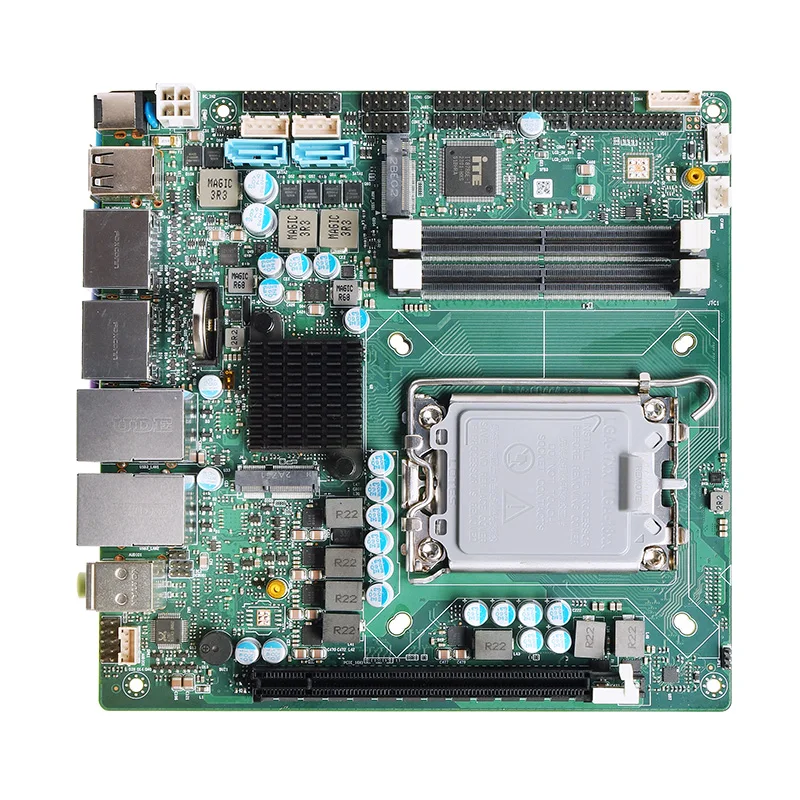

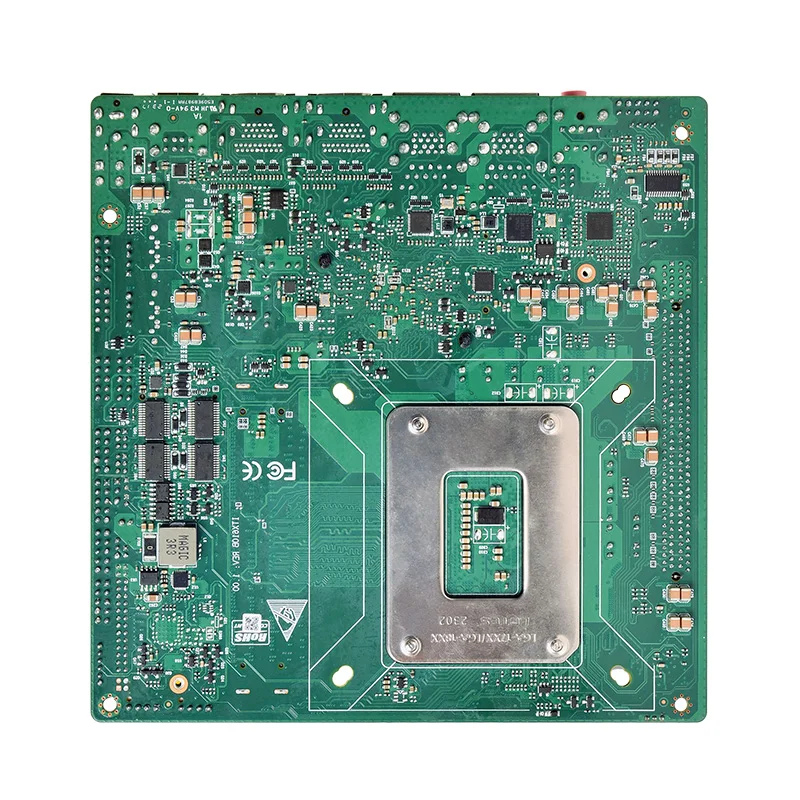

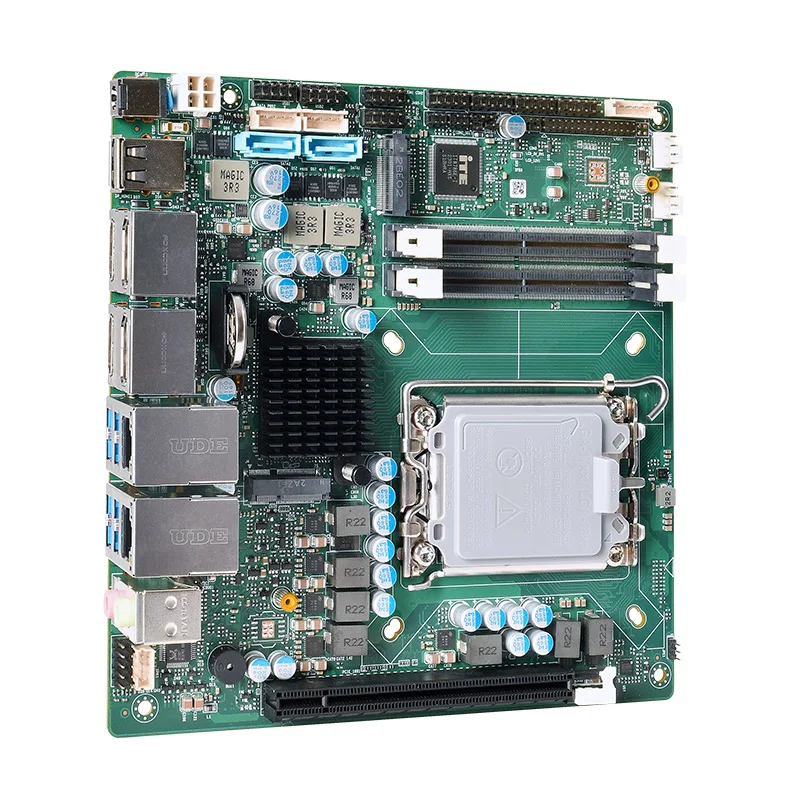

itx mainboard 12th/13TH LGA1700 Alder Lake S chipset B660 DDR5 64GB HD VGA DP pcie_x16 gaming pc ATX power 200W GAMING PC
- Category: >>>
- Supplier: Chengqin Precision Technology (Shenzhen) Co. Ltd.
Share on (1601030560978):
Product Overview
Description
Features:
Intel 12th generation Alder Lake-S series/13th generation Raptor Lake-s series, LGA1700, TDP 65W；H610/Q670
2 * DDR5 SO-DIMM, up to 64GB;
2 * Intel network i219+i226-V, 2*HDMI, 2*DP, eDP/LVDS
M-Key 2280，E-Key，PCIe_X16
Size: 170x170 mm
Product Description
Processor system | Intel 12th Generation Alder Lake-S Series/13th Generation Raptor Lake-s Series, LGA1700, TDP 65W |
EFI BIOS | |
internal storage | 2*DDR5 SO-DIMM, up to 64GB |
Storage | 1*M.2 M-Key 2280(NVMe PCIe4.0_x4 default/optional SATA3.0 protocol) storage interface. |
2*SATA3.0 interface | |
Display | 2*HDMI2.0 interface, supporting 4096x2160@60Hz. |
2*DP, supporting 4096x2160@60Hz. | |
eDP/LVDS | |

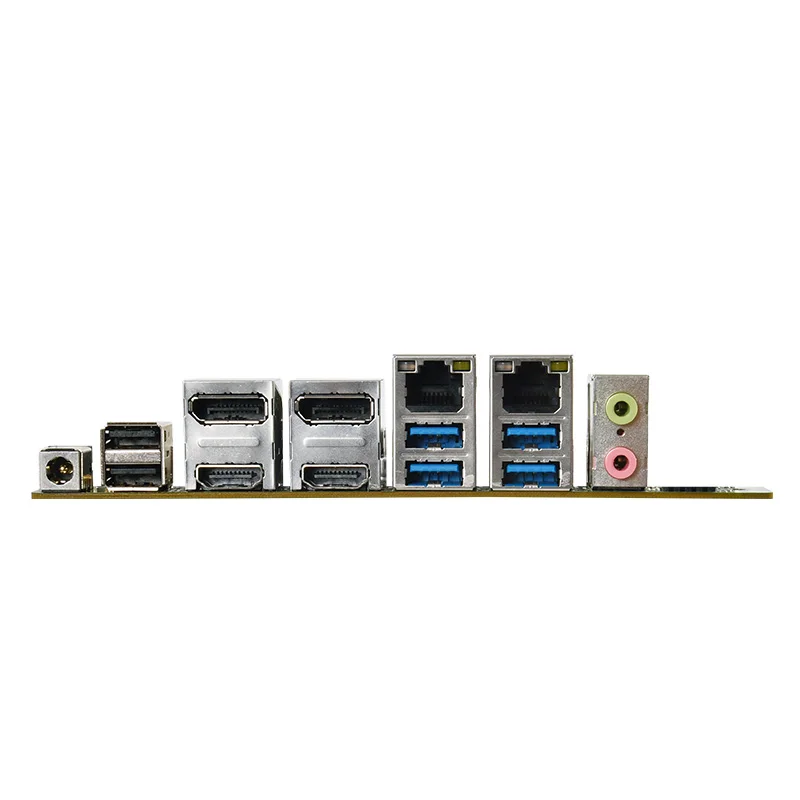

Board edge I/O interface | DC JACK，2*USB2.0 |
2*HDMI/DP | |
2*(LAN+2*USB3.2), 2-hole audio input and output. | |
Extended interface/function | TPM2.0 is optional and not available by default. |
1*PCIe_X16(PCIe4.0_16x protocol) | |
1*M.2 E-Key(PCIe3.0/2.0 protocol, supporting WIFI/BT module) | |
4*COM needle arrangement, 2x5Pin, spacing of 2.54mm; COM1/2 can choose RS232/485, and COM3/4 is RS232. | |
4*USB2.0 pin arrangement with a spacing of 2.54mm (one of which is laid by USB and WIFI). | |
8*GPIO pin arrangement, 2x5Pin, spacing of 2.54mm | |
1*4Pin PWM CPU fan, 1*4Pin system fan | |
Power Supply | DC 12-24V |
working environment | Working temperature:-20℃ ~+60℃; Working humidity: 5% ~ 90% |
Storage temperature:-40℃ ~+85℃; Storage humidity: 5% ~ 90% | |
Operating system support | Windows10，Windows11，Linux |
measure | 170x170 mm |
weight | About 500g |
Module | Optional | Optional description |
ITX610B | External TPM2.0 | Optional external TPM2.0 |
serial port | Optional RS232/RS485 | |
One set of USB pins | One set of USB pins and WIFI are optional. | |
chip set | H610/Q670 optional | |
Onboard SSD | Onboard SSD | |
serial port | serial port |
