Hengxiang absolute ssi 25mm hollow shaft absolute rotary encoder rs485 KM58 16 24Bits multi turn absolute encoder
- Category: >>>
- Supplier: Shanghai Hengxiang Optical Electronics Co. Ltd.
Share on (1601030605945):
Product Overview
Description
Products Description
Items | Basic parameters |
Brand | HENGXIANG |
Encoder type | Absolute encoder |
External diameter | 58mm |
Thickness | 30mm |

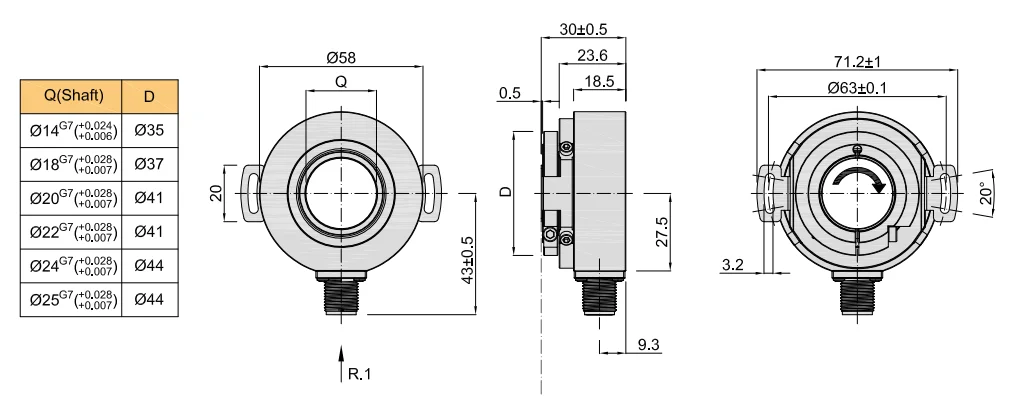

Installation dimension | 63±0.1mm diameter |
Shaft type | Through shaft |
Shaft diameter | 14mm; 18mm; 20mm; 22mm; 24mm; 25mm |
Bit(steps) | Single-turn 17bits; 19bits; 20bits; 22bits; 24bits;Up to 32bits; Multi-turn: 16bits+(17-26bits) |
Outlet type | Cable connection; Radial socket |
Electrical interface | RS-485 |
Communication | BISS C (Binary/Gray) |
SSI (Binary/Gray) | |
Protection grade | IP65 |
Cable length | 1M (cable length could be added appropriately by |
require, max 10m) | |
Response speed | Normal action: 6000min-1 |
RMS position signal noise | ±2 @18 Bits/r |
Communication clock frequency | ≤10 MHz (BiSS) or ≤5 MHz (SSI) |
Starting time | Typical value: 13ms |
Absolute position sampling priod | ≤75 ns |
Mechanical connection | Ring locking with shaft, flexible spring plate fixed connection |
starting torque | less than 12x 10-3N.m |
Intertia moment | less than 11x 10-6kg.m2 |
Shaft load | Radial 30N; Axial 20N |
Allowed speed | ≤6000r rpm |
Environmental temperature | Operating:-40 ～+95°C；storage:-40 ～+95°C |
Enviromental humidity | Operating and storage: 35-85%RH(noncondensing) |
Vibration(endure) | Amplitude 1.52mm,5-55Hz,2 hours for three axis individually |
Shock(endure) | 980m/s2 ,11 ms three times for X,Y,Z direction individually |
Shaft Material | Stainless steel |
Shell Material | Aluminum alloy |
Certification | CE |
package | Carton box |
Net weight | About 180g (with package) |
