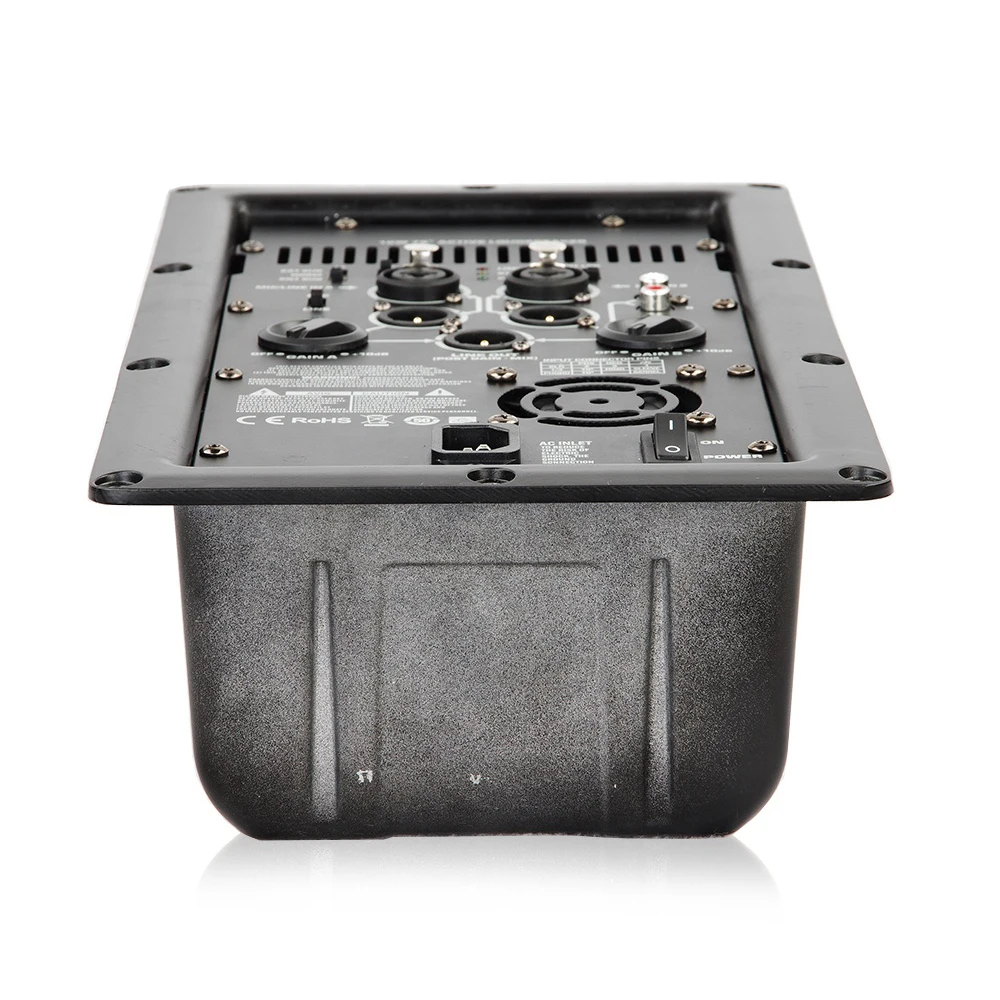

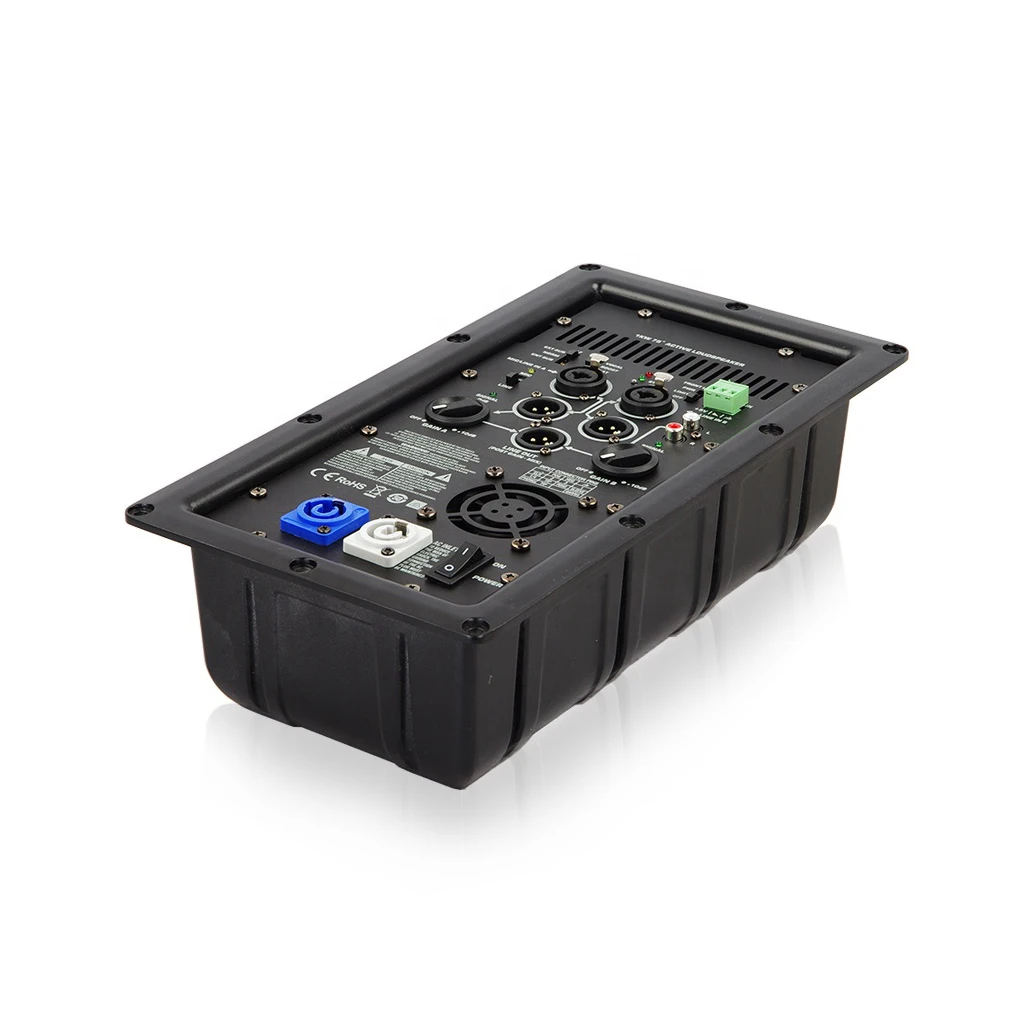

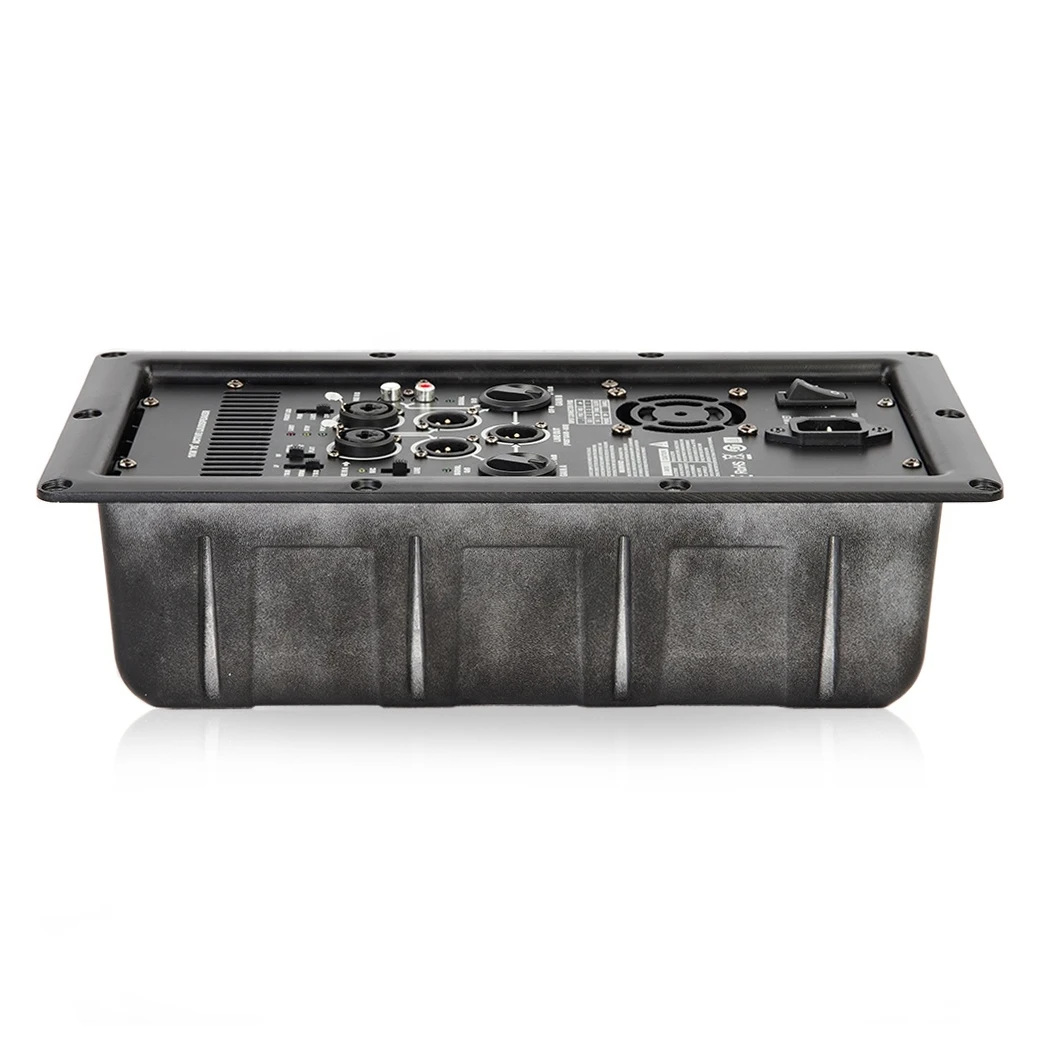

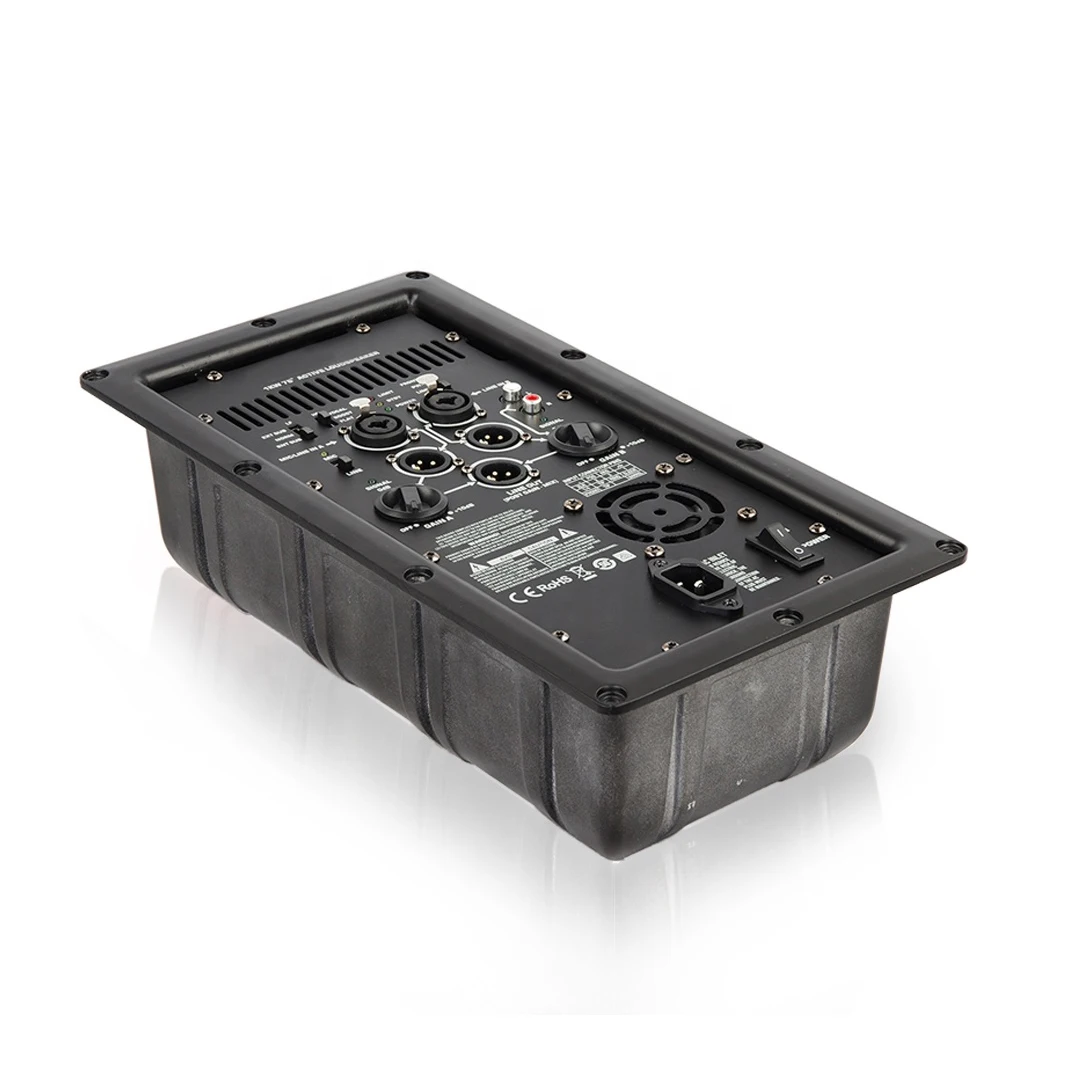

Professional Power Module 1000 watt Continuous Class D Power Amplifier For Speaker
- Category: >>>
- Supplier: Enping Rayco Audio Equipment Co. Ltd.
Share on (1601030607130):
Product Overview
Description
Professional Power Module 1000-watt Continuous Class D Power Amplifier For Speaker
Features
* Onboard mixer with two combo XLR and ¼” inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
* Extensive DSP enhances system performance
* DMT(Directivity Matched Transition) provides for matched LF and HF coverage across the entire listening area, eliminating unnatural "dead" or "hot" frequency zones.
* Intrinsic Correction, first featured in our high-end line-array products maps 65–75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat band pass target. The result is a speaker that behaves equally well across the entire sound field.
* DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
*GuardRail protection protects both the amplifier module and your performance from unnatural and destructive clipping.
Product Description
Model | K-12S power module |
Power Output | 1000 W continuous Class D (500 W LF, 500 W HF) 2000 W peak |
Input Impedance | XLR / ¼": 40 kΩ balanced / 20 kΩ unbalanced XLR / ¼" MIC mode: 2260Ω balanced RCA: 10 kΩ |
Controls | Power, Gain A, Gain B, Mic/Line, LF Mode, HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit) |
Indicators | Power, Signal A, Signal B, Standby, Limit, Mic |

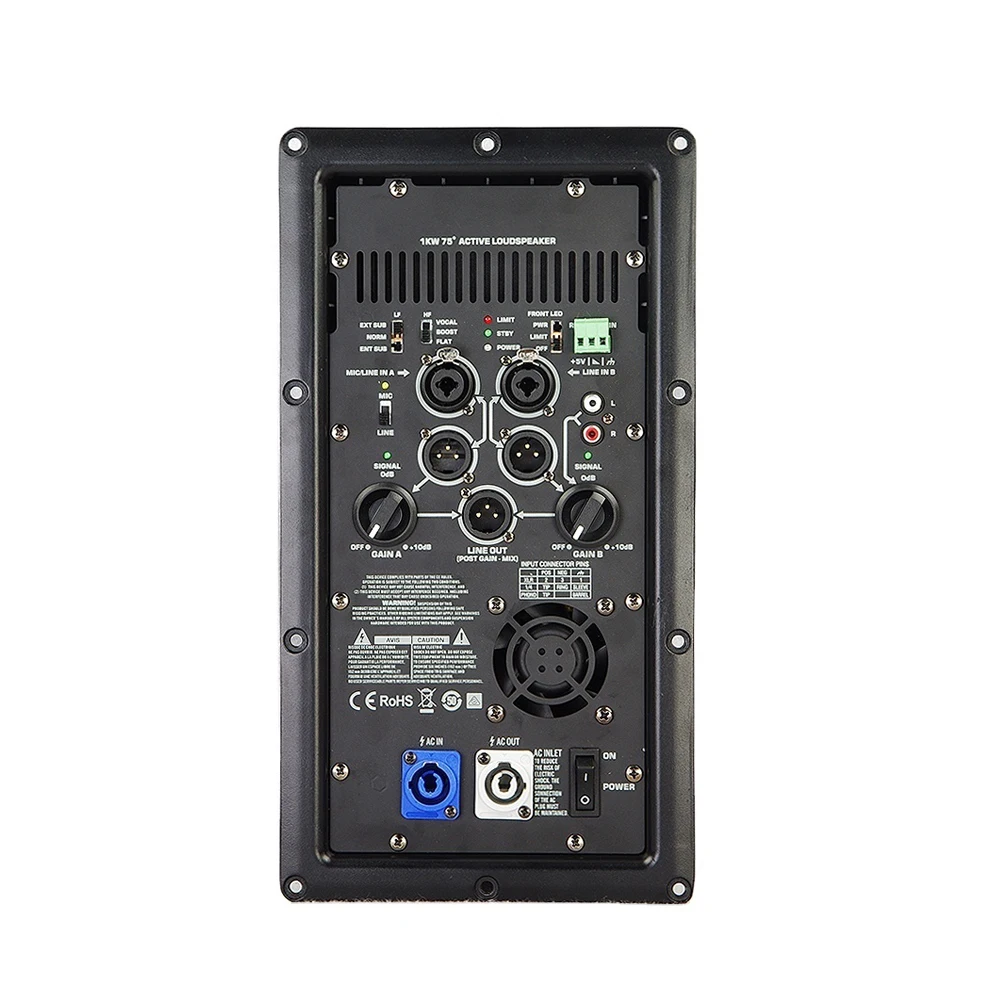

Connectors | Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector |
Cooling | On demand, 50 mm variable speed fan |
Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting, GuardRail |
Transducer Protection | Thermal limiting, excursion limiting |
AC Power Input | Universal power supply 100–240 VAC, 50 to 60 Hz |
AC Power Consumption (1/8 of full power) | 100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A |
