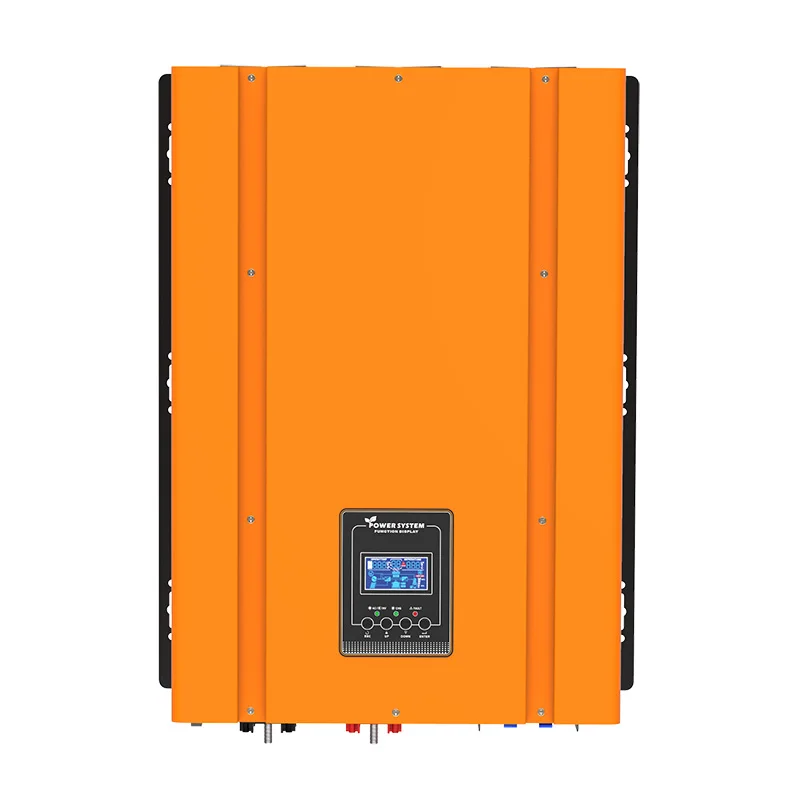

Hybrid solar inverter 6kw 6000 watt inverter 6000W pure sine wave power inverter
- Category: >>>
- Supplier: Guangzhou Myami Electronic Technology Co. Ltd.
Share on (1601030628232):
Product Overview
Description
Product Details
solar off grid inverter 24v 48v 8kw 10kw 12kw solar panel power system inverter Solar Panel Inverter 10kw
Features:
Pure sine wave inverter
Output power factor 1
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Configurable AC/battery input priority via LCD setting
Compatible with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Supports the use lithium batteries
Smart fan running control to extend service life and reduce noise
Supports the use lithium batteries
Wave by wave phase detection,more stable and reliable
RS232 communicate port and remote control panel optional
Output power factor 1
Selectable high power charging current
Selectable input voltage range for home appliances and personal computers
Configurable AC/battery input priority via LCD setting
Compatible with generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
Color LCD display
Supports the use lithium batteries
Smart fan running control to extend service life and reduce noise
Supports the use lithium batteries
Wave by wave phase detection,more stable and reliable
RS232 communicate port and remote control panel optional
Specification
Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | ||||||
INPUT | ||||||||||||
Voltage | 100/110/120Vac;220/230/240Vac | |||||||||||
Selectable Voltage Range | Wide Range :75vac~138Vac;155Vac~275Vac(for home appliances) Narrow Range:82Vac~138Vac;165Vac~275Vac(for personal computer) | |||||||||||
Frequency | 40-70Hz(50Hz/60Hz) | 100/110/120Vac(±5V);220/230/240Vac(±10V) | ||||||||||
OUTPUT | ||||||||||||
AC Voltage Regulation(Batt Mode) | 100/110/120Vac(±5V);220/230/240Vac(±10V) | |||||||||||
Surge Power | 2000VA | 4000VA | 9000VA | 12000VA | 15000VA | 18000VA | ||||||
Efficiency(Peak) | 88% | 91% | ||||||||||
Transfer Time | <20ms | <10ms | ||||||||||
Wavefrom | Pure sine wave | |||||||||||
BATTERY | ||||||||||||
Battery Voltage | 12V | 24V | 12V/24V/48V | 24V/48V | 24V/48V | 24V/48V | ||||||
Charge Current | 35A | 35A | 75A/50A/25A | 70A/35A | 75A/45A | 75A/50A | ||||||
Fast Charge Voltage | 14.3VDCfor 12V(*2 for 24V,*4 for 48V) | |||||||||||
Float Charge Voltage | 13.7VDC for 12V(*2 for 24V,*4 for 48V) | |||||||||||
Battery Low Voltage Alarm | 16.5VDCfor 12V(*2 for 24V,*4 for 48V) | |||||||||||
Over Voltage Protect | 10.5VDCfor 12V(*2 for 24V,*4 for 48V) | |||||||||||
Battery Low Voltage Shutdown | 10.0VDCfor 12V(*2 for 24V,*4 for 48V) | |||||||||||
Protection | Over charging,over temp,over battery voltage,over load,short-circuit | |||||||||||
Operating Enviroment Temperature | 55℃ | |||||||||||
Cooling | Intelligent Fan | |||||||||||
Display | LCD | |||||||||||
Specification Setting | By LCD or position machine: Charging current,battery type,input voltage,output frequency,wide and narrow of AC input voltage,power-saver model,AC priority or battery priorty | |||||||||||
PHYSICAL | ||||||||||||
Dimension,(D*W*H)mm | 390*221.6*178.5 | 495*257*192 | 607*345*198 | |||||||||
Net Weight (kgs) | 11.4 | 15 | 25.2/24.6 | 34.4/33.8 | 37.9/38.2 | 41.6/40.5 | ||||||
ENVIROMENT | ||||||||||||
Humidity | 5~95%Relative humidity(No-condensing) | |||||||||||
Operating Temperature | -10～50℃ | |||||||||||
Storage Temperature | -10~60℃ | |||||||||||
Recommend Products
Product Classification
Company Profile
Our Certificate
Exhibition
Packaging&Transportation
FAQ
Q1: What's the MOQ?
Re: The MOQ of machinery is 1 set.
Q2: What's delivery time?
Re: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.
Q3: Can you send the video to show how the machine works?
Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.
Q4: What's your payment terms?
Re:100% before shipment.
Q5: What's the payment method?
Re: We accept T/T and L/C payment.
