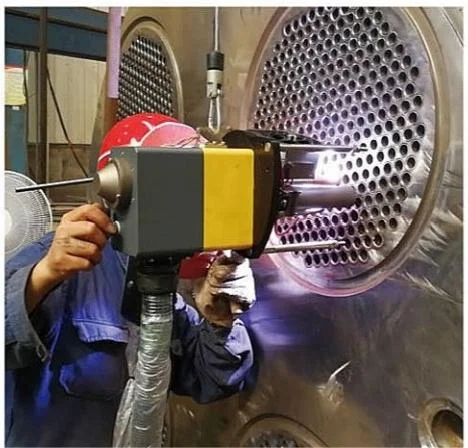

MWP 38 Stainless Steel Tube Sheet Tube To Sheet Heat Exchanger Full Position Orbital Welding Machine
- Category: >>>
- Supplier: Henan E-Work Industrial Equipment Co. Ltd
Share on (1601030634285):
Product Overview
Description
Production Spefication

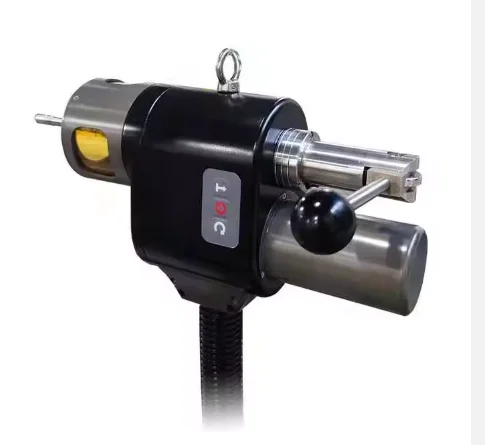

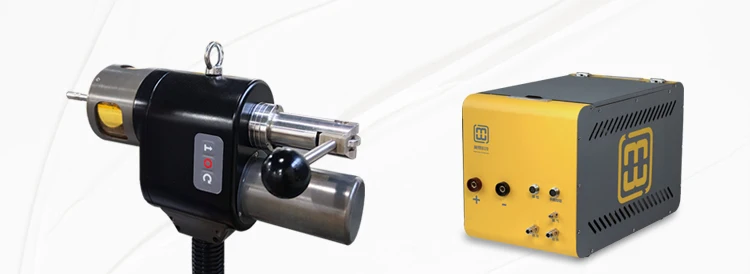

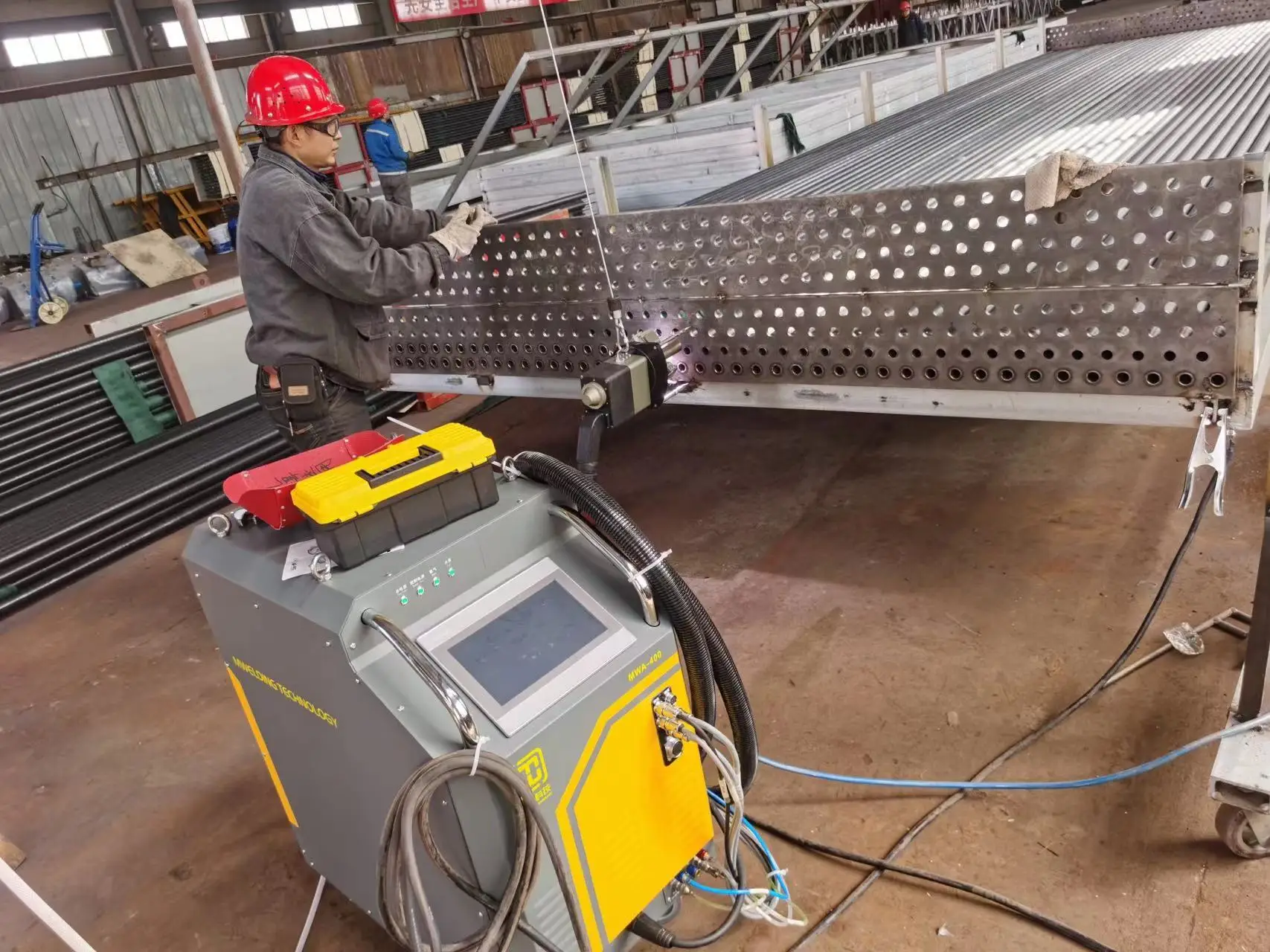

MWP-38 consists of a welding gun and a control power supply. The control power supply comes with a cooling water circulation system, which has good cooling effect and is characterized by digitization, easy operation, easy movement, and high reliability.
It also has speed measurement feedback and voltage supply functions, ensuring accurate welding gun speed and improving welding quality. Mainly used in industries such as boiler pipelines, refrigeration, heat exchangers, and pressure vessels. The overall design tends to be convenient, energy-saving, intelligent, and human-computer interactive, ensuring accurate and stable welding gun speed and improving welding quality.
It also has speed measurement feedback and voltage supply functions, ensuring accurate welding gun speed and improving welding quality. Mainly used in industries such as boiler pipelines, refrigeration, heat exchangers, and pressure vessels. The overall design tends to be convenient, energy-saving, intelligent, and human-computer interactive, ensuring accurate and stable welding gun speed and improving welding quality.
Product features
Product advantages | ||
Welding gun | Power supply | |
1、Equipped with automatic arc length function, it meets the welding of various pipe fittings, reduces manual interference, and is easy to operate | 1、The external wiring layout is reasonable and easy to move, install, and operate | |
2、The MWP-38 welding gun head adopts a closed protective cover structure with a roller arc self fusion welding process, which makes the welding process more pure and provides excellent gas protection | 2、Complete welding power supply, weighing only 18Kg | |
3、Welding gun circulating water cooling, high temporary load rate, stable and reliable long-term operation without heating | 3、Single chip microcomputer control system ensures fast operation, long service life, and low maintenance costs | |
4、Under the same conditions, for different pipe diameters, only the pipe diameter size needs to be input, and there is no need to adjust the welding parameters again to weld | 4、Equipped with a cooling water circulation system, the cooling effect is good, greatly improving the temporary loading rate of the welding gun | |

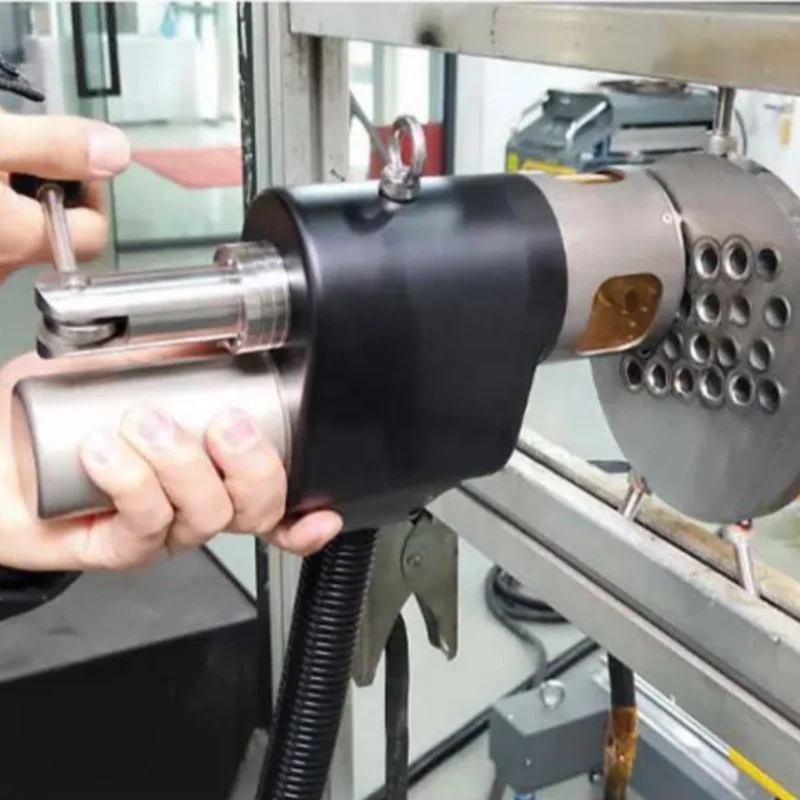

6、The welding gun is fixed with an internal expansion type pneumatic expansion core, and different expansion cores are replaced according to the inner diameter of the pipe fittings, which is convenient and reliable | 6、Real time monitoring of changes in various numerical values during the welding process | |
7、Mini and portable design, suitable for flush welding of thin-walled pipes | 7、Equipped with speed feedback and voltage supply functions, ensuring accurate and stable welding gun speed and improving welding quality | |
Specification
Model No | MWP-38 | MWP-65 | MWP-65C | ||
Pipe diameter | within Φ10 - outside Φ38.1 | within Φ15 - outside Φ63 | within Φ6 - outside Φ63 | ||
Welding wire | Φ0.8、 Φ1.0 | ||||
Shielding gas | Argon | ||||
Cooling method | Circulating water cooling | ||||
Tungsten electrode specifications | 2.0、2.4 | 2.4 | |||
Weight | 3kgs | 10kgs | 8kgs | ||
Supporting power supply | MWA-200 | MWA-400 | |||
Unit | millimeters | ||||

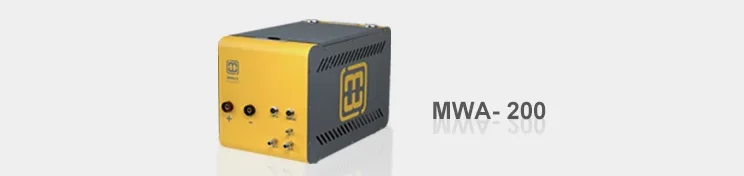

Technical parameters of welding control power supply | ||
Model No： | MWA-200 | |
Protective function： | Over voltage, over current, leakage, arc initiation failure tungsten short circuit protection, phase deficiency detection | |
Screen: | 10 inch touch screen | |
Welding gun cooling: | Built - in circulating water cooling | |
Input power： | AC 220V+10% 50 / 60Hz | |
Rated duty cycle： | 120A Temporary loading rate 100% | |
Welding current range： | ||
Insulation level： | H | |
protection grade： | IP 23 | |
Dimensions L x W x H: | 500 x 293 x 334 mm | |
Weight | 18 kg | |
