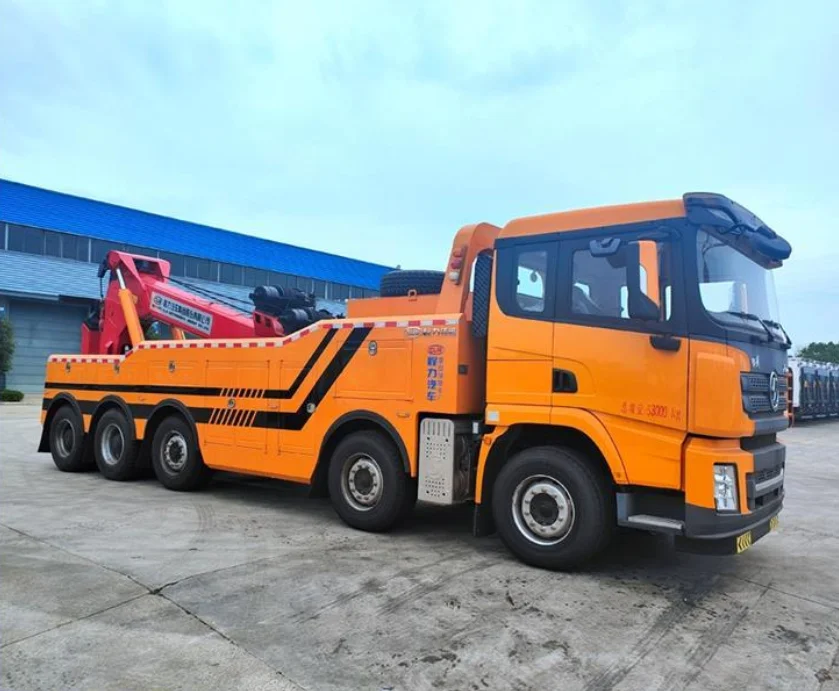

25Ton Wrecker Tow Trucks

Vehicle

DONGFENG wheel lift tow truck

Overall dimension

mm

8650×2480×3050

Net weight

kg

Appro × 10805

Boom lifting

Appro × 8000

Hook lifting

Appro × 12000

Wheel base

mm

5600

Front/Rear overhang

1430/1620

Approach/departure angle

°

20/16

Max speed

km/h

85

Ground clearance

mm

420

Standard configuration

1. Two-section hexagonal boom.
2. Three section under lifting boom.
3. Split type toolbox.
4. Both side linkage operation device.
5. Two 8ton hydraulic winches.
6. Steel wire rope 60m, diameter 16MM.
7. Steel forks 4sets.
8. Drag fork sleeve 2sets.
9. Steel plate lug type drag fork 1set.
10. Holding tire device 1set.
11. A long row engineering warning light on the top of cabin.
12. Auxiliary lamp 1set.
13. Auxiliary trachea assembly 1set.

Chassis Parameter

Cabin

Flat top cabin,a sleeper, air conditioner, power steering, 3 passengers

Drive form

4×2

Engine

Brand : DONFGENG CUMMINS
Model : B190 33, 190hp
Type : diesel, 6 cylinder, turbocharged, inter-cooled.
Displacement :5900ml
Emission standard : Euro III

Transmission

6-speed, manual

Tire model

10.00R20

No.of tires

6pcs, and 1 spare tire

Winch capacity

3Ton , 4ton , 5Ton , 6Ton,7Ton
