Product Overview

Description



Product Description


S337V7 Telecom Test PDA
• More Powerful Troubleshooting Tools for Telecom Operators
• Vdsl2/35b/G.fast +TDR + OPM + VFL + Cable Tracker + Check Line Sequence + Landline Telephone + DMM + IPTV + Gigibit Speed Test + Barcode Scanner

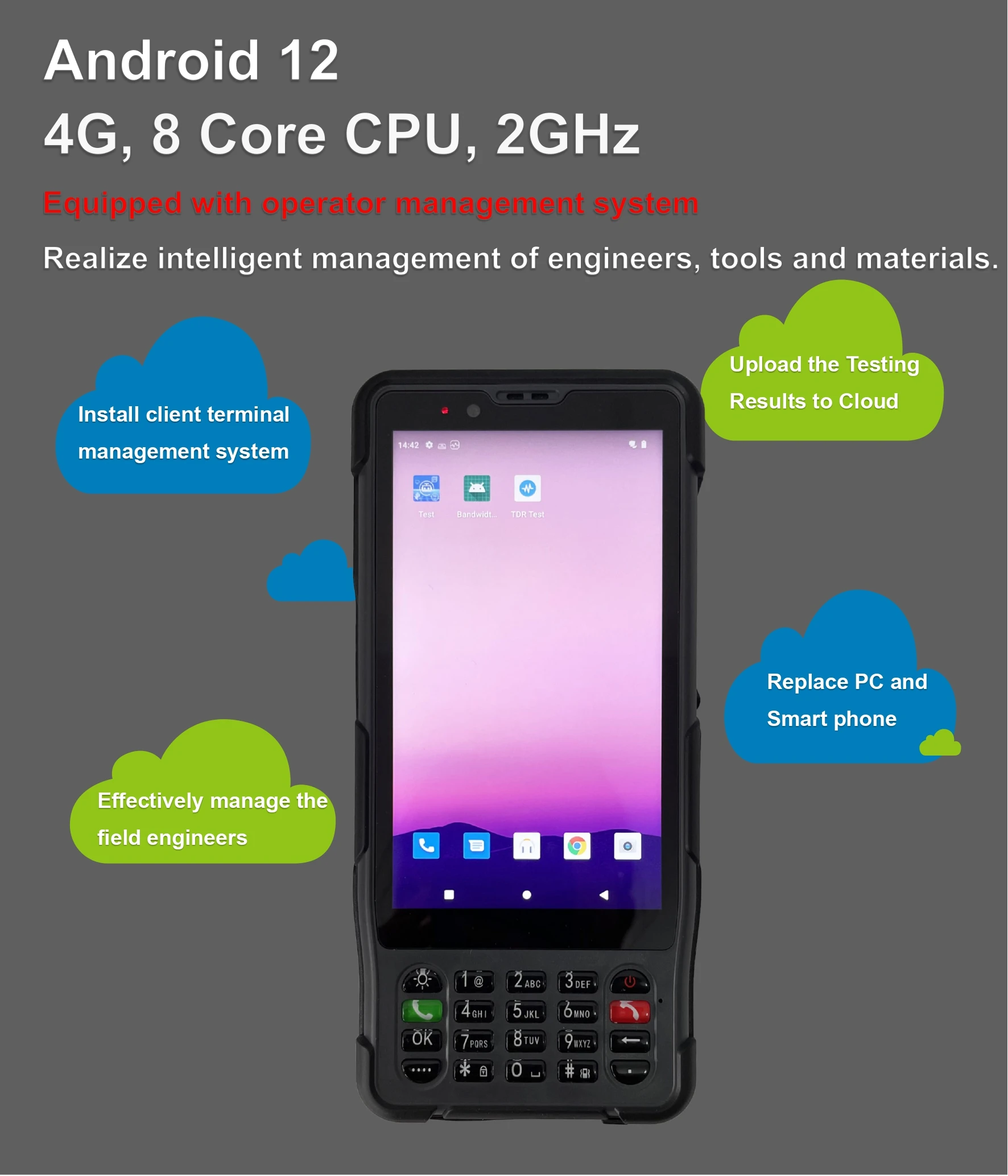

Android 12 4G,8 Core CPU,2GHz
• Equipped with operator management system
• Realize intelligent management of engineers, tools and materials

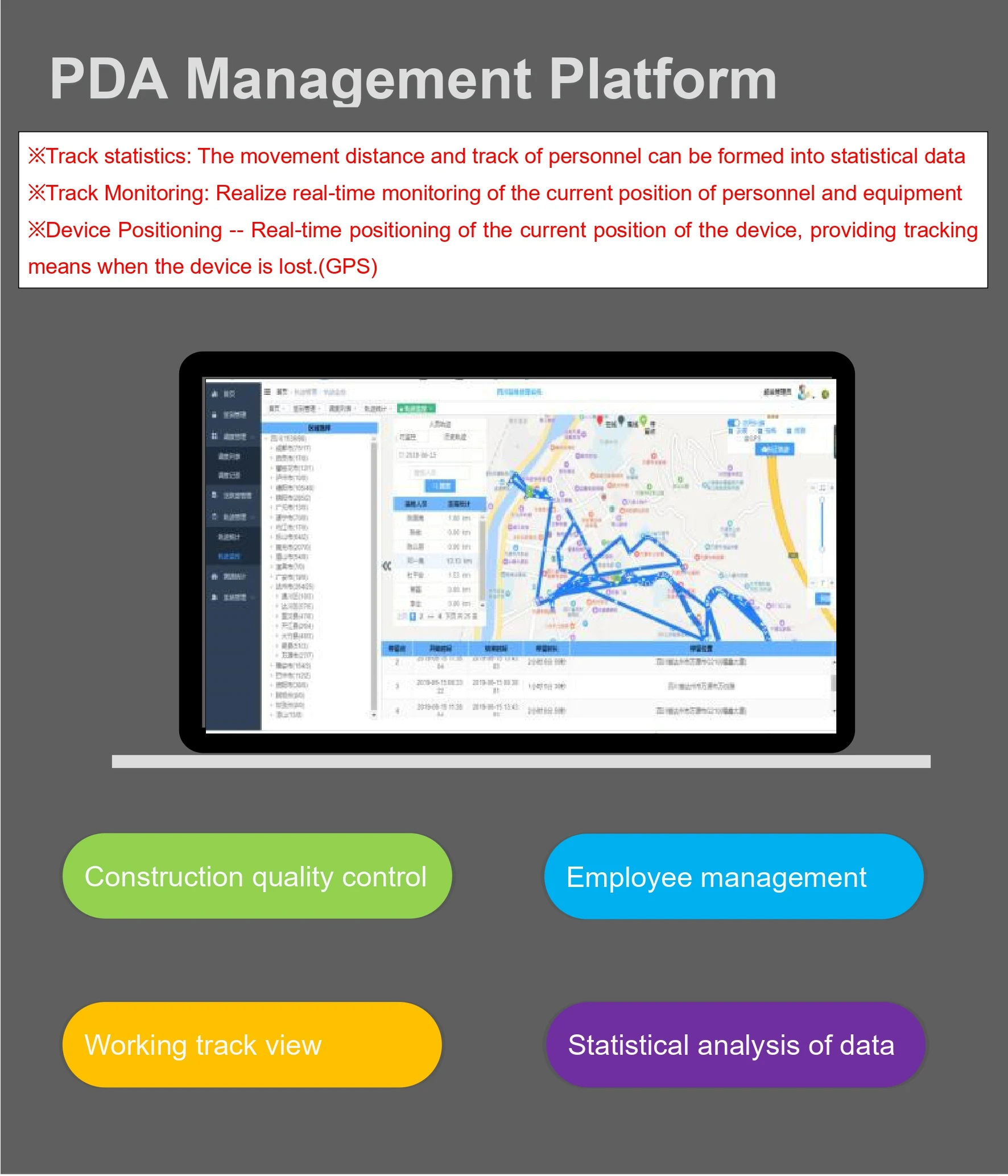

PDA Management Platform

• Track statistics: The movement distance and track of personnel can be formed into statistical data
• Track Monitoring: Realize real-time monitoring of the current position of personnel and equipment
• Device Positioning: Real-time positioning of the current position of the device, providing tracking means when the device is lost.(GPS)

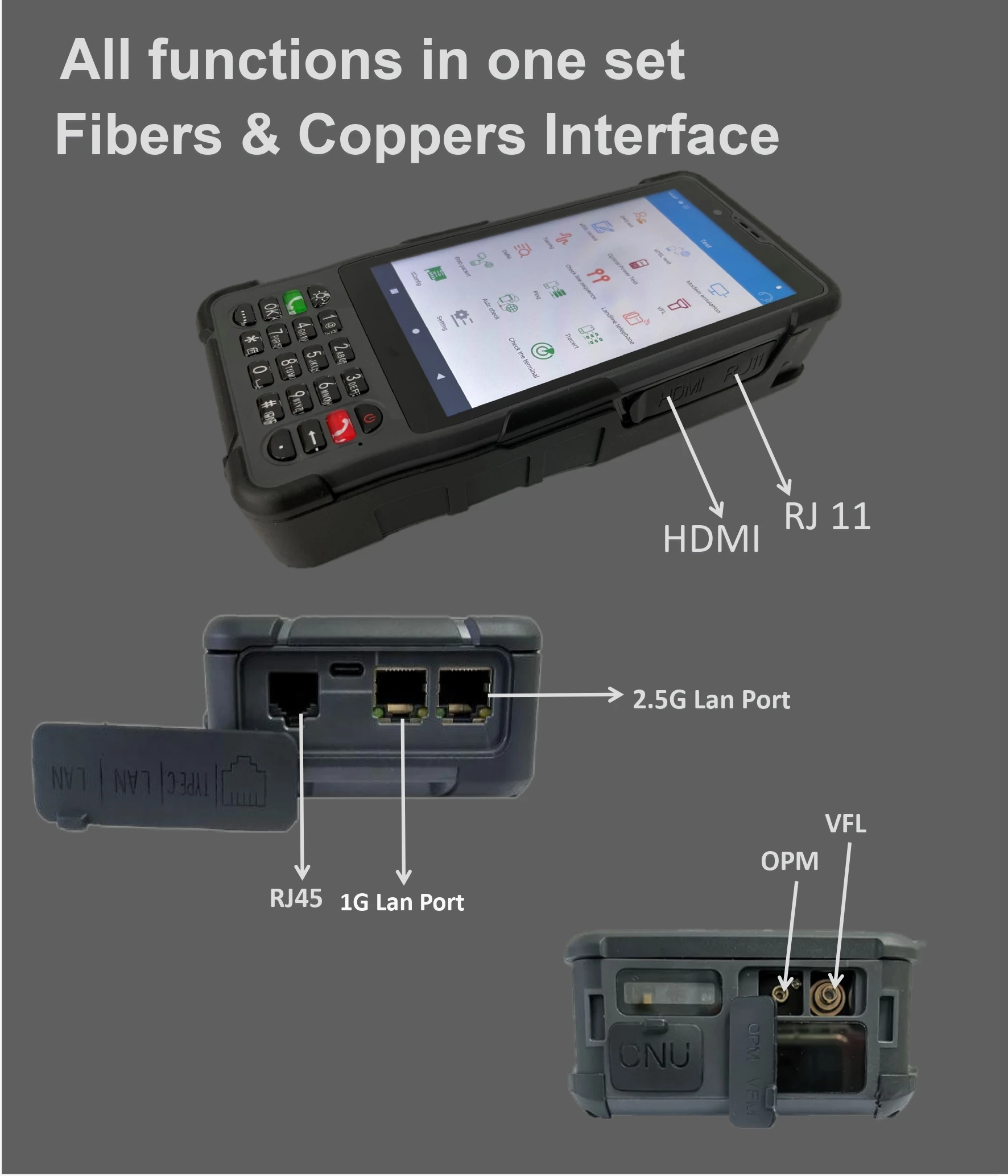

All functions in one set Fibers &
Coppers Interface

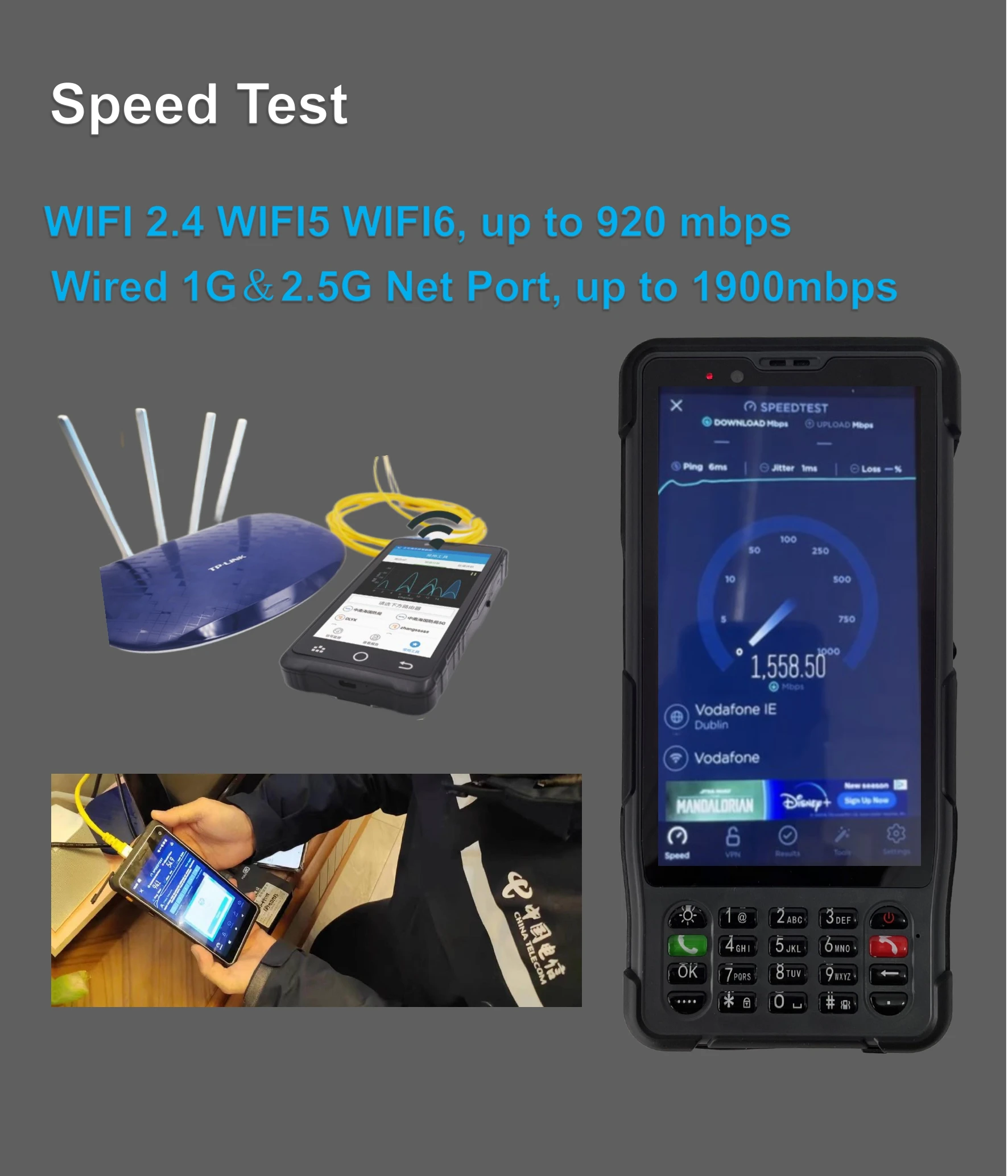

Speed Test

WIFI 2.4 WIFI5 WIFI6, up to 920 mbps
Wired 1G&2.5G Net Port, up to 1900mbps

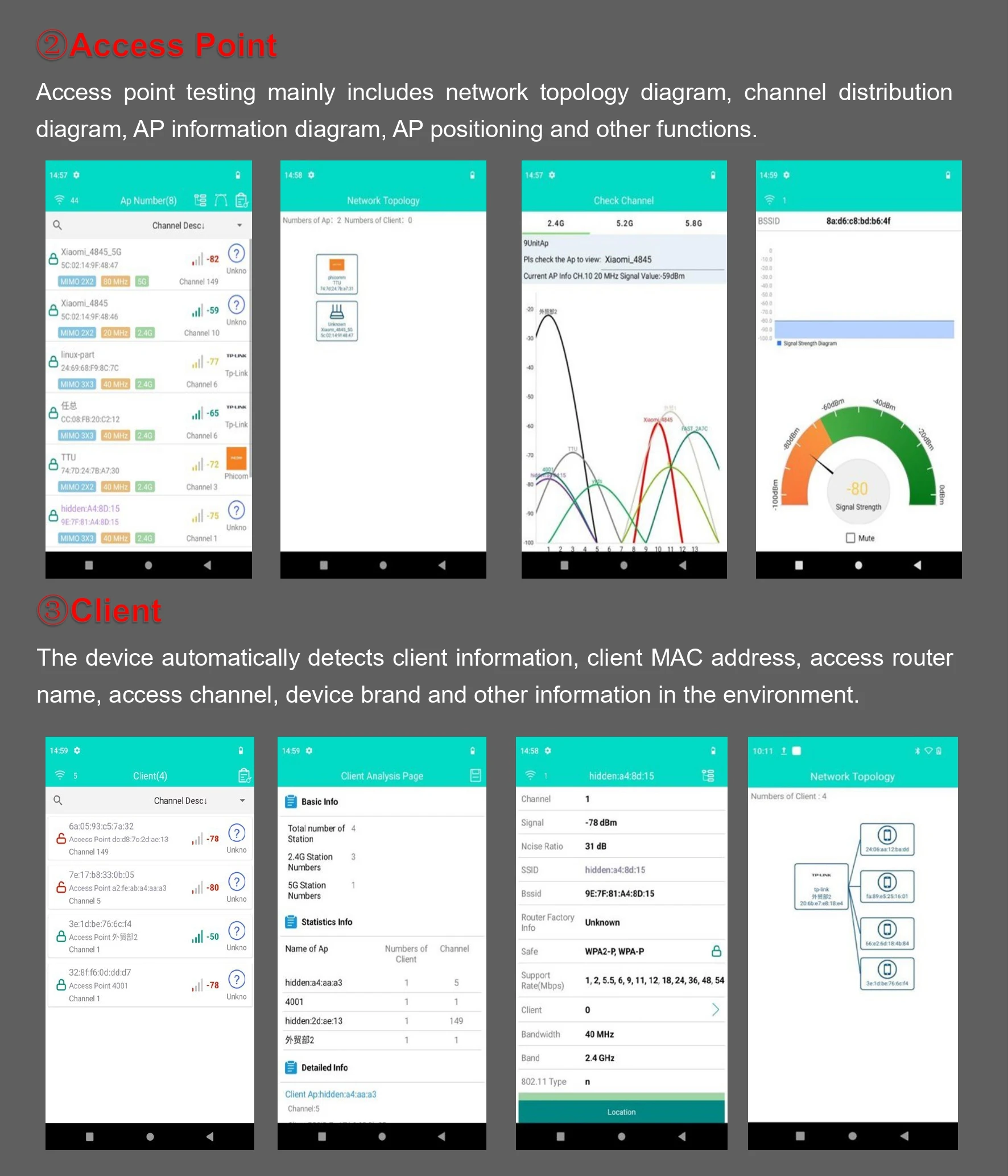

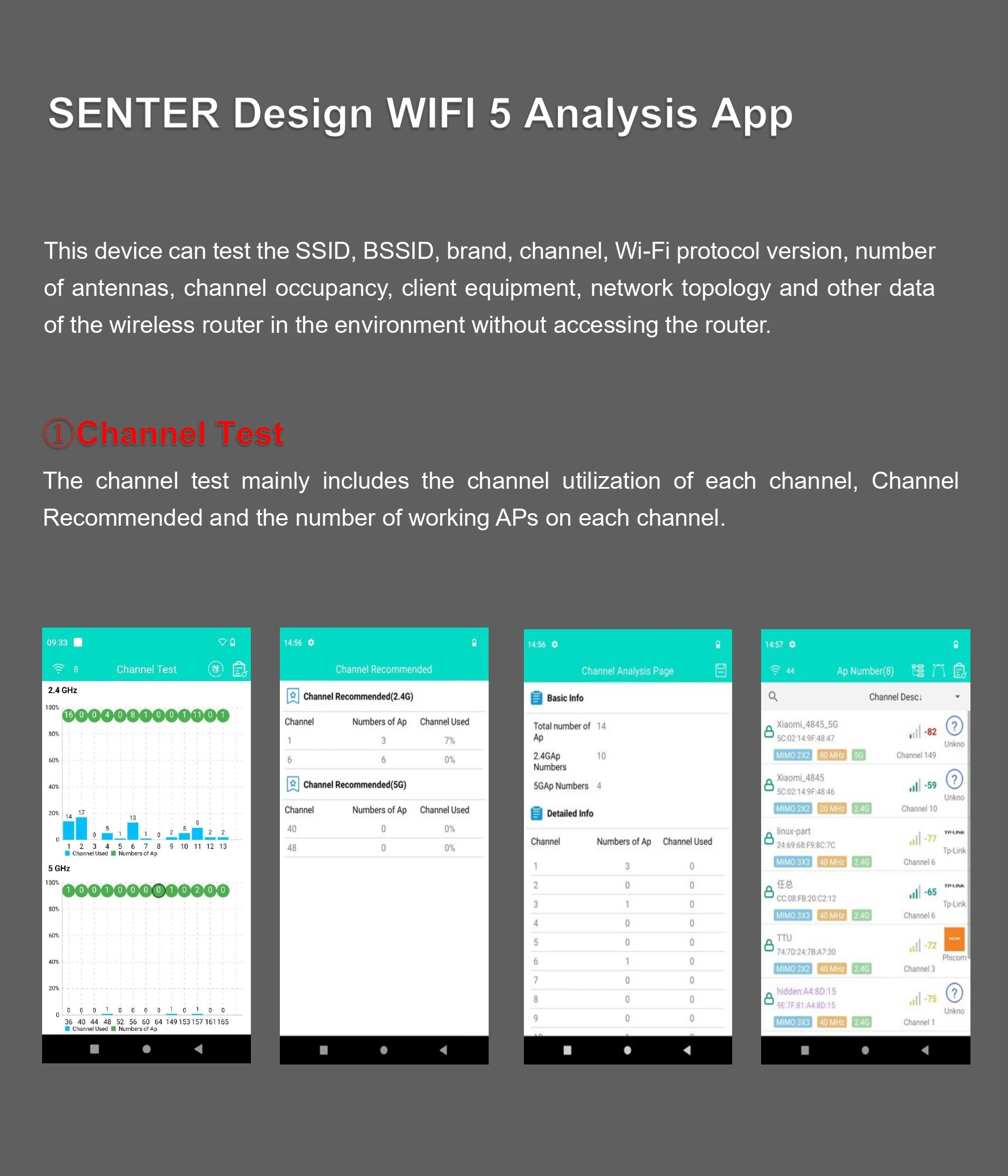

SENTER Design WIFI 5 Analysis App

This device can test the SSID, BSSID, brand, channel, Wi-Fi protocol version, numberof antennas, channel occupancy, client equipment, network topology and other dataof the wireless router in the environment without accessing the router

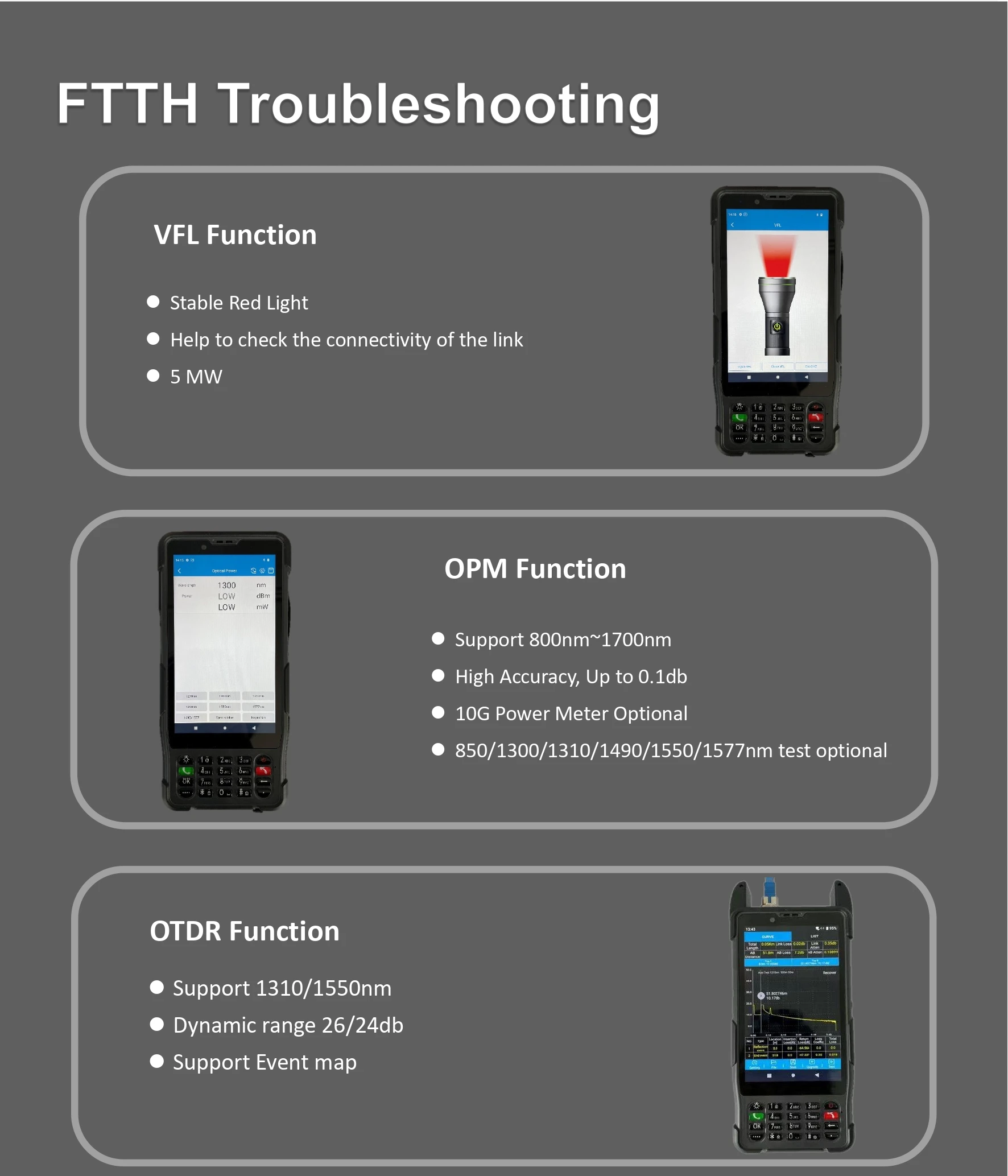

FTTH Troubleshooting


VFL Function
• Stable Red Light
• Help to check the connectivity of
the link
• 5MW
OPM Function
• Support 800nm~1700nm
• High Accuracy, Up to 0.1db
• 10G Power Meter Optional
• 850/1300/1310/1490/1550/1577nm test optional
OTDR Function
• Support 1310/1550nm
• Dynamic range 26/24db
• Support Event map

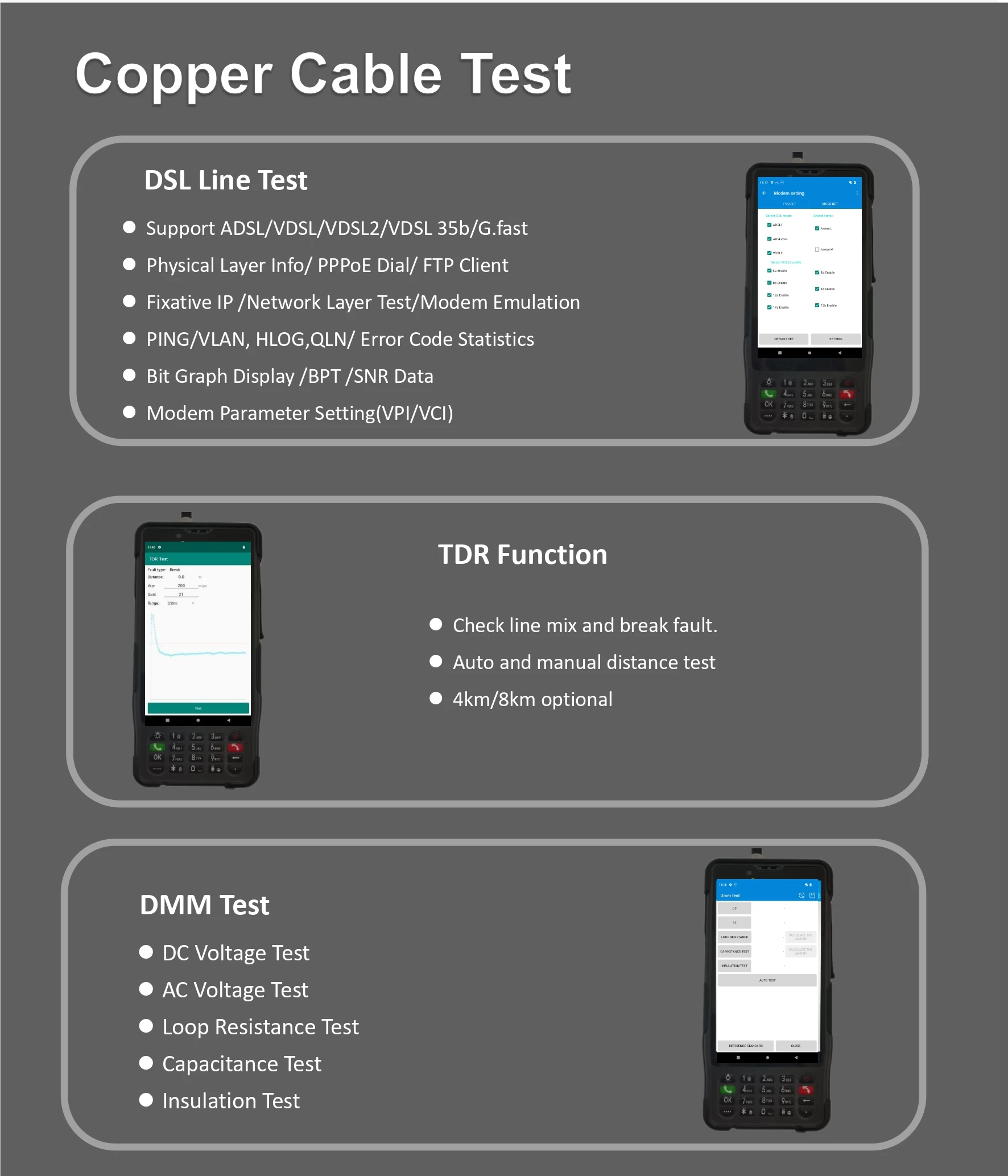

Copper Cable Test


DSL Line Test
• Support ADSL/VDSL/VDSL2/
VDSL35b/G.fast
• Physical Layer Info/ PPPOE Dial/
FTP Client
• Fixative IP /Network Layer Test/Modem Emulation
• PING/VLAN, HLOG,QLN/ Error Code Statistics
• Bit Graph Display /BPT /SNR Data
• Modem Parameter Setting(VPI/VCI)
TDR Function
• Check line mix and break fault.
• Auto and manual distance test
• 4km/8km optional
DMM Test
• DC Voltage Test
• AC Voltage Test
• Loop Resistance Test
• Capacitance Test
• Insulation Test.

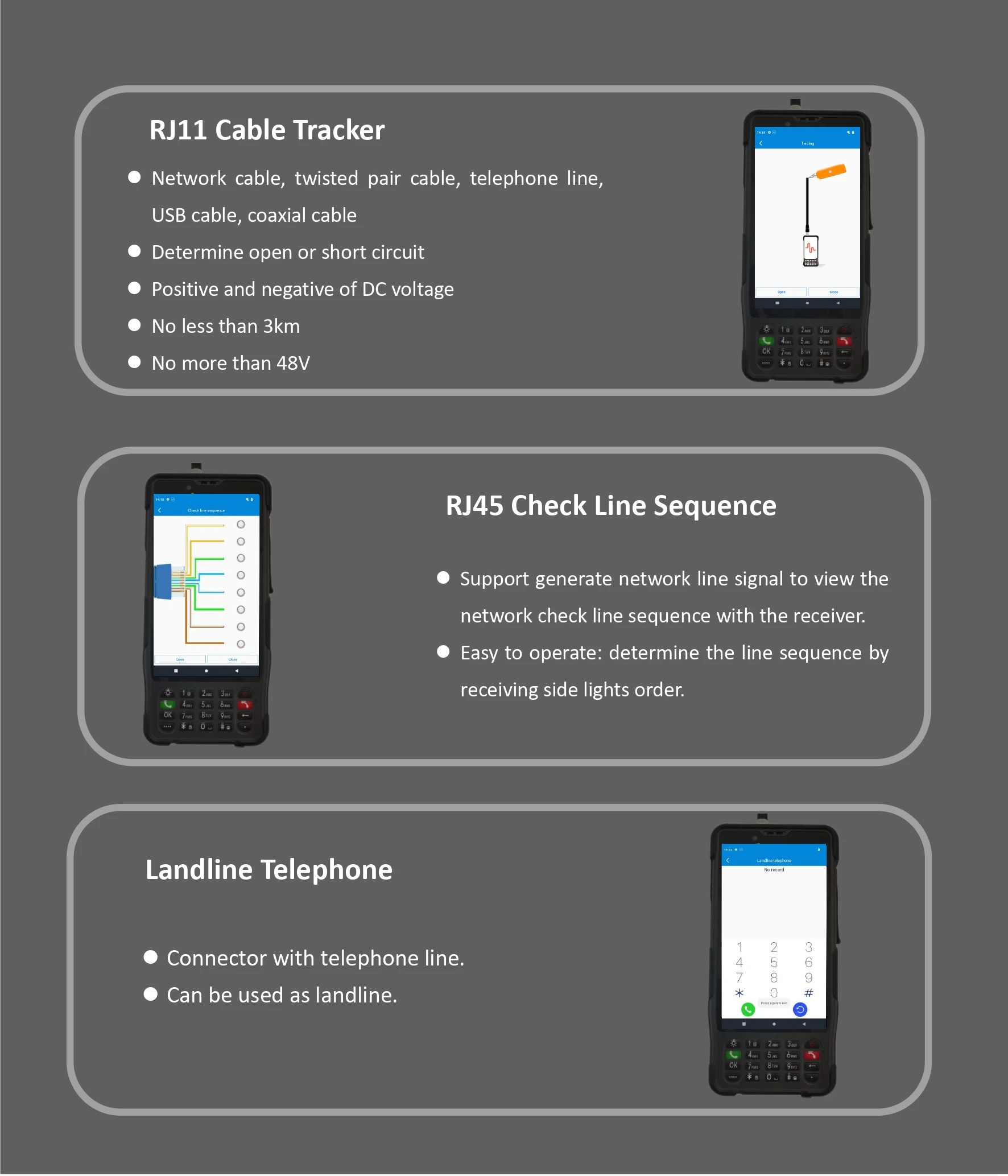

RJ11 Cable Tracker
• Network cable, twisted pair cable,
telephone line USB cable, coaxial cable
• Determine open or short circuit
• Positive and negative of DC voltage
• No less than 3km
• No more than 48V
RJ45 Check Line Sequence
• Support generate network line signal to view the network check line sequence with the receiver.
• Easy to operate: determine the line sequence by receiving side lights order.
Landline Telephone
• Connector with telephone line
• Can be used as landline.

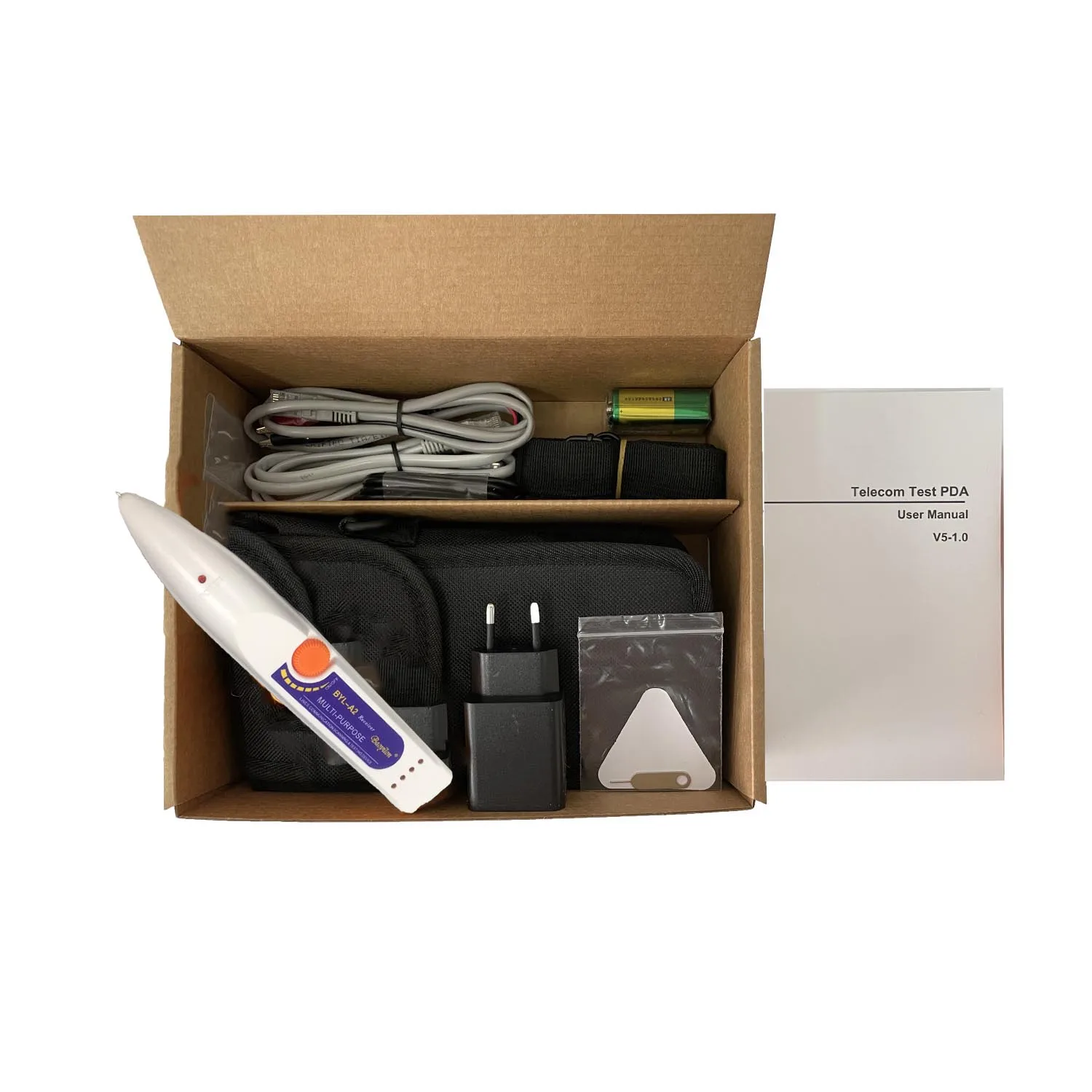

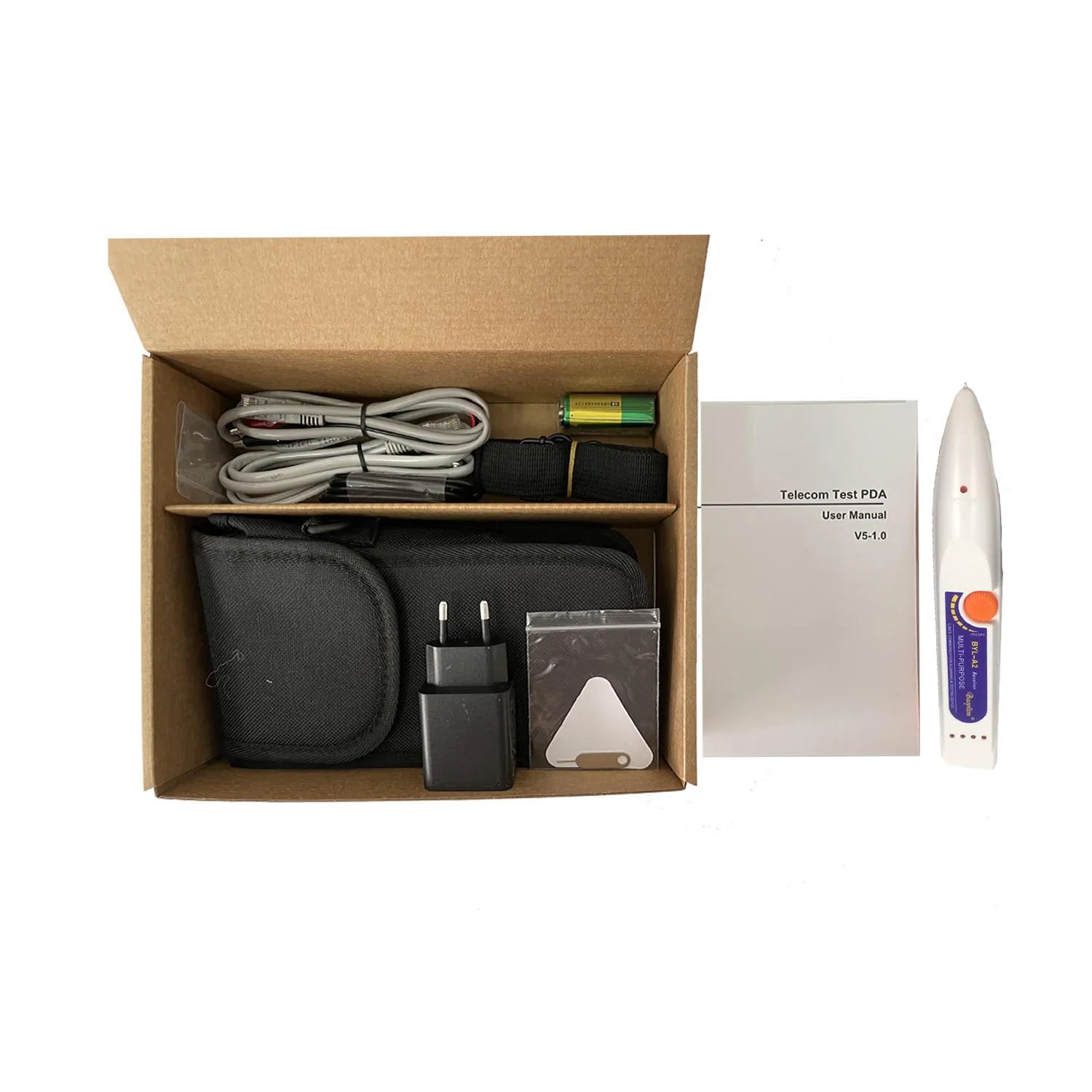

Packing & Delivery


Carrying bag + Outer Carton




Company Profile


Shandong Senter Electronic Co., Ltd is a high-tech enterprise dedicated to providing communication testing products and solutions. Founded in 1996, SENTER has 415 employees, 97.5 million yuan registered capital, and covers an area of 20,000 square meters.
Specialized in communication field over 24 years, SENTER adheres to offer communication testing products and solutions for communication operators. Our featured products include communication maintenance and testing instruments, communication comprehensive maintenance terminal. ,etc. SENTER firstly launches the world handheld integrated maintenance intelligent terminal, which provides unparalleled powerful, efficient and easy-to-use user experience, establishing world-leading reputation.










FAQ


1. who are we?
We are based in Shandong, China, start from 1996,sell to Domestic Market(85.00%),Western Europe(4.00%),North America(4.00%),South America(3.00%),Africa(2.00%),Central America(1.00%),South Asia(1.00%). There are total about 501-1000 people in our office.

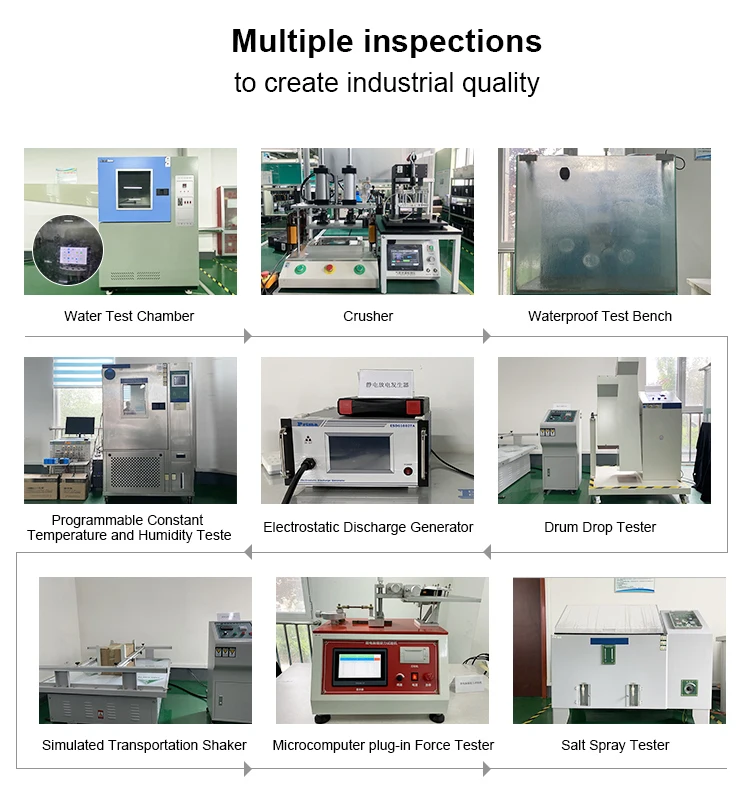

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Fiber And Copper Multi Tester,Optical Fiber Fusion Splicer,Optical PON Power Meter,OTDR,Telecom Test PDA

4. why should you buy from us not from other suppliers?
Senter electronics has subsidiaries and R&D centers in Jinan and Qingdao.Founded in 1996, the company has more than 400 employees, registered capital of 97.5 million Yuan, and covers an area of 20,000 square meters.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW；
Accepted Payment Currency:USD,EUR,AUD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese
