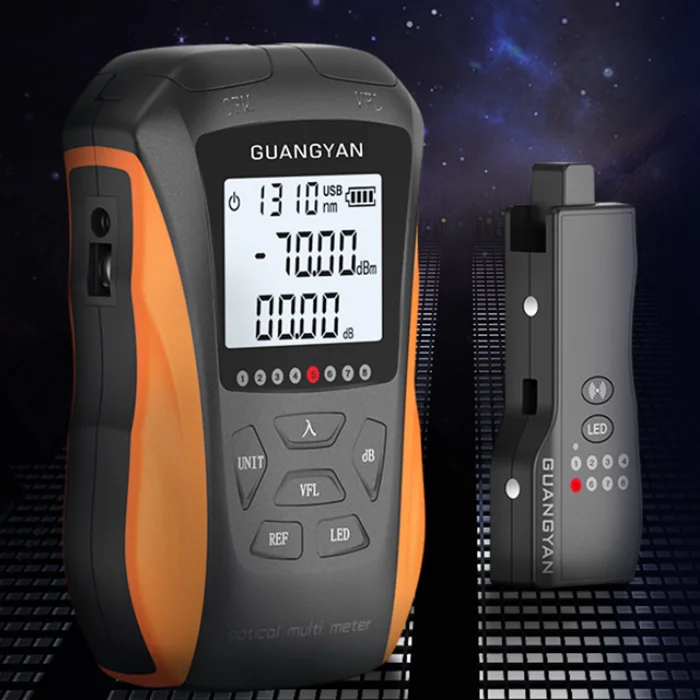

FTTH Six in one Multifunction Fiber Optic Tester 6 in 1 Fiber Optic Cable Tester Tool Y8 Optical Power Meter
- Category: >>>
- Supplier: Shenzhen Datolink Technology Co. Ltd.
Share on (1601030651908):
Product Overview
Description
FTTH Six in one Multifunction Fiber Optic Tester 6 in 1 Fiber Optic Cable Tester Tool Y8 Optical Power Meter
Product Description:
The handheld optical power meter/all-in-one series products are mainly used for continuous optical signal power measurement and fiber line continuity testing. It is controlled by a single-chip microprocessor with complete functions. Widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CAT and other fields. The design of the fuselage conforms to the requirements of ergonomics and adopts advanced cold plastic molding technology, which is beautiful and durable.
Technical index
Wavelength range | 800 to 1700 |
Detector type | InGaAs |
Measuring range | -70~+3,-70~+10,-50~+26 |
uncertainty | ±5% |
Standard wavelength (nm) | 850,980,1300,1310,1490,1550,1625 |
display resolution | Linear display: 0.1% Logarithmic display: 0.01dBm |
Red light working wavelength (nm) | 650 |
Red light power (mW) | 1,5, 10, 20,30(Optional) |
Frequency identification (Hz) | 0,270,1000,2000 |
RJ45 hunting distance (M) | 200 |
Laser ranging distance (M) | 40 |
Input voltage (V) | 3~6 |
Wireless module type | 2G |
Working temperature (℃) | -10~+60 |
Storage temperature (℃) | -25~+70 |
Automatic shutdown time (min) | 10 |
Continuous working time of battery (h) | ≥48(Single power measurement) |
Battery capacity (mAh) | 1100 |
type of battery | lithium battery |
Instrument size (mm) | ≈115*71*30 |
Packing size (mm) | ≈170*95*47 |
Net weight of meter (g) | 140/145 |
Total weight (g) |
Features:
1. Support lighting
2. Support automatic startup
3. Support automatic shutdown
4. Support memory wavelength function
5. Support automatic frequency identification
6. Support user calibration

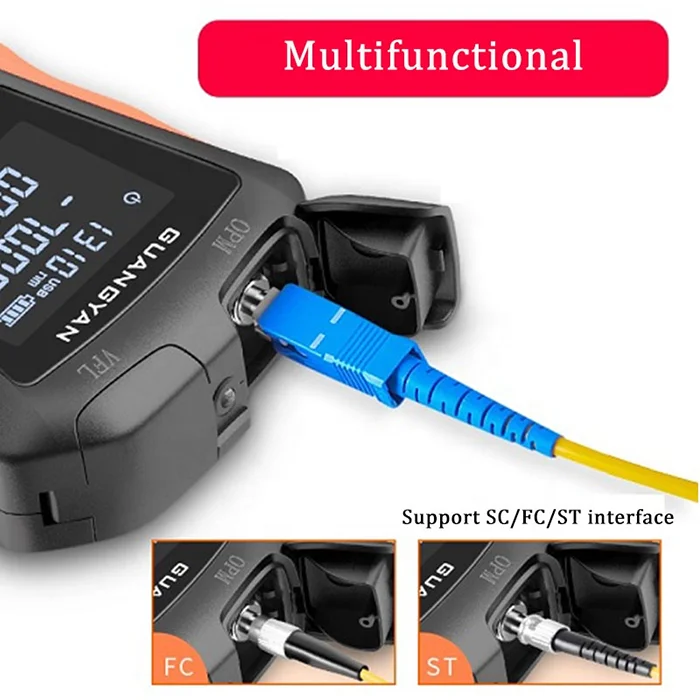

7. Support SC, FC, ST interface
8. Support external power supply such as power bank and computer
9. Support linear (nW) and non-linear indicators (dB)
10. Support RJ45 test
11. Support RJ45 line hunting (optional)
12. Laser ranging (optional)
13. Red light flashing and power adjustable
14. Charging endurance working time is 48 hours
15. Support real-time operation on PC and mobile phone (optional)
16. Support three data saving modes of offline, PC and mobile phone
