Product Overview
Description
Product Description

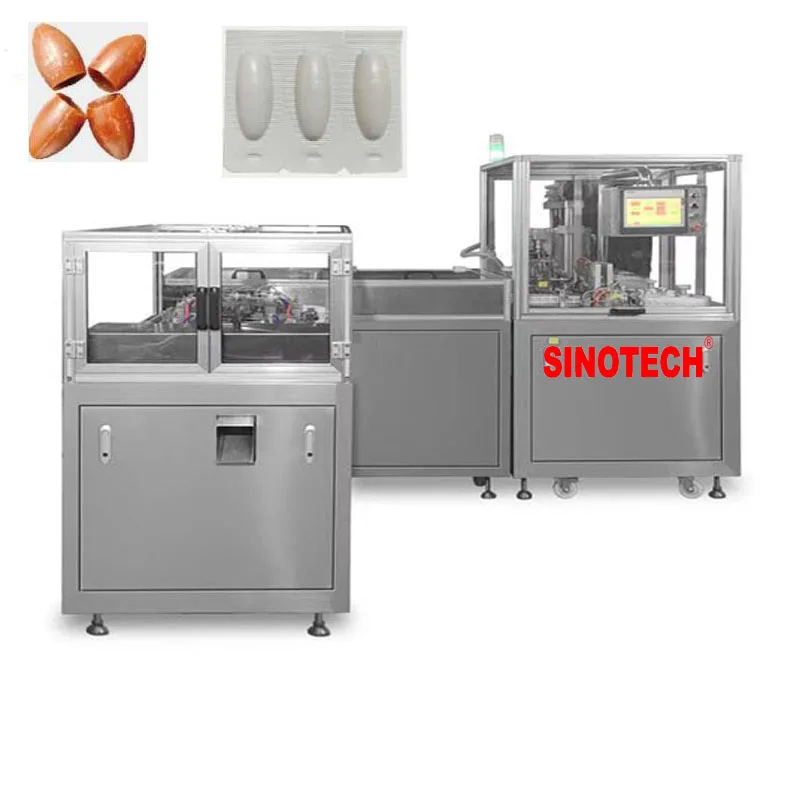

SINOTECH brand automatic suppository filling production line has a stable and efficient system of tape, filling, freezing, sealing and other production processes to complete the process of the whole bolt, whose production capacity is 1,000-1,200 tablets / hour.
Technical parameter
Model | SS -1 |
Capacity | 1000-1500 pcs/h |
Single dosage | 0.5-5g |
Dosage allowed | <±2% |
Tank volume | 20L |
Packaging Film | PVC\\PE |
Working air pressure | ≥0.6Mpa |
Air consumption/minute | 1.2m³ |
Water Consumption/H | 50 KGS(Recycling) |
Total power | 4KW |
Machine Weight | 500KG |
Overall dimensions | 2300*1200*1800mm |
Main features
Working Principle:
Put the roll of packaging material(PVC,PVC/PE)into the molding area through the clamping mechanism.→Preheat the mold→Heat the
Mould→Forming→Blowing→Blow bubbles.
Triangle knife trimming process (cut bottom)→Cut dashed line (torn line).
Suppository Production Line Filling:
Suppository Production Line Cooling:
The entire row of filled suppository are put into the cooling box. The outside of the cooling box is equipped with chillers. The cooling air cools the suppositories in the cooling box through the condenser in the cooling box.
Suppository Production Line Sealing and Cutting:
The cooled suppository which is in solid form enters the sealing area:Preheating mold(preheating)→Sealing mold(sealing)→Coding mold(batch number)→Hobs(trim on top)→Count and cut
Equipment advantages:
Detection function:
1. suppository automatic production line is suitable for the production of bullet-shaped, torpedo-shaped, duckbill-shaped and other special shape of suppositories. It can meet your company’s request.(We can make new mode according to your specific requirements)
2. The equipment uses PLC programmable control and man-machine interface operation. It is easy to operate and adjust and it has accurate temperature control and smooth operation.
3. Temperature sensor and microcomputer control system can achieve high precision thermostatic control.
4. The liquid storage tank is made of 316L stainless steel with appropriate volume, insulation and heating function, which can control temperature accurately; The liquid storage tank has a mixing device to ensure the uniformity of the liquid in the tank;The tank is connected to the filling mechanism through the pipeline. The liquid with drug which is maintained in a needed temperature is circuiting to ensure the fluidity of the liquid and meet the filling demand.
5. The use of plug-in linear perfusion mechanism ensures positioning accuracy, no drops, no drops on wall; Single grain
measurement is 0.5-5ml. Filling error is ± 2%.
6. Continuous cooling molding will make sure that the suppository can be fully cooled and can achieve liquid-solid conversion.
7. Continuous tape and sealing. The batch number will be printed during the sealing process. The product should be sealed intactly and neatly. It’s yield is no less than 98%.
Put the roll of packaging material(PVC,PVC/PE)into the molding area through the clamping mechanism.→Preheat the mold→Heat the
Mould→Forming→Blowing→Blow bubbles.
Triangle knife trimming process (cut bottom)→Cut dashed line (torn line).
Suppository Production Line Filling:
Embedded filling can achieve one-time filling of the molded suppository with a filling accuracy of ± 2%.The filling bucket has an electric heating and heating preservation system. A stirring motor is on the top of it which can make the drug in a uniform state. The drug in the bucket will enter into the filling head through a high-precision filling pump. After the filling, the remaining drug is circulated through the other end to the raw material bucket and then used in the next filling.
Suppository Production Line Cooling:
The entire row of filled suppository are put into the cooling box. The outside of the cooling box is equipped with chillers. The cooling air cools the suppositories in the cooling box through the condenser in the cooling box.
Suppository Production Line Sealing and Cutting:
The cooled suppository which is in solid form enters the sealing area:Preheating mold(preheating)→Sealing mold(sealing)→Coding mold(batch number)→Hobs(trim on top)→Count and cut
Equipment advantages:
Detection function:
1. suppository automatic production line is suitable for the production of bullet-shaped, torpedo-shaped, duckbill-shaped and other special shape of suppositories. It can meet your company’s request.(We can make new mode according to your specific requirements)
2. The equipment uses PLC programmable control and man-machine interface operation. It is easy to operate and adjust and it has accurate temperature control and smooth operation.
3. Temperature sensor and microcomputer control system can achieve high precision thermostatic control.
4. The liquid storage tank is made of 316L stainless steel with appropriate volume, insulation and heating function, which can control temperature accurately; The liquid storage tank has a mixing device to ensure the uniformity of the liquid in the tank;The tank is connected to the filling mechanism through the pipeline. The liquid with drug which is maintained in a needed temperature is circuiting to ensure the fluidity of the liquid and meet the filling demand.
5. The use of plug-in linear perfusion mechanism ensures positioning accuracy, no drops, no drops on wall; Single grain
measurement is 0.5-5ml. Filling error is ± 2%.
6. Continuous cooling molding will make sure that the suppository can be fully cooled and can achieve liquid-solid conversion.
7. Continuous tape and sealing. The batch number will be printed during the sealing process. The product should be sealed intactly and neatly. It’s yield is no less than 98%.
Detailed Image

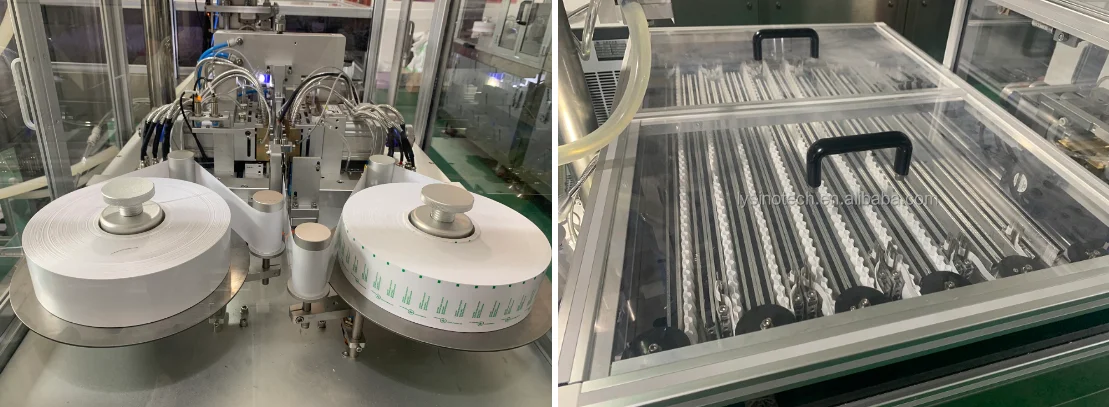

PVC PE Film Plate Continuous Cooling

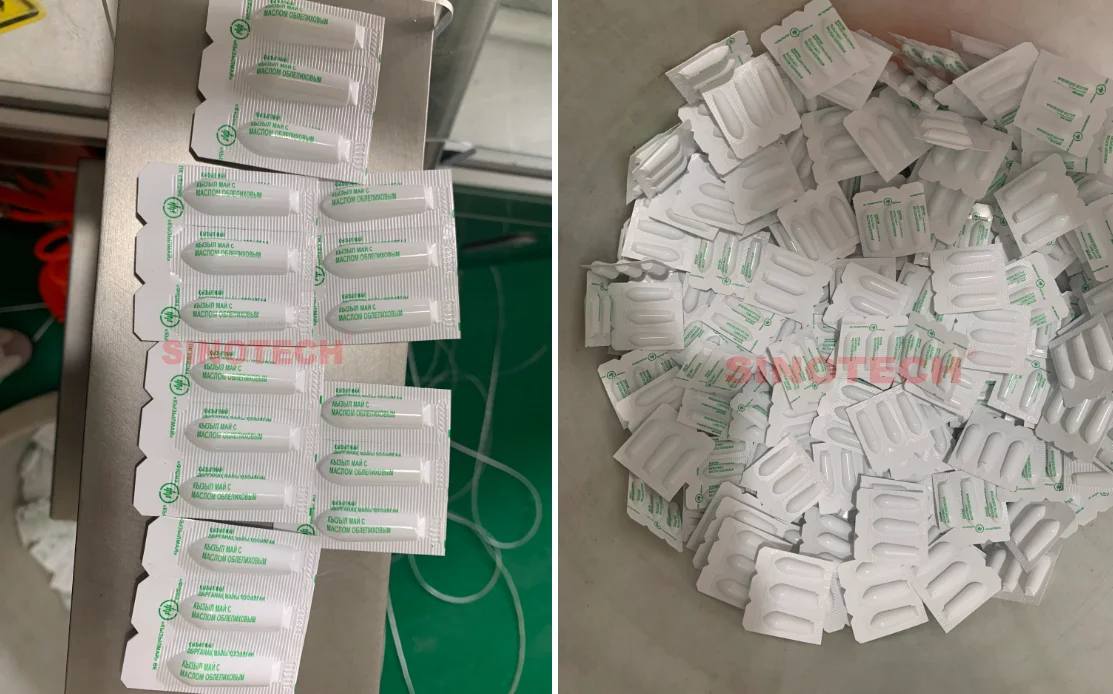

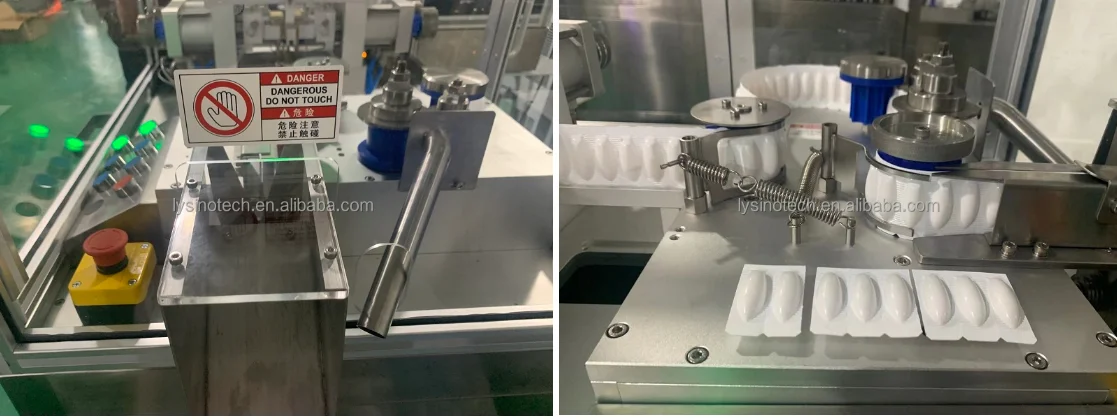

Suppository Outlet Suppository Finish Show
Suppository Finish Show Suppository Finish Show
Contact us
Contact person :Susan Guo
Mobile phone: 0086 139 4197 7284
Whatsapp: 0086 139 4197 7284
Wechat: 139 4197 7284
QQ: 1196544310.
Contact person :Susan Guo
Mobile phone: 0086 139 4197 7284
Whatsapp: 0086 139 4197 7284
Wechat: 139 4197 7284
QQ: 1196544310.
Service promise
1 Product Quality
All products are guaranteed for one year, if any problems happen in guarantee period.our company will maintain for free.
2 Spare Part Replacement
First mold for free,more than 50%,discount if more order.
3 Technical Service
We can provide design, installation and debugging services or remote maintain teaching.

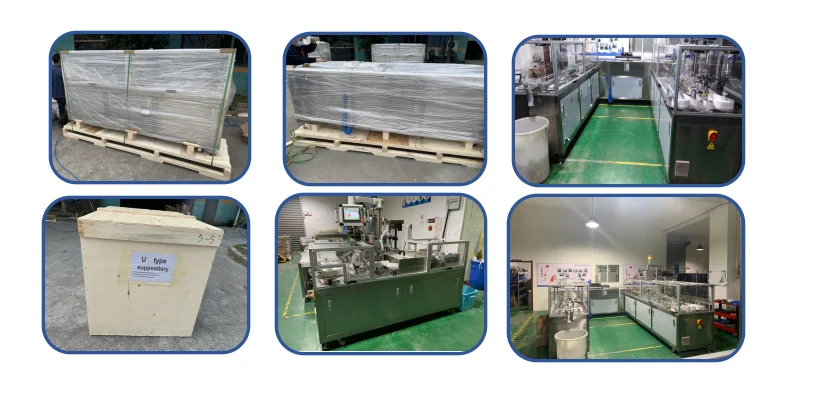

4 Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port,save time and cost.
5 Detail Product Information

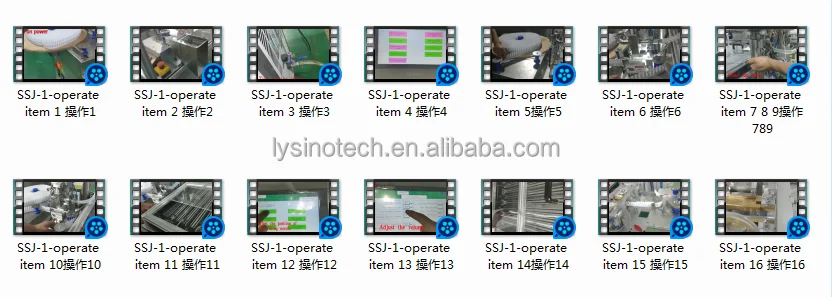

Provide picture,video,instruction and product brochure.
