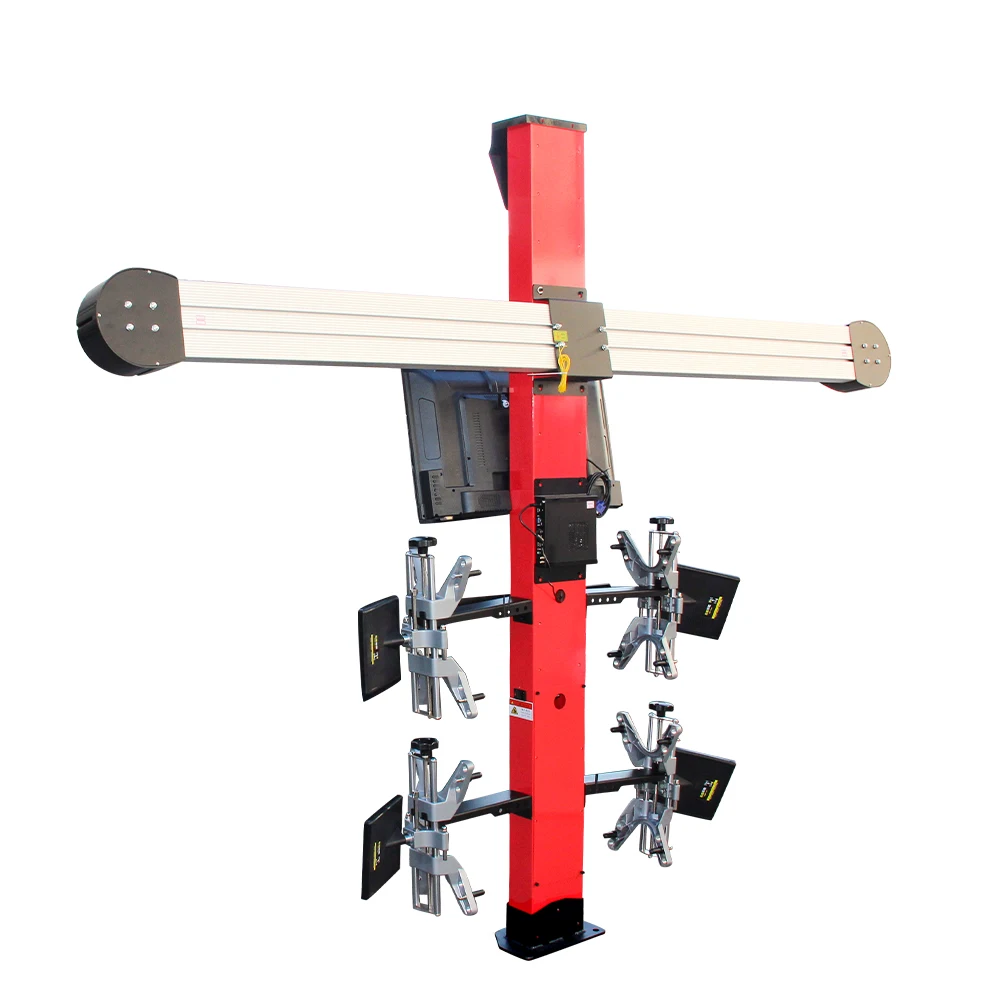

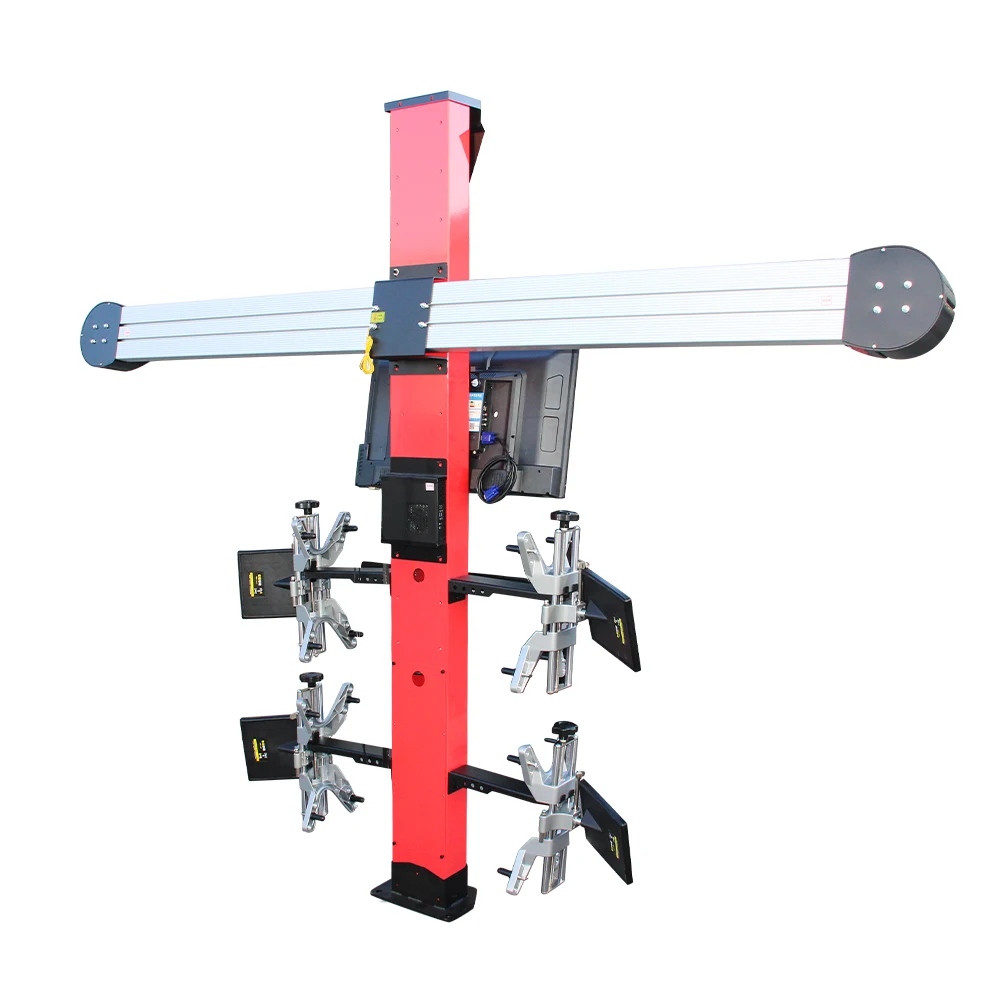

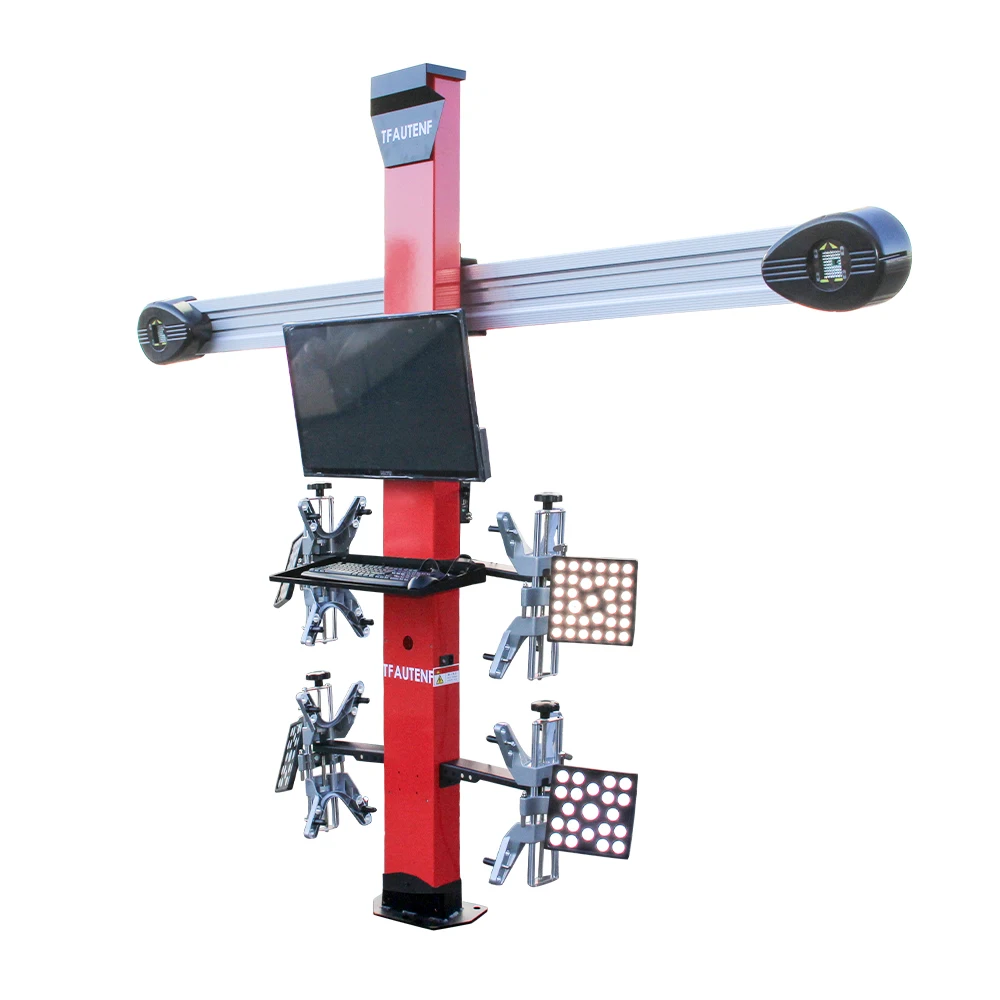

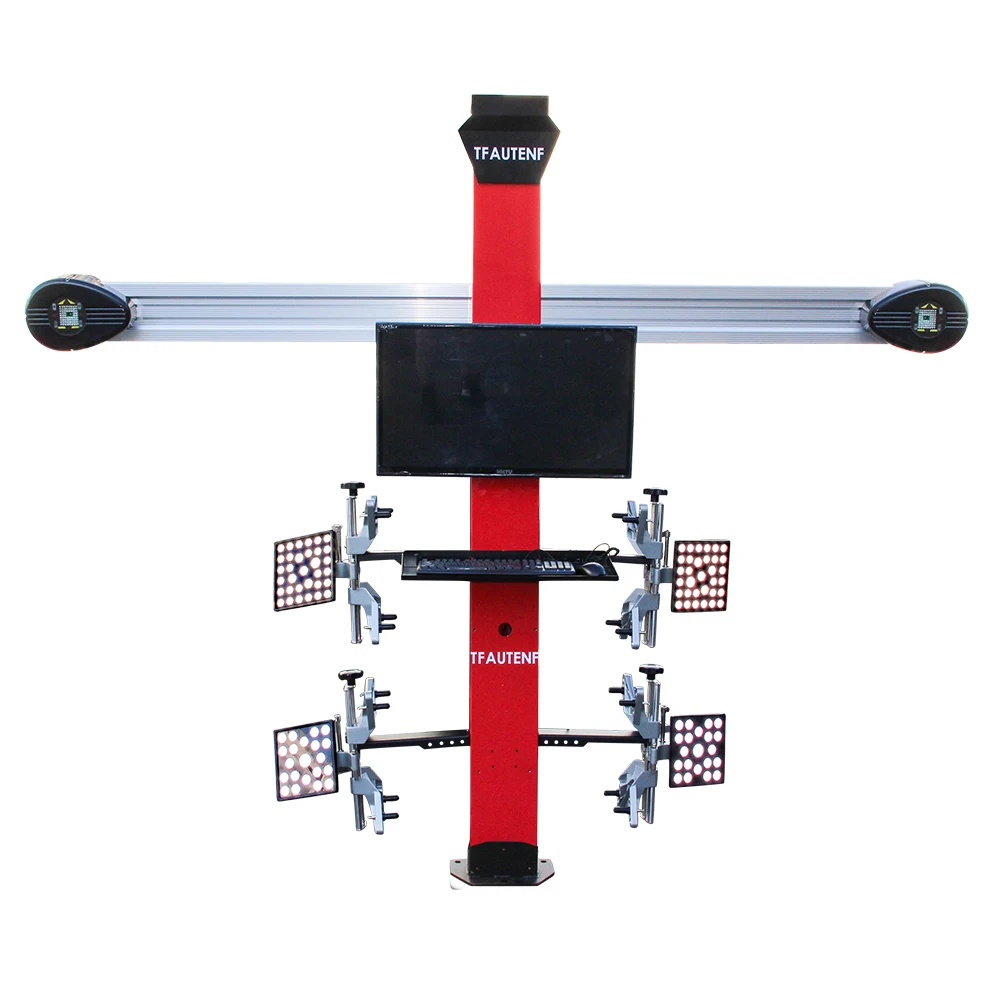

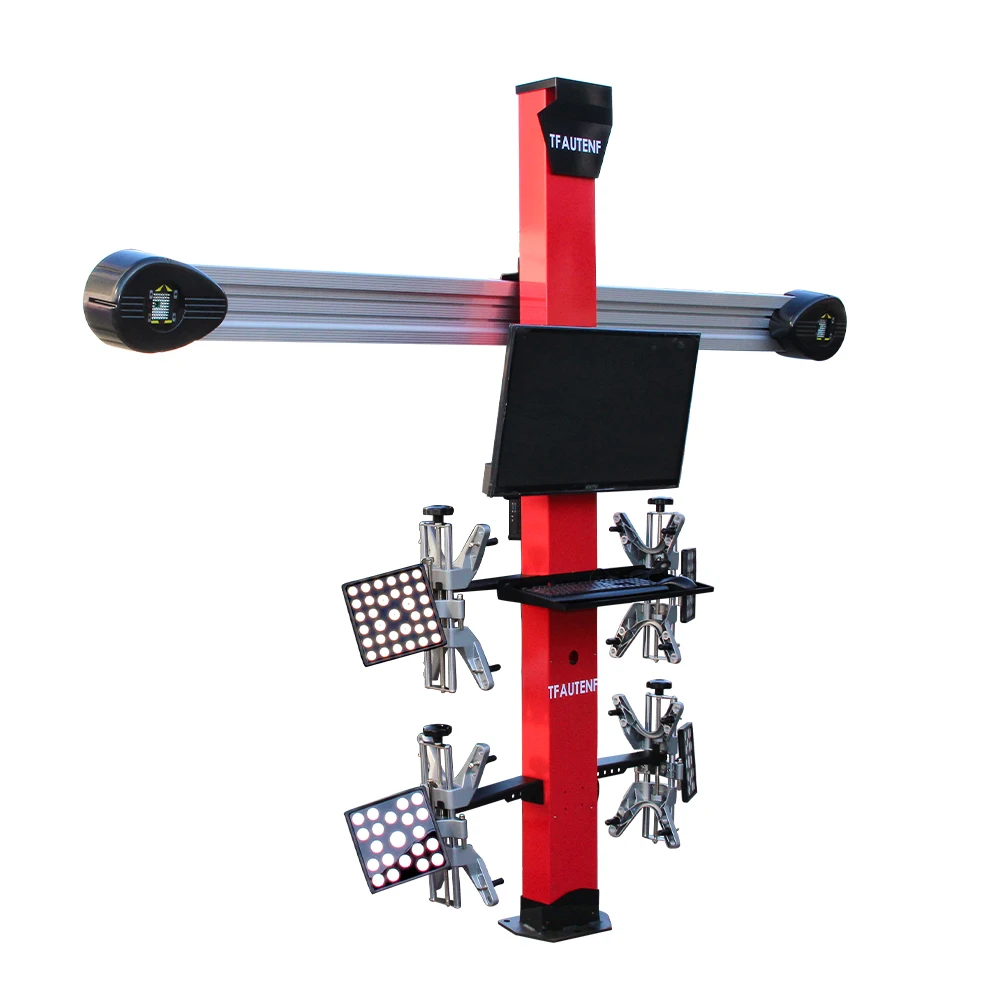

Economical 3d wheel aligner auto car four wheel alignment machine for sales
Economical 3d wheel aligner auto car four wheel alignment machine for sales
Economical 3d wheel aligner auto car four wheel alignment machine for sales
Economical 3d wheel aligner auto car four wheel alignment machine for sales
Economical 3d wheel aligner auto car four wheel alignment machine for sales
Economical 3d wheel aligner auto car four wheel alignment machine for sales

Economical 3d wheel aligner auto car four wheel alignment machine for sales

Share on (1601030680569):


Price:$1,410.00

Quantity:


Product Overview

Description



Product Description


Popular model, with high cost performance




Notes:

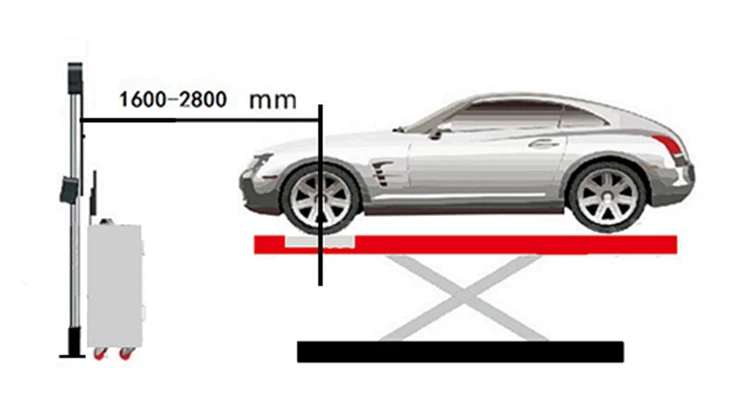

It is suggested that the horizontal distance from the camera to the turntable center is 1600-2800 mm. When your area is limited, the distance can be 1500 mm.


Measurement items
Measurement accuracy
Measurement range
TOTAL TOE
±0.01°
±40°
CAMBER
±0.01°
±45°
CASTER
±0.02°
±45°
SAI
±0.02°
±45°
THRUST ANGLE
±0.01°
±45°
SETBACK
±0.01°
±40°
MAX TURN ANGLE
±0.02°
±50°
WHEEL DISTANCE
±2mm
1219-2538mm
AXLE DISTANCE
±2mm
2006-4750mm


Accessories list


Hardware of TFAUTENF 3D car four wheel alignment machine aligner:


Items
Quantity
Remark
Post assembly
1
including its cover and base
Beam assembly
1 & 2
including beam and 2 pcs of 5 megapixel cameras
Display screen (monitor)
1
32 inch, with bracket, keyboard, Keyboard holder, mouse, mouse pad
Target plates
4
water and drop proof
Clamps & clamps bracket & pegs & protective rope
4 & 4 & 16 & 4
Steering wheel holder
1
Brake holder
1
Ground needle
1
Direct the static electricity generated by aligners into the ground to protect electronic component
Turntables & Transitional block
2 & 2
40*40cm (L*W) thickness:5mm
Wedge-shaped pad
2
Small host
1
VGA cable
1
Power cord
1
Screws
1 bags
Manuals
1


Software of TFAUTENF 3D car four wheel alignment machine aligner:

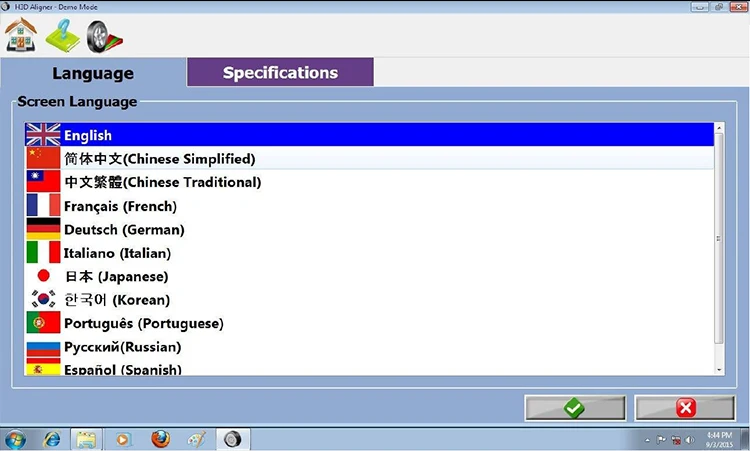

Languages selection
With 26/36 languages,with voice function

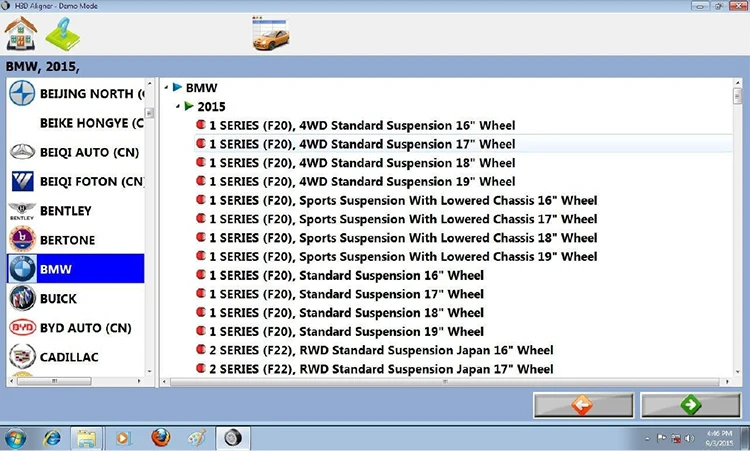

Car brand & model selection
With complete vehicles data,will be updated every half of year free of charge.


Packing & Shipping


One 3d car four wheel alignment machine/aligner has 2 packages:
2920*350*350mm (gross weight: 70kgs)
880*740*860mm (gross weight: 100kgs)

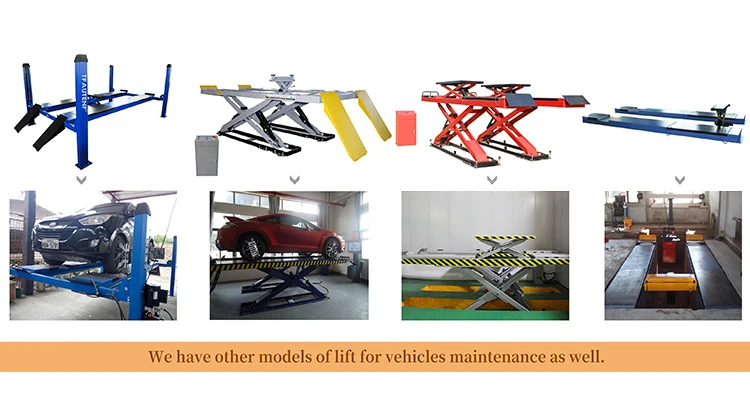

Available lifts for wheel alignment service


3D car four wheel alignment machine/aligner can be used together with the following types of car lift,3 & 4 types need to dig trenches when using.
