YTB 61200 High Speed Flexo Label Garments Printing Machine 6 Color

Share on (1601030687017):


Price:$44,000.00 - $44,500.00

Quantity:


Product Overview

Description





Products Description




Model
YTB-6600
YTB-6800
YTB-61000
Max. Feeding width
600mm
800mm
1000mm
Effective printing width
150-560mm
150-760mm
150-960mm
Printing color
1-6 colors
1-6 colors
1-6 colors
Max. Printing length
200-1000mm
200-1000mm
200-1000mm
Machine speed
10-120m/min
10-120m/min
10-120m/min
Printing speed
10-120m/min
10-120m/min
10-120m/min
Rubber plate thickness
1.7mm/2.28mm
1.7mm/2.28mm
1.7mm/2.28mm
Total power
40kw
50kw
60kw
Gross weight
5500kg
6500kg
7000kg
Install dimension
5.5x1.8x3.6m
5.5x2x3.6m
5.5x2.2x3.6m


Feature
1.The fuselage adopts 75MM thickened wall panel, all castings flat plate site, and enlarged steelyard to enhance fuselage stability
2.The printing roller is made of thickened steel rod and polished with 10 wire thick hard chromium protective layer.
3.Aluminum alloy guide wheel for hard oxidation, dynamic balance, static balance treatment.
3.High precision and wide synchronous belt transmission, ow noise and low vibration make the machine more stable when the machineis running at high speed.
4.The plate roller gearis driven by specialhelical gear, each tooth printing lenath is 5MM, the printing effect is more stable, the printinclength is more accurate.


Details Images

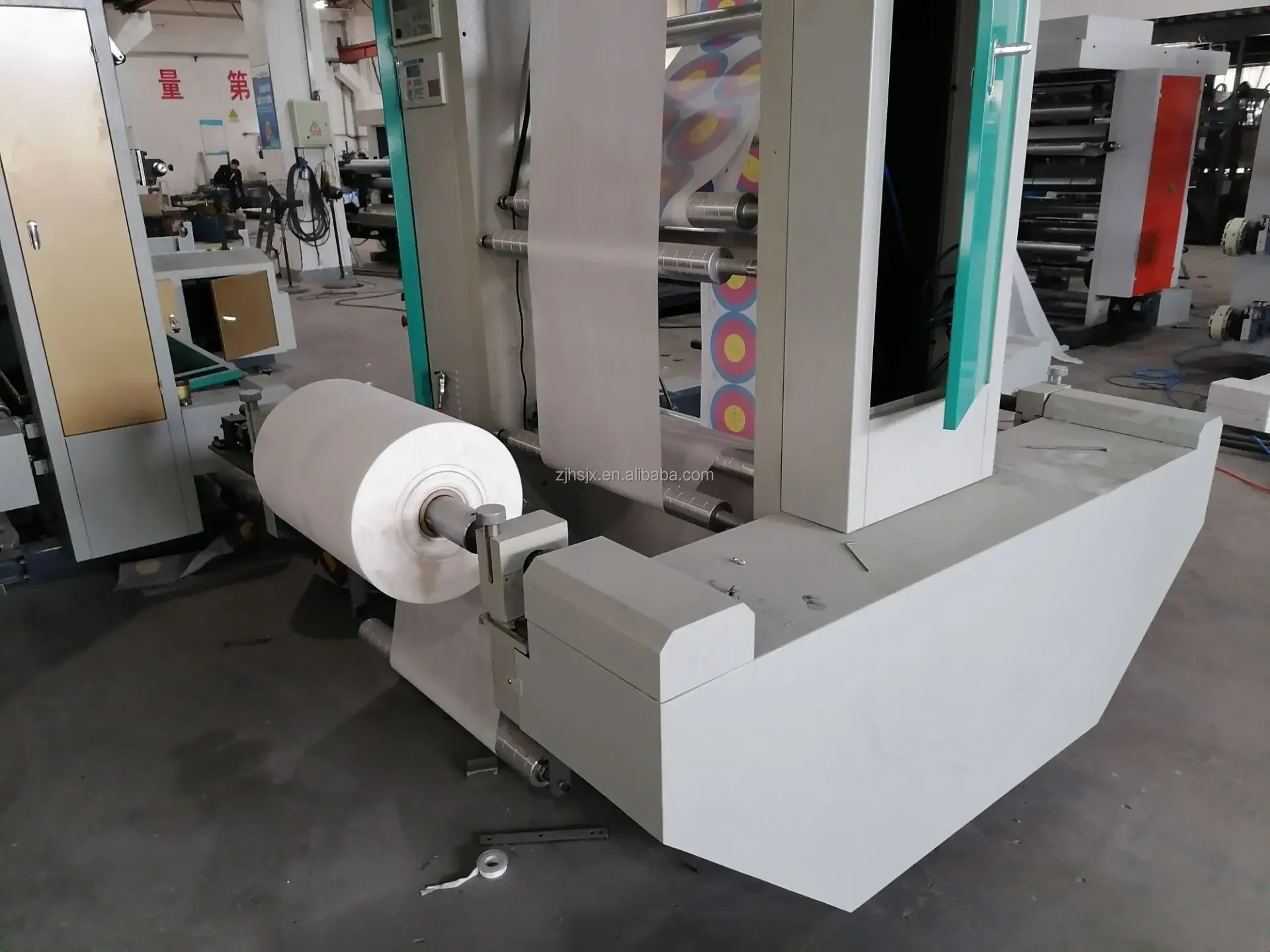

unwind
side view

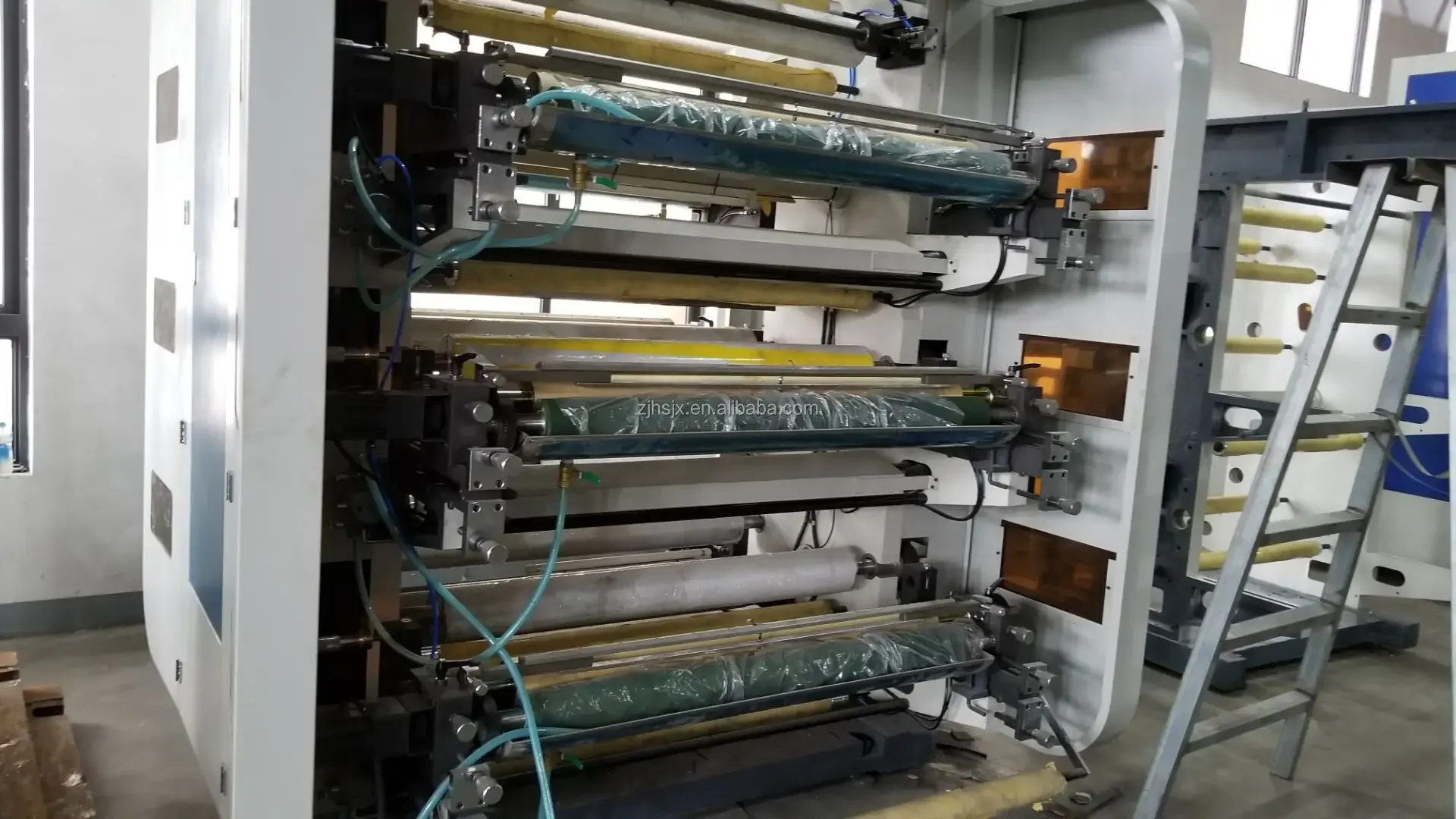

printing unit

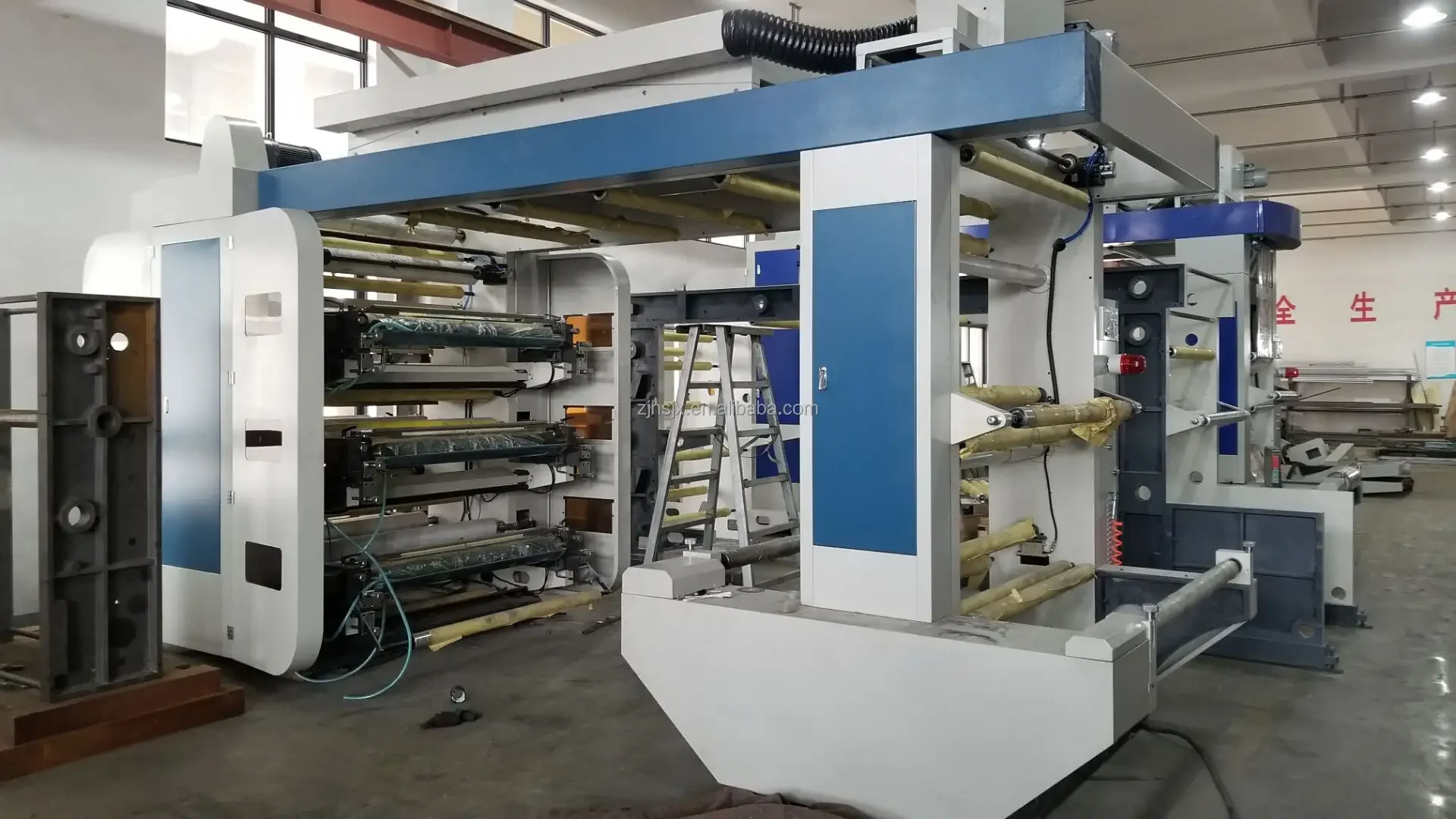

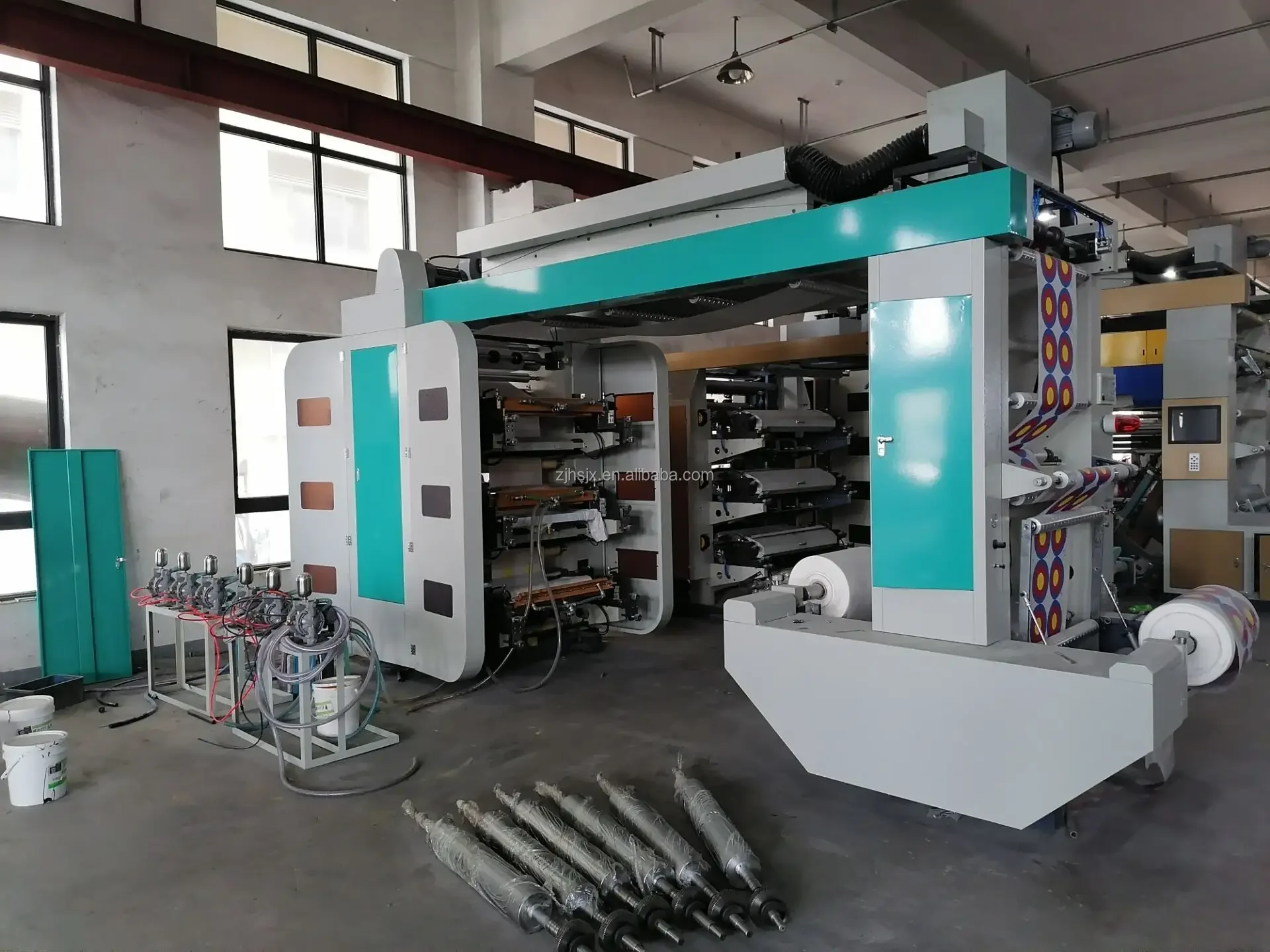

machine whole view
video camera inspection
printing quality show
