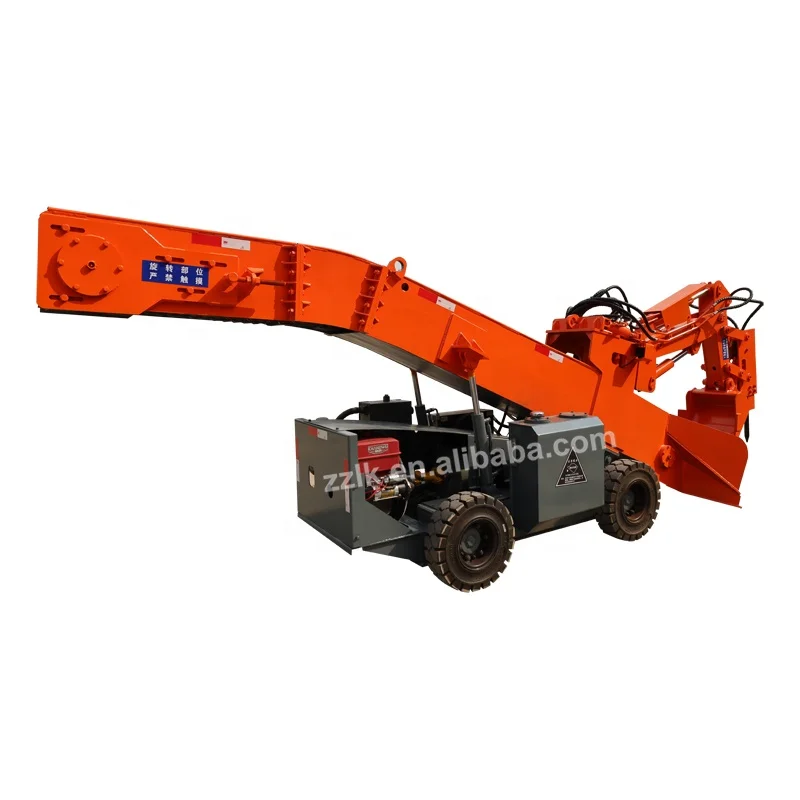

China supplier mucking machine/tunnel crawler mining mucking loader/coal mine use muck loader
- Category: >>>
- Supplier: Henan Pssroh Trading Co. Ltd.
Share on (1601030694594):
Product Overview
Description
Product Description

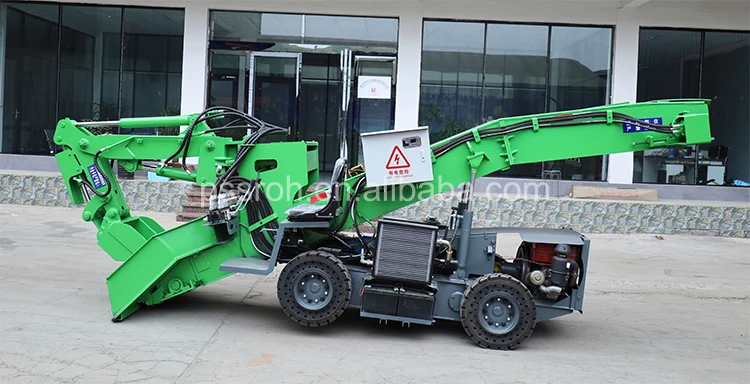

coal mine use muck loader is also called excavating loader. Reasonable bonding of manipulator and conveyor.Acquisition and transmission function combined into one.Besides,it adopts hydraulic control system and production equipment,so safety and environmental protection,low energy consumption,high efficiency,etc.
Product advantages/features:
1.Load sensing hydraulic priority to, stable and reliable, energy conservation and significant;
2.Durable, each gear ratio reasonable matching, reduce the power consumption;
3.Reduce the power consumption;
4.Simple structure and reliable performance;
5.semi-enclosed assembling,easy to maintain.
Specifications:
1. Four wheel drive;
2. Operating easily;
3. High efficiency;
4. Low energy consumption.
There are many models of mucking loader：ZWY-40H, ZWY-50H, ZWY-60H, ZWY-80H,ZWY-120H.
Product advantages/features:
1.Load sensing hydraulic priority to, stable and reliable, energy conservation and significant;
2.Durable, each gear ratio reasonable matching, reduce the power consumption;
3.Reduce the power consumption;
4.Simple structure and reliable performance;
5.semi-enclosed assembling,easy to maintain.
Specifications:
1. Four wheel drive;
2. Operating easily;
3. High efficiency;
4. Low energy consumption.
There are many models of mucking loader：ZWY-40H, ZWY-50H, ZWY-60H, ZWY-80H,ZWY-120H.
Item | ZWY-50 | ZWY-60 | ZWY-80 | ZWY-120 |
Dimension (mm) | 4800*1300*1400 | 5200*1500*1600 | 5800*1700*1650 | 7000*2000*1850 |
Wheelbase (mm) | 1500 | 1500 | 1600 | / |
Digging distance (mm) | 1500 | 1600 | 1800 | 2700 |
Digging width (mm) | 2200 | 2400 | 2400(3200) | 4300 |
Digging height (mm | 2100 | 2100 | 2900 | 3800 |
Digging depth (mm) | 700 | 700 | 700 | 1000 |
Dumping height (mm) | 1400-1700 | 1480-1700 | 1700-1950 | 1900-2400 |
Loading capacity (m³/h) | 50 | 60 | 80 | 120 |
Swing Angle of work arm (°) | 73 | 73 | 73 | 73 |
Belt speed (m/s) | 0.63 | 0.63 | 0.63 | 0.63 |
Maximum material dimension (mm) | ≤600*500 | ≤600*500 | ≤600*500 | 900*900 |
Rated working pressure (Mpa) | 16 | 16 | 16 | 16 |
Power (KW) | 11+4 | 11+4 | 15+4 | 55 |
Weight (KG) | 3000 | 3300 | 3400 | 6700 |
Adaptive tunnel size ≥mm | 1600*1800 | 1800*2000 | 2200*2400 | 3000*3000 |

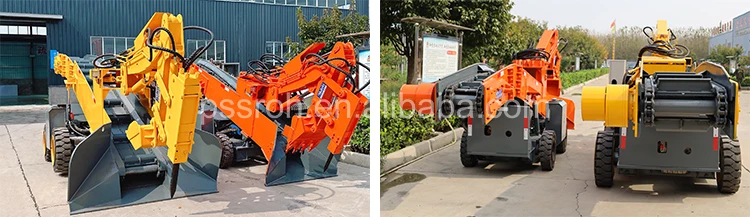

Detailed images

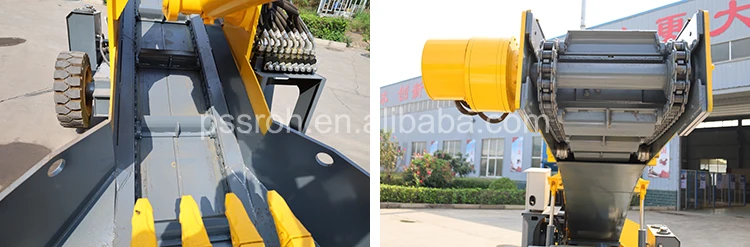

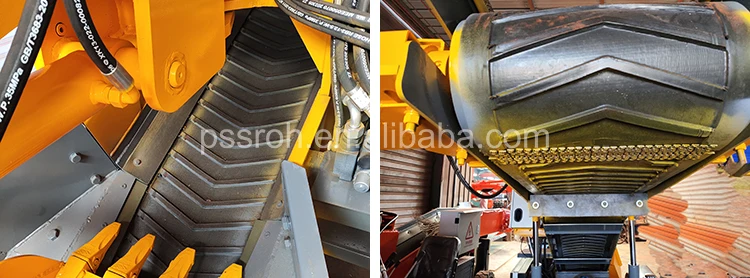

Conveying structure
There are two types of conveyor frames for our company's coal mine use muck loader: one is belt conveyor, which suitable for smaller materials such as sand; Another type is scraper conveying, which suitable for larger and harder materials such as stones.

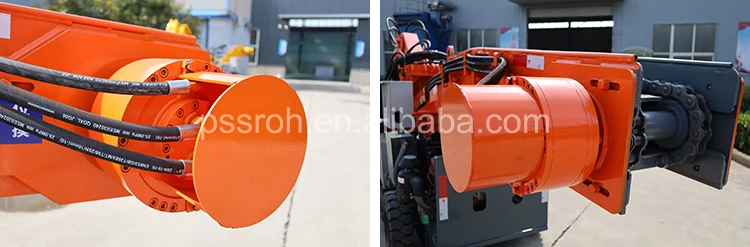

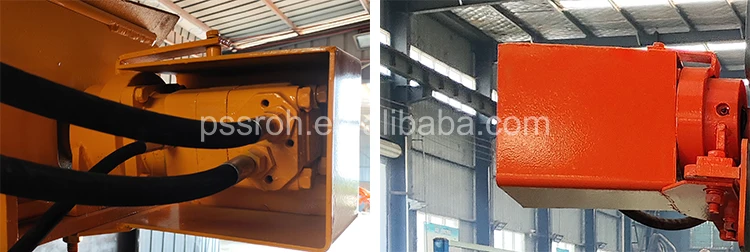

Hydraulic drum
The hydraulic drum for belt conveyor is small, while the scraper type hydraulic drum is large and has a high torque.

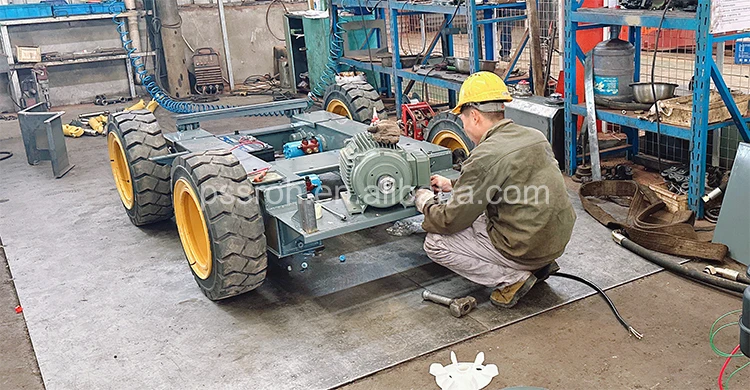

The chassis
Two hydraulic motors are installed on both sides of the wheel to control the operation of tire travel on the same side.

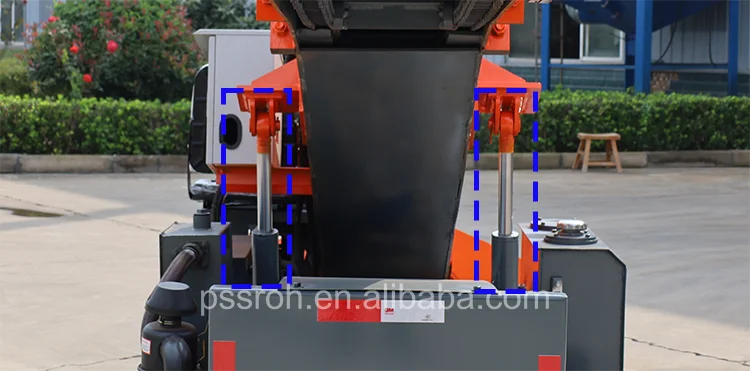

Hydraulic system
After many times updating,the whole design is advanced and top.The hydraulic system adopts famous brand at home and broad,so it can ensure working stability.It is controlled by the secondary,equipped with imported hydraulic joystick.

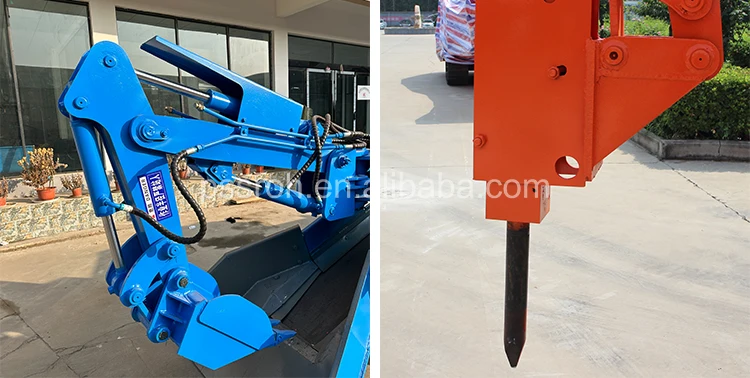

Working arm

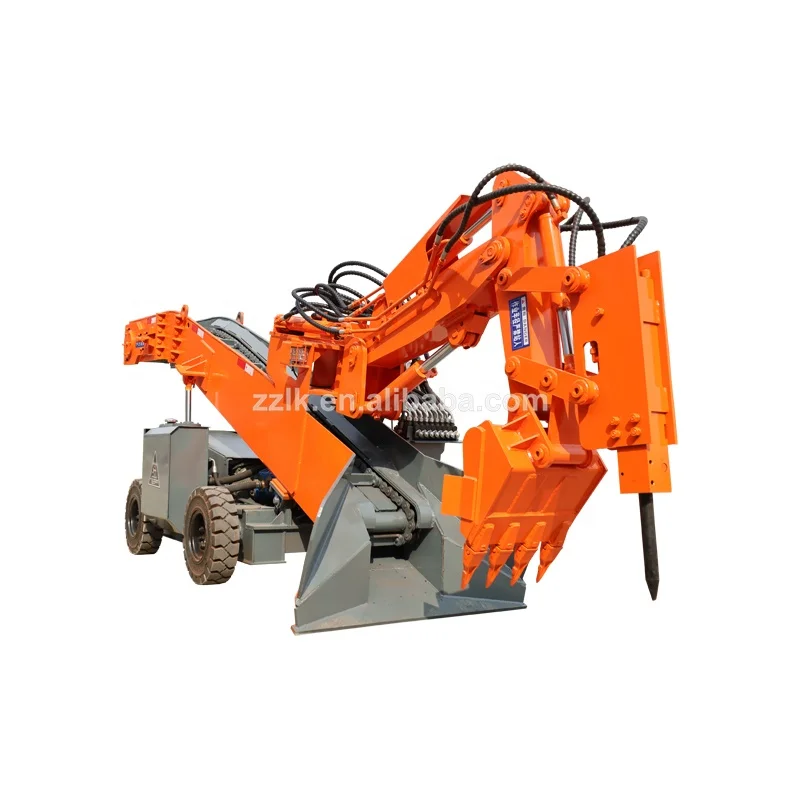

After many times updating,the whole design is advanced and top.The hydraulic system adopts famous brand at home and broad,so it can ensure working stability.It is controlled by the secondary,equipped with imported hydraulic joystick. It can also be used in conjunction with a crushing hammer.

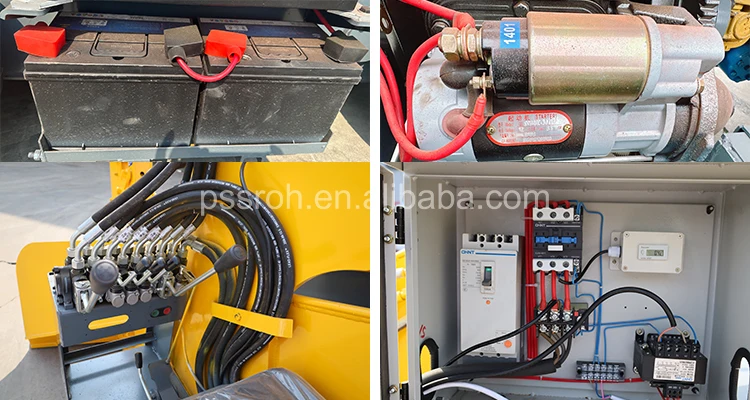

Details of various parts of the mucking loader
Batteries, Multi way valve control lever, Starer, Electric control box.

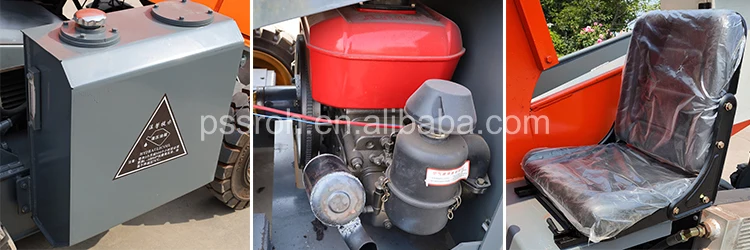

Details of various parts of the mucking loader
Hydraulic oil tank, Diesel engine, Luxury seat.

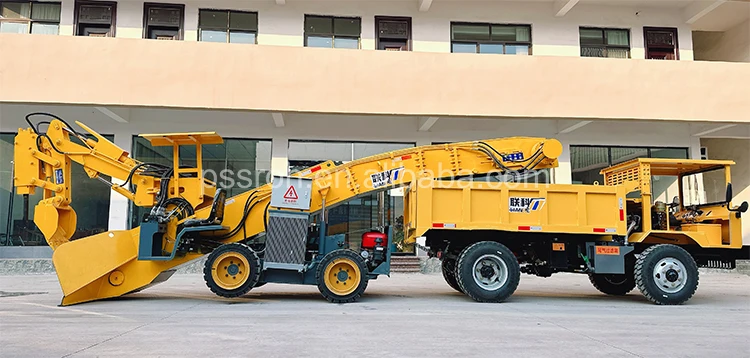

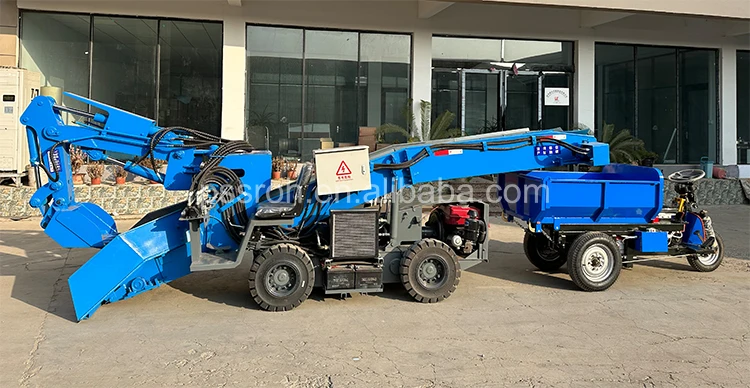

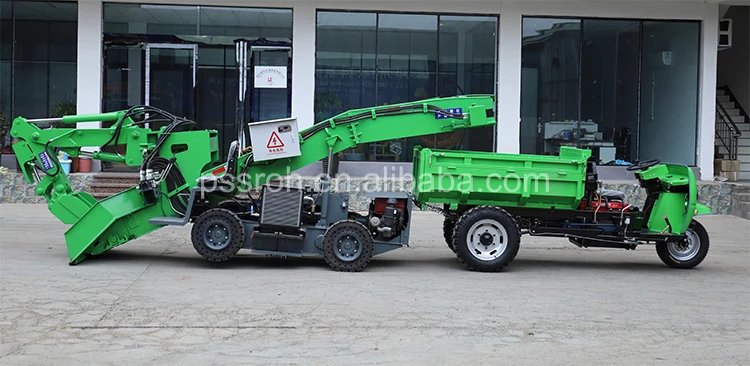

Mucking loader can work in conjunction with electric mini dumper/diesel dump truck, improving work efficiency.

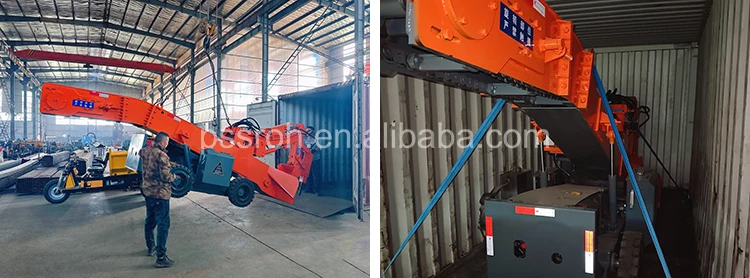

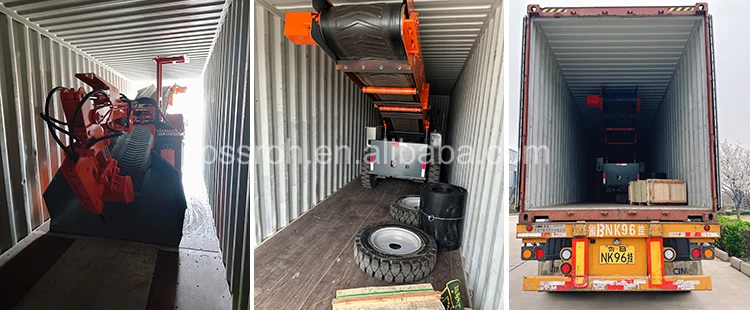

Packing & Delivery

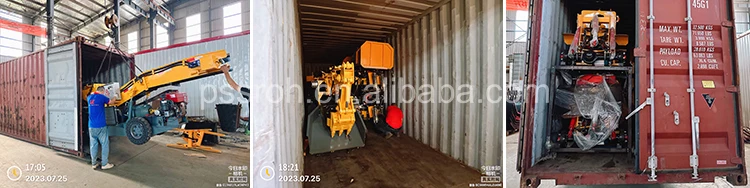

1 set of mucking loader is loaded from a 20GP container. It can also be purchased together with other dumpers for a 40HC container loading.

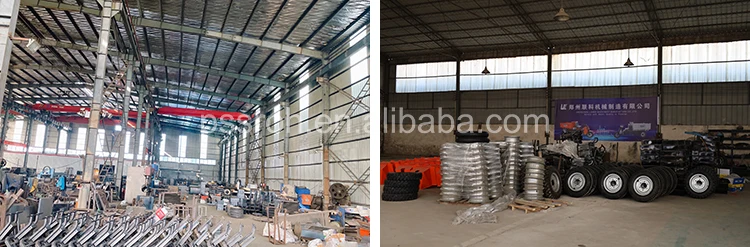

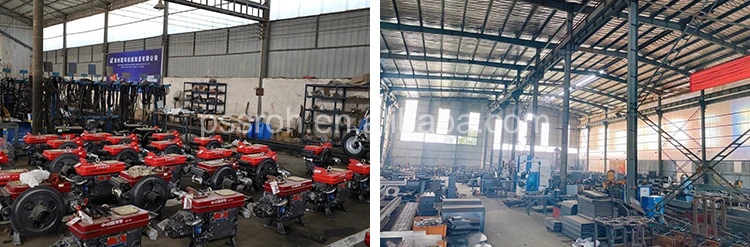

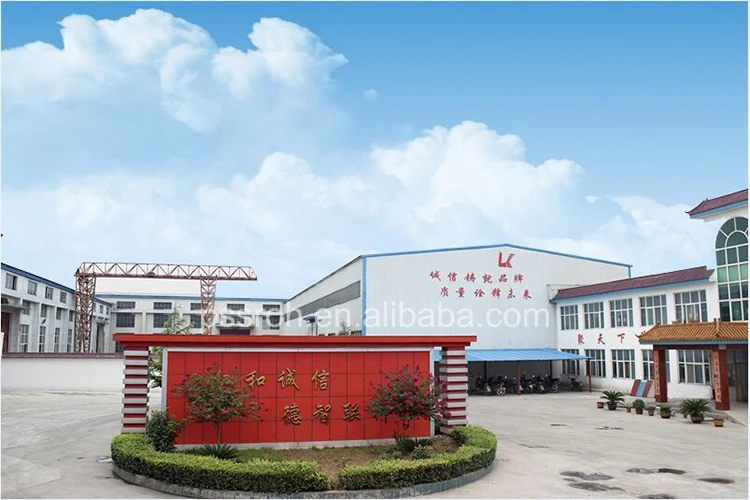

Company Profile
Henan Pssroh Trading Co., Ltd. is a company for manufacture and export various electric tricycles & electric vehicles cars, coal mine use muck loader and mini hydraulic excavator.
Till now we have exported our products to many countries ,such as Colombia, Europe, United states,and South American.Our products has been won very good repuation. We look forward to cooperate with more and more clients overworld.
Till now we have exported our products to many countries ,such as Colombia, Europe, United states,and South American.Our products has been won very good repuation. We look forward to cooperate with more and more clients overworld.
Warranty
(1)The mini dumper all parts quality assurance period for 15 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
The quotation provided on this webpage is for reference only, and the actual price is subject to the specific configuration of the order.
(1)The mini dumper all parts quality assurance period for 15 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
The quotation provided on this webpage is for reference only, and the actual price is subject to the specific configuration of the order.
Related product

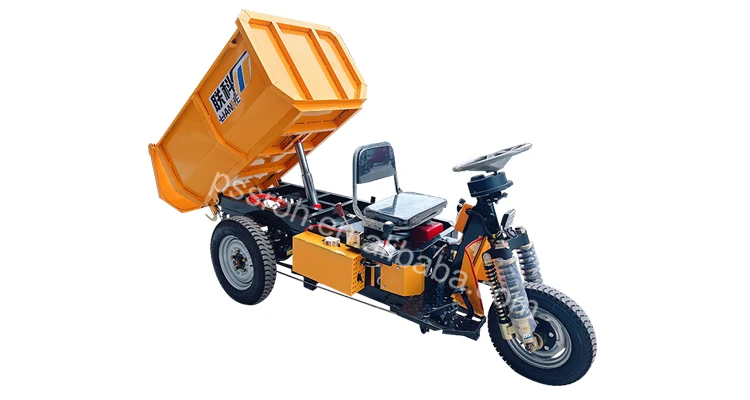

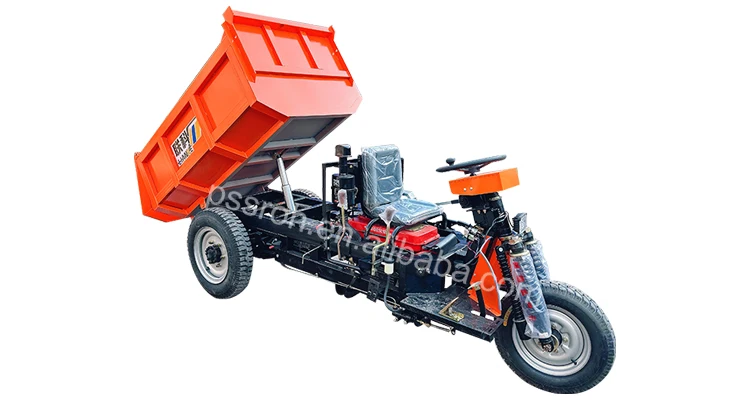

LK135 electric mini dumper
Load capacity 1500kg
Overall size 2800*1000*1350mmCargo box size 1450*900*400mm
LK270D diesel mini dumper
Load capacity 2500kg
Overall size 3450*1120*1500mmCargo box size 1800*1120*590mm

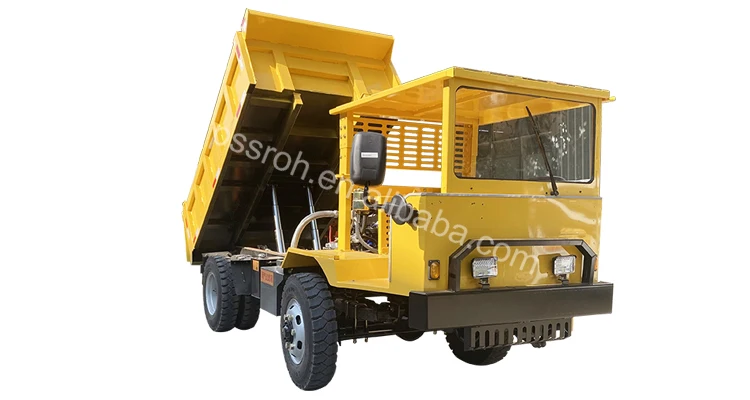

LK6T diesel dump truck
