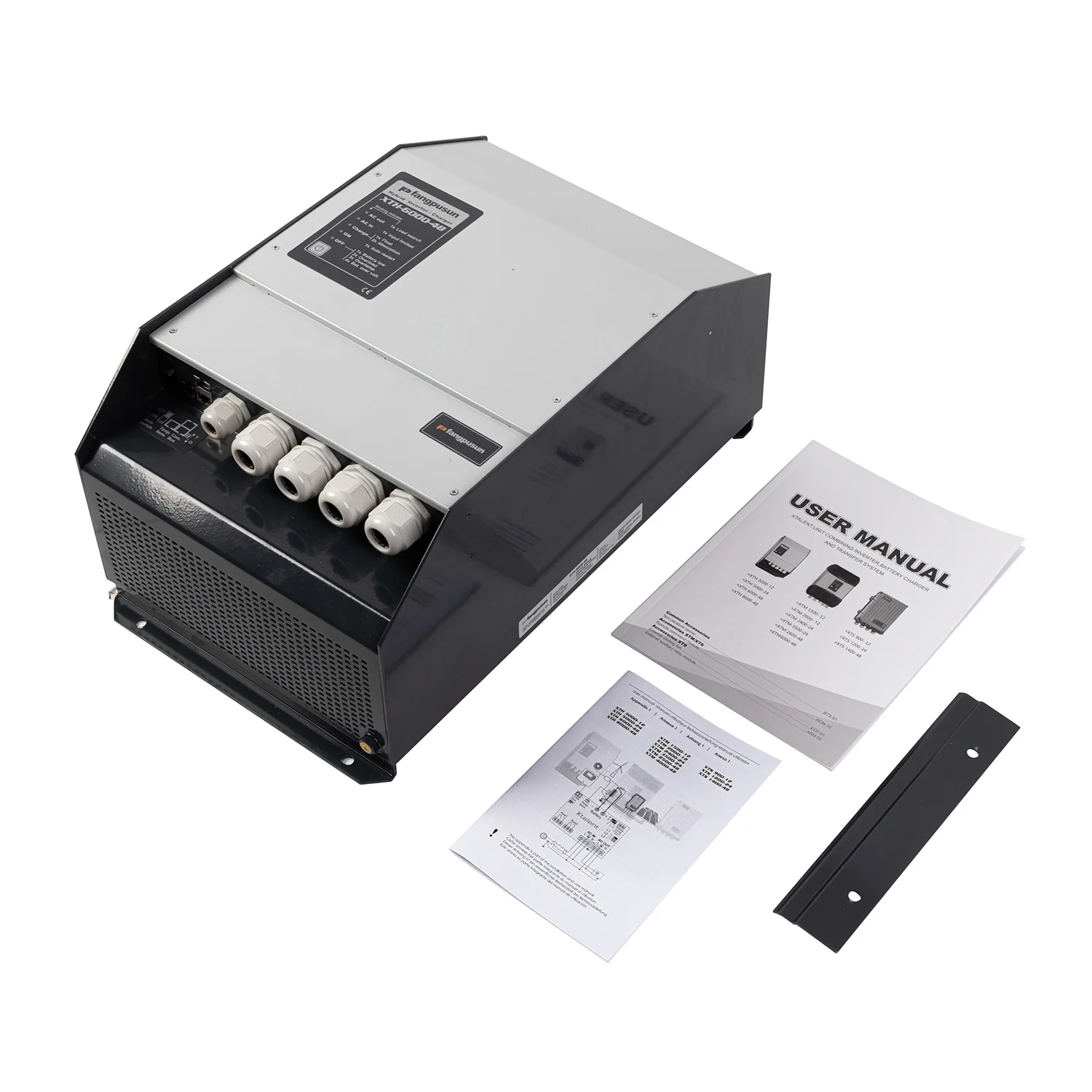

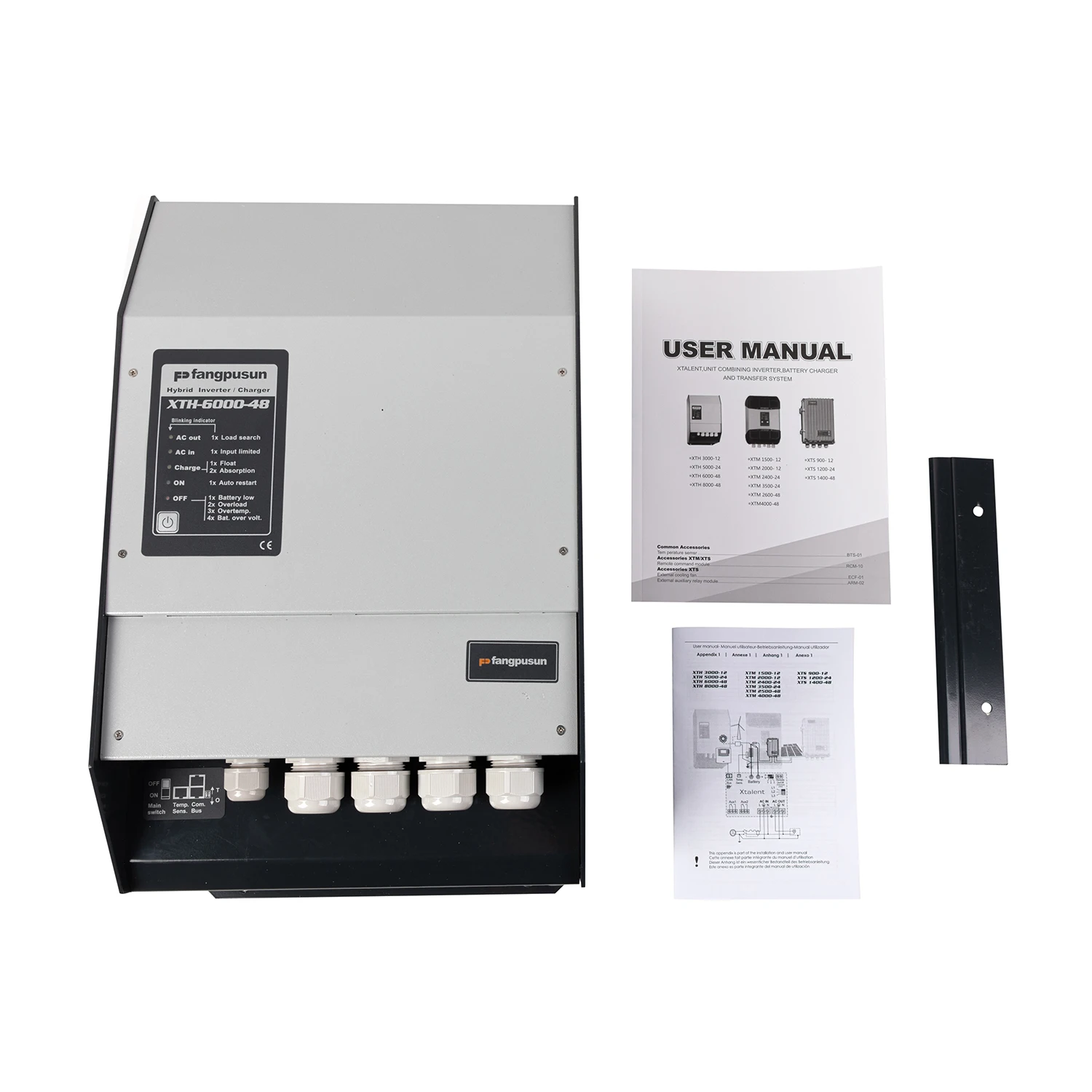

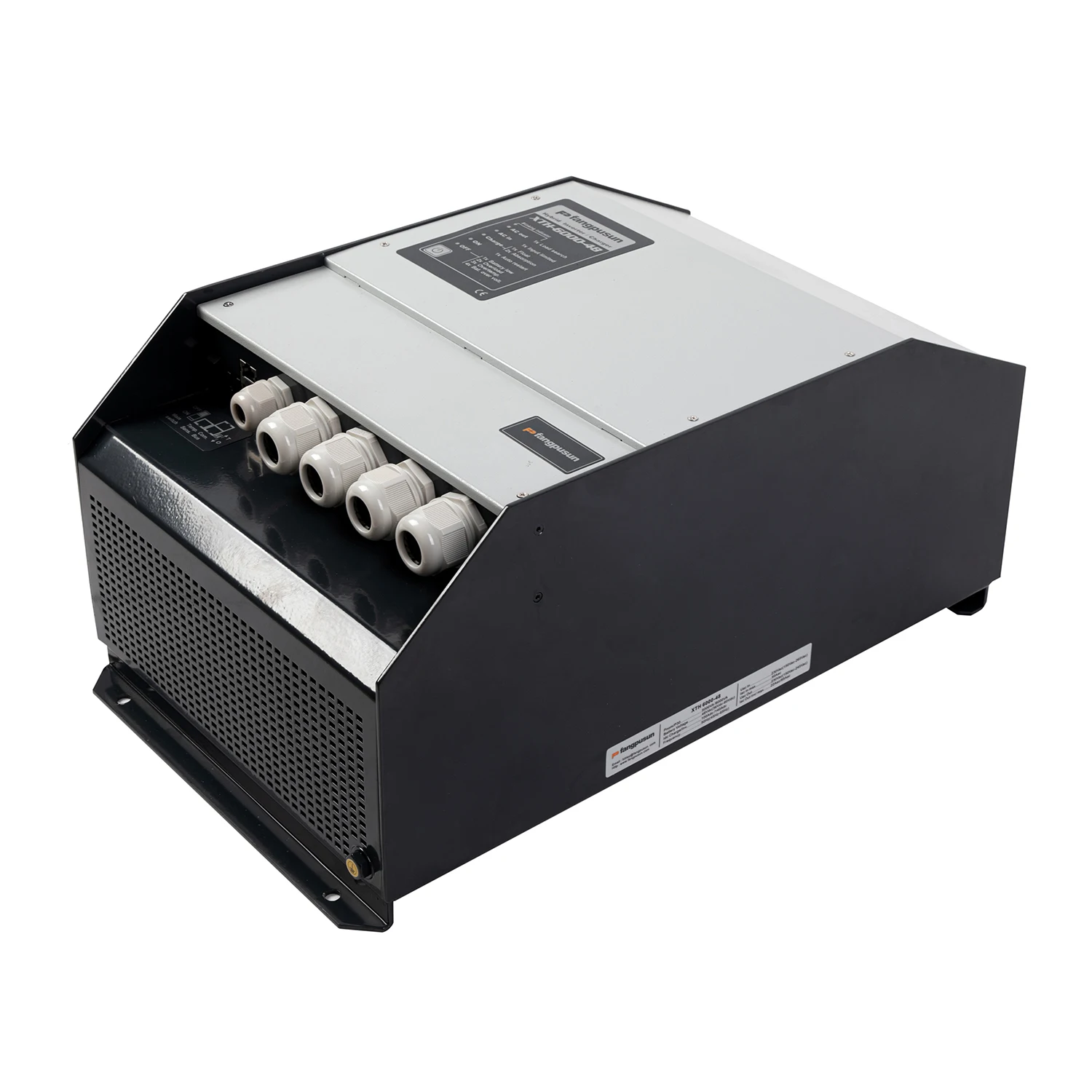

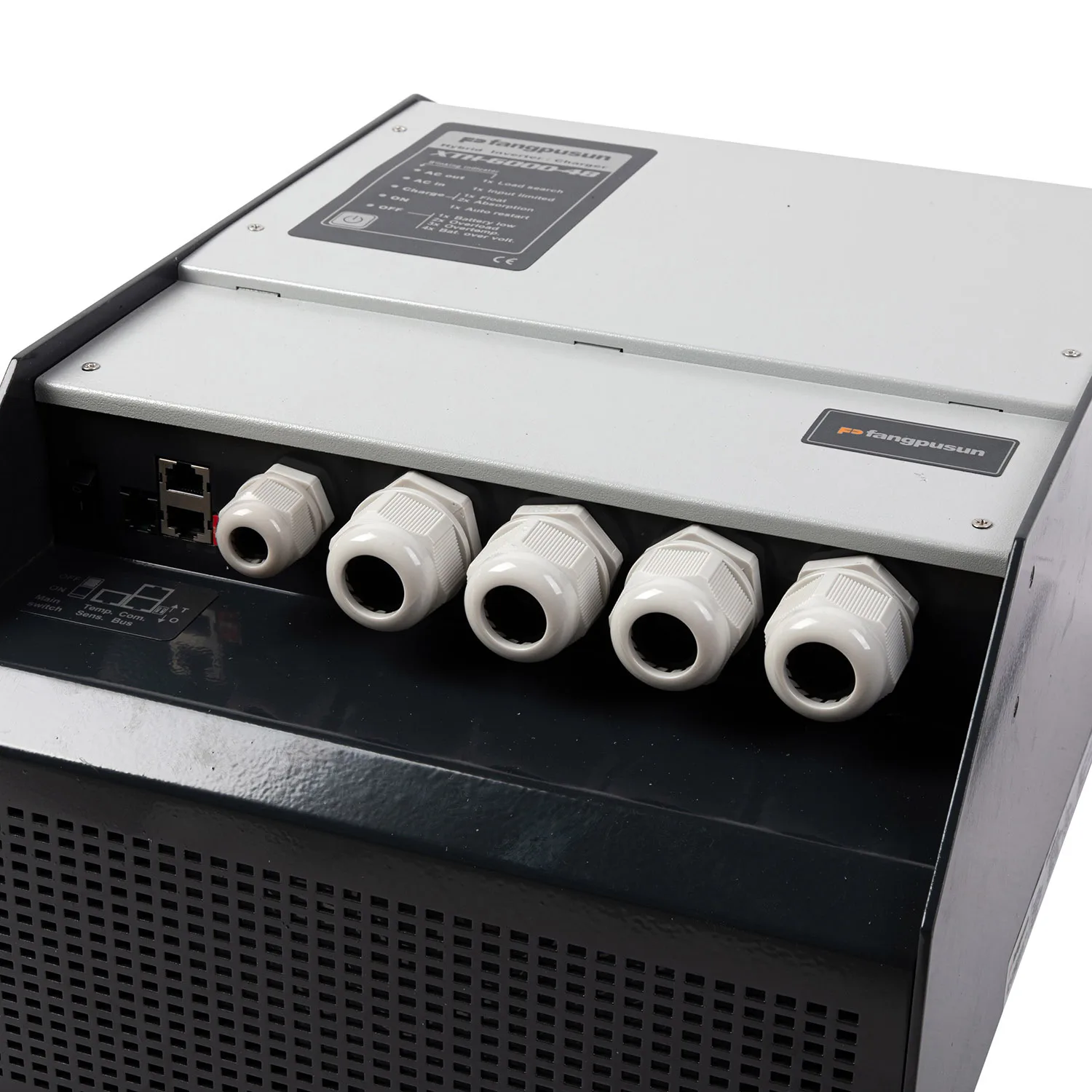

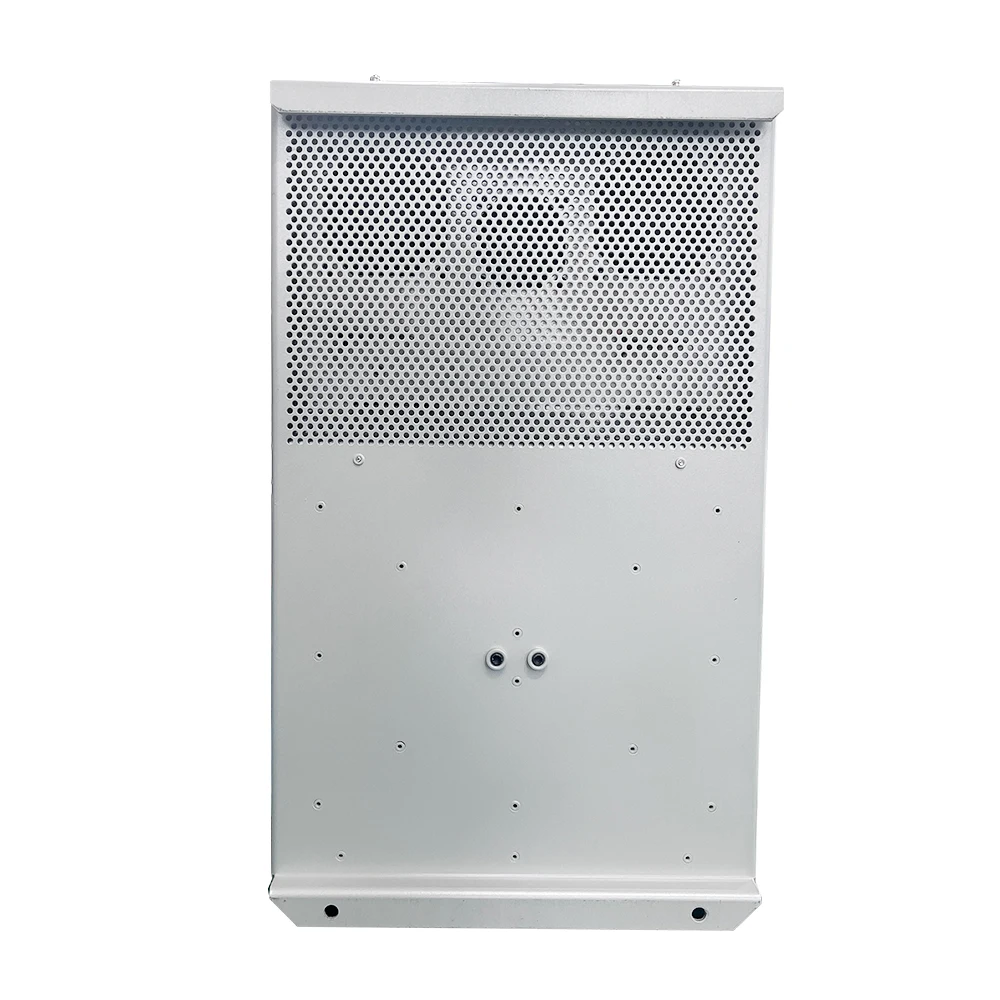

Pure sine wave inverter charger transfer switch all in one power package bypass the AC power with extraordinarily low THD

Product Overview

Description

We have a huge selection of quality pure sine wave inverter charger transfer switch included for your selection, they are an all in one power package designed for multiple applications.  It converts DC power to AC in battery mode, and when AC input power is available, it automatically switches the loads to AC power and charges a battery bank.  There are two input power sources, DC and AC. When connected to AC power(generatorore power), the unit will bypass the AC power through it to loads while keep the batteries charged.  Once the AC power is absent, generator cutoff or shore power failure, the inverter will automatically switch to the DC battery source.
Sigineer Power boasts to be the most professional private labelling manufacturer of pure sine wave inverter charger transfer switch in China with a wide range of standard power inverters and custom power inverters that can meet your demand.  As a private label inverter factory, we are extensively experienced in global inverter market and got CE,  RoHS and ISO9001 listings for our Inverter Chargers.
Our pure sine wave inverter charger outputs pure sine wave with extraordinarily low THD which matches or even surpasses their high frequency counterparts.
This clean smooth power signal closely resembles the shore power, or even better in some cases.
The pure sine wave inverter charger transfer switch is available in 600 watts to 12,000 watts, they are capable of offering stable AC power for your home or business from battery banks.
They also work well for RV inverter systems, motorhome ,camping world or boat applications.
The built-in 3 ways automatic transfer switch manages the AC power input and switches to the battery in the event of AC power loss.
With a typical transfer time of 10 milliseconds, these transfer switch in inverter chargers is great for complex electronics or an emergency backup power for your home or business as it can easily hold your computer up without data loss.

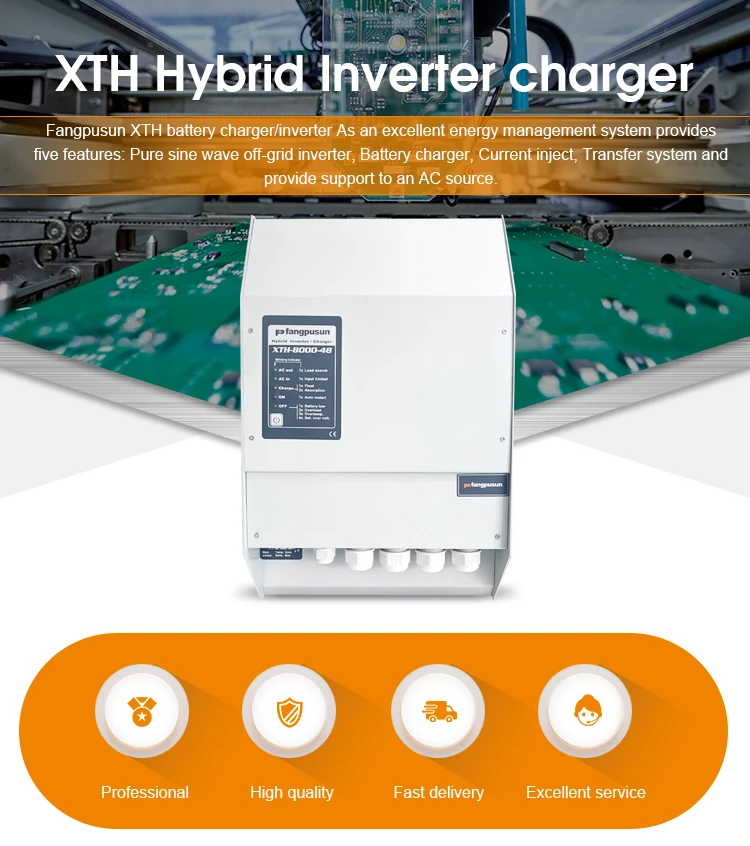

The Xtender series provides unmatched freedom of use due to its many functions. In a basic application, it offers a total package: the functions of inverter, battery charger, transfer system and assistance to the source These functions can be combined and controlled in a totally automatic way for exceptional ease and optimal management of available energy.

The Xtender is equipped with a command entry and 2 configurable au iliary contacts. This allows automatic control of a genset or loadshedding when the battery voltage is too low. The flexibility obtained makes it possible to implement special functionalities, often necessary for good energy management In standalone systems.

The Xtender series offers an optimal use of all sources that can be found in hybrid systems, whatever their connecting mode (AC or DC bus), up to the nominal power of the Xtender system (single, parallel and/or three phase).

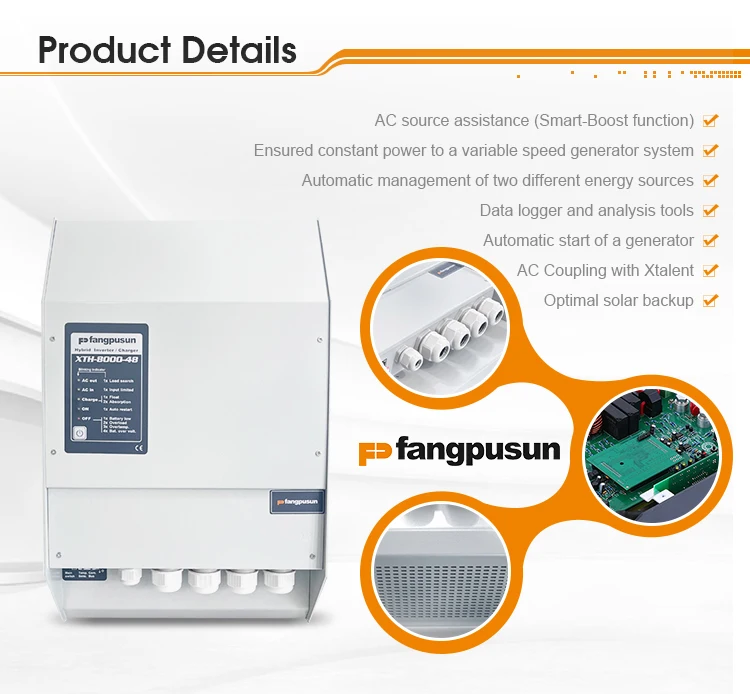

Function Smart-Boost and active filtering

With this function it is possible to interact directly with the A source (Genset or grid) and to implement some basic functions such as:

Efficient and immediate limitation of the current of the source, Including non linear or inductive/ capacitive loads, protecting efficiently the breakers during connection to shore power or to a camping power meter with limited current (function of power shaving and power assistance) (more information on our website and in the Application note AN001/www.fangpusun.com).

Power shaving of load steps on the generator allowing an optimal sizing of the generator and assuring the best possible efficiency of the fossil fuels (function of filtering and of power assistance).

The function of assistance to the source enables also to implement advanced functions such as the priority use of renewable energy, even when the grid is available (more information on our website and in the Application note AN002A ).

Features and performances

 Outstanding efficiency and overload.

 Perfect management and limitation of AC sources.

 Power shaving of the consumption peaks.

 Automatic allocation of available power.

Active filtering of load steps on the genset.

Automatic protection of the sources against overload.

Battery priority (or to renewable sources).

 Parallel and three-phase setting, up to 9 units (72kVA).

Powerful multi-stage PFC charger.

Ultra-short transfer time (from 0 to 15ms max.).

 Automatic and efficient stand-by.

2 programmable auxiliary contacts (optional on the XTS).

Compatible with AC coupling.

XTS electronically protected against reverse polarity.

 Display, programming and data logging integrated

in the remote control (RCC).

Interactive with the Battery Status Processor (BSP).

 RS-232 communication for remote supervision.

Electronic protection functions

Deep discharge protection

Battery overvoltage shutdown

Short circuit protection

Overtemperature and overload protection

Reverse polarity protection by internal fuse (except Fangpusun Xtender XTH 3000) Acoustic alarm at deep discharge or overheating

Displays

5 LEDs show operating states

Model	XTH 3000-12	XTH 5000-24	XTH 6000-48	XTH 8000-48
Characterisation of the operating performance
Nominal battery voltage	12V	24V	48V	48V
Input voltage range	9.5-17VDC	19-34VDC	38-68VDC	38-68VDC
Continuous power	2500VA	4500VA	5000VA	7000VA
Power 30 min.	3000VA	5000VA	6000VA	8000VA
Power 5 sec.	7.5KVA	12KVA	15KVA	21KVA
Max.efficiency	93%	94%	96%	96%
Own consumption stand by	1.4W	1.8W	2.2W	2.4W
Own consumption ON	14W	18W	22W	30W
Acoustic level without ventilation	40 dB
Acoustic level with ventilation	45 dB
Maximum load	Up to short-circuit
Maximum asymmetric load	Up to Pcont.
Load detection (stand-by)	2 to 25 W
Cos p	0.1-1
Output voltage	Pure sine wave 230Vac (±2%)/120Vac(1)
Output frequency	45Hz-60Hz(1)±0.05%(crystal controlled)
Harmonic distortion	<2%
Overload and short-circuit protection	Automatic disconnection with 3 time restart attempt
Overheat protection	Warning before shut-off- with automatic restart
Battery charger
Charge Characteristic	6 steps: Bulk-Absorption-Floating-Equalization-reduced fl oating-periodic absorptionNumber of steps, thresholds, end current and times completely adjustable with the RCC-02/-03
Temperature compensation	With BTS-01 or BSP 500/1200
Power Factor Correction(PFC) according	EN 61000-3-2
Maximum charging current	160A	100A140A			120A
Input voltage range	150 to 265Vac/50 to 140Vac(1)
Input frequency	45 to 65Hz
Input current max. (transfer relay)/Output current max.	50Aac/56Aac				50Aac/80Aac
Transfer time	<15ms
Multifunction contacts	2 independent contacts(potential free 3 points,18Aac/5Adc)
Dimension hxwxl [mm]	230x300x500
Protection index	IP20
Operating temperature range	-20 to 55°℃
Relative humidity in operation	95% without condensation
Ventilation	Forced from 55°℃
Warranty	2 years
Weight	34Kg	40Kg	42Kg	46Kg
