Dongfeng Manipulator 25 Ton Tractor Truck Head Euro 5 420HP 6*4 for Sale
Dongfeng Manipulator 25 Ton Tractor Truck Head Euro 5 420HP 6*4 for Sale
Dongfeng Manipulator 25 Ton Tractor Truck Head Euro 5 420HP 6*4 for Sale
Dongfeng Manipulator 25 Ton Tractor Truck Head Euro 5 420HP 6*4 for Sale
Dongfeng Manipulator 25 Ton Tractor Truck Head Euro 5 420HP 6*4 for Sale
Dongfeng Manipulator 25 Ton Tractor Truck Head Euro 5 420HP 6*4 for Sale
Dongfeng Manipulator 25 Ton Tractor Truck Head Euro 5 420HP 6*4 for Sale

Dongfeng Manipulator 25 Ton Tractor Truck Head Euro 5 420HP 6*4 for Sale

Share on (1601030833244):


Price:$34,500.00-35,000.00

Quantity:


Product Overview

Description


Chinese Manipulator 25 Ton Tractor Truck  Euro 5 420HP 6*4 Hot Sale in Kazakstan


EV_01_Product Map



Product Description

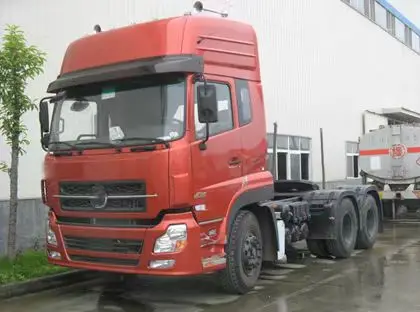

 tractor truck.jpg





Specifications






















































































































































































































Chassis Dimensions(mm)
  Overall chassis length6960
  Cab width2500
  Cab height (unladen) 3770
  Wheel base3300+1350
  Front overhang1500
  Rear  overhang810
  Maximum velocity (Km/h) 110(speed limit)
Vehicle weights(kg)
  G.V.W 25000
  Loading capacity40000
  Curb weight
 		8800
Frame profile Dimensions(mm)
  Frame width (front )  940
  Frame width ( rear ) 800
  Section height280
  Section width90
EngineTypedCi420-51
Emission levelEuro 5
Maximum power309 kwat 1800rpm
Maximum torque2000Nm at 1000-1400 rpm
Number of cylinders6
Displacement (lit)11.12
Cylinder bore (mm) 123
Stroke (mm)  156
SystemWater cooled,turbocharged,after cooled , cold start.
ClutchTypeEATON
Plate's diameter¢430mm
operating systemHydraulic control with air booster, pulling
Gear boxType12JSD200TA OD
Number of gears12 forward gears& 2 reverse ,synchronized
RatiosForward:12.10;9.41;7.31;5.71;4.46;3.48;2.71;2.11;
        1.64;1.28;1.00;0.78               Reverse:11.56;2.59
Brake SystemFull air brake system, split pneumatic circuit ; parking spring brake acting on rear axles , exhaust brake,
CabSleeper cab,double bunks,forward control type,high roof,new face, all welded steel cab , Electrical cab tilting, front and rear mechanical cab suspension , adjustable driver’s seat, air conditioning system, electrical windows,, central lock.
AxleFrontElliot   type, I  beam section
Load capacity(ton)5.5
RearSingle reduction ,tandem axle,  with axle lock , ratio 4.10
Load capacity(ton)10
Tyres12R22.5
SuspensionFrontLeaf spring with stabilizer bar
RearLeaf spring
BatteryVoltage (V) 24
Battery capacity (A.h)165X2
FuelTypeAluminum fuel tank,  with lockable  cap
Capacity550lit
