cctv high quality camera system 4K 8MP Full HD Resolution 4CH POE NVR 4 IR Dome Cameras Intelligent Human detection Alarm XMeye
- Category: >>>
- Supplier: Shenzhen Qianpei Technology Co. Ltd.
Share on (1601030834308):
Product Overview
Description
cctv high quality camera system 4K 8MP Full HD Resolution 4CH POE NVR 4PCS IR Dome Cameras Intelligent Human detection Alarm XMeye
Product Description
Features
1. HD 4K 8MP POE NVR with POE 4K 8MP bullet camera system;
2. Support H.265 intelligent coding technology;
3. Support high-definition network video preview, storage and playback;
4. Support PC client centralized management, mobile phone remote monitoring, support P2P Internet access function, one-key configuration video;
5. Compatible with third-party IP cameras that conform to the standard ONVIF-compatible, RTSP protocol;
6. Support VGA/HDMI simultaneous output, HDMI maximum resolution 4K;

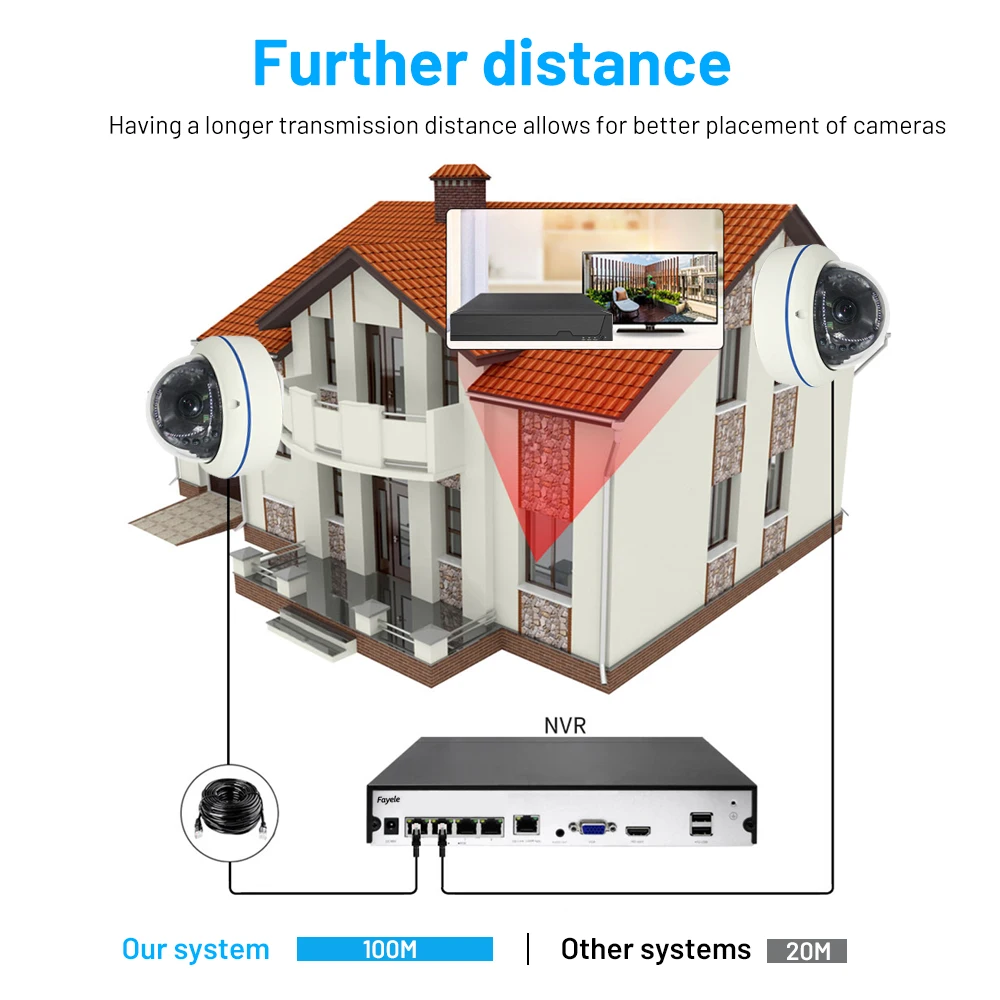

7. Support 250 meters long-distance POE power supply and transmission;
8. With1PC SATA interface, maximum HDD capacity up to 14TB, the boot screen can be freely replaced, and support multiple languages(20+ Languages Available: Russian, English, Italian, Portuguses, Spanish, French, German, Hebrew, Korean, Japanese etc);
9. Support IEEE802.3AF/AT standard power supply protocol, PD power intelligent detection, system-level overload protection;
10. Support 4/8 cores (1236+4578) regulated power supply in various ways;
11. Support NTP (Network correction time), SADP (IP automatic search), Email (mail service), UPNP (Universal Plug and Play);

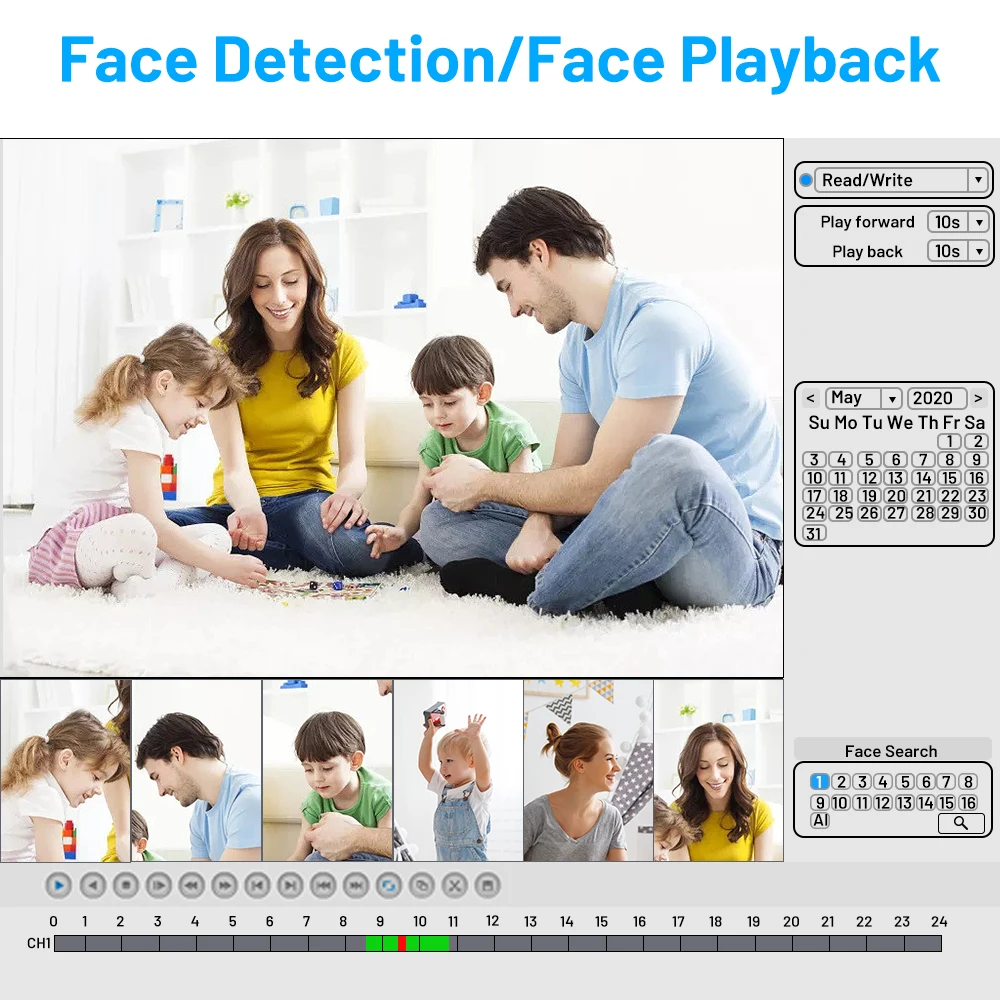

12. Support face detection and face search playback function, with humanoid detection&alarm;
13. Built-in microphone for video recording with audio;
14. High quality metal material housing, elegant appearance and long-lasting lifetime;
15. Night vision: Smart dual light leds for three different night vision modes: Full color / IR B&W / Intelligent color night vision;
16. IP66 Waterproof cameras for both indoor and outdoor use;
(The makes is made up of: POE NVR, POE Cameras, Network cable for cameras, and accessories like mouse, power adapter, 1m network cable, HDMI cable, bolt kit and manual)
Professional security camera/NVR manufacturer with OEM/ODM service like LOGO printing, hardware/software customization, your enquiry is welcomed to discuss the details!
2. Support H.265 intelligent coding technology;
3. Support high-definition network video preview, storage and playback;
4. Support PC client centralized management, mobile phone remote monitoring, support P2P Internet access function, one-key configuration video;
5. Compatible with third-party IP cameras that conform to the standard ONVIF-compatible, RTSP protocol;
6. Support VGA/HDMI simultaneous output, HDMI maximum resolution 4K;
7. Support 250 meters long-distance POE power supply and transmission;
8. With1PC SATA interface, maximum HDD capacity up to 14TB, the boot screen can be freely replaced, and support multiple languages(20+ Languages Available: Russian, English, Italian, Portuguses, Spanish, French, German, Hebrew, Korean, Japanese etc);
9. Support IEEE802.3AF/AT standard power supply protocol, PD power intelligent detection, system-level overload protection;
10. Support 4/8 cores (1236+4578) regulated power supply in various ways;
11. Support NTP (Network correction time), SADP (IP automatic search), Email (mail service), UPNP (Universal Plug and Play);
12. Support face detection and face search playback function, with humanoid detection&alarm;
13. Built-in microphone for video recording with audio;
14. High quality metal material housing, elegant appearance and long-lasting lifetime;
15. Night vision: Smart dual light leds for three different night vision modes: Full color / IR B&W / Intelligent color night vision;
16. IP66 Waterproof cameras for both indoor and outdoor use;
(The makes is made up of: POE NVR, POE Cameras, Network cable for cameras, and accessories like mouse, power adapter, 1m network cable, HDMI cable, bolt kit and manual)
Professional security camera/NVR manufacturer with OEM/ODM service like LOGO printing, hardware/software customization, your enquiry is welcomed to discuss the details!
Specification
Model | HS-POE-3604VG(NVR) | |
System | Operating System | Embedded Linux |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/2/4/6/9/10 | |
Video | Video input (IP) | 10*4K |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
Decode | 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1） | |
VR | Unsupport | |
human shape / Face | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 4K（1）/5M（1+1）/4M(2+1)/3M（2+2）/1080P（4+1） | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD、Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA，1ch HDMI HD output |
Audio I/O | 1/1（3.5mm） | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1* SATA(Up to 14TB for each disk) | |
POE | Interface | 4 independent 100 Mbps PoE network interfaces |
Max Power | Max 30W for single port Max 54W in total (13.5W for each) | |
Supported StandardStandard | IEEE 802.3at, IEEE 802.3af | |
General | ONVIF | Support |
Power supply | 52V DC | |
Power Consumption | <10W(Without HDD,only for NVR) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension | 255(L)*220(W)*42(H)mm | |
Weight | A total of about 1.6kg |
Model | XM8104G(Camera)-8MP | |||
Resolution | 4K 8MP(NT98566+SC8239 CMOS) | |||
Lens | 3.6mm(6mm or other optional) | |||
Day/Night | Auto day/night switch IR-CUT | |||
Audio | Built-in microphone, support audio recording | |||
Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, White Balance, FLK(Flicker Control) | |||
Defog Mode | Support | |||
ROI | Support 4 areas, can set multi-level | |||
BLC | YES | |||
Human Detection | Detect ≤15 human at the same time | |||
Detection Area | Support appointed area, full screen by default | |||
Smart Analysis | Face detection/humanoid detection/motion detection etc. | |||
WDR | D-WDR | |||
Motion Detection | Support | |||
Privacy Masking | Yes | |||
Recording Mode | NVR | |||
General | ||||
Housing | Metal, IP66 waterproof for both indoor and outdoor use | Metal , IP66 | ||
Operation Temperature | -30℃ ~ +60℃ RH95% Max | |||
Storage Temperature | -30℃ ~ +60℃ RH95% Max | |||
Power Supply | DC12V±10% / POE 48V | |||
Package Include
1 x 4CH POE NVR(with power supply and mouse)
4 x Dome POE Camera
4 x 20m Network Cable
1 x HDMI Cable
1 x 1m Network Cable
1 x Screw bag(for HDD installation)
1 x Manual
4 x Dome POE Camera
4 x 20m Network Cable
1 x HDMI Cable
1 x 1m Network Cable
1 x Screw bag(for HDD installation)
1 x Manual
Shipping
Company Profile
Shenzhen Qianpei Technology Co., Ltd. is located in Shenzhen China, a city known as "Security Base". We're Specialized in
manufacturing, developing and selling video surveillance products. Our products include: PTZ Camera, Video Conference Camera, Intelligent Analysis Camera/DVR/NVR, Face Capture/Comparison/Recognition/Attendance devices etc., which are a series of applications in intelligent high-definition solutions.
manufacturing, developing and selling video surveillance products. Our products include: PTZ Camera, Video Conference Camera, Intelligent Analysis Camera/DVR/NVR, Face Capture/Comparison/Recognition/Attendance devices etc., which are a series of applications in intelligent high-definition solutions.
With more than 10 years experience in developing and manufacturing surveillance products we're capable to supply high quality products and service to our customers. We will always keep our motto"honesty, humility, dedication and innovation" and we look forward to cooperate with you.
Our Service
ODM/OEM Service: Professional and experienced R&D team, capable of various customization as per requirement. We look forward to hearing from you and negotiate the details.
Tests and certification support: All of the products have passed CE, ROHS, FCC tests, and more are available upon the requirements.
On-time delivery: We have strong production capacity to ensure on-time delivery. PP sample: 3-5 days, Small order: 1-7 days. Mass order: 7-25 days
QC Service: Strict quality control inspection before shipment.
Certifications
FAQ
1. What's the payment terms?
We accept Payment via T/T, Western Union, PayPal etc. For batch order, we can do 50% deposit in advance and 50% balance with goods are ready to ship.
2. Can I order sample unit?
Yes we do accept sample order, buyer pays the sample and freight cost.
3. What's the lead time of my order?
For sample order usually we ship out within 3~5 business days; For
batch order, depending on the quantity and requirement details, we usually ship out within 15~25 days.
batch order, depending on the quantity and requirement details, we usually ship out within 15~25 days.
4. Do you offer OEM & ODM Service?
Yes, we're happy to have your OEM and ODM orders. We can offer the products with your company info eg. LOGO/Business details etc. We're capable to do hardware and software customization upon detailed requirements.
5. Do you offer warranty?
Yes, we offer 1-year warranty on all of our products and we offer free technical support before and after sale for lifetime. For more questions please feel free to contact our online customer service.
