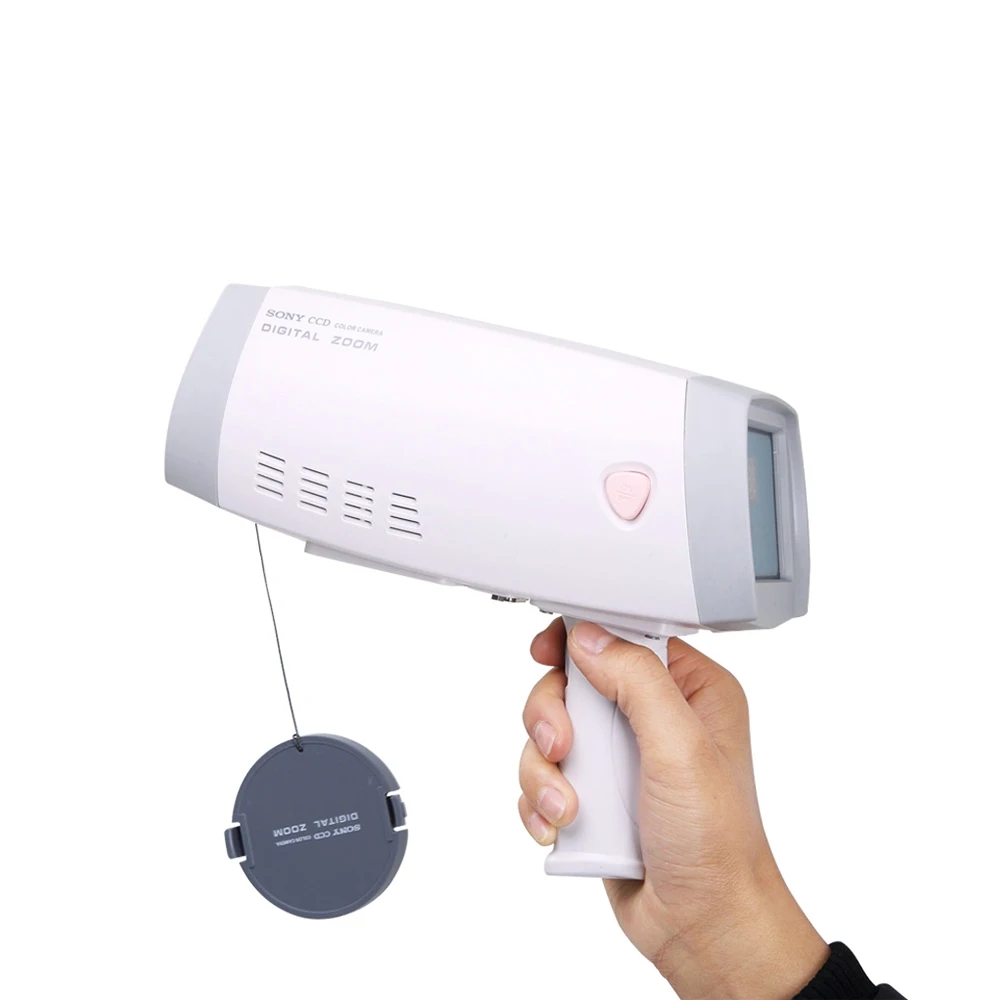

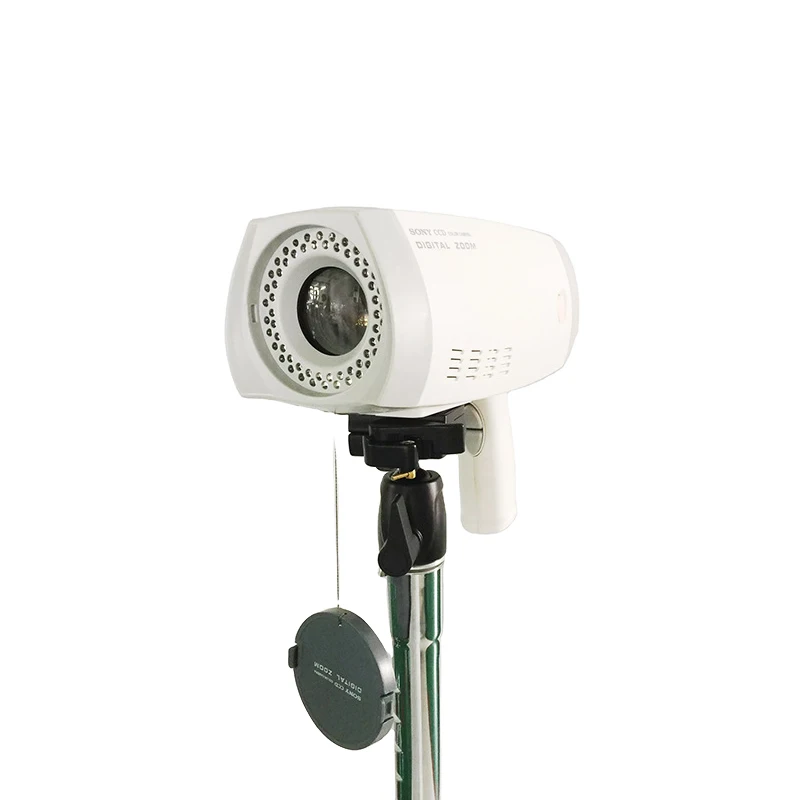

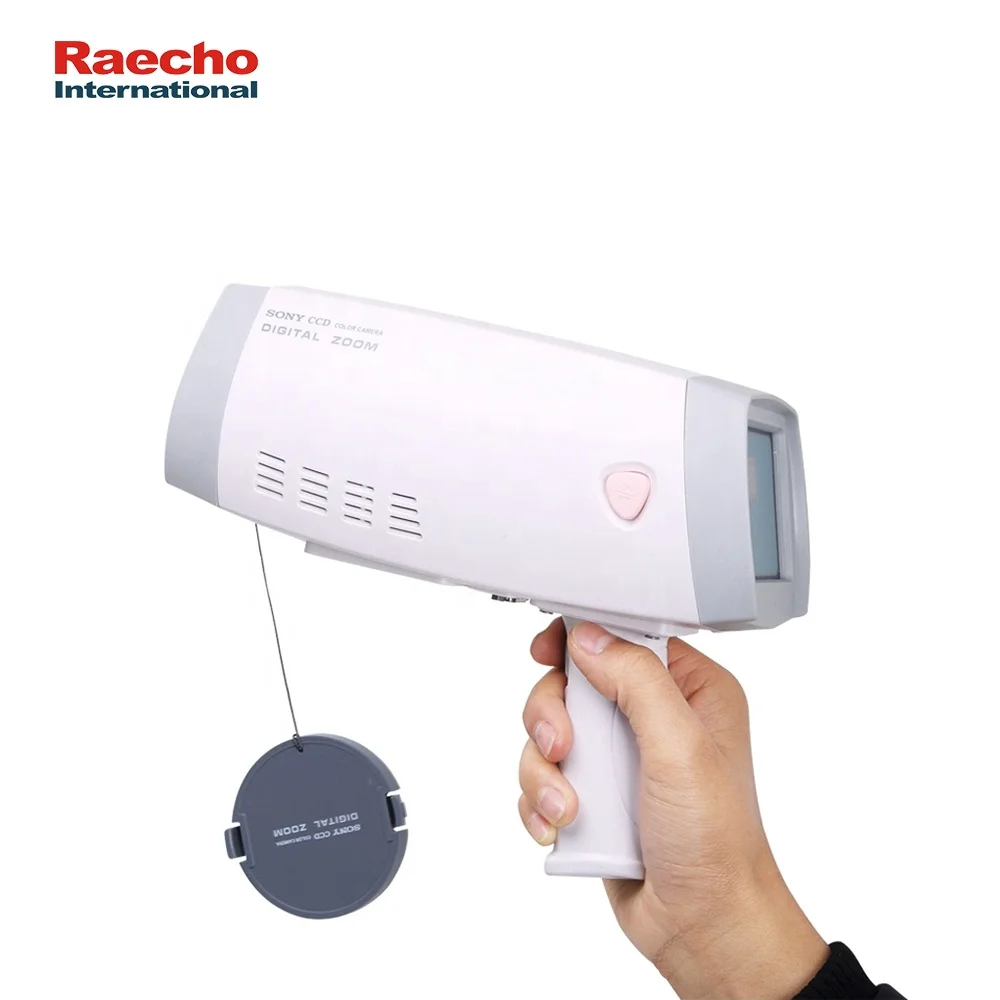

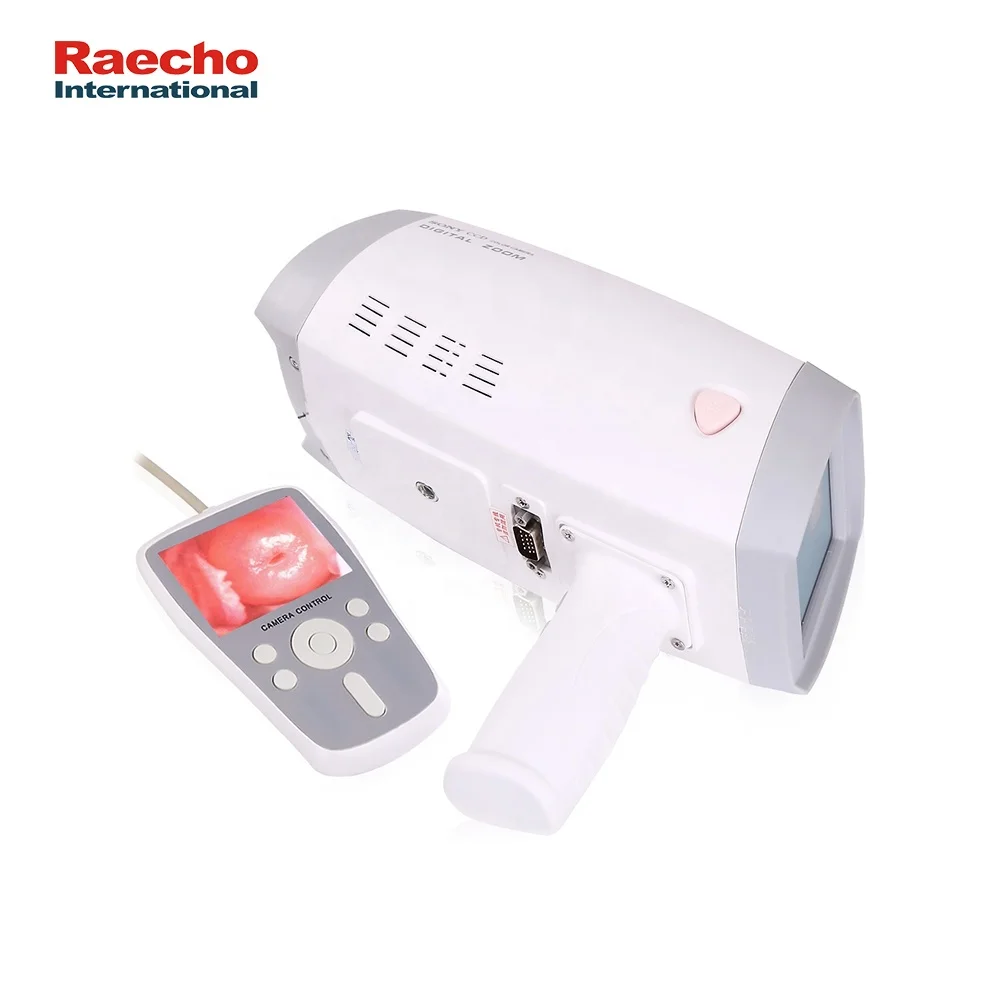

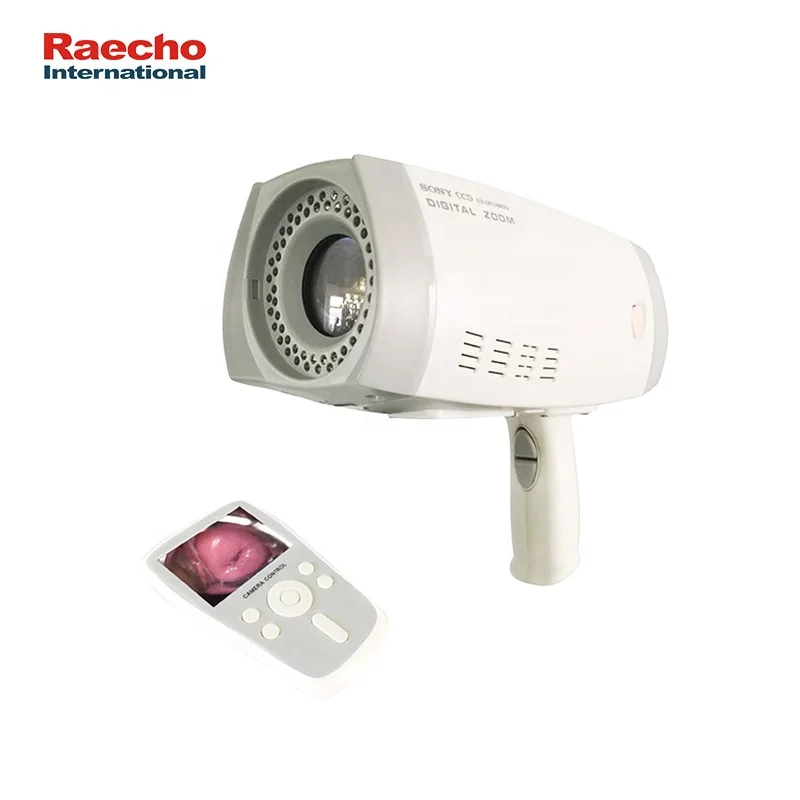

Good Quality Handheld Video Colposcope Digital Gynecology Hospital Convenient
- Category: >>>
- Supplier: Raecho International Limited
Share on (1601030837111):
Product Overview
Description
Order with Trade Assurance
Product Description
Introduction

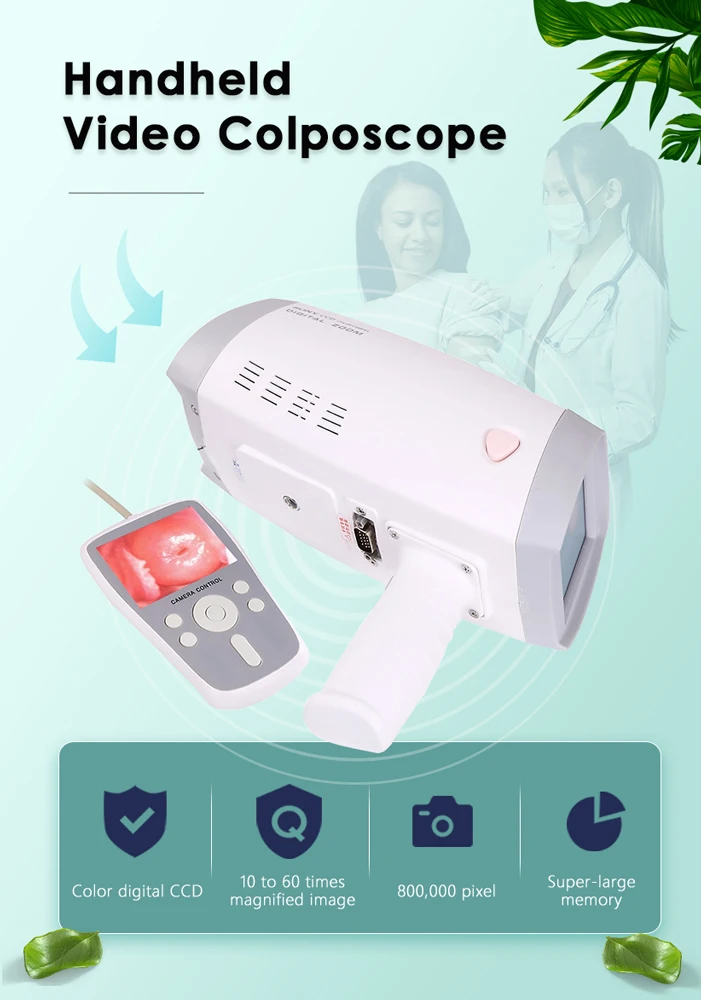

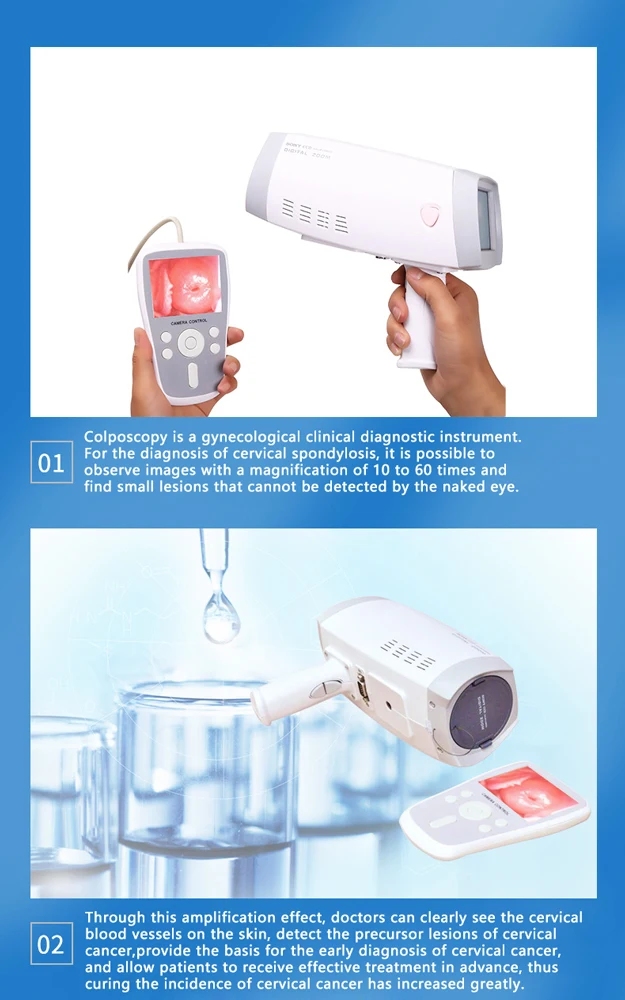

Colposcope is a gynecological clinical diagnostic instrument. For the diagnosis of cervical disease,it can be observed 10 to 60 times magnification images, found small lesions the naked eye cannot find.
Through this amplification effect, the doctor can clearly see the cervix blood vessels on the skin, detection of cervical cancer precursor lesions, to provide the basis for early diagnosis of cervical cancer, so that patients receive effective treatment in advance, so that the cure rate of cervical cancer greatly increased.
Through this amplification effect, the doctor can clearly see the cervix blood vessels on the skin, detection of cervical cancer precursor lesions, to provide the basis for early diagnosis of cervical cancer, so that patients receive effective treatment in advance, so that the cure rate of cervical cancer greatly increased.
Features

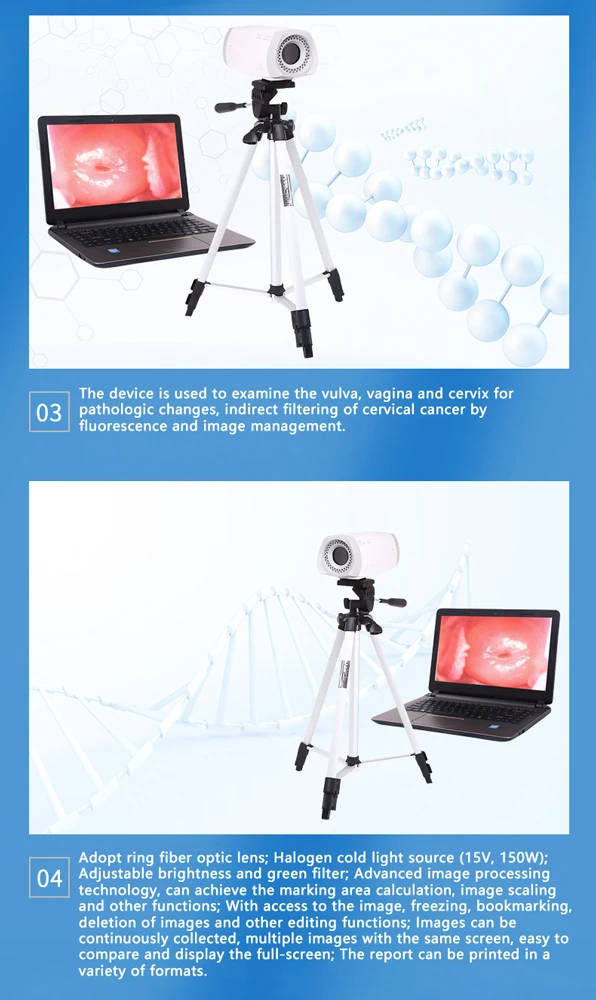

1.Adopting the ring fiber lens.
2.Adopting the halogen cold light source (15V, 150W).
3.Adjustable brightness and a green filter.
4.Advanced image processing technology, can achieve the functions of marking, calculation of areas, zooming images.
5.With the editing functions of access images, freezing, collection, delete images, etc.
6. Images can be collected continuously, and display a number of images on the same screen and convenient to contrast full-screen display.
7.The reports can be printed into multiple formats.
2.Adopting the halogen cold light source (15V, 150W).
3.Adjustable brightness and a green filter.
4.Advanced image processing technology, can achieve the functions of marking, calculation of areas, zooming images.
5.With the editing functions of access images, freezing, collection, delete images, etc.
6. Images can be collected continuously, and display a number of images on the same screen and convenient to contrast full-screen display.
7.The reports can be printed into multiple formats.

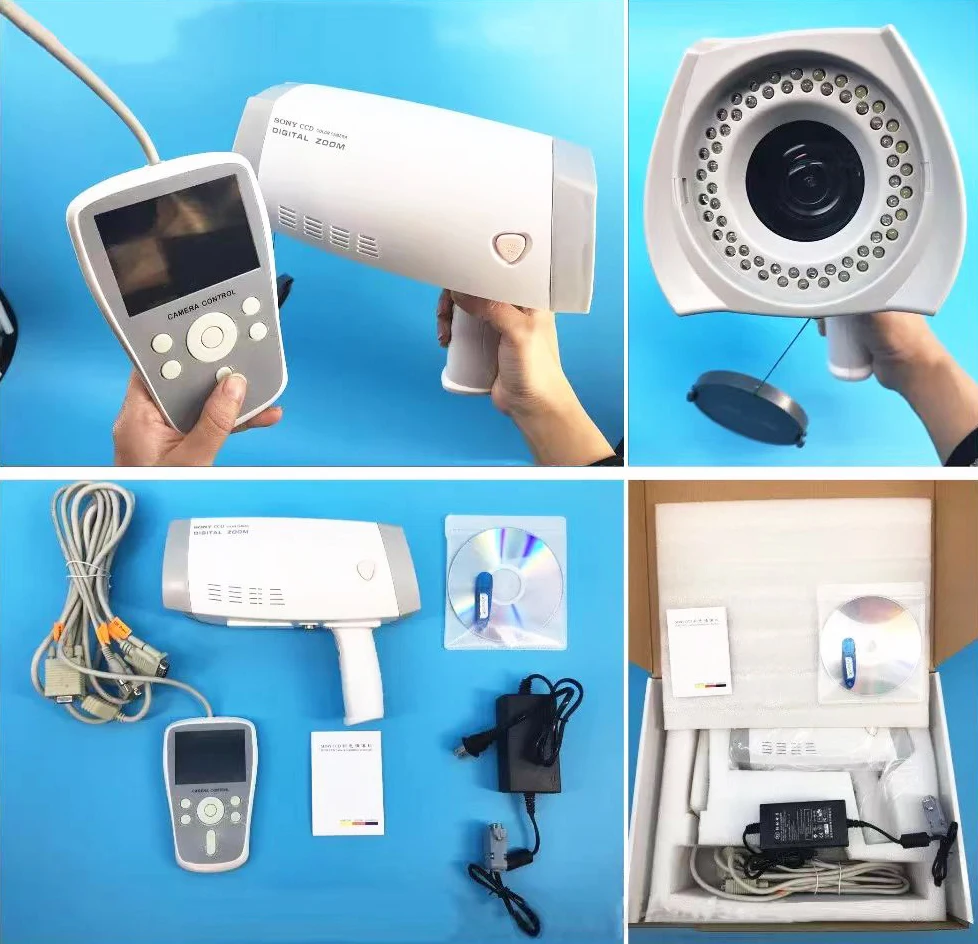

Configuration | ||

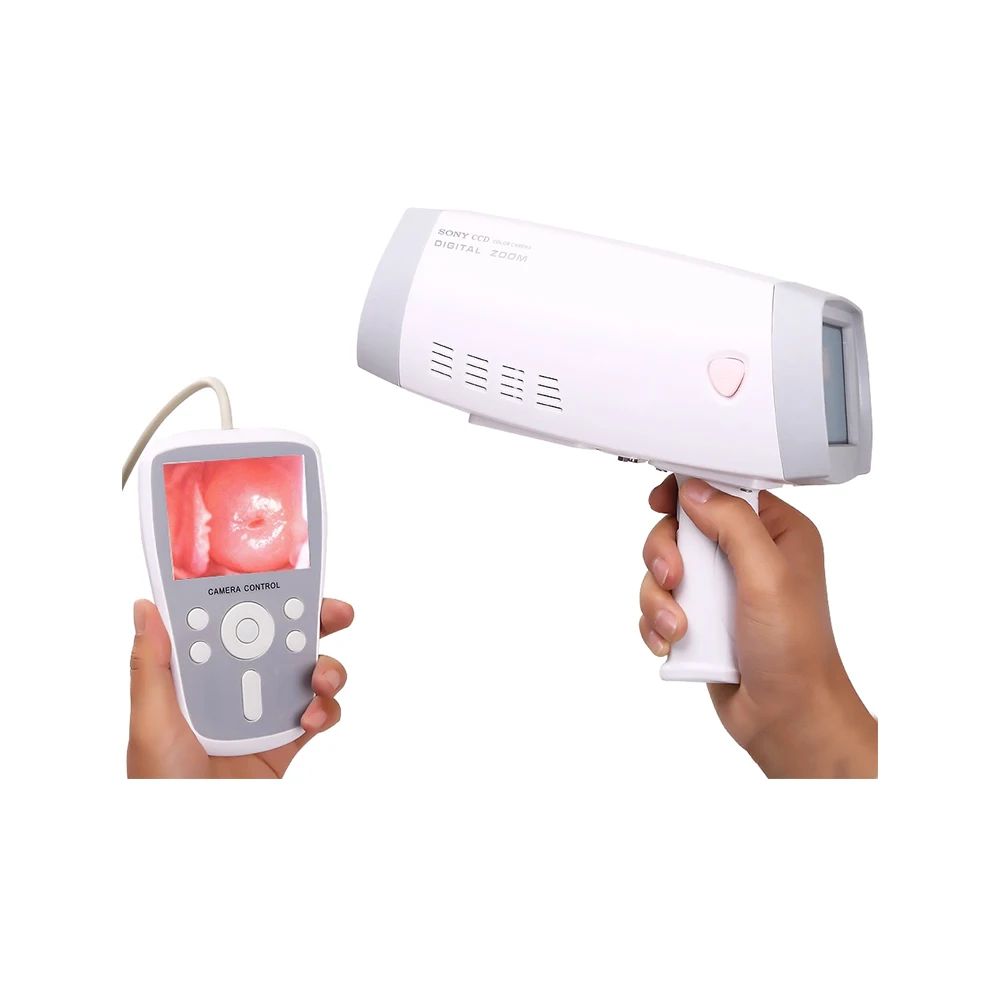

Standard configuration | Colposcope | |

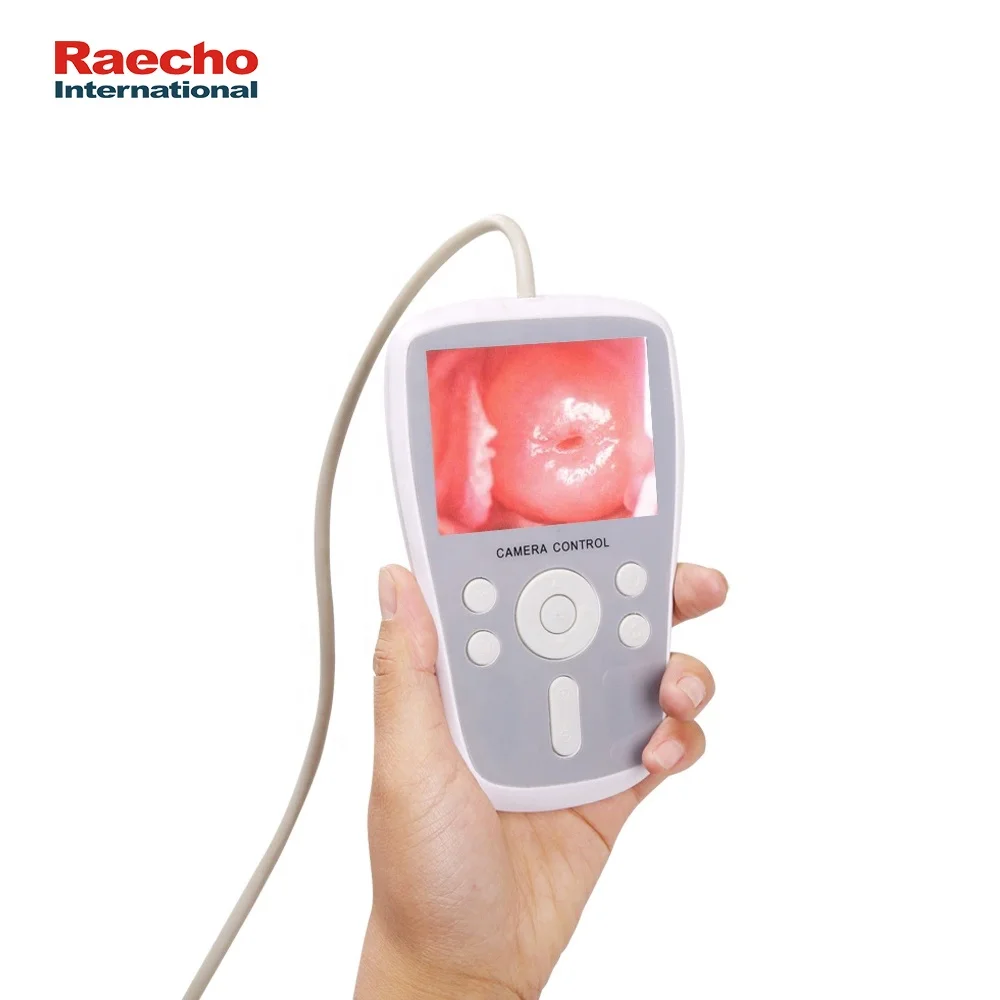

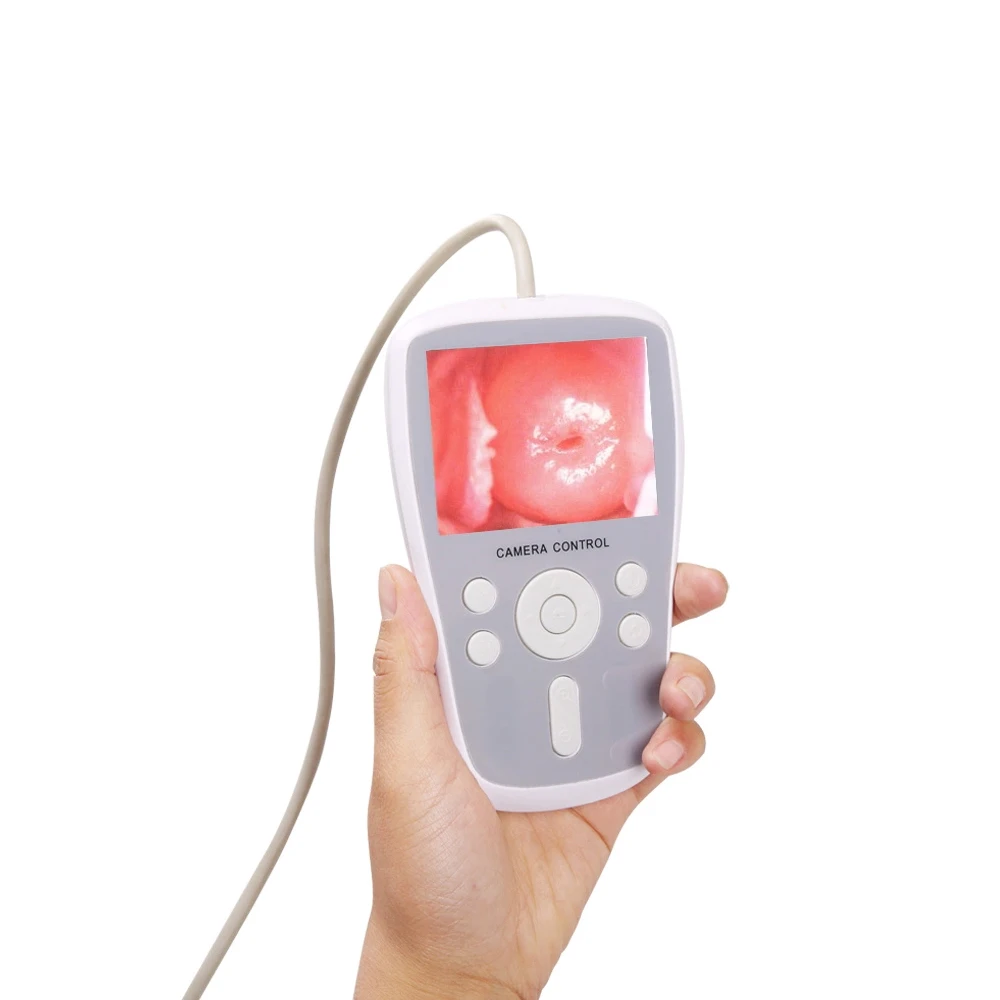

Camera control screen | ||
Optional configuration | Monitor | |
SONY UP-897MD thermal Printer | ||

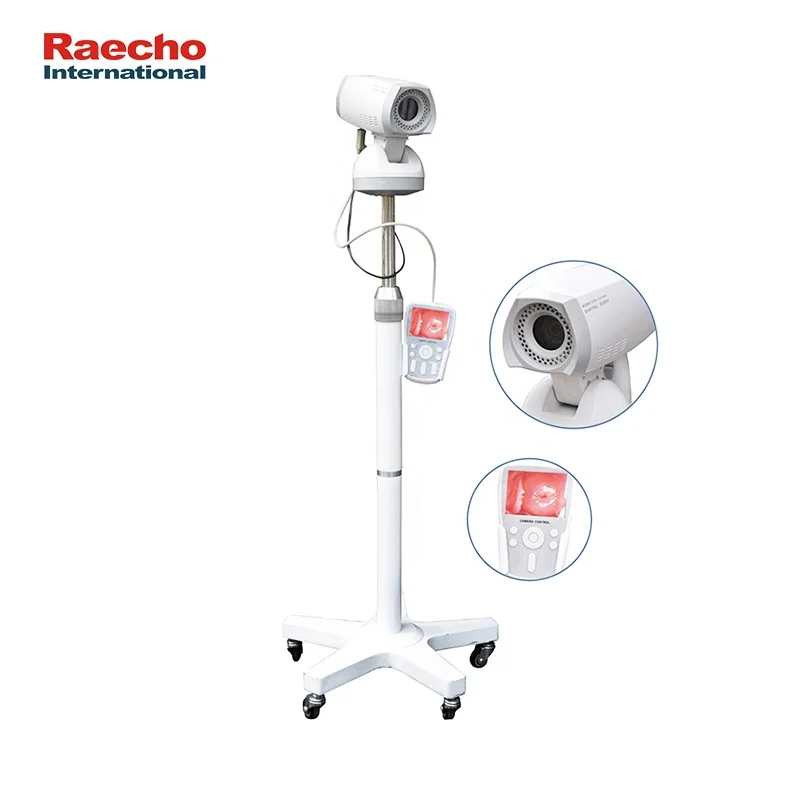

Trolley | ||
Software | ||
Supporting system | Windows | |
Windows xp | ||
Vista | ||
Technical Specification | ||

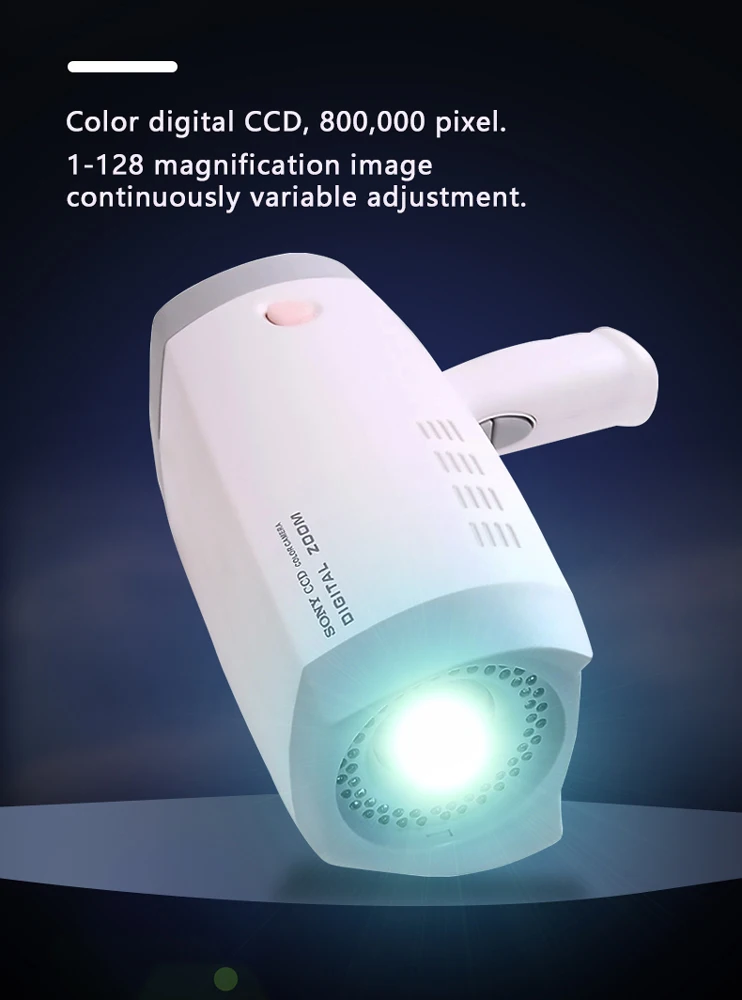

Lens resolution | 1/4"super HAD color CCD,80,0000 pixel | |
Lens axial resolution | 470 lines | |
Lens S/N | 50dB | |
Lens focus distance | standard 100~400mm; support: 10*1000mm | |
Lens zoom | 1~128 | |
Lens fouse | AF/MF | |
Lens white balance | AWB | |

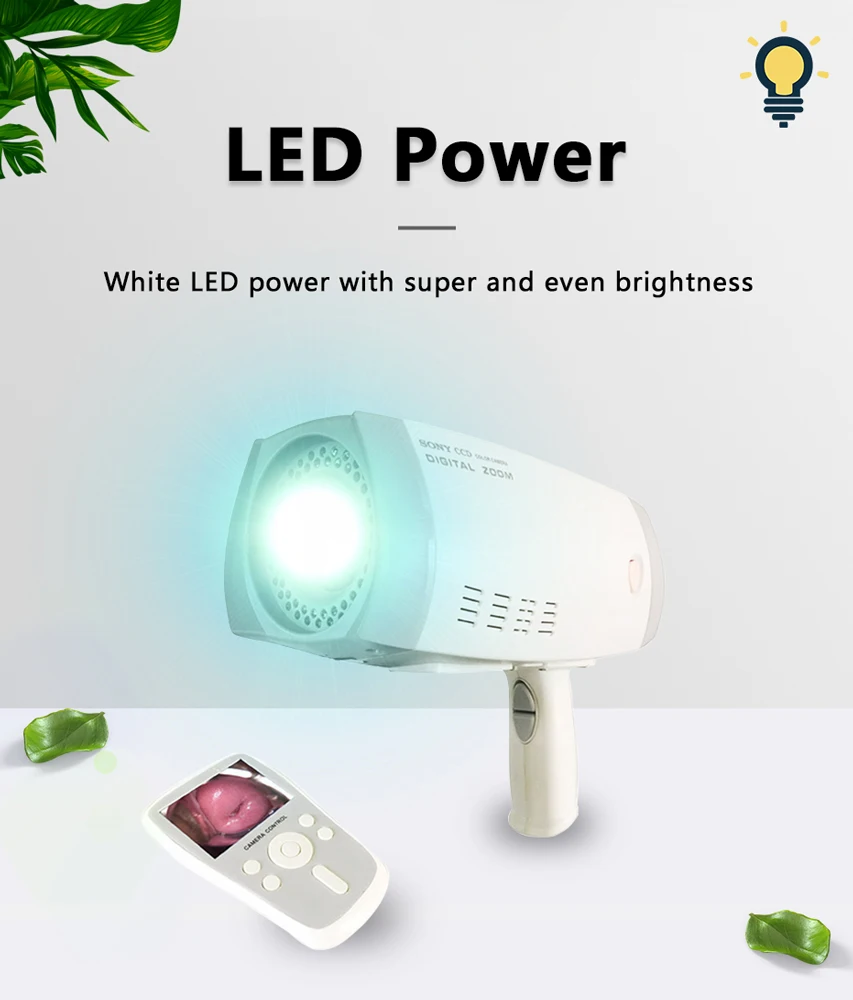

lens lighter type | LED | |
lens image output interface | Video, S-video, PAL | |
lens video-output | PAL, VBS-standard 1.0Vp-p | |
Power Requirements | AC220V±10% | |
Power Rating | 500W | |
Brightness adjustment | Automatic electronic shutter | |
Ambient temperature | -40℃ to+50℃ | |
Storage temperature | -20℃ to+60℃ | |
Relative Humidity | 30~80%RH | |
